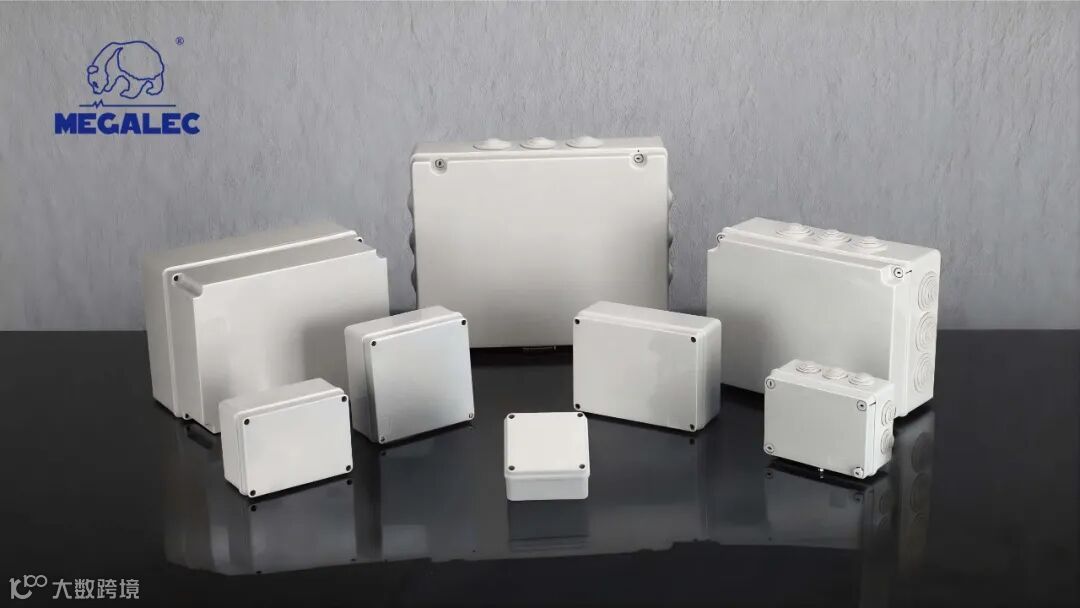

As a key component in industrial and engineering projects, waterproof junction boxes play a key role in ensuring the safety and stability of electrical connections and effectively preventing hidden dangers such as leakage and short circuit caused by water seepage. This paper will systematically analyze its waterproof principle, explain the performance of high-quality products, and provide practical guidance for type selection.
1. Waterproof design and realization
Principle
The sealing performance of waterproof junction box is mainly realized by material selection and structural design.
1. Material protection
The box body is often made of ABS engineering plastics, glass fiber polyester or stainless steel, which have excellent moisture-proof and corrosion-resistant characteristics. The inlet is equipped with a high-precision waterproof joint to block the infiltration of water vapor and liquid from the source.
2. Structural seal
A sealing ring made of silica gel is arranged at the joint of the box body to form a sealed space after fastening and effectively isolate external water vapor. It has undergone strict waterproof testing before leaving the factory, such as continuous pressure stabilization testing (such as 72 hours without leakage and deformation under 0.4 MPa pressure) to ensure its reliability in actual working conditions.
2. Key elements of model selection
1. Sealing level certification
Waterproof performance can be judged by IP protection level identification. The first digit represents the level of resistance to solid intrusion, and the second digit represents the ability to resist water. When selecting the type, the corresponding grade should be determined according to the actual environmental requirements (such as humidity, splashing, soaking, etc.). At the same time, attention should be paid to the temperature resistance, expansion and compression resistance of the sealing apron.
From IP44 to IP68, different levels correspond to different protection requirements. Our waterproof box adopts IP68 top protection standard, which is completely dustproof and can work stably for a long time at a specified water depth. With high-performance sealing rings, it builds a protective barrier for precision components.
2. Performance core embodiment
A high-performance waterproof junction box, its advantages lie not only in parameters, but also in long-term reliability and detailed craftsmanship:
Material and process: The high-quality box body should have high strength and excellent weather resistance, UV resistance and chemical corrosion resistance to ensure that it is not easy to age or brittle in harsh environments.
Precision structure: The fit between the box cover and the box body is extremely high, the locking device (such as screws or buckles) is reasonably designed, and can exert uniform pressure to make the sealing ring compressed fully and persistently, avoiding gaps due to uneven force.
Reliability of sealing system: The material of the sealing ring needs to be elastic and durable, and can still be restored to the original state after long-term pressure and temperature fluctuations, so as to prevent sealing failure due to material fatigue. Overall verification: In addition to standard IP tests, high-quality products often undergo more stringent environmental simulation tests (such as high and low temperature cycles, salt spray tests, mechanical shock vibrations, etc.) to prove their protection stability throughout their life cycle.
3. Confirmation of size specifications
When purchasing, it is necessary to clearly distinguish the overall size of the product from the available space inside. Mistaking the outer dimension as the installation volume may lead to wiring difficulties. It is recommended to measure in advance and reserve enough wiring space to ensure equipment compatibility and ease of operation. By understanding the above waterproof mechanism and performance keys, and selecting models based on actual application requirements, the operating safety and service life of electrical equipment in complex environments can be significantly improved. If there are specific working conditions or technical parameters that need to be further matched, please feel free to contact us.
