第二篇:轮胎的规格和分类 Specification and classification of tyres

第二篇:轮胎的规格和分类
Specification and classification of tyres XCMG Auto International
2021-10-25
1
导读:通过第一章节,相信你一定对轮胎标识有了一定的了解。其实,熟悉轮胎的规格和分类也是很有必要的。让我们一起来看看

通过第一章节,相信你一定对轮胎标识有了一定的了解。其实,熟悉轮胎的规格和分类也是很有必要的。

让我们一起来看看下面的图片吧,相信它可以在必要的时候,帮您选择适配的轮胎。

Throughthe first chapter, I believe you must have a certain understanding of tiremarkings. In fact, familiar with the specifications and classification of tiresis also necessary.

Let'stake a look at the picture below to help you choose the right tire ifnecessary.

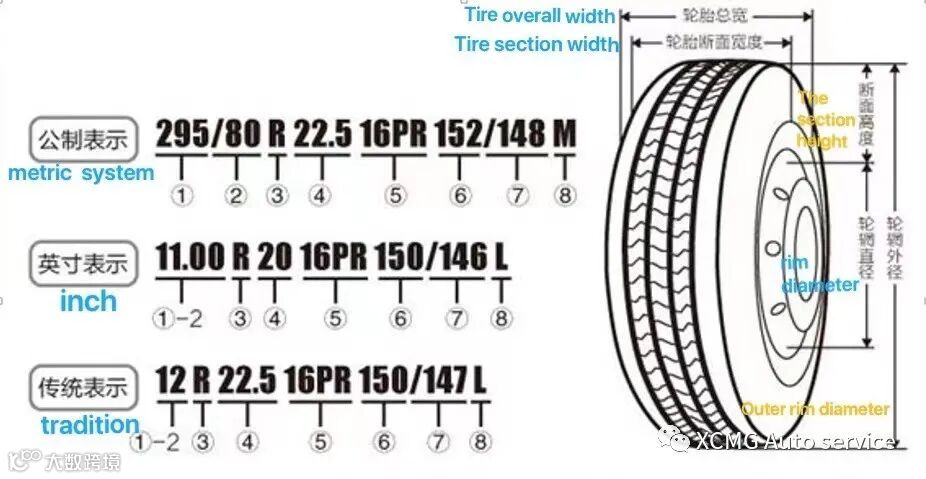

   规格     specification


1.轮胎宽度(mmTyre Width(mm)

1-2.轮胎宽度(英寸)Tyre width(in inches)

2.扁平率Flatness rate:(H÷W=0.8=80%

3.轮胎构造记号(R=子午线;无=斜胶贴)

Tire construction markR= meridian; No display= Oblique adhesive tape

4.合适的轮胎直径(英寸)Suitabletire diameter(in inches)

5.轮胎强度标示 Tire strength

6.负荷指数(单轮使用时)Load indexwhen using asingle tire

7.负荷指数(复轮使用时)Load indexwhen using amultiple tires

8.速度记号 Speed markerL=120km/h

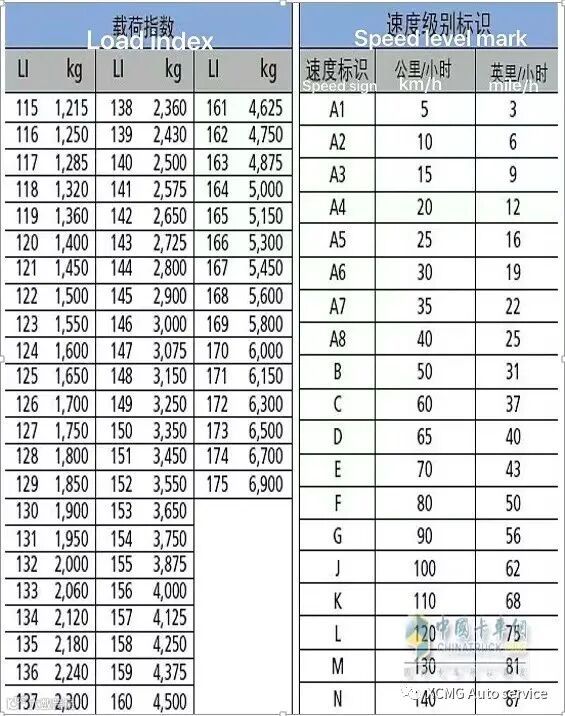

*负荷指数及速度等级相关指数见下表

*The relevant indices are as follows(Load index and Speed marker)

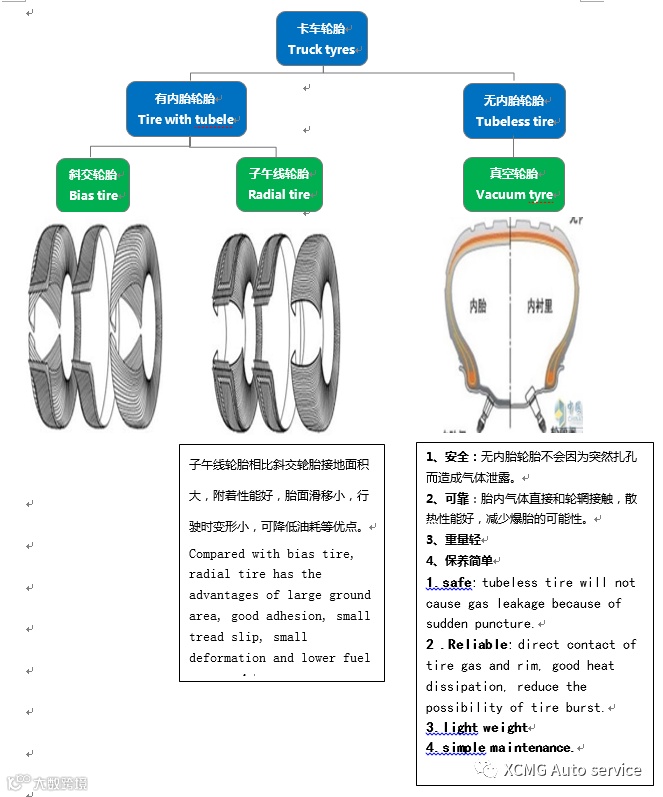

        分类   classification
