SpringBoot整合Atomikos实现分布式事务一种不错的实现方案

Spring全家桶实战案例

2023-09-22

导读：SpringBoot整合Atomikos多数据源分布式事

环境：JDK8+2.4.12+Atomikos+JPA

依赖管理

pom.xml

<properties>  <java.version>1.8</java.version></properties>
<dependencies>    <dependency>  <groupId>org.springframework.boot</groupId>  <artifactId>spring-boot-starter-web</artifactId>    </dependency>
    <dependency>  <groupId>mysql</groupId>  <artifactId>mysql-connector-java</artifactId>    </dependency>    <dependency>  <groupId>com.alibaba</groupId>  <artifactId>fastjson</artifactId>  <version>1.2.12</version>    </dependency>    <dependency>  <groupId>com.github.pagehelper</groupId>  <artifactId>pagehelper</artifactId>  <version>5.2.0</version>    </dependency>    <dependency>  <groupId>org.springframework.boot</groupId>  <artifactId>spring-boot-starter-data-jpa</artifactId>    </dependency>    <dependency>  <groupId>org.springframework.boot</groupId>  <artifactId>spring-boot-starter-jta-atomikos</artifactId>    </dependency>    <dependency>  <groupId>org.springframework.boot</groupId>    <artifactId>spring-boot-starter-test</artifactId>  <scope>test</scope>  <exclusions>    <exclusion>      <groupId>org.junit.vintage</groupId>      <artifactId>junit-vintage-engine</artifactId>    </exclusion>  </exclusions>    </dependency>    <dependency>  <groupId>org.springframework.boot</groupId>  <artifactId>spring-boot-configuration-processor</artifactId>  <optional>true</optional>    </dependency></dependencies>

application.yml

server:  port: 9101---spring:  application:    name: atomikos---spring:  jta:    enabled: true  datasource:    account:      resourceName: accountResource      dsClassName: com.mysql.cj.jdbc.MysqlXADataSource      url: jdbc:mysql://localhost:3306/account?serverTimezone=GMT%2B8&useSSL=false      username: root      password: 123123    storage:      resourceName: storageResource      dsClassName: com.mysql.cj.jdbc.MysqlXADataSource      url: jdbc:mysql://localhost:3306/storage?serverTimezone=GMT%2B8&useSSL=false      username: root      password: 123123---spring:  jpa:    generateDdl: false    hibernate:      ddlAuto: update    openInView: true    show-sql: true    properties:      hibernate:        physical_naming_strategy: org.springframework.boot.orm.jpa.hibernate.SpringPhysicalNamingStrategy        dialect: org.hibernate.dialect.MySQL5Dialect        transaction:          jta:            platform: com.pack.jpa.config.AtomikosJtaPlatform  #处理事务的类  hibernate不提供 需要自己写 需要继承 AbstractJtaPlatform[这里要注意 这里写的是这个类的全路径]      javax:        persistence:          transactionType: JTA  #指明事务处理类型---debug: false

这里如果不配置physical_naming_strategy

这里配置了两个数据源，account库和storage库

数据源配置

数据源属性文件：

@Datapublic class BaseDataSourceProperties {  private String resourceName ;  private String dsClassName ;  private String driver ;  private String url ;  private String username ;  private String password ;}

Account库属性文件：

@Component@ConfigurationProperties(prefix = "spring.datasource.account")public class AccountDataSourceProperties extends BaseDataSourceProperties {}

Storage库属性文件：

@Component@ConfigurationProperties(prefix = "spring.datasource.storage")public class StorageDataSourceProperties extends BaseDataSourceProperties {}

数据源配置：

@Configurationpublic class DataSourceConfig {    @Bean(name = "accountDataSource", initMethod = "init", destroyMethod = "close")  @Primary  public DataSource accountDataSource(AccountDataSourceProperties props) {    AtomikosDataSourceBean ds = new AtomikosDataSourceBean() ;    ds.setUniqueResourceName(props.getResourceName()) ;    ds.setXaDataSourceClassName(props.getDsClassName()) ;    Properties xaProperties = new Properties() ;    xaProperties.setProperty("url", props.getUrl()) ;    xaProperties.setProperty("user", props.getUsername()) ;    xaProperties.setProperty("password", props.getPassword()) ;    ds.setXaProperties(xaProperties) ;    ds.setMinPoolSize(10) ;    ds.setMaxPoolSize(10) ;    ds.setBorrowConnectionTimeout(30) ;    ds.setMaxLifetime(60) ;    ds.setMaintenanceInterval(60) ;    return ds ;  }    @Bean(name = "storageDataSource", initMethod = "init", destroyMethod = "close")  public DataSource storageDataSource(StorageDataSourceProperties props) {    AtomikosDataSourceBean ds = new AtomikosDataSourceBean() ;    ds.setUniqueResourceName(props.getResourceName()) ;    ds.setXaDataSourceClassName(props.getDsClassName()) ;    Properties xaProperties = new Properties() ;    xaProperties.setProperty("url", props.getUrl()) ;    xaProperties.setProperty("user", props.getUsername()) ;    xaProperties.setProperty("password", props.getPassword()) ;    ds.setXaProperties(xaProperties) ;    ds.setMinPoolSize(10) ;    ds.setMaxPoolSize(10) ;    ds.setBorrowConnectionTimeout(30) ;    ds.setMaxLifetime(60) ;    ds.setMaintenanceInterval(60) ;    return ds ;  }  }

JPA配置

public class EntityManagerFactoryConfig {
  @Configuration  @EnableJpaRepositories(basePackages = {"com.pack.account.repository"}, entityManagerFactoryRef = "accountEntityManagerFactory",      transactionManagerRef = "transactionManager")  @DependsOn("transactionManager")  static class AccountEntityManagerFactory {    @Resource(name = "accountDataSource")    private DataSource accountDataSource;    @Resource    private JpaProperties props ;    private String accountDomainPkg = "com.pack.account.domain";        @Bean    @Primary    public LocalContainerEntityManagerFactoryBean accountEntityManagerFactory(EntityManagerFactoryBuilder builder) {      return builder.dataSource(accountDataSource).packages(accountDomainPkg).persistenceUnit("account")          .properties(props.getProperties()).build();    }
  }
  @Configuration  @EnableJpaRepositories(basePackages = {"com.pack.storage.repository"}, entityManagerFactoryRef = "storageEntityManagerFactory",      transactionManagerRef = "transactionManager")  @DependsOn("transactionManager")  static class StorageEntityManagerFactory {    @Resource(name = "storageDataSource")    private DataSource storageDataSource ;    @Resource    private JpaProperties props ;    private String storageDomainPkg = "com.pack.storage.domain" ;
    @Bean    public LocalContainerEntityManagerFactoryBean storageEntityManagerFactory(EntityManagerFactoryBuilder builder) {      return builder.dataSource(storageDataSource).packages(storageDomainPkg).persistenceUnit("storage")          .properties(props.getProperties()).build();    }
  }
}

事务配置：

public class AtomikosJtaPlatform extends AbstractJtaPlatform {
  private static final long serialVersionUID = 1L;
  public static TransactionManager transactionManager;  public static UserTransaction transaction;
  @Override  protected TransactionManager locateTransactionManager() {    return transactionManager;  }
  @Override  protected UserTransaction locateUserTransaction() {    return transaction;  }
}

@Configurationpublic class TxConfig {    @Bean(name = "userTransaction")  public UserTransaction userTransaction() throws Throwable {    UserTransactionImp userTransactionImp = new UserTransactionImp();    userTransactionImp.setTransactionTimeout(10000);    return userTransactionImp;  }
  @Bean(name = "atomikosTransactionManager", initMethod = "init", destroyMethod = "close")  public TransactionManager atomikosTransactionManager() throws Throwable {    UserTransactionManager userTransactionManager = new UserTransactionManager();    userTransactionManager.setForceShutdown(false);    return userTransactionManager;  }
  @Bean(name = "transactionManager")  @DependsOn({ "userTransaction", "atomikosTransactionManager" })  public PlatformTransactionManager transactionManager() throws Throwable {    UserTransaction userTransaction = userTransaction();    TransactionManager atomikosTransactionManager = atomikosTransactionManager();    return new JtaTransactionManager(userTransaction, atomikosTransactionManager);  }  }

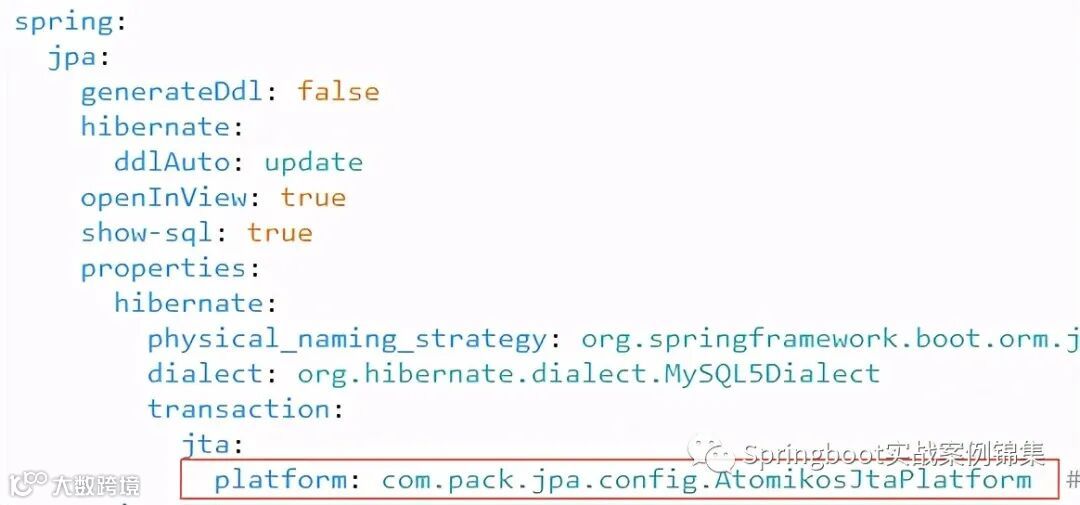

注意AtomikosJtaPlatform类就是我们的事务处理类，对应如下的配置：

实体类

@Entity@Table(name = "t_account")public class Account {
    @Id    private Long id;    private String userId;    private BigDecimal money;}

@Entity@Table(name = "t_storage")public class Storage {
    @Id    private Long id;    private String commodityCode;    private Integer count;}

DAO及Service

public interface AccountRepository extends JpaRepository<Account, Long>, JpaSpecificationExecutor<Account> {}public interface StorageRepository extends JpaRepository<Storage, Long>, JpaSpecificationExecutor<Storage> {}

@Servicepublic class AccountService {  @Resource  private AccountRepository accountRepository ;     @Transactional  public void saveAccount(Account account) {    accountRepository.save(account) ;  }  }

@Servicepublic class StorageService {    @Resource  private StorageRepository storageRepository ;    @Transactional  public void saveStorage(Storage storage) {    storageRepository.save(storage) ;  }  }

@Servicepublic class OperatorService {
  @Resource  private AccountService accountService ;  @Resource  private StorageService storageService ;    @Transactional  public void save(Account account, Storage storage) {    accountService.saveAccount(account) ;    if (storage.getCount() == 0) {      throw new RuntimeException("库存数量错误0") ;    }    storageService.saveStorage(storage) ;    if (storage.getCount() == -1) {      throw new RuntimeException("库存数量错误-1") ;    }  }  }

OperatorService分别调用两个服务类。这里的@Transactional 必须有，如果没有即便是该方法抛出了异常也能数据保存成功。

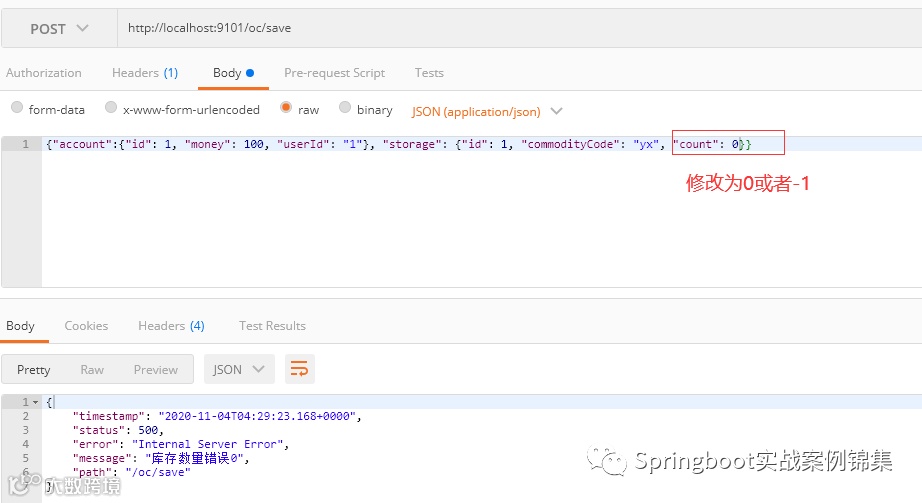

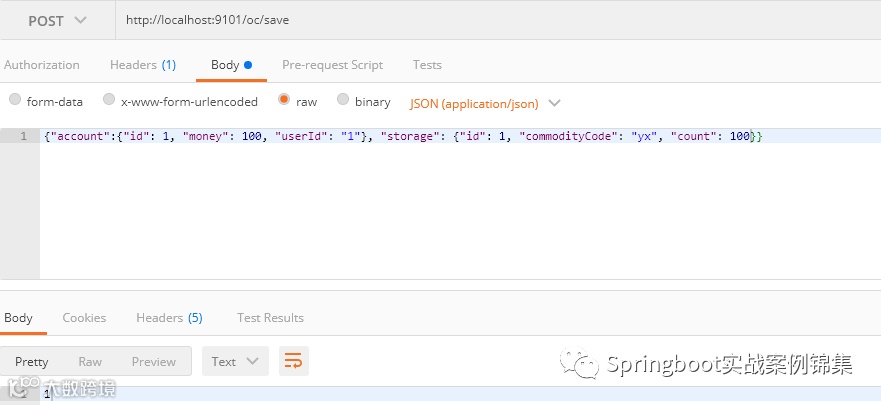

测试：

@RestController@RequestMapping("/oc")public class OperatorController {    @Resource  private OperatorService os ;    @PostMapping("/save")  public Object save(@RequestBody OperatorDTO dto) {    os.save(dto.getAccount(), dto.getStorage()) ;    return "1" ;  }  }
