深入浅出思科VPP24.02系列：buffer模块vlib_buffer_main_init逻辑介绍-Part I

通信行业搬砖工

2024-10-24

导读：本章节我们继续深入浅出思科VPP24.02的buffer初始化部分的内容，感兴趣小伙伴，欢迎关注公众号：通信行业搬砖工！

01=

上期内容回顾

在往期的内容中，我们介绍了思科VPP软件初始化内存的核心函数vlib_stats_init()函数的业务逻辑介绍，

Ubuntu系统编译思科VPP24.02演示

Ubuntu系统运行VPP24.02系列：startup.conf配置文件解读

深入浅出思科VPP24.02系列：vlib_unix_main初始化介绍

深入浅出思科VPP24.02系列：thread0函数业务逻辑介绍

深入浅出思科VPP24.02系列：vlib_main函数业务逻辑介绍

深入浅出思科VPP24.02系列：内存初始化vlib_physmem_init逻辑介绍

深入浅出思科VPP24.02系列：日志模块vlib_log_init逻辑介绍

深入浅出思科VPP24.02系列：统计模块vlib_stats_init逻辑介绍

本期我们将继续深入浅出思科vpp24.02系列专题，介绍VPP的buffer模块的初始化的函数的业务逻辑介绍。

02=

vlib_buffer_main_init函数介绍

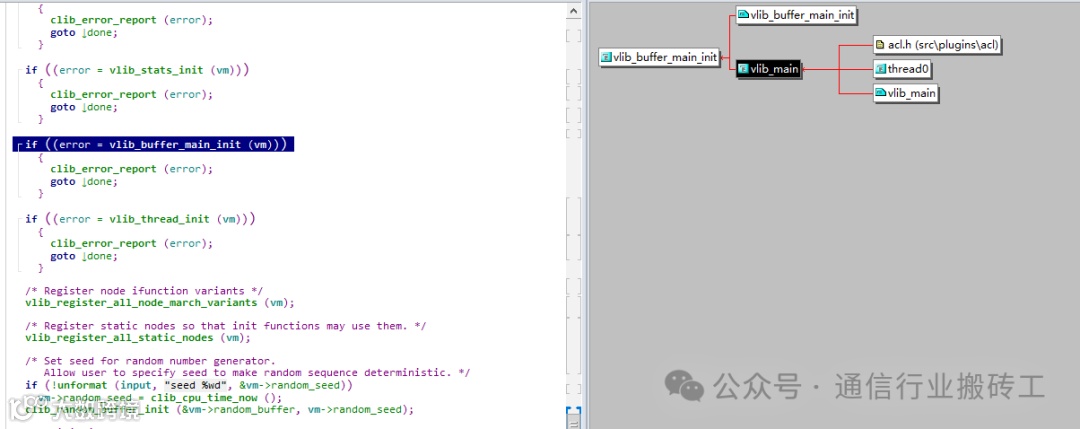

在往期的内容中，我们介绍了思科VPP软件对日志功能的初始化的函数vlib_buffer_main_init()的业务逻辑介绍，其在vlib_main()中备调用的。

其初始化逻辑代码如下所示：

clib_error_t *vlib_buffer_main_init (struct vlib_main_t * vm){  vlib_buffer_main_t *bm;  clib_error_t *err = 0;  clib_bitmap_t *bmp = 0, *bmp_has_memory = 0;  u32 numa_node;  vlib_buffer_pool_t *bp;  u8 *name = 0, first_valid_buffer_pool_index = ~0;
  vlib_buffer_main_alloc (vm);
  bm = vm->buffer_main;  bm->log_default = vlib_log_register_class ("buffer", 0);  bm->ext_hdr_size = __vlib_buffer_external_hdr_size;
  clib_spinlock_init (&bm->buffer_known_hash_lockp);
  bmp = os_get_online_cpu_node_bitmap ();  bmp_has_memory = os_get_cpu_with_memory_bitmap ();
  if (bmp && bmp_has_memory)    bmp = clib_bitmap_and (bmp, bmp_has_memory);
  /* no info from sysfs, assuming that only numa 0 exists */  if (bmp == 0)    bmp = clib_bitmap_set (bmp, 0, 1);
  if (clib_bitmap_last_set (bmp) >= VLIB_BUFFER_MAX_NUMA_NODES)    clib_panic ("system have more than %u NUMA nodes",    VLIB_BUFFER_MAX_NUMA_NODES);
  clib_bitmap_foreach (numa_node, bmp)    {      u8 *index = bm->default_buffer_pool_index_for_numa + numa_node;      index[0] = ~0;
      if (bm->buffers_per_numa[numa_node] == 0)        continue;
      if ((err = vlib_buffer_main_init_numa_node (vm, numa_node, index)))        {          clib_error_report (err);          clib_error_free (err);          continue;        }
      if (first_valid_buffer_pool_index == 0xff)        first_valid_buffer_pool_index = index[0];    }
  if (first_valid_buffer_pool_index == (u8) ~ 0)    {      err = clib_error_return (0, "failed to allocate buffer pool(s)");      goto done;    }
  clib_bitmap_foreach (numa_node, bmp)    {      if (bm->default_buffer_pool_index_for_numa[numa_node]  == (u8) ~0)        bm->default_buffer_pool_index_for_numa[numa_node] =          first_valid_buffer_pool_index;    }
  vec_foreach (bp, bm->buffer_pools)  {    vlib_stats_collector_reg_t reg = { .private_data = bp - bm->buffer_pools };    if (bp->n_buffers == 0)      continue;
    reg.entry_index =      vlib_stats_add_gauge ("/buffer-pools/%v/cached", bp->name);    reg.collect_fn = buffer_gauges_collect_cached_fn;    vlib_stats_register_collector_fn (&reg);
    reg.entry_index = vlib_stats_add_gauge ("/buffer-pools/%v/used", bp->name);    reg.collect_fn = buffer_gauges_collect_used_fn;    vlib_stats_register_collector_fn (&reg);
    reg.entry_index =      vlib_stats_add_gauge ("/buffer-pools/%v/available", bp->name);    reg.collect_fn = buffer_gauges_collect_available_fn;    vlib_stats_register_collector_fn (&reg);  }
done:  vec_free (bmp);  vec_free (bmp_has_memory);  vec_free (name);  return err;}

函数声明：clib_error_t *vlib_buffer_main_init (vlib_main_t *vm)；

返回值：返回clib_error_t 类型给初始化模块。

03=

函数工程意义分析

1、内存分配和初始化：使用vlib_buffer_main_alloc函数为vlib_buffer_main_t结构体分配内存。初始化日志系统、外部头部大小以及自旋锁。

  vlib_buffer_main_t *bm;  clib_error_t *err = 0;  clib_bitmap_t *bmp = 0, *bmp_has_memory = 0;  u32 numa_node;  vlib_buffer_pool_t *bp;  u8 *name = 0, first_valid_buffer_pool_index = ~0;
  vlib_buffer_main_alloc (vm);
  bm = vm->buffer_main;  bm->log_default = vlib_log_register_class ("buffer", 0);  bm->ext_hdr_size = __vlib_buffer_external_hdr_size;
  clib_spinlock_init (&bm->buffer_known_hash_lockp);

调用vlib_buffer_main_alloc 函数，从heap上分配空间并且初始化，并且将data_size的默认值设置为2K。

void vlib_buffer_main_alloc (vlib_main_t * vm){  vlib_buffer_main_t *bm;
  if (vm->buffer_main)    return;
  vm->buffer_main = bm = clib_mem_alloc (sizeof (bm[0]));  clib_memset (vm->buffer_main, 0, sizeof (bm[0]));  bm->default_data_size = VLIB_BUFFER_DEFAULT_DATA_SIZE;}

2、NUMA节点处理：通过os_get_online_cpu_node_bitmap和os_get_cpu_with_memory_bitmap函数获取系统中CPU和带有内存的CPU节点位图。

bmp = os_get_online_cpu_node_bitmap ();bmp_has_memory = os_get_cpu_with_memory_bitmap ();
if (bmp && bmp_has_memory)  bmp = clib_bitmap_and (bmp, bmp_has_memory);
/* 如果没有获取到这些信息，则假设只有NUMA节点0存在 */if (bmp == 0)  bmp = clib_bitmap_set (bmp, 0, 1);/* 检查NUMA节点数量是否超过最大限制，如果超过则触发panic */if (clib_bitmap_last_set (bmp) >= VLIB_BUFFER_MAX_NUMA_NODES)  clib_panic ("system have more than %u NUMA nodes",    VLIB_BUFFER_MAX_NUMA_NODES);

函数os_get_online_cpu_node_bitmap 逻辑展示：通过读取proc文件系统下的文件来实现。

__clib_export clib_bitmap_t *os_get_online_cpu_node_bitmap (){#if __linux__  return clib_sysfs_read_bitmap ("/sys/devices/system/node/online");#else  return 0;#endif}

函数os_get_cpu_with_memory_bitmap 逻辑展示，通过读取proc文件系统下的文件来实现。

__clib_export clib_bitmap_t *os_get_cpu_with_memory_bitmap (){#if __linux__  return clib_sysfs_read_bitmap ("/sys/devices/system/node/has_memory");#else  return 0;#endif}

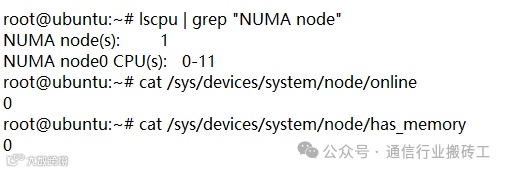

在ubuntu中查询numa信息和上述两个proc文件的信息如下所示：

3、遍历为每个节点初始化缓冲区池索引，该步骤会通过调用初始化函数vlib_buffer_main_init_numa_node 来完成初始化。

clib_bitmap_foreach (numa_node, bmp){  u8 *index = bm->default_buffer_pool_index_for_numa + numa_node;  index[0] = ~0;
  if (bm->buffers_per_numa[numa_node] == 0)    continue;
  if ((err = vlib_buffer_main_init_numa_node (vm, numa_node, index)))  {    clib_error_report (err);    clib_error_free (err);    continue;  }
  if (first_valid_buffer_pool_index == 0xff)    first_valid_buffer_pool_index = index[0];}

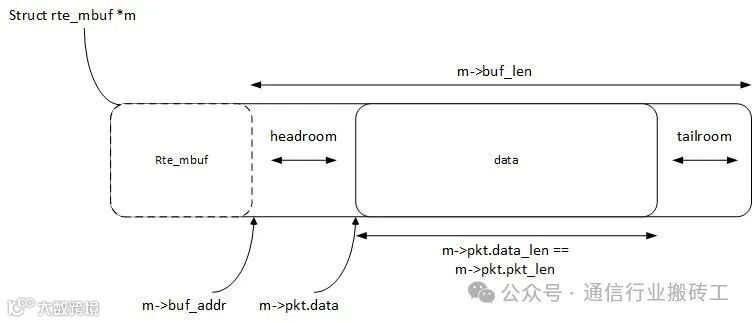

在解释该部分代码逻辑之前，我们先介绍buffer相关的知识：dpdk收到的数据包用rte_mbuf结构描述。vpp为了兼容其它收包node（netmap，pcap等）改为使用vlib_buffer_t来描述数据包。

函数vlib_buffer_main_init_numa_node 逻辑介绍：

static clib_error_t *vlib_buffer_main_init_numa_node (struct vlib_main_t *vm, u32 numa_node,         u8 * index){  /* 从vm中获取buffer_main结构体的指针 */  vlib_buffer_main_t *bm = vm->buffer_main;  u32 physmem_map_index;  clib_error_t *error;  /* 当未配置page_size时，执行该逻辑 */  if (bm->log2_page_size == CLIB_MEM_PAGE_SZ_UNKNOWN)    {      /* 尝试使用默认值进行分配 CLIB_MEM_PAGE_SZ_DEFAULT_HUGE */      error = vlib_buffer_main_init_numa_alloc (vm, numa_node,            &physmem_map_index,            CLIB_MEM_PAGE_SZ_DEFAULT_HUGE,            0 /* unpriv */ );      if (!error)        goto buffer_pool_create;
      /* If alloc failed, retry without hugepages */      vlib_log_warn (bm->log_default,         "numa[%u] falling back to non-hugepage backed "         "buffer pool (%U)", numa_node, format_clib_error, error);      clib_error_free (error);
      error = vlib_buffer_main_init_numa_alloc (vm, numa_node,            &physmem_map_index,            CLIB_MEM_PAGE_SZ_DEFAULT,            1 /* unpriv */ );    }  else /* 如果在配置page_size的场景下，使用配置的值进行分配 */    error = vlib_buffer_main_init_numa_alloc (vm, numa_node,                &physmem_map_index,                bm->log2_page_size,                0 /* unpriv */ );  if (error)    return error;
buffer_pool_create:  /* 使用vlib_buffer_pool_create函数创建一个新的缓冲区池。   * 这个函数需要缓冲区数据的大小（通过vlib_buffer_get_default_data_size获取）、   * 物理内存映射索引（之前分配内存时得到的）、以及一个格式化的名称）。   */  *index =    vlib_buffer_pool_create (vm, vlib_buffer_get_default_data_size (vm),           physmem_map_index, "default-numa-%d", numa_node);  /* 如果创建的缓冲区池索引为(u8) ~ 0（即255，表示无符号8位整数的最大值），则表示达到了最大缓冲区池数量，此时函数返回一个错误 */  if (*index == (u8) ~ 0)    error = clib_error_return (0, "maximum number of buffer pools reached");
  return error;}

在函数vlib_buffer_main_init_numa_alloc 的逻辑：

static clib_error_t *vlib_buffer_main_init_numa_alloc (struct vlib_main_t *vm, u32 numa_node,          u32 * physmem_map_index,          clib_mem_page_sz_t log2_page_size,          u8 unpriv){  vlib_buffer_main_t *bm = vm->buffer_main;  u32 default_buffers_per_numa = bm->default_buffers_per_numa;  u32 buffers_per_numa = bm->buffers_per_numa[numa_node];  clib_error_t *error;  u32 buffer_size;  uword n_pages, pagesize;  u8 *name = 0;
  ASSERT (log2_page_size != CLIB_MEM_PAGE_SZ_UNKNOWN);
  pagesize = clib_mem_page_bytes (log2_page_size);  buffer_size = vlib_buffer_alloc_size (bm->ext_hdr_size,          vlib_buffer_get_default_data_size          (vm));  if (buffer_size > pagesize)    return clib_error_return (0, "buffer size (%llu) is greater than page "            "size (%llu)", buffer_size, pagesize);
  if (default_buffers_per_numa == 0)    default_buffers_per_numa = unpriv ?               VLIB_BUFFER_DEFAULT_BUFFERS_PER_NUMA_UNPRIV :               VLIB_BUFFER_DEFAULT_BUFFERS_PER_NUMA;
  if (buffers_per_numa == ~0)    buffers_per_numa = default_buffers_per_numa;
  name = format (0, "buffers-numa-%d%c", numa_node, 0);  n_pages = (buffers_per_numa - 1) / (pagesize / buffer_size) + 1;  error = vlib_physmem_shared_map_create (vm, (char *) name,            n_pages * pagesize,            min_log2 (pagesize), numa_node,            physmem_map_index);  vec_free (name);  return error;}

在这个函数式里面计算了page size和buffer_size以及n_pages的数值:

pagesize = clib_mem_page_bytes (log2_page_size);buffer_size = vlib_buffer_alloc_size (bm->ext_hdr_size,          vlib_buffer_get_default_data_size          (vm));if (buffer_size > pagesize)  return clib_error_return (0, "buffer size (%llu) is greater than page "            "size (%llu)", buffer_size, pagesize);
name = format (0, "buffers-numa-%d%c", numa_node, 0);n_pages = (buffers_per_numa - 1) / (pagesize / buffer_size) + 1;

在我们申请的大页上分配空间

n_pages = (buffers_per_numa - 1) / (pagesize / buffer_size) + 1;error = vlib_physmem_shared_map_create (vm, (char *) name,            n_pages * pagesize,            min_log2 (pagesize), numa_node,            physmem_map_index);

该部分分配的可以通过 show buffer命令读取配置：

static clib_error_t *show_buffers (vlib_main_t *vm, unformat_input_t *input,        vlib_cli_command_t *cmd){  vlib_cli_output (vm, "%U", format_vlib_buffer_pool_all, vm);  return 0;}
VLIB_CLI_COMMAND (show_buffers_command, static) = {  .path = "show buffers",  .short_help = "Show packet buffer allocation",  .function = show_buffers,};
