多功能儿童防坠楼系统
设计初衷
最近一段时间，儿童坠楼的新闻越来越多。我在网上搜索得知，大部分坠楼者为2-6岁。而我2岁的弟弟已经会端着椅子，站在阳台上了。我觉得这样十分不安全。在自学C语言和物联网后，我创作了这个“儿童防坠楼系统”，它可以检测儿童是否进入阳台，开启警报和护栏，并向手机发送信息。
明确目标
结合当前的物联网和硬件，我准备制作一个能检测并分辨儿童进入阳台，如果触摸护栏可以有效防止儿童坠楼，还可以在阳台警告儿童，并将警报信息发送给手机，提醒父母的系统。
探索过程

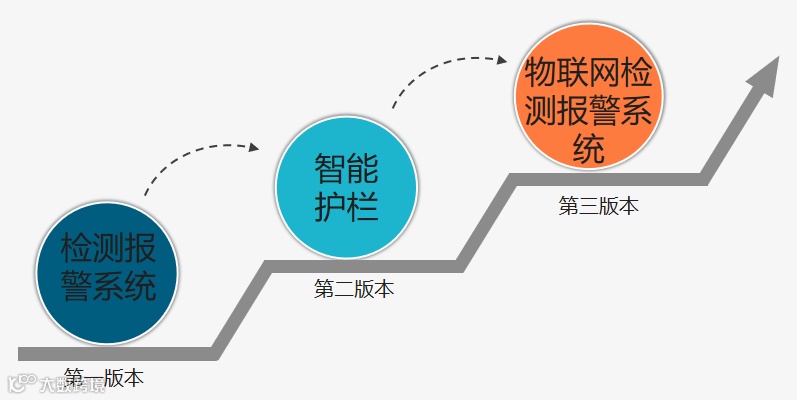

检测报警系统——智能护栏——物联网检测报警系统

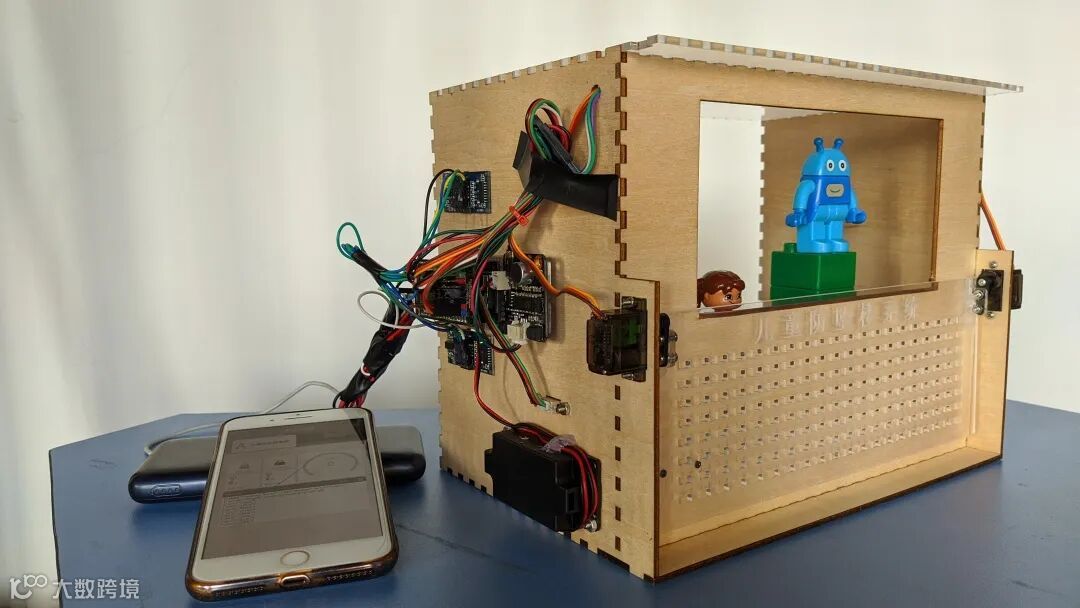

实物图片：

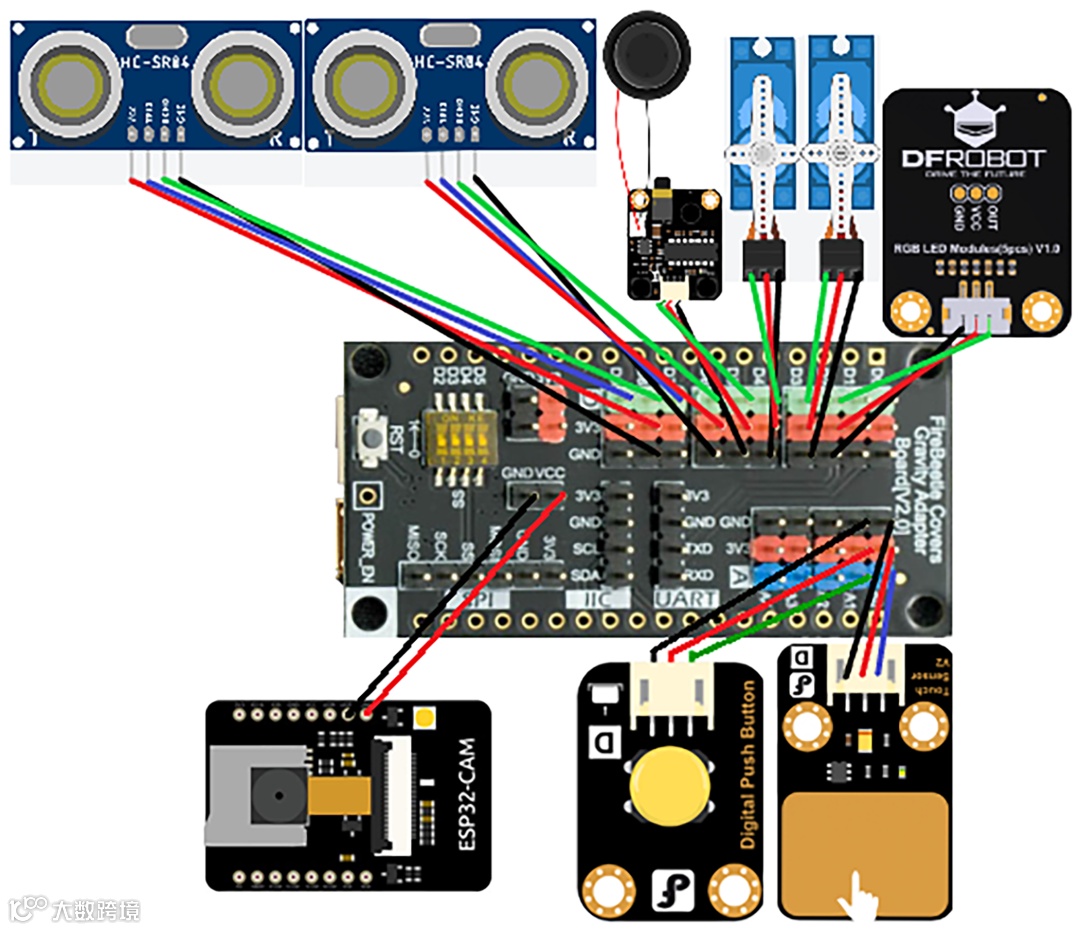

主要部件
它由ESP32主控搭建而成，用了1个FireBeetle主控板（用于WiFi数据传输及控制其他元件），1个ESP32 Cam主控板9（用于WIFI传输视频流)，2个超声波传感器（用于检测儿童），1个触摸传感器（用于检测儿童是否触摸护栏），1个LED灯模块（用于提醒儿童），1个录放音模块（用于储存“宝宝不要在靠前”语音，提醒儿童），1个喇叭（用于播放录音），2个舵机（用于硬隔断护栏的升降）、激光切割外壳（用于模拟阳台）和数个配件组成。
工作原理
它采用了ESP32和Blinker互联的设计，ESP32负责检测及报警，它会收集分析超声波、触摸传感器回传的数据，异常时会声光报警、打开护栏和上传数据。手机端Blinker会根据主控端的数据改变“警报”栏数据颜色、震动提醒，第一时间保证儿童的安全。

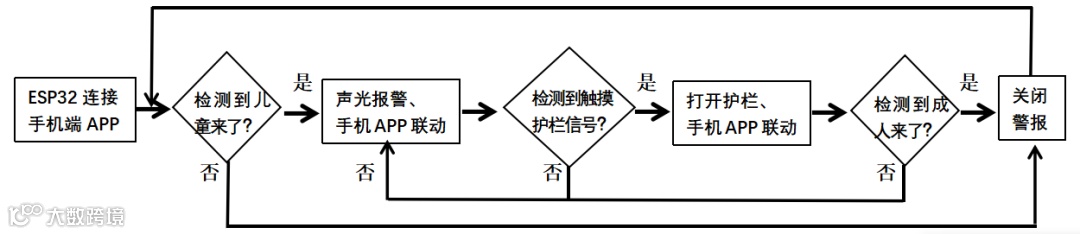

工作机制
2个超声波传感器一高一低布置。当低处的超声波数据变化时，代表儿童进入阳台。黄灯亮起，由录放音模块控制的喇叭播放“宝宝不要再靠前”的语音，手机端的警报栏变成红色，同时振动提醒父母。当儿童触摸阳台最外侧贴有铜板的栏杆时，栏杆外的硬隔断围栏会由2个舵机把护栏打开，防止儿童掉出阳台，手机APP中的护栏数据变化。当2个超声波数据均变化时，代表父母进入阳台，所有警报关闭。

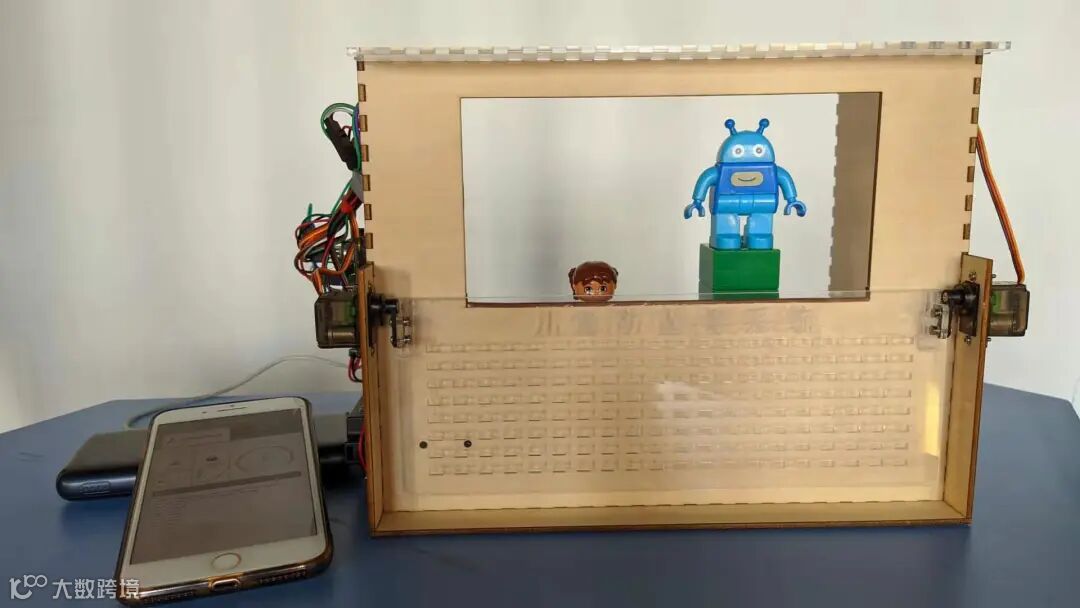

演示过程
首先，我们来演示它的儿童检测功能。当儿童进入阳台时，黄灯亮起，喇叭播放“宝宝不要再靠前”的语音。可以看到手机端的“警报”一栏变成了红色，同时震动提醒父母来保护儿童。当儿童触摸阳台最外侧的护栏时，栏杆外的硬隔断围栏会转动，防止儿童掉出阳台并在手机APP中的“护栏”数据加1，代表护栏已开启，而“警报”栏仍为红色。当父母进入阳台后，警报关闭，手机端“警报”栏变成灰色，报警结束。
检测系统
检测系统由2个超声波传感器组成，按1:10的比例一高一低安装在距底部8厘米和16厘米的位置。主控检测每一个超声波的返回值，与初始数值对比，当有不同时返回1，无不同时返回0。由此可得4种情况：00，01，10，11.其中10表示低处的返回值异常，高处的返回值正常，代表儿童进入阳台。而11就表示父母进入阳台。当父母进入阳台时，触摸传感器自动关闭，就不会产生父母误触发的情况。而当儿童进入阳台后，只有父母进入才能关闭警报。原本的触摸传感器只有一个触摸点，我用铜线将触摸点延长，又将铜线接到铜板上进行检测，形成了“点-线-面”的触摸检测系统。
报警系统
报警系统由光报警、声报警、隔断护栏和手机端报警组成。光报警在正常时是熄灭的，儿童进入阳台时为黄灯亮起，触摸护栏时为红灯亮起。声报警在非正常情况下会播放“宝宝不要再靠前”的语音。隔断护栏在儿童触摸护栏时会由2个舵机把护栏翻上来，防止儿童掉出阳台。手机端报警会在主控传回异常数据时将警报一栏变为红色，并振动提醒。
物联网系统
我采用了Blinker平台的手机端程序，在里面创建了一个“儿童防坠楼系统”设备，用主控板以WiFi的方式连接。在手机端中，主要由警报开关、警报计数器、警报显示器和串口调试器组成。当有异常数据返回时，警报显示器会变成红色，手机震动提醒。
创新要点
网络上未搜索到类似产品。市面上大多数的防坠窗不易安装，影响美观，且会带来安全隐患。本系统能利用身高差和大面积触摸板进行有效检测、及时在手机端和现场进行多处预警，并提供主动防护。
说明

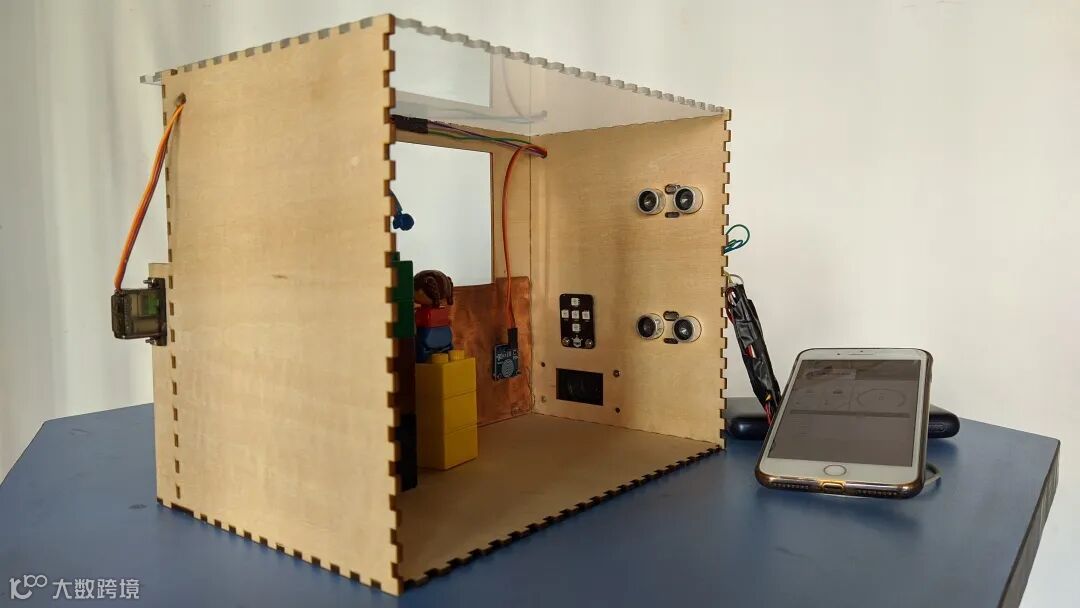

因在真正的阳台处不方便演示，我用激光切割制作了一个阳台模型，使用不同高度的模型小人模拟父母和儿童。在真实的阳台下，大部分功能可以正常运行。
拓展设想：机器人可以增加人脸识别功能，高效准确判断儿童进入，防止误触或错报。还可以加入多样的报警方式，如微信、短信、电话等。增加入室盗窃预警。增加智能晾衣架，形成智能阳台等。
代码
1、FireBeetle ESP32部分：
向上滑动阅览
#define BLINKER_PRINT Serial
#define BLINKER_WIFI
#include <Adafruit_NeoPixel.h>
#include <Blinker.h>
#include <Servo.h>
#include "SR04.h"
char auth[] = "";
char ssid[] = "";
char pswd[] = '";
const int servo1pin = 27;
const int servo2pin = 9;
//bool can_start = false;
#define touch 36
#define TRIG1 25
#define ECHO1 26
#define TRIG2 13
#define ECHO2 5
#define led A4
#define sig 2
#define button 39
//#define start_btn A2
Adafruit_NeoPixel strip = Adafruit_NeoPixel(5, led, NEO_GRB + NEO_KHZ800);
BlinkerButton Button1("btn-1");
BlinkerButton Button2("btn-2");
BlinkerNumber Number1("num-1");
BlinkerNumber Number2("num-2");
BlinkerNumber Number3("num-3");
SR04 sr041 = SR04(ECHO1, TRIG1);
SR04 sr042 = SR04(ECHO2, TRIG2);
Servo servo1;
Servo servo2;
int a, b, count1 = 0, count2 = 0, flag = 0, f1, f2, j;
void setup()
{
Serial.begin(9600);
#if defined(BLINKER_PRINT)
BLINKER_DEBUG.stream(BLINKER_PRINT);
#endif
BLINKER_DEBUG.stream(Serial);
BLINKER_DEBUG.debugAll();
Blinker.begin(auth, ssid, pswd);
Number1.print(count1);
Number2.print(count2);
Number3.print(flag);
Button1.attach(button1_callback);
Button2.attach(button2_callback);
Blinker.attachHeartbeat(heartbeat);
servo1.attach(servo1pin);
servo2.attach(servo2pin);
pinMode(touch, INPUT);
pinMode(button, INPUT);
pinMode(sig, OUTPUT);
//pinMode(start_btn, INPUT);
digitalWrite(sig, LOW);
servo1.write(180);
servo2.write(0);
strip.begin();
strip.show();
for (int i = 0; i <= 5; i++)
{
strip.setPixelColor(i, strip.Color(0, 0, 0));
strip.show();
}
}
void play()
{
digitalWrite(sig, HIGH);
delay(200);
digitalWrite(sig, LOW);
delay(2900);
}
void hulanon()
{
servo1.write(1);
servo2.write(180);
delay(300);
}
void hulanoff()
{
servo1.write(179);
servo2.write(1);
delay(300);
}
void yled()
{
for (int i = 0; i <= 4; i++)
{
strip.setPixelColor(i, strip.Color(255, 255, 0)); // yellow(255, 0, 255) red( 0, 0, 255)
strip.show();
}
}
void rled()
{
for (int i = 0; i <= 4; i++)
{
strip.setPixelColor(i, strip.Color(255, 0, 0));
strip.show();
}
}
void bled()
{
for (int i = 0; i <= 4; i++)
{
strip.setPixelColor(i, strip.Color(0, 0, 0));
strip.show();
}
}
void heartbeat()
{
Number1.print(count1);
Number2.print(count2);
Number3.print(flag);
}
void button1_callback(const String & state)
{
BLINKER_LOG("button1:", state);
count1++;
if (count1 % 2 == 1)
{
rled();
play();
flag = 1;
Blinker.vibrate(1000);
}
else
{
bled();
flag = 0;
}
Number1.print(count1);
}
void button2_callback(const String & state)
{
BLINKER_LOG("button2:", state);
count2++;
if (count2 % 2 == 1)
{
hulanon();
flag = 1;
Blinker.vibrate(1000);
}
else
{
hulanoff();
flag = 0;
}
Number2.print(count2);
}
void loop()
{
Blinker.run();
/*if (digitalRead(start_btn) == 0) {
can_start = true;
}
while (can_start == false) {
}
Serial.print("next");*/
bled();
a = sr041.Distance();
b = sr042.Distance();
if (a >= 22 && a <= 27) f1 = 0;
else f1 = 1;
Serial.print("f1:");
Serial.println(a);
if (b >= 22 && b <= 27) f2 = 0;
else f2 = 1;
Serial.print("f2:");
Serial.println(b);
bled();
if (f1 == 1 && f2 == 0)
{
yled();
play();
count1++;
flag = 1;
Blinker.vibrate(1000);
Serial.println("Children enter balcony!");
if (digitalRead(touch) == HIGH)
{
Serial.println(digitalRead(touch));
for (j = 1; j <= 2; j++)
{
flag = 1;
hulanon();
count2++;
Blinker.vibrate(1000);
rled();
play();
Serial.println("Children touch guardrail!");
if (f1 == 1 && f2 == 1 && digitalRead(button) == HIGH)
{
flag = 0;
hulanoff();
Serial.println("Children leave the balcony!");
}
}
Blinker.delay(200);
}
}
Blinker.delay(200);
if (f1 == 1 && f2 == 1 && digitalRead(button) == HIGH)
{
bled();
hulanoff();
flag = 0;
Serial.println("Children leave the balcony!");
}
Blinker.delay(200);
}
2、ESP32 Cam部分：
向上滑动阅览
#include "esp_camera.h"
#include <WiFi.h>
#define CAMERA_MODEL_AI_THINKER
#include "camera_pins.h"
const char* ssid = "CHENLL";
const char* password = "246813579";
void startCameraServer();
void setup() {
Serial.begin(115200);
Serial.setDebugOutput(true);
Serial.println();
camera_config_t config;
config.ledc_channel = LEDC_CHANNEL_0;
config.ledc_timer = LEDC_TIMER_0;
config.pin_d0 = Y2_GPIO_NUM;
config.pin_d1 = Y3_GPIO_NUM;
config.pin_d2 = Y4_GPIO_NUM;
config.pin_d3 = Y5_GPIO_NUM;
config.pin_d4 = Y6_GPIO_NUM;
config.pin_d5 = Y7_GPIO_NUM;
config.pin_d6 = Y8_GPIO_NUM;
config.pin_d7 = Y9_GPIO_NUM;
config.pin_xclk = XCLK_GPIO_NUM;
config.pin_pclk = PCLK_GPIO_NUM;
config.pin_vsync = VSYNC_GPIO_NUM;
config.pin_href = HREF_GPIO_NUM;
config.pin_sscb_sda = SIOD_GPIO_NUM;
config.pin_sscb_scl = SIOC_GPIO_NUM;
config.pin_pwdn = PWDN_GPIO_NUM;
config.pin_reset = RESET_GPIO_NUM;
config.xclk_freq_hz = 20000000;
config.pixel_format = PIXFORMAT_JPEG;
if(psramFound()){
config.frame_size = FRAMESIZE_UXGA;
config.jpeg_quality = 10;
config.fb_count = 2;
} else {
config.frame_size = FRAMESIZE_SVGA;
config.jpeg_quality = 12;
config.fb_count = 1;
}
#if defined(CAMERA_MODEL_ESP_EYE)
pinMode(13, INPUT_PULLUP);
pinMode(14, INPUT_PULLUP);
#endif
esp_err_t err = esp_camera_init(&config);
if (err != ESP_OK) {
Serial.printf("Camera init failed with error 0x%x", err);
return;
}
sensor_t * s = esp_camera_sensor_get();
if (s->id.PID == OV3660_PID) {
s->set_vflip(s, 1);
s->set_brightness(s, 1);
s->set_saturation(s, -2);
}
s->set_framesize(s, FRAMESIZE_SVGA);
#if defined(CAMERA_MODEL_M5STACK_WIDE) || defined(CAMERA_MODEL_M5STACK_ESP32CAM)
s->set_vflip(s, 1);
s->set_hmirror(s, 1);
#endif
WiFi.begin(ssid, password);
while (WiFi.status() != WL_CONNECTED) {
delay(500);
Serial.print(".");
}
Serial.println("");
Serial.println("WiFi connected");
startCameraServer();
Serial.print("Camera Ready!Connect to http://");
Serial.print(WiFi.localIP());
}
void loop() {
delay(10000);
}
向上滑动阅览
#include "esp_http_server.h"
#include "esp_timer.h"
#include "esp_camera.h"
#include "img_converters.h"
#include "camera_index.h"
#include "Arduino.h"
#include "fb_gfx.h"
#include "fd_forward.h"
#include "fr_forward.h"
#define ENROLL_CONFIRM_TIMES 5
#define FACE_ID_SAVE_NUMBER 7
#define FACE_COLOR_WHITE 0x00FFFFFF
#define FACE_COLOR_BLACK 0x00000000
#define FACE_COLOR_RED 0x000000FF
#define FACE_COLOR_GREEN 0x0000FF00
#define FACE_COLOR_BLUE 0x00FF0000
#define FACE_COLOR_YELLOW (FACE_COLOR_RED | FACE_COLOR_GREEN)
#define FACE_COLOR_CYAN (FACE_COLOR_BLUE | FACE_COLOR_GREEN)
#define FACE_COLOR_PURPLE (FACE_COLOR_BLUE | FACE_COLOR_RED)
typedef struct {
size_t size; //number of values used for filtering
size_t index; //current value index
size_t count; //value count
int sum;
int * values; //array to be filled with values
} ra_filter_t;
typedef struct {
httpd_req_t *req;
size_t len;
} jpg_chunking_t;
#define PART_BOUNDARY "123456789000000000000987654321"
static const char* _STREAM_CONTENT_TYPE = "multipart/x-mixed-replace;boundary=" PART_BOUNDARY;
static const char* _STREAM_BOUNDARY = "\r\n--" PART_BOUNDARY "\r\n";
static const char* _STREAM_PART = "Content-Type: image/jpeg\r\nContent-Length: %u\r\n\r\n";
static ra_filter_t ra_filter;
httpd_handle_t stream_httpd = NULL;
httpd_handle_t camera_httpd = NULL;
static mtmn_config_t mtmn_config = {0};
static int8_t detection_enabled = 0;
static int8_t recognition_enabled = 0;
static int8_t is_enrolling = 0;
static face_id_list id_list = {0};
static ra_filter_t * ra_filter_init(ra_filter_t * filter, size_t sample_size){
memset(filter, 0, sizeof(ra_filter_t));
filter->values = (int *)malloc(sample_size * sizeof(int));
if(!filter->values){
return NULL;
}
memset(filter->values, 0, sample_size * sizeof(int));
filter->size = sample_size;
return filter;
}
static int ra_filter_run(ra_filter_t * filter, int value){
if(!filter->values){
return value;
}
filter->sum -= filter->values[filter->index];
filter->values[filter->index] = value;
filter->sum += filter->values[filter->index];
filter->index++;
filter->index = filter->index % filter->size;
if (filter->count < filter->size) {
filter->count++;
}
return filter->sum / filter->count;
}
static void rgb_print(dl_matrix3du_t *image_matrix, uint32_t color, const char * str){
fb_data_t fb;
fb.width = image_matrix->w;
fb.height = image_matrix->h;
fb.data = image_matrix->item;
fb.bytes_per_pixel = 3;
fb.format = FB_BGR888;
fb_gfx_print(&fb, (fb.width - (strlen(str) * 14)) / 2, 10, color, str);
}
static int rgb_printf(dl_matrix3du_t *image_matrix, uint32_t color, const char *format, ...){
char loc_buf[64];
char * temp = loc_buf;
int len;
va_list arg;
va_list copy;
va_start(arg, format);
va_copy(copy, arg);
len = vsnprintf(loc_buf, sizeof(loc_buf), format, arg);
va_end(copy);
if(len >= sizeof(loc_buf)){
temp = (char*)malloc(len+1);
if(temp == NULL) {
return 0;
}
}
vsnprintf(temp, len+1, format, arg);
va_end(arg);
rgb_print(image_matrix, color, temp);
if(len > 64){
free(temp);
}
return len;
}
static void draw_face_boxes(dl_matrix3du_t *image_matrix, box_array_t *boxes, int face_id){
int x, y, w, h, i;
uint32_t color = FACE_COLOR_YELLOW;
if(face_id < 0){
color = FACE_COLOR_RED;
} else if(face_id > 0){
color = FACE_COLOR_GREEN;
}
fb_data_t fb;
fb.width = image_matrix->w;
fb.height = image_matrix->h;
fb.data = image_matrix->item;
fb.bytes_per_pixel = 3;
fb.format = FB_BGR888;
for (i = 0; i < boxes->len; i++){
// rectangle box
x = (int)boxes->box[i].box_p[0];
y = (int)boxes->box[i].box_p[1];
w = (int)boxes->box[i].box_p[2] - x + 1;
h = (int)boxes->box[i].box_p[3] - y + 1;
fb_gfx_drawFastHLine(&fb, x, y, w, color);
fb_gfx_drawFastHLine(&fb, x, y+h-1, w, color);
fb_gfx_drawFastVLine(&fb, x, y, h, color);
fb_gfx_drawFastVLine(&fb, x+w-1, y, h, color);
#if 0
// landmark
int x0, y0, j;
for (j = 0; j < 10; j+=2) {
x0 = (int)boxes->landmark[i].landmark_p[j];
y0 = (int)boxes->landmark[i].landmark_p[j+1];
fb_gfx_fillRect(&fb, x0, y0, 3, 3, color);
}
#endif
}
}
static int run_face_recognition(dl_matrix3du_t *image_matrix, box_array_t *net_boxes){
dl_matrix3du_t *aligned_face = NULL;
int matched_id = 0;
aligned_face = dl_matrix3du_alloc(1, FACE_WIDTH, FACE_HEIGHT, 3);
if(!aligned_face){
Serial.println("Could not allocate face recognition buffer");
return matched_id;
}
if (align_face(net_boxes, image_matrix, aligned_face) == ESP_OK){
if (is_enrolling == 1){
int8_t left_sample_face = enroll_face(&id_list, aligned_face);
if(left_sample_face == (ENROLL_CONFIRM_TIMES - 1)){
Serial.printf("Enrolling Face ID: %d\n", id_list.tail);
}
Serial.printf("Enrolling Face ID: %d sample %d\n", id_list.tail, ENROLL_CONFIRM_TIMES - left_sample_face);
rgb_printf(image_matrix, FACE_COLOR_CYAN, "ID[%u] Sample[%u]", id_list.tail, ENROLL_CONFIRM_TIMES - left_sample_face);
if (left_sample_face == 0){
is_enrolling = 0;
Serial.printf("Enrolled Face ID: %d\n", id_list.tail);
}
} else {
matched_id = recognize_face(&id_list, aligned_face);
if (matched_id >= 0) {
Serial.printf("Match Face ID: %u\n", matched_id);
rgb_printf(image_matrix, FACE_COLOR_GREEN, "Hello Subject %u", matched_id);
} else {
Serial.println("No Match Found");
rgb_print(image_matrix, FACE_COLOR_RED, "Intruder Alert!");
matched_id = -1;
}
}
} else {
Serial.println("Face Not Aligned");
//rgb_print(image_matrix, FACE_COLOR_YELLOW, "Human Detected");
}
dl_matrix3du_free(aligned_face);
return matched_id;
}
static size_t jpg_encode_stream(void * arg, size_t index, const void* data, size_t len){
jpg_chunking_t *j = (jpg_chunking_t *)arg;
if(!index){
j->len = 0;
}
if(httpd_resp_send_chunk(j->req, (const char *)data, len) != ESP_OK){
return 0;
}
j->len += len;
return len;
}
static esp_err_t capture_handler(httpd_req_t *req){
camera_fb_t * fb = NULL;
esp_err_t res = ESP_OK;
int64_t fr_start = esp_timer_get_time();
fb = esp_camera_fb_get();
if (!fb) {
Serial.println("Camera capture failed");
httpd_resp_send_500(req);
return ESP_FAIL;
}
httpd_resp_set_type(req, "image/jpeg");
httpd_resp_set_hdr(req, "Content-Disposition", "inline; filename=capture.jpg");
httpd_resp_set_hdr(req, "Access-Control-Allow-Origin", "*");
size_t out_len, out_width, out_height;
uint8_t * out_buf;
bool s;
bool detected = false;
int face_id = 0;
if(!detection_enabled || fb->width > 400){
size_t fb_len = 0;
if(fb->format == PIXFORMAT_JPEG){
fb_len = fb->len;
res = httpd_resp_send(req, (const char *)fb->buf, fb->len);
} else {
jpg_chunking_t jchunk = {req, 0};
res = frame2jpg_cb(fb, 80, jpg_encode_stream, &jchunk)?ESP_OK:ESP_FAIL;
httpd_resp_send_chunk(req, NULL, 0);
fb_len = jchunk.len;
}
esp_camera_fb_return(fb);
int64_t fr_end = esp_timer_get_time();
Serial.printf("JPG: %uB %ums\n", (uint32_t)(fb_len), (uint32_t)((fr_end - fr_start)/1000));
return res;
}
dl_matrix3du_t *image_matrix = dl_matrix3du_alloc(1, fb->width, fb->height, 3);
if (!image_matrix) {
esp_camera_fb_return(fb);
Serial.println("dl_matrix3du_alloc failed");
httpd_resp_send_500(req);
return ESP_FAIL;
}
out_buf = image_matrix->item;
out_len = fb->width * fb->height * 3;
out_width = fb->width;
out_height = fb->height;
s = fmt2rgb888(fb->buf, fb->len, fb->format, out_buf);
esp_camera_fb_return(fb);
if(!s){
dl_matrix3du_free(image_matrix);
Serial.println("to rgb888 failed");
httpd_resp_send_500(req);
return ESP_FAIL;
}
box_array_t *net_boxes = face_detect(image_matrix, &mtmn_config);
if (net_boxes){
detected = true;
if(recognition_enabled){
face_id = run_face_recognition(image_matrix, net_boxes);
}
draw_face_boxes(image_matrix, net_boxes, face_id);
free(net_boxes->score);
free(net_boxes->box);
free(net_boxes->landmark);
free(net_boxes);
}
jpg_chunking_t jchunk = {req, 0};
s = fmt2jpg_cb(out_buf, out_len, out_width, out_height, PIXFORMAT_RGB888, 90, jpg_encode_stream, &jchunk);
dl_matrix3du_free(image_matrix);
if(!s){
Serial.println("JPEG compression failed");
return ESP_FAIL;
}
int64_t fr_end = esp_timer_get_time();
Serial.printf("FACE: %uB %ums %s%d\n", (uint32_t)(jchunk.len), (uint32_t)((fr_end - fr_start)/1000), detected?"DETECTED ":"", face_id);
return res;
}
static esp_err_t stream_handler(httpd_req_t *req){
camera_fb_t * fb = NULL;
esp_err_t res = ESP_OK;
size_t _jpg_buf_len = 0;
uint8_t * _jpg_buf = NULL;
char * part_buf[64];
dl_matrix3du_t *image_matrix = NULL;
bool detected = false;
int face_id = 0;
int64_t fr_start = 0;
int64_t fr_ready = 0;
int64_t fr_face = 0;
int64_t fr_recognize = 0;
int64_t fr_encode = 0;
static int64_t last_frame = 0;
if(!last_frame) {
last_frame = esp_timer_get_time();
}
res = httpd_resp_set_type(req, _STREAM_CONTENT_TYPE);
if(res != ESP_OK){
return res;
}
httpd_resp_set_hdr(req, "Access-Control-Allow-Origin", "*");
while(true){
detected = false;
face_id = 0;
fb = esp_camera_fb_get();
if (!fb) {
Serial.println("Camera capture failed");
res = ESP_FAIL;
} else {
fr_start = esp_timer_get_time();
fr_ready = fr_start;
fr_face = fr_start;
fr_encode = fr_start;
fr_recognize = fr_start;
if(!detection_enabled || fb->width > 400){
if(fb->format != PIXFORMAT_JPEG){
bool jpeg_converted = frame2jpg(fb, 80, &_jpg_buf, &_jpg_buf_len);
esp_camera_fb_return(fb);
fb = NULL;
if(!jpeg_converted){
Serial.println("JPEG compression failed");
res = ESP_FAIL;
}
} else {
_jpg_buf_len = fb->len;
_jpg_buf = fb->buf;
}
} else {
image_matrix = dl_matrix3du_alloc(1, fb->width, fb->height, 3);
if (!image_matrix) {
Serial.println("dl_matrix3du_alloc failed");
res = ESP_FAIL;
} else {
if(!fmt2rgb888(fb->buf, fb->len, fb->format, image_matrix->item)){
Serial.println("fmt2rgb888 failed");
res = ESP_FAIL;
} else {
fr_ready = esp_timer_get_time();
box_array_t *net_boxes = NULL;
if(detection_enabled){
net_boxes = face_detect(image_matrix, &mtmn_config);
}
fr_face = esp_timer_get_time();
fr_recognize = fr_face;
if (net_boxes || fb->format != PIXFORMAT_JPEG){
if(net_boxes){
detected = true;
if(recognition_enabled){
face_id = run_face_recognition(image_matrix, net_boxes);
}
fr_recognize = esp_timer_get_time();
draw_face_boxes(image_matrix, net_boxes, face_id);
free(net_boxes->score);
free(net_boxes->box);
free(net_boxes->landmark);
free(net_boxes);
}
if(!fmt2jpg(image_matrix->item, fb->width*fb->height*3, fb->width, fb->height, PIXFORMAT_RGB888, 90, &_jpg_buf, &_jpg_buf_len)){
Serial.println("fmt2jpg failed");
res = ESP_FAIL;
}
esp_camera_fb_return(fb);
fb = NULL;
} else {
_jpg_buf = fb->buf;
_jpg_buf_len = fb->len;
}
fr_encode = esp_timer_get_time();
}
dl_matrix3du_free(image_matrix);
}
}
}
if(res == ESP_OK){
res = httpd_resp_send_chunk(req, _STREAM_BOUNDARY, strlen(_STREAM_BOUNDARY));
}
if(res == ESP_OK){
size_t hlen = snprintf((char *)part_buf, 64, _STREAM_PART, _jpg_buf_len);
res = httpd_resp_send_chunk(req, (const char *)part_buf, hlen);
}
if(res == ESP_OK){
res = httpd_resp_send_chunk(req, (const char *)_jpg_buf, _jpg_buf_len);
}
if(fb){
esp_camera_fb_return(fb);
fb = NULL;
_jpg_buf = NULL;
} else if(_jpg_buf){
free(_jpg_buf);
_jpg_buf = NULL;
}
if(res != ESP_OK){
break;
}
int64_t fr_end = esp_timer_get_time();
int64_t ready_time = (fr_ready - fr_start)/1000;
int64_t face_time = (fr_face - fr_ready)/1000;
int64_t recognize_time = (fr_recognize - fr_face)/1000;
int64_t encode_time = (fr_encode - fr_recognize)/1000;
int64_t process_time = (fr_encode - fr_start)/1000;
int64_t frame_time = fr_end - last_frame;
last_frame = fr_end;
frame_time /= 1000;
uint32_t avg_frame_time = ra_filter_run(&ra_filter, frame_time);
Serial.printf("MJPG: %uB %ums (%.1ffps), AVG: %ums (%.1ffps), %u+%u+%u+%u=%u %s%d\n",
(uint32_t)(_jpg_buf_len),
(uint32_t)frame_time, 1000.0 / (uint32_t)frame_time,
avg_frame_time, 1000.0 / avg_frame_time,
(uint32_t)ready_time, (uint32_t)face_time, (uint32_t)recognize_time, (uint32_t)encode_time, (uint32_t)process_time,
(detected)?"DETECTED ":"", face_id
);
}
last_frame = 0;
return res;
}
static esp_err_t cmd_handler(httpd_req_t *req){
char* buf;
size_t buf_len;
char variable[32] = {0,};
char value[32] = {0,};
buf_len = httpd_req_get_url_query_len(req) + 1;
if (buf_len > 1) {
buf = (char*)malloc(buf_len);
if(!buf){
httpd_resp_send_500(req);
return ESP_FAIL;
}
if (httpd_req_get_url_query_str(req, buf, buf_len) == ESP_OK) {
if (httpd_query_key_value(buf, "var", variable, sizeof(variable)) == ESP_OK &&
httpd_query_key_value(buf, "val", value, sizeof(value)) == ESP_OK) {
} else {
free(buf);
httpd_resp_send_404(req);
return ESP_FAIL;
}
} else {
free(buf);
httpd_resp_send_404(req);
return ESP_FAIL;
}
free(buf);
} else {
httpd_resp_send_404(req);
return ESP_FAIL;
}
int val = atoi(value);
sensor_t * s = esp_camera_sensor_get();
int res = 0;
if(!strcmp(variable, "framesize")) {
if(s->pixformat == PIXFORMAT_JPEG) res = s->set_framesize(s, (framesize_t)val);
}
else if(!strcmp(variable, "quality")) res = s->set_quality(s, val);
else if(!strcmp(variable, "contrast")) res = s->set_contrast(s, val);
else if(!strcmp(variable, "brightness")) res = s->set_brightness(s, val);
else if(!strcmp(variable, "saturation")) res = s->set_saturation(s, val);
else if(!strcmp(variable, "gainceiling")) res = s->set_gainceiling(s, (gainceiling_t)val);
else if(!strcmp(variable, "colorbar")) res = s->set_colorbar(s, val);
else if(!strcmp(variable, "awb")) res = s->set_whitebal(s, val);
else if(!strcmp(variable, "agc")) res = s->set_gain_ctrl(s, val);
else if(!strcmp(variable, "aec")) res = s->set_exposure_ctrl(s, val);
else if(!strcmp(variable, "hmirror")) res = s->set_hmirror(s, val);
else if(!strcmp(variable, "vflip")) res = s->set_vflip(s, val);
else if(!strcmp(variable, "awb_gain")) res = s->set_awb_gain(s, val);
else if(!strcmp(variable, "agc_gain")) res = s->set_agc_gain(s, val);
else if(!strcmp(variable, "aec_value")) res = s->set_aec_value(s, val);
else if(!strcmp(variable, "aec2")) res = s->set_aec2(s, val);
else if(!strcmp(variable, "dcw")) res = s->set_dcw(s, val);
else if(!strcmp(variable, "bpc")) res = s->set_bpc(s, val);
else if(!strcmp(variable, "wpc")) res = s->set_wpc(s, val);
else if(!strcmp(variable, "raw_gma")) res = s->set_raw_gma(s, val);
else if(!strcmp(variable, "lenc")) res = s->set_lenc(s, val);
else if(!strcmp(variable, "special_effect")) res = s->set_special_effect(s, val);
else if(!strcmp(variable, "wb_mode")) res = s->set_wb_mode(s, val);
else if(!strcmp(variable, "ae_level")) res = s->set_ae_level(s, val);
else if(!strcmp(variable, "face_detect")) {
detection_enabled = val;
if(!detection_enabled) {
recognition_enabled = 0;
}
}
else if(!strcmp(variable, "face_enroll")) is_enrolling = val;
else if(!strcmp(variable, "face_recognize")) {
recognition_enabled = val;
if(recognition_enabled){
detection_enabled = val;
}
}
else {
res = -1;
}
if(res){
return httpd_resp_send_500(req);
}
httpd_resp_set_hdr(req, "Access-Control-Allow-Origin", "*");
return httpd_resp_send(req, NULL, 0);
}
static esp_err_t status_handler(httpd_req_t *req){
static char json_response[1024];
sensor_t * s = esp_camera_sensor_get();
char * p = json_response;
*p++ = '{';
p+=sprintf(p, ""framesize":%u,", s->status.framesize);
p+=sprintf(p, ""quality":%u,", s->status.quality);
p+=sprintf(p, ""brightness":%d,", s->status.brightness);
p+=sprintf(p, ""contrast":%d,", s->status.contrast);
p+=sprintf(p, ""saturation":%d,", s->status.saturation);
p+=sprintf(p, ""sharpness":%d,", s->status.sharpness);
p+=sprintf(p, ""special_effect":%u,", s->status.special_effect);
p+=sprintf(p, ""wb_mode":%u,", s->status.wb_mode);
p+=sprintf(p, ""awb":%u,", s->status.awb);
p+=sprintf(p, ""awb_gain":%u,", s->status.awb_gain);
p+=sprintf(p, ""aec":%u,", s->status.aec);
p+=sprintf(p, ""aec2":%u,", s->status.aec2);
p+=sprintf(p, ""ae_level":%d,", s->status.ae_level);
p+=sprintf(p, ""aec_value":%u,", s->status.aec_value);
p+=sprintf(p, ""agc":%u,", s->status.agc);
p+=sprintf(p, ""agc_gain":%u,", s->status.agc_gain);
p+=sprintf(p, ""gainceiling":%u,", s->status.gainceiling);
p+=sprintf(p, ""bpc":%u,", s->status.bpc);
p+=sprintf(p, ""wpc":%u,", s->status.wpc);
p+=sprintf(p, ""raw_gma":%u,", s->status.raw_gma);
p+=sprintf(p, ""lenc":%u,", s->status.lenc);
p+=sprintf(p, ""vflip":%u,", s->status.vflip);
p+=sprintf(p, ""hmirror":%u,", s->status.hmirror);
p+=sprintf(p, ""dcw":%u,", s->status.dcw);
p+=sprintf(p, ""colorbar":%u,", s->status.colorbar);
p+=sprintf(p, ""face_detect":%u,", detection_enabled);
p+=sprintf(p, ""face_enroll":%u,", is_enrolling);
p+=sprintf(p, ""face_recognize":%u", recognition_enabled);
*p++ = '}';
*p++ = 0;
httpd_resp_set_type(req, "application/json");
httpd_resp_set_hdr(req, "Access-Control-Allow-Origin", "*");
return httpd_resp_send(req, json_response, strlen(json_response));
}
static esp_err_t index_handler(httpd_req_t *req){
httpd_resp_set_type(req, "text/html");
httpd_resp_set_hdr(req, "Content-Encoding", "gzip");
sensor_t * s = esp_camera_sensor_get();
if (s->id.PID == OV3660_PID) {
return httpd_resp_send(req, (const char *)index_ov3660_html_gz, index_ov3660_html_gz_len);
}
return httpd_resp_send(req, (const char *)index_ov2640_html_gz, index_ov2640_html_gz_len);
}
void startCameraServer(){
httpd_config_t config = HTTPD_DEFAULT_CONFIG();
httpd_uri_t index_uri = {
.uri = "/",
.method = HTTP_GET,
.handler = index_handler,
.user_ctx = NULL
};
httpd_uri_t status_uri = {
.uri = "/status",
.method = HTTP_GET,
.handler = status_handler,
.user_ctx = NULL
};
httpd_uri_t cmd_uri = {
.uri = "/control",
.method = HTTP_GET,
.handler = cmd_handler,
.user_ctx = NULL
};
httpd_uri_t capture_uri = {
.uri = "/capture",
.method = HTTP_GET,
.handler = capture_handler,
.user_ctx = NULL
};
httpd_uri_t stream_uri = {
.uri = "/stream",
.method = HTTP_GET,
.handler = stream_handler,
.user_ctx = NULL
};
ra_filter_init(&ra_filter, 20);
mtmn_config.type = FAST;
mtmn_config.min_face = 80;
mtmn_config.pyramid = 0.707;
mtmn_config.pyramid_times = 4;
mtmn_config.p_threshold.score = 0.6;
mtmn_config.p_threshold.nms = 0.7;
mtmn_config.p_threshold.candidate_number = 20;
mtmn_config.r_threshold.score = 0.7;
mtmn_config.r_threshold.nms = 0.7;
mtmn_config.r_threshold.candidate_number = 10;
mtmn_config.o_threshold.score = 0.7;
mtmn_config.o_threshold.nms = 0.7;
mtmn_config.o_threshold.candidate_number = 1;
face_id_init(&id_list, FACE_ID_SAVE_NUMBER, ENROLL_CONFIRM_TIMES);
Serial.printf("Starting web server on port: '%d'\n", config.server_port);
if (httpd_start(&camera_httpd, &config) == ESP_OK) {
httpd_register_uri_handler(camera_httpd, &index_uri);
httpd_register_uri_handler(camera_httpd, &cmd_uri);
httpd_register_uri_handler(camera_httpd, &status_uri);
httpd_register_uri_handler(camera_httpd, &capture_uri);
}
config.server_port += 1;
config.ctrl_port += 1;
Serial.printf("Starting stream server on port: '%d'\n", config.server_port);
if (httpd_start(&stream_httpd, &config) == ESP_OK) {
httpd_register_uri_handler(stream_httpd, &stream_uri);
}
}
向上滑动阅览
#define index_ov2640_html_gz_len 4316
const uint8_t index_ov2640_html_gz[] = {
0x1F, 0x8B, 0x08, 0x08, 0x50, 0x5C, 0xAE, 0x5C, 0x00, 0x03, 0x69, 0x6E, 0x64, 0x65, 0x78, 0x5F,
0x6F, 0x76, 0x32, 0x36, 0x34, 0x30, 0x2E, 0x68, 0x74, 0x6D, 0x6C, 0x00, 0xE5, 0x5D, 0x7B, 0x73,
0xD3, 0xC6, 0x16, 0xFF, 0x9F, 0x4F, 0x21, 0x04, 0x25, 0xF6, 0x34, 0x76, 0x6C, 0xC7, 0x84, 0xE0,
0xDA, 0xE2, 0x42, 0x08, 0xD0, 0x19, 0x5E, 0x25, 0x2D, 0x74, 0xA6, 0xD3, 0x81, 0xB5, 0xB4, 0xB2,
0x55, 0x64, 0xC9, 0x95, 0x56, 0x76, 0x52, 0x26, 0x9F, 0xE3, 0x7E, 0xA0, 0xFB, 0xC5, 0xEE, 0xD9,
0x87, 0xA4, 0x95, 0xBC, 0x7A, 0xD8, 0x26, 0x36, 0x97, 0xEB, 0xCC, 0x14, 0xD9, 0xDA, 0x73, 0xF6,
0x9C, 0xF3, 0x3B, 0xAF, 0x5D, 0x3D, 0x3A, 0xBC, 0x6D, 0xF9, 0x26, 0xB9, 0x9A, 0x63, 0x6D, 0x4A,
0x66, 0xAE, 0x71, 0x6B, 0xC8, 0xFF, 0xD1, 0xE0, 0x33, 0x9C, 0x62, 0x64, 0xF1, 0x43, 0xF6, 0x75,
0x86, 0x09, 0xD2, 0xCC, 0x29, 0x0A, 0x42, 0x4C, 0x46, 0x7A, 0x44, 0xEC, 0xD6, 0xA9, 0x9E, 0x3F,
0xED, 0xA1, 0x19, 0x1E, 0xE9, 0x0B, 0x07, 0x2F, 0xE7, 0x7E, 0x40, 0x74, 0xCD, 0xF4, 0x3D, 0x82,
0x3D, 0x18, 0xBE, 0x74, 0x2C, 0x32, 0x1D, 0x59, 0x78, 0xE1, 0x98, 0xB8, 0xC5, 0xBE, 0x1C, 0x3A,
0x9E, 0x43, 0x1C, 0xE4, 0xB6, 0x42, 0x13, 0xB9, 0x78, 0xD4, 0x95, 0x79, 0x11, 0x87, 0xB8, 0xD8,
0x38, 0xBF, 0x78, 0x7B, 0xDC, 0xD3, 0xDE, 0xBC, 0xEF, 0xF5, 0x4F, 0x3A, 0xC3, 0x23, 0xFE, 0x5B,
0x3A, 0x26, 0x24, 0x57, 0xF2, 0x77, 0xFA, 0x19, 0xFB, 0xD6, 0x95, 0xF6, 0x25, 0xF3, 0x13, 0xFD,
0xD8, 0x20, 0x44, 0xCB, 0x46, 0x33, 0xC7, 0xBD, 0x1A, 0x68, 0x8F, 0x03, 0x98, 0xF3, 0xF0, 0x05,
0x76, 0x17, 0x98, 0x38, 0x26, 0x3A, 0x0C, 0x91, 0x17, 0xB6, 0x42, 0x1C, 0x38, 0xF6, 0x4F, 0x2B,
0x84, 0x63, 0x64, 0x7E, 0x9E, 0x04, 0x7E, 0xE4, 0x59, 0x03, 0xED, 0x4E, 0xF7, 0x94, 0xFE, 0xAD,
0x0E, 0x32, 0x7D, 0xD7, 0x0F, 0xE0, 0xFC, 0xF9, 0x33, 0xFA, 0xB7, 0x7A, 0x9E, 0xCD, 0x1E, 0x3A,
0xFF, 0xE0, 0x81, 0xD6, 0x3D, 0x99, 0x5F, 0x66, 0xCE, 0x5F, 0xDF, 0xCA, 0x7C, 0x9D, 0xF6, 0x8A,
0xA4, 0x17, 0xF4, 0xA7, 0xE5, 0xF4, 0x21, 0x36, 0x89, 0xE3, 0x7B, 0xED, 0x19, 0x72, 0x3C, 0x05,
0x27, 0xCB, 0x09, 0xE7, 0x2E, 0x02, 0x1B, 0xD8, 0x2E, 0x2E, 0xE5, 0x73, 0x67, 0x86, 0xBD, 0xE8,
0xB0, 0x82, 0x1B, 0x65, 0xD2, 0xB2, 0x9C, 0x80, 0x8F, 0x1A, 0x50, 0x3B, 0x44, 0x33, 0xAF, 0x92,
0x6D, 0x99, 0x5C, 0x9E, 0xEF, 0x61, 0x85, 0x01, 0xE9, 0x44, 0xCB, 0x00, 0xCD, 0xE9, 0x00, 0xFA,
0xEF, 0xEA, 0x90, 0x99, 0xE3, 0x71, 0xA7, 0x1A, 0x68, 0xC7, 0xFD, 0xCE, 0xFC, 0xB2, 0x02, 0xCA,
0xE3, 0x13, 0xFA, 0xB7, 0x3A, 0x68, 0x8E, 0x2C, 0xCB, 0xF1, 0x26, 0x03, 0xED, 0x54, 0xC9, 0xC2,
0x0F, 0x2C, 0x1C, 0xB4, 0x02, 0x64, 0x39, 0x51, 0x38, 0xD0, 0xFA, 0xAA, 0x31, 0x33, 0x14, 0x4C,
0x40, 0x16, 0xE2, 0x83, 0xB0, 0xAD, 0xAE, 0x52, 0x12, 0x31, 0x24, 0x70, 0x26, 0x53, 0x02, 0x90,
0xAE, 0x8C, 0xC9, 0x1B, 0x4D, 0x84, 0x50, 0x15, 0x9E, 0xA5, 0x76, 0x53, 0x5B, 0x0D, 0xB9, 0xCE,
0xC4, 0x6B, 0x39, 0x04, 0xCF, 0x40, 0x9D, 0x90, 0x04, 0x98, 0x98, 0xD3, 0x32, 0x51, 0x6C, 0x67,
0x12, 0x05, 0x58, 0x21, 0x48, 0x62, 0xB7, 0x12, 0x85, 0xE1, 0xE4, 0xEA, 0xA9, 0xD6, 0x12, 0x8F,
0x3F, 0x3B, 0xA4, 0x25, 0x6C, 0x32, 0xC6, 0xB6, 0x1F, 0x60, 0xE5, 0xC8, 0x78, 0x84, 0xEB, 0x9B,
0x9F, 0x5B, 0x21, 0x41, 0x01, 0xA9, 0xC3, 0x10, 0xD9, 0x04, 0x07, 0xD5, 0xFC, 0x30, 0xF5, 0x8A,
0x6A, 0x6E, 0xC5, 0xD3, 0x8A, 0x01, 0x8E, 0xE7, 0x3A, 0x1E, 0xAE, 0x2F, 0x5E, 0xD1, 0xBC, 0x59,
0x76, 0x7C, 0x54, 0x0D, 0x60, 0x9C, 0xD9, 0xA4, 0xCC, 0x4B, 0x98, 0xAE, 0xAB, 0x93, 0x89, 0xB8,
0xE9, 0x76, 0x3A, 0x3F, 0xAC, 0x9E, 0x9C, 0x62, 0xEE, 0xA6, 0x28, 0x22, 0xFE, 0xF6, 0x11, 0xB1,
0x12, 0x56, 0x39, 0x3D, 0xFE, 0x35, 0xC3, 0x96, 0x83, 0xB4, 0x86, 0x14, 0xCE, 0xA7, 0x1D, 0xF0,
0xA9, 0xA6, 0x86, 0x3C, 0x4B, 0x6B, 0xF8, 0x81, 0x03, 0x81, 0x80, 0x58, 0xBA, 0x71, 0xE1, 0x17,
0x28, 0x1C, 0x73, 0xDC, 0x54, 0xA8, 0x5C, 0x12, 0x33, 0xB2, 0x45, 0xD4, 0x61, 0x43, 0x3F, 0x35,
0x52, 0x0E, 0xFD, 0x54, 0x06, 0x90, 0x42, 0x47, 0xC6, 0xBE, 0x0C, 0x2F, 0x59, 0xC2, 0x22, 0xCC,
0xE8, 0x67, 0x86, 0x2E, 0x5B, 0xA5, 0xD8, 0xC5, 0x83, 0x62, 0x0C, 0xA1, 0xCC, 0x9A, 0x0D, 0x18,
0xBA, 0x98, 0x6A, 0x2D, 0x8D, 0x66, 0xC9, 0xA6, 0x9A, 0x46, 0x30, 0x55, 0x43, 0x4E, 0x3F, 0xB2,
0x53, 0xAC, 0xA1, 0xAE, 0x5A, 0xD5, 0x34, 0x77, 0xF0, 0x3F, 0x95, 0x0F, 0x71, 0x4D, 0x0A, 0xB3,
0x08, 0xFD, 0xD4, 0xCF, 0x24, 0x29, 0xB3, 0xCA, 0x6C, 0xA2, 0x60, 0x5C, 0x9C, 0x51, 0x56, 0xF8,
0x16, 0x45, 0xB7, 0x82, 0x6B, 0xB9, 0x08, 0x75, 0xB3, 0x8B, 0x82, 0x71, 0x99, 0x0C, 0x95, 0x59,
0x86, 0x7E, 0xAE, 0x6B, 0xF4, 0x1B, 0x77, 0xC6, 0x11, 0x21, 0xBE, 0x17, 0x6E, 0x55, 0xA2, 0x8A,
0xE2, 0xEC, 0xAF, 0x28, 0x24, 0x8E, 0x7D, 0xD5, 0x12, 0x21, 0x0D, 0x71, 0x36, 0x47, 0xD0, 0x42,
0x8E, 0x31, 0x59, 0x62, 0x5C, 0xDE, 0x6E, 0x78, 0x68, 0x01, 0x79, 0x67, 0x32, 0x71, 0x55, 0xBE,
0x67, 0x46, 0x41, 0x48, 0xFB, 0xB6, 0xB9, 0xEF, 0x00, 0xE3, 0x60, 0x75, 0xE2, 0x6C, 0x0C, 0xD6,
0x9C, 0xA8, 0x65, 0x8E, 0x15, 0x73, 0xF9, 0x11, 0xA1, 0x36, 0x56, 0x22, 0xE1, 0x83, 0x3A, 0x0E,
0xB9, 0x52, 0x9E, 0x13, 0x91, 0xA8, 0x38, 0x13, 0x87, 0x60, 0x69, 0x59, 0xC8, 0xCA, 0x35, 0x30,
0xA7, 0xD8, 0xFC, 0x8C, 0xAD, 0x1F, 0x2B, 0xDB, 0xB0, 0xAA, 0xF6, 0xB0, 0xED, 0x78, 0xF3, 0x88,
0xB4, 0x68, 0x3B, 0x35, 0xBF, 0x11, 0xCC, 0x99, 0x43, 0xC6, 0x2A, 0xF6, 0x7A, 0x65, 0x4D, 0xC5,
0xFD, 0xF9, 0x65, 0xB9, 0x11, 0x64, 0x61, 0x0D, 0x17, 0x8D, 0xB1, 0x5B, 0x26, 0xB2, 0x08, 0x86,
0x82, 0xB4, 0x2B, 0x72, 0x55, 0x71, 0xEF, 0xC6, 0x24, 0x4B, 0x8B, 0x57, 0xFF, 0xC1, 0x0F, 0xB5,
0xED, 0xC8, 0x8E, 0x0F, 0x33, 0x3F, 0x85, 0xD8, 0x85, 0x00, 0x2B, 0x6A, 0xBD, 0x61, 0xCC, 0x12,
0x64, 0x28, 0x9D, 0x20, 0x40, 0xDE, 0x04, 0x43, 0x2E, 0xB8, 0x3C, 0x8C, 0x0F, 0xCB, 0x17, 0x06,
0xB5, 0xD4, 0xA7, 0xA9, 0xFA, 0x7E, 0xF9, 0x42, 0x84, 0x27, 0x84, 0x0D, 0x9A, 0x11, 0x09, 0xD6,
0xD2, 0xF9, 0xBB, 0x4A, 0xA7, 0xE0, 0xFD, 0x88, 0x32, 0x60, 0xB2, 0x2E, 0xA5, 0xEC, 0xEF, 0x2B,
0x33, 0x42, 0xBC, 0xD2, 0xB3, 0xED, 0xAA, 0xB5, 0xA2, 0x6D, 0x1F, 0x77, 0x8E, 0xFB, 0x95, 0x0D,
0x93, 0x52, 0xCB, 0xDC, 0x7A, 0x51, 0x91, 0x31, 0x92, 0x6C, 0x52, 0x0D, 0xC1, 0x60, 0xEA, 0x2F,
0x70, 0xA0, 0x00, 0x22, 0x27, 0x6E, 0xFF, 0x61, 0xDF, 0xAA, 0xC1, 0x0D, 0x41, 0xBE, 0x5F, 0xA8,
0xB2, 0x69, 0x96, 0x5D, 0xAF, 0x6B, 0xF6, 0x4A, 0x1D, 0x93, 0xB3, 0x6B, 0x83, 0x37, 0xA0, 0xB1,
0x8B, 0xAD, 0x92, 0xF4, 0x6C, 0x61, 0x1B, 0x45, 0x2E, 0xA9, 0xB0, 0x37, 0xEA, 0xD0, 0xBF, 0xB2,
0x19, 0x59, 0x5C, 0xFD, 0x41, 0x37, 0x3A, 0x46, 0x2C, 0x12, 0xFE, 0x54, 0xCC, 0x19, 0xD7, 0x4E,
0x34, 0x9F, 0x63, 0x04, 0xA3, 0x4C, 0x5C, 0xB4, 0x24, 0xAD, 0xD5, 0x33, 0xAB, 0x13, 0x57, 0xAD,
0x85, 0x68, 0xA5, 0x2B, 0x26, 0xDD, 0xD0, 0x5A, 0x3A, 0x0F, 0x6C, 0xDF, 0x8C, 0x54, 0x65, 0xBA,
0x9E, 0x4B, 0xAD, 0xF2, 0x1B, 0xC4, 0x26, 0x0B, 0x5D, 0x87, 0x39, 0x76, 0xE4, 0x79, 0x14, 0xD1,
0x16, 0x09, 0x40, 0x4D, 0xC5, 0x44, 0xF5, 0x0C, 0xB7, 0x51, 0x74, 0x66, 0x0C, 0x5B, 0xB4, 0x19,
0x93, 0x0B, 0x40, 0x45, 0xA2, 0x48, 0x72, 0x88, 0x16, 0xFA, 0xA0, 0x54, 0xCC, 0x6A, 0x3B, 0xBB,
0x90, 0x69, 0x34, 0x53, 0x35, 0x06, 0xF1, 0x64, 0x5D, 0xA8, 0x62, 0x7C, 0xBA, 0x60, 0x32, 0x46,
0x8D, 0xCE, 0x61, 0xE7, 0xF0, 0x18, 0xFE, 0xA3, 0x68, 0xD0, 0xCB, 0x9D, 0x4B, 0x98, 0xB7, 0xC0,
0xF3, 0x72, 0xC9, 0xA7, 0x7A, 0x9F, 0xA4, 0x28, 0x8D, 0x55, 0x62, 0x51, 0x3F, 0x92, 0xB2, 0x1B,
0x26, 0xDD, 0x76, 0x45, 0x61, 0x29, 0x70, 0xE9, 0xF5, 0x1D, 0x51, 0xE1, 0x2D, 0xEB, 0x42, 0x3C,
0xF3, 0xFF, 0x69, 0xF1, 0xAA, 0xFA, 0x7F, 0xEF, 0xED, 0x92, 0x29, 0xBE, 0x6B, 0x4F, 0x5F, 0xDB,
0x2E, 0xE1, 0xBE, 0x7D, 0xA3, 0x53, 0x8C, 0x7A, 0x4B, 0xF4, 0x33, 0x20, 0xA1, 0x07, 0x8B, 0xAA,
0x00, 0x56, 0x57, 0x85, 0x3D, 0x8F, 0x34, 0x66, 0x03, 0x1B, 0xD8, 0x8E, 0xEB, 0xB6, 0x5C, 0x7F,
0x59, 0xDD, 0x89, 0x94, 0x7B, 0xF2, 0x8A, 0x9F, 0x56, 0xBB, 0xFC, 0xA6, 0xD2, 0x46, 0x90, 0xB9,
0xFE, 0x27, 0xA4, 0xFD, 0xBE, 0x03, 0xAE, 0x34, 0x34, 0x36, 0x2B, 0x14, 0x1B, 0xF8, 0xE3, 0x76,
0x13, 0xD5, 0x72, 0x25, 0xDE, 0x09, 0x96, 0x2E, 0xE6, 0xC2, 0xA5, 0x43, 0xCC, 0xE9, 0x06, 0x8B,
0xAA, 0xB9, 0x1F, 0x3A, 0xFC, 0x1A, 0x4D, 0x80, 0x5D, 0x44, 0x3B, 0xF8, 0x8D, 0x96, 0xDC, 0x95,
0x0B, 0x13, 0x99, 0xBC, 0x8E, 0x26, 0xCC, 0x74, 0xDF, 0xCE, 0x76, 0x49, 0x9B, 0xF7, 0x0E, 0xC5,
0xB9, 0x5A, 0xED, 0xD6, 0x15, 0xED, 0x7E, 0x36, 0x32, 0xD4, 0x83, 0xD6, 0xC8, 0xE8, 0x71, 0xD2,
0x9E, 0x04, 0xF8, 0xAA, 0x86, 0x32, 0x87, 0xE2, 0xDF, 0x01, 0xDF, 0x10, 0xDD, 0x7C, 0xED, 0xCF,
0x0A, 0x80, 0xF0, 0xA2, 0x76, 0x3F, 0xAC, 0x31, 0x75, 0xF1, 0x94, 0x75, 0xFC, 0x31, 0xD9, 0xEE,
0xD3, 0xF5, 0x1A, 0xE9, 0xA6, 0xA4, 0x84, 0xAA, 0x5D, 0x35, 0xAE, 0xBE, 0xCA, 0x93, 0x2E, 0xB6,
0x49, 0xC1, 0xD5, 0x0C, 0xD6, 0xA7, 0x1E, 0x97, 0x67, 0xB7, 0x96, 0xB4, 0x4F, 0x50, 0x99, 0x39,
0x92, 0x5D, 0xB9, 0x62, 0xEF, 0x53, 0x72, 0xA6, 0xD9, 0x73, 0x6D, 0xE6, 0xC5, 0x90, 0xC4, 0xED,
0x33, 0x83, 0x19, 0xC6, 0xCC, 0x44, 0xC9, 0x07, 0x78, 0xF0, 0xEF, 0x8D, 0xDE, 0x89, 0xF2, 0x62,
0x41, 0xC9, 0xE0, 0x32, 0xD1, 0x0A, 0xB7, 0xB5, 0x56, 0x4B, 0x56, 0xE1, 0x02, 0x59, 0xCE, 0x45,
0x4A, 0xA0, 0xCA, 0xA3, 0xB2, 0x2C, 0xC3, 0xAC, 0xEE, 0xD1, 0x94, 0x3A, 0xBB, 0x33, 0x43, 0xD0,
0xF6, 0x52, 0x77, 0x45, 0xC0, 0x51, 0x85, 0x5F, 0x1D, 0x77, 0x97, 0x36, 0x0D, 0xBB, 0x27, 0x9D,
0x8A, 0x29, 0x4D, 0xD7, 0x0F, 0xCB, 0xE3, 0x0A, 0x8D, 0xC1, 0x7E, 0x11, 0x51, 0x4C, 0x24, 0xB6,
0x2E, 0x95, 0x3B, 0x4F, 0xCC, 0xB9, 0x95, 0x67, 0x6A, 0x95, 0xEE, 0xD2, 0x98, 0x2A, 0x0F, 0xC7,
0x9C, 0xCD, 0xBB, 0x1D, 0x65, 0xA6, 0x2D, 0xDD, 0x7F, 0x23, 0xF8, 0x12, 0xD6, 0x9B, 0xF4, 0x82,
0xDC, 0x40, 0x33, 0xB1, 0x3A, 0x8D, 0x66, 0x8A, 0x5C, 0xB7, 0xCE, 0x26, 0x60, 0x29, 0x0E, 0x53,
0xC7, 0xB2, 0x70, 0xE9, 0x2E, 0x27, 0x5D, 0xF3, 0xE6, 0x58, 0xC4, 0x47, 0xC3, 0x23, 0xE9, 0x06,
0x96, 0xE1, 0x51, 0x7A, 0xAF, 0xCD, 0x90, 0xDE, 0xC5, 0x22, 0xDF, 0xE7, 0xC2, 0x2F, 0xB2, 0x68,
0xA6, 0x8B, 0xC2, 0x70, 0xA4, 0xD3, 0xBB, 0x31, 0xF4, 0xEC, 0x6D, 0x2F, 0x43, 0xCB, 0x59, 0x68,
0x8E, 0x35, 0xD2, 0x5D, 0x7F, 0xE2, 0xE7, 0xCE, 0xB1, 0xF3, 0x7C, 0xDB, 0x1B, 0x22, 0x75, 0xA4,
0x67, 0x2E, 0x09, 0xE8, 0x8C, 0x2A, 0xFD, 0x49, 0x37, 0xEE, 0xDD, 0x79, 0xF8, 0xE0, 0xC1, 0xC9,
0x4F, 0xF7, 0xBC, 0x71, 0x38, 0x17, 0xFF, 0xFD, 0x95, 0x5F, 0x41, 0x79, 0xF3, 0xBE, 0x77, 0xD2,
0x87, 0x86, 0x16, 0x13, 0xE2, 0x78, 0x93, 0x70, 0x78, 0xC4, 0x98, 0xE6, 0x04, 0x39, 0x02, 0x49,
0x0A, 0x64, 0x13, 0x09, 0x5D, 0x25, 0x5E, 0x3C, 0x24, 0x84, 0x1C, 0x35, 0x46, 0x81, 0x62, 0x08,
0x1B, 0xC6, 0xDB, 0x05, 0xD6, 0x69, 0xE9, 0x2C, 0xB1, 0x8D, 0xFD, 0xCB, 0xBC, 0x06, 0x4C, 0x29,
0x91, 0xF5, 0xC4, 0x28, 0x6C, 0x15, 0x31, 0x04, 0x32, 0x46, 0x4E, 0xAF, 0x87, 0x14, 0x8C, 0x49,
0xE4, 0x13, 0xD6, 0x97, 0xB6, 0xE7, 0xF9, 0xD4, 0x76, 0x80, 0x66, 0x98, 0x26, 0x22, 0xF1, 0x63,
0x31, 0x9B, 0x3C, 0x12, 0x09, 0xA5, 0x6E, 0xBC, 0xC3, 0x2C, 0x5C, 0x01, 0x65, 0xA5, 0x59, 0x57,
0xB8, 0x88, 0x0C, 0x9A, 0x99, 0x5F, 0x8F, 0x45, 0x14, 0x3B, 0xA6, 0x2D, 0xC4, 0xDC, 0xA6, 0x42,
0x20, 0xC6, 0xCE, 0x9F, 0x33, 0x07, 0x5B, 0x20, 0x37, 0x02, 0xD3, 0x76, 0x3B, 0xBA, 0xF1, 0xDB,
0xEF, 0xCF, 0x1F, 0x37, 0x20, 0x11, 0x75, 0x2E, 0xBB, 0xBD, 0x4E, 0xA7, 0x39, 0x3C, 0xE2, 0x43,
0xD6, 0xE6, 0xF5, 0x50, 0x37, 0x2E, 0x18, 0xAB, 0xDE, 0x29, 0xB0, 0xEA, 0xF4, 0xFA, 0x9B, 0xB3,
0x3A, 0xD5, 0x0D, 0xC6, 0x09, 0x98, 0x5C, 0x3E, 0x38, 0x39, 0xDD, 0x9C, 0xD1, 0x03, 0x90, 0xE9,
0x3D, 0x70, 0x3A, 0x05, 0xED, 0x4E, 0xB6, 0x51, 0xEE, 0x44, 0x37, 0x28, 0x1F, 0x88, 0x8A, 0xCB,
0xFE, 0xE9, 0x16, 0x7C, 0xEE, 0xEB, 0xA2, 0x24, 0x52, 0x97, 0x8D, 0x8F, 0x74, 0xE3, 0xEC, 0xE7,
0x67, 0x8D, 0x3E, 0xC8, 0xD8, 0x7B, 0x78, 0xB2, 0x39, 0xEF, 0xBE, 0x6E, 0xFC, 0x42, 0x85, 0x3C,
0xEE, 0x01, 0xA3, 0xFE, 0x16, 0x42, 0x1E, 0xEB, 0xC6, 0x0B, 0xC6, 0x09, 0xB8, 0x5C, 0x76, 0x1F,
0x6C, 0x21, 0x12, 0xB8, 0xD7, 0x2F, 0x8C, 0x13, 0xF8, 0x17, 0x75, 0xAF, 0x9A, 0x9C, 0x20, 0x5F,
0x32, 0xD3, 0x94, 0xC4, 0xE9, 0x6A, 0xF6, 0xC9, 0x9C, 0x2E, 0x0B, 0xE3, 0xBF, 0x23, 0x28, 0x1D,
0xE4, 0x6A, 0xED, 0x20, 0x16, 0x74, 0xA0, 0x12, 0x3F, 0xA8, 0x17, 0xBF, 0x92, 0x24, 0xC9, 0x65,
0x39, 0xDD, 0xE8, 0x76, 0x2A, 0x34, 0x60, 0xB4, 0x72, 0x16, 0x64, 0xC4, 0x19, 0x05, 0x74, 0xDA,
0x49, 0xB0, 0x18, 0xA6, 0xB7, 0x7E, 0x80, 0x8F, 0x1E, 0xEB, 0x52, 0x5C, 0x6F, 0x94, 0x22, 0x14,
0xD2, 0xA2, 0x4B, 0xDD, 0x38, 0x39, 0xAE, 0xB2, 0xF7, 0x16, 0x70, 0x8C, 0x59, 0x9B, 0xE2, 0xE1,
0x30, 0x5C, 0x1B, 0x91, 0x94, 0x54, 0x37, 0x9E, 0x24, 0xC7, 0xDB, 0xE0, 0xD2, 0xEA, 0x6D, 0x81,
0x8B, 0x24, 0x0E, 0x87, 0xA6, 0xD5, 0x13, 0xD0, 0xF4, 0xF4, 0x34, 0x22, 0xBE, 0x26, 0x30, 0x55,
0xD2, 0x6E, 0x83, 0x0B, 0x2D, 0xE2, 0x01, 0x0A, 0xC9, 0xDA, 0xA8, 0xC4, 0x84, 0x90, 0xD6, 0xC4,
0xD1, 0xDE, 0x10, 0x49, 0x44, 0xF9, 0x0E, 0xF0, 0x08, 0x11, 0x89, 0x02, 0x76, 0x43, 0xDC, 0xDA,
0x88, 0xA4, 0xA4, 0x50, 0x0F, 0x93, 0xE3, 0xBD, 0xA1, 0x22, 0x89, 0xF3, 0x3D, 0xE0, 0x32, 0xC7,
0xA6, 0x83, 0xDC, 0x8F, 0xD8, 0xB6, 0xA1, 0x64, 0xAD, 0x8F, 0x4D, 0x86, 0x1C, 0xF0, 0xE1, 0xDF,
0xB5, 0x73, 0xF6, 0x7D, 0xED, 0x1E, 0x31, 0xC7, 0xEE, 0x6B, 0x35, 0x8A, 0x1D, 0x75, 0xDF, 0xF2,
0xDA, 0x4F, 0xE4, 0xDC, 0xB0, 0x43, 0xE8, 0x02, 0x13, 0x3C, 0x61, 0x2B, 0xE5, 0x8D, 0x79, 0xF4,
0x74, 0xE3, 0x79, 0x80, 0xAE, 0xD8, 0xB3, 0x05, 0xDB, 0x34, 0x3D, 0xEF, 0xB0, 0xA5, 0xFD, 0x0A,
0x4B, 0xC1, 0x6D, 0x3A, 0xB0, 0xE7, 0x01, 0x86, 0x65, 0xE2, 0x56, 0x5C, 0xEE, 0x43, 0x31, 0x83,
0x83, 0xED, 0x98, 0x40, 0xC3, 0x7A, 0x81, 0xE7, 0x0E, 0xFA, 0x16, 0x1A, 0x2E, 0xB4, 0x1C, 0xAF,
0x1D, 0x16, 0x40, 0xA3, 0x1B, 0x8F, 0x3F, 0x3C, 0x59, 0x3B, 0x49, 0xF1, 0xFD, 0xE6, 0x3A, 0x1E,
0xCE, 0xB3, 0x93, 0x10, 0x50, 0x5F, 0x59, 0x6C, 0xAA, 0x23, 0xA7, 0xEE, 0x82, 0x53, 0xA1, 0x57,
0x2C, 0x20, 0xDB, 0x9E, 0xD3, 0x25, 0x35, 0xEB, 0xE9, 0x78, 0x73, 0x19, 0x0C, 0x84, 0xF8, 0x38,
0x41, 0xCE, 0xFA, 0x75, 0x25, 0x26, 0x64, 0x48, 0x69, 0xCF, 0xE1, 0x68, 0x57, 0x70, 0xF1, 0x69,
0xF7, 0x86, 0x99, 0xD0, 0x7A, 0xDF, 0xC0, 0x81, 0x20, 0x33, 0xDF, 0x5A, 0x7F, 0x3B, 0x42, 0xD0,
0xE9, 0x06, 0xA0, 0xF6, 0x0A, 0x0E, 0xD6, 0xAE, 0x32, 0x31, 0x83, 0x1B, 0x2E, 0x2F, 0x8F, 0x23,
0xE2, 0x6F, 0x53, 0x59, 0x2E, 0x22, 0xCF, 0xBB, 0xDA, 0xA6, 0xAC, 0x9C, 0xB9, 0x7E, 0x64, 0x6D,
0xCE, 0x01, 0x6A, 0xCA, 0x1B, 0xDB, 0x76, 0xCC, 0xCD, 0xAB, 0x12, 0x54, 0x94, 0x17, 0xFE, 0xAC,
0x26, 0xFD, 0x0D, 0x67, 0x71, 0x6C, 0xAE, 0x9F, 0x20, 0xB0, 0x09, 0x28, 0x9E, 0x9F, 0x69, 0x17,
0xE7, 0xAF, 0x2F, 0xDE, 0xBC, 0xDB, 0x4D, 0x76, 0x80, 0x39, 0xF7, 0x94, 0x18, 0xA8, 0xB6, 0xFB,
0xCE, 0x09, 0x20, 0x44, 0x6F, 0x13, 0x9C, 0x7A, 0x1C, 0xA8, 0xA7, 0x17, 0x6F, 0x77, 0x85, 0x52,
0x6F, 0x7F, 0x30, 0xF5, 0xBE, 0x05, 0x9C, 0x3E, 0xBA, 0x78, 0x81, 0xDD, 0x0D, 0xB0, 0xE2, 0x84,
0x14, 0x2F, 0xED, 0x25, 0x3D, 0xDA, 0xDB, 0x42, 0x2E, 0x11, 0xE5, 0x3B, 0x58, 0xC6, 0x81, 0x57,
0x7C, 0x64, 0x42, 0x6F, 0x12, 0x3C, 0x9C, 0x52, 0x37, 0xCE, 0x2F, 0xE7, 0x7E, 0x18, 0x05, 0x35,
0x0B, 0xAA, 0x1A, 0x91, 0x6D, 0x76, 0x06, 0x53, 0x51, 0x38, 0x22, 0xF1, 0xD6, 0x20, 0xDD, 0xD9,
0x4F, 0x30, 0xE9, 0x75, 0xFA, 0x5F, 0x15, 0x15, 0xCA, 0xFC, 0x26, 0x81, 0x99, 0x6C, 0x50, 0x77,
0x26, 0xB4, 0xEE, 0x3C, 0x3F, 0xDB, 0x4D, 0x2A, 0x9B, 0xEC, 0xAD, 0xE0, 0x4C, 0xF6, 0x5A, 0x70,
0x34, 0x7E, 0x51, 0x34, 0x81, 0x69, 0xC3, 0x45, 0x84, 0x20, 0x84, 0xB5, 0xF3, 0x26, 0x0B, 0x08,
0x79, 0x53, 0xFD, 0x72, 0x9B, 0xD0, 0x89, 0xC5, 0xC8, 0x46, 0xCE, 0x71, 0x1A, 0x37, 0xF7, 0xBF,
0x6A, 0xD4, 0x1C, 0x57, 0x4A, 0xBB, 0x4D, 0xD0, 0x50, 0x4D, 0x4C, 0xEC, 0xB8, 0xF4, 0x09, 0xA6,
0x75, 0x01, 0x91, 0x68, 0x39, 0x26, 0xDA, 0x19, 0xFF, 0xB6, 0x0D, 0x36, 0xBD, 0x6D, 0xB0, 0x91,
0x25, 0xCA, 0xC2, 0x73, 0x72, 0x43, 0x95, 0xA6, 0xDB, 0x3B, 0xBD, 0x49, 0x78, 0xC6, 0xF3, 0xF5,
0x73, 0x1A, 0xD0, 0xE8, 0xC6, 0x93, 0xB7, 0xBB, 0xC9, 0x69, 0x74, 0xB2, 0x9A, 0x39, 0x6D, 0xAB,
0x0C, 0xC6, 0x94, 0xDA, 0x77, 0x2B, 0xB6, 0xDC, 0x00, 0x8D, 0x25, 0x15, 0xFC, 0xC3, 0x8E, 0xD0,
0x58, 0xD6, 0x47, 0xE3, 0x2B, 0x57, 0x98, 0xE5, 0xB7, 0x80, 0x4F, 0x80, 0x96, 0x1F, 0x27, 0x33,
0xB4, 0x36, 0x46, 0x82, 0x4E, 0x37, 0xDE, 0xA1, 0xA5, 0xF6, 0xFC, 0xD5, 0xE3, 0x9D, 0x60, 0x15,
0x4F, 0xBA, 0x1F, 0xBC, 0x12, 0x95, 0xF7, 0x8D, 0x99, 0x8B, 0xBD, 0xF5, 0x83, 0x8A, 0x12, 0xE9,
0xC6, 0x4B, 0xEC, 0x85, 0xDA, 0x99, 0x1F, 0x88, 0xB7, 0xCD, 0xEC, 0x04, 0x35, 0x36, 0xF3, 0x7E,
0x20, 0xE3, 0x4A, 0xEF, 0x1B, 0xAF, 0xE9, 0xCC, 0x09, 0x02, 0x3F, 0x58, 0x1B, 0x32, 0x41, 0xA7,
0x1B, 0x2F, 0x5A, 0xAF, 0xD8, 0xD1, 0x4E, 0xE0, 0x8A, 0x67, 0xDD, 0x0F, 0x62, 0x89, 0xCE, 0xFB,
0x06, 0x6D, 0x61, 0xBB, 0xCE, 0x7C, 0x6D, 0xC8, 0x18, 0x95, 0x6E, 0xBC, 0x6F, 0x3D, 0x83, 0x7F,
0x77, 0x02, 0x17, 0x9F, 0x71, 0x3F, 0x60, 0x09, 0x6D, 0xF7, 0x0D, 0x95, 0x65, 0x2E, 0xD7, 0x06,
0x0A, 0x68, 0x74, 0xE3, 0xE9, 0xD9, 0x07, 0xAD, 0xF1, 0xD4, 0x5F, 0x7A, 0xF4, 0xC6, 0x3F, 0xED,
0xFC, 0x75, 0x73, 0x27, 0x88, 0xD1, 0xA9, 0xF7, 0x83, 0x17, 0x53, 0x7A, 0xDF, 0x68, 0xB1, 0xBB,
0x8F, 0xC7, 0x68, 0xFD, 0x74, 0x18, 0x13, 0xD2, 0x7B, 0x5F, 0xE0, 0x48, 0x7B, 0x82, 0x76, 0x93,
0x10, 0x93, 0x79, 0x77, 0xD1, 0xB4, 0xA7, 0x4A, 0xEE, 0x1B, 0x27, 0x1B, 0x99, 0xF8, 0xA3, 0x85,
0xC9, 0x26, 0x37, 0x5E, 0x48, 0xB4, 0xBA, 0xF1, 0x0C, 0xBE, 0x68, 0x4F, 0xD9, 0x97, 0x5D, 0xB5,
0x1C, 0xF2, 0xFC, 0xBB, 0x40, 0x2D, 0xA3, 0xEF, 0x37, 0x01, 0x1C, 0x34, 0x78, 0xFE, 0xC4, 0xDB,
0xE8, 0x7E, 0xEA, 0x0C, 0xB9, 0x80, 0xEF, 0x1D, 0xFF, 0xBE, 0x5B, 0x00, 0x53, 0x21, 0x76, 0x86,
0xA1, 0xA4, 0xF7, 0x2E, 0x60, 0x8C, 0x9F, 0x49, 0x60, 0xDB, 0x02, 0xFC, 0xE5, 0x4F, 0x55, 0x48,
0x89, 0x57, 0xC2, 0xB0, 0xAD, 0x1B, 0x4C, 0x5A, 0x21, 0x71, 0x5C, 0x57, 0x37, 0x9E, 0x63, 0xA2,
0x5D, 0xD0, 0xC3, 0xE1, 0x11, 0x1F, 0x50, 0x9F, 0x8B, 0xB8, 0xE1, 0x9F, 0xBE, 0x76, 0x0D, 0xCD,
0x74, 0xE3, 0x82, 0xBE, 0x16, 0x0B, 0x78, 0xD1, 0x6F, 0xEB, 0x33, 0x63, 0x46, 0xC4, 0x5E, 0xE0,
0x83, 0x50, 0x09, 0x48, 0xE2, 0xED, 0x24, 0xBA, 0x16, 0x1F, 0x49, 0xBF, 0x19, 0xE7, 0x6C, 0xB0,
0x46, 0xBD, 0xAC, 0x7A, 0x3A, 0x7A, 0x15, 0xD6, 0x2C, 0xBE, 0x58, 0x3B, 0x3C, 0xF2, 0x90, 0xC2,
0xDC, 0x05, 0x28, 0x0C, 0xF9, 0xFB, 0xD4, 0x0A, 0x58, 0x25, 0x0F, 0x53, 0x30, 0x4B, 0xA4, 0x0F,
0x26, 0x25, 0x6A, 0xE5, 0x1F, 0x58, 0x12, 0x1B, 0xB6, 0xF5, 0x82, 0x96, 0x3D, 0x7A, 0x24, 0xEA,
0x21, 0x3D, 0x4C, 0xCC, 0xFF, 0x9F, 0x7F, 0x57, 0xF9, 0x0C, 0x7D, 0xDB, 0x5D, 0x2A, 0x98, 0xAE,
0x85, 0x81, 0x39, 0xD2, 0x8B, 0x1E, 0xCD, 0x28, 0xD0, 0xFC, 0x48, 0xA5, 0x7A, 0x6E, 0xB0, 0xC2,
0xD6, 0xC3, 0xD0, 0x0C, 0x9C, 0x39, 0x31, 0x6E, 0x59, 0xBE, 0x19, 0xCD, 0xB0, 0x47, 0xDA, 0xC8,
0xB2, 0xCE, 0x17, 0x70, 0xF0, 0xD2, 0x09, 0x09, 0x06, 0x2B, 0x34, 0x0E, 0x9E, 0xBE, 0x79, 0x75,
0xC6, 0x1F, 0x51, 0x79, 0xE9, 0x23, 0x0B, 0x5B, 0x07, 0x87, 0x9A, 0x1D, 0x79, 0xDC, 0xCD, 0x1B,
0x98, 0x8E, 0xE5, 0x6F, 0x1A, 0x5C, 0xA0, 0x40, 0x1B, 0xA3, 0x10, 0xBF, 0xF0, 0x43, 0xA2, 0x8D,
0xB4, 0x84, 0xA3, 0xEB, 0x9B, 0xEC, 0xF6, 0xC5, 0xB6, 0x1F, 0x38, 0x13, 0xC7, 0x13, 0x23, 0xB9,
0xB2, 0xBF, 0x05, 0x2E, 0x0C, 0x4D, 0xA8, 0x7E, 0xD4, 0x0E, 0x06, 0xA7, 0xDD, 0x03, 0xFA, 0x34,
0x11, 0xC0, 0x00, 0x3F, 0x00, 0x04, 0x18, 0x06, 0x40, 0x80, 0x8F, 0x0C, 0xF1, 0x38, 0x11, 0x76,
0xDB, 0xCC, 0xE4, 0x54, 0x40, 0x2A, 0x6D, 0xE3, 0x80, 0xE3, 0x74, 0x40, 0x1F, 0xAD, 0xBB, 0x4E,
0x28, 0xC3, 0xA9, 0xBF, 0x2C, 0xA3, 0x0C, 0xF0, 0xCC, 0x5F, 0xE0, 0x1C, 0x71, 0x42, 0x2D, 0xBC,
0xB9, 0x72, 0xEA, 0xD8, 0xEB, 0x0F, 0x9A, 0xF1, 0x80, 0xE4, 0xCD, 0x3D, 0x23, 0x8D, 0x04, 0x11,
0xCE, 0xB2, 0xC5, 0x5E, 0x15, 0xD7, 0x58, 0xAC, 0x52, 0xC6, 0x36, 0x72, 0xC3, 0x1C, 0xE7, 0x68,
0x6E, 0x21, 0x82, 0xDF, 0xD3, 0xDD, 0x5D, 0x18, 0xD0, 0xC0, 0xEE, 0x21, 0xDF, 0xEA, 0x3D, 0x14,
0x67, 0xDE, 0x01, 0x5F, 0x82, 0x9B, 0xE9, 0xAC, 0xF2, 0xCF, 0x40, 0x91, 0xFD, 0x3A, 0xD2, 0xBC,
0x08, 0x42, 0xF8, 0x11, 0x53, 0x41, 0x1B, 0x64, 0xCE, 0x32, 0x6A, 0x17, 0xB2, 0x93, 0x78, 0x4B,
0x31, 0x9B, 0x93, 0xFD, 0xE8, 0xD8, 0x74, 0xE2, 0x36, 0x7B, 0x67, 0xF2, 0x08, 0x78, 0x1C, 0xC4,
0xD9, 0xFD, 0x20, 0x7D, 0x15, 0xA5, 0x4C, 0xC4, 0xEC, 0xD0, 0x16, 0x7D, 0xB0, 0x38, 0xBF, 0x10,
0x27, 0x6E, 0xDF, 0x5E, 0x24, 0x7C, 0x35, 0x69, 0x18, 0x9C, 0x4A, 0x4F, 0x5C, 0xC3, 0x09, 0xE9,
0x79, 0xBF, 0x55, 0xDE, 0x39, 0x1E, 0x31, 0x73, 0x89, 0xC3, 0xAD, 0x44, 0xF2, 0x8C, 0x05, 0xEE,
0xDD, 0xCB, 0x72, 0xBB, 0x3D, 0x12, 0x54, 0xA9, 0x26, 0x7C, 0x3C, 0x44, 0x06, 0x44, 0x1E, 0xA8,
0x2D, 0x9E, 0x02, 0x15, 0x22, 0x39, 0x76, 0xE3, 0x76, 0xC6, 0xF0, 0x89, 0x8C, 0x36, 0x35, 0x91,
0x63, 0x31, 0x03, 0xB1, 0x7B, 0x20, 0x9A, 0xE9, 0x53, 0x72, 0x5C, 0xBE, 0x47, 0xCC, 0xEB, 0x1B,
0x58, 0x5C, 0x1D, 0x6D, 0x82, 0xFD, 0xA9, 0x33, 0xA7, 0x3F, 0x88, 0xF1, 0xE9, 0x54, 0x32, 0xC7,
0x49, 0x86, 0x23, 0x55, 0x2C, 0x27, 0x37, 0xFD, 0x30, 0x7E, 0xF4, 0x3A, 0x81, 0xB8, 0x56, 0x21,
0x3F, 0x95, 0xCA, 0x26, 0x07, 0x36, 0xF4, 0x5A, 0x46, 0xFA, 0x7B, 0xCE, 0xD4, 0xC9, 0xC0, 0x02,
0x26, 0x6C, 0x82, 0x55, 0x26, 0xA5, 0x92, 0xC7, 0x37, 0x8A, 0x29, 0x0C, 0xC2, 0xD8, 0x2D, 0xC7,
0xD4, 0x14, 0x6C, 0x56, 0x38, 0x2C, 0x63, 0x95, 0x2B, 0xFC, 0x0A, 0x86, 0x3C, 0x10, 0x1B, 0xBC,
0xAE, 0x3D, 0x61, 0x35, 0x8A, 0x32, 0x17, 0x31, 0x96, 0xFD, 0xFD, 0x96, 0x2C, 0xFC, 0x75, 0x1C,
0x76, 0x49, 0x0A, 0x94, 0xFD, 0x80, 0xFA, 0x7F, 0x6C, 0x69, 0x1A, 0x22, 0xA9, 0xA3, 0x89, 0x07,
0xFB, 0xE3, 0xF8, 0x48, 0xE1, 0x30, 0x21, 0xF7, 0x49, 0x91, 0x32, 0xC8, 0x89, 0x2A, 0x87, 0x08,
0xC8, 0xDD, 0xD5, 0xE4, 0x47, 0xF5, 0xC7, 0x90, 0x42, 0x3F, 0x67, 0xF8, 0xB0, 0x8B, 0x32, 0x09,
0x13, 0xFE, 0x1B, 0xBF, 0xCD, 0xA9, 0xE5, 0x7B, 0x58, 0xCD, 0x5D, 0x0E, 0x12, 0x15, 0x4F, 0x5E,
0xC2, 0xF3, 0x4C, 0xA3, 0xF1, 0xCC, 0x21, 0x0A, 0x86, 0x07, 0x90, 0xBE, 0x55, 0xBC, 0x44, 0x63,
0x97, 0x12, 0x04, 0x98, 0x44, 0x81, 0x27, 0x47, 0x21, 0xCF, 0x64, 0x7F, 0x47, 0x38, 0xB8, 0x02,
0x46, 0x9F, 0xEE, 0x7E, 0x89, 0xEB, 0xC2, 0xF5, 0x11, 0x7B, 0x34, 0xC1, 0x77, 0x1F, 0x41, 0xE5,
0x18, 0xDD, 0xFD, 0xC2, 0xA0, 0xBE, 0xBE, 0x07, 0x53, 0xC2, 0x17, 0x36, 0xF1, 0xF5, 0x27, 0xCE,
0xC2, 0xA6, 0x2F, 0x9A, 0x6D, 0x30, 0x16, 0x31, 0x6E, 0x6D, 0x32, 0xC5, 0x5E, 0x23, 0xC0, 0xE1,
0x1C, 0xD8, 0xE3, 0x34, 0x01, 0xC6, 0x33, 0xFA, 0x2E, 0x86, 0x12, 0x35, 0x69, 0x7C, 0x0A, 0x30,
0xD0, 0x81, 0x00, 0xC4, 0xD7, 0xEE, 0x7E, 0x61, 0x2C, 0xAE, 0x35, 0x1B, 0xB2, 0x40, 0x38, 0xC5,
0xD6, 0x21, 0xD4, 0x2B, 0x44, 0xE8, 0x13, 0xB8, 0x77, 0xBF, 0xC4, 0xAC, 0xDA, 0xFC, 0xA7, 0xEB,
0x4F, 0x89, 0x87, 0x24, 0x45, 0x24, 0xAE, 0x7D, 0xEC, 0x44, 0x9B, 0xF1, 0xBA, 0x60, 0x28, 0xF8,
0xC1, 0x63, 0xD7, 0x6D, 0x1C, 0xF0, 0x07, 0x95, 0x45, 0x6E, 0x6F, 0x43, 0xB3, 0x7A, 0x8E, 0x40,
0x6C, 0xB9, 0x28, 0xB0, 0x7C, 0xE5, 0x7B, 0xA6, 0xEB, 0x98, 0x9F, 0x69, 0x42, 0x6F, 0x66, 0x05,
0xE7, 0x19, 0xC2, 0x6D, 0xF3, 0x17, 0xCF, 0xBC, 0xF6, 0x2D, 0x9C, 0x73, 0xD3, 0x26, 0x15, 0xE3,
0xE8, 0x08, 0xAC, 0x8C, 0xAC, 0x38, 0x95, 0x71, 0x8C, 0xE8, 0x1B, 0x0A, 0xB8, 0x99, 0x32, 0x16,
0xE6, 0xCA, 0x08, 0x5D, 0xB8, 0xCD, 0xD2, 0x2A, 0x1F, 0xAB, 0x9C, 0xBA, 0x2D, 0x47, 0x4F, 0x4B,
0x6C, 0xF1, 0x57, 0xE8, 0x7B, 0x8D, 0xE6, 0xAD, 0xC4, 0x0C, 0xAB, 0x3C, 0xE8, 0x04, 0x12, 0x83,
0x8C, 0x89, 0x8A, 0xCC, 0x94, 0x5D, 0x0D, 0x1C, 0xA4, 0x99, 0xA4, 0xC0, 0x66, 0xF4, 0x23, 0x55,
0x42, 0x56, 0x06, 0xD9, 0xBC, 0x7F, 0x30, 0x97, 0xF9, 0xF3, 0x90, 0x97, 0x4E, 0x29, 0x23, 0x35,
0x25, 0x73, 0x71, 0xFF, 0xA3, 0xAF, 0xE8, 0x97, 0xDB, 0x17, 0xE8, 0xC9, 0xCF, 0x5D, 0x4C, 0x0F,
0x9F, 0x5C, 0xFD, 0x0C, 0x25, 0x9F, 0x37, 0x2E, 0x4C, 0x96, 0x94, 0xE0, 0x2C, 0x69, 0x1A, 0x2B,
0x29, 0xD3, 0x06, 0x53, 0xE2, 0xC1, 0x9A, 0x7E, 0x9E, 0x6F, 0xCA, 0x38, 0x24, 0xEB, 0x83, 0x0C,
0x29, 0xE5, 0x5A, 0x4D, 0x9B, 0x59, 0x15, 0x48, 0xF4, 0x72, 0xAE, 0x2B, 0xA3, 0x97, 0x16, 0x02,
0x12, 0x35, 0x73, 0xE4, 0x6A, 0x62, 0xB9, 0x25, 0x3E, 0x90, 0x8C, 0x1D, 0x12, 0x7F, 0xCE, 0x57,
0x26, 0x39, 0x27, 0x5F, 0x3A, 0x9E, 0xE5, 0x2F, 0xDB, 0xF4, 0x7C, 0x43, 0x94, 0x56, 0x59, 0xD1,
0xB6, 0xE3, 0x81, 0x01, 0x5F, 0xFC, 0xFA, 0xEA, 0x25, 0x4D, 0x39, 0xF2, 0x0A, 0xE7, 0x20, 0xDB,
0x17, 0xB1, 0x77, 0x02, 0x2B, 0x67, 0xA0, 0xB0, 0xB5, 0xA1, 0xD5, 0xE6, 0xA9, 0x26, 0x69, 0x47,
0x69, 0x24, 0xD0, 0xC3, 0x4F, 0x7C, 0x4E, 0x5A, 0x78, 0x32, 0x00, 0x37, 0x2B, 0x65, 0xF1, 0xE7,
0x79, 0x51, 0x20, 0x0E, 0x1F, 0x13, 0x02, 0xEE, 0xAA, 0x71, 0x47, 0x0E, 0x69, 0x8E, 0x11, 0xAB,
0xC3, 0x5B, 0x9A, 0x0C, 0x7E, 0x41, 0xC8, 0xA7, 0x66, 0x12, 0x31, 0x96, 0x15, 0x5E, 0xCA, 0x93,
0x68, 0x0E, 0x71, 0x89, 0x1F, 0x7D, 0x34, 0xC7, 0x90, 0x1A, 0x9F, 0x82, 0xE7, 0xB7, 0x3D, 0xD0,
0xA0, 0x79, 0x5D, 0xA6, 0x0E, 0x37, 0x57, 0x0A, 0x64, 0x5D, 0x21, 0x58, 0x12, 0x52, 0x73, 0xCB,
0xD8, 0x47, 0xCD, 0x4E, 0xF6, 0xDE, 0x73, 0x2F, 0x6E, 0x6D, 0x8B, 0x0C, 0x3B, 0x5A, 0x35, 0x2D,
0xEF, 0x6E, 0x32, 0x0C, 0xD2, 0xF4, 0xB2, 0x22, 0x6C, 0xAE, 0x81, 0x91, 0xFC, 0x22, 0x1E, 0x10,
0xCB, 0x2E, 0x07, 0x44, 0x81, 0xEC, 0xD9, 0xDE, 0x2F, 0xD7, 0x2C, 0xE4, 0x20, 0x17, 0x39, 0x4C,
0xA3, 0x2F, 0x2A, 0x98, 0xD2, 0xF2, 0x2C, 0x9C, 0xA0, 0x4E, 0x99, 0x50, 0xE6, 0xBF, 0xD2, 0x7A,
0xC1, 0x67, 0x88, 0xA5, 0xCD, 0xF7, 0xA8, 0xD9, 0xDA, 0x70, 0x16, 0x81, 0x95, 0x66, 0xB1, 0x4F,
0xF2, 0xDF, 0x68, 0xC3, 0x96, 0x04, 0x0F, 0x34, 0x70, 0x65, 0x41, 0x0D, 0xA7, 0xA5, 0x4C, 0x20,
0xBA, 0xBD, 0x0A, 0x02, 0xE9, 0xAE, 0x27, 0x89, 0x56, 0xEA, 0x22, 0x4B, 0xD3, 0x5F, 0xFE, 0x3E,
0x1D, 0xC6, 0x02, 0xB8, 0xAE, 0x6A, 0xAE, 0xC0, 0x09, 0xC6, 0x35, 0x13, 0xB7, 0xA1, 0x44, 0xA2,
0xAD, 0x92, 0x9C, 0xA6, 0xA0, 0x2D, 0x5E, 0x6D, 0x89, 0x73, 0xDE, 0x54, 0xD4, 0x0A, 0xAF, 0xB6,
0xC1, 0xD7, 0x92, 0x83, 0xC4, 0xF7, 0x3F, 0xA6, 0x26, 0xC4, 0xE5, 0xF6, 0xC6, 0xB2, 0xBD, 0xE3,
0xE5, 0x40, 0x05, 0x85, 0x7C, 0x9B, 0x26, 0x37, 0x17, 0xAE, 0x69, 0x2E, 0x2C, 0xCC, 0x45, 0x09,
0xD2, 0x0E, 0xB4, 0x7A, 0x6D, 0x92, 0xF8, 0xFF, 0x87, 0x27, 0xA9, 0x66, 0xCB, 0x71, 0xA9, 0x9C,
0xA2, 0xF7, 0x97, 0xD4, 0x2B, 0x27, 0xC8, 0x3C, 0xCB, 0xC1, 0xD5, 0x5A, 0x8E, 0xEB, 0xA9, 0x15,
0xAF, 0x1D, 0x28, 0x41, 0xAA, 0x96, 0x7A, 0x85, 0x11, 0xAB, 0x92, 0xEC, 0x75, 0xB3, 0xFF, 0xDD,
0x42, 0xF2, 0x66, 0x89, 0x44, 0x58, 0xBE, 0x51, 0x5C, 0x59, 0x3D, 0xF9, 0x30, 0x49, 0xC9, 0x64,
0x8D, 0x52, 0x49, 0x9A, 0x8C, 0x94, 0xA8, 0x13, 0x39, 0x4A, 0xA9, 0xE3, 0x41, 0xBC, 0xEC, 0x26,
0x5F, 0x6B, 0x19, 0x2B, 0x19, 0x9D, 0x06, 0x4E, 0xCA, 0x80, 0x77, 0xFC, 0x86, 0x76, 0x3F, 0xBF,
0x26, 0xE6, 0xBD, 0x17, 0x57, 0x36, 0xD7, 0x71, 0xC9, 0x03, 0x12, 0x95, 0x32, 0x63, 0x92, 0x00,
0xE1, 0xF4, 0x45, 0x62, 0x56, 0x8A, 0x82, 0x5C, 0x1C, 0x90, 0x86, 0xFE, 0xD6, 0xC5, 0x74, 0xBD,
0x22, 0x9E, 0xC6, 0x39, 0xFB, 0xF9, 0x99, 0xE6, 0x07, 0x1A, 0x7F, 0xC1, 0x5D, 0x90, 0xBC, 0x5B,
0x44, 0x13, 0x6F, 0x7F, 0x62, 0xAB, 0x42, 0x9A, 0x83, 0xC8, 0xD4, 0x09, 0xA1, 0x49, 0xA6, 0x4F,
0xDE, 0xE2, 0xDB, 0x7A, 0xF2, 0x82, 0xA7, 0x4A, 0xF5, 0x78, 0x57, 0xFC, 0x53, 0xA2, 0x48, 0xCE,
0x9C, 0x9C, 0x26, 0xB5, 0xE5, 0x6D, 0xA1, 0xE3, 0x4A, 0x22, 0x2A, 0x5B, 0x87, 0xAE, 0x61, 0xC2,
0xE4, 0xF4, 0x37, 0x6B, 0x45, 0xB5, 0x02, 0x95, 0x86, 0x4C, 0xC8, 0x52, 0x5B, 0xA6, 0xBA, 0xAE,
0x58, 0x53, 0xB5, 0xD8, 0x2F, 0x41, 0x94, 0xEE, 0x79, 0x29, 0xB3, 0x7C, 0x31, 0x2A, 0xDC, 0xE2,
0xBC, 0xB0, 0xF2, 0xCF, 0xF0, 0x28, 0xDE, 0x59, 0xE5, 0xDF, 0xF8, 0xAB, 0x8B, 0x86, 0x47, 0xFC,
0x7F, 0x22, 0xF6, 0x5F, 0x04, 0x9C, 0x39, 0x76, 0x5C, 0x6C, 0x00, 0x00
};
//File: index_ov3660.html.gz, Size: 4408
#define index_ov3660_html_gz_len 4408
const uint8_t index_ov3660_html_gz[] = {
0x1F, 0x8B, 0x08, 0x08, 0x28, 0x5C, 0xAE, 0x5C, 0x00, 0x03, 0x69, 0x6E, 0x64, 0x65, 0x78, 0x5F,
0x6F, 0x76, 0x33, 0x36, 0x36, 0x30, 0x2E, 0x68, 0x74, 0x6D, 0x6C, 0x00, 0xE5, 0x5D, 0xEB, 0x92,
0xD3, 0xC6, 0x12, 0xFE, 0xCF, 0x53, 0x08, 0x41, 0x58, 0x6F, 0x65, 0xED, 0xF5, 0x6D, 0xCD, 0xE2,
0xD8, 0xE6, 0xC0, 0xB2, 0x84, 0x54, 0x01, 0x49, 0x20, 0x21, 0xA9, 0x4A, 0xA5, 0x60, 0x2C, 0x8D,
0xED, 0x09, 0xB2, 0xE4, 0x48, 0x23, 0x7B, 0x37, 0xD4, 0x3E, 0xC7, 0x79, 0xA0, 0xF3, 0x62, 0xA7,
0xE7, 0x22, 0x69, 0x24, 0x8F, 0x2E, 0xB6, 0x59, 0x9B, 0xC3, 0x31, 0x55, 0x20, 0x5B, 0xD3, 0x3D,
0xDD, 0xFD, 0xF5, 0x6D, 0x46, 0x17, 0x06, 0x77, 0x6D, 0xCF, 0xA2, 0xD7, 0x0B, 0x6C, 0xCC, 0xE8,
0xDC, 0x19, 0xDD, 0x19, 0x88, 0x7F, 0x0C, 0xF8, 0x0C, 0x66, 0x18, 0xD9, 0xE2, 0x90, 0x7F, 0x9D,
0x63, 0x8A, 0x0C, 0x6B, 0x86, 0xFC, 0x00, 0xD3, 0xA1, 0x19, 0xD2, 0x49, 0xFD, 0xDC, 0xCC, 0x9E,
0x76, 0xD1, 0x1C, 0x0F, 0xCD, 0x25, 0xC1, 0xAB, 0x85, 0xE7, 0x53, 0xD3, 0xB0, 0x3C, 0x97, 0x62,
0x17, 0x86, 0xAF, 0x88, 0x4D, 0x67, 0x43, 0x1B, 0x2F, 0x89, 0x85, 0xEB, 0xFC, 0xCB, 0x09, 0x71,
0x09, 0x25, 0xC8, 0xA9, 0x07, 0x16, 0x72, 0xF0, 0xB0, 0xA5, 0xF2, 0xA2, 0x84, 0x3A, 0x78, 0x74,
0xF9, 0xF6, 0xA7, 0x4E, 0xDB, 0xF8, 0xF1, 0x5D, 0xA7, 0xD7, 0x6B, 0x0E, 0x4E, 0xC5, 0x6F, 0xC9,
0x98, 0x80, 0x5E, 0xAB, 0xDF, 0xD9, 0x67, 0xEC, 0xD9, 0xD7, 0xC6, 0xA7, 0xD4, 0x4F, 0xEC, 0x33,
0x01, 0x21, 0xEA, 0x13, 0x34, 0x27, 0xCE, 0x75, 0xDF, 0x78, 0xE2, 0xC3, 0x9C, 0x27, 0x2F, 0xB0,
0xB3, 0xC4, 0x94, 0x58, 0xE8, 0x24, 0x40, 0x6E, 0x50, 0x0F, 0xB0, 0x4F, 0x26, 0xDF, 0xAD, 0x11,
0x8E, 0x91, 0xF5, 0x71, 0xEA, 0x7B, 0xA1, 0x6B, 0xF7, 0x8D, 0x7B, 0xAD, 0x73, 0xF6, 0x67, 0x7D,
0x90, 0xE5, 0x39, 0x9E, 0x0F, 0xE7, 0x2F, 0x9F, 0xB3, 0x3F, 0xEB, 0xE7, 0xF9, 0xEC, 0x01, 0xF9,
0x07, 0xF7, 0x8D, 0x56, 0x6F, 0x71, 0x95, 0x3A, 0x7F, 0x73, 0x27, 0xF5, 0x75, 0xD6, 0xCE, 0x93,
0x5E, 0xD2, 0x9F, 0x17, 0xD3, 0x07, 0xD8, 0xA2, 0xC4, 0x73, 0x1B, 0x73, 0x44, 0x5C, 0x0D, 0x27,
0x9B, 0x04, 0x0B, 0x07, 0x81, 0x0D, 0x26, 0x0E, 0x2E, 0xE4, 0x73, 0x6F, 0x8E, 0xDD, 0xF0, 0xA4,
0x84, 0x1B, 0x63, 0x52, 0xB7, 0x89, 0x2F, 0x46, 0xF5, 0x99, 0x1D, 0xC2, 0xB9, 0x5B, 0xCA, 0xB6,
0x48, 0x2E, 0xD7, 0x73, 0xB1, 0xC6, 0x80, 0x6C, 0xA2, 0x95, 0x8F, 0x16, 0x6C, 0x00, 0xFB, 0x77,
0x7D, 0xC8, 0x9C, 0xB8, 0xC2, 0xA9, 0xFA, 0x46, 0xA7, 0xDB, 0x5C, 0x5C, 0x95, 0x40, 0xD9, 0xE9,
0xB1, 0x3F, 0xEB, 0x83, 0x16, 0xC8, 0xB6, 0x89, 0x3B, 0xED, 0x1B, 0xE7, 0x5A, 0x16, 0x9E, 0x6F,
0x63, 0xBF, 0xEE, 0x23, 0x9B, 0x84, 0x41, 0xDF, 0xE8, 0xEA, 0xC6, 0xCC, 0x91, 0x3F, 0x05, 0x59,
0xA8, 0x07, 0xC2, 0xD6, 0x5B, 0x5A, 0x49, 0xE4, 0x10, 0x9F, 0x4C, 0x67, 0x14, 0x20, 0x5D, 0x1B,
0x93, 0x35, 0x9A, 0x0C, 0xA1, 0x32, 0x3C, 0x0B, 0xED, 0xA6, 0xB7, 0x1A, 0x72, 0xC8, 0xD4, 0xAD,
0x13, 0x8A, 0xE7, 0xA0, 0x4E, 0x40, 0x7D, 0x4C, 0xAD, 0x59, 0x91, 0x28, 0x13, 0x32, 0x0D, 0x7D,
0xAC, 0x11, 0x24, 0xB6, 0x5B, 0x81, 0xC2, 0x70, 0x72, 0xFD, 0x54, 0x7D, 0x85, 0xC7, 0x1F, 0x09,
0xAD, 0x4B, 0x9B, 0x8C, 0xF1, 0xC4, 0xF3, 0xB1, 0x76, 0x64, 0x34, 0xC2, 0xF1, 0xAC, 0x8F, 0xF5,
0x80, 0x22, 0x9F, 0x56, 0x61, 0x88, 0x26, 0x14, 0xFB, 0xE5, 0xFC, 0x30, 0xF3, 0x8A, 0x72, 0x6E,
0xF9, 0xD3, 0xCA, 0x01, 0xC4, 0x75, 0x88, 0x8B, 0xAB, 0x8B, 0x97, 0x37, 0x6F, 0x9A, 0x9D, 0x18,
0x55, 0x01, 0x18, 0x32, 0x9F, 0x16, 0x79, 0x09, 0xD7, 0x75, 0x7D, 0x32, 0x19, 0x37, 0xAD, 0x66,
0xF3, 0x9B, 0xF5, 0x93, 0x33, 0x2C, 0xDC, 0x14, 0x85, 0xD4, 0xDB, 0x3D, 0x22, 0xD6, 0xC2, 0x2A,
0xA3, 0xC7, 0xBF, 0xE6, 0xD8, 0x26, 0xC8, 0xA8, 0x29, 0xE1, 0x7C, 0xDE, 0x04, 0x9F, 0x3A, 0x36,
0x90, 0x6B, 0x1B, 0x35, 0xCF, 0x27, 0x10, 0x08, 0x88, 0xA7, 0x1B, 0x07, 0x7E, 0x81, 0xC2, 0xB1,
0xC0, 0xC7, 0x1A, 0x95, 0x0B, 0x62, 0x46, 0xB5, 0x88, 0x3E, 0x6C, 0xD8, 0xA7, 0x42, 0xCA, 0x61,
0x9F, 0xD2, 0x00, 0xD2, 0xE8, 0xC8, 0xD9, 0x17, 0xE1, 0xA5, 0x4A, 0x98, 0x87, 0x19, 0xFB, 0xCC,
0xD1, 0x55, 0xBD, 0x10, 0xBB, 0x68, 0x50, 0x84, 0x21, 0x94, 0x59, 0xAB, 0x06, 0x43, 0x97, 0x33,
0xA3, 0x6E, 0xB0, 0x2C, 0x79, 0xAC, 0xA7, 0x91, 0x4C, 0xF5, 0x90, 0xB3, 0x8F, 0xEA, 0x14, 0x1B,
0xA8, 0xAB, 0x57, 0x35, 0xC9, 0x1D, 0xE2, 0x8F, 0xCE, 0x87, 0x84, 0x26, 0xB9, 0x59, 0x84, 0x7D,
0xAA, 0x67, 0x92, 0x84, 0x59, 0x69, 0x36, 0xD1, 0x30, 0xCE, 0xCF, 0x28, 0x6B, 0x7C, 0xF3, 0xA2,
0x5B, 0xC3, 0xB5, 0x58, 0x84, 0xAA, 0xD9, 0x45, 0xC3, 0xB8, 0x48, 0x86, 0xD2, 0x2C, 0xC3, 0x3E,
0x37, 0x15, 0xFA, 0x8D, 0x7B, 0xE3, 0x90, 0x52, 0xCF, 0x0D, 0x76, 0x2A, 0x51, 0x79, 0x71, 0xF6,
0x57, 0x18, 0x50, 0x32, 0xB9, 0xAE, 0xCB, 0x90, 0x86, 0x38, 0x5B, 0x20, 0x68, 0x21, 0xC7, 0x98,
0xAE, 0x30, 0x2E, 0x6E, 0x37, 0x5C, 0xB4, 0x84, 0xBC, 0x33, 0x9D, 0x3A, 0x3A, 0xDF, 0xB3, 0x42,
0x3F, 0x60, 0x7D, 0xDB, 0xC2, 0x23, 0xC0, 0xD8, 0x5F, 0x9F, 0x38, 0x1D, 0x83, 0x15, 0x27, 0xAA,
0x5B, 0x63, 0xCD, 0x5C, 0x5E, 0x48, 0x99, 0x8D, 0xB5, 0x48, 0x78, 0xA0, 0x0E, 0xA1, 0xD7, 0xDA,
0x73, 0x32, 0x12, 0x35, 0x67, 0xA2, 0x10, 0x2C, 0x2C, 0x0B, 0x69, 0xB9, 0xFA, 0xD6, 0x0C, 0x5B,
0x1F, 0xB1, 0xFD, 0x6D, 0x69, 0x1B, 0x56, 0xD6, 0x1E, 0x36, 0x88, 0xBB, 0x08, 0x69, 0x9D, 0xB5,
0x53, 0x8B, 0x5B, 0xC1, 0x9C, 0x3B, 0x64, 0xA4, 0x62, 0xBB, 0x5D, 0xD4, 0x54, 0x9C, 0x2D, 0xAE,
0x8A, 0x8D, 0xA0, 0x0A, 0x3B, 0x72, 0xD0, 0x18, 0x3B, 0x45, 0x22, 0xCB, 0x60, 0xC8, 0x49, 0xBB,
0x32, 0x57, 0xE5, 0xF7, 0x6E, 0x5C, 0xB2, 0xA4, 0x78, 0x75, 0x1F, 0x7E, 0x53, 0xD9, 0x8E, 0xFC,
0xF8, 0x24, 0xF5, 0x53, 0x80, 0x1D, 0x08, 0xB0, 0xBC, 0xD6, 0x1B, 0xC6, 0xAC, 0x40, 0x86, 0xC2,
0x09, 0x7C, 0xE4, 0x4E, 0x31, 0xE4, 0x82, 0xAB, 0x93, 0xE8, 0xB0, 0x78, 0x61, 0x50, 0x49, 0x7D,
0x96, 0xAA, 0xCF, 0x8A, 0x17, 0x22, 0x22, 0x21, 0x6C, 0xD1, 0x8C, 0x28, 0xB0, 0x16, 0xCE, 0xDF,
0xD2, 0x3A, 0x85, 0xE8, 0x47, 0xB4, 0x01, 0x93, 0x76, 0x29, 0x6D, 0x7F, 0x5F, 0x9A, 0x11, 0xA2,
0x95, 0xDE, 0x64, 0x52, 0xB6, 0x56, 0x9C, 0x4C, 0x3A, 0xCD, 0x4E, 0xB7, 0xB4, 0x61, 0xD2, 0x6A,
0x99, 0x59, 0x2F, 0x6A, 0x32, 0x46, 0x9C, 0x4D, 0xCA, 0x21, 0xE8, 0xCF, 0xBC, 0x25, 0xF6, 0x35,
0x40, 0x64, 0xC4, 0xED, 0x3E, 0xEA, 0xDA, 0x15, 0xB8, 0x21, 0xC8, 0xF7, 0x4B, 0x5D, 0x36, 0x4D,
0xB3, 0x6B, 0xB7, 0xAC, 0x76, 0xA1, 0x63, 0x0A, 0x76, 0x0D, 0xF0, 0x06, 0x34, 0x76, 0xB0, 0x5D,
0x90, 0x9E, 0x6D, 0x3C, 0x41, 0xA1, 0x43, 0x4B, 0xEC, 0x8D, 0x9A, 0xEC, 0x4F, 0xD1, 0x8C, 0x3C,
0xAE, 0xFE, 0x60, 0x1B, 0x1D, 0x43, 0x1E, 0x09, 0x7F, 0x6A, 0xE6, 0x8C, 0x6A, 0x27, 0x5A, 0x2C,
0x30, 0x82, 0x51, 0x16, 0xCE, 0x5B, 0x92, 0x56, 0xEA, 0x99, 0xF5, 0x89, 0xAB, 0xD2, 0x42, 0xB4,
0xD4, 0x15, 0xE3, 0x6E, 0x68, 0x23, 0x9D, 0xFB, 0x13, 0xCF, 0x0A, 0x75, 0x65, 0xBA, 0x9A, 0x4B,
0xAD, 0xF3, 0xEB, 0x47, 0x26, 0x0B, 0x1C, 0xC2, 0x1D, 0x3B, 0x74, 0x5D, 0x86, 0x68, 0x9D, 0xFA,
0xA0, 0xA6, 0x66, 0xA2, 0x6A, 0x86, 0xDB, 0x2A, 0x3A, 0x53, 0x86, 0xCD, 0xDB, 0x8C, 0xC9, 0x04,
0xA0, 0x26, 0x51, 0xC4, 0x39, 0xC4, 0x08, 0x3C, 0x50, 0x2A, 0x62, 0xB5, 0x9B, 0x5D, 0xE8, 0x2C,
0x9C, 0xEB, 0x1A, 0x83, 0x68, 0xB2, 0x16, 0x54, 0x31, 0x31, 0x9D, 0x3F, 0x1D, 0xA3, 0x5A, 0xF3,
0xA4, 0x79, 0xD2, 0x81, 0xBF, 0x34, 0x0D, 0x7A, 0xB1, 0x73, 0x49, 0xF3, 0xE6, 0x78, 0x5E, 0x26,
0xF9, 0x94, 0xEF, 0x93, 0xE4, 0xA5, 0xB1, 0x52, 0x2C, 0xAA, 0x47, 0x52, 0x7A, 0xC3, 0xA4, 0xD5,
0x28, 0x29, 0x2C, 0x39, 0x2E, 0xBD, 0xB9, 0x23, 0x6A, 0xBC, 0x65, 0x53, 0x88, 0xE7, 0xDE, 0x3F,
0x75, 0x51, 0x55, 0xFF, 0xEF, 0xBD, 0x5D, 0x31, 0xC5, 0x57, 0xED, 0xE9, 0x1B, 0xDB, 0x25, 0x38,
0xB4, 0x6F, 0x34, 0xF3, 0x51, 0xAF, 0xCB, 0x7E, 0x06, 0x24, 0x74, 0x61, 0x51, 0xE5, 0xC3, 0xEA,
0x2A, 0xB7, 0xE7, 0x51, 0xC6, 0x6C, 0x61, 0x83, 0x09, 0x71, 0x9C, 0xBA, 0xE3, 0xAD, 0xCA, 0x3B,
0x91, 0x62, 0x4F, 0x5E, 0xF3, 0xD3, 0x72, 0x97, 0xDF, 0x56, 0xDA, 0x10, 0x32, 0xD7, 0xFF, 0x84,
0xB4, 0x5F, 0x77, 0xC0, 0x15, 0x86, 0xC6, 0x76, 0x85, 0x62, 0x0B, 0x7F, 0xDC, 0x6D, 0xA2, 0x4A,
0xAE, 0x24, 0x3A, 0xC1, 0xC2, 0xC5, 0x5C, 0xB0, 0x22, 0xD4, 0x9A, 0x6D, 0xB1, 0xA8, 0x5A, 0x78,
0x01, 0x11, 0xD7, 0x68, 0x7C, 0xEC, 0x20, 0xD6, 0xC1, 0x6F, 0xB5, 0xE4, 0x2E, 0x5D, 0x98, 0xA8,
0xE4, 0x55, 0x34, 0xE1, 0xA6, 0xFB, 0x72, 0xB6, 0x4B, 0x1A, 0xA2, 0x77, 0xC8, 0xCF, 0xD5, 0x7A,
0xB7, 0x2E, 0x69, 0xF7, 0xD3, 0x91, 0xA1, 0x1F, 0xB4, 0x41, 0x46, 0x8F, 0x92, 0xF6, 0xD4, 0xC7,
0xD7, 0x15, 0x94, 0x39, 0x91, 0xFF, 0xF6, 0xC5, 0x86, 0xE8, 0xF6, 0x6B, 0x7F, 0x5E, 0x00, 0xA4,
0x17, 0x35, 0xBA, 0x41, 0x85, 0xA9, 0xF3, 0xA7, 0xAC, 0xE2, 0x8F, 0xF1, 0x76, 0x9F, 0x69, 0x56,
0x48, 0x37, 0x05, 0x25, 0x54, 0xEF, 0xAA, 0x51, 0xF5, 0xD5, 0x9E, 0x74, 0xF0, 0x84, 0xE6, 0x5C,
0xCD, 0xE0, 0x7D, 0x6A, 0xA7, 0x38, 0xBB, 0xD5, 0x95, 0x7D, 0x82, 0xD2, 0xCC, 0x11, 0xEF, 0xCA,
0xE5, 0x7B, 0x9F, 0x96, 0x33, 0xCB, 0x9E, 0x1B, 0x33, 0xCF, 0x87, 0x24, 0x6A, 0x9F, 0x39, 0xCC,
0x30, 0x66, 0x2E, 0x4B, 0x3E, 0xC0, 0x83, 0x7F, 0xAF, 0xB5, 0x7B, 0xDA, 0x8B, 0x05, 0x05, 0x83,
0x8B, 0x44, 0xCB, 0xDD, 0xD6, 0x5A, 0x2F, 0x59, 0xB9, 0x0B, 0x64, 0x35, 0x17, 0x69, 0x81, 0x2A,
0x8E, 0xCA, 0xA2, 0x0C, 0xB3, 0xBE, 0x47, 0x53, 0xE8, 0xEC, 0x64, 0x8E, 0xA0, 0xED, 0x65, 0xEE,
0x8A, 0x80, 0xA3, 0x0E, 0xBF, 0x2A, 0xEE, 0xAE, 0x6C, 0x1A, 0xB6, 0x7A, 0xCD, 0x92, 0x29, 0x2D,
0xC7, 0x0B, 0x8A, 0xE3, 0x0A, 0x8D, 0xC1, 0x7E, 0x21, 0xD5, 0x4C, 0x24, 0xB7, 0x2E, 0xB5, 0x3B,
0x4F, 0xDC, 0xB9, 0xB5, 0x67, 0x2A, 0x95, 0xEE, 0xC2, 0x98, 0x2A, 0x0E, 0xC7, 0x8C, 0xCD, 0x5B,
0x4D, 0x6D, 0xA6, 0x2D, 0xDC, 0x7F, 0xA3, 0xF8, 0x0A, 0xD6, 0x9B, 0xEC, 0x82, 0x5C, 0xDF, 0xB0,
0xB0, 0x3E, 0x8D, 0xA6, 0x8A, 0x5C, 0xAB, 0xCA, 0x26, 0x60, 0x21, 0x0E, 0x33, 0x62, 0xDB, 0xB8,
0x70, 0x97, 0x93, 0xAD, 0x79, 0x2B, 0x36, 0x0F, 0x4C, 0x7E, 0xDD, 0xA6, 0xD4, 0xAD, 0x04, 0x45,
0xE1, 0x75, 0xFA, 0xD6, 0x6D, 0x47, 0x8C, 0x2C, 0x34, 0x79, 0x7B, 0xC4, 0xE9, 0x56, 0xA4, 0x50,
0x54, 0x6D, 0x70, 0xC7, 0xDB, 0xC4, 0xCC, 0x64, 0x60, 0x07, 0x36, 0x6A, 0x3D, 0x9B, 0x2B, 0x52,
0x0D, 0x4E, 0x95, 0x7B, 0x89, 0x06, 0xA7, 0xC9, 0x6D, 0x4F, 0x03, 0x76, 0x43, 0x91, 0x7A, 0xCB,
0x91, 0xB8, 0xDE, 0x65, 0x58, 0x0E, 0x0A, 0x82, 0xA1, 0xC9, 0x6E, 0x8C, 0x31, 0xD3, 0x77, 0x20,
0x0D, 0x6C, 0xB2, 0x34, 0x88, 0x3D, 0x34, 0x1D, 0x6F, 0xEA, 0x65, 0xCE, 0xF1, 0xF3, 0xE2, 0x0A,
0x04, 0x24, 0xCD, 0xA1, 0x99, 0xBA, 0x3A, 0x63, 0x72, 0xAA, 0xE4, 0x27, 0x73, 0xF4, 0xE0, 0xDE,
0xA3, 0x87, 0x0F, 0x7B, 0xDF, 0x3D, 0x70, 0xC7, 0xC1, 0x42, 0xFE, 0xFD, 0x8B, 0xB8, 0x98, 0x25,
0xEE, 0x88, 0x82, 0x3C, 0x4A, 0x29, 0xE8, 0x19, 0x0C, 0x4E, 0x39, 0xD3, 0x8C, 0x20, 0xA7, 0x20,
0x49, 0x8E, 0x6C, 0xB2, 0xB6, 0xEA, 0xC4, 0x8B, 0x86, 0x04, 0x50, 0x2E, 0xC6, 0xC8, 0xD7, 0x0C,
0xE1, 0xC3, 0x44, 0xE7, 0xC6, 0xFD, 0xD6, 0xE4, 0x35, 0x66, 0xEC, 0x5D, 0x65, 0x35, 0xE0, 0x4A,
0xC9, 0x02, 0x24, 0x47, 0x61, 0x3B, 0x8F, 0x21, 0x90, 0x71, 0x72, 0x76, 0x69, 0x2A, 0x67, 0x4C,
0x2C, 0x9F, 0xB4, 0xBE, 0x72, 0xA5, 0x44, 0x4C, 0x3D, 0xF1, 0xD1, 0x1C, 0x33, 0xF7, 0x97, 0x3F,
0xE6, 0xB3, 0xC9, 0x22, 0x11, 0x53, 0x9A, 0xA3, 0x37, 0x98, 0x67, 0x4E, 0x40, 0x59, 0x6B, 0xD6,
0x35, 0x2E, 0xB2, 0x98, 0xA5, 0xE6, 0x37, 0x23, 0x11, 0xE5, 0xE6, 0x75, 0x1D, 0x71, 0xB7, 0x29,
0x11, 0x88, 0xB3, 0xF3, 0x16, 0xDC, 0xC1, 0x96, 0xC8, 0x09, 0xC1, 0xB4, 0xAD, 0x96, 0x39, 0xFA,
0xF9, 0xF7, 0xEF, 0x9F, 0xD4, 0xDA, 0xCD, 0xEE, 0xF9, 0x55, 0xEB, 0xAC, 0xD7, 0x3D, 0x1E, 0x9C,
0x8A, 0x21, 0x9B, 0xF3, 0x6A, 0x9A, 0xA3, 0x5F, 0x19, 0x2F, 0xA8, 0x2F, 0xCD, 0xAB, 0x56, 0xBB,
0xD9, 0xDC, 0x9E, 0xD7, 0x23, 0x73, 0xF4, 0x96, 0xB3, 0x6A, 0x9F, 0x03, 0xAB, 0x66, 0x7B, 0x07,
0xB1, 0xCE, 0xCD, 0x11, 0xE7, 0x04, 0x4C, 0xAE, 0x1E, 0xF6, 0xCE, 0xB7, 0x67, 0xF4, 0x10, 0x64,
0x7A, 0x07, 0x9C, 0xCE, 0x41, 0xBB, 0xDE, 0x2E, 0xCA, 0xF5, 0xCC, 0x11, 0xE3, 0xD3, 0xEB, 0x36,
0xAF, 0xBA, 0xE7, 0x3B, 0xF0, 0x39, 0x33, 0x65, 0xA7, 0xC3, 0xDC, 0x3F, 0x3A, 0x32, 0x47, 0x17,
0x3F, 0x3C, 0xAF, 0x75, 0x41, 0xC6, 0xF6, 0xA3, 0xDE, 0xF6, 0xBC, 0xBB, 0xE0, 0x17, 0x4C, 0xC8,
0x4E, 0x1B, 0x18, 0x75, 0x77, 0x10, 0xB2, 0x63, 0x8E, 0x5E, 0x70, 0x4E, 0xC0, 0xE5, 0xAA, 0xF5,
0x70, 0x07, 0x91, 0xC0, 0xBD, 0x7E, 0xE6, 0x9C, 0xC0, 0xBF, 0x98, 0x7B, 0x55, 0xE4, 0x04, 0xB9,
0x97, 0x9B, 0xA6, 0x20, 0xE6, 0xD7, 0x33, 0x59, 0xEA, 0x74, 0x51, 0x4A, 0xF8, 0x3B, 0x84, 0x8E,
0x80, 0x5E, 0x6F, 0x9C, 0x10, 0x24, 0x1D, 0xA8, 0x24, 0x0E, 0xAA, 0xE5, 0x02, 0x45, 0x92, 0xF8,
0x6A, 0xAB, 0x39, 0xEA, 0x96, 0x28, 0xC0, 0x49, 0xD5, 0x84, 0xCA, 0x69, 0x53, 0xF2, 0x9B, 0xAC,
0x3F, 0x64, 0xA8, 0xB3, 0xFB, 0x79, 0xC0, 0x43, 0x3B, 0xA6, 0x12, 0xD5, 0x5B, 0x25, 0x1B, 0x8D,
0xAC, 0xE8, 0xCA, 0x1C, 0xF5, 0x3A, 0x65, 0xD6, 0xDE, 0x01, 0x8C, 0x31, 0xEF, 0x3D, 0x5D, 0x1C,
0x04, 0x1B, 0xE3, 0x91, 0x90, 0x9A, 0xA3, 0xA7, 0xF1, 0xF1, 0x2E, 0xA8, 0xD4, 0xCB, 0x34, 0xE5,
0xB4, 0x39, 0xB0, 0x28, 0xE2, 0x08, 0x64, 0xEA, 0x1D, 0x09, 0x4D, 0x82, 0xCC, 0xE7, 0x05, 0xE6,
0x36, 0x71, 0x61, 0xED, 0x80, 0x8F, 0x02, 0xBA, 0x31, 0x2A, 0x11, 0x21, 0x24, 0x35, 0x79, 0x74,
0x30, 0x44, 0x62, 0x51, 0xBE, 0x02, 0x3C, 0x02, 0x44, 0x43, 0x9F, 0xDF, 0xE5, 0xB8, 0x31, 0x22,
0x09, 0x29, 0x54, 0xC3, 0xF8, 0x78, 0x27, 0x54, 0x76, 0x49, 0x5F, 0x8A, 0x38, 0x12, 0x97, 0x28,
0x85, 0x75, 0x6F, 0x09, 0x97, 0x32, 0x69, 0x77, 0xC2, 0x65, 0x86, 0xFC, 0xC5, 0x56, 0xE9, 0x2B,
0xA6, 0x04, 0x54, 0xA2, 0xC3, 0x83, 0x85, 0x4A, 0x22, 0xCC, 0x57, 0x10, 0x2B, 0xB0, 0xFE, 0xF6,
0x48, 0xB0, 0x79, 0xC7, 0x2F, 0xE9, 0xCC, 0xD1, 0x33, 0x5C, 0x7F, 0xCD, 0x8E, 0x76, 0x81, 0xE3,
0x49, 0x48, 0xBD, 0x1D, 0x00, 0x89, 0x64, 0x11, 0x70, 0x34, 0x25, 0x1A, 0xE7, 0xB7, 0x84, 0xC6,
0xF9, 0x2D, 0xA2, 0x81, 0xF0, 0x7B, 0x07, 0x2F, 0xB1, 0xB3, 0x31, 0x1C, 0x11, 0xA1, 0x39, 0xBA,
0xBC, 0x5A, 0x78, 0x01, 0xBB, 0x5B, 0xF8, 0x25, 0xFB, 0xBE, 0x53, 0x90, 0x9C, 0xED, 0x80, 0x49,
0x2C, 0x90, 0x8C, 0x91, 0x33, 0x89, 0xCA, 0xD9, 0x2D, 0xA1, 0x52, 0x26, 0xEB, 0x2E, 0xA8, 0x4C,
0x11, 0x71, 0x2D, 0x4C, 0x1C, 0x76, 0xE7, 0xE2, 0xA6, 0xC0, 0x28, 0xB4, 0xE6, 0xE8, 0xFB, 0xE4,
0xCB, 0x2E, 0xC0, 0x34, 0x77, 0xC0, 0x45, 0x95, 0x27, 0x1D, 0x2F, 0x67, 0xB0, 0x58, 0xBE, 0x25,
0x6C, 0x5A, 0xAD, 0xDB, 0xAC, 0x2A, 0x0B, 0x6C, 0x11, 0xE4, 0xBC, 0xC7, 0x93, 0x09, 0x2C, 0x83,
0x36, 0x2F, 0x2D, 0x29, 0x72, 0xA8, 0x2F, 0xE2, 0xBB, 0x71, 0xC9, 0xBF, 0x6F, 0xBC, 0x87, 0x91,
0x61, 0xF7, 0xB9, 0x36, 0x32, 0x9A, 0xFA, 0xB5, 0xF0, 0x6B, 0x2F, 0x96, 0x73, 0xDB, 0x5D, 0x0D,
0x60, 0x82, 0xA7, 0x7C, 0x53, 0x7D, 0x6B, 0x1E, 0x6D, 0xF0, 0x6C, 0x1F, 0x5D, 0xF3, 0xC7, 0x10,
0x77, 0x59, 0x48, 0xBF, 0xC1, 0xB6, 0xF1, 0x0B, 0x71, 0xB7, 0x57, 0xA6, 0xCB, 0x04, 0xC1, 0xD8,
0xDD, 0x8D, 0xCB, 0x19, 0x2C, 0x91, 0xE0, 0x60, 0x37, 0x26, 0x3D, 0xF0, 0x24, 0xBC, 0x20, 0xE8,
0x4B, 0x58, 0xC4, 0xA3, 0xD5, 0x78, 0xF3, 0x82, 0xB2, 0x1A, 0x43, 0x5D, 0xFE, 0xED, 0xA9, 0x71,
0xC9, 0x6F, 0x03, 0xDB, 0x38, 0x5D, 0x89, 0x2B, 0xD4, 0x55, 0x1C, 0x5D, 0x24, 0x2A, 0x29, 0xA7,
0xB9, 0xB6, 0x27, 0xAA, 0x0F, 0xA0, 0xAA, 0xFB, 0xA2, 0x1A, 0xF5, 0x22, 0x01, 0xF9, 0x05, 0x3D,
0x53, 0xD1, 0xB6, 0x9A, 0x8E, 0xB7, 0xD8, 0x8A, 0x59, 0xAB, 0xCD, 0xDB, 0x30, 0x6B, 0x05, 0x30,
0xD9, 0x4B, 0x76, 0x87, 0xA0, 0x6D, 0x00, 0x5E, 0x7B, 0x01, 0x8A, 0xCD, 0x7A, 0x18, 0xA0, 0xB8,
0xBE, 0x87, 0x06, 0x0A, 0xBC, 0xE5, 0x3D, 0xAB, 0xA3, 0xDB, 0x04, 0x15, 0x27, 0x34, 0x47, 0xAF,
0x90, 0x1B, 0x42, 0x91, 0xD9, 0x17, 0x60, 0xF1, 0xC4, 0x07, 0x0B, 0x2F, 0xA9, 0xF7, 0xA1, 0xA1,
0x03, 0x41, 0xE6, 0x9E, 0xBD, 0xF9, 0x72, 0x47, 0xD2, 0x89, 0x94, 0xF8, 0x0A, 0x8E, 0x36, 0x6E,
0x0C, 0x22, 0x0E, 0xB7, 0xDC, 0x11, 0x88, 0xA5, 0xD4, 0xF6, 0xCD, 0xC0, 0xDB, 0xD0, 0x75, 0xAF,
0x77, 0xE9, 0x04, 0x2E, 0x1C, 0x2F, 0xB4, 0xB7, 0xE7, 0x00, 0x6D, 0xC0, 0x8F, 0x93, 0x09, 0xB1,
0xB6, 0x6F, 0x24, 0xA0, 0x09, 0x78, 0xE1, 0xCD, 0x2B, 0xD2, 0xDF, 0x72, 0xE1, 0xC5, 0xD6, 0x16,
0x2B, 0x39, 0x0B, 0x50, 0xBC, 0xBC, 0xD8, 0x6B, 0xE1, 0x85, 0x39, 0x0F, 0x94, 0x19, 0x98, 0xB6,
0x87, 0x4E, 0x0A, 0x20, 0xC4, 0x7B, 0xEE, 0x3C, 0xDB, 0x80, 0x25, 0x28, 0xE3, 0x8C, 0x1E, 0x2D,
0xBF, 0x0F, 0xB5, 0xBE, 0x4B, 0x24, 0x4A, 0xAF, 0xEE, 0x5A, 0x67, 0x9D, 0x5E, 0xBC, 0xBC, 0xEB,
0xB4, 0x3F, 0xEF, 0x02, 0x8F, 0x31, 0xBF, 0x5D, 0x7C, 0xDA, 0xDB, 0x40, 0x03, 0xD9, 0xE8, 0x35,
0xBB, 0xCE, 0xB0, 0x41, 0xC2, 0xDE, 0x3D, 0x90, 0xDA, 0x87, 0x8B, 0xA4, 0xF6, 0x17, 0x10, 0x4A,
0xD3, 0x2D, 0x32, 0xDE, 0x94, 0x65, 0xBC, 0xEF, 0x2F, 0xF6, 0x83, 0xD0, 0xF4, 0x60, 0xA9, 0x6E,
0x7A, 0xD0, 0x54, 0x67, 0x88, 0x9B, 0xAD, 0x62, 0x98, 0xB6, 0xEC, 0x60, 0x25, 0xA1, 0xD8, 0xCB,
0xDA, 0x25, 0xC9, 0xB5, 0xAE, 0x76, 0xC9, 0x72, 0x91, 0x18, 0xE9, 0x24, 0xD7, 0x4B, 0xAE, 0x8A,
0x9C, 0x7D, 0xDE, 0xCB, 0xBA, 0xDD, 0x32, 0x69, 0x77, 0x09, 0x1A, 0x1F, 0xAD, 0xDE, 0x4F, 0xE7,
0x68, 0x63, 0x30, 0x24, 0x1D, 0x60, 0xF1, 0xEA, 0xC9, 0x3E, 0xDB, 0x85, 0x68, 0xDE, 0xC3, 0xC4,
0x51, 0xAC, 0xF5, 0xA1, 0x73, 0x9D, 0x83, 0xDD, 0xCD, 0x93, 0x1D, 0x23, 0x32, 0x47, 0x2F, 0xB1,
0x1B, 0x18, 0x17, 0x9E, 0x2F, 0xDF, 0xFD, 0xB4, 0x17, 0xD4, 0xF8, 0xCC, 0x87, 0x81, 0x4C, 0x28,
0x7D, 0x68, 0xBC, 0x66, 0x73, 0xE2, 0xFB, 0x9E, 0xBF, 0x31, 0x64, 0x92, 0x0E, 0x96, 0x15, 0xF5,
0x57, 0xFC, 0x68, 0x2F, 0x70, 0x45, 0xB3, 0x1E, 0x06, 0xB1, 0x58, 0xE7, 0x43, 0x83, 0xB6, 0x9C,
0x38, 0x64, 0xB1, 0x31, 0x64, 0x9C, 0xCA, 0x1C, 0xBD, 0xAB, 0x3F, 0x87, 0x7F, 0xF7, 0x02, 0x97,
0x98, 0xF1, 0x30, 0x60, 0x49, 0x6D, 0x0F, 0x0D, 0xD5, 0x78, 0xB1, 0x79, 0x3A, 0x04, 0x1A, 0x73,
0xF4, 0xF4, 0xA7, 0xFD, 0xF4, 0x7E, 0x6C, 0xB2, 0x8A, 0x08, 0xED, 0x84, 0x07, 0x57, 0xEA, 0xD0,
0x68, 0xAC, 0xB6, 0x40, 0x63, 0xC5, 0x04, 0xFF, 0x6D, 0x4F, 0x68, 0xAC, 0xAA, 0xA3, 0xF1, 0x99,
0xE3, 0x65, 0xF5, 0x25, 0xE0, 0xC3, 0x9F, 0xC5, 0x18, 0xA3, 0xCD, 0xCB, 0x51, 0x44, 0xC8, 0x6E,
0x1A, 0x83, 0x23, 0xE3, 0x29, 0xDA, 0x4F, 0x41, 0x8A, 0xE7, 0xDD, 0x47, 0x08, 0x25, 0x4A, 0x1E,
0x1A, 0xA7, 0x09, 0xB2, 0xF0, 0x7B, 0x1B, 0xD3, 0x6D, 0xAE, 0x2D, 0x2B, 0xB4, 0xE6, 0xE8, 0x39,
0x7C, 0x31, 0x9E, 0xF1, 0x2F, 0xFB, 0x6A, 0xF9, 0xD4, 0xF9, 0xF7, 0x81, 0x5A, 0x4A, 0xDF, 0x2F,
0x02, 0x38, 0x68, 0xB0, 0xBD, 0xA9, 0xBB, 0xD5, 0x23, 0x0D, 0x29, 0x72, 0x09, 0xDF, 0x1B, 0xF1,
0x7D, 0xBF, 0x00, 0x26, 0x42, 0xEC, 0x0D, 0x43, 0x45, 0xEF, 0x7D, 0xC0, 0x18, 0x3D, 0x16, 0xC4,
0x8B, 0xB4, 0x78, 0x15, 0x5E, 0x19, 0x52, 0xF2, 0xE1, 0x27, 0x7E, 0x4B, 0x0B, 0xA6, 0xF5, 0x80,
0x12, 0xC7, 0x81, 0x85, 0x30, 0xA6, 0xC6, 0x5B, 0x76, 0x38, 0x38, 0x15, 0x03, 0xAA, 0x73, 0x91,
0xCF, 0xDC, 0xB0, 0x97, 0x50, 0xA2, 0xB9, 0x39, 0x7A, 0xCB, 0x5E, 0x12, 0x08, 0xBC, 0xD8, 0xB7,
0xCD, 0x99, 0x71, 0x23, 0x62, 0xD7, 0xF7, 0x40, 0xA8, 0x18, 0x24, 0xF9, 0xAE, 0x26, 0xD3, 0x88,
0x8E, 0x94, 0xDF, 0x46, 0x97, 0x7C, 0xB0, 0xC1, 0xBC, 0xAC, 0x7C, 0x3A, 0x76, 0xD5, 0xC2, 0xCA,
0xBF, 0xB8, 0x31, 0x38, 0x75, 0x91, 0xC6, 0xDC, 0x39, 0x28, 0x0C, 0xC4, 0xDB, 0x25, 0x73, 0x58,
0xC5, 0xCF, 0x33, 0x71, 0x4B, 0x24, 0x8F, 0x69, 0xC6, 0x6A, 0x65, 0x1F, 0xDF, 0x94, 0xDB, 0x4C,
0xD5, 0x82, 0x96, 0x3F, 0x88, 0x29, 0xEB, 0x21, 0x3B, 0x8C, 0xCD, 0xFF, 0x9F, 0x7F, 0x97, 0xF9,
0x0C, 0x7B, 0xF7, 0x67, 0x22, 0x98, 0x69, 0x04, 0xBE, 0x35, 0x34, 0xF3, 0x9E, 0x8E, 0xCA, 0xD1,
0xFC, 0x54, 0xA7, 0x7A, 0x66, 0xB0, 0xC6, 0xD6, 0x83, 0xC0, 0xF2, 0xC9, 0x82, 0x8E, 0xEE, 0xD8,
0x9E, 0x15, 0xCE, 0xB1, 0x4B, 0x1B, 0xC8, 0xB6, 0x2F, 0x97, 0x70, 0xF0, 0x92, 0x04, 0x14, 0x83,
0x15, 0x6A, 0x47, 0xCF, 0x7E, 0x7C, 0x75, 0x21, 0x9E, 0x12, 0x7B, 0xE9, 0x21, 0x1B, 0xDB, 0x47,
0x27, 0xC6, 0x24, 0x74, 0x85, 0x9B, 0xD7, 0x30, 0x1B, 0x2B, 0xDE, 0xBB, 0xBA, 0x44, 0xBE, 0x31,
0x46, 0x01, 0x7E, 0xE1, 0x05, 0xD4, 0x18, 0x1A, 0x31, 0x47, 0xC7, 0xB3, 0xF8, 0x7D, 0xBF, 0x0D,
0xCF, 0x27, 0x53, 0xE2, 0xCA, 0x91, 0x42, 0xD9, 0x5F, 0x7D, 0x07, 0x86, 0xC6, 0x54, 0xDF, 0x1A,
0x47, 0xFD, 0xF3, 0xD6, 0x11, 0x7B, 0x1C, 0x0F, 0x60, 0x80, 0x1F, 0x00, 0x02, 0x0C, 0x03, 0x20,
0xC0, 0x87, 0x23, 0xF9, 0x78, 0x20, 0x76, 0x1A, 0xDC, 0xE4, 0x4C, 0x40, 0x26, 0x6D, 0xED, 0x48,
0xE0, 0x74, 0xC4, 0x1E, 0x34, 0xBE, 0x89, 0x29, 0x83, 0x99, 0xB7, 0x2A, 0xA2, 0xF4, 0xF1, 0xDC,
0x5B, 0xE2, 0x0C, 0x71, 0x4C, 0x2D, 0xBD, 0xB9, 0x74, 0xEA, 0xC8, 0xEB, 0x8F, 0x8E, 0xA3, 0x01,
0xF1, 0x7B, 0xCC, 0x86, 0x06, 0xF5, 0x43, 0x9C, 0x66, 0x8B, 0xDD, 0x32, 0xAE, 0x91, 0x58, 0x85,
0x8C, 0x27, 0xC8, 0x09, 0x32, 0x9C, 0xC3, 0x85, 0x8D, 0x28, 0x7E, 0xC7, 0x76, 0x0C, 0x61, 0x40,
0x0D, 0x3B, 0x27, 0x62, 0xFB, 0xF0, 0x44, 0x9E, 0x79, 0x03, 0x7C, 0x29, 0x3E, 0x4E, 0x66, 0x55,
0x7F, 0x06, 0x8A, 0xF4, 0xD7, 0xA1, 0xE1, 0x86, 0x10, 0xC2, 0x8F, 0xB9, 0x0A, 0x46, 0x3F, 0x75,
0x96, 0x53, 0x3B, 0x90, 0x9D, 0xE4, 0x3B, 0xDB, 0xF9, 0x9C, 0xFC, 0x47, 0x32, 0x61, 0x13, 0x37,
0xF8, 0x1B, 0xE4, 0x87, 0xC0, 0xE3, 0x28, 0xCA, 0xEE, 0x47, 0xC9, 0x8B, 0x79, 0x55, 0x22, 0x6E,
0x87, 0x86, 0xEC, 0x83, 0xE5, 0xF9, 0xA5, 0x3C, 0x71, 0xF7, 0xEE, 0x32, 0xE6, 0x6B, 0x28, 0xC3,
0xE0, 0x54, 0x72, 0xE2, 0x06, 0x4E, 0x28, 0x4F, 0x3F, 0xAF, 0xF3, 0xCE, 0xF0, 0x88, 0x98, 0x2B,
0x1C, 0xEE, 0xC4, 0x92, 0xA7, 0x2C, 0xF0, 0xE0, 0x41, 0x9A, 0xDB, 0xDD, 0xA1, 0xA4, 0x4A, 0x34,
0x11, 0xE3, 0x21, 0x32, 0x20, 0xF2, 0x40, 0x6D, 0xF9, 0x4C, 0xBC, 0x14, 0x89, 0x4C, 0x6A, 0x77,
0x53, 0x86, 0x8F, 0x65, 0x9C, 0x30, 0x13, 0x11, 0x9B, 0x1B, 0x88, 0x5F, 0x33, 0x3C, 0x4E, 0x9E,
0x7A, 0x15, 0xF2, 0x3D, 0xE6, 0x5E, 0x5F, 0xC3, 0xF2, 0xF2, 0xDB, 0x31, 0xD8, 0x9F, 0x39, 0x73,
0xF2, 0x83, 0x1C, 0x9F, 0x4C, 0xA5, 0x72, 0x9C, 0xA6, 0x38, 0x32, 0xC5, 0x32, 0x72, 0xB3, 0x0F,
0x9F, 0x00, 0x86, 0xB2, 0x9D, 0xEF, 0xE4, 0xF9, 0xFC, 0x8C, 0x39, 0xD9, 0x87, 0x4F, 0xBC, 0x3E,
0xB0, 0x50, 0x82, 0xE8, 0x0E, 0x09, 0x8D, 0x62, 0x9C, 0xDD, 0x6A, 0xCC, 0x54, 0xE2, 0x22, 0xC0,
0x61, 0x11, 0xAB, 0x4C, 0x01, 0xD7, 0x30, 0x14, 0x01, 0x55, 0x13, 0xF5, 0xE9, 0x29, 0xAF, 0x35,
0x8C, 0xB9, 0x8C, 0x95, 0xF4, 0xEF, 0x77, 0x54, 0xE1, 0x6F, 0xA2, 0xF0, 0x89, 0x53, 0x99, 0x8A,
0x27, 0xF3, 0xE3, 0xC8, 0x62, 0xCC, 0xD5, 0x13, 0x87, 0x91, 0xAF, 0x2B, 0x89, 0xFC, 0x3C, 0x31,
0xAB, 0x05, 0x39, 0x4C, 0xF1, 0xF8, 0x7E, 0x46, 0x54, 0xD5, 0xD5, 0x41, 0xEE, 0x96, 0xA1, 0xBE,
0x80, 0x64, 0x0C, 0xA9, 0xF0, 0x63, 0x8A, 0x0F, 0xDF, 0xB0, 0x8F, 0x99, 0x88, 0xDF, 0xC4, 0xE5,
0xFD, 0xBA, 0xE7, 0x62, 0x3D, 0x77, 0xD5, 0xD9, 0x75, 0x3C, 0x45, 0x29, 0xCE, 0x32, 0x0D, 0xC7,
0x73, 0x42, 0x35, 0x0C, 0x8F, 0x20, 0x0D, 0xEB, 0x78, 0xC9, 0x06, 0x2D, 0x21, 0xF0, 0x31, 0x0D,
0x7D, 0x57, 0x8D, 0x26, 0x91, 0x91, 0xFE, 0x0E, 0xB1, 0x7F, 0x0D, 0x8C, 0x3E, 0xDC, 0xFF, 0x14,
0xE5, 0xF7, 0x9B, 0x53, 0xFE, 0x6C, 0x8E, 0xE7, 0x3C, 0x86, 0x0A, 0x30, 0xBC, 0xFF, 0x89, 0x43,
0x7D, 0xF3, 0x00, 0xA6, 0x84, 0x2F, 0x7C, 0xE2, 0x9B, 0x0F, 0x82, 0xC5, 0x84, 0xBD, 0x3E, 0xBB,
0xC6, 0x59, 0x44, 0xB8, 0x35, 0xE8, 0x0C, 0xBB, 0x35, 0x1F, 0x07, 0x0B, 0x60, 0x8F, 0x93, 0x44,
0x16, 0xCD, 0xE8, 0x39, 0x18, 0x4A, 0xCD, 0xB4, 0xF6, 0xC1, 0xC7, 0x40, 0x07, 0x02, 0x50, 0xCF,
0xB8, 0xFF, 0x89, 0xB3, 0xB8, 0x31, 0x26, 0x10, 0xCD, 0xC1, 0x0C, 0xDB, 0x27, 0x50, 0x77, 0x10,
0x65, 0x4F, 0xA6, 0xDF, 0xFF, 0x14, 0xB1, 0x6A, 0x88, 0x9F, 0x6E, 0x3E, 0xC4, 0x1E, 0x12, 0x17,
0x83, 0xA8, 0x86, 0xF1, 0x13, 0x0D, 0xCE, 0xEB, 0x2D, 0x47, 0xC1, 0xF3, 0x9F, 0x38, 0x4E, 0xED,
0x48, 0xBC, 0x7E, 0x41, 0xE6, 0xE8, 0x06, 0x34, 0x9D, 0x97, 0x08, 0xC4, 0x56, 0x93, 0x3B, 0xCF,
0x3B, 0x9E, 0x6B, 0x39, 0xC4, 0xFA, 0xC8, 0x12, 0xF3, 0x71, 0x5A, 0x70, 0x11, 0xE9, 0x4E, 0x43,
0xBC, 0x4E, 0xEB, 0xB5, 0x67, 0xE3, 0x8C, 0x9B, 0x1E, 0x33, 0x31, 0x4E, 0x4F, 0xC1, 0xCA, 0xC8,
0x8E, 0x52, 0x92, 0xC0, 0x88, 0xBD, 0x77, 0x45, 0x98, 0x29, 0x65, 0x61, 0xA1, 0x8C, 0xD4, 0x45,
0xD8, 0x2C, 0xA9, 0xD6, 0x91, 0xCA, 0x89, 0xDB, 0x0A, 0xF4, 0x8C, 0xD8, 0x16, 0x7F, 0x05, 0x9E,
0x5B, 0x3B, 0xBE, 0x13, 0x9B, 0x61, 0x9D, 0x07, 0x9B, 0x40, 0x61, 0x90, 0x32, 0x51, 0x9E, 0x99,
0xD2, 0x5D, 0xFD, 0x51, 0x92, 0x49, 0x72, 0x6C, 0x26, 0x3E, 0x4A, 0x4D, 0xE3, 0x05, 0x8D, 0xCF,
0xFC, 0x07, 0x77, 0x9A, 0x3F, 0x4F, 0x44, 0x11, 0x54, 0x72, 0xD2, 0xB1, 0x62, 0x30, 0xE1, 0x81,
0xEC, 0xBF, 0x1E, 0x51, 0x1B, 0x11, 0xE8, 0xAE, 0x2F, 0x1D, 0xCC, 0x0E, 0x9F, 0x5E, 0xFF, 0x00,
0xC5, 0x5B, 0xB4, 0x20, 0x5C, 0x9A, 0x84, 0xE0, 0x22, 0x6E, 0xFF, 0x4A, 0x29, 0x93, 0x56, 0x51,
0xE1, 0xC1, 0xDB, 0x77, 0x91, 0x71, 0x8A, 0x38, 0xC4, 0x9D, 0x7E, 0x8A, 0x94, 0x71, 0x2D, 0xA7,
0x4D, 0xF5, 0xF7, 0x0A, 0xBD, 0x9A, 0xED, 0x8A, 0xE8, 0x95, 0x96, 0x5E, 0xA1, 0xE6, 0xAE, 0x5C,
0x4E, 0xAC, 0x36, 0xB7, 0x47, 0x8A, 0xB1, 0x03, 0xEA, 0x2D, 0xC4, 0x1A, 0x23, 0xE3, 0xE6, 0x2B,
0xE2, 0xDA, 0xDE, 0xAA, 0xC1, 0xCE, 0xD7, 0x64, 0x91, 0x54, 0x15, 0x6D, 0x10, 0x17, 0x0C, 0xF8,
0xE2, 0x97, 0x57, 0x2F, 0x59, 0xD2, 0x51, 0xD7, 0x2A, 0x47, 0xE9, 0x0E, 0x87, 0xBF, 0xEB, 0x5C,
0x3B, 0x03, 0x83, 0xAD, 0x01, 0x4D, 0xB3, 0x48, 0x36, 0x71, 0x63, 0xC9, 0x62, 0x81, 0x1D, 0x7E,
0x10, 0x73, 0xB2, 0xD2, 0x93, 0x02, 0xF8, 0xB8, 0x54, 0x16, 0x6F, 0x91, 0x15, 0x05, 0x22, 0xF1,
0x09, 0xA5, 0xE0, 0xB0, 0x86, 0x70, 0xE5, 0x80, 0x65, 0x19, 0xB9, 0xCE, 0xBB, 0x63, 0xA8, 0xE0,
0xE7, 0x04, 0x7D, 0x62, 0x26, 0x19, 0x65, 0x69, 0xE1, 0x95, 0x4C, 0x89, 0x16, 0x10, 0x99, 0xF8,
0xF1, 0x7B, 0x6B, 0x0C, 0xC9, 0xF1, 0x19, 0x78, 0x7E, 0xC3, 0x05, 0x0D, 0x8E, 0x6F, 0x8A, 0xD4,
0x11, 0xE6, 0x4A, 0x80, 0xAC, 0x2A, 0x04, 0x4F, 0x43, 0x7A, 0x6E, 0x29, 0xFB, 0xE8, 0xD9, 0xA9,
0xDE, 0x2B, 0xAE, 0xDD, 0xB2, 0x36, 0x2D, 0xCF, 0xB0, 0xC3, 0x75, 0xD3, 0x8A, 0x3E, 0x25, 0xC5,
0x20, 0x49, 0x30, 0x6B, 0xC2, 0x66, 0xDA, 0x14, 0xC5, 0x2F, 0xA2, 0x01, 0x91, 0xEC, 0x6A, 0x40,
0xE4, 0xC8, 0x9E, 0xEE, 0xE2, 0x32, 0xED, 0x42, 0x06, 0x72, 0x99, 0xC5, 0x0C, 0xF6, 0xD6, 0x8F,
0x19, 0x2B, 0xD0, 0xD2, 0x09, 0xAA, 0x14, 0x0A, 0x6D, 0x06, 0x2C, 0xAC, 0x18, 0x62, 0x86, 0x48,
0xDA, 0x6C, 0xB7, 0x99, 0xAE, 0x0E, 0x17, 0x21, 0x58, 0x69, 0x1E, 0xF9, 0xA4, 0xF8, 0x8D, 0xB5,
0x6C, 0x71, 0xF0, 0x40, 0x0B, 0x57, 0x14, 0xD4, 0x70, 0x5A, 0xC9, 0x04, 0xB2, 0xDF, 0x2B, 0x21,
0x50, 0xEE, 0xBA, 0xE0, 0xB4, 0xF0, 0xD3, 0xBA, 0xD8, 0x1A, 0x23, 0xC3, 0xB8, 0xE3, 0x18, 0x73,
0x46, 0x24, 0xBB, 0xA2, 0x04, 0xF1, 0xF5, 0xEE, 0x34, 0x0B, 0xF9, 0x5A, 0x57, 0x7A, 0xA3, 0xA0,
0x15, 0xDD, 0xB7, 0x96, 0xE8, 0x83, 0x8B, 0x95, 0xC7, 0xAA, 0xF2, 0x51, 0x97, 0x5D, 0x42, 0xA1,
0xDE, 0x65, 0x27, 0xD4, 0xC7, 0x15, 0xD5, 0xC7, 0x52, 0x7D, 0x46, 0x90, 0x34, 0x84, 0xE5, 0x2D,
0x7F, 0xEC, 0x8C, 0xBF, 0x3D, 0x4D, 0x34, 0x5B, 0x8D, 0x0B, 0xE5, 0x94, 0xAD, 0xB8, 0xA2, 0x5E,
0x31, 0x41, 0xEA, 0x9E, 0x62, 0xA1, 0xD6, 0x6A, 0x5C, 0x4D, 0xAD, 0xA8, 0x95, 0x67, 0x04, 0x89,
0x5A, 0xFA, 0x86, 0x3F, 0x52, 0x25, 0xDE, 0x42, 0xE6, 0xFF, 0xA7, 0x4B, 0xFC, 0xCE, 0x94, 0x58,
0x58, 0xB1, 0xFF, 0x5A, 0x5A, 0xCA, 0xC4, 0x30, 0x45, 0xC9, 0x78, 0xC9, 0x50, 0x4A, 0x1A, 0x8F,
0x54, 0xA8, 0x63, 0x39, 0x0A, 0xA9, 0xA3, 0x41, 0xA2, 0x06, 0xC6, 0x5F, 0x2B, 0x19, 0x2B, 0x1E,
0x9D, 0x04, 0x42, 0xC2, 0x40, 0x34, 0xE0, 0x23, 0xE3, 0x2C, 0xBB, 0xD4, 0x14, 0x8D, 0x90, 0x50,
0x36, 0xD3, 0xFE, 0xA8, 0x03, 0x62, 0x95, 0x52, 0x63, 0xE2, 0x00, 0x11, 0xF4, 0x79, 0x62, 0x96,
0x8A, 0x82, 0x1C, 0xEC, 0xD3, 0x9A, 0xF9, 0x93, 0x83, 0xD9, 0xF2, 0x41, 0xDE, 0x14, 0x7E, 0xF1,
0xC3, 0x73, 0xC3, 0xF3, 0x0D, 0xF1, 0x16, 0x4D, 0x3F, 0x7E, 0x6B, 0x8E, 0x21, 0x5F, 0x31, 0xC7,
0x17, 0x69, 0xC4, 0x9D, 0x1A, 0x74, 0x46, 0x02, 0xE8, 0x59, 0xD9, 0x93, 0xE0, 0xF8, 0xAE, 0x19,
0xBF, 0x45, 0xAE, 0x54, 0x3D, 0xD1, 0xA4, 0x7E, 0x17, 0x2B, 0x92, 0x31, 0xA7, 0xA0, 0x49, 0x6C,
0x79, 0x57, 0xEA, 0xB8, 0x96, 0x58, 0x8A, 0x96, 0x85, 0x1B, 0x98, 0x30, 0x3E, 0xFD, 0xC5, 0x5A,
0x51, 0xAF, 0x40, 0xA9, 0x21, 0x63, 0xB2, 0xC4, 0x96, 0x89, 0xAE, 0x6B, 0xD6, 0xD4, 0xAD, 0xBD,
0x0B, 0x10, 0x65, 0x5B, 0x49, 0xDA, 0x6C, 0x9E, 0x8F, 0x8A, 0xB0, 0xB8, 0xA8, 0x72, 0xE2, 0x33,
0x38, 0x8D, 0x36, 0x2C, 0xC5, 0x37, 0xF1, 0x52, 0xAE, 0xC1, 0xA9, 0xF8, 0x9F, 0x0A, 0xFF, 0x0B,
0x9B, 0xFC, 0x8E, 0x51, 0xC1, 0x70, 0x00, 0x00
};
向上滑动阅览
#if defined(CAMERA_MODEL_WROVER_KIT)
#define PWDN_GPIO_NUM -1
#define RESET_GPIO_NUM -1
#define XCLK_GPIO_NUM 21
#define SIOD_GPIO_NUM 26
#define SIOC_GPIO_NUM 27
#define Y9_GPIO_NUM 35
#define Y8_GPIO_NUM 34
#define Y7_GPIO_NUM 39
#define Y6_GPIO_NUM 36
#define Y5_GPIO_NUM 19
#define Y4_GPIO_NUM 18
#define Y3_GPIO_NUM 5
#define Y2_GPIO_NUM 4
#define VSYNC_GPIO_NUM 25
#define HREF_GPIO_NUM 23
#define PCLK_GPIO_NUM 22
#elif defined(CAMERA_MODEL_ESP_EYE)
#define PWDN_GPIO_NUM -1
#define RESET_GPIO_NUM -1
#define XCLK_GPIO_NUM 4
#define SIOD_GPIO_NUM 18
#define SIOC_GPIO_NUM 23
#define Y9_GPIO_NUM 36
#define Y8_GPIO_NUM 37
#define Y7_GPIO_NUM 38
#define Y6_GPIO_NUM 39
#define Y5_GPIO_NUM 35
#define Y4_GPIO_NUM 14
#define Y3_GPIO_NUM 13
#define Y2_GPIO_NUM 34
#define VSYNC_GPIO_NUM 5
#define HREF_GPIO_NUM 27
#define PCLK_GPIO_NUM 25
#elif defined(CAMERA_MODEL_M5STACK_PSRAM)
#define PWDN_GPIO_NUM -1
#define RESET_GPIO_NUM 15
#define XCLK_GPIO_NUM 27
#define SIOD_GPIO_NUM 25
#define SIOC_GPIO_NUM 23
#define Y9_GPIO_NUM 19
#define Y8_GPIO_NUM 36
#define Y7_GPIO_NUM 18
#define Y6_GPIO_NUM 39
#define Y5_GPIO_NUM 5
#define Y4_GPIO_NUM 34
#define Y3_GPIO_NUM 35
#define Y2_GPIO_NUM 32
#define VSYNC_GPIO_NUM 22
#define HREF_GPIO_NUM 26
#define PCLK_GPIO_NUM 21
#elif defined(CAMERA_MODEL_M5STACK_V2_PSRAM)
#define PWDN_GPIO_NUM -1
#define RESET_GPIO_NUM 15
#define XCLK_GPIO_NUM 27
#define SIOD_GPIO_NUM 22
#define SIOC_GPIO_NUM 23
#define Y9_GPIO_NUM 19
#define Y8_GPIO_NUM 36
#define Y7_GPIO_NUM 18
#define Y6_GPIO_NUM 39
#define Y5_GPIO_NUM 5
#define Y4_GPIO_NUM 34
#define Y3_GPIO_NUM 35
#define Y2_GPIO_NUM 32
#define VSYNC_GPIO_NUM 25
#define HREF_GPIO_NUM 26
#define PCLK_GPIO_NUM 21
#elif defined(CAMERA_MODEL_M5STACK_WIDE)
#define PWDN_GPIO_NUM -1
#define RESET_GPIO_NUM 15
#define XCLK_GPIO_NUM 27
#define SIOD_GPIO_NUM 22
#define SIOC_GPIO_NUM 23
#define Y9_GPIO_NUM 19
#define Y8_GPIO_NUM 36
#define Y7_GPIO_NUM 18
#define Y6_GPIO_NUM 39
#define Y5_GPIO_NUM 5
#define Y4_GPIO_NUM 34
#define Y3_GPIO_NUM 35
#define Y2_GPIO_NUM 32
#define VSYNC_GPIO_NUM 25
#define HREF_GPIO_NUM 26
#define PCLK_GPIO_NUM 21
#elif defined(CAMERA_MODEL_M5STACK_ESP32CAM)
#define PWDN_GPIO_NUM -1
#define RESET_GPIO_NUM 15
#define XCLK_GPIO_NUM 27
#define SIOD_GPIO_NUM 25
#define SIOC_GPIO_NUM 23
#define Y9_GPIO_NUM 19
#define Y8_GPIO_NUM 36
#define Y7_GPIO_NUM 18
#define Y6_GPIO_NUM 39
#define Y5_GPIO_NUM 5
#define Y4_GPIO_NUM 34
#define Y3_GPIO_NUM 35
#define Y2_GPIO_NUM 17
#define VSYNC_GPIO_NUM 22
#define HREF_GPIO_NUM 26
#define PCLK_GPIO_NUM 21
#elif defined(CAMERA_MODEL_AI_THINKER)
#define PWDN_GPIO_NUM 32
#define RESET_GPIO_NUM -1
#define XCLK_GPIO_NUM 0
#define SIOD_GPIO_NUM 26
#define SIOC_GPIO_NUM 27
#define Y9_GPIO_NUM 35
#define Y8_GPIO_NUM 34
#define Y7_GPIO_NUM 39
#define Y6_GPIO_NUM 36
#define Y5_GPIO_NUM 21
#define Y4_GPIO_NUM 19
#define Y3_GPIO_NUM 18
#define Y2_GPIO_NUM 5
#define VSYNC_GPIO_NUM 25
#define HREF_GPIO_NUM 23
#define PCLK_GPIO_NUM 22
#elif defined(CAMERA_MODEL_TTGO_T_JOURNAL)
#define PWDN_GPIO_NUM 0
#define RESET_GPIO_NUM 15
#define XCLK_GPIO_NUM 27
#define SIOD_GPIO_NUM 25
#define SIOC_GPIO_NUM 23
#define Y9_GPIO_NUM 19
#define Y8_GPIO_NUM 36
#define Y7_GPIO_NUM 18
#define Y6_GPIO_NUM 39
#define Y5_GPIO_NUM 5
#define Y4_GPIO_NUM 34
#define Y3_GPIO_NUM 35
#define Y2_GPIO_NUM 17
#define VSYNC_GPIO_NUM 22
#define HREF_GPIO_NUM 26
#define PCLK_GPIO_NUM 21
#else
#error "Camera model not selected"
#endif
演示视频
推荐阅读：
