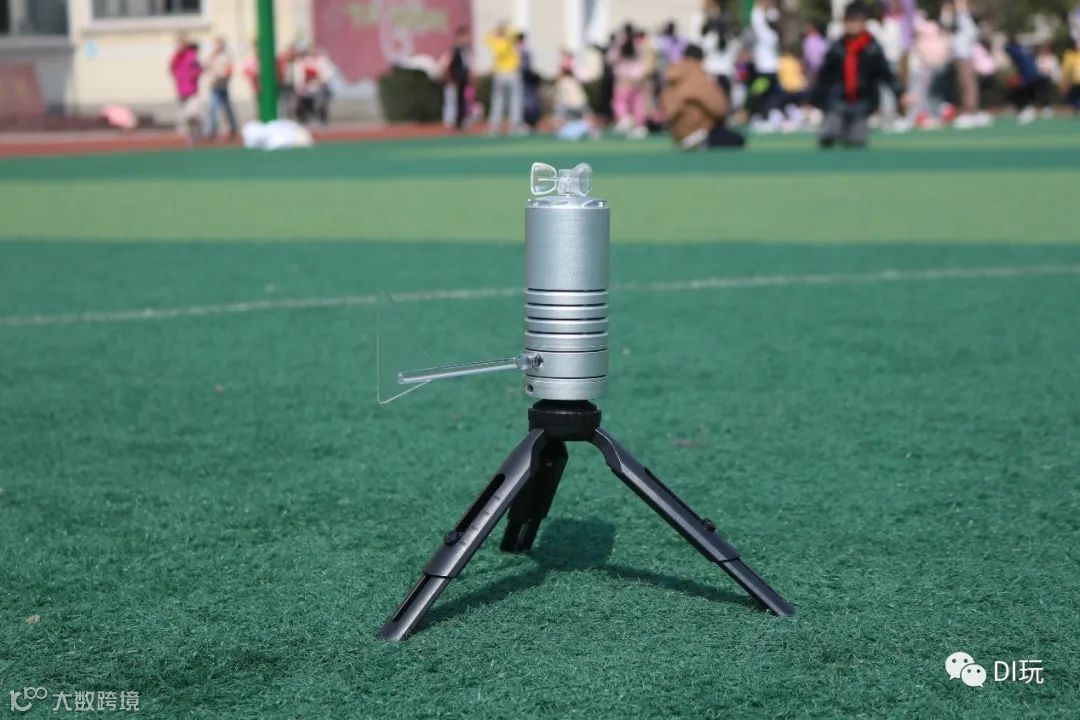

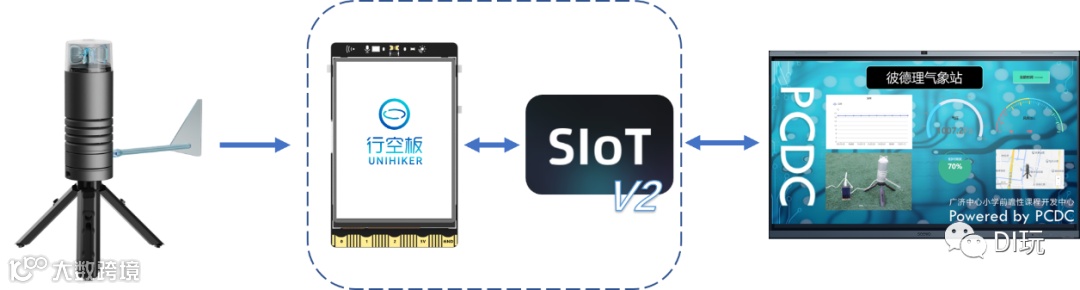

基于云雀气象仪与Mind+数据面板的大屏可视化校园气象站

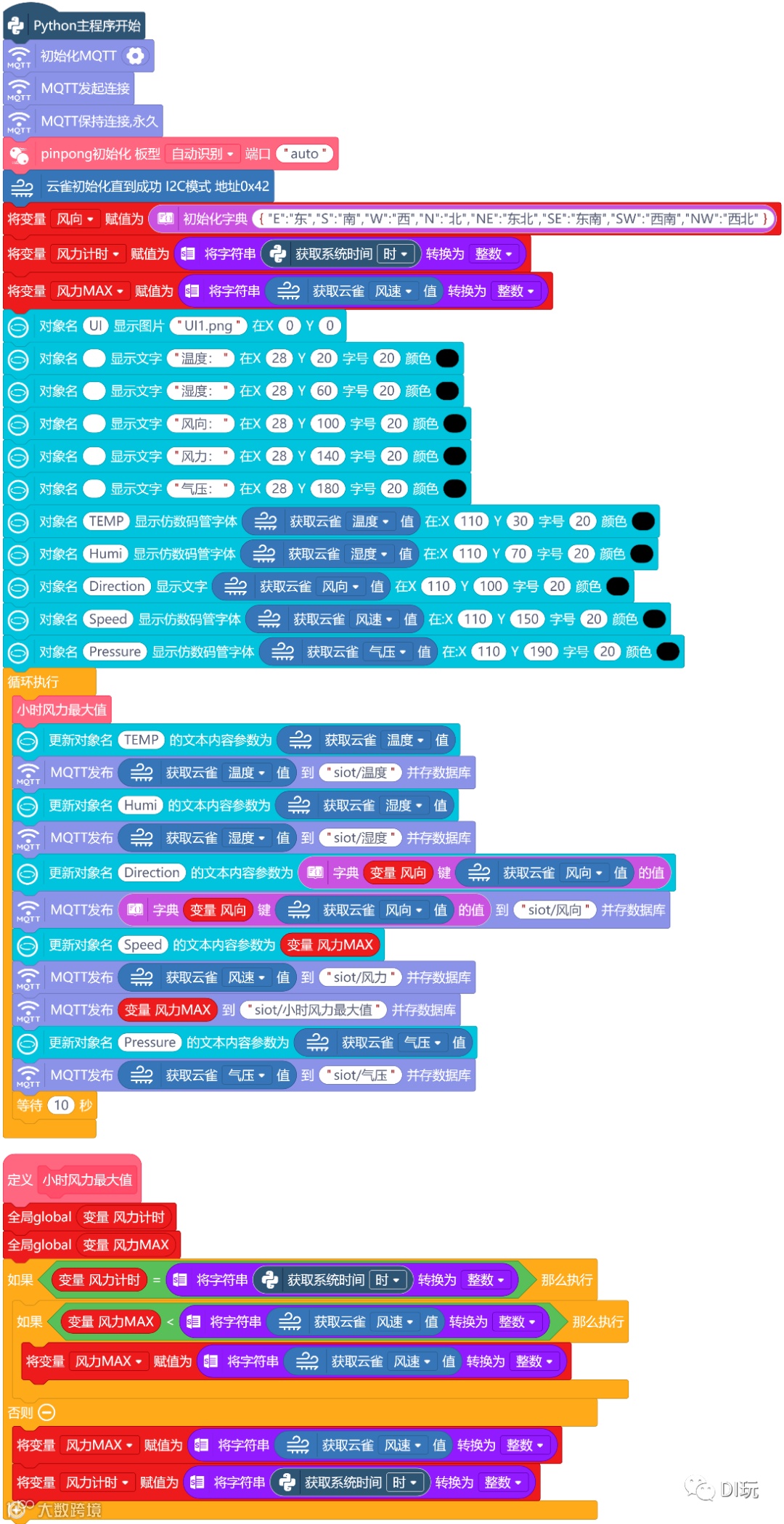

   #  -*- coding: UTF-8 -*-
# MindPlus# Pythonfrom DFRobot_Atmospherlum import *from pinpong.board import Boardfrom unihiker import GUIimport datetimeimport timeimport siot
# 自定义函数def XiaoShiFengLiZuiDaZhi():    global FengLiJiShi    global FengLiMAX    if (FengLiJiShi == (int(float(datetime.datetime.now().hour)))):        if (FengLiMAX < (int(float((yunque_i2c.get_value("speed")))))):FengLiMAX = (int(float((yunque_i2c.get_value("speed")))))else:FengLiMAX = (int(float((yunque_i2c.get_value("speed")))))FengLiJiShi = (int(float(datetime.datetime.now().hour)))

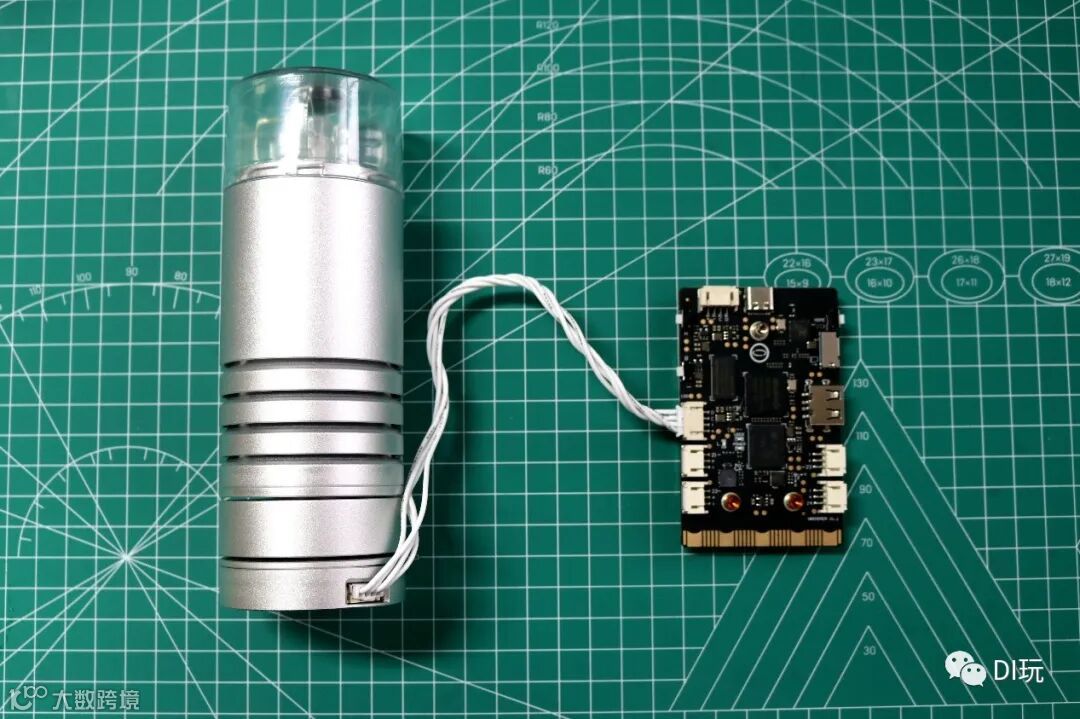

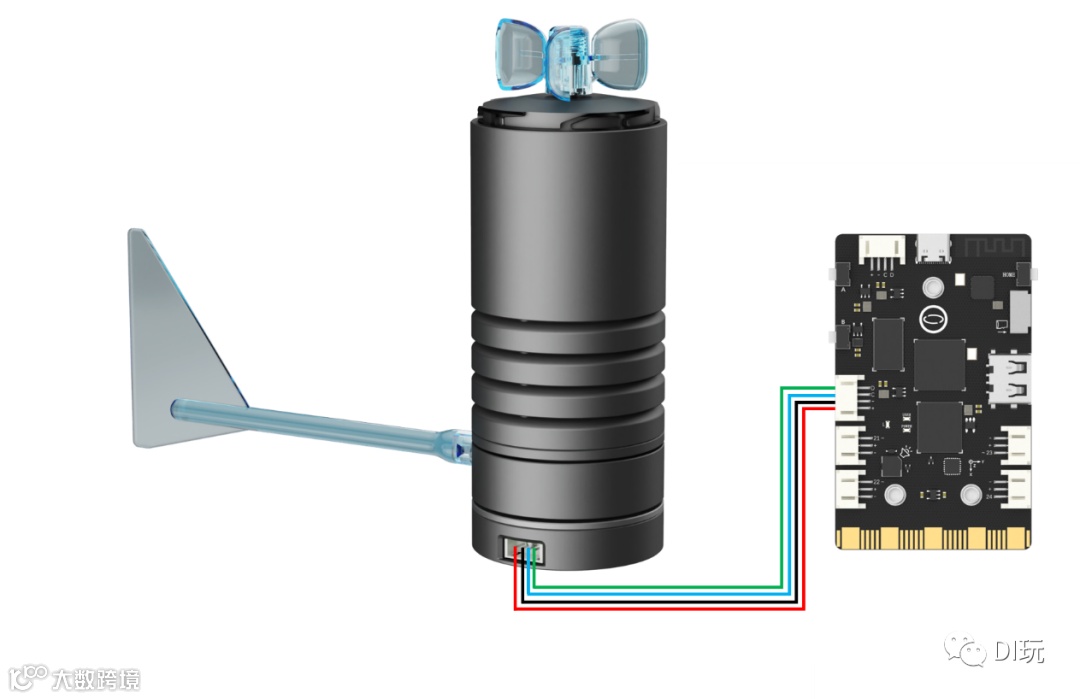

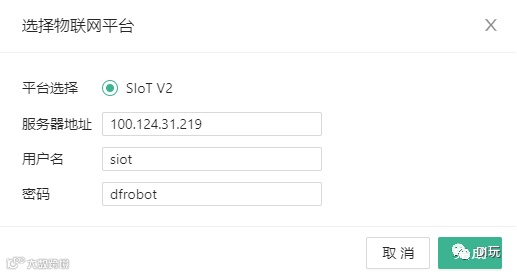

siot.init(client_id="",server="10.1.2.3",port=1883,user="siot",password="dfrobot")Board().begin()u_gui=GUI()siot.connect()siot.loop()yunque_i2c = DFRobot_Atmospherlum_I2C(0x42)while (yunque_i2c.begin() != 0):print("yunque_i2c initialize failed!!")time.sleep(1)print("Sensor initialize success!!")yunque_i2c.set_local_time()time.sleep(1)

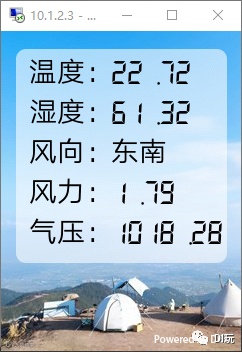

FengXiang = {"E":"东","S":"南","W":"西","N":"北","NE":"东北","SE":"东南","SW":"西南","NW":"西北"}FengLiJiShi = (int(float(datetime.datetime.now().hour)))FengLiMAX = (int(float((yunque_i2c.get_value("speed")))))UI=u_gui.draw_image(image="UI1.png",x=0,y=0)u_gui.draw_text(text="温度：",x=28,y=20,font_size=20, color="#000000")u_gui.draw_text(text="湿度：",x=28,y=60,font_size=20, color="#000000")u_gui.draw_text(text="风向：",x=28,y=100,font_size=20, color="#000000")u_gui.draw_text(text="风力：",x=28,y=140,font_size=20, color="#000000")u_gui.draw_text(text="气压：",x=28,y=180,font_size=20, color="#000000")TEMP=u_gui.draw_digit(text=(yunque_i2c.get_value("Temp")),x=110,y=30,font_size=20, color="#000000")Humi=u_gui.draw_digit(text=(yunque_i2c.get_value("Humi")),x=110,y=70,font_size=20, color="#000000")Direction=u_gui.draw_text(text=(yunque_i2c.get_value("dir")),x=110,y=100,font_size=20, color="#000000")Speed=u_gui.draw_digit(text=(yunque_i2c.get_value("speed")),x=110,y=150,font_size=20, color="#000000")Pressure=u_gui.draw_digit(text=(yunque_i2c.get_value("Pressure")),x=110,y=190,font_size=20, color="#000000")
while True:XiaoShiFengLiZuiDaZhi()TEMP.config(text=(yunque_i2c.get_value("Temp")))siot.publish_save(topic="siot/温度", data=(yunque_i2c.get_value("Temp")))Humi.config(text=(yunque_i2c.get_value("Humi")))siot.publish_save(topic="siot/湿度", data=(yunque_i2c.get_value("Humi")))Direction.config(text=(FengXiang[(yunque_i2c.get_value("dir"))]))siot.publish_save(topic="siot/风向", data=(FengXiang[(yunque_i2c.get_value("dir"))]))Speed.config(text=FengLiMAX)siot.publish_save(topic="siot/风力", data=(yunque_i2c.get_value("speed")))siot.publish_save(topic="siot/小时风力最大值", data=FengLiMAX)Pressure.config(text=(yunque_i2c.get_value("Pressure")))siot.publish_save(topic="siot/气压", data=(yunque_i2c.get_value("Pressure")))time.sleep(10)
