Process name:
Software Unit Verification
Process purpose:
Verify our software units and deliver evidence for compliance of every software unit within the software detailed design and relevant software requirements (functional & Non-functional)
Process outcomes:
We accomplished this process if we:
have established and developed a software unit verification strategy including regression strategy to verify the software units
develop software unit verification criteria according to software unit verification strategy, suitable to provide evidence for compliance of the software units within the software detailed design and its requirements (functional & Nonfunctional)
can show that our software units are verified according to the software unit verification strategy and the software unit verification criteria and its results are documented
shown our consistency & traceability between software units, criteria for verification and verification results
have communicated all summarized results of the unit verification to all relevant stakeholder
Develop software unit verification strategy including regression strategy

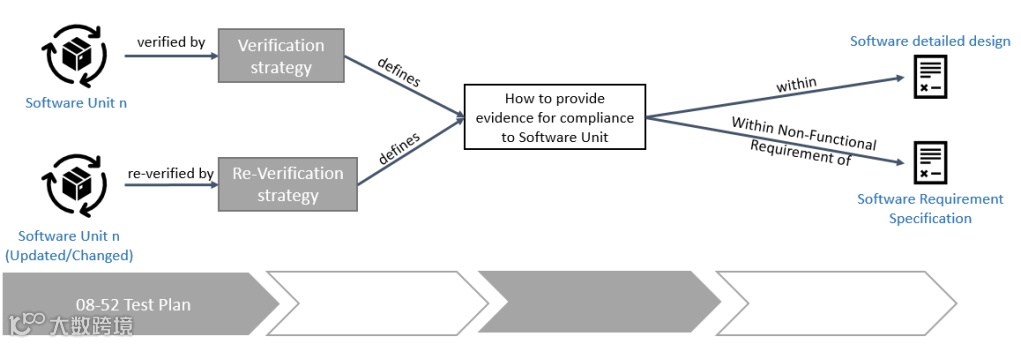

We start of with (what a surprise) the development of a verification strategy of the software units and in addition to that the regression strategy for reverification in case of a change within given software unit. Part of the verification strategy shall describe the provision of evidence for compliance of relevant software units, their software detailed design and non-functional requirements. (To verify your units, you could possibly use static/dynamic analysis, unit testing, code reviews, etc.
As a result of this process we will expect:
08-52 Test Plan

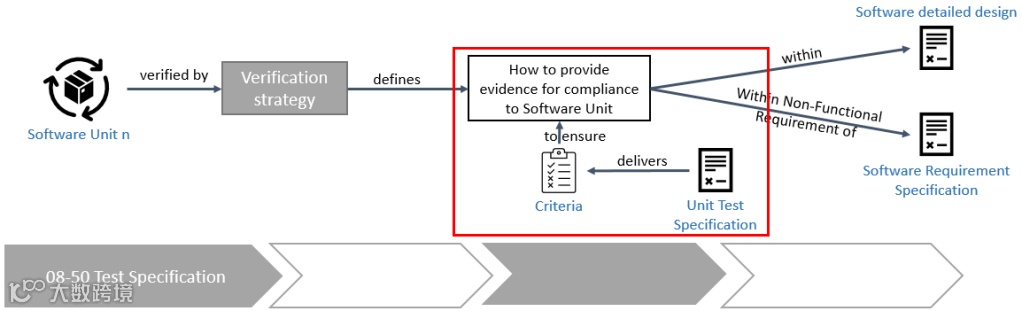

The next BP covers the development of unit verification criteria. They need to be appropriate for compliance of the software units, and their interactions within every component, also with software detailed design and the non-functional requirements according to verification strategy. For the testing of units, the criteria must be defined in unit test specification.
Relevant criteria for unit verification could include unit testcases, unit testdata, static verification, coverage for/of goals and coding standards such as the MISRA rules.
The representation of a unit test specification may be solved e.g. as a script in an automated test bench.
This will lead us to following WP:
08-50 Test Specification

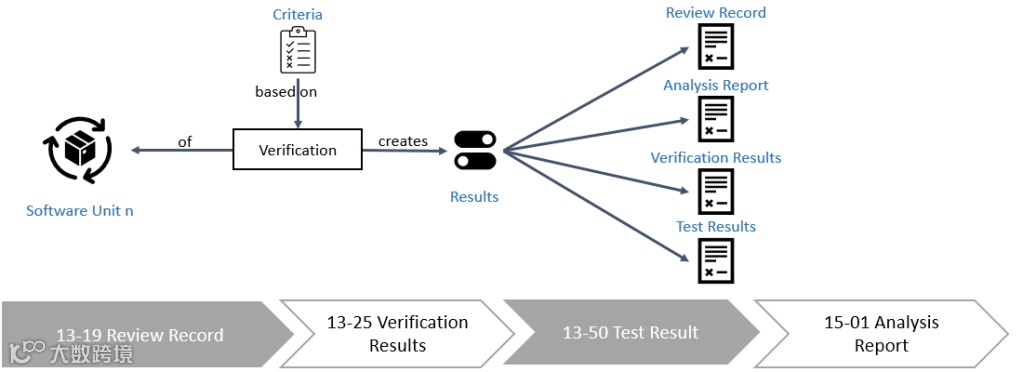

Lets use our newly defined criteria to verify relevant software units for their correctness. The results of static verification shall be recorded.
Static verification may consist of static analysis, code review, checks against coding standards and guidelines, and other techniques.
For non-conformances please check SUP.9
Our process outcome need to be documented in:
13-19 Review Records
13-25 Verification Results
13-50 Test Result
15-01 Analysis Report

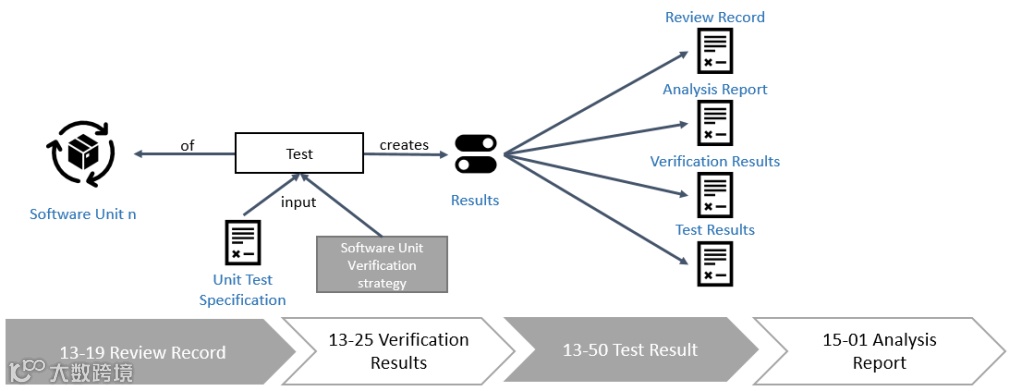

Now is the part to test our software units based on the unit test specification and software unit verification strategy. The outcome (Test results, logs) shall be recorded.
In case of non-conformances please check SUP.9
As in BP.3 the results are stored in:
13-19 Review Record
13-25 Verification Results
13-50 Test Result
15-01 Analysis Report

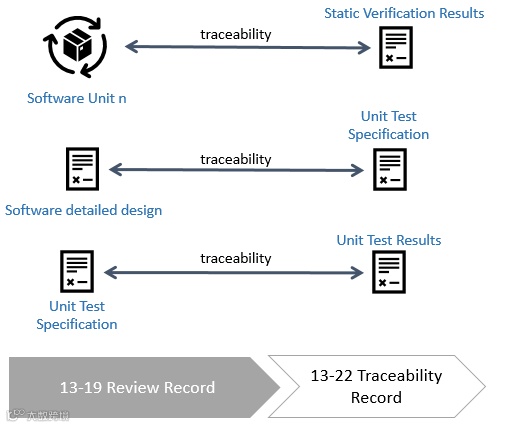

Here we are again. Traceability needs to be established between:
Software units and static verification results
Software detailed design and unit test specification
Unit test specification and unit test results
Bidirectional traceability also supports coverage, consistency and impact analysis
Everything needs to be documented within:
13-19 Review Record
13-22 Traceability Record

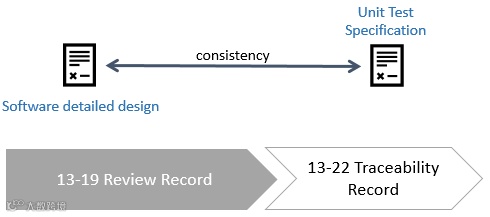

Ensure consistency between our software detailed design and unit test specification
Consistency is also being supported via BP.5 Traceability and can be shown within the review records
The results are identical to the one in BP.5 so we´re talking about:
13-19 Review Record
13-22 Traceability Record

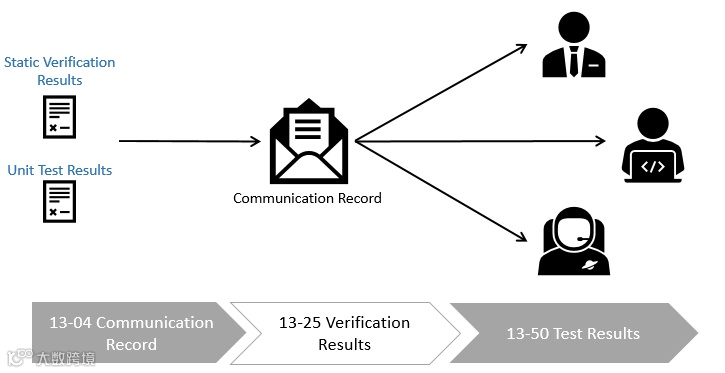

Summarize the unit test results and static verification results and provide them to all relevant stakeholders.
Giving all necessary information of test case execution in a summarized view, will give other stakeholders the possibility to understand upcoming consequences.
Results are:
13-04 Communication Record
13-25 Verification Results
13-50 Test Results
