SCS-MU4 Modular Metal Weighbridge
01
Are you still worried that the shipping cost of weighbridge from China is too high?
02
Are you still complained that the delivery time of weighbridges from China is too long?
03
Are you still unsatisfied the quality of weighbridges from other Chinese suppliers?
Now our SCS-U4 Modular Weighbridges can solve all the above problems. Our weighbridges adopt completely new structure design, offering higher strength, greater reliability and faster installation than conventional systems.
Seven advantages of
SCS-U4 weighbridges

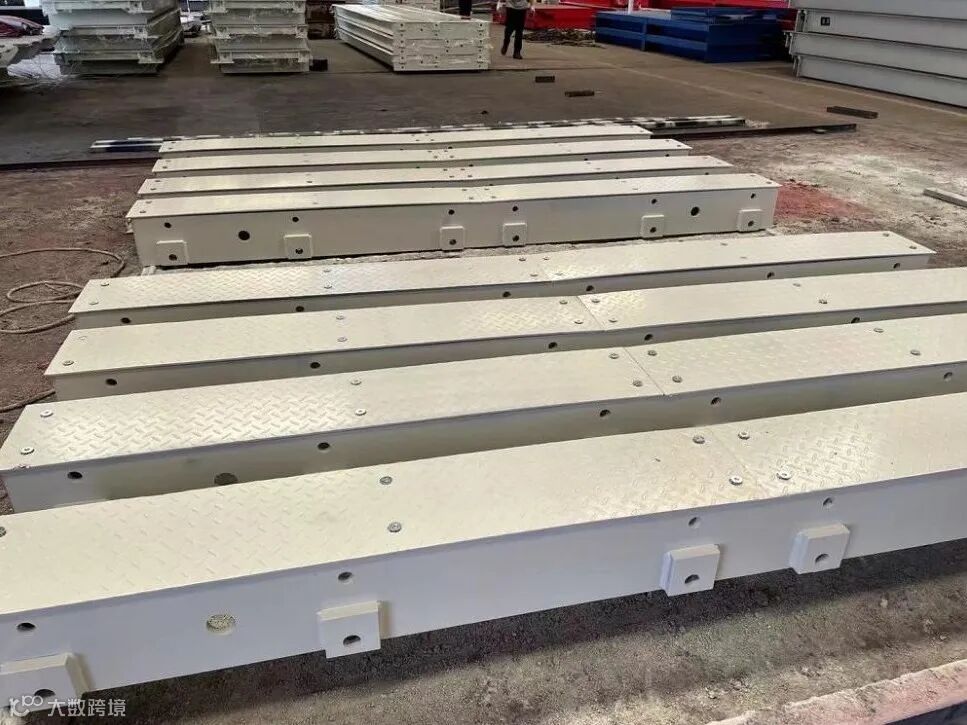

01
Outstanding exchangeability.
There are only three kinds of modules, with which we can get any size of weighbridge you want: 3x8, 10, 12, 14, 16, 18, 20, 22, 24m. Also you can easily enlarge the length from 12m to 18m, or from 18m to 22m only by adding 3 pieces of modules.
02

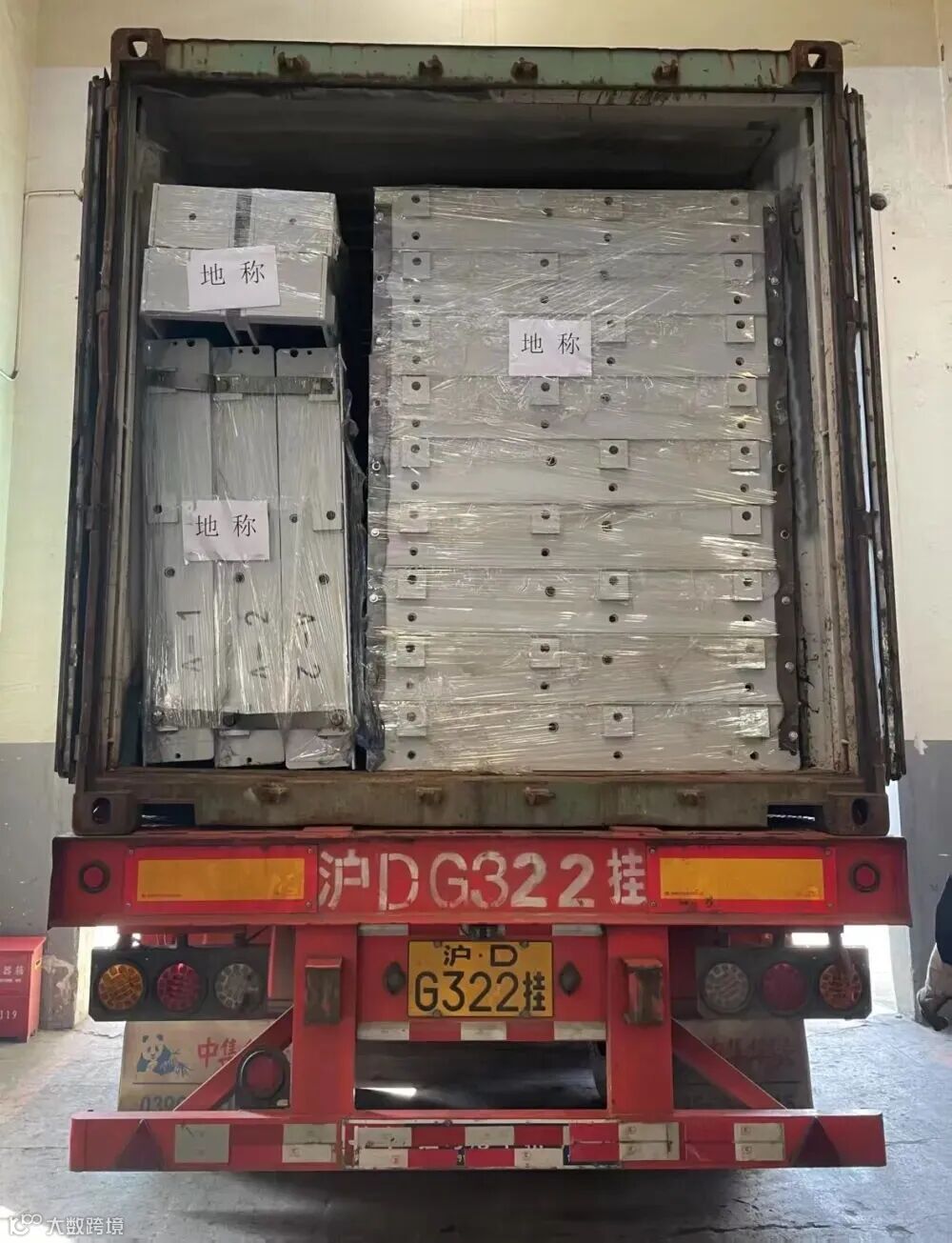

More pieces of weighbridges can fit into a 20ft container.
The structure is specially designed as per the inner dimension of 20ft container. The full use of container is to the utmost.
03
Ideal delivery time.
Real modularized structure ensures us to keep enough modules in stock. That means we can deliver in very short time.
Usually, 2 sets of 18x3m weighbridges can be delivered in 10 days, if the order is stable and large, the delivery time will be shorter.
04
High strength and heavy duty structure.

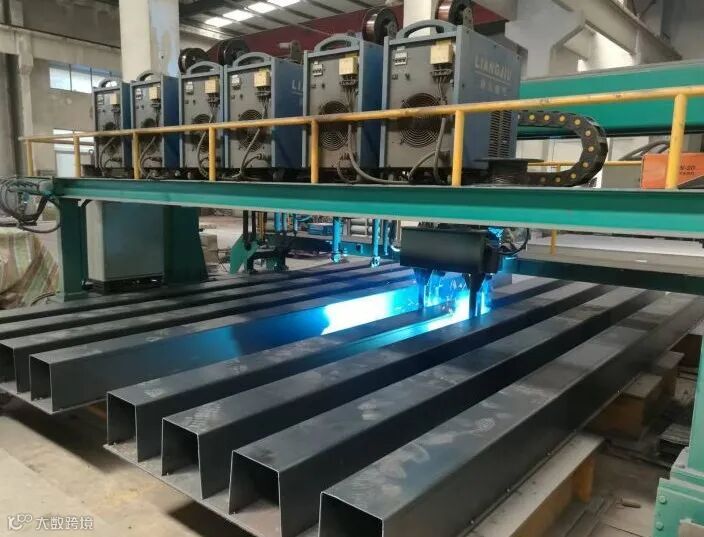

Full checker plate deck (8+2mm), 8 pieces of 6mm thick U-beams are welded for each modular part. CO2 mixed with AR protection welding and Automatic union melt welding of weighbridges ensure each U-beam fully sealed. The CO2 mixed with AR protection welding is standard fillet weld with no end, the weld leg of which is at least 8mm.
05
Good rust and corrosion protection.
Rust protection process
Step 1 : Sandblasting
External surfaces of all modules undergo sandblasting to remove any contaminants.
Step 2 : Protective coating
All invisible steel surfaces are uniformly coated with an asphalt emulsion.
Step 3 : Epoxy primer
All visible surfaces receive a 4 μm thick coat of high performance epoxy primer.
Step 4: Alkyd enamel finish
3 μm thick specialized hard-coat alkyd enamel finish is applied over the epoxy primer.
06
Fast and economical installation.
SCS-U4 weighbridge is humanized designed structure. During assembling, no need to turn over the bridges. It takes usually 5 hours by 2 people to finish the installation of 1 complete set of 18x3m weighbridge. Even in the place without crane, the weighbridge can be easily installed by forklift.
07
Convenient access.
Removable section covers allow convenient access for maintenance and service.
END
