网络监控smokeping

一、smokeping介绍

　　我们在选择机房的时候，如何知道这个机房的网络情况，这个时候就要用到网络监控软件:smokeping　　

　　本文主要介绍如何使用smokeping来监控idc机房的网络质量情况，从监控图上的延时与丢包能分辨出你机房的网络是否稳定，是否为多线，是否为BGP机房，到各城市的3个运营商之间的网络，各是什么情况，如果出现问题，如何有针对性的解决。而且如果选择新机房的时候，你可以根据smokeping的监控结果来判断这个机房是否适合。

smokeping是rrdtool的作者Tobi Oetiker的作品，所以它在图形显示方面有很大优势，也是一个很 有特点的opensource工具：

1、多种探测方式，包括fping、echoping、dig、curl等；
2、易用可扩展的插件；
3、master/slave 的 工作方式，可以在多个节点收集同一个监测点的数据；

二、安装smokeping

1、软件环境：

[root@smokeping ~]# cat /etc/redhat-release
CentOS release 6.6 (Final)
[root@smokeping ~]# uname -r2.6.32-504.el6.x86_64

2、下载软件

wget http://www.fping.org/dist/fping-3.10.tar.gzwget https://fossies.org/linux/misc/old/echoping-6.0.2.tar.gzwget http://oss.oetiker.ch/smokeping/pub/smokeping-2.6.9.tar.gz

3、安装软件

1、安装依赖包：

yum install perl perl-Net-Telnet perl-Net-DNS perl-LDAP perl-libwww-perl perl-IO-Socket-SSL perl-Socket6 perl-Time-HiRes perl-ExtUtils-MakeMaker rrdtool rrdtool-perl curl httpd httpd-devel gcc make wget libxml2-devel libpng-devel glib pango pango-devel freetype freetype-devel fontconfig cairo cairo-devel libart_lgpl libart_lgpl-devel popt popt-devel libidn libidn-devel -y

2、解压、编译安装fping

tar xf fping-3.10.tar.gz
cd fping-3.10
./configure
make && make install

3、解压、编译安装echoping

tar xf echoping-6.0.2.tar.gz
cd echoping-6.0.2
./configure
make && make install

4、解压、编译安装smokeping

tar xf smokeping-2.6.9.tar.gz
cd smokeping-2.6.9
./setup/build-perl-modules.sh /usr/local/smokeping/thirdparty
./configure --prefix=/usr/local/smokeping
/usr/bin/gmake install

5、配置 smokeping

6、更改配置文件

vim /usr/local/smokeping/etc/config
主要修改如下内容：
#cgiurl = http://some.url/smokeping.cgi
cgiurl = http://192.168.30.128/smokeping.cgi
*** Database ***
#step = 300
step = 60 #此处建议改为 60 ， 一分钟采集一次数据
pings = 20

7、编辑apache配置文件

vim /etc/httpd/conf/httpd.conf
#在结尾添加如下代码：
#add smokeping configure file at 2017-04-10Alias /cache "/usr/local/smokeping/cache/"
Alias /cropper "/usr/local/smokeping/htdocs/cropper/"
Alias /smokeping "/usr/local/smokeping/htdocs/smokeping.fcgi"<Directory "/usr/local/smokeping">AllowOverride None
Options All
AddHandler cgi-script .fcgi .cgi
Order allow,deny
Allow from all
DirectoryIndex smokeping.fcgi</Directory>

8、图像浏览界面的中文支持
安装字体

编辑smokeping的配置文件

编辑Graphs.pm

vi /usr/local/smokeping/lib/Smokeping/Graphs.pm
#在第147行，下边插入这一行代码

如下图代码，标红部分

    if ($mode =~ /[anc]/){
        my $val = 0;
        for my $host (@hosts){
            my ($graphret,$xs,$ys) = RRDs::graph
            ("dummy",
            '--start', $tasks[0][1],
            '--end', $tasks[0][2],
            "DEF:maxping=$cfg->{General}{datadir}${host}.rrd:median:AVERAGE",            '--font TITLE:20:"WenQuanYi Zen Hei Mono"',
            'PRINT:maxping:MAX:%le' );
            my $ERROR = RRDs::error();
            return "<div>RRDtool did not understand your input: $ERROR.</div>" if $ERROR;
            $val = $graphret->[0] if $val < $graphret->[0];
        }
        $val = 1e-6 if $val =~ /nan/i;
        $max = { $tasks[0][1] => $val * 1.5 };
    }

9、##########测试数据可自定义##########

config 配置文件的最后边

vim /usr/local/smokeping/etc/config
+ Other
menu = 三大网络监控
title = 监控统计
++ dianxin
menu = 电信网络监控
title = 电信网络监控列表
host = /Other/dianxin/dianxin-bj /Other/dianxin/dianxin-hlj /Other/dianxin/dianxin-tj /Other/dianxin/dianxin-sc /Other/dianxin/dianxin-sh /Other/dianxin/dianxin-gz
+++ dianxin-bj
menu = 北京电信
title = 北京电信
alerts = someloss
host = 202.96.199.133
+++ dianxin-hlj
menu = 黑龙江电信
title = 黑龙江电信
alerts = someloss
host = 219.147.198.242
+++ dianxin-tj
menu = 天津电信
title = 天津电信
alerts = someloss
host = 219.150.32.132
+++ dianxin-sc
menu = 四川电信
title = 四川电信
alerts = someloss
host = 61.139.2.69
+++ dianxin-sh
menu = 上海电信
title = 上海电信
alerts = someloss
host = 116.228.111.118
+++ dianxin-gz
menu = 广东电信
title = 广东电信
alerts = someloss
host = 113.111.211.22
++ liantong
menu = 联通网络监控
title = 联通网络监控列表
host = /Other/liantong/liantong-bj /Other/liantong/liantong-hlj /Other/liantong/liantong-tj /Other/liantong/liantong-sc /Other/liantong/liantong-sh /Other/liantong/liantong-gz
+++ liantong-bj
menu = 北京联通
title = 北京联通
alerts = someloss
host = 61.135.169.121
+++ liantong-hlj
menu = 黑龙江联通
title = 黑龙江联通
alerts = someloss
host = 202.97.224.69
+++ liantong-tj
menu = 天津联通
title = 天津联通
alerts = someloss
host = 202.99.96.68
+++ liantong-sc
menu = 四川联通
title = 四川联通
alerts = someloss
host = 119.6.6.6
+++ liantong-sh
menu = 上海联通
title = 上海联通
alerts = someloss
host = 210.22.84.3
+++ liantong-gz
menu = 广东联通
title = 广东联通
alerts = someloss
host = 221.5.88.88
++ yidong
menu = 移动网络监控
title = 移动网络监控列表
host = /Other/yidong/yidong-bj /Other/yidong/yidong-hlj /Other/yidong/yidong-tj /Other/yidong/yidong-sc /Other/yidong/yidong-sh /Other/yidong/yidong-gz
+++ yidong-bj
menu = 北京移动
title = 北京移动
alerts = someloss
host = 221.130.33.52
+++ yidong-hlj
menu = 黑龙江移动
title = 黑龙江移动
alerts = someloss
host = 211.137.241.35
+++ yidong-tj
menu = 天津移动
title = 天津移动
alerts = someloss
host = 211.137.160.5
+++ yidong-sc
menu = 四川移动
title = 四川移动
alerts = someloss
host = 218.201.4.3
+++ yidong-sh
menu = 上海移动
title = 上海移动
alerts = someloss
host = 117.131.19.23
+++ yidong-gz
menu = 广东移动
title = 广东移动
alerts = someloss
host = 211.136.192.6

10、smokeping的默认配置文件110行的fping安装目录与此次安装目录不相符需修改！

11、启动apache服务和smokeping服务

  [root@smokeping ~]# /etc/init.d/httpd start
  正在启动 httpd：httpd: apr_sockaddr_info_get() failed for smokeping
  httpd: Could not reliably determine the server's fully qualified domain name, using 127.0.0.1 for ServerName
  [确定】

12、设置环境变量

 三、用数据说话（三大运营商网络监测图）

1、访问网站

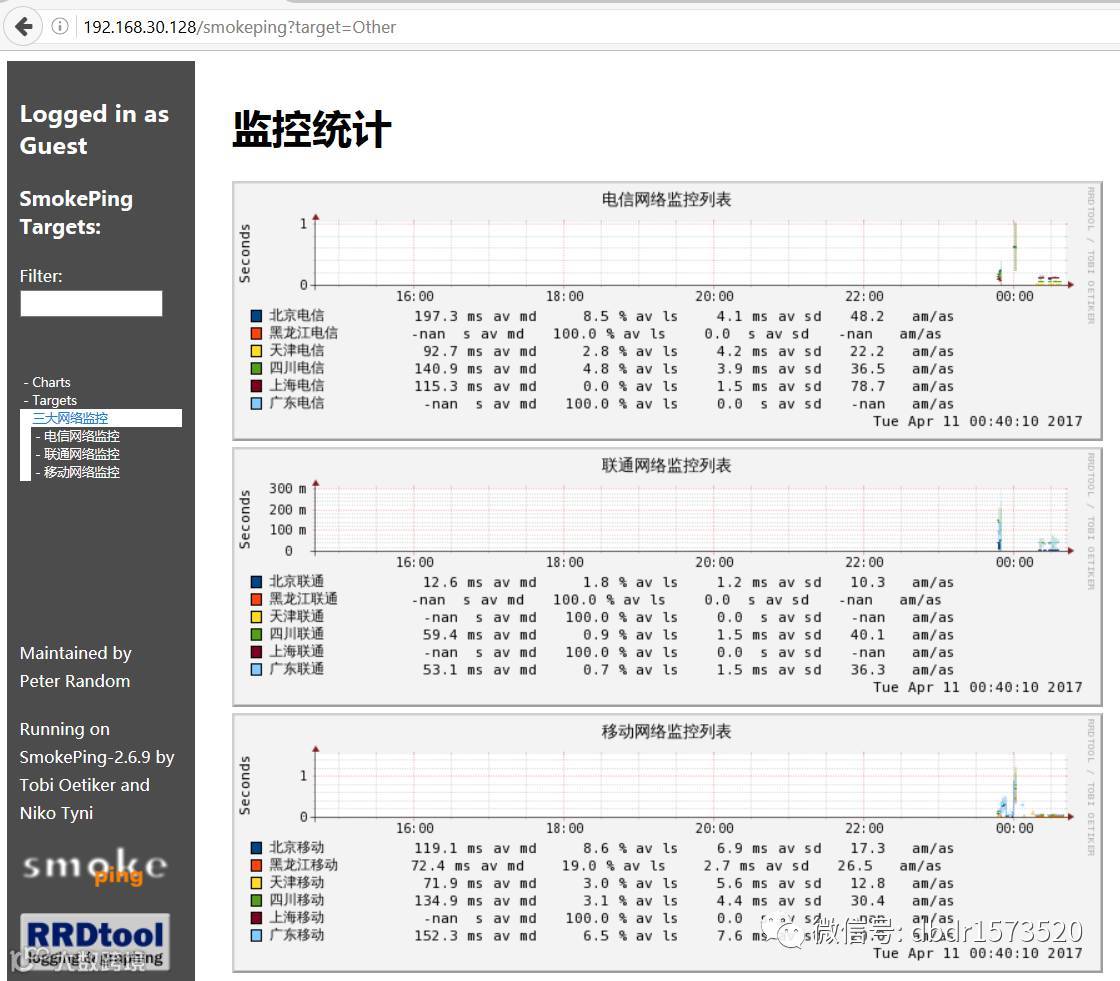

2、监控统计图
