前言
演变
KaPao

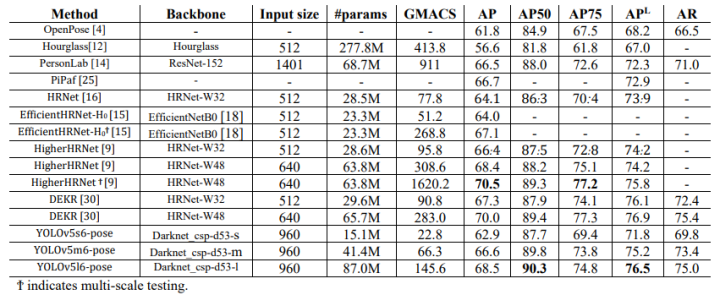

yolov5-pose
if self.kpt_label:
#Direct kpt prediction
pkpt_x = ps[:, 6::3] * 2. - 0.5
pkpt_y = ps[:, 7::3] * 2. - 0.5
pkpt_score = ps[:, 8::3]
#mask
kpt_mask = (tkpt[i][:, 0::2] != 0)
lkptv += self.BCEcls(pkpt_score, kpt_mask.float())

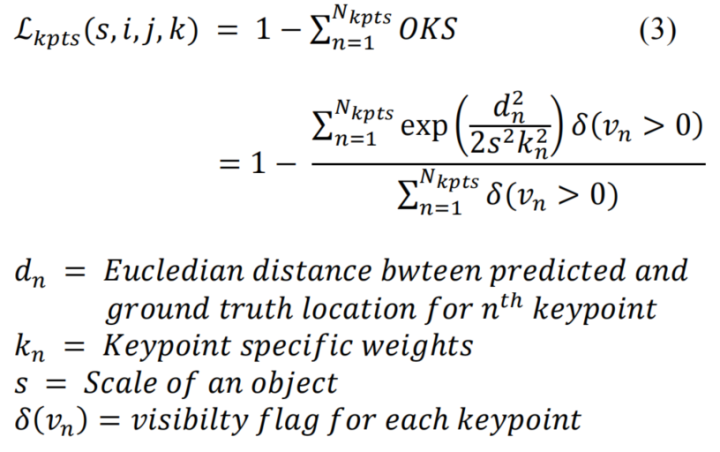

#l2 distance based loss
#lkpt += (((pkpt-tkpt[i])*kpt_mask)**2).mean() #Try to make this loss based on distance instead of ordinary difference
#oks based loss
d = (pkpt_x-tkpt[i][:,0::2])**2 + (pkpt_y-tkpt[i][:,1::2])**2
s = torch.prod(tbox[i][:,-2:], dim=1, keepdim=True)
kpt_loss_factor = (torch.sum(kpt_mask != 0) + torch.sum(kpt_mask == 0))/torch.sum(kpt_mask != 0)
lkpt += kpt_loss_factor*((1 - torch.exp(-d/(s*(4*sigmas**2)+1e-9)))*kpt_mask).mean()

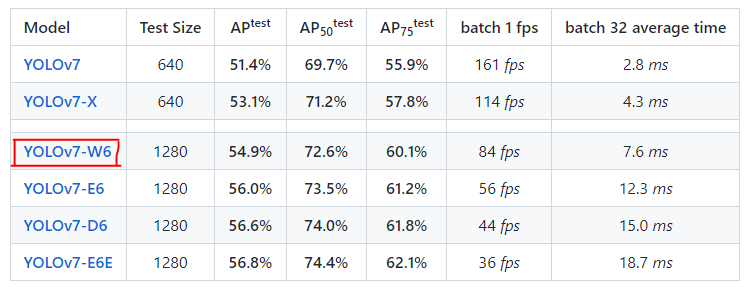

yolov7-pose
yolov7-pose + onnxruntime
% weigths = torch.load('weights/yolov7-w6-pose.pt')
% image = cv2.imread('sample/pose.jpeg')
!python pose.py
一、yolov7-w6 VS yolov7-w6-pose
-

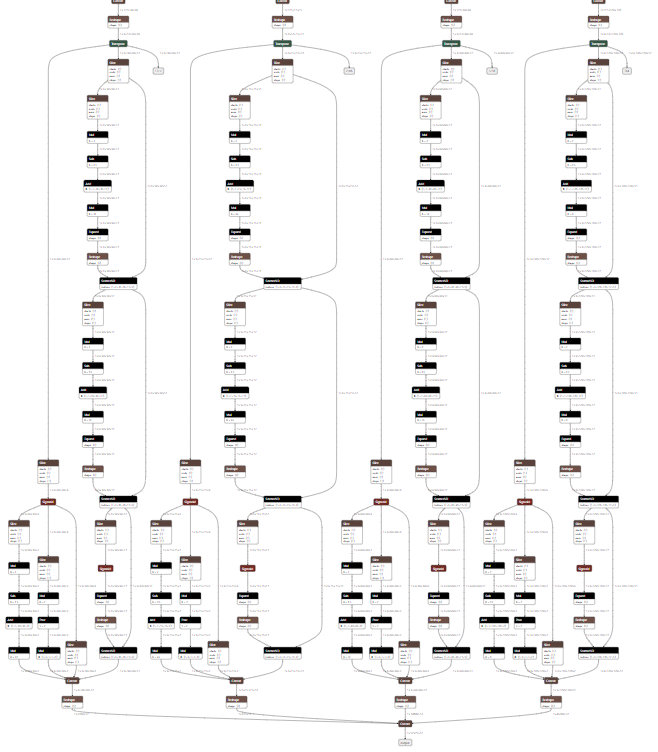

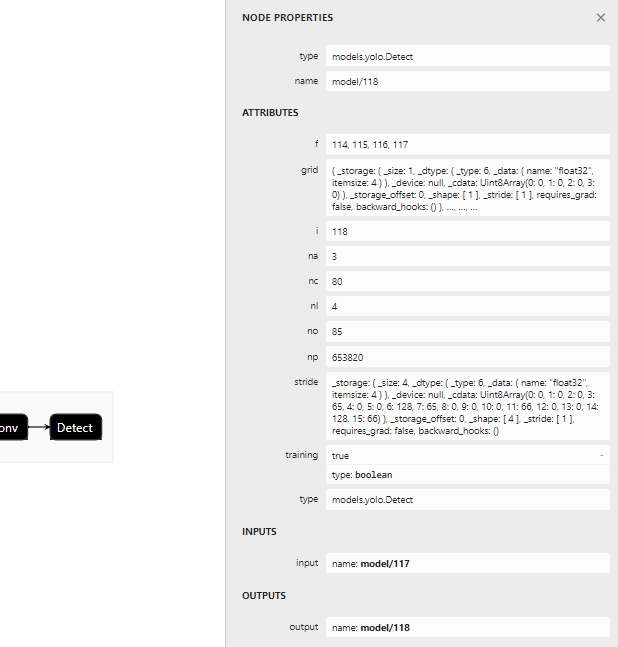

首先看下yolov7-w6使用的检测头
-
表示一共有四组不同尺度的检测头，分别为15×15,30×30,60×60,120×120，对应输出的节点为114,115,116,117 -
nc对应coco的80个类别 -
no表示
-

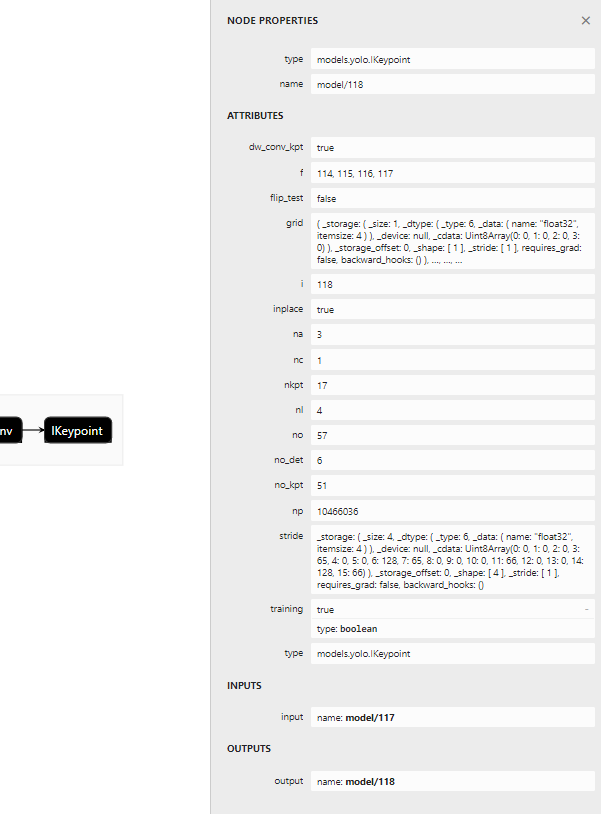

再看看yolov7-w6-pose使用的检测头：
-
代表person一个类别 -
nkpt表示人体的17个关键点 -
二、修改export脚本
# 原代码:
for k, m in model.named_modules():
m._non_persistent_buffers_set = set() # pytorch 1.6.0 compatibility
if isinstance(m, models.common.Conv): # assign export-friendly activations
if isinstance(m.act, nn.Hardswish):
m.act = Hardswish()
elif isinstance(m.act, nn.SiLU):
m.act = SiLU()
model.model[-1].export = not opt.grid # set Detect() layer grid export
# 修改代码:
for k, m in model.named_modules():
m._non_persistent_buffers_set = set() # pytorch 1.6.0 compatibility
if isinstance(m, models.common.Conv): # assign export-friendly activations
if isinstance(m.act, nn.Hardswish):
m.act = Hardswish()
elif isinstance(m.act, nn.SiLU):
m.act = SiLU()
elif isinstance(m, models.yolo.IKeypoint):
m.forward = m.forward_keypoint # assign forward (optional)
# 此处切换检测头
model.model[-1].export = not opt.grid # set Detect() layer grid export
python export.py --weights 'weights/yolov7-w6-pose.pt' --img-size 960 --simplify True
三、onnxruntime推理
import onnxruntime
import matplotlib.pyplot as plt
import torch
import cv2
from torchvision import transforms
import numpy as np
from utils.datasets import letterbox
from utils.general import non_max_suppression_kpt
from utils.plots import output_to_keypoint, plot_skeleton_kpts
device = torch.device("cpu")
image = cv2.imread('sample/pose.jpeg')
image = letterbox(image, 960, stride=64, auto=True)[0]
image_ = image.copy()
image = transforms.ToTensor()(image)
image = torch.tensor(np.array([image.numpy()]))
print(image.shape)
sess = onnxruntime.InferenceSession('weights/yolov7-w6-pose.onnx')
out = sess.run(['output'], {'images': image.numpy()})[0]
out = torch.from_numpy(out)
output = non_max_suppression_kpt(out, 0.25, 0.65, nc=1, nkpt=17, kpt_label=True)
output = output_to_keypoint(output)
nimg = image[0].permute(1, 2, 0) * 255
nimg = nimg.cpu().numpy().astype(np.uint8)
nimg = cv2.cvtColor(nimg, cv2.COLOR_RGB2BGR)
for idx in range(output.shape[0]):
plot_skeleton_kpts(nimg, output[idx, 7:].T, 3)
# matplotlib inline
plt.figure(figsize=(8, 8))
plt.axis('off')
plt.imshow(nimg)
plt.show()
plt.savefig("tmp")
-
image = letterbox(image, 960, stride=64, auto=True)[0] 中stride指的是最大步长，yolov7-w6和yolov5s下采样多了一步，导致在8，16，32的基础上多了64的下采样步长 -
output = non_max_suppression_kpt(out, 0.25, 0.65, nc=1, nkpt=17, kpt_label=True) ，nc 和 kpt_label 等信息在netron打印模型文件时可以看到 -
所得到的onnx相比原半精度模型大了将近三倍，后续排查原因 -
yolov7-w6-pose极度吃显存，推理一张960×960的图像，需要2-4G的显存，训练更难以想象
