近期在研究大模型推理加速框架 VLLM 源码的过程中，对 Pytorch 的显存占用和分配机制十分感兴趣，因此花了一些时间研究和测试。写作本文，既是笔记，也是分享。
1. 前言
1.1 设备及版本
-
操作系统：Ubuntu 22.04 -
驱动版本：535.161.08 -
GPU：A800-SXM4-80GB -
CUDA：12.1 -
Pytorch：2.3.0 -
Python：3.10.6
得益于社区的不懈努力，PyTorch 的显存管理机制一直在不断优化。尽管不同版本的显存管理机制在核心思路上保持一致，但在细节上可能会略有差异。本文关于显存管理机制的内容基于 Pytorch 2.3.0 版本，文章的最后也提供了显存管理机制部分结论的复现代码，如想验证，请安装 2.3.0 版本的 Pytorch。
1.2 符号约定
在计算机中：
-
1 Byte = 1 B = 8 Bits -
1 KB = 1024 B -
1 MB = 1024 KB = 1024 x 1024 B -
Bool 型变量占用 1 B -
Fp16 和 Bf16 型变量占用 2 B -
Fp32 型变量占用 4 B
在下文中, 如无指定, 那么单位默认为
2. 显存管理机制
GPU 作为一种通用的数据处理设备，为了满足更广泛客户的需求且保证更小的维护成本，其 API 在设计的时候比较开放，尽管 CUDA 生态中也有高阶 API，但并没有针对某个深度学习框架做设计优化，其中显存的精细管理留给上层的深度学习框架去完成。
cudaMalloc（CUDA API）是从 GPU 申请显存最常用的方式，给定指针和数据大小即可进行 API 调用，其调用有着不小的时间开销，且是 stream 内的同步操作。当深度学习框架使用的数据非常零碎且数量多时，需要反复调用 cudaMalloc，该行为会直接影响程序的整体性能，因此深度学习框架的显存管理机制在设计时要尽量降低 cudaMalloc 的调用频次。
PyTorch 框架基于 CUDA API 实现了一套显存管理逻辑/机制，可更好地满足框架的日常使用需求，相比原生的 CUDA API 可做到管理细化、使用相对高效，其采用动态申请与二次分配的设计思路：
-
动态申请：在使用的时候根据用量实时地向 GPU 发出请求，最大优点是不会占用过量的显存，方便多人同时使用一个设备（与之相对的是 TensorFlow 早期版本在启动前就把 GPU 上的大部分显存都申请到，然后再去分配使用） -

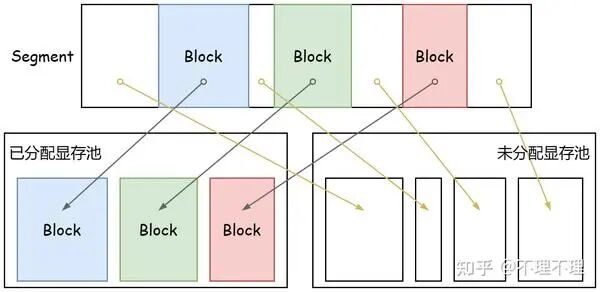

二次分配：将显存的申请与使用进行分离，即显存申请后会进行二次分配。显存管理机制会先通过 cudaMalloc 向 GPU 申请一个显存块 Segment，然后从 Segment 分离出子块 Block，我们使用的是分离后的 Block 显存，而不直接使用 Segment
2.1 显存申请

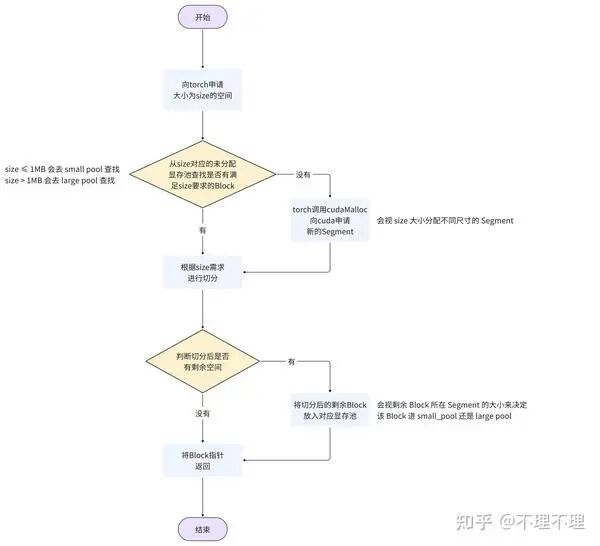

向 PyTorch 申请显存（在 GPU 中创建 tensor）大体符合如下逻辑：
显存管理机制会依据未分配 Block 所在 Segment 的大小，将未分配的 Block 划入 large pool（Segment > 2MB）或 small pool（Segment ≤ 2MB）。
用户创建 tensor 申请显存时，会先从 tensor size 对应未分配显存的 pool 中查找是否有满足 size 要求的 Block，如果没有才会向 GPU 申请新的 Segment 显存块。
2.1.1 Reserved Memory——Segment
首先观察【显存申请流程图】中第一个黄色三角形的右侧部分，即当前未分配显存的池子中没有满足 tensor size 要求的 Block。在这种情况下，显存管理机制需要向 GPU 申请一个新的 Segment，Segment 的大小视 tensor size 决定：
-
tensor_size : 申请一个 大小的 Segment -
tensor_size 申请一个 大小的 Segment -
tensor_size : 申请一个 大小的 Segment -
tensor_size : 申请一个大小为 整数倍且刚好 tensor size 的 Segment
相关复现代码见 5.1 节。
2.1.2 Large Pool 和 Small Pool
不管是已分配的 Blocks、未分配的 Blocks，还是 Segments，都有其对应的 large pool 和 small pool。其中，我们需要特别关注未分配 Blocks 所属的 pool，因为这直接关系到创建 tensor 所需的空间是从已有的未分配 Blocks 中再分配，还是新申请 Segment 空间。
对于 Segment 而言：
-
若 Segment 属于 2.1.1 中的第一种，则该 Segment 会被划分到 reserved memory 的 small pool -
若 Segment 属于 2.1.1 中的后三种，则该 Segment 会被划分到 reserved memory 的 large pool
对于 Segment 中未分配的 Block 而言：
-
若该 Block 所属的 Segment 属于 2.1.1 中的第一种，则该 Block 会被划分到未分配显存的 small pool -
若该 Block 所属的 Segment 属于 2.1.1 中的后三种，则该 Block 会被划分到未分配显存的 large pool
回到【显存申请流程图】中的第一个黄色三角形，当用户申请显存（创建 tensor）时，显存管理机制会视 tensor size 的大小，来决定到底从未分配显存的 small pool 还是 large pool 寻找满足 size 要求的 Block：
-
如果 tensor_size ，显存管理机制会从未分配显存的 small pool 中查找 -
如果 tensor_size , 显存管理机制会从未分配显存的 large pool 中查找

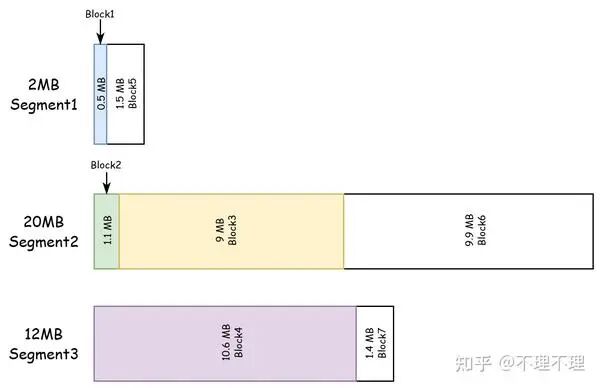

| small pool | large pool | |
|---|---|---|
| Segments | Segment1 | Segment2, Segment3 |
| 已分配 Blocks | Block1 | Block2, Block3, Block4 |
| 未分配 Blocks | Block5 | Block6, Block7 |
比如显存管理器当前有且仅有一个 2MB 的 Segment，已分配了 0.5MB，还剩 1.5MB，用户此时需要创建一个 1.1MB 的 tensor，那么显存管理器不会从这 1.5MB 的未分配 Block 中划分一部分空间给 tensor，而是额外申请一个 20MB 的 Segment 再进行分配。
只有从 tensor size 对应未分配显存的 pool 中未找到满足 size 要求的 Block，才会走流程图中第一个黄色三角形的右侧，申请新的 Segment（2.1.1 节）。
相关复现代码见 5.3 节。
2.1.3 Requested Size 和 Allocated Size
观察【显存申请流程图】中的第二个黄色三角形，针对用户某尺寸 tensor 的创建需求，显存管理机制依据 2.1.2 节中的逻辑已从对应的 pool 中找到了满足 size 要求的 Block，此时需要对该 Block 进行分配及切分。在 Pytorch 2.3.0 版本的显存管理机制中，实际分配给 tensor 的空间可能会略大于 tensor size（rounding 机制）。这一点需要借助阅读 Pytorch 的 C++ 源码或者调用显存管理的高阶 API （3.1.4 节）才好发现，在本文早前版本的理解中也一度以为这一现象来源于 Pytorch API 的精度限制。
这里我们先看 Block 属于 small pool 的情况（Block 此时最大不会超过 2MB; tensor_size ) :
-
若 tensor_size , 则被分配显存的大小与 tensor size一致 -
若 tensor_size , 则被分配显存的大小为 (tensor_size
比如创建一个 size 为 511 的 tensor，实际分配的显存为 512；创建一个 size 为 512 的 tensor，实际分配的显存也为 512；创建一个 size 为 513 的 tensor，实际分配的显存为 1024。

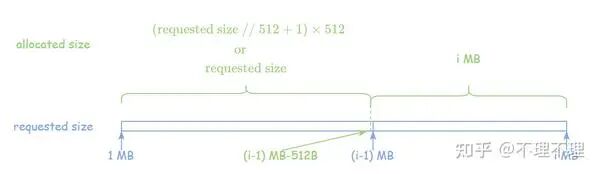

再看 Block 属于 large pool 的情况（Block 此时一定 ; tensor_size ），假设 Block 为 iMB:
-
若 tensor_size , 则被分配显存的大小为 -
若 tensor_size (tensor_size , 则被分配显存的大小与 tensor size 一致 -
若 tensor_size (tensor_size ), 则被分配显存的大小为 (tensor_size
比如 Segment 剩余 1.3 MB，用户此时创建了一个 1.1MB 的 tensor，显存管理机制则会为该 tensor 分配 1.3MB 空间。
值得注意的是，尽管分配给 tensor 的空间略大于 tensor size，但这多出来的空间无法被继续分配，因为在显存管理机制看来，tensor 占据的显存大小并非是 tensor size（requested size），而是 allocated size。
我猜这样设计的目的是为了减少显存碎片，同时降低显存管理的复杂度。比如我们创建一个 11MB 的 tensor，此时 Pytorch 会帮我们申请一个 12MB 的 Segment。从理论上说，该 Segment 在分配后仍有 1MB 的空间等待继续分配，但如果显存管理机制将这 1MB 空间继续分配给其他 ≤1MB 的 tensor，那么在后续某个时刻当这 11MB 的 tensor 被删除，显存管理机制想要回收该 Segment 时，会由于该 Segment 被某些极小（相对 Segment 而言）tensor 部分占据而无法释放（显存释放见 2.2）。
相关复现代码见 5.2 节。
2.2 显存释放

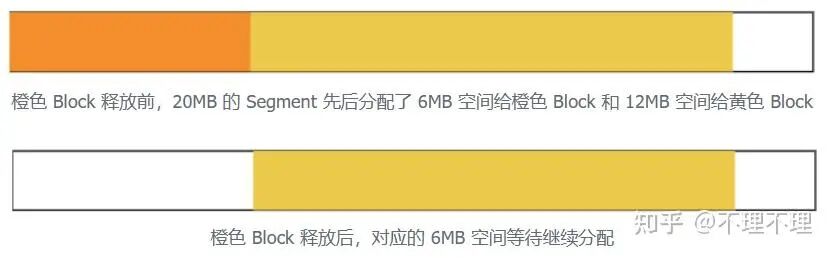

tensor 被删除后，该 tensor 对应的 Block 空间会归还给 Pytorch 显存管理器，显存管理器实际上依旧占据着这块空间，等待将其分配给其他 tensor。
只有手动调用torch.cuda.empty_cache()才有可能释放这些 Blocks 空间。具体来说，当执行torch.cuda.empty_cache()时，显存管理器会调用 cudaFree API 将那些完全未分配的 Segment 真正归还给 GPU，而那些部分分配的 Segment 则不会得到释放。
3. 显存占用分析方法
在介绍几种常见的显存占用分析方法前，先简单介绍一下 CUDA Context(https://discuss.pytorch.org/t/how-do-i-create-torch-tensor-without-any-wasted-storage-space-baggage/131134)。当程序首次执行与 CUDA 相关的操作时，会不可避免地在 GPU 中占用一定量的显存，这部分显存占用被称为 CUDA Context。可以理解为这是当前程序使用 GPU 需要支付的一次性费用，每创建一个使用 CUDA 的进程都会在显存中占据一份 CUDA Context。

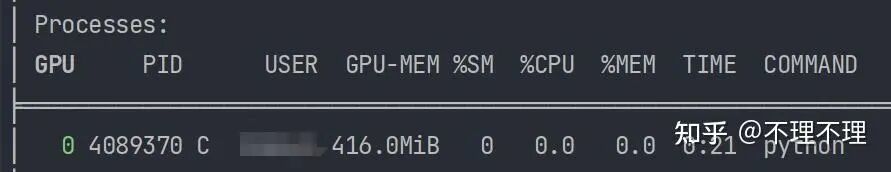

CUDA Context 的大小随操作系统、CUDA 版本、GPU 设备、Pytorch 版本的变化而变化，您可以通过如下示例程序测试 CUDA Context 的显存占用：
>>> import torch
>>> temp = torch.tensor(2., dtype=torch.float16, device='cuda')
从 2.1 节的流程图可以看出，由于 temp tensor 理论占用 2 个字节，而显存管理机制实际会分配 2MB 的 Segment，因此在我设备上 CUDA Context 的实际占用约为 414MB = 416MB - 2MB。
3.1 PyTorch API
https://pytorch.org/docs/stable/cuda.html%23memory-management
3.1.1 查看当前进程的显存占用
Pytorch 提供了一些 API 供调用者评估当前进程的显存占用，您只需在想要了解显存占用的地方调用以下函数（单位为字节）：
-
torch.cuda.memory_allocated(device)：已分配 Blocks 所占据的显存总量（简写 ma） -
torch.cuda.max_memory_allocated(device)：从运行开始 ma 的峰值（简写 mma） -
torch.cuda.memory_reserved(device)：已缓存 Segments 所占据的显存总量（简写 mr） -
torch.cuda.max_memory_reserved(device)：从运行开始 mr 的峰值（简写 mmr）
值得注意的是，上述函数：
-
仅限当前进程，无法洞悉使用同一设备的其他进程的显存占用 -
不包含 CUDA Context 部分的显存占用 -
Block 的显存占用量是 allocated size，而不是 requested size，参考 2.1.3 节
示例程序及解读如下：
-
创建 a tensor：显存管理器申请了一个 2MB 的 Segment1，然后将一半空间分配给了 Blocka -
创建 b tensor：显存管理器又申请了一个 12MB 的 Segment2，并将全部空间分配给了 Blockb -
del a：Blocka 所在空间被显存管理器回收，Segment1 此时处于完全未分配状态，等待显存管理器的后续分配 -
torch.cuda.empty_cache()：Segment1 完全未分配，该空间得以释放；Segment2 被 Blockb 占用，不满足释放条件
import torch
def record():
ma = torch.cuda.memory_allocated()
mma = torch.cuda.max_memory_allocated()
mr = torch.cuda.memory_reserved()
mmr = torch.cuda.max_memory_reserved()
print(f"ma:{ma / 2 ** 20} MB mma:{mma / 2 ** 20} MB mr:{mr / 2 ** 20} MB mmr:{mmr / 2 ** 20} MB")
a = torch.randn(1024*512, dtype=torch.float16, device='cuda') # 1MB
record() # ma:1.0 MB mma:1.0 MB mr:2.0 MB mmr:2.0 MB
b = torch.randn(1024*1024*6, dtype=torch.float16, device='cuda') # 12MB
record() # ma:13.0 MB mma:13.0 MB mr:14.0 MB mmr:14.0 MB
del a
record() # ma:12.0 MB mma:13.0 MB mr:14.0 MB mmr:14.0 MB
torch.cuda.empty_cache()
record() # ma:12.0 MB mma:13.0 MB mr:12.0 MB mmr:14.0 MB
3.1.2 查看各进程的显存占用
torch.cuda.list_gpu_processes(device)可以分析指定设备上各个进程的显存占用，其中每个进程的占用数值都是该进程 CUDA Context 和 Segments 占用的总和。
# print(torch.cuda.list_gpu_processes())
# GPU:0
# process 3008253 uses 1162.000 MB GPU memory
# process 1747547 uses 9084.000 MB GPU memory
3.1.3 查看指定设备的剩余可用显存
torch.cuda.mem_get_info(device)提供了一个独特的视角，它不局限于进程，而是揭示指定设备在当前时刻的剩余可用显存量。大语言模型部署框架 VLLM 就在其源码中使用该方法评估指定 GPU 的剩余可用显存，用于预划分整块 KV Cache 空间，减少显存碎片。
调用该函数会返回两个数值，以字节为单位：
-
第一个数值是指定 GPU 当前时刻的剩余显存量，该数值大致是由 总显存 减去 使用该设备的所有进程的 CUDA Context 和 Segments 占用后得到 -
第二个数值是指定 GPU 的总显存
3.1.4 高阶 API
torch.cuda.memory_stats(device)是 Pytorch 官方提供的一个高阶 API，供用户查看当前进程更精细化的一些显存占用情况。使用起来比较繁琐且不直观，如果不是研究目的，一般情况下不推荐使用。
https://pytorch.org/docs/stable/generated/torch.cuda.memory_stats.html%23torch.cuda.memory_stats
For more advanced users, we offer more comprehensive memory benchmarking via
[memory_stats()](https://link.zhihu.com/?target=https%3A//pytorch.org/docs/stable/generated/torch.cuda.memory_stats.html%23torch.cuda.memory_stats). We also offer the capability to capture a complete snapshot of the memory allocator state via[memory_snapshot()](https://link.zhihu.com/?target=https%3A//pytorch.org/docs/stable/generated/torch.cuda.memory_snapshot.html%23torch.cuda.memory_snapshot), which can help you understand the underlying allocation patterns produced by your code.
3.2 Snapshot
Snapshot(https://pytorch.org/docs/main/torch_cuda_memory.html%23understanding-cuda-memory-usage) 是 PyTorch 2.1 及以上版本提供的一种自动化显存分析工具。在代码的开始和结束处添加指定语句然后运行代码，PyTorch 会自动记录 CUDA allocator 的显存消耗、显存的 Python/C++ 调用堆栈和调用过程中的时间线，最后将这些数据保存并生成 .pickle 文件，将文件拖入网页(https://pytorch.org/memory_viz)即可查看显存占用。
torch.cuda.memory._record_memory_history() # 开始记录
run_your_code() # 训练或推理代码
torch.cuda.memory._dump_snapshot("my_snapshot.pickle") # 保存文件
torch.cuda.memory._record_memory_history(enabled=None) # 终止记录
Snapshot 同样只关注当前进程，而且无法关注到 CUDA Context 部分的显存占用。它从三个不同的视图记录程序的显存占用情况，分别是：
-
Active Memory Timeline -
Allocator State History -
Active Cached Segment Timeline

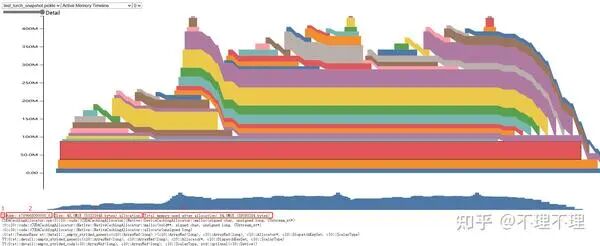

3.2.1 Active Memory Timeline
横轴是程序执行的时间轴，纵轴是已申请的显存（参考 2.1.3 节 requested size），而 3.1.1 中torch.cuda.memory_allocated(device)评估的是已分配的显存总量（参考 2.1.3 节 allocated size）。色块起点表示 tensor 的分配，终点表示 tensor 的释放，长度代表生命周期，色块的滑坡代表此前有其他 tensor 被释放（这里的释放并非真正意义上的空间释放，参考 2.2 节）。
通过该视图可以查看 tensor 在程序运行过程中的显存占用和生命周期。
从上图中任选一个色块：
-
红框 1 表示该 tensor 的编号（同一个 tensor 在三个视图中的编号一致） -
红框 2 表示该 tensor 的地址 -
红框 3 表示该 tensor 的 size -
红框 4 表示在色块起点时刻显存管理器已申请的显存总量（区别于 3.2.3 已缓存的显存总量）

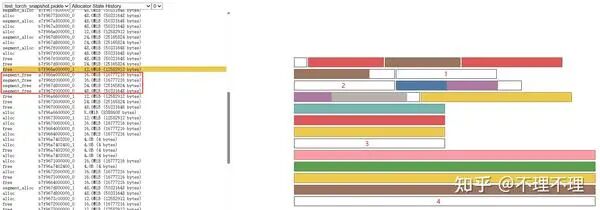

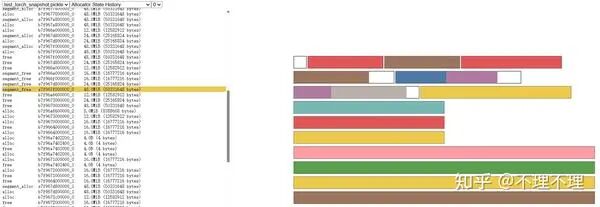

3.2.2 Allocator State History
上图右侧是某一时刻 Segment 和 tensor 的分配情况，白框是 Segment，色块是 tensor。
上图左侧记录着 Segment 和 tensor 随时间的申请、分配、释放历史，左侧第一列表示动作，第二列表示 Segment 或 tensor 的地址，第三列表示显存大小：
-
segment_alloc：显存管理器此时调用 cudaMalloc 从 GPU 申请一个新的 Segment 缓存块 -
alloc：显存管理器从 Segment 中划出一块空间给 tensor -
free：表示 tensor 的释放（将 tensor 所在空间归还给显存管理器，参考 2.2 节） -
segment_free：表明程序此时调用了 torch.cuda.empty_cache()，显存管理器会将一些完全未分配的 Segment 释放
通过该视图可以查看程序运行过程中 Segment 和 tensor 的申请、分配、释放历史。
在上图右侧的左上角，有一个 2MB 大小的 Segment 在torch.cuda.empty_cache()调用后看起来并没有得到释放，这是因为该 Segment 其实并非为空，而是分配了一个 8KB 大小的 tensor。

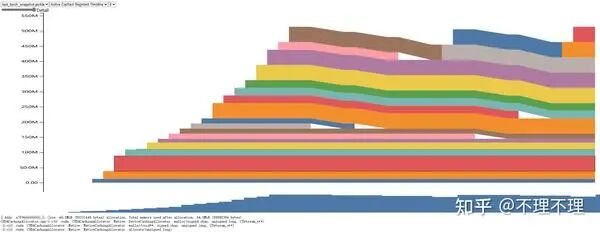

3.2.3 Active Cached Segment Timeline
类似 3.2.1 的 Active Memory Timeline 图，横轴是程序执行的时间轴，纵轴是已缓存的显存（torch.cuda.memory_reserved(device)），色块是 Segment（3.2.1 中的色块是 tensor）。
通过该视图可以直观地查看各 Segment 的生命周期，以及是由哪些操作触发了 Segment 的创建。 如果不是用户主动调用torch.cuda.empty_cache()，Segment 一般不会释放。

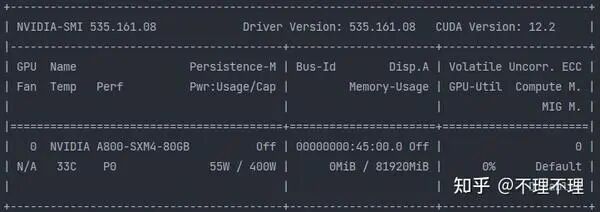

3.3 nvidia-smi
通过在终端运行watch \-n i nvidia-smi指令，nvidia 驱动可以每隔 i 秒显示一次各 GPU 的显存占用情况。但由于内部刷新频率的限制，该指令没法实时、高频地反馈显存占用。
此外，该指令反馈的显存占用数值 由使用该设备的所有进程的 CUDA Context 和 Segments 占用构成，就算忽略每个进程 CUDA Context 部分的显存占用，Segments 部分的占用数值也并不能直接反映程序实际的显存占用。
3.4 总结
3.1.1 中的前两个 API 聚焦 allocated memory，关注程序执行过程中实际的显存分配量；而 Snapshot 中的前两个视图则突出 requested memory，忽略 Pytorch 显存管理中的 rounding 机制，适合研究目的；至于nvidia-smi，如果只是为了查看显存余量，并且对刷新频率没有太高要求的话，用起来还是蛮方便的。
4. 示例代码
这是一个简易全连接网络的训练代码，这份代码同时使用到了 3.1 和 3.2 节中提到的部分分析方法，并且对每个操作运行前后的显存变化进行了断言（assert），您可以将这份代码运行所生成的 .pickle 文件拖入网页(https://pytorch.org/memory_viz)进行显存分析，如果暂时运行不了这份代码，我也在下面给出了运行结果。
我会在下一篇文章中，结合 Pytorch 计算图分析这份代码在训练过程中各个环节的显存占用，同时给出深度学习模型常规训练时的显存变化规律。
import torch
# hyperparameters which you can change
batch_size = 1024
h0 = 1536
h1 = 2048
h2 = 3072
h3 = 4096
# some variables associated with recording
ma, mma, mr, mmr = 0, 0, 0, 0
ma_gap = 0
num_bytes_fp32, num_bytes_long = 4, 8
# tensor size
INPUT_BYTES = batch_size * h0 * num_bytes_fp32
A1_BYTES = batch_size * h1 * num_bytes_fp32
A2_BYTES = batch_size * h2 * num_bytes_fp32
A3_BYTES = batch_size * h3 * num_bytes_fp32
LOG_SOFTMAX_A3_BYTES = A3_BYTES
LABELS_BYTES = batch_size * num_bytes_long
LAYER1_BYTES = LAYER1_GRAD_BYTES = h0 * h1 * num_bytes_fp32
LAYER2_BYTES = LAYER2_GRAD_BYTES = h1 * h2 * num_bytes_fp32
LAYER3_BYTES = LAYER3_GRAD_BYTES = h2 * h3 * num_bytes_fp32
# since the existence of requested memory and allocated memory, so to demonstrate let's make following assertions
assert INPUT_BYTES % 512 == 0
assert A1_BYTES % 512 == 0
assert A2_BYTES % 512 == 0
assert A3_BYTES % 512 == 0
assert LOG_SOFTMAX_A3_BYTES % 512 == 0
assert LABELS_BYTES % 512 == 0
assert LAYER1_BYTES % 512 == 0
assert LAYER2_BYTES % 512 == 0
assert LAYER3_BYTES % 512 == 0
def sep(num):
# for example: 1000000 -> 1,000,000
return "{:,}".format(num).rjust(14)
def my_assert(num1, num2):
assert num1 == num2, print(sep(num1), sep(num2))
def record(s):
# 1. update these global variables
# 2. print cuda memory allocated and reserved at this moment
# 3. automatic compute ma_gap between current ma and last ma
global ma, mma, mr, mmr, ma_gap
pre_ma, pre_mma, pre_mr, pre_mmr = ma, mma, mr, mmr
ma = torch.cuda.memory_allocated()
mma = torch.cuda.max_memory_allocated()
mr = torch.cuda.memory_reserved()
mmr = torch.cuda.max_memory_reserved()
ma_gap = ma - pre_ma
print(f"\n\n================================================================================{s.center(50)}================================================================================")
print(f"[MA]:{sep(ma)} ={sep(pre_ma)} +{sep(ma_gap)} [MMA]:{sep(mma)} ={sep(pre_mma)} +{sep(mma-pre_mma)} [MR]:{sep(mr)} ={sep(pre_mr)} +{sep(mr-pre_mr)} [MMR]:{sep(mmr)} ={sep(pre_mmr)} +{sep(mmr-pre_mmr)}")
class MyNet(torch.nn.Module):
def __init__(self):
super().__init__()
self.layer1 = torch.nn.Linear(h0, h1, bias=False) # parameter number: h0 x h1
self.layer2 = torch.nn.Linear(h1, h2, bias=False) # parameter number: h1 x h2
self.layer3 = torch.nn.Linear(h2, h3, bias=False) # parameter number: h2 x h3
def forward(self, x, epoch):
record(f"Epoch {epoch} Before Forward")
a1 = self.layer1(x)
record(f"Epoch {epoch} After layer1")
if epoch == 1:
my_assert(ma_gap, A1_BYTES + 8519680) # 8519680 / 1024 / 1024 = 8.125 MB
else:
my_assert(ma_gap, A1_BYTES)
a2 = self.layer2(a1)
record(f"Epoch {epoch} After layer2")
my_assert(ma_gap, A2_BYTES)
a3 = self.layer3(a2)
record(f"Epoch {epoch} After layer3")
my_assert(ma_gap, A3_BYTES)
return a3
def train(epochs):
record("Before Init Model")
model = MyNet().cuda()
record("After Init Model")
my_assert(ma_gap, LAYER1_BYTES + LAYER2_BYTES + LAYER3_BYTES)
record("Before Construct Data")
input = torch.randn(batch_size, h0, dtype=torch.float32).cuda()
labels = torch.empty(batch_size, dtype=torch.long, device='cuda').random_(h3)
record("After Construct Data")
my_assert(ma_gap, INPUT_BYTES + LABELS_BYTES)
record("Before Init Optimizer")
optimizer = torch.optim.AdamW(model.parameters(), lr=0.005)
record("After Init Optimizer")
my_assert(ma_gap, 0)
for epoch in range(1, epochs + 1):
record(f"Epoch {epoch} Before Optimizer Zero Grad")
optimizer.zero_grad() # for param in model.parameters(): param.grad = None
record(f"Epoch {epoch} After Optimizer Zero Grad")
if epoch == 1:
my_assert(ma_gap, 0)
else:
my_assert(ma_gap, -(LAYER1_GRAD_BYTES + LAYER2_GRAD_BYTES + LAYER3_GRAD_BYTES))
a3 = model(input, epoch)
record(f"Epoch {epoch} Before Compute Loss")
loss = torch.nn.CrossEntropyLoss()(a3, labels) # CrossEntropyLoss = LogSoftmax + NLLLoss
record(f"Epoch {epoch} After Compute Loss")
record(f"Epoch {epoch} Before Backward")
loss.backward()
record(f"Epoch {epoch} After Backward")
if epoch == 1:
my_assert(ma_gap, LAYER1_GRAD_BYTES + LAYER2_GRAD_BYTES + LAYER3_GRAD_BYTES - A1_BYTES - A2_BYTES - LOG_SOFTMAX_A3_BYTES + 8519680 - 512) # 512 是一些零碎变量
else:
my_assert(ma_gap, LAYER1_GRAD_BYTES + LAYER2_GRAD_BYTES + LAYER3_GRAD_BYTES - A1_BYTES - A2_BYTES - LOG_SOFTMAX_A3_BYTES - 512)
record(f"Epoch {epoch} Before Optimizer Step")
optimizer.step()
record(f"Epoch {epoch} After Optimizer Step")
if epoch == 1:
my_assert(ma_gap, (LAYER1_GRAD_BYTES + LAYER2_GRAD_BYTES + LAYER3_GRAD_BYTES) * 2) # 梯度的一阶矩和二阶矩
else:
my_assert(ma_gap, 0)
torch.cuda.empty_cache()
if __name__ == "__main__":
torch.cuda.memory._record_memory_history(max_entries=8000)
train(epochs=3)
torch.cuda.memory._dump_snapshot("test_torch_snapshot.pickle")
torch.cuda.memory._record_memory_history(enabled=None)
# 运行结果：
# ================================================================================ Before Init Model ================================================================================
# [MA]: 0 = 0 + 0 [MMA]: 0 = 0 + 0 [MR]: 0 = 0 + 0 [MMR]: 0 = 0 + 0
#
#
# ================================================================================ After Init Model ================================================================================
# [MA]: 88,080,384 = 0 + 88,080,384 [MMA]: 88,080,384 = 0 + 88,080,384 [MR]: 88,080,384 = 0 + 88,080,384 [MMR]: 88,080,384 = 0 + 88,080,384
#
#
# ================================================================================ Before Construct Data ================================================================================
# [MA]: 88,080,384 = 88,080,384 + 0 [MMA]: 88,080,384 = 88,080,384 + 0 [MR]: 88,080,384 = 88,080,384 + 0 [MMR]: 88,080,384 = 88,080,384 + 0
#
#
# ================================================================================ After Construct Data ================================================================================
# [MA]: 94,380,032 = 88,080,384 + 6,299,648 [MMA]: 94,380,032 = 88,080,384 + 6,299,648 [MR]: 111,149,056 = 88,080,384 + 23,068,672 [MMR]: 111,149,056 = 88,080,384 + 23,068,672
#
#
# ================================================================================ Before Init Optimizer ================================================================================
# [MA]: 94,380,032 = 94,380,032 + 0 [MMA]: 94,380,032 = 94,380,032 + 0 [MR]: 111,149,056 = 111,149,056 + 0 [MMR]: 111,149,056 = 111,149,056 + 0
#
#
# ================================================================================ After Init Optimizer ================================================================================
# [MA]: 94,380,032 = 94,380,032 + 0 [MMA]: 94,380,032 = 94,380,032 + 0 [MR]: 111,149,056 = 111,149,056 + 0 [MMR]: 111,149,056 = 111,149,056 + 0
#
#
# ================================================================================ Epoch 1 Before Optimizer Zero Grad ================================================================================
# [MA]: 94,380,032 = 94,380,032 + 0 [MMA]: 94,380,032 = 94,380,032 + 0 [MR]: 111,149,056 = 111,149,056 + 0 [MMR]: 111,149,056 = 111,149,056 + 0
#
#
# ================================================================================ Epoch 1 After Optimizer Zero Grad ================================================================================
# [MA]: 94,380,032 = 94,380,032 + 0 [MMA]: 94,380,032 = 94,380,032 + 0 [MR]: 111,149,056 = 111,149,056 + 0 [MMR]: 111,149,056 = 111,149,056 + 0
#
#
# ================================================================================ Epoch 1 Before Forward ================================================================================
# [MA]: 94,380,032 = 94,380,032 + 0 [MMA]: 94,380,032 = 94,380,032 + 0 [MR]: 111,149,056 = 111,149,056 + 0 [MMR]: 111,149,056 = 111,149,056 + 0
#
#
# ================================================================================ Epoch 1 After layer1 ================================================================================
# [MA]: 111,288,320 = 94,380,032 + 16,908,288 [MMA]: 111,288,320 = 94,380,032 + 16,908,288 [MR]: 132,120,576 = 111,149,056 + 20,971,520 [MMR]: 132,120,576 = 111,149,056 + 20,971,520
#
#
# ================================================================================ Epoch 1 After layer2 ================================================================================
# [MA]: 123,871,232 = 111,288,320 + 12,582,912 [MMA]: 123,871,232 = 111,288,320 + 12,582,912 [MR]: 144,703,488 = 132,120,576 + 12,582,912 [MMR]: 144,703,488 = 132,120,576 + 12,582,912
#
#
# ================================================================================ Epoch 1 After layer3 ================================================================================
# [MA]: 140,648,448 = 123,871,232 + 16,777,216 [MMA]: 140,648,448 = 123,871,232 + 16,777,216 [MR]: 161,480,704 = 144,703,488 + 16,777,216 [MMR]: 161,480,704 = 144,703,488 + 16,777,216
#
#
# ================================================================================ Epoch 1 Before Compute Loss ================================================================================
# [MA]: 140,648,448 = 140,648,448 + 0 [MMA]: 140,648,448 = 140,648,448 + 0 [MR]: 161,480,704 = 161,480,704 + 0 [MMR]: 161,480,704 = 161,480,704 + 0
#
#
# ================================================================================ Epoch 1 After Compute Loss ================================================================================
# [MA]: 157,426,688 = 140,648,448 + 16,778,240 [MMA]: 157,426,688 = 140,648,448 + 16,778,240 [MR]: 178,257,920 = 161,480,704 + 16,777,216 [MMR]: 178,257,920 = 161,480,704 + 16,777,216
#
#
# ================================================================================ Epoch 1 Before Backward ================================================================================
# [MA]: 157,426,688 = 157,426,688 + 0 [MMA]: 157,426,688 = 157,426,688 + 0 [MR]: 178,257,920 = 178,257,920 + 0 [MMR]: 178,257,920 = 178,257,920 + 0
#
#
# ================================================================================ Epoch 1 After Backward ================================================================================
# [MA]: 216,277,504 = 157,426,688 + 58,850,816 [MMA]: 233,055,232 = 157,426,688 + 75,628,544 [MR]: 287,309,824 = 178,257,920 + 109,051,904 [MMR]: 287,309,824 = 178,257,920 + 109,051,904
#
#
# ================================================================================ Epoch 1 Before Optimizer Step ================================================================================
# [MA]: 216,277,504 = 216,277,504 + 0 [MMA]: 233,055,232 = 233,055,232 + 0 [MR]: 287,309,824 = 287,309,824 + 0 [MMR]: 287,309,824 = 287,309,824 + 0
#
#
# ================================================================================ Epoch 1 After Optimizer Step ================================================================================
# [MA]: 392,438,272 = 216,277,504 + 176,160,768 [MMA]: 480,518,656 = 233,055,232 + 247,463,424 [MR]: 513,802,240 = 287,309,824 + 226,492,416 [MMR]: 513,802,240 = 287,309,824 + 226,492,416
#
#
# ================================================================================ Epoch 2 Before Optimizer Zero Grad ================================================================================
# [MA]: 392,438,272 = 392,438,272 + 0 [MMA]: 480,518,656 = 480,518,656 + 0 [MR]: 404,750,336 = 513,802,240 + -109,051,904 [MMR]: 513,802,240 = 513,802,240 + 0
#
#
# ================================================================================ Epoch 2 After Optimizer Zero Grad ================================================================================
# [MA]: 304,357,888 = 392,438,272 + -88,080,384 [MMA]: 480,518,656 = 480,518,656 + 0 [MR]: 404,750,336 = 404,750,336 + 0 [MMR]: 513,802,240 = 513,802,240 + 0
#
#
# ================================================================================ Epoch 2 Before Forward ================================================================================
# [MA]: 304,357,888 = 304,357,888 + 0 [MMA]: 480,518,656 = 480,518,656 + 0 [MR]: 404,750,336 = 404,750,336 + 0 [MMR]: 513,802,240 = 513,802,240 + 0
#
#
# ================================================================================ Epoch 2 After layer1 ================================================================================
# [MA]: 312,746,496 = 304,357,888 + 8,388,608 [MMA]: 480,518,656 = 480,518,656 + 0 [MR]: 404,750,336 = 404,750,336 + 0 [MMR]: 513,802,240 = 513,802,240 + 0
#
#
# ================================================================================ Epoch 2 After layer2 ================================================================================
# [MA]: 325,329,408 = 312,746,496 + 12,582,912 [MMA]: 480,518,656 = 480,518,656 + 0 [MR]: 404,750,336 = 404,750,336 + 0 [MMR]: 513,802,240 = 513,802,240 + 0
#
#
# ================================================================================ Epoch 2 After layer3 ================================================================================
# [MA]: 342,106,624 = 325,329,408 + 16,777,216 [MMA]: 480,518,656 = 480,518,656 + 0 [MR]: 404,750,336 = 404,750,336 + 0 [MMR]: 513,802,240 = 513,802,240 + 0
#
#
# ================================================================================ Epoch 2 Before Compute Loss ================================================================================
# [MA]: 325,329,408 = 342,106,624 + -16,777,216 [MMA]: 480,518,656 = 480,518,656 + 0 [MR]: 404,750,336 = 404,750,336 + 0 [MMR]: 513,802,240 = 513,802,240 + 0
#
#
# ================================================================================ Epoch 2 After Compute Loss ================================================================================
# [MA]: 342,107,136 = 325,329,408 + 16,777,728 [MMA]: 480,518,656 = 480,518,656 + 0 [MR]: 404,750,336 = 404,750,336 + 0 [MMR]: 513,802,240 = 513,802,240 + 0
#
#
# ================================================================================ Epoch 2 Before Backward ================================================================================
# [MA]: 342,107,136 = 342,107,136 + 0 [MMA]: 480,518,656 = 480,518,656 + 0 [MR]: 404,750,336 = 404,750,336 + 0 [MMR]: 513,802,240 = 513,802,240 + 0
#
#
# ================================================================================ Epoch 2 After Backward ================================================================================
# [MA]: 392,438,272 = 342,107,136 + 50,331,136 [MMA]: 480,518,656 = 480,518,656 + 0 [MR]: 455,081,984 = 404,750,336 + 50,331,648 [MMR]: 513,802,240 = 513,802,240 + 0
#
#
# ================================================================================ Epoch 2 Before Optimizer Step ================================================================================
# [MA]: 392,438,272 = 392,438,272 + 0 [MMA]: 480,518,656 = 480,518,656 + 0 [MR]: 455,081,984 = 455,081,984 + 0 [MMR]: 513,802,240 = 513,802,240 + 0
#
#
# ================================================================================ Epoch 2 After Optimizer Step ================================================================================
# [MA]: 392,438,272 = 392,438,272 + 0 [MMA]: 480,518,656 = 480,518,656 + 0 [MR]: 505,413,632 = 455,081,984 + 50,331,648 [MMR]: 513,802,240 = 513,802,240 + 0
#
#
# ================================================================================ Epoch 3 Before Optimizer Zero Grad ================================================================================
# [MA]: 392,438,272 = 392,438,272 + 0 [MMA]: 480,518,656 = 480,518,656 + 0 [MR]: 413,138,944 = 505,413,632 + -92,274,688 [MMR]: 513,802,240 = 513,802,240 + 0
#
#
# ================================================================================ Epoch 3 After Optimizer Zero Grad ================================================================================
# [MA]: 304,357,888 = 392,438,272 + -88,080,384 [MMA]: 480,518,656 = 480,518,656 + 0 [MR]: 413,138,944 = 413,138,944 + 0 [MMR]: 513,802,240 = 513,802,240 + 0
#
#
# ================================================================================ Epoch 3 Before Forward ================================================================================
# [MA]: 304,357,888 = 304,357,888 + 0 [MMA]: 480,518,656 = 480,518,656 + 0 [MR]: 413,138,944 = 413,138,944 + 0 [MMR]: 513,802,240 = 513,802,240 + 0
#
#
# ================================================================================ Epoch 3 After layer1 ================================================================================
# [MA]: 312,746,496 = 304,357,888 + 8,388,608 [MMA]: 480,518,656 = 480,518,656 + 0 [MR]: 413,138,944 = 413,138,944 + 0 [MMR]: 513,802,240 = 513,802,240 + 0
#
#
# ================================================================================ Epoch 3 After layer2 ================================================================================
# [MA]: 325,329,408 = 312,746,496 + 12,582,912 [MMA]: 480,518,656 = 480,518,656 + 0 [MR]: 413,138,944 = 413,138,944 + 0 [MMR]: 513,802,240 = 513,802,240 + 0
#
#
# ================================================================================ Epoch 3 After layer3 ================================================================================
# [MA]: 342,106,624 = 325,329,408 + 16,777,216 [MMA]: 480,518,656 = 480,518,656 + 0 [MR]: 413,138,944 = 413,138,944 + 0 [MMR]: 513,802,240 = 513,802,240 + 0
#
#
# ================================================================================ Epoch 3 Before Compute Loss ================================================================================
# [MA]: 325,329,408 = 342,106,624 + -16,777,216 [MMA]: 480,518,656 = 480,518,656 + 0 [MR]: 413,138,944 = 413,138,944 + 0 [MMR]: 513,802,240 = 513,802,240 + 0
#
#
# ================================================================================ Epoch 3 After Compute Loss ================================================================================
# [MA]: 342,107,136 = 325,329,408 + 16,777,728 [MMA]: 480,518,656 = 480,518,656 + 0 [MR]: 413,138,944 = 413,138,944 + 0 [MMR]: 513,802,240 = 513,802,240 + 0
#
#
# ================================================================================ Epoch 3 Before Backward ================================================================================
# [MA]: 342,107,136 = 342,107,136 + 0 [MMA]: 480,518,656 = 480,518,656 + 0 [MR]: 413,138,944 = 413,138,944 + 0 [MMR]: 513,802,240 = 513,802,240 + 0
#
#
# ================================================================================ Epoch 3 After Backward ================================================================================
# [MA]: 392,438,272 = 342,107,136 + 50,331,136 [MMA]: 480,518,656 = 480,518,656 + 0 [MR]: 463,470,592 = 413,138,944 + 50,331,648 [MMR]: 513,802,240 = 513,802,240 + 0
#
#
# ================================================================================ Epoch 3 Before Optimizer Step ================================================================================
# [MA]: 392,438,272 = 392,438,272 + 0 [MMA]: 480,518,656 = 480,518,656 + 0 [MR]: 463,470,592 = 463,470,592 + 0 [MMR]: 513,802,240 = 513,802,240 + 0
#
#
# ================================================================================ Epoch 3 After Optimizer Step ================================================================================
# [MA]: 392,438,272 = 392,438,272 + 0 [MMA]: 480,518,656 = 480,518,656 + 0 [MR]: 513,802,240 = 463,470,592 + 50,331,648 [MMR]: 513,802,240 = 513,802,240 + 0
5. 复现代码
在本节中我将通过代码来复现第 2 节中总结的一些关键论断。为此，我实现了一个名为memory_stats()的函数，它是对 PyTorch 显存管理高阶 API 的简单封装：
-
operation requested memory：执行当前操作实际所需的显存大小 -
operation allocated memory：执行当前操作实际所分配的 Block 大小 -
operation reserved memory：执行当前操作所需的 Segment 大小，以及该 Segment 属于 small pool 还是 large pool -
total reserved memory：当前所有 Segments 大小的总和，以及每个 pool 各有几个 Segments -
total active memory：当前所有已分配 Blocks 大小的总和，以及每个 pool 各有几个已分配 Blocks -
total inactive memory：当前所有未分配 Blocks 大小的总和，以及每个 pool 各有几个未分配 Blocks
import torch
r, ma, mr, mr_s, mr_l = 0, 0, 0, 0, 0
def sep(num):
if num % 2 ** 20 == 0:
return f"{num} = {num // 2 ** 20}MB"
else:
return f"{num} ≈ {num / 2 ** 20:.4f}MB"
def memory_stats(device=0):
d = torch.cuda.memory_stats(device)
global r, ma, mr, mr_s, mr_l
last_r, last_ma, last_mr, last_mr_s, last_mr_l = r, ma, mr, mr_s, mr_l
r = d["requested_bytes.all.current"]
ma = d["allocated_bytes.all.current"]
mr = d["reserved_bytes.all.current"]
mr_s, mr_l = d["segment.small_pool.current"], d["segment.large_pool.current"]
mat = d["active_bytes.all.current"]
miat = d["inactive_split_bytes.all.current"]
if mr_s - last_mr_s == 1 and mr_l - last_mr_l == 0:
cur_mr_tag = 'new segment belong to small pool'
elif mr_s - last_mr_s == 0 and mr_l - last_mr_l == 1:
cur_mr_tag = 'new segment belong to large pool'
elif mr_s - last_mr_s == 0 and mr_l - last_mr_l == 0:
cur_mr_tag = 'no new segment'
else:
raise ValueError
mr_tag = f'small_pool({mr_s}) large_pool({mr_l})'
mat_tag = f'small_pool({d["active.small_pool.current"]}) large_pool({d["active.large_pool.current"]})'
miat_tag = f'small_pool({d["inactive_split.small_pool.current"]}) large_pool({d["inactive_split.large_pool.current"]})'
assert mat + miat == mr # 已分配显存 + 未分配显存 = Segments 总和
assert mat == ma
print("")
print(f"operation requested memory : {sep(r-last_r).rjust(20)}")
print(f"operation allocated memory : {sep(ma-last_ma).rjust(20)}")
print(f"operation reserved memory : {sep(mr-last_mr).rjust(20)} {cur_mr_tag}")
print(f"total reserved memory : {sep(mr).rjust(20)} {mr_tag}")
print(f"total active memory : {sep(mat).rjust(20)} {mat_tag}")
print(f"total inactive memory : {sep(miat).rjust(20)} {miat_tag}")
5.1 Segment
张量的尺寸可以随意更改，相关结论请回看 2.1.1。
var1 = torch.zeros(1024*1024, dtype=torch.bool, device='cuda') # 1MB
print(torch.cuda.memory_reserved())
5.2 Requested Size 和 Allocated Size
每次任选一段运行，全部运行总计需要 10 到 20 分钟，相关结论请回看 2.1.3。
# for i in range(1, 1024*1024+1):
# # tensor_size: [1B, 1MB], Segment: 2MB, 相当于从 2MB Block 中分配 tensor
# var = torch.zeros(i, dtype=torch.bool, device='cuda')
# if i % 512 == 0:
# assert torch.cuda.memory_stats()["allocated_bytes.all.current"] == i
# else:
# assert torch.cuda.memory_stats()["allocated_bytes.all.current"] == (i // 512 + 1) * 512, print("cur:", i)
# del var
# for i in range(1024*1024+1, 1024*1024*10-512+1):
# # tensor_size: (1MB, 10MB-512B], Segment: 20MB, 相当于从 20MB Block 中分配 tensor
# var = torch.zeros(i, dtype=torch.bool, device='cuda')
# if i % 512 == 0:
# assert torch.cuda.memory_stats()["allocated_bytes.all.current"] == i
# else:
# assert torch.cuda.memory_stats()["allocated_bytes.all.current"] == (i // 512 + 1) * 512, print("cur:", i)
# del var
# for i in range(1024*1024*10-512+1, 1024*1024*10+1):
# # tensor_size: (10MB-512B, 10MB], Segment: 10MB, 相当于从 10MB Block 中分配 tensor
# var = torch.zeros(i, dtype=torch.bool, device='cuda')
# if i % 512 == 0:
# assert torch.cuda.memory_stats()["allocated_bytes.all.current"] == i
# else:
# assert torch.cuda.memory_stats()["allocated_bytes.all.current"] == (i // 512 + 1) * 512, print("cur:", i)
# del var
# for i in range(1024*1024*10+1, 1024*1024*11-512+1):
# # tensor_size: (10MB, 11MB-512B], Segment: 12MB, 相当于从 12MB Block 中分配 tensor
# var = torch.zeros(i, dtype=torch.bool, device='cuda')
# if i % 512 == 0:
# assert torch.cuda.memory_stats()["allocated_bytes.all.current"] == i
# else:
# assert torch.cuda.memory_stats()["allocated_bytes.all.current"] == (i // 512 + 1) * 512, print("cur:", i)
# del var
# j = 12 # ≥12的任意偶数
# for i in range(1024*1024*(j-1)-511, 1024*1024*j+1):
# # tensor_size: (11MB-512B, 12MB], Segment: 12MB, 相当于从 12MB Block 中分配 tensor
# var = torch.zeros(i, dtype=torch.bool, device='cuda')
# assert torch.cuda.memory_stats()["allocated_bytes.all.current"] == j * 1024 * 1024
# del var
# var1 = torch.zeros(1024*1024*3, dtype=torch.bool, device='cuda') # 3MB
# memory_stats()
# var2 = torch.zeros(1024*1024*17, dtype=torch.bool, device='cuda') # 17MB
# memory_stats()
# del var1
# memory_stats()
# var3 = torch.zeros(1024*1024*2, dtype=torch.bool, device='cuda') # 2MB
# memory_stats()
# 运行结果：
# operation requested memory : 3145728 = 3MB
# operation allocated memory : 3145728 = 3MB
# operation reserved memory : 20971520 = 20MB new segment belong to large pool
# total reserved memory : 20971520 = 20MB small_pool(0) large_pool(1)
# total active memory : 3145728 = 3MB small_pool(0) large_pool(1)
# total inactive memory : 17825792 = 17MB small_pool(0) large_pool(1)
#
# operation requested memory : 17825792 = 17MB
# operation allocated memory : 17825792 = 17MB
# operation reserved memory : 0 = 0MB no new segment
# total reserved memory : 20971520 = 20MB small_pool(0) large_pool(1)
# total active memory : 20971520 = 20MB small_pool(0) large_pool(2)
# total inactive memory : 0 = 0MB small_pool(0) large_pool(0)
#
# operation requested memory : -3145728 = -3MB
# operation allocated memory : -3145728 = -3MB
# operation reserved memory : 0 = 0MB no new segment
# total reserved memory : 20971520 = 20MB small_pool(0) large_pool(1)
# total active memory : 17825792 = 17MB small_pool(0) large_pool(1)
# total inactive memory : 3145728 = 3MB small_pool(0) large_pool(1)
#
# operation requested memory : 2097152 = 2MB
# operation allocated memory : 3145728 = 3MB
# operation reserved memory : 0 = 0MB no new segment
# total reserved memory : 20971520 = 20MB small_pool(0) large_pool(1)
# total active memory : 20971520 = 20MB small_pool(0) large_pool(2)
# total inactive memory : 0 = 0MB small_pool(0) large_pool(0)
5.3 Large Pool 和 Small Pool
每次任选一段运行，相关结论请回看 2.1.2。
# 示例1
# var1 = torch.zeros(1024*1024, dtype=torch.bool, device='cuda') # 1MB
# memory_stats()
# var2 = torch.zeros(2, dtype=torch.bool, device='cuda') # 2B
# memory_stats()
# 运行结果：
# operation requested memory : 1048576 = 1MB
# operation allocated memory : 1048576 = 1MB
# operation reserved memory : 2097152 = 2MB new segment belong to small pool
# total reserved memory : 2097152 = 2MB small_pool(1) large_pool(0)
# total active memory : 1048576 = 1MB small_pool(1) large_pool(0)
# total inactive memory : 1048576 = 1MB small_pool(1) large_pool(0)
#
# operation requested memory : 2 ≈ 0.0000MB
# operation allocated memory : 512 ≈ 0.0005MB
# operation reserved memory : 0 = 0MB no new segment
# total reserved memory : 2097152 = 2MB small_pool(1) large_pool(0)
# total active memory : 1049088 ≈ 1.0005MB small_pool(2) large_pool(0)
# total inactive memory : 1048064 ≈ 0.9995MB small_pool(1) large_pool(0)
# 示例2
# var1 = torch.zeros(1024*1024, dtype=torch.bool, device='cuda') # 1MB
# memory_stats()
# var2 = torch.zeros(1024*1024, dtype=torch.bool, device='cuda') # 1MB
# memory_stats()
# 运行结果：
# operation requested memory : 1048576 = 1MB
# operation allocated memory : 1048576 = 1MB
# operation reserved memory : 2097152 = 2MB new segment belong to small pool
# total reserved memory : 2097152 = 2MB small_pool(1) large_pool(0)
# total active memory : 1048576 = 1MB small_pool(1) large_pool(0)
# total inactive memory : 1048576 = 1MB small_pool(1) large_pool(0)
#
# operation requested memory : 1048576 = 1MB
# operation allocated memory : 1048576 = 1MB
# operation reserved memory : 0 = 0MB no new segment
# total reserved memory : 2097152 = 2MB small_pool(1) large_pool(0)
# total active memory : 2097152 = 2MB small_pool(2) large_pool(0)
# total inactive memory : 0 = 0MB small_pool(0) large_pool(0)
# 示例3
# var1 = torch.zeros(1024*1024, dtype=torch.bool, device='cuda') # 1MB
# memory_stats()
# var2 = torch.zeros(1024*1024+2, dtype=torch.bool, device='cuda') # 略大于1MB
# memory_stats()
# 运行结果：
# operation requested memory : 1048576 = 1MB
# operation allocated memory : 1048576 = 1MB
# operation reserved memory : 2097152 = 2MB new segment belong to small pool
# total reserved memory : 2097152 = 2MB small_pool(1) large_pool(0)
# total active memory : 1048576 = 1MB small_pool(1) large_pool(0)
# total inactive memory : 1048576 = 1MB small_pool(1) large_pool(0)
#
# operation requested memory : 1048578 ≈ 1.0000MB
# operation allocated memory : 1049088 ≈ 1.0005MB
# operation reserved memory : 20971520 = 20MB new segment belong to large pool
# total reserved memory : 23068672 = 22MB small_pool(1) large_pool(1)
# total active memory : 2097664 ≈ 2.0005MB small_pool(1) large_pool(1)
# total inactive memory : 20971008 ≈ 19.9995MB small_pool(1) large_pool(1)
# 示例4
# var1 = torch.zeros(2, dtype=torch.bool, device='cuda') # 2B
# memory_stats()
# var2 = torch.zeros(1024*1024+2, dtype=torch.bool, device='cuda') # 略大于1MB
# memory_stats()
# 运行结果：
# operation requested memory : 2 ≈ 0.0000MB
# operation allocated memory : 512 ≈ 0.0005MB
# operation reserved memory : 2097152 = 2MB new segment belong to small pool
# total reserved memory : 2097152 = 2MB small_pool(1) large_pool(0)
# total active memory : 512 ≈ 0.0005MB small_pool(1) large_pool(0)
# total inactive memory : 2096640 ≈ 1.9995MB small_pool(1) large_pool(0)
#
# operation requested memory : 1048578 ≈ 1.0000MB
# operation allocated memory : 1049088 ≈ 1.0005MB
# operation reserved memory : 20971520 = 20MB new segment belong to large pool
# total reserved memory : 23068672 = 22MB small_pool(1) large_pool(1)
# total active memory : 1049600 ≈ 1.0010MB small_pool(1) large_pool(1)
# total inactive memory : 22019072 ≈ 20.9990MB small_pool(1) large_pool(1)
# 示例5
# var1 = torch.zeros(1024*1024*11, dtype=torch.bool, device='cuda') # 11MB
# memory_stats()
# var2 = torch.zeros(1024*1024, dtype=torch.bool, device='cuda') # 1MB
# memory_stats()
# 运行结果：
# operation requested memory : 11534336 = 11MB
# operation allocated memory : 12582912 = 12MB
# operation reserved memory : 12582912 = 12MB new segment belong to large pool
# total reserved memory : 12582912 = 12MB small_pool(0) large_pool(1)
# total active memory : 12582912 = 12MB small_pool(0) large_pool(1)
# total inactive memory : 0 = 0MB small_pool(0) large_pool(0)
#
# operation requested memory : 1048576 = 1MB
# operation allocated memory : 1048576 = 1MB
# operation reserved memory : 2097152 = 2MB new segment belong to small pool
# total reserved memory : 14680064 = 14MB small_pool(1) large_pool(1)
# total active memory : 13631488 = 13MB small_pool(1) large_pool(1)
# total inactive memory : 1048576 = 1MB small_pool(1) large_pool(0)
# 示例6
# var1 = torch.zeros(1024*1024*2, dtype=torch.bool, device='cuda') # 2MB
# memory_stats()
# var2 = torch.zeros(1024*1024*17, dtype=torch.bool, device='cuda') # 17MB
# memory_stats()
# var3 = torch.zeros(1024*1024, dtype=torch.bool, device='cuda') # 1MB
# memory_stats()
# 运行结果：
# operation requested memory : 2097152 = 2MB
# operation allocated memory : 2097152 = 2MB
# operation reserved memory : 20971520 = 20MB new segment belong to large pool
# total reserved memory : 20971520 = 20MB small_pool(0) large_pool(1)
# total active memory : 2097152 = 2MB small_pool(0) large_pool(1)
# total inactive memory : 18874368 = 18MB small_pool(0) large_pool(1)
#
# operation requested memory : 17825792 = 17MB
# operation allocated memory : 18874368 = 18MB
# operation reserved memory : 0 = 0MB no new segment
# total reserved memory : 20971520 = 20MB small_pool(0) large_pool(1)
# total active memory : 20971520 = 20MB small_pool(0) large_pool(2)
# total inactive memory : 0 = 0MB small_pool(0) large_pool(0)
#
# operation requested memory : 1048576 = 1MB
# operation allocated memory : 1048576 = 1MB
# operation reserved memory : 2097152 = 2MB new segment belong to small pool
# total reserved memory : 23068672 = 22MB small_pool(1) large_pool(1)
# total active memory : 22020096 = 21MB small_pool(1) large_pool(2)
# total inactive memory : 1048576 = 1MB small_pool(1) large_pool(0)
# 示例7
# var1 = torch.zeros(1024*1024*2, dtype=torch.bool, device='cuda') # 2MB
# memory_stats()
# var2 = torch.zeros(4, dtype=torch.bool, device='cuda') # 4B
# memory_stats()
# 运行结果：
# operation requested memory : 2097152 = 2MB
# operation allocated memory : 2097152 = 2MB
# operation reserved memory : 20971520 = 20MB new segment belong to large pool
# total reserved memory : 20971520 = 20MB small_pool(0) large_pool(1)
# total active memory : 2097152 = 2MB small_pool(0) large_pool(1)
# total inactive memory : 18874368 = 18MB small_pool(0) large_pool(1)
#
# operation requested memory : 4 ≈ 0.0000MB
# operation allocated memory : 512 ≈ 0.0005MB
# operation reserved memory : 2097152 = 2MB new segment belong to small pool
# total reserved memory : 23068672 = 22MB small_pool(1) large_pool(1)
# total active memory : 2097664 ≈ 2.0005MB small_pool(1) large_pool(1)
# total inactive memory : 20971008 ≈ 19.9995MB small_pool(1) large_pool(1)
6. 参考
PyTorch显存管理介绍与源码解析（一）(https://zhuanlan.zhihu.com/p/680769942)
PyTorch显存管理介绍与源码解析（二）(https://zhuanlan.zhihu.com/p/681651660)
Connolly：PyTorch显存机制分析(https://zhuanlan.zhihu.com/p/424512257)
Understanding CUDA Memory Usage — PyTorch main documentation(https://pytorch.org/docs/main/torch_cuda_memory.html%23understanding-cuda-memory-usage)
如有错误，欢迎指正 ~
公众号后台回复“数据集”获取100+深度学习各方向资源整理
极市干货
点击阅读原文进入CV社区
收获更多技术干货
