本次发布会现场，还特别展示了两类显示屏产品——P0.9375 163吋，P1.5 130吋一体机，和一块P0.625 4in1灯板。

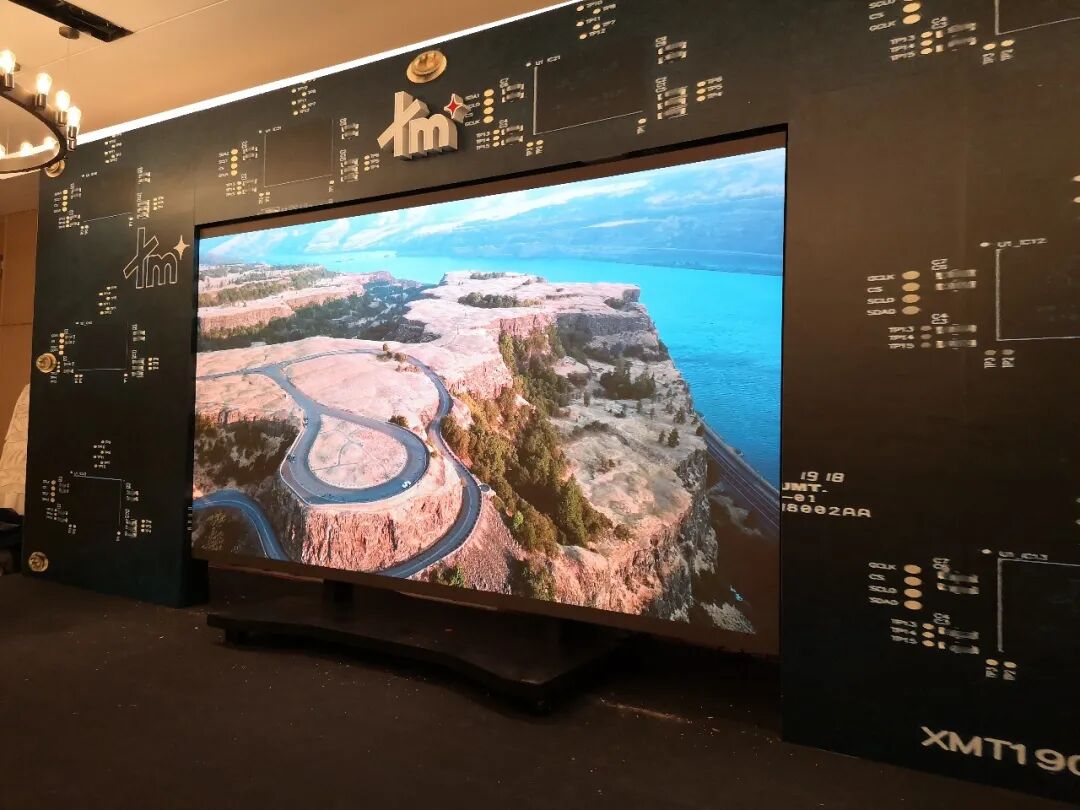

展示主体1: 与Calibre联名展出 P0.9375 163寸一体机
Specification
1.Brightness: 600 nits @ < 3000W (1 AC Power Cord@220V)
2.LED: P0.9375mm JTX/InteLED Common Cathode 4in1 LED
3.Resolution: 3840 x 2160
4.Display area size: 163” 12 x 12 IMs
5.IM: 320x180 pixel, 300x168.75 mm
6.Scan: 1/36, Refresh rate: >3840 Hz
7.Chassis Structural design:
√ 3 in 1 panels (1.2x2.025m each)
√ Removable Narrow bezel supports Horizontal Splicing
8.Compliance: FCC, ETL, CE-EMC, CE-LVD, BSMI, CCC
展示主体2: 与Calibre联名展出 P1.5 130寸一体机
Specification
Brightness: 600 nits @ < 2000W (1 AC Power Cord@220V)
LED: P1.5 InteLED Common Cathode 4in1 LED
Resolution: 1920 x 1080
Display area size: 130” 12 x 12 LED Tiles
IM: 160x90 pixel, 240x135 mm
Scan: 1/30, Refresh rate: >3840 Hz
Frame Structural design:
√ Dimension: 2887x1627x38 mm；2 in 1 Panels
√ Removable Narrow bezel (3.5mm) supports Horizontal/Vertical Splicing
Compliance: FCC, ETL, CE-EMC, CE-LVD, BSMI, CCC

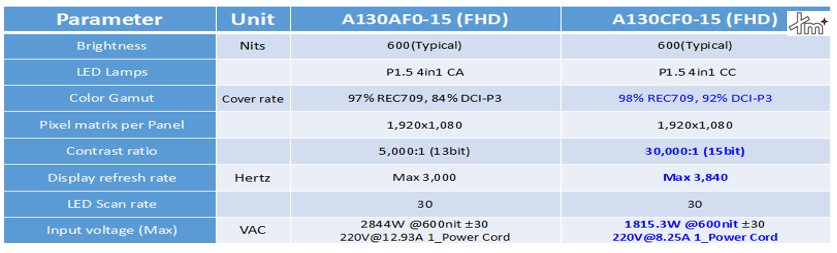

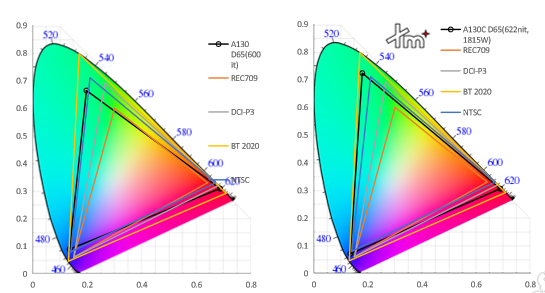

Cardtronics 130” All-in-One LED Comparison

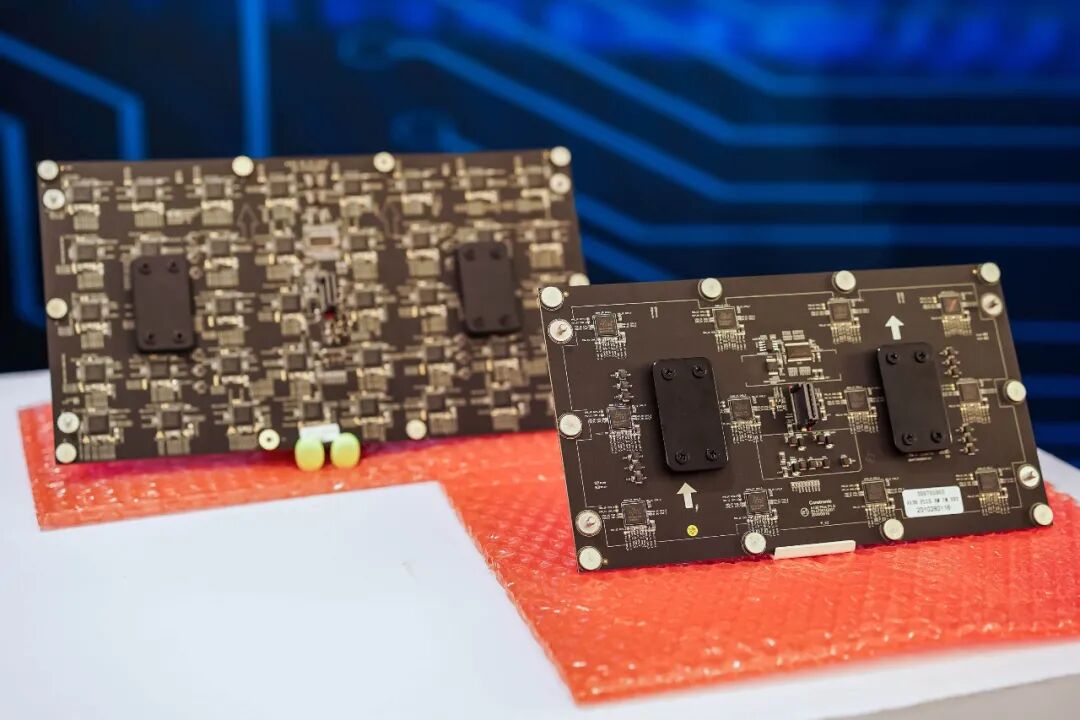

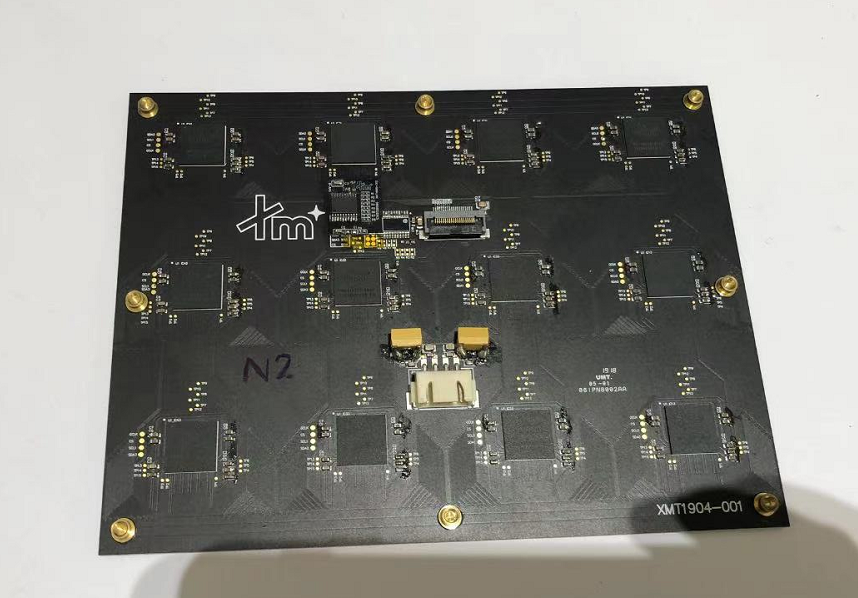

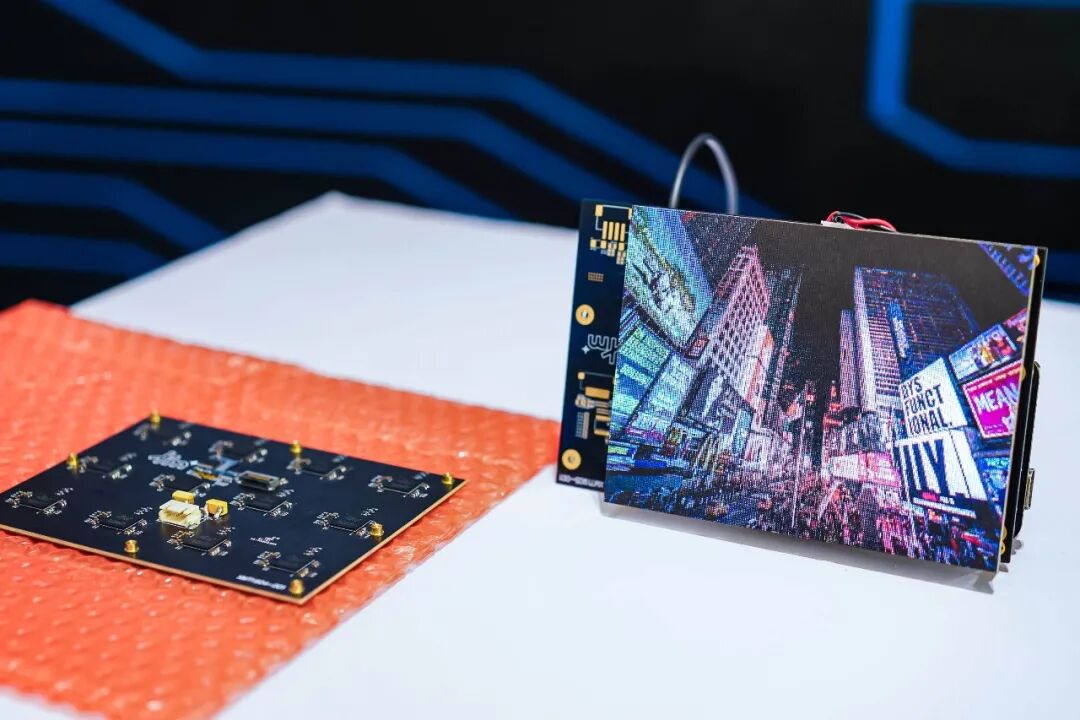

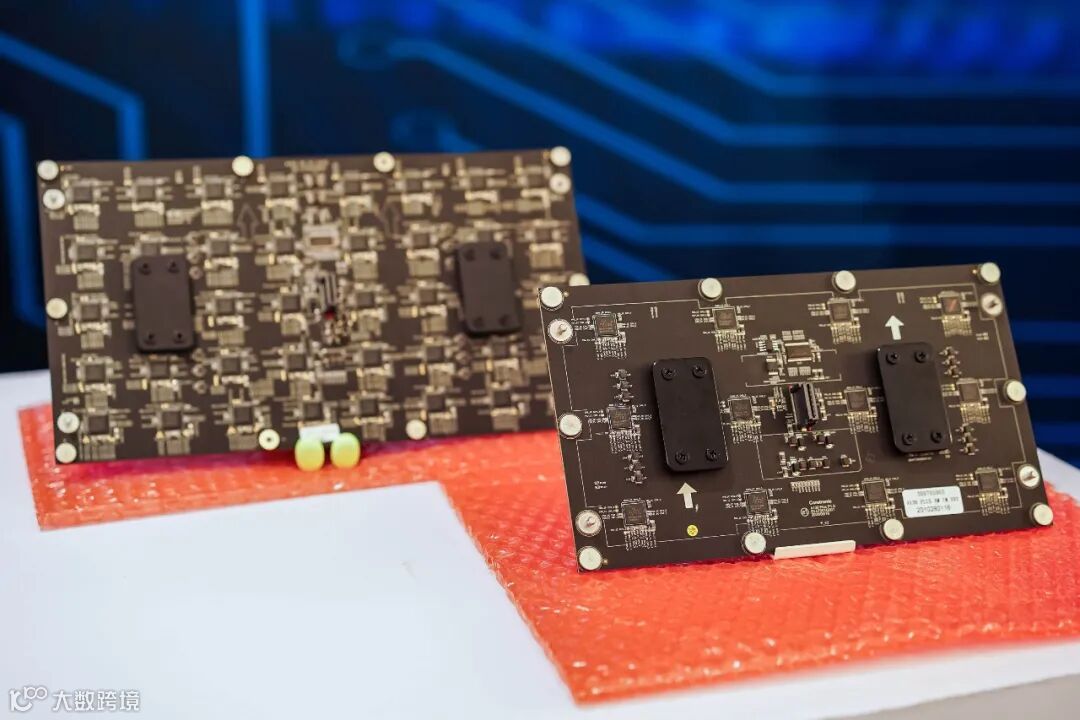

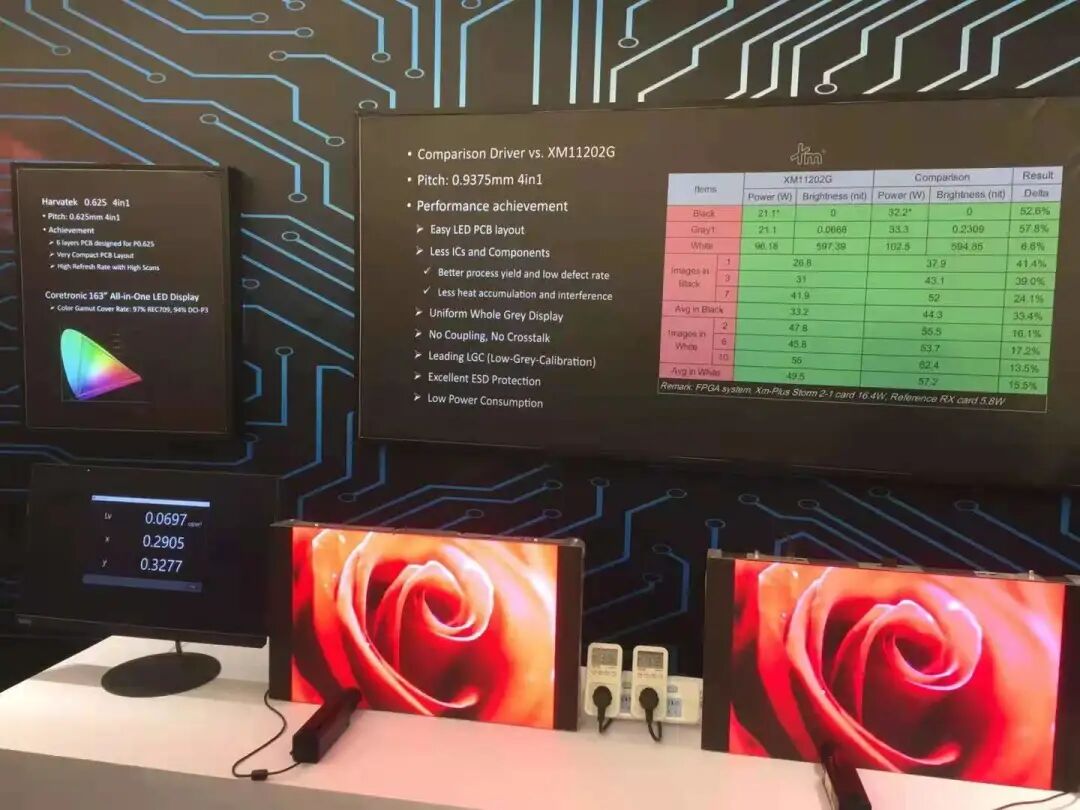

展示主体3: P0.625 4in1灯板 高集成IC带来更简洁的PCB设计
Achievement
layers PCB designed for P0.625
Very Compact PCB layout
High Refresh Rate with High Scans
