导读：独特的屋顶露台设计

▲ 更多精品，关注“搜建筑”

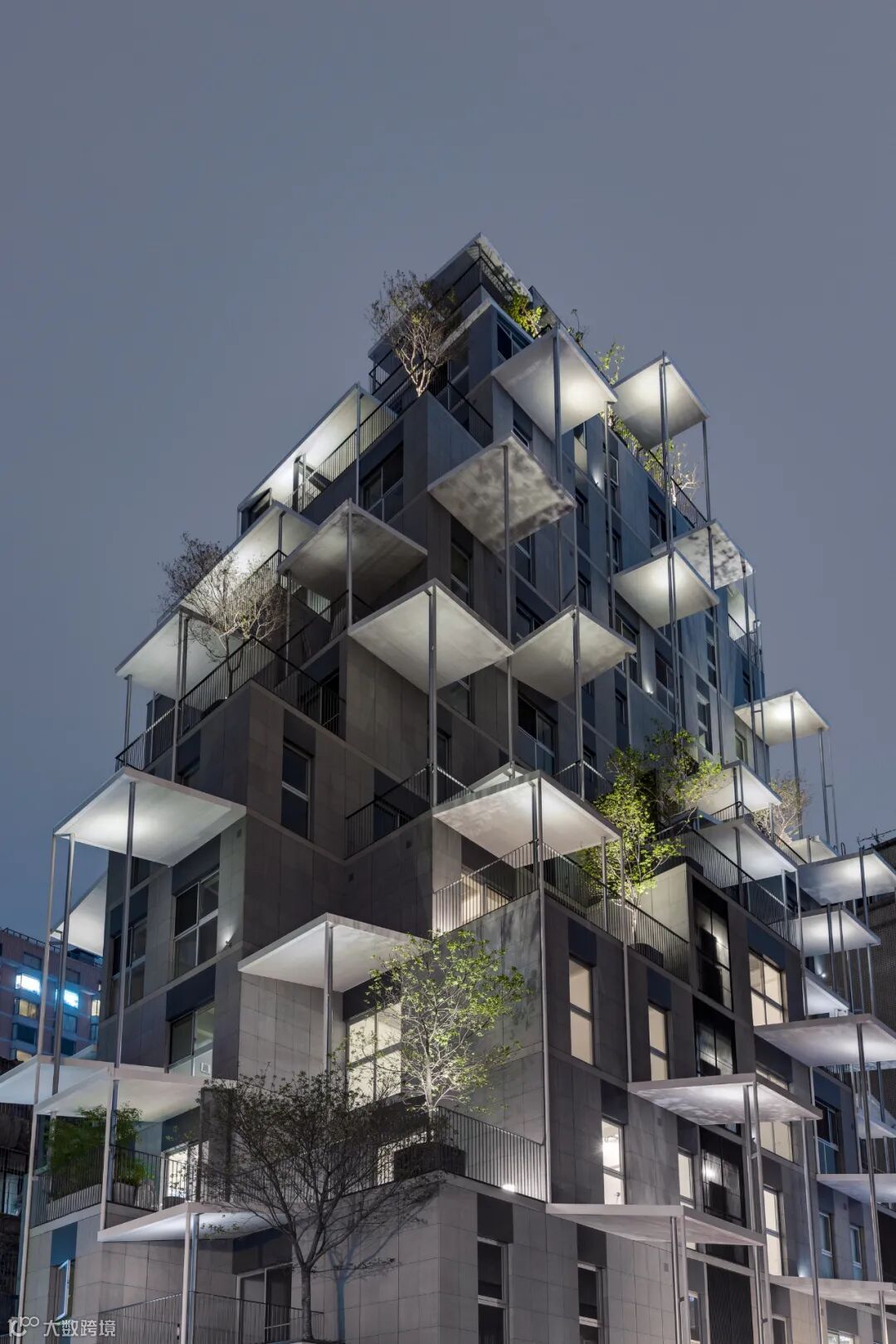

这是一个12层的集体住宅，建在台北市的购物区。在中国台湾，人们设计了各种各样的中介区域，以适应炎热潮湿的气候。你可以巧妙地利用整个城市道路延伸的简单地方，你可以看到人们享受美食和交谈。在创造了如此丰富的生活方式的同时，又具有21世纪的新鲜感？

It is a 12-story collective house built in the shopping area of Taipei City. People in China Taiwan have devised various intermediary areas that go well with hot and humid climates in their lives. You can skillfully exploit the simple places on the extension of the road throughout the city and you can see the people enjoying meals and conversation. Is it possible to consider apartment buildings suitable for Taiwanese people who have created such a rich lifestyle but at the same time have a freshness in the 21st century?

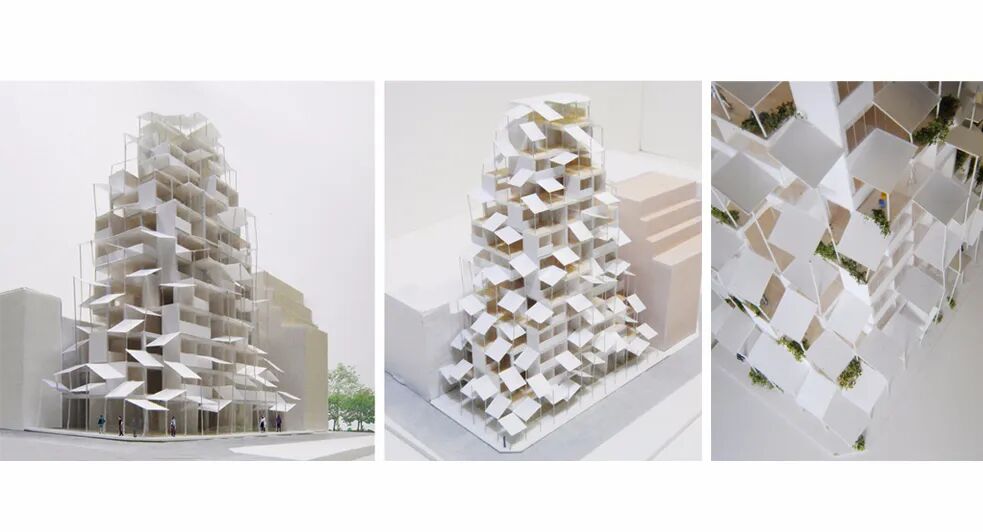

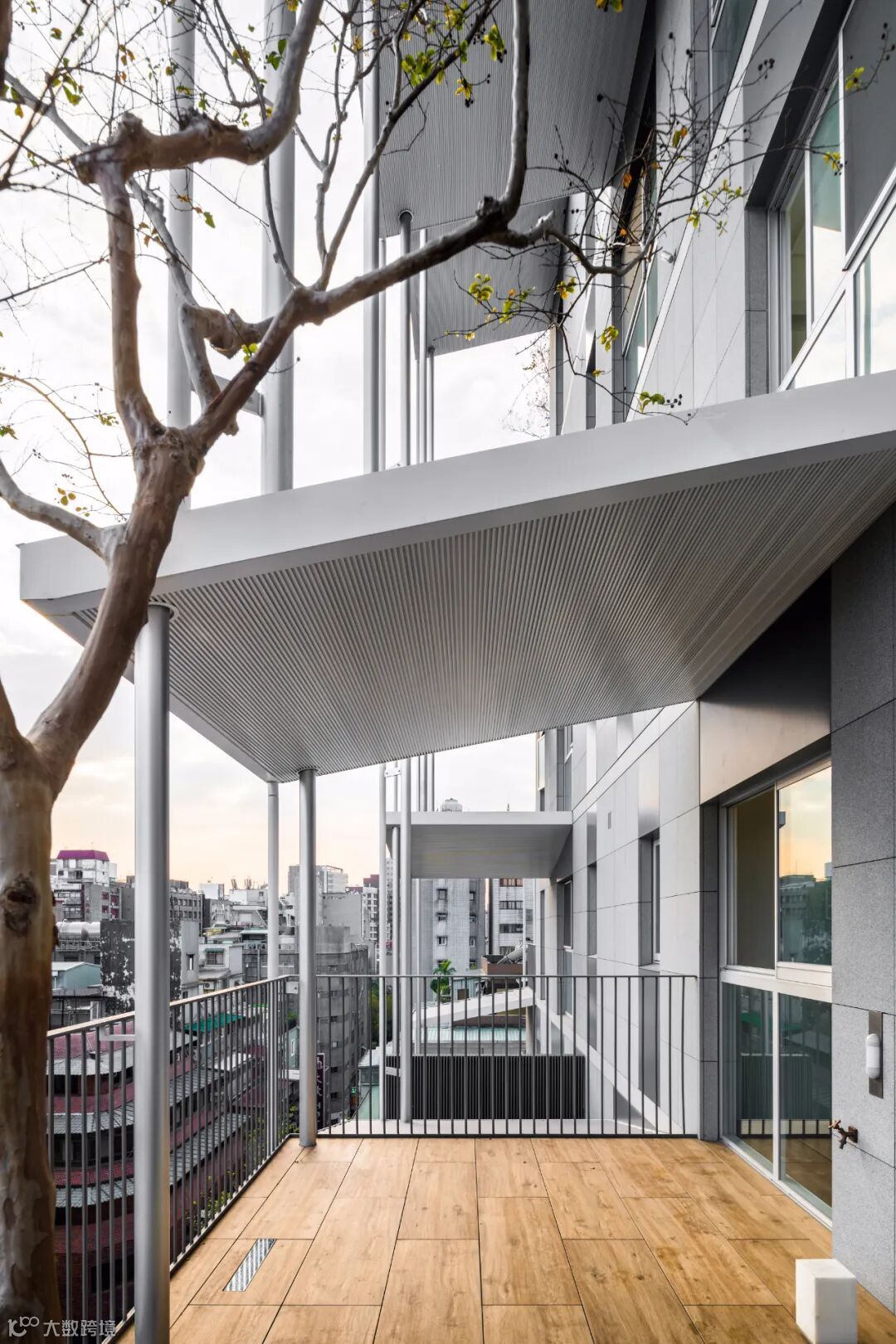

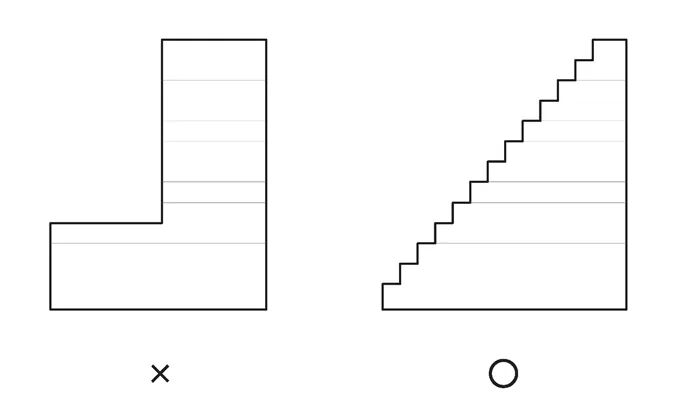

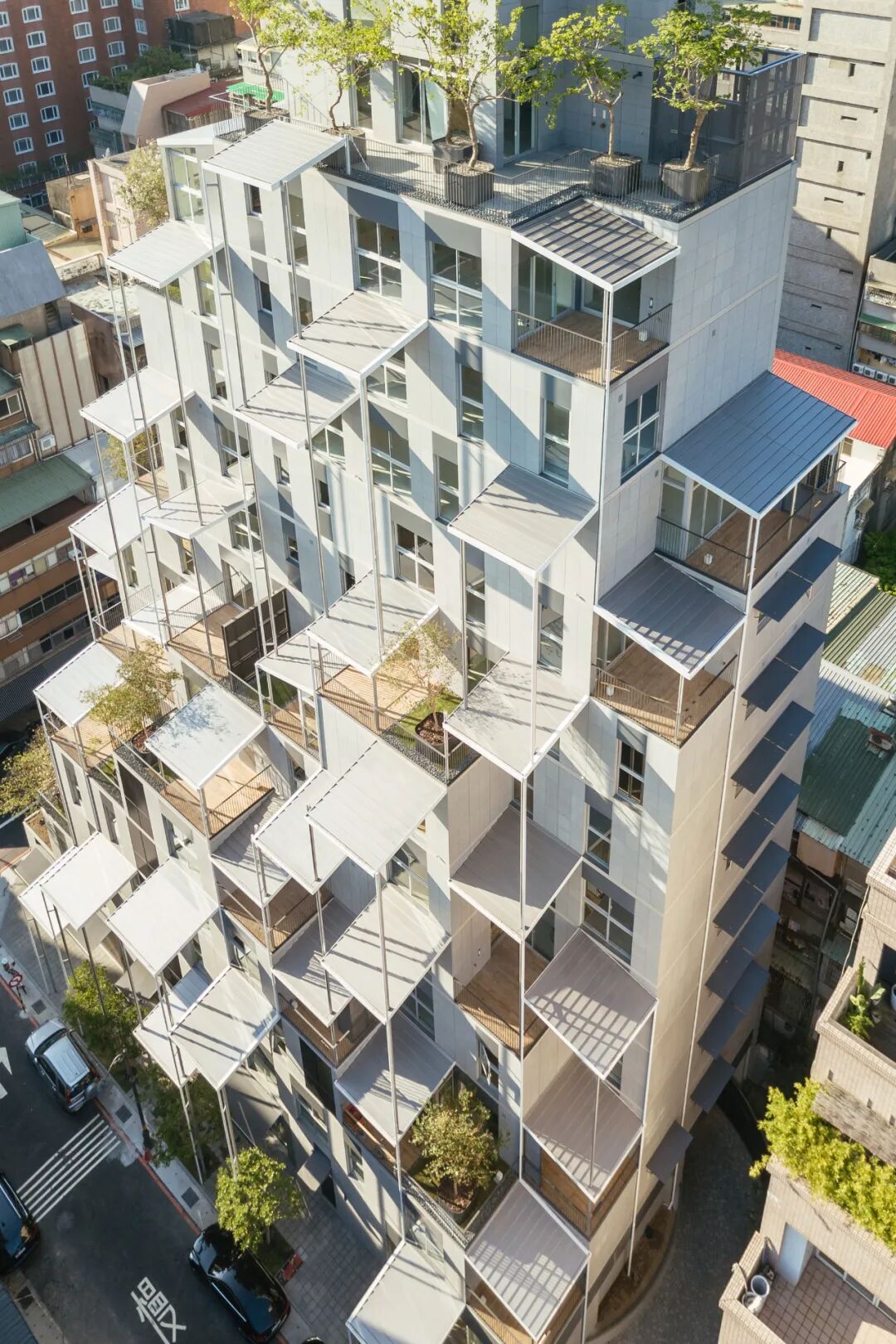

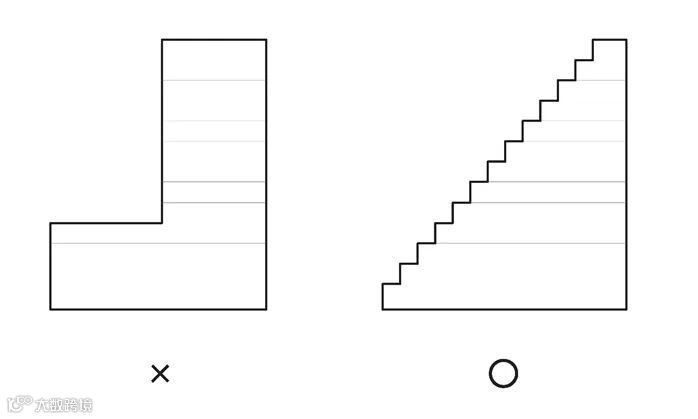

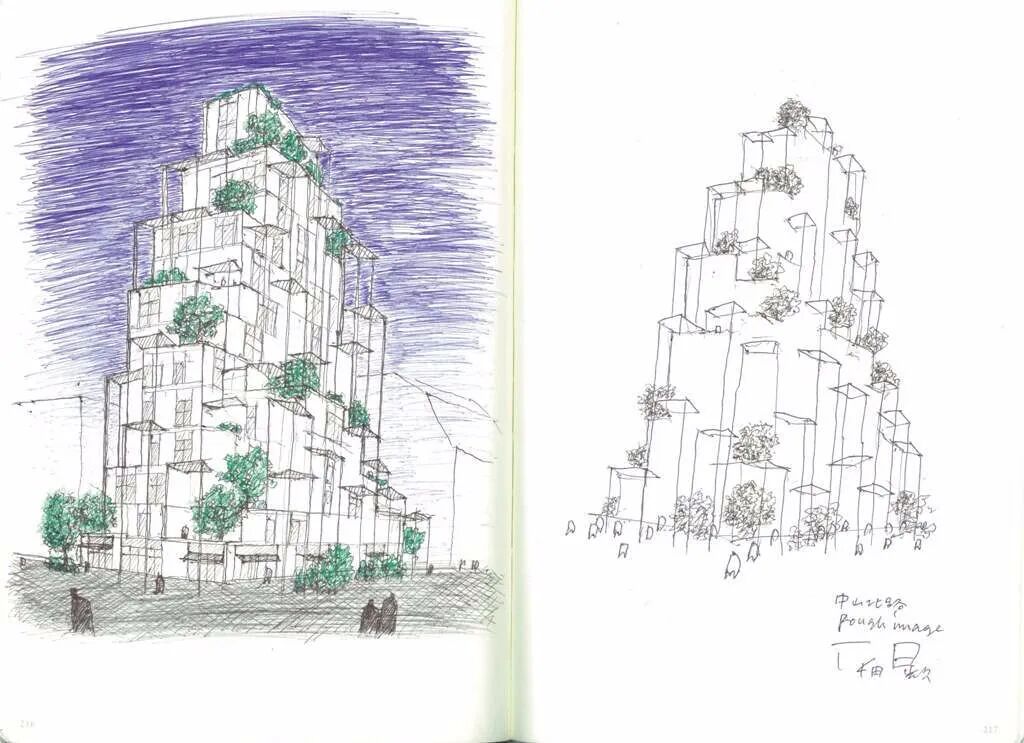

所以我们选择的不是参考平面图，而是在对角线限制限制的同时后退的形状，这样所有的住宅都可以有一个大露台。露台被屋顶和树木覆盖，在建筑表面创造了一个三维舒适的中间区域。

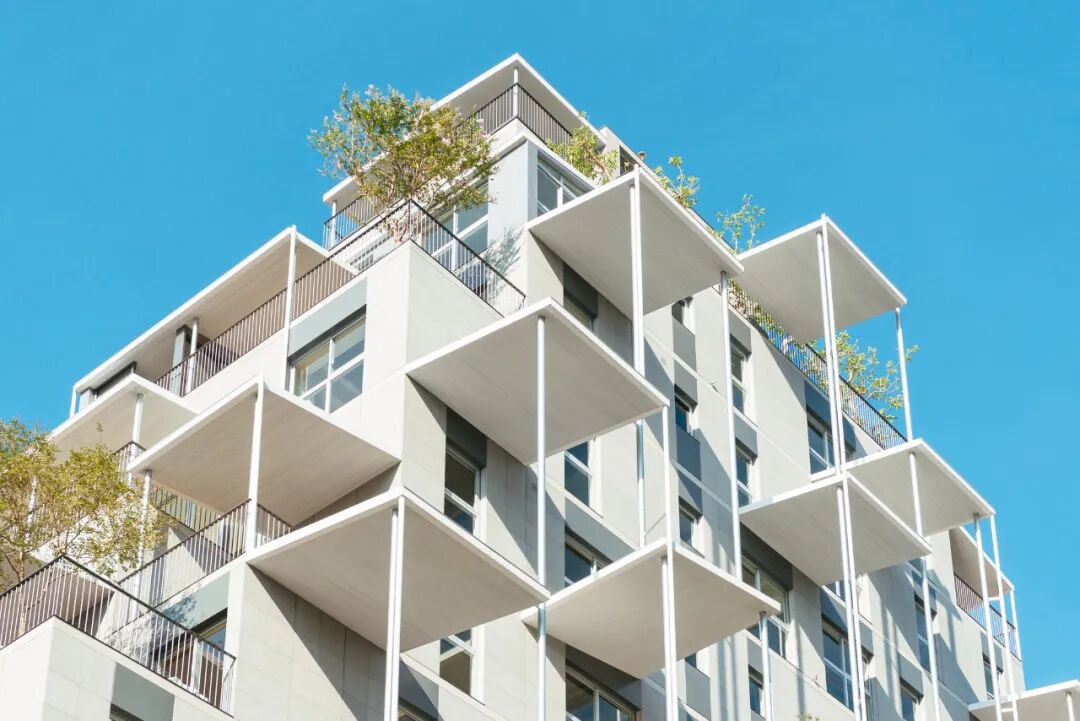

So we selected not the tower on the reference floor plans but the shape to set back while diagonally limiting the limits so that all the dwellings could have a large terrace. The terrace is covered with roofs and trees, creating a three-dimensional and comfortable intermediate area on the building surface.

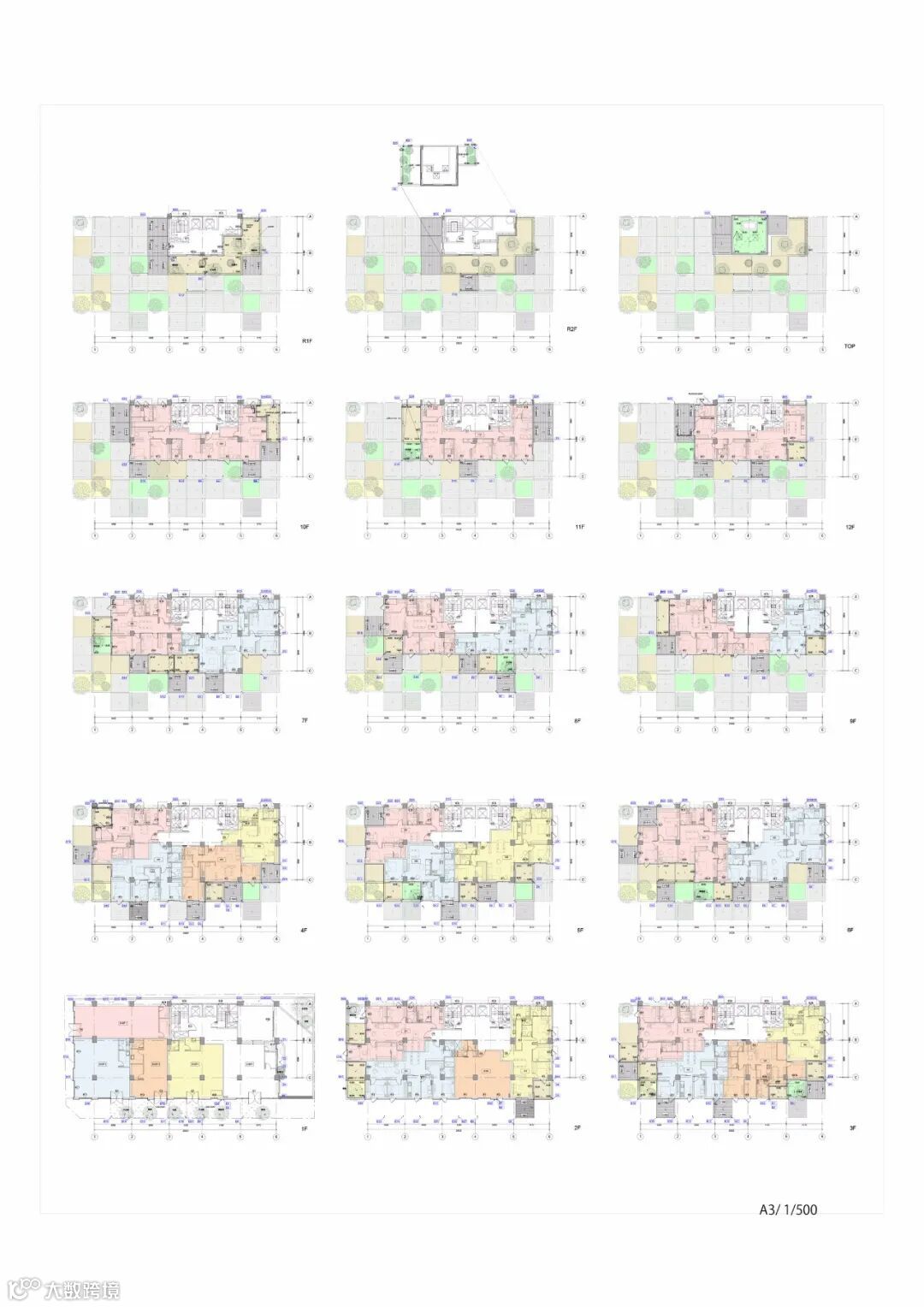

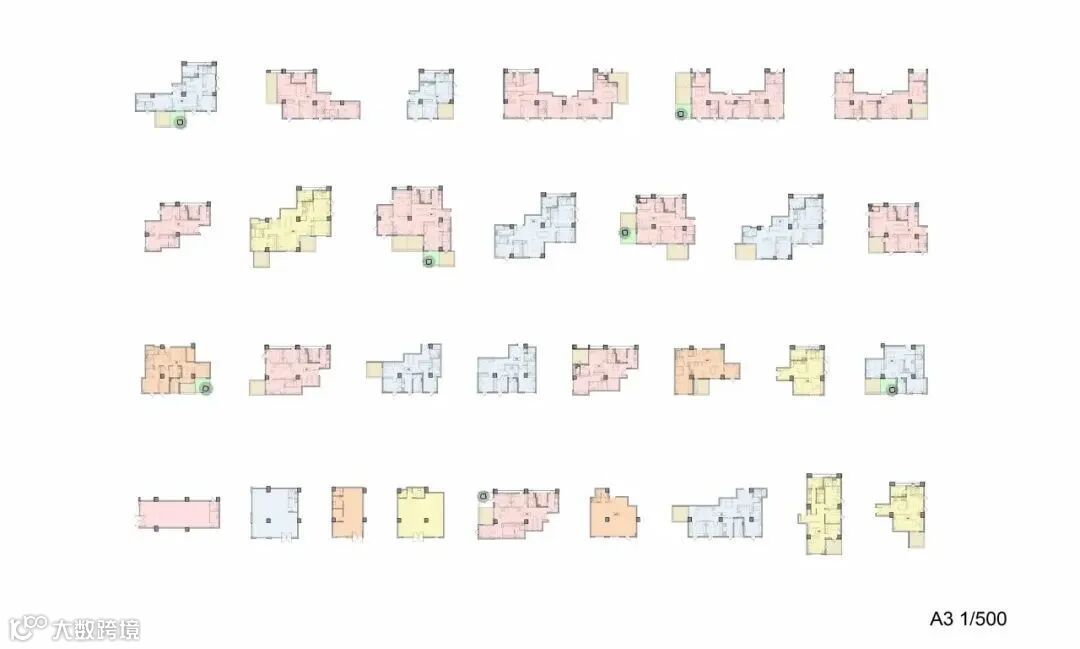

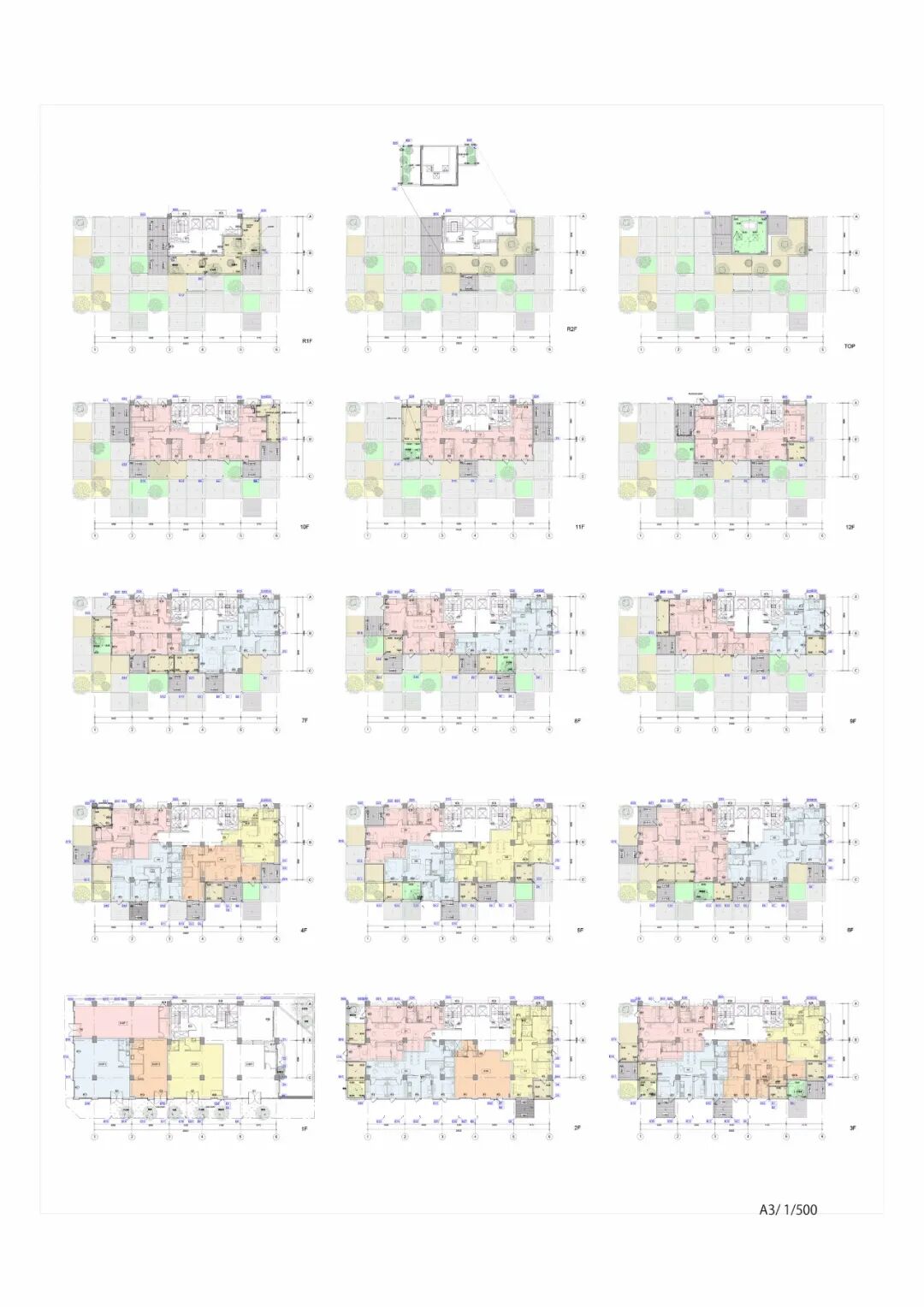

平面图

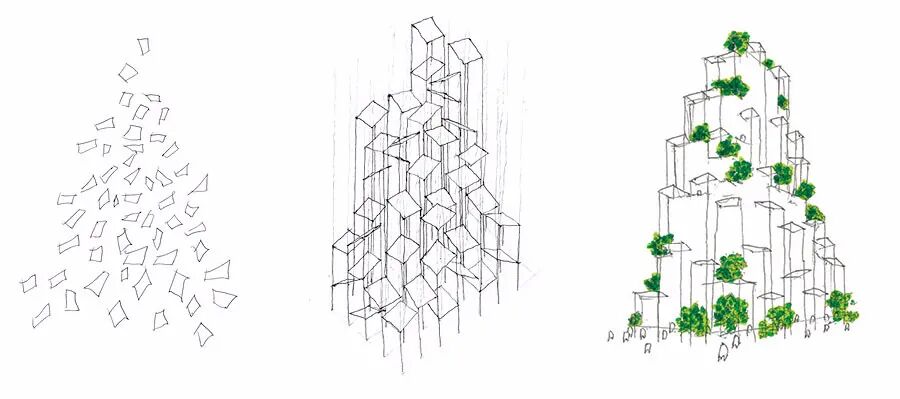

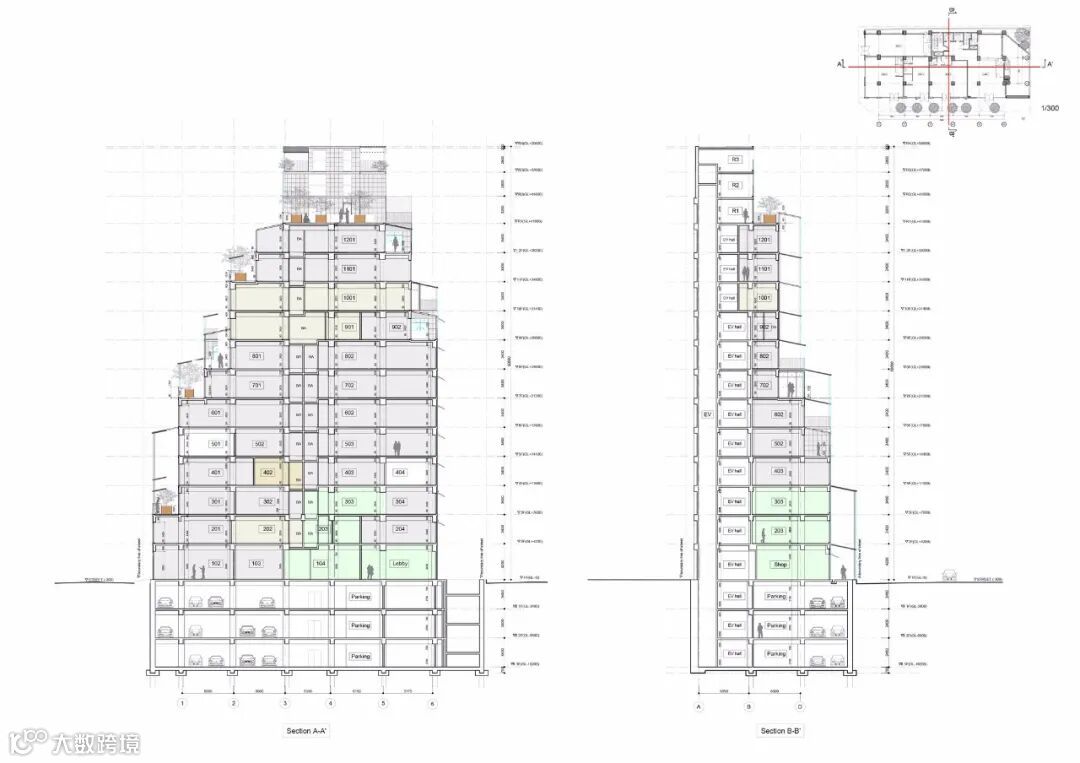

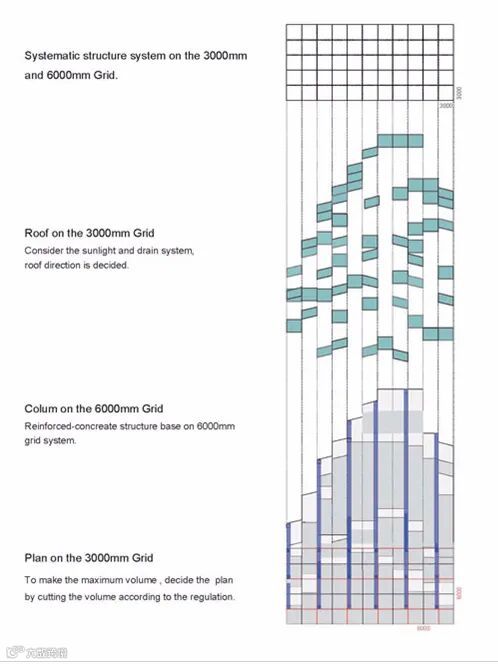

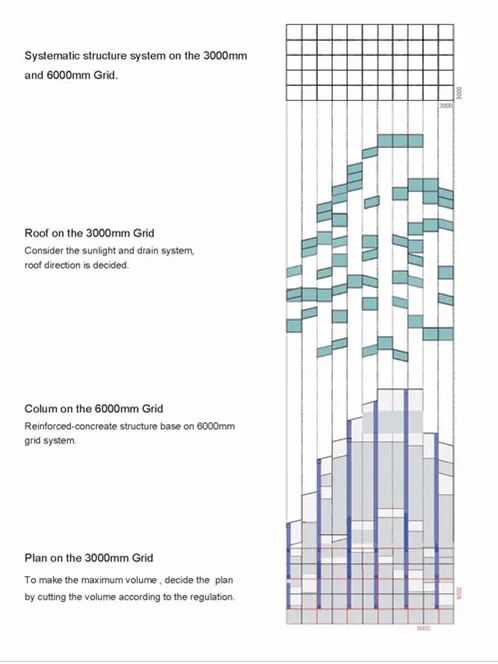

6m网架钢筋混凝土结构上覆盖着3m网架屋面框架体系。主体结构为钢筋混凝土结构，屋面为轻钢框架结构。屋顶的坡度是恒定的，改变倾斜的方向，就会产生变化的表情。

The 6 m grid rigid RC structure is covered with a 3 m grid roof frame system. The structure of the main body is RC construction and the roof is a light structure of steel frame structure. The slope of the roof is constant, and changing the direction of the tilt makes a changeable expression.

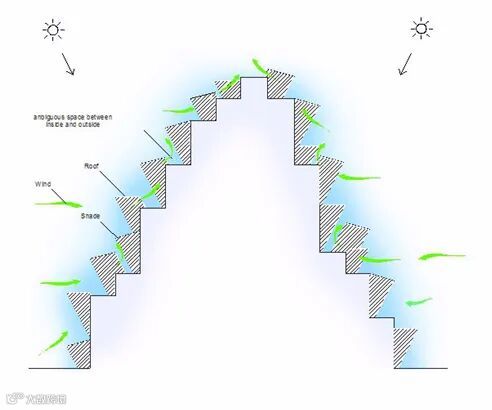

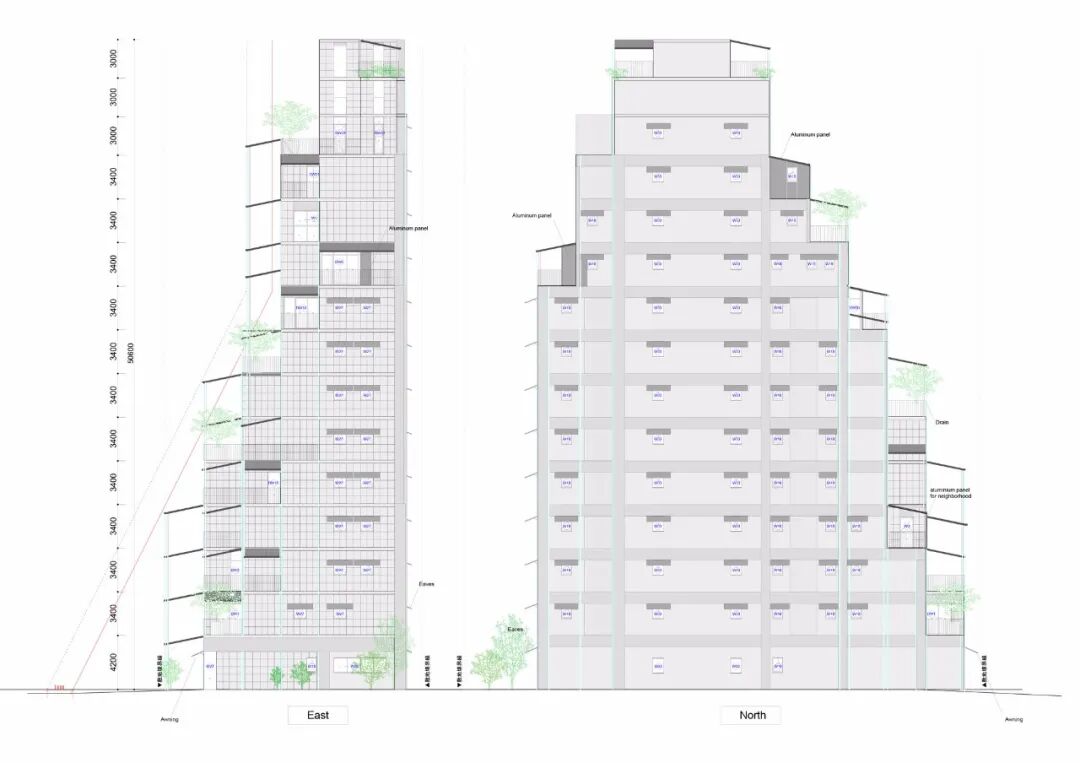

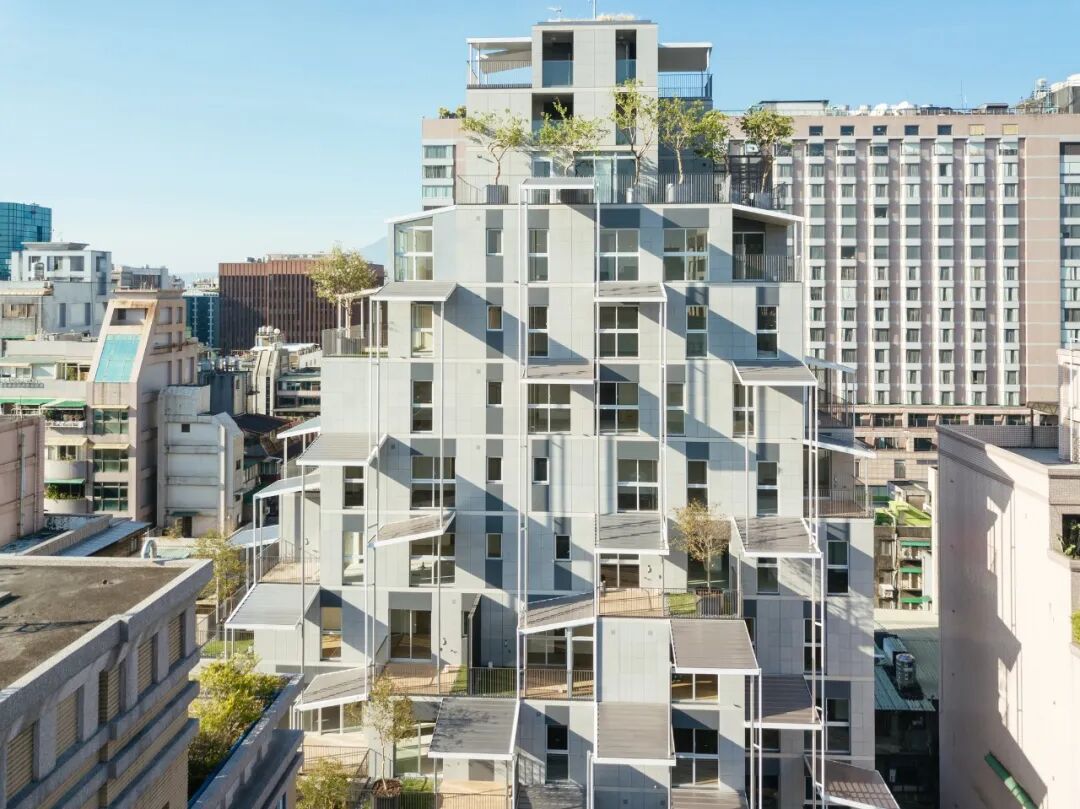

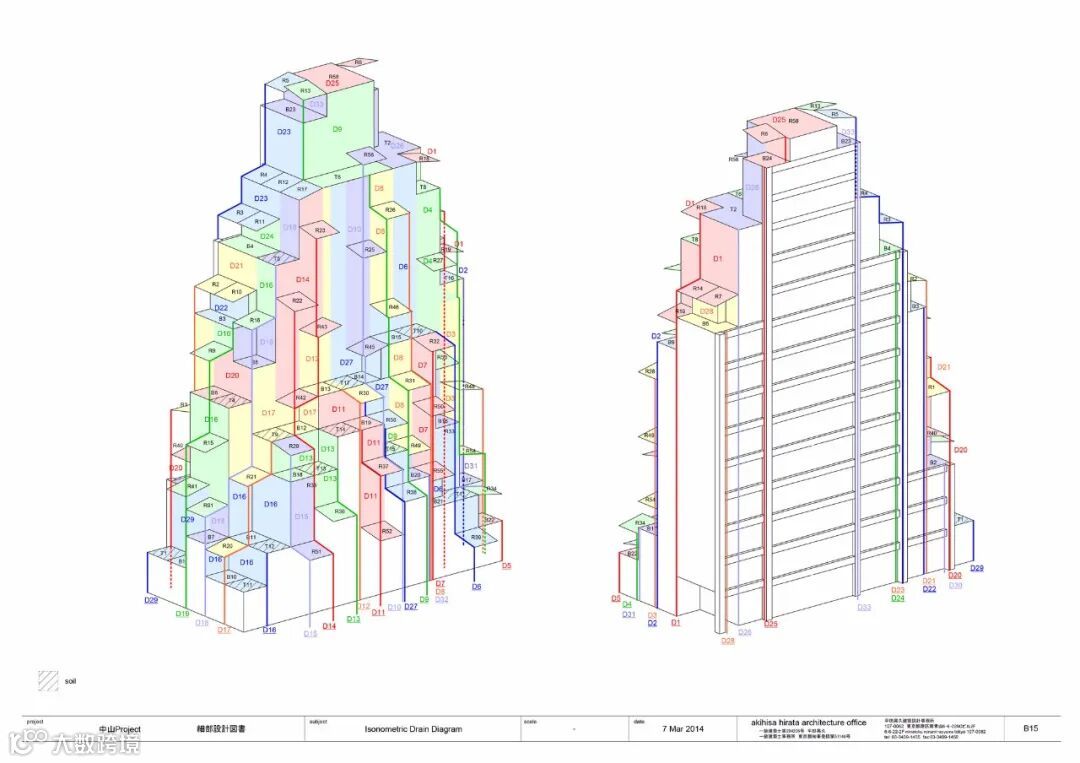

沿梯度方向分布，形成雨水流动的分支或网络。屋顶、垂直排水沟和一根细长的竖杆赋予了这个高度一种韵律。换句话说，雨水的流动构成了建筑的立面。风通过城市的流动将整个不平整的表面扩散和柔和，由于增强了露台的舒适性。它也最大限度地减少了“建筑风”的发生。

Distribution in gradient direction make branch of rainwater flow, or network. A roof, a vertical gutter and a thin vertical pole give a rhythm to the elevation. In other words, the flow of rainwater is made facade of this architecture. The wind flowing through the city will spread throughout the unevenness surface dispersal and softly, due to enhance the comfort of the terrace. It also minimizes the occurrence of "building wind".
