导读：开放式的、灵活的内部空间设计

▲ 更多精品，关注“搜建筑”

平面图

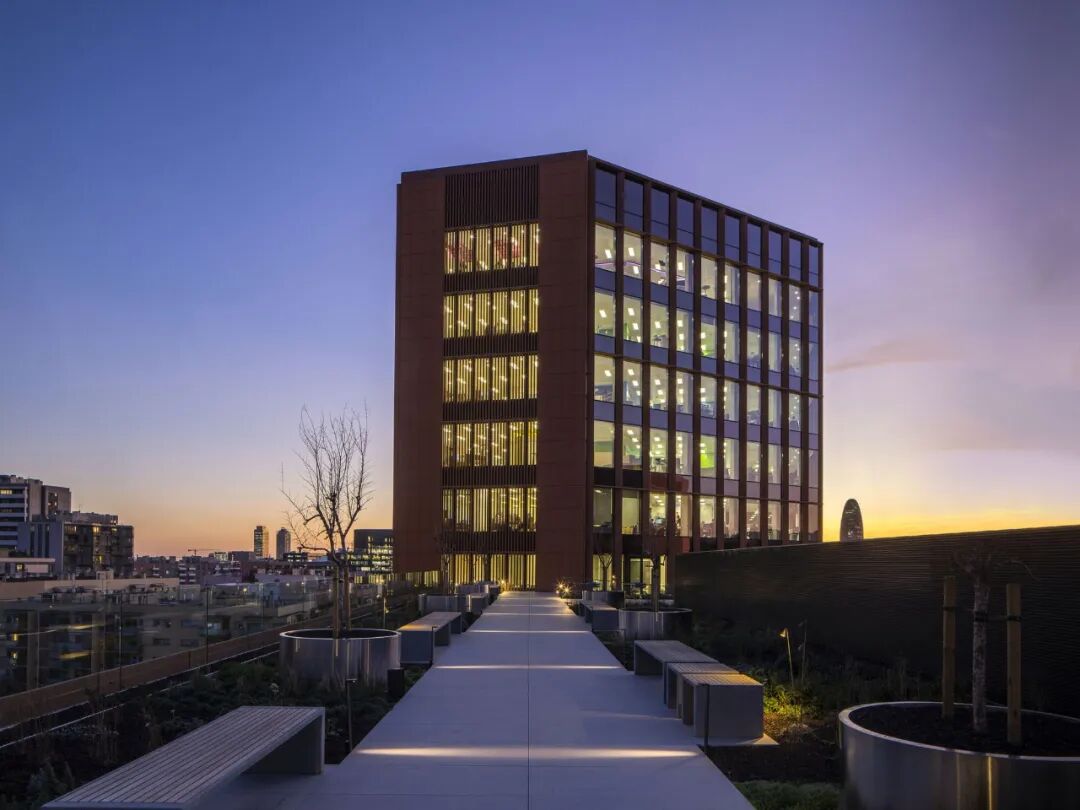

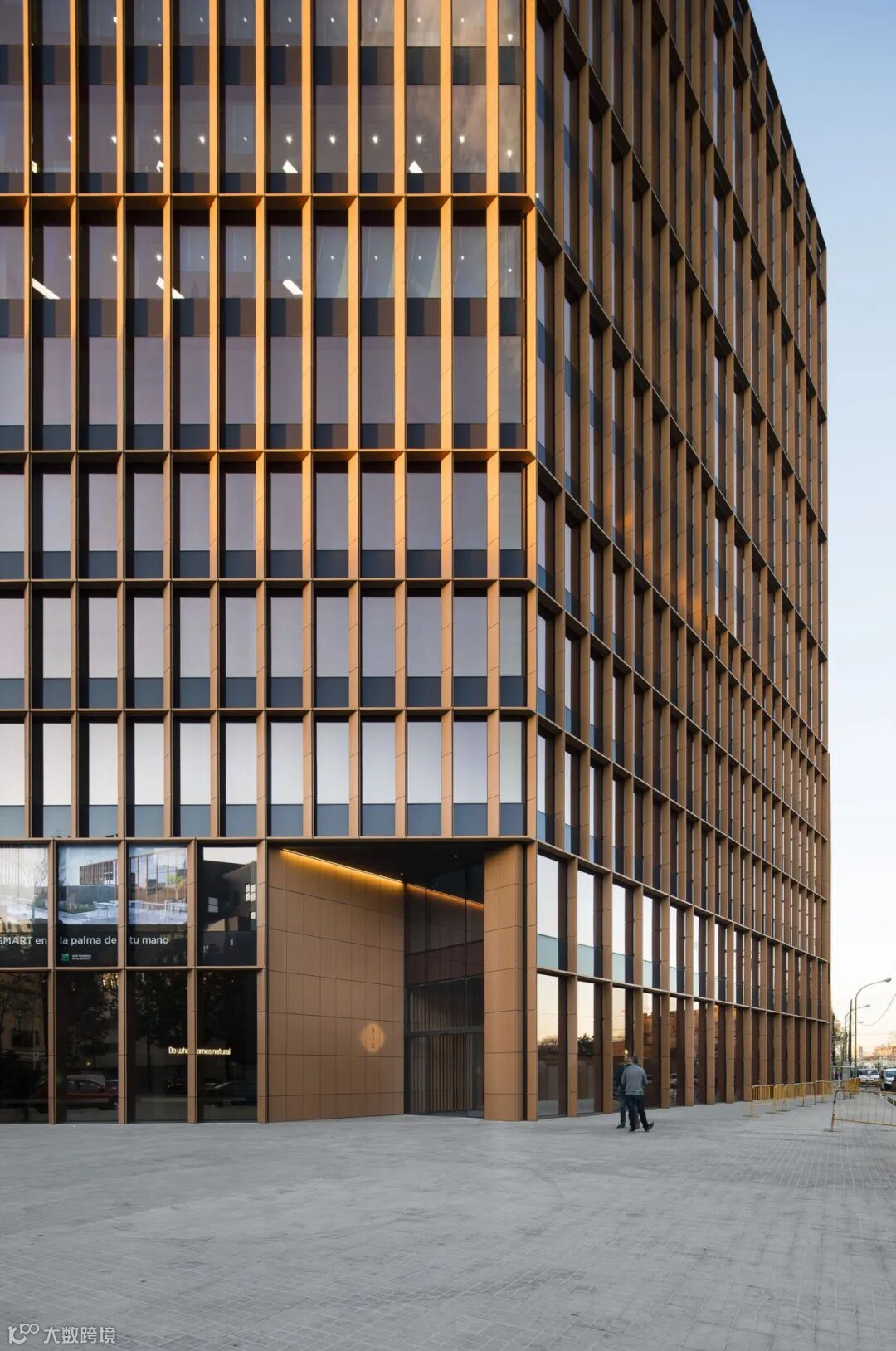

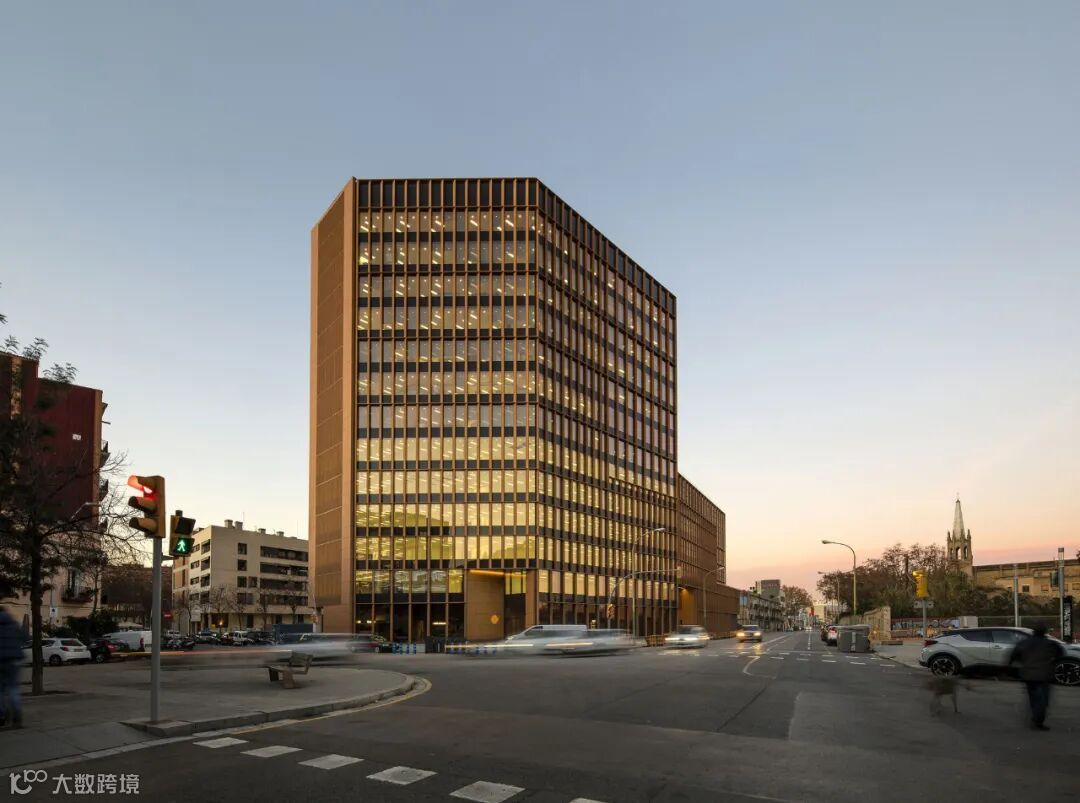

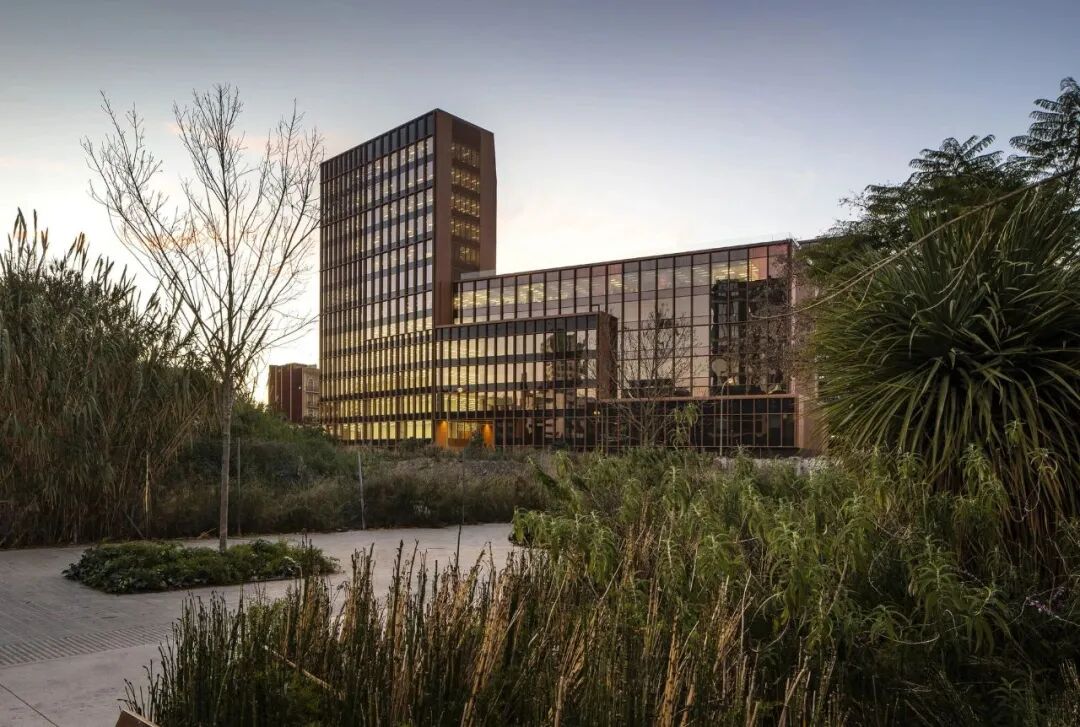

GCA建筑事务所刚刚完成了西班牙第一个智能建筑Smart 22@的建设，该建筑位于巴塞罗那的22@科技区Poblenou。这座办公大楼分为三座独立的建筑，有一个大的花园区，既响应了工业环境，又以自己的特色脱颖而出。

GCA Architects has just completed the construction of Spain's first intelligent building, Smart 22@, in Barcelona's 22@ technology district of Poblenou. Divided into three independent buildings with a large garden area, the office complex responds to the industrial context while standing out with its own character.

平面图

由于该地区集中了40%以上的棉花产业，该区被称为 "加泰罗尼亚的曼彻斯特"，这也是建筑设计的一个决定性因素。在奥运会、22@技术发展和创新计划的影响下，Poblenou已经将大约200公顷的工业用地转变为城市中最国际化和最具创新性的地区之一。

The district, known as the "Catalan Manchester" due to the concentration of more than 40% of the cotton industry in the area, has been a determining factor in the design of the building. With the impact of the Olympic Games, the 22@ technological development and innovation plan, Poblenou has transformed approximately 200 hectares of industrial land into one of the most cosmopolitan and innovative in the city.

平面图

这是一个庆祝建筑所继承的社会责任的项目，创造了一个能够与Poblenou社区共存的和解体，同时表达了巴塞罗那的价值观。

It is a project celebrating the inherited social responsibility of architecture, creating a conciliatory volume able to coexist with the Poblenou neighborhood while expressing the values of Barcelona.

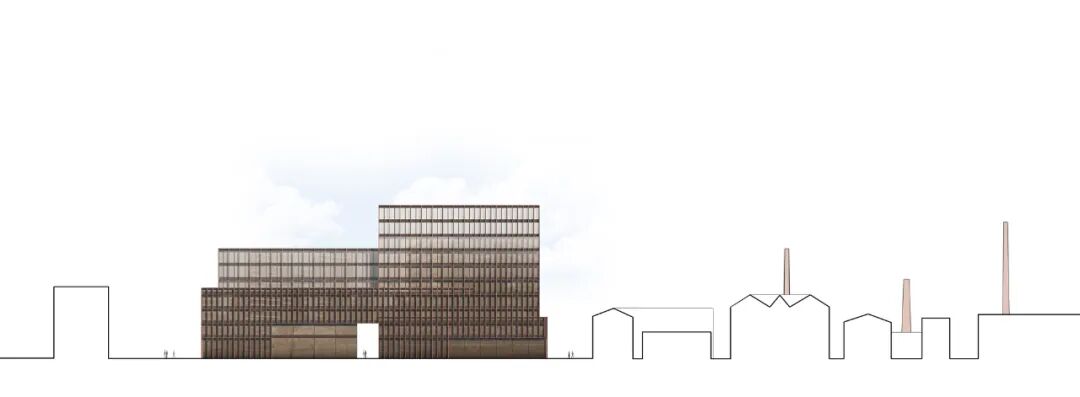

立面图

对于GCA建筑事务所的建筑师和合伙人Josep Riu来说，"Smart 22@是一个连接过去和未来的纽带，其创新的特点在于将生态效率、可持续性和技术创新与工艺的重要性和对当地遗产的尊重相结合的艺术"。

For Josep Riu, architect and partner at GCA Architects, "Smart 22@ is a link between past and future, whose innovative character lies in the art of integrating eco-efficiency, sustainability, and technological innovation with the importance of craftsmanship and respect for local heritage".

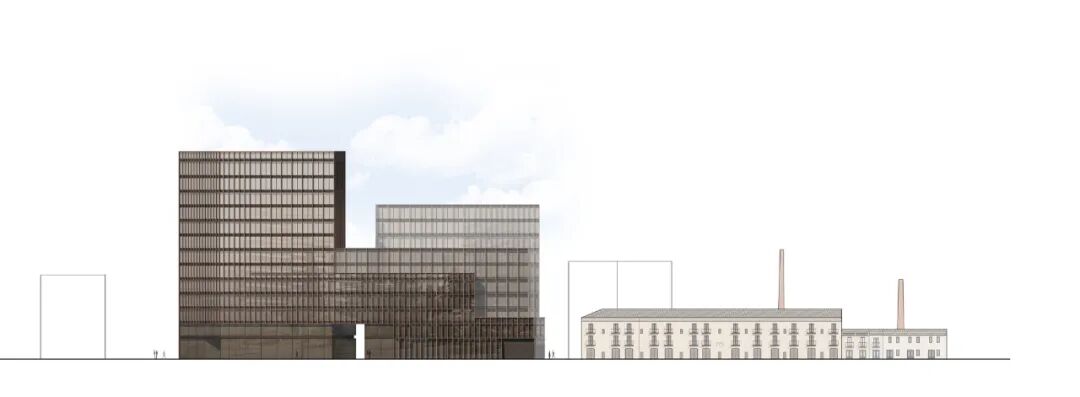

立面图

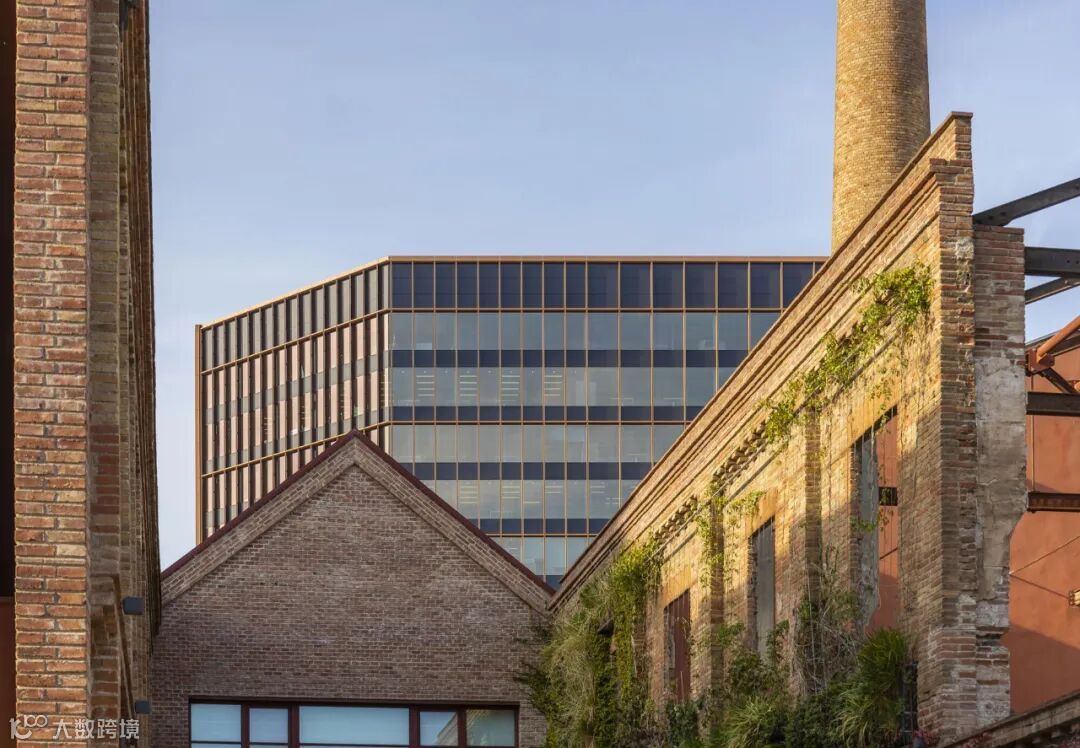

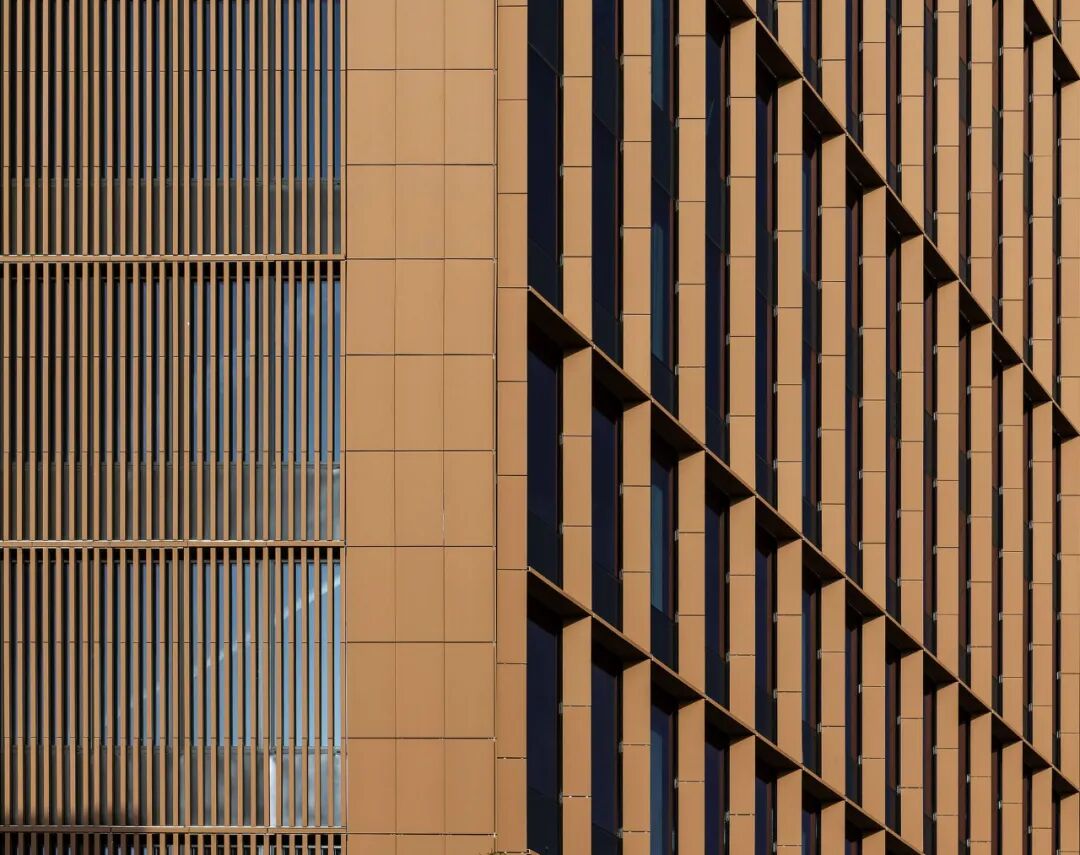

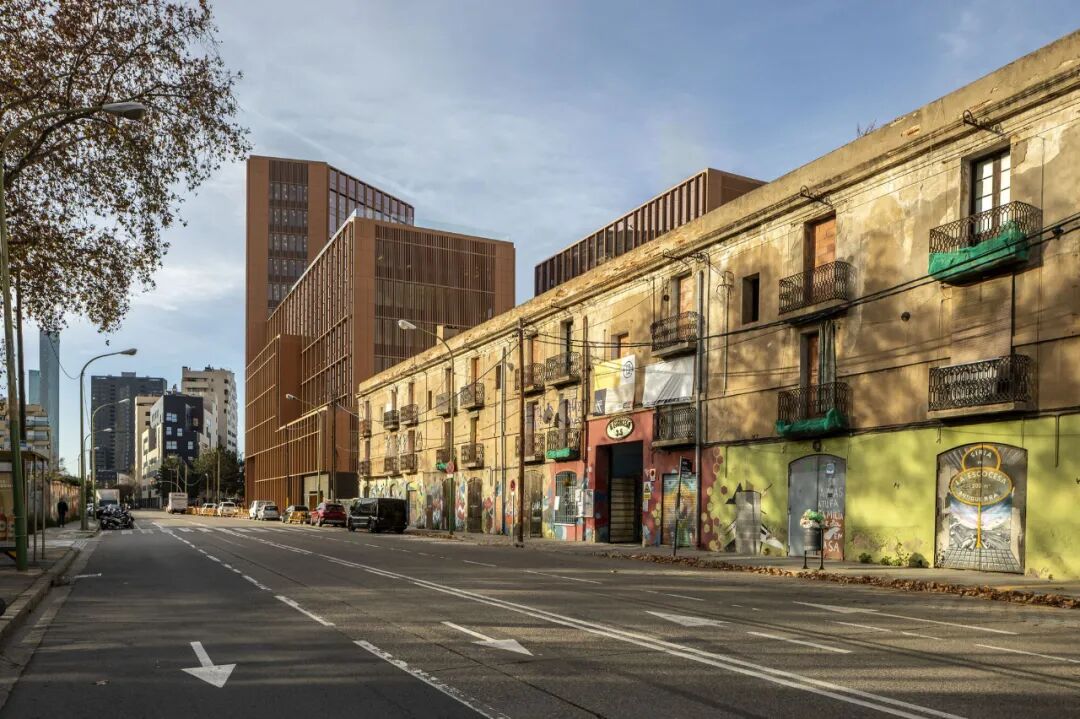

建筑的形态是基于城市的整合，对邻近的建筑，如老的 "La Escocesa "工厂，有着深深的敬意：它的基因反映了附近地区特有的色彩范围，并结合了传统的重要性，如赤土的材料，和新的制造工艺，允许使用更大的挤压件的工作。

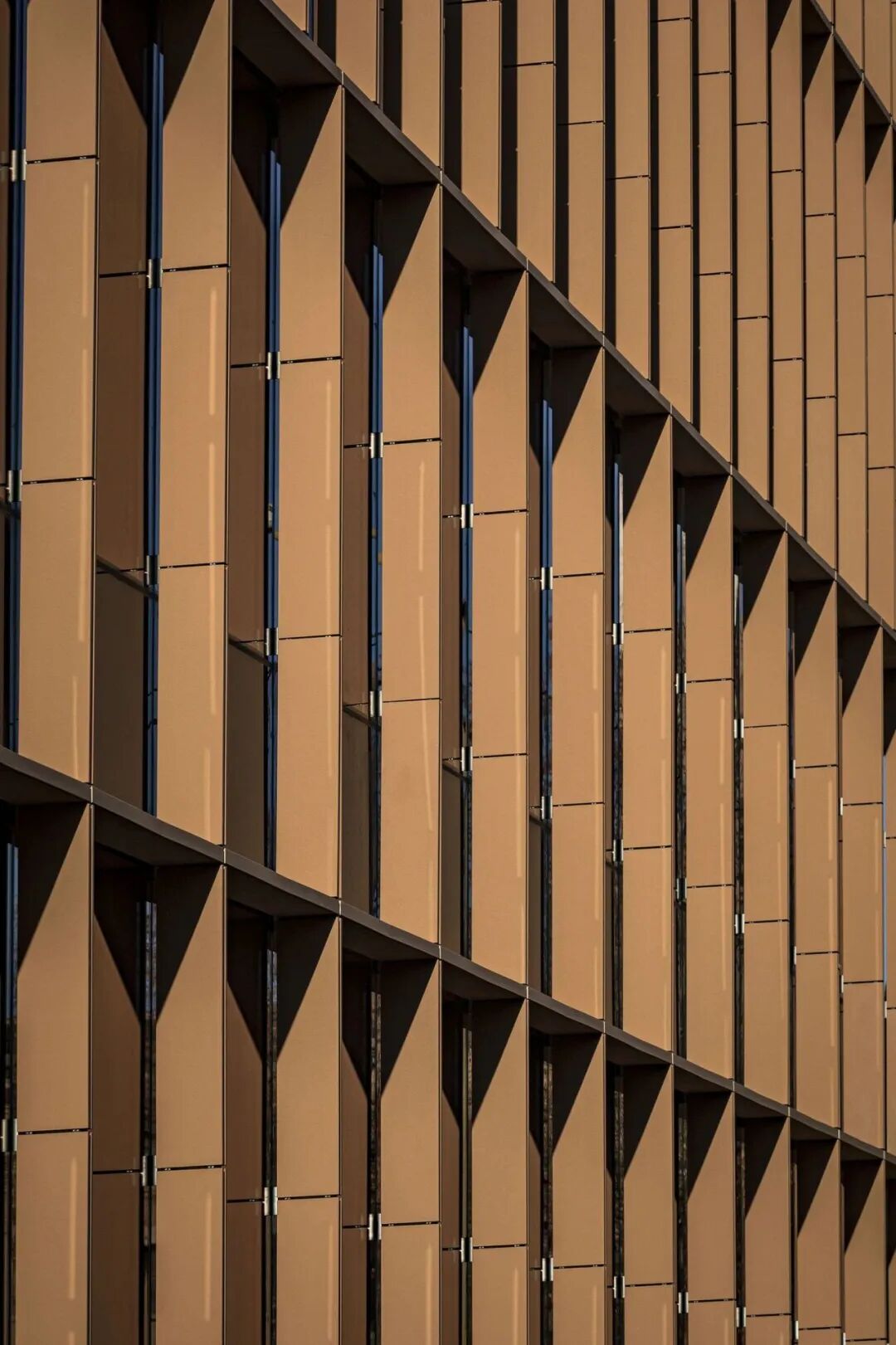

The morphology of the building is based on urban integration, with a deep respect for the adjacent buildings, such as the old ‘La Escocesa’ factory: its genetics reflects the characteristic chromatic range of the neighborhood and combines the traditional importance of a humble material, such as terracotta, with the new manufacturing processes, which allow working with larger extruded pieces.

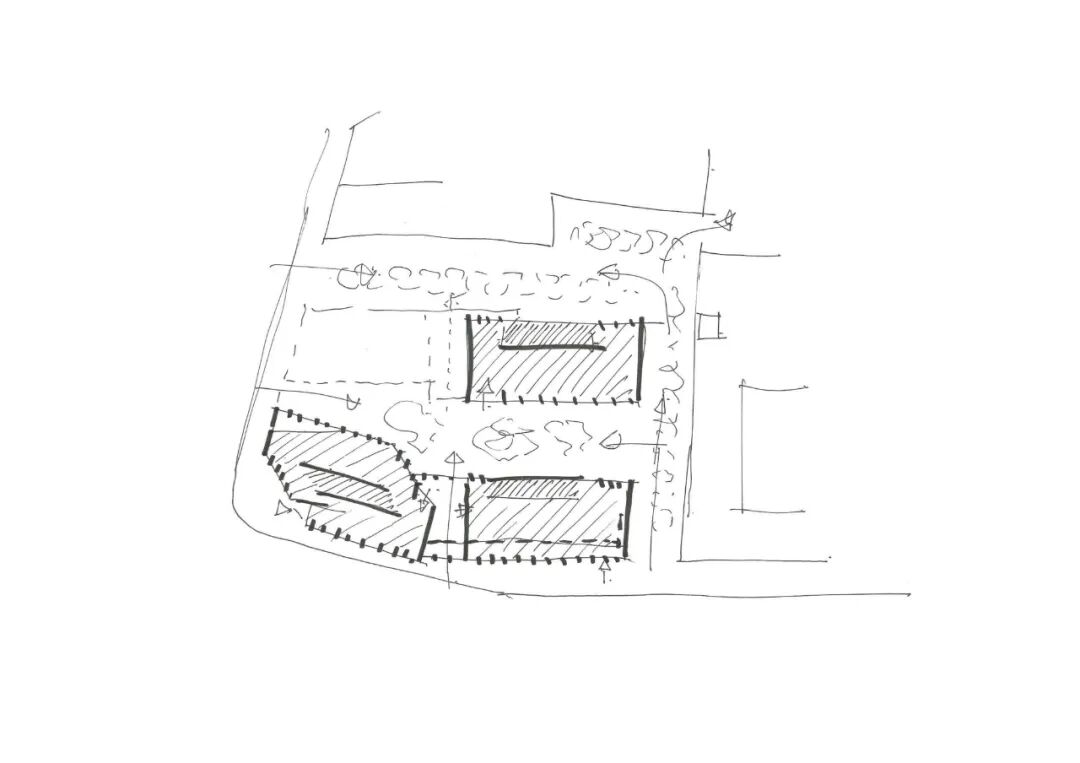

手绘图

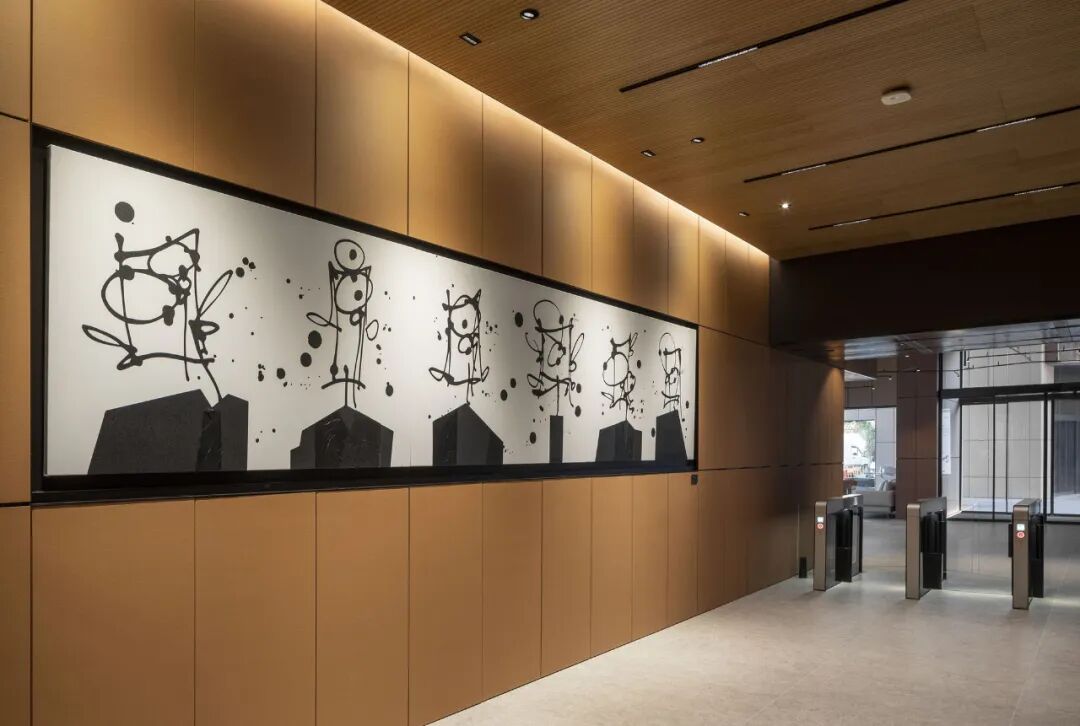

该项目的主要目标之一是在2019年开始，从建筑的社会责任出发，创造一个与社区及其居民共存的综合体。这些居民出现在胡利安-加西亚-埃尔南德斯（Julián García Hernández）的绘画作品中，这些作品位于建筑物的主要通道上，描绘了在该地区工作的人们。

One of the project's main objectives, which began in 2019, has been to work from the social responsibility of architecture to create an integrating volume that coexists with the neighborhood and its inhabitants. These inhabitants appear in the pictorial works of Julián García Hernández, located in the main accesses of the buildings, which portray the people who worked in the area.

手绘图

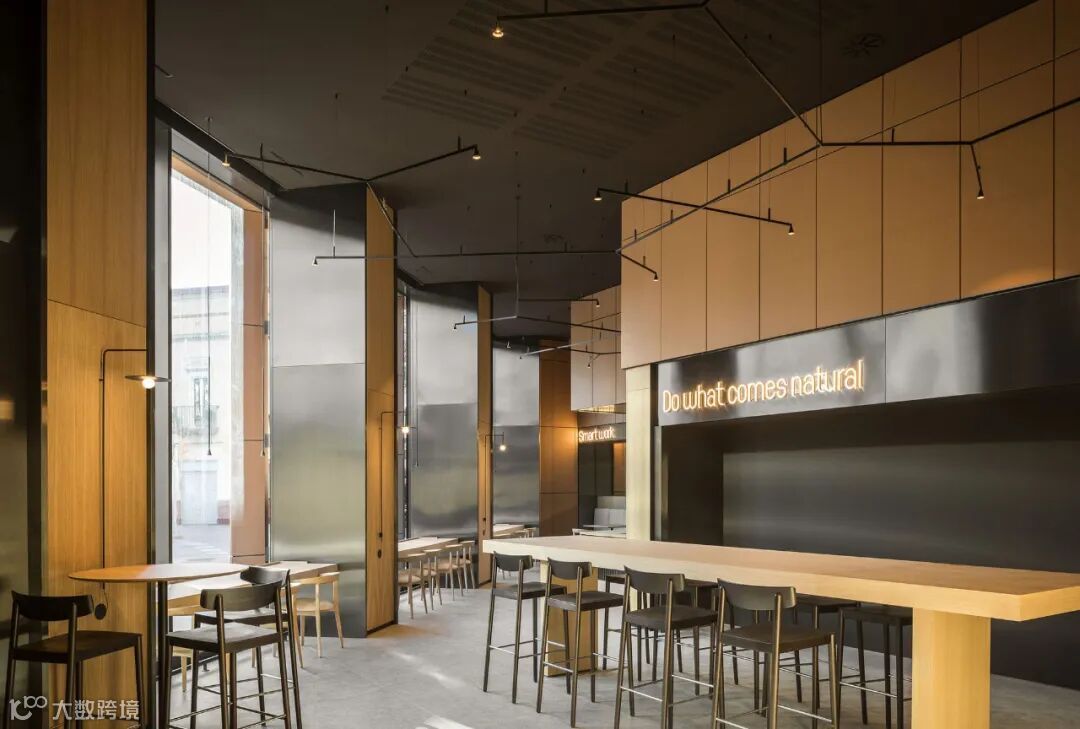

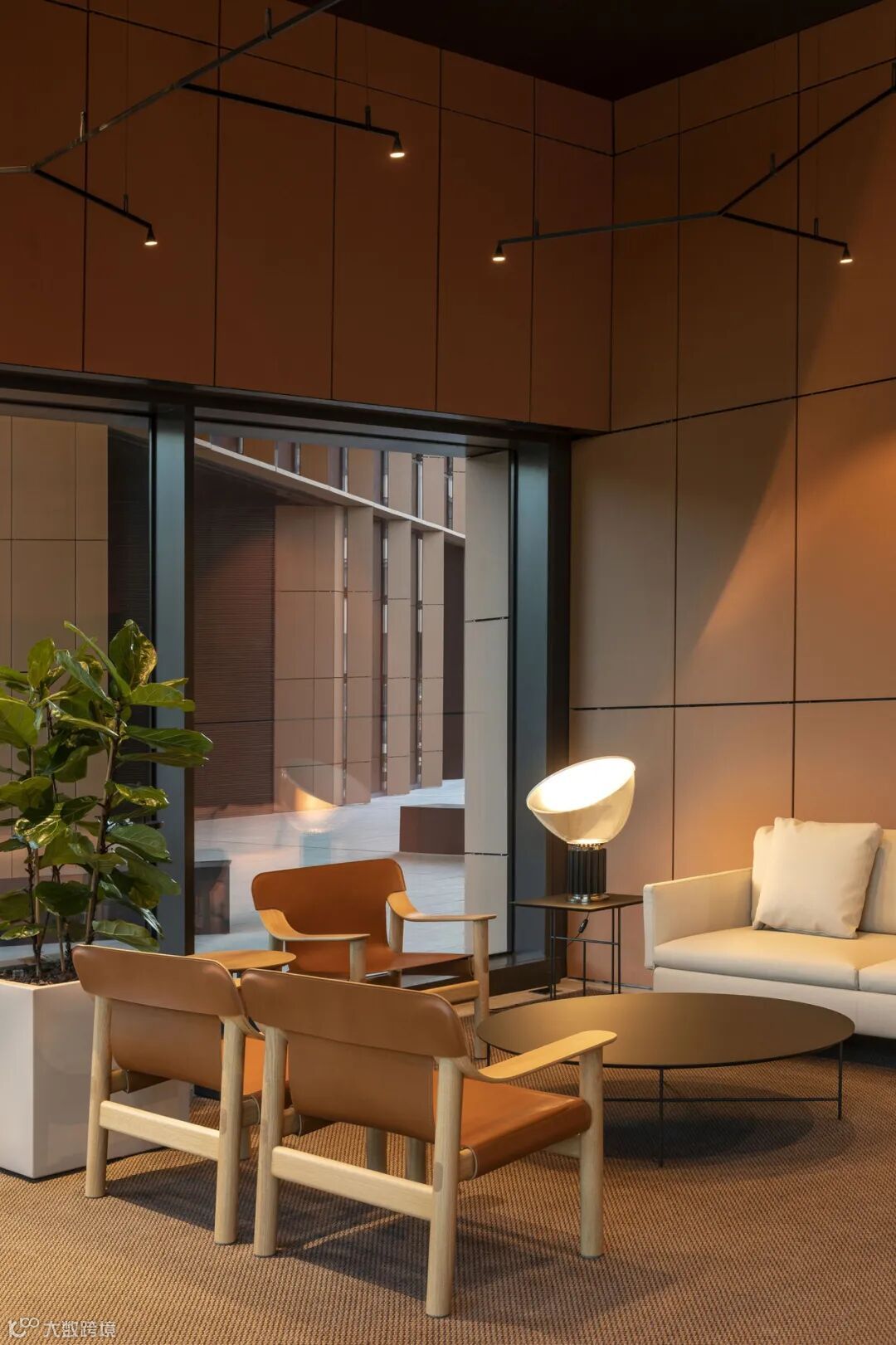

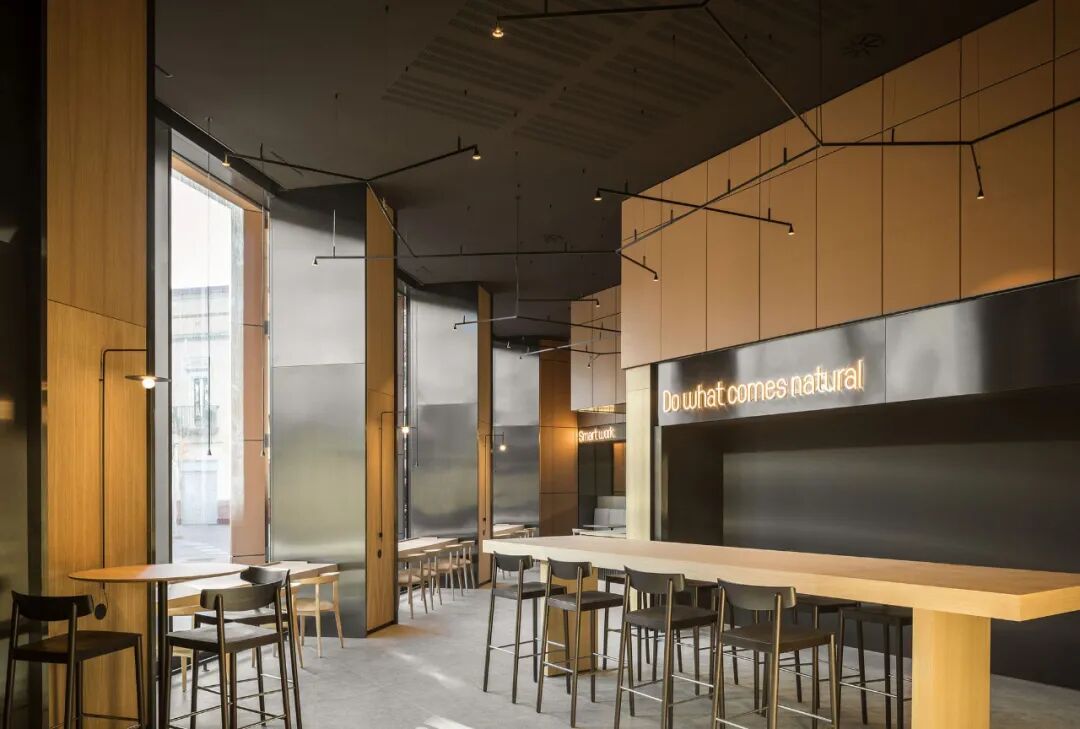

Smart 22@拥有24,600平方米的办公空间，分为三个大块。开放式的、灵活的内部空间设计满足了当今的需求。由于采用了后张式混凝土板结构，自然光从核心区穿透到幕墙外墙。工作区与公共区域相辅相成，如户外露台、休息室、多功能厅、更衣室和其他旨在社交和提高幸福感的服务。

Smart 22@ has 24,600m² of office space divided into three large blocks. The open-plan, flexible interiors have been designed to meet today's needs. Natural light filters through from the core to the curtain wall facades thanks to a post-tensioned concrete slab structure. The work area is complemented by common areas such as the outdoor terraces, lounge, multipurpose room, locker rooms, and other services designed to socialize and enhance well-being.

该项目因其可持续和节能的特点而脱颖而出，包括节省45%的水消耗，32%的能源节约，以及20%的低环境影响材料的使用。它还有75%的可持续废物管理，264块光伏板，63个电动车停车位和25个充电点。

The project stands out for its sustainable and energy-efficient features, including 45% savings in water consumption, 32% energy savings, and 20% use of low environmental impact materials. It also has 75% sustainable waste management, 264 photovoltaic panels, 63 electric vehicle parking spaces, and 25 charging points.

南面的外墙还集成了光伏玻璃板，有助于提高这三座建筑的能源效率。它还有一个配备了光催化和主动极化过滤器的空调系统，以保证空气质量，以及其他环境效益。

The south facade also integrates photovoltaic glass panels that contribute to the energy efficiency of the three buildings. It also has an air conditioning system equipped with photocatalysis and active polarization filters to guarantee air quality, among other environmental benefits.

该项目从工业遗产中升起，作为鼓励现代性、可持续性和技术等价值观的地标而脱颖而出。它通过了LEED铂金V4认证，WELL金级认证，注重用户的健康，以及AAA能源认证，此外还通过了Wiredscore认证。

The project rises from the industrial legacy and stands out as a landmark encouraging values such as modernity, sustainability, and technology. It is LEED Platinum V4 certified, WELL Gold certified, which focuses on the well-being of users, and AAA energy certification, in addition to being Wiredscore certified.

智能22@大楼使用全球道具技术平台Sharry来实现出入、停车管理和访客体验的数字化。由于它的技术，用户可以使用他们的智能手机进入大楼的设施，只需点击几下就能解锁旋转门和门以及停车位或会议室。该APP还促进了访客管理，因为它允许为客人生成一个二维码，以取代塑料胸卡。

The Smart 22@ building uses the global prop-tech platform Sharry to digitize access, parking management, and the visitor experience. Thanks to its technology, users can access the building's facilities using their smartphone to unlock turnstiles and doors and a parking space or meeting room with just a few clicks. The APP also facilitates visitor management, as it allows the generation of a QR code for guests, replacing the plastic badge.
