导读：建筑的外立面参考了该地区现有的建筑结构，其特点是精致细腻的红砖住宅和市政建筑

▲ 更多精品，关注“搜建筑”

亚历山大山学院（Mount Alexander College）是一座新建的中学教育设施，占地 4590 平方米，共五层。该建筑包括行政办公室、初级科学实验室、音乐数字技术，以及可容纳 400 名学生的教学空间。该项目位于一个紧凑的市内校园内，还包括一个新的独立食堂，毗邻垂直教学楼。

Mount Alexander College is a new 4,590 square meter, five-storey, secondary educational facility. The building encompasses administrative offices, junior science laboratories, and music digital technology, along with adaptable teaching and learning spaces tailored to accommodate an additional 400 students. Sited within a condensed inner-city campus, the project also includes a new standalone canteen pavilion adjacent to the vertical school building.

我们广泛征求了各利益相关方的意见，包括学生、教师、校董会、家长和 Wurundjeri Woi Wurrung 文化遗产公司。这种包容性的方法不仅直接影响了教学楼的设计，还在整个过程中促进了各方的积极参与和支持。

Extensive consultation was conducted with a wide range of stakeholders, including students, faculty, school council, parents, and the Wurundjeri Woi Wurrung Cultural Heritage Corporation. This inclusive approach not only directly influenced the building's design but also fostered active participation and support from all parties involved throughout the entire process.

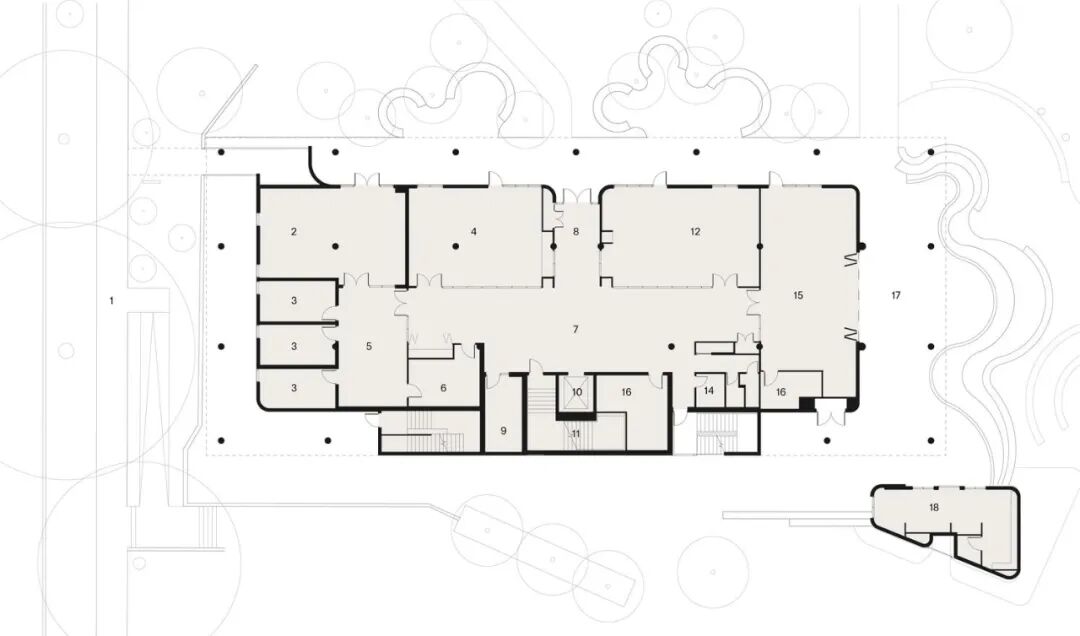

该设施的每一层都设有技术、艺术和多媒体专用空间以及一般教学空间。一楼是表演和创意艺术工作室，毗邻室内休息区，同时也是展示学生艺术作品的展览/画廊空间。此外，地面层还通向一个宽敞的室外露天剧场，观众可以欣赏到建筑内部充分利用内部基础设施（包括灯光和音响系统）进行的表演。

Every floor of this facility includes dedicated spaces for technology, the arts, and multimedia, as well as general teaching spaces. On the ground floor, there are performing and creative arts studios located directly adjacent to an indoor breakout area that also doubles as an exhibition/gallery space to showcase student artworks. Furthermore, the ground level opens to a spacious outdoor amphitheater for audience members to enjoy performances staged inside the building to fully utilize internal infrastructure, including lighting and sound systems.

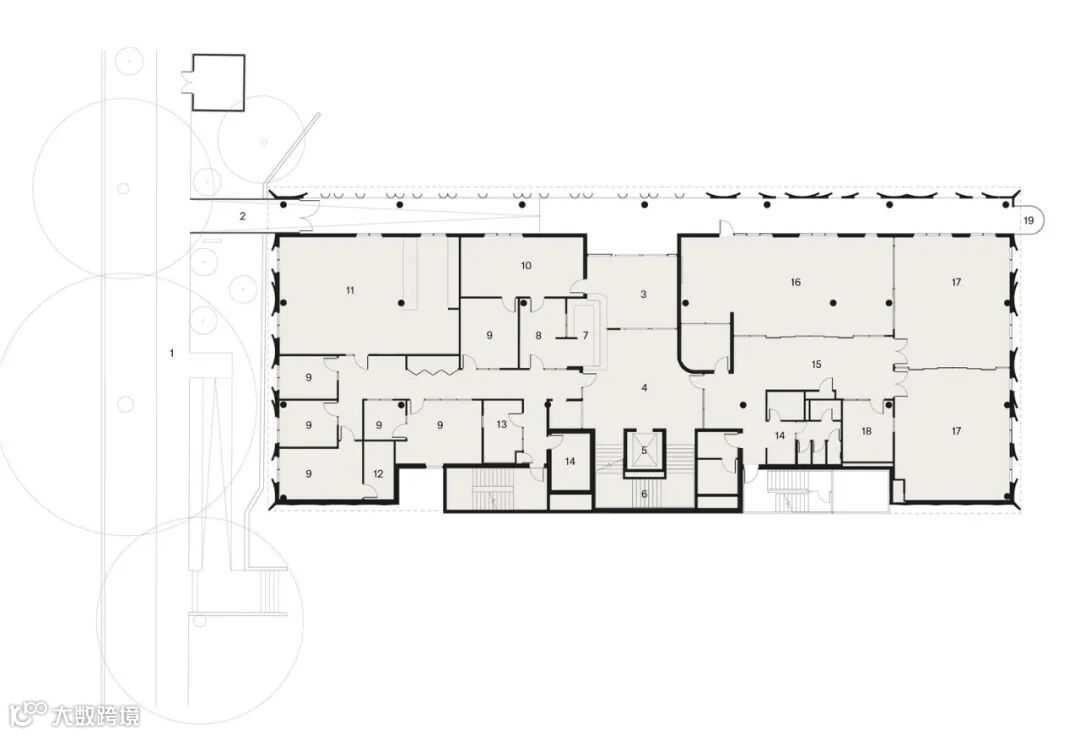

第一层是行政办公区、员工休息区和接待区，此外还有一个相当大的教学区，必要时可用作考场。从惠灵顿街穿过一座连接的 "桥"，沿外部人行道可无障碍地到达新的接待处，最后还可在阳台上俯瞰校园美景。

The first level is home to administration, staff common zones, and reception spaces, in addition to a sizable teaching area that can serve as examination rooms when needed. A connecting 'bridge' from Wellington Street leads you along an external walkway providing fully accessible access to the new reception, as well as culminating in a balcony offering views of the campus.

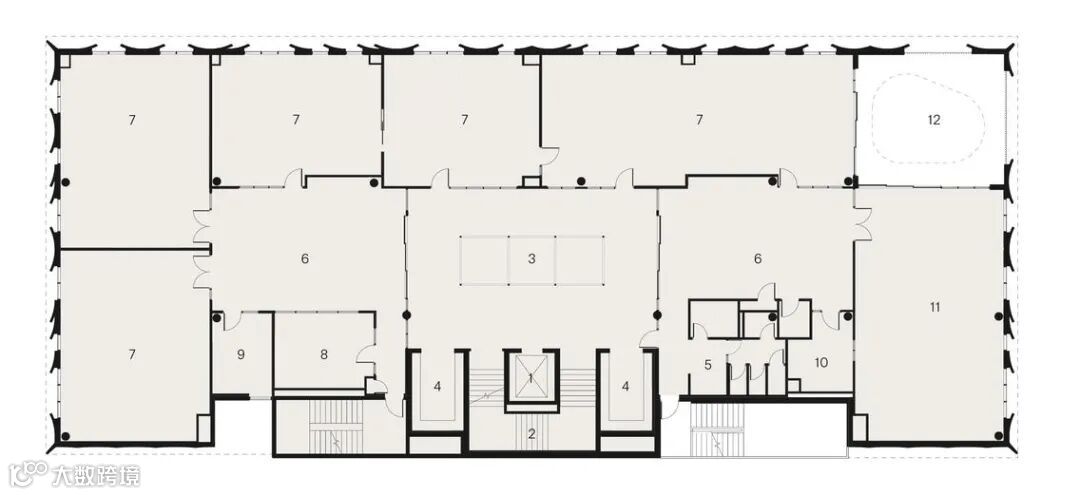

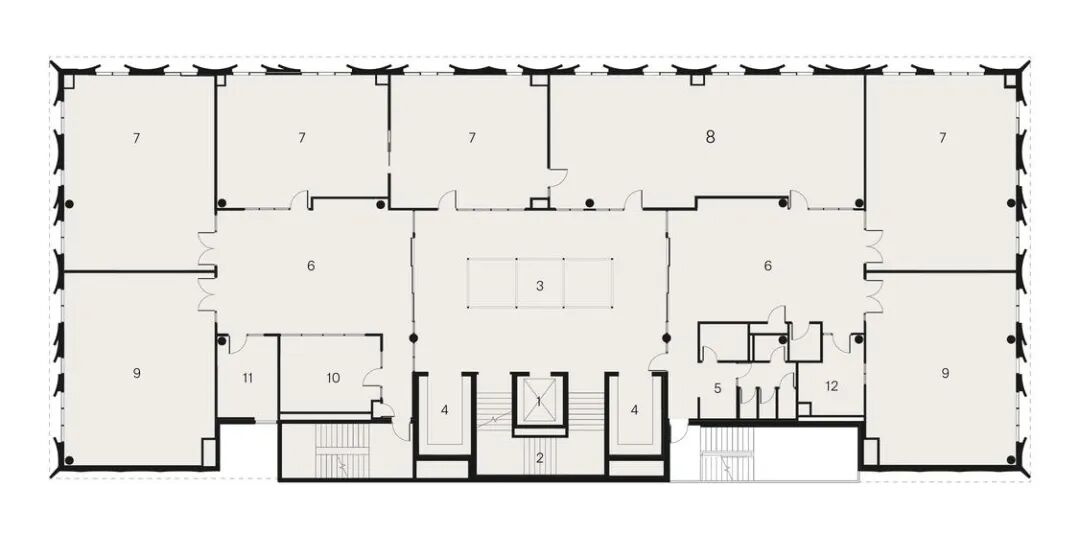

二层和三层包括专门的初级科学实验室、视觉/数字艺术、机器人和材料技术学习空间，以及围绕中央休息空间的协作会议室。

The second and third levels encompass specialized junior science laboratories, visual/digital arts, robotics, and materials technology learning spaces, with collaborative meeting rooms surrounding a centralized breakout space.

在第四层，有专门的空间用于培养和支持高级职业教育与培训课程以及数学和英语课程。室外休息区将这些空间连接起来，并可欣赏到城市天际线的美景，增强了体验感。

On the fourth level, there are dedicated spaces designed to nurture and support the senior VET programs along with mathematics and English. An outdoor breakout area links these spaces and enhances the experience with views back toward the city skyline.

最后，屋顶层提供了一个室外篮球半场，在这个紧凑的市内校园内保留了重要的室外休闲空间。

Finally, the roof level offers an outdoor basketball half-court, preserving vital outdoor recreational space within the confines of this compact inner-city campus.

周围的景观经过精心规划，创造了一系列高质量的户外环境，传统所有者就适当的当地土著植物品种提出了广泛的意见。这些室外学习环境包括朝北的教学区和学习区，这些教学区配有电源，可以让学生在室外演奏音乐，还设计了用于集水的综合雨水花园。

The surrounding landscape has been meticulously planned to create an array of high-quality outdoor environments, with extensive input from the Traditional Owners on appropriate local Indigenous planting species. These outdoor learning environments include north-facing teaching and learning areas, which are powered to enable students to play music outside and have been designed with integrated rain gardens for water collection.

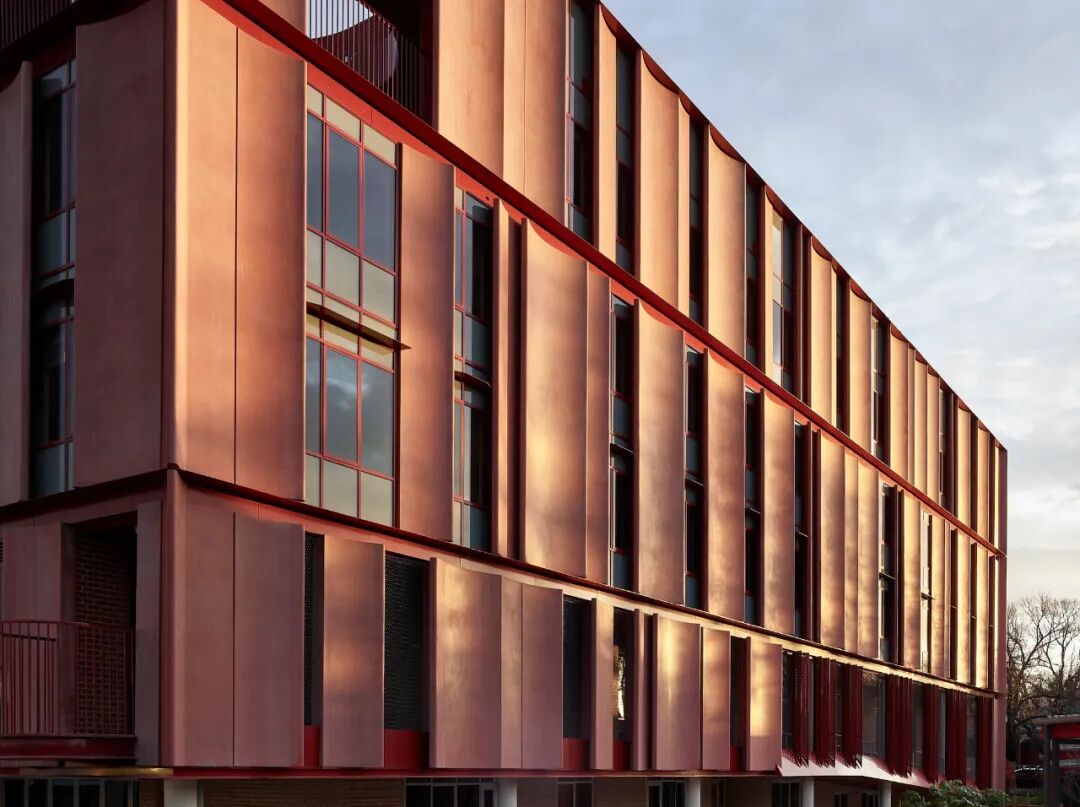

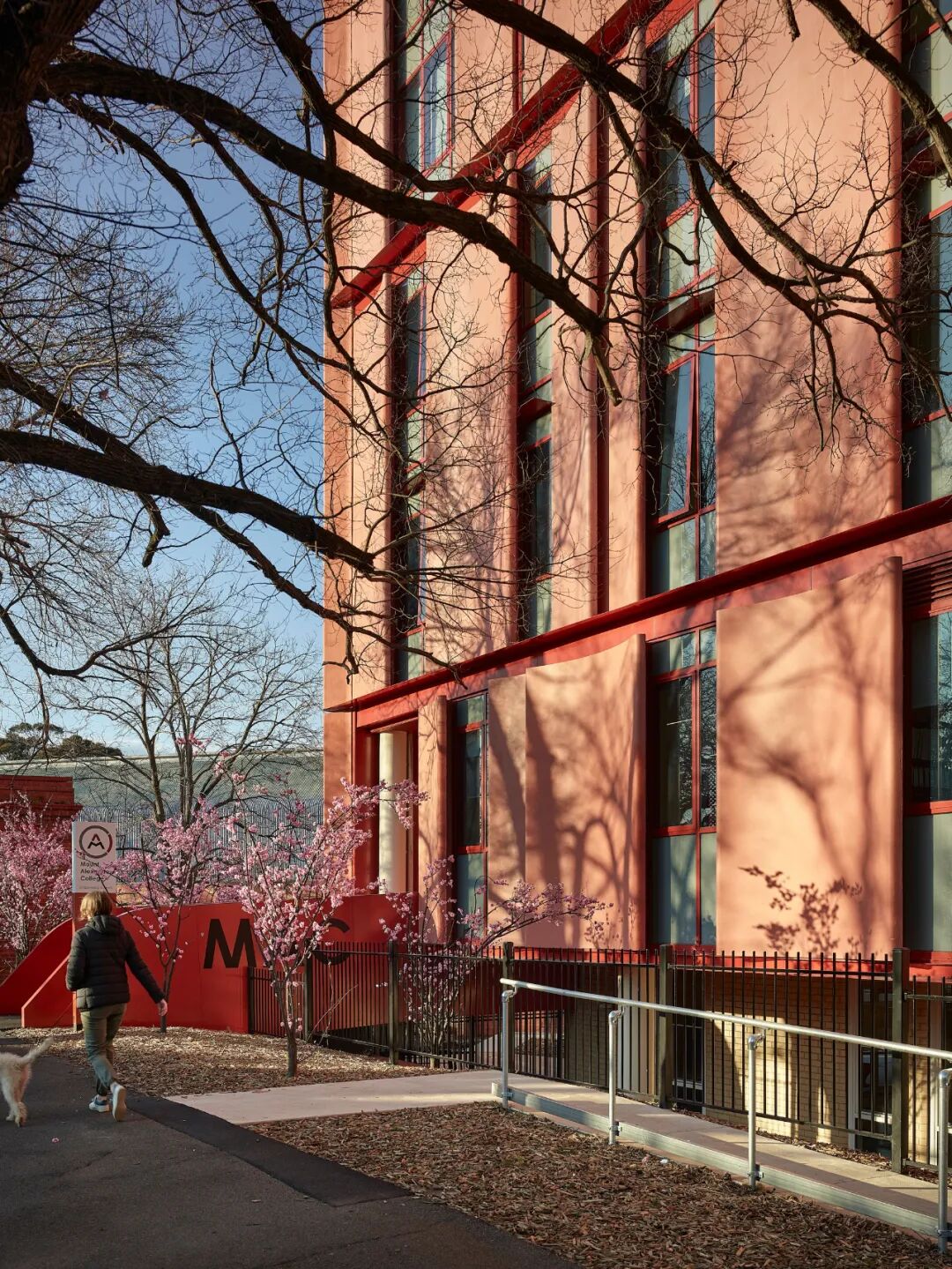

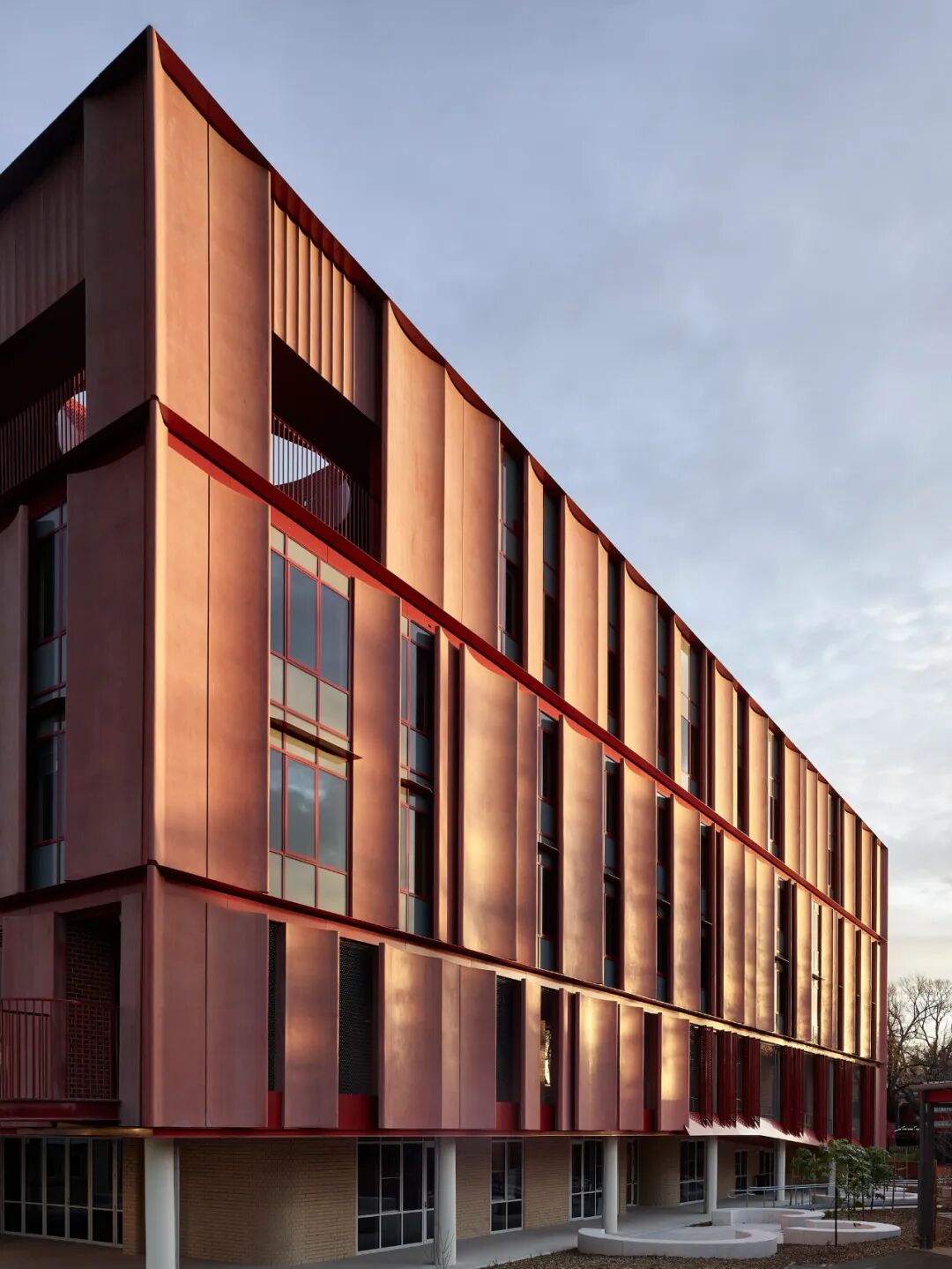

建筑的外立面参考了该地区现有的建筑结构，其特点是精致细腻的红砖住宅和市政建筑。通过一系列预制红色氧化混凝土面板，以现代方式重新诠释了这一遗产。

The building's facade references the existing architectural fabric of the area, characterized by exquisitely detailed red brick residential and civic structures. This heritage is reimagined in a contemporary manner, achieved through a series of pre-cast red oxide concrete panels.
