山形摩天大楼：盒子体块形状，像山石一样堆叠，创造有趣的立面细节

搜建筑

2023-10-10

导读：幕墙竖框的宽度也随着体量大小的变化而变化，以增强垂直的视觉感受，创造更多有趣的立面细节。

▲ 更多精品，关注“搜建筑”

楠盛中心

MUDO Architects+帝奥设计集团

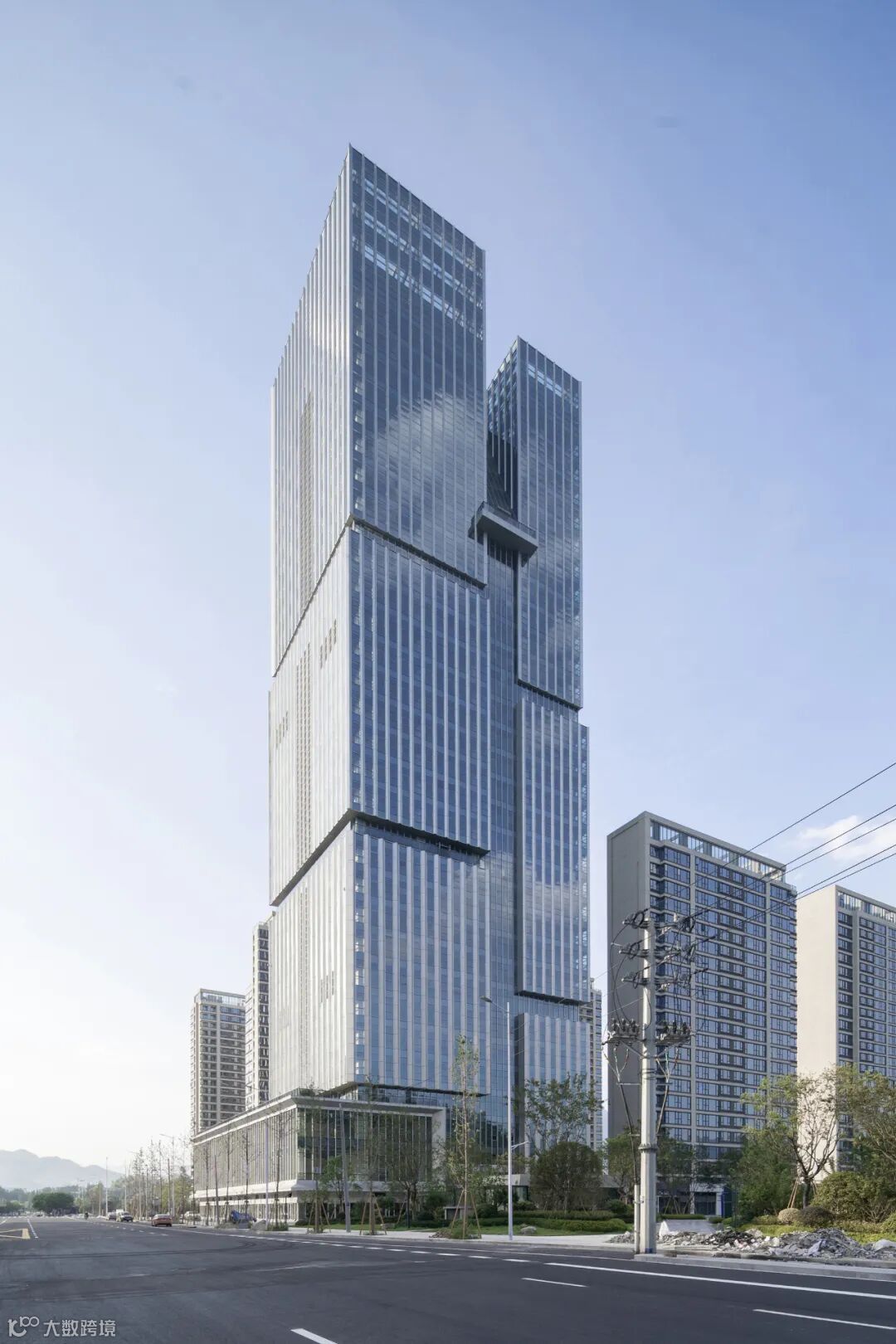

楠盛中心位于温州永嘉村。场地靠近村庄中心和城市中心之间的主要大道，周围交通发达。塔的高度超过140米，总面积达43,000平方英尺。自上个月建成以来，它已成为永家村最新的地标。

Nansheng Center locates in Yongjia village of Wenzhou. The site is near the main avenue between village center and city downtown, and has well-developed transportation surrounded. The height of the tower exceeds 140m and the area reaches 43,000 msqr in total. It has became the latest landmark of Yongjia village since it built in last month.

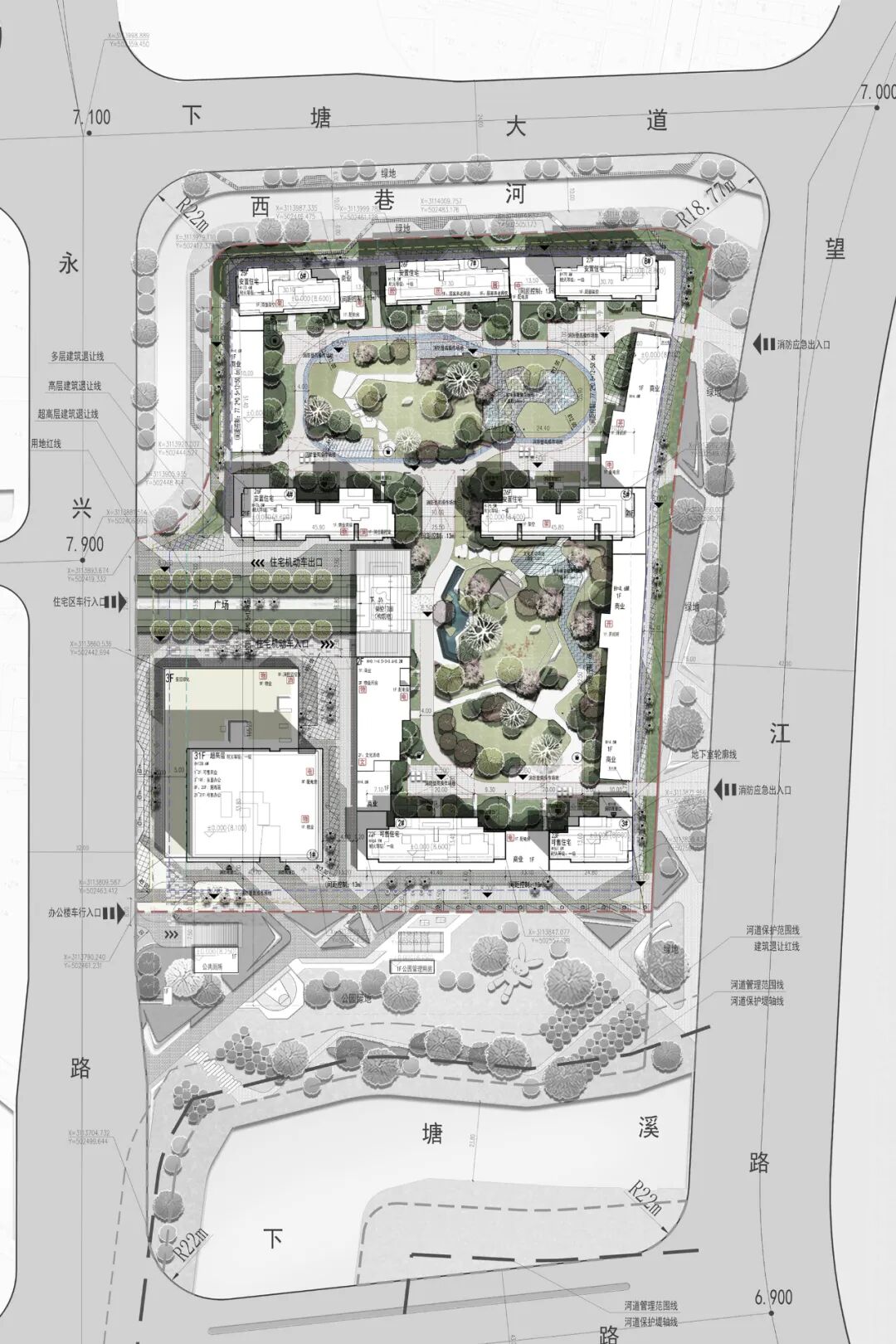

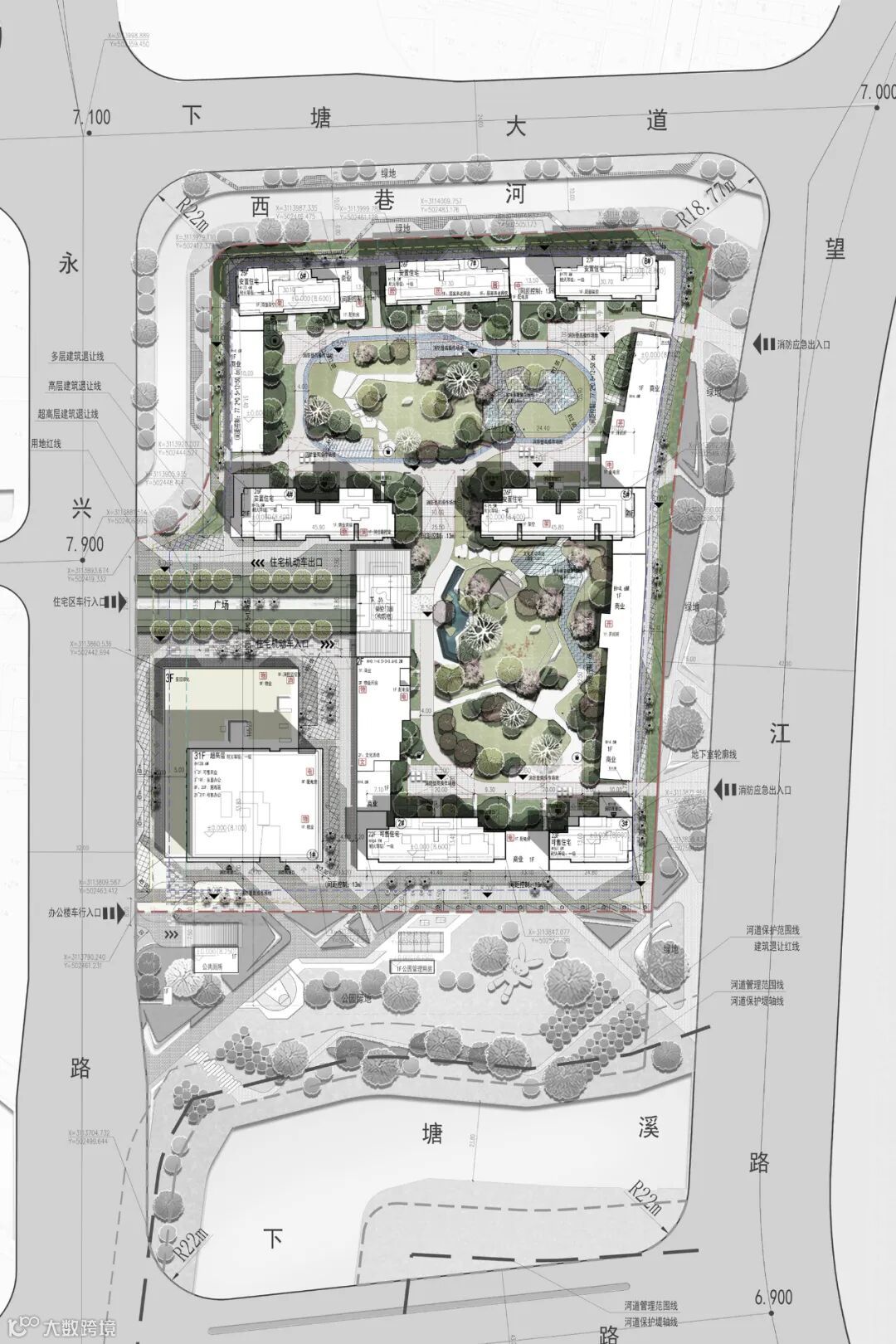

总平面图

建筑平面图

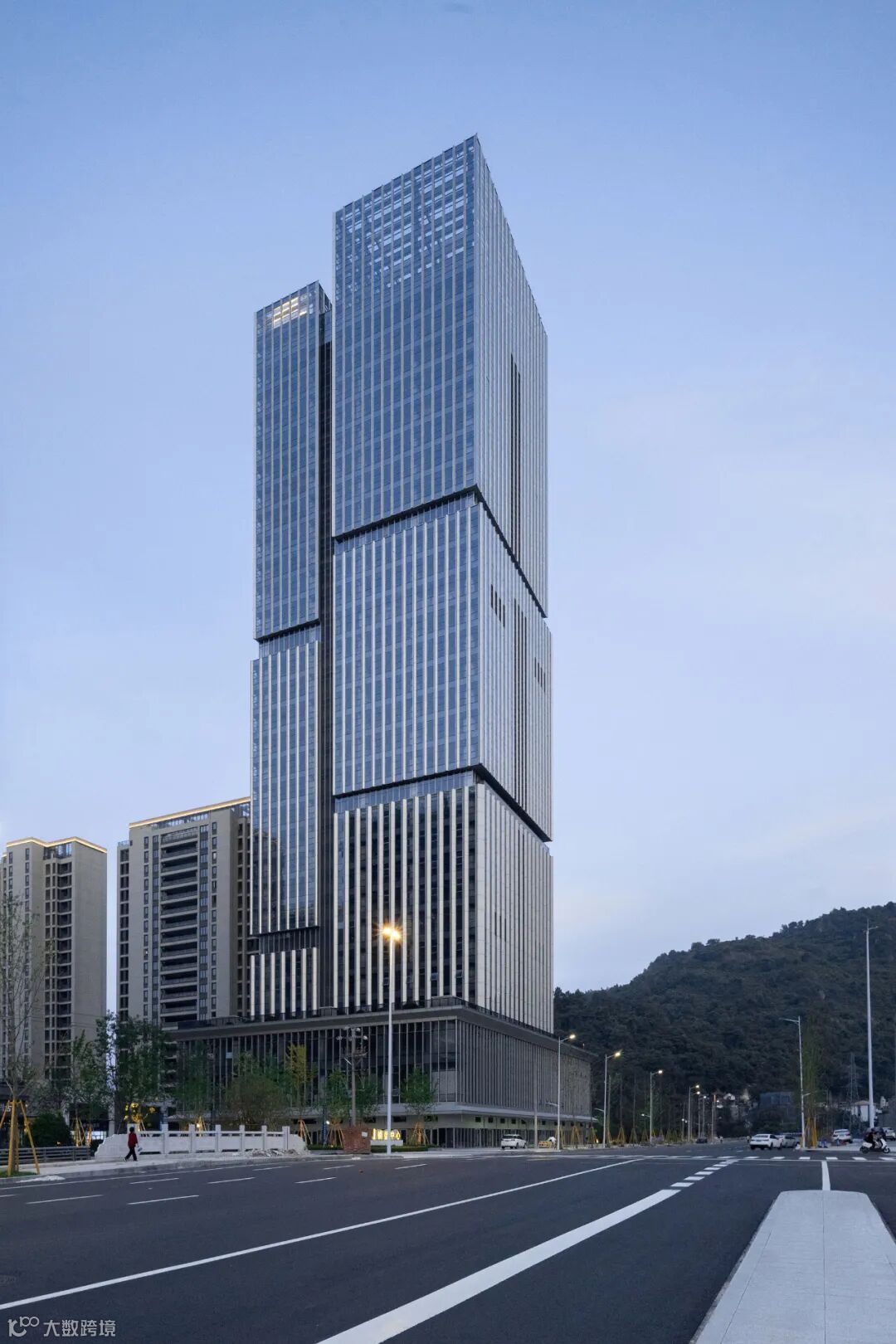

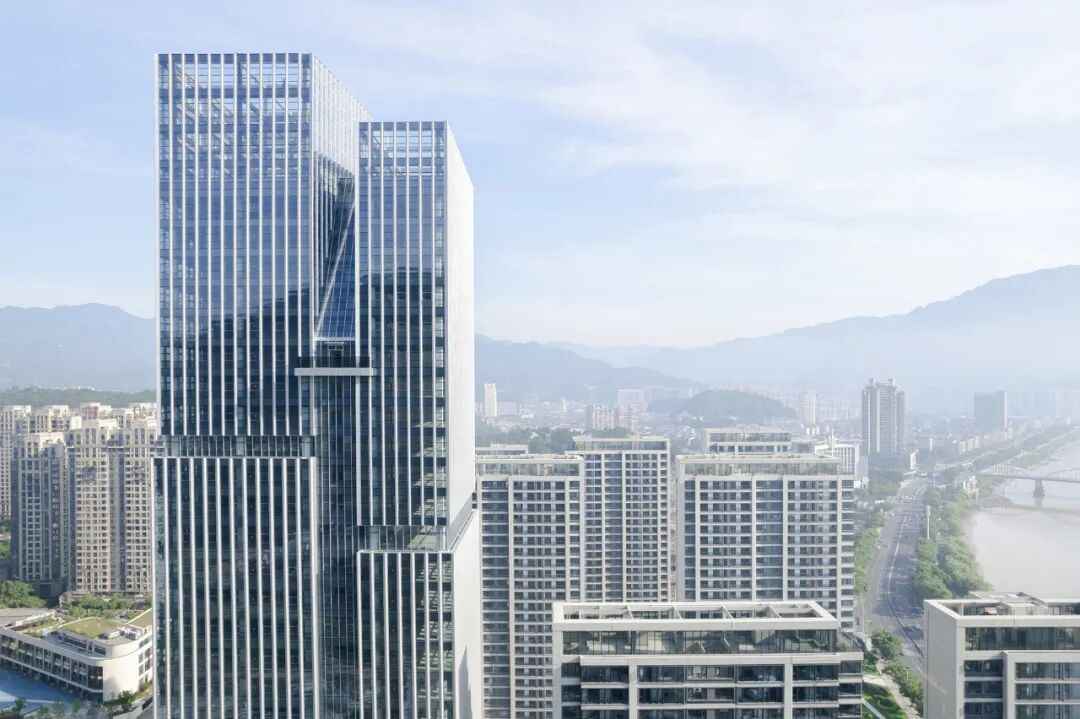

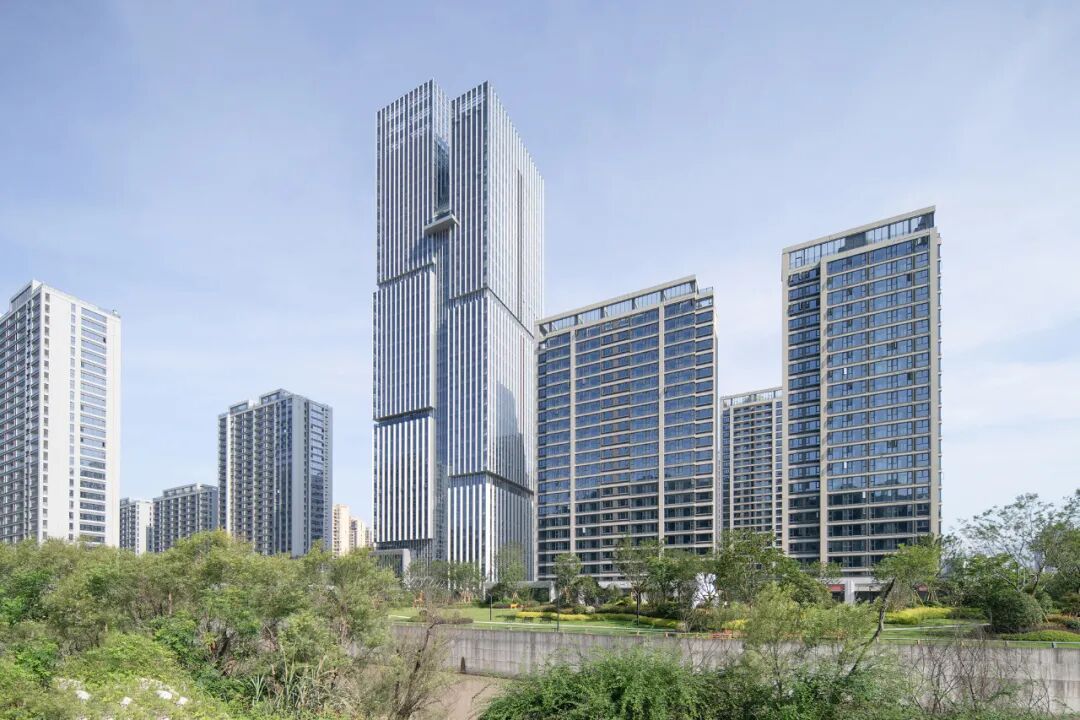

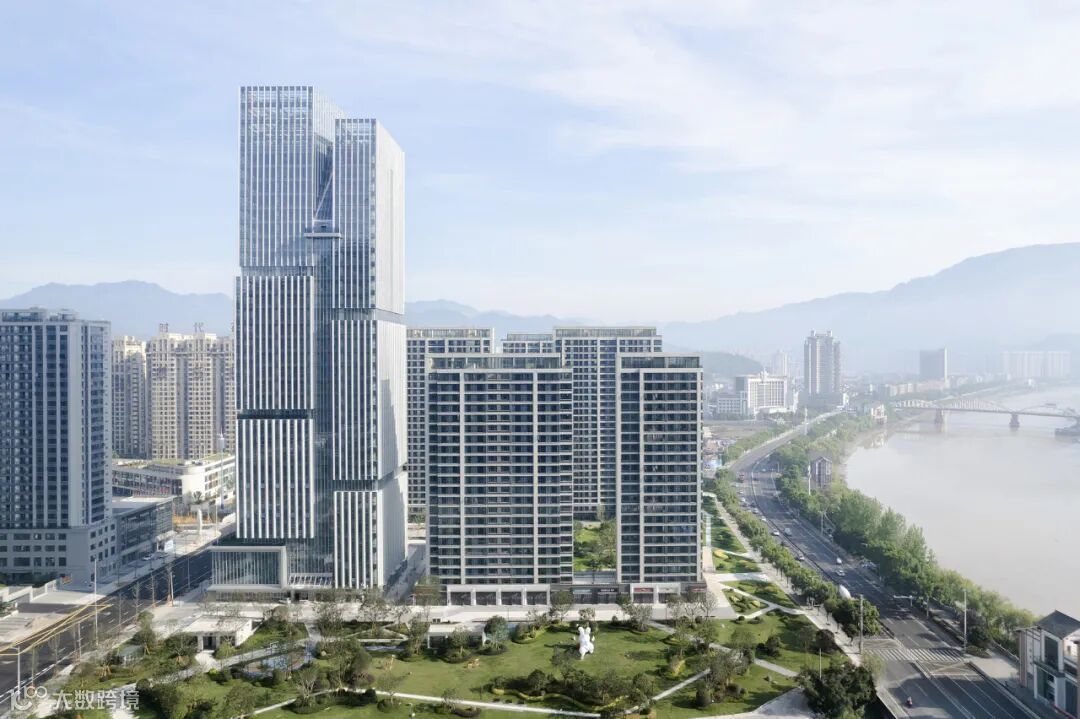

城市天际线从东向西增加，东部布置低层住宅和带有绿色公园的零售，创造更友好的滨水空间。同时，高层办公大楼位于东南角，起到高度识别的城市门户作用。当来自温州的车辆驶过工地南面的几座小山时，这座山形摩天大楼会在最后一个转弯时突然跃入人们的视野。层次化的建筑形式体现了建筑对周围自然环境的回应。

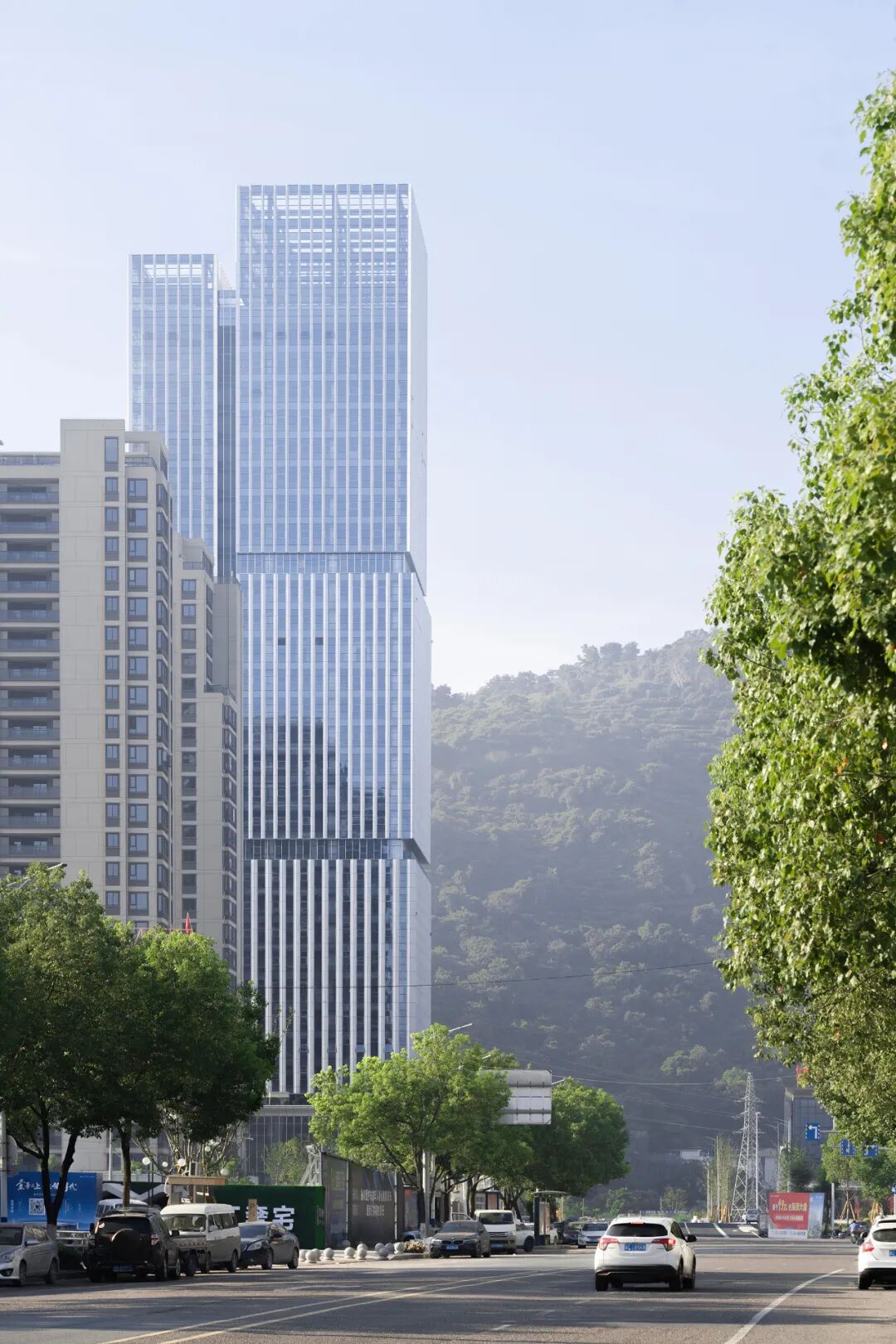

The urban skyline increased form east to west, low-rise residential buildings and retails with green park are arranged in east, to create a more friendly waterfront space. While, the high-rise office tower locates in south-east corner, to play the role of highly recognizable urban gateway. When the vehicles from Wenzhou were driven across few hills in the south of the site, the mountain-shape skyscraper will suddenly jump to people’s view in the last turn. The layering building form shows the architectural responding to the surrounding nature.

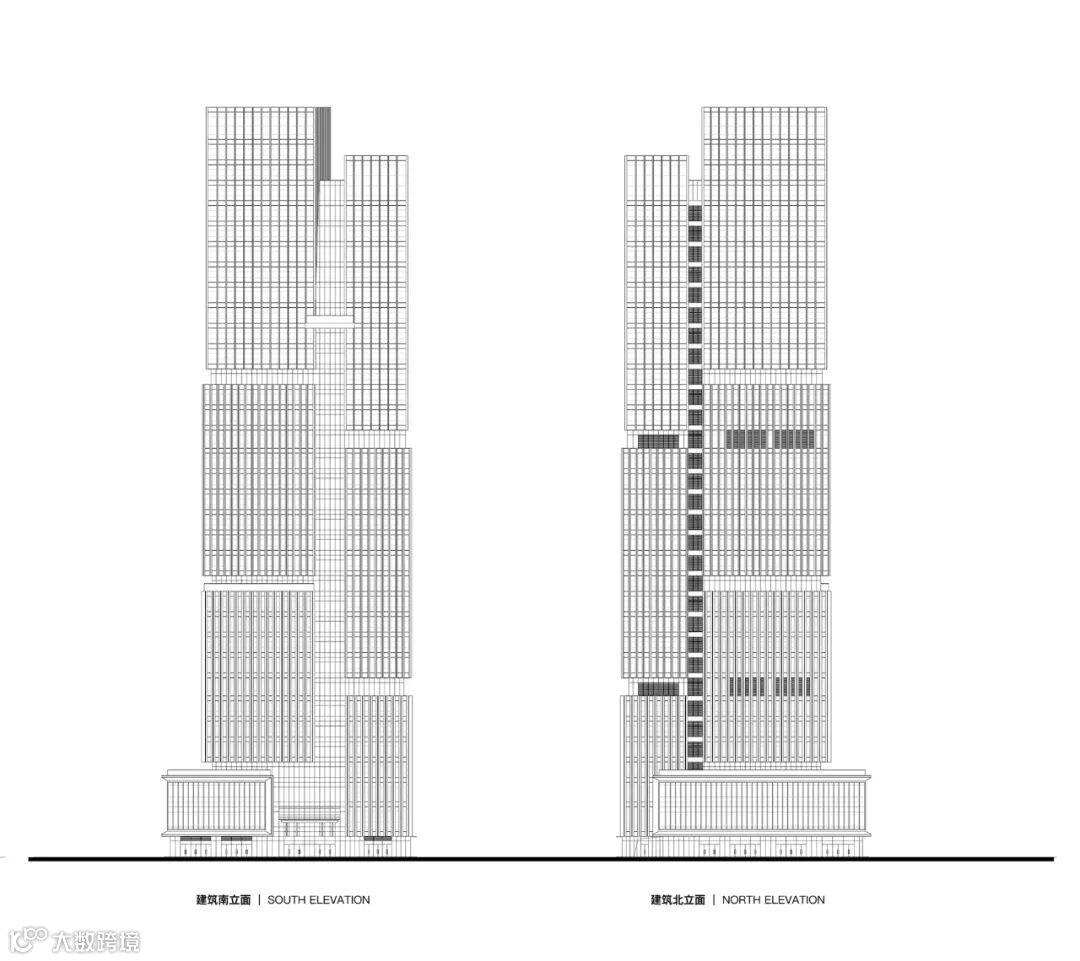

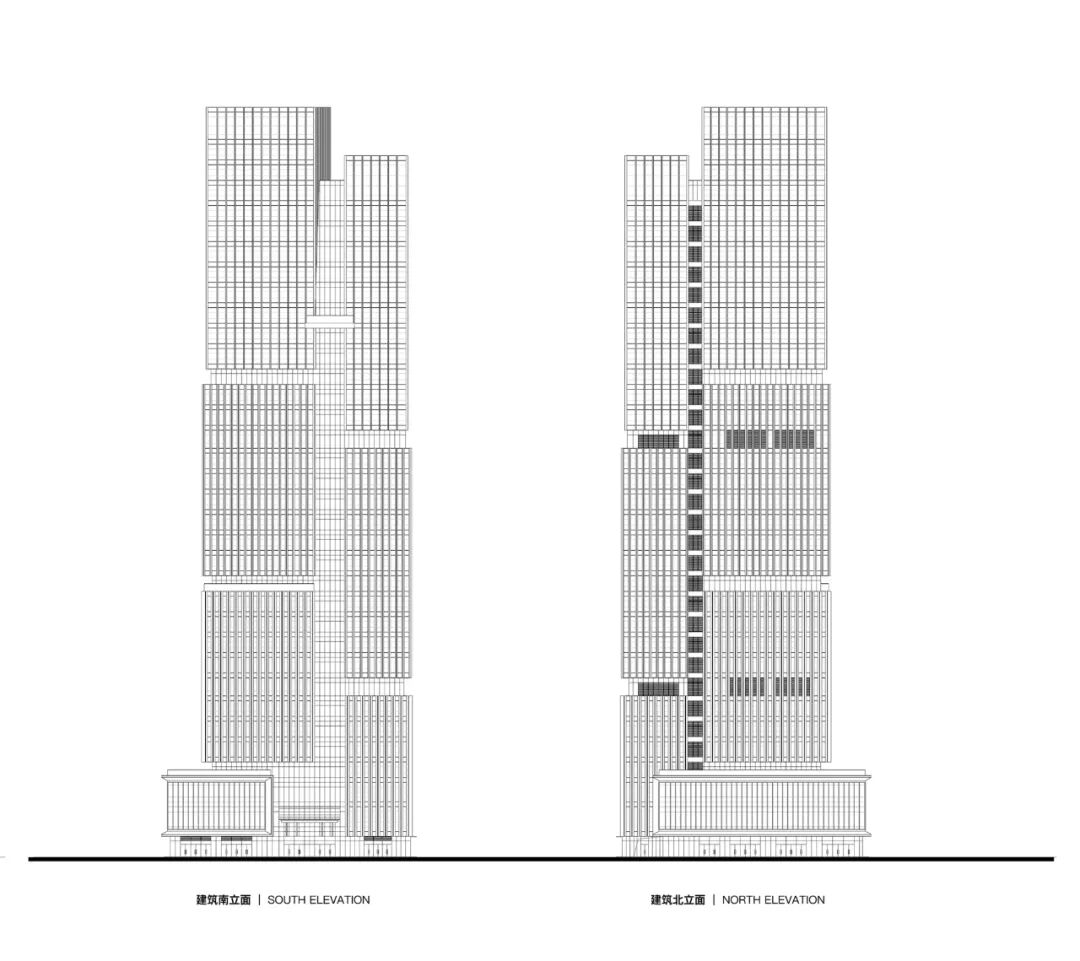

立面图

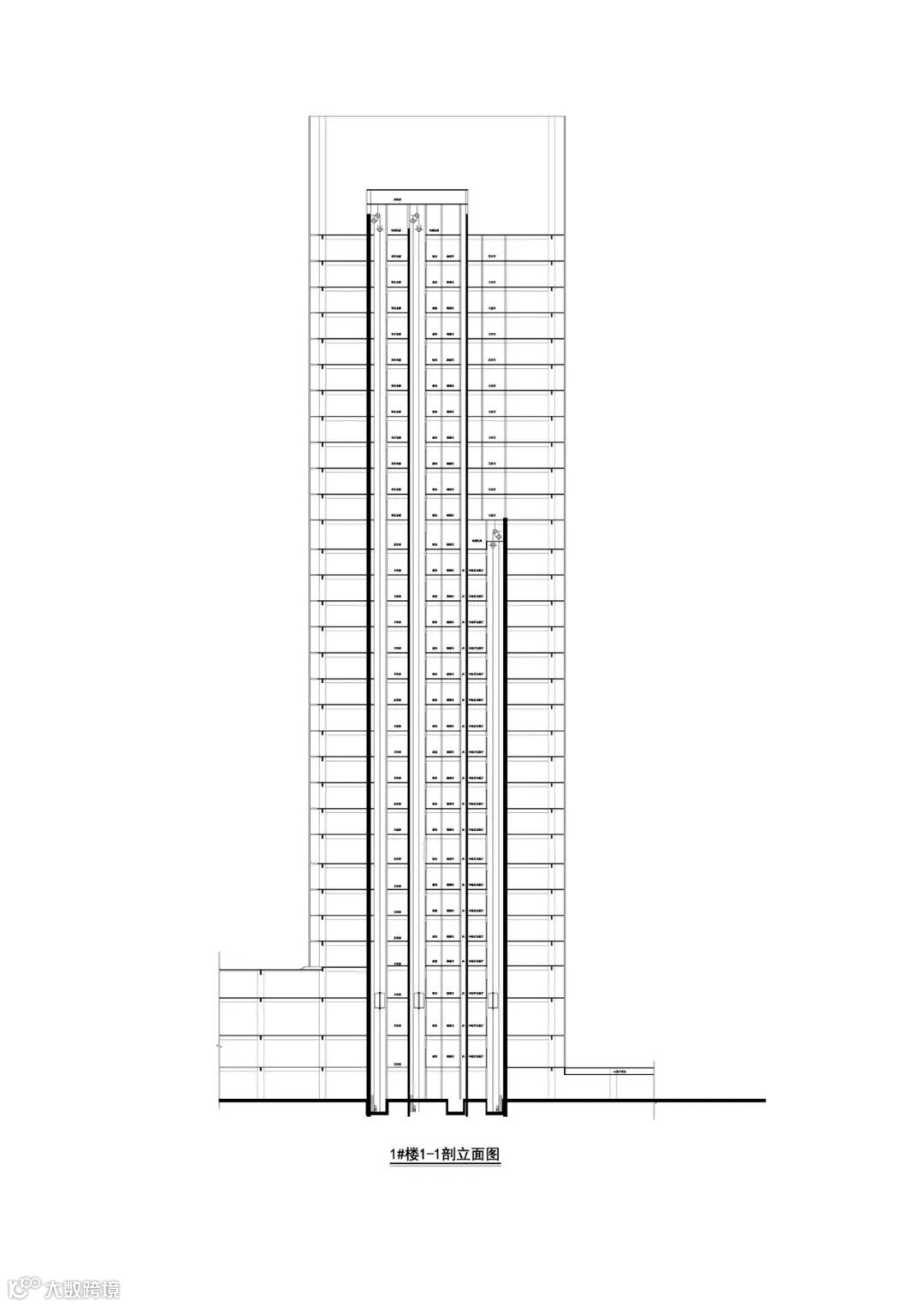

剖面图

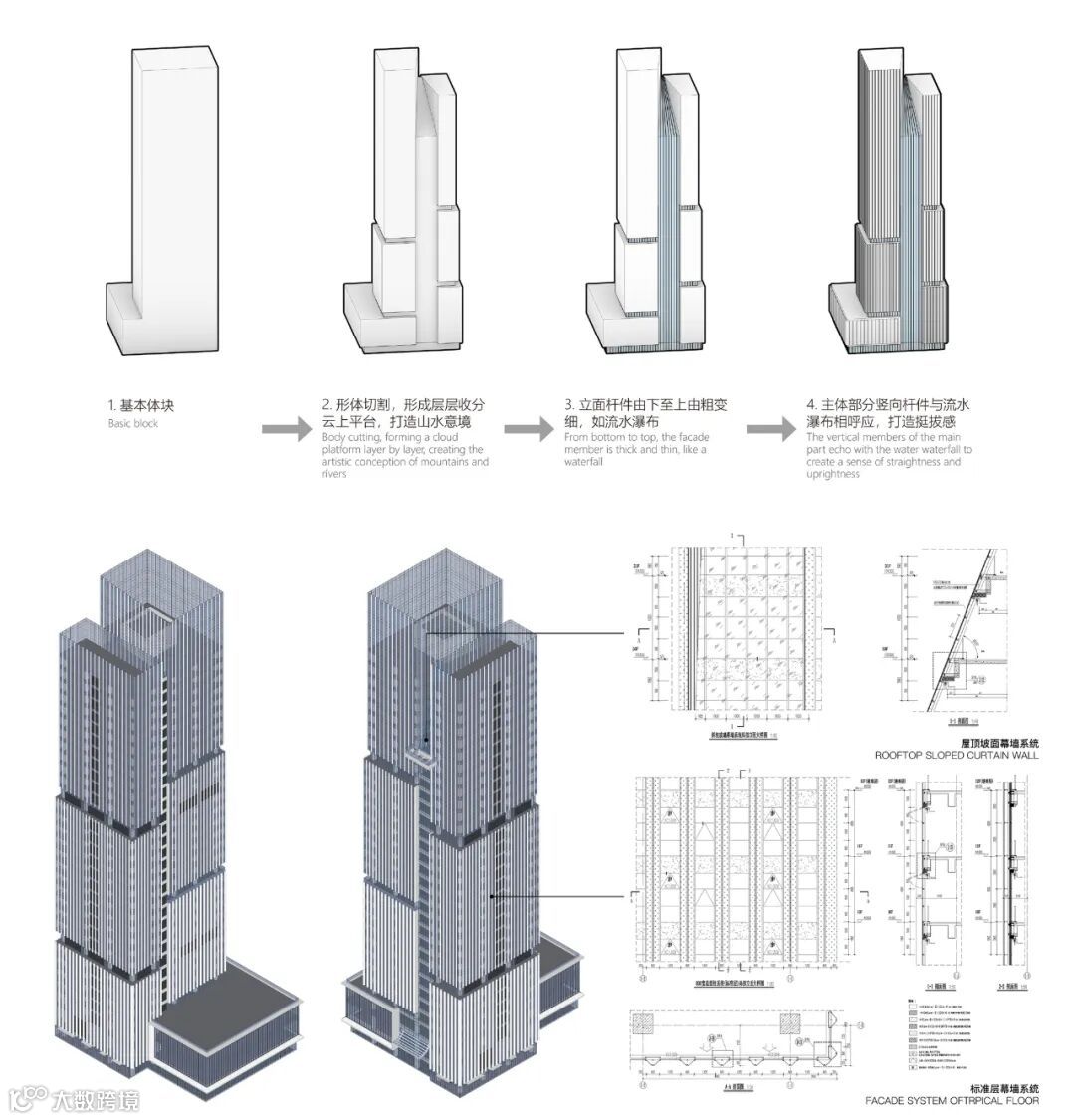

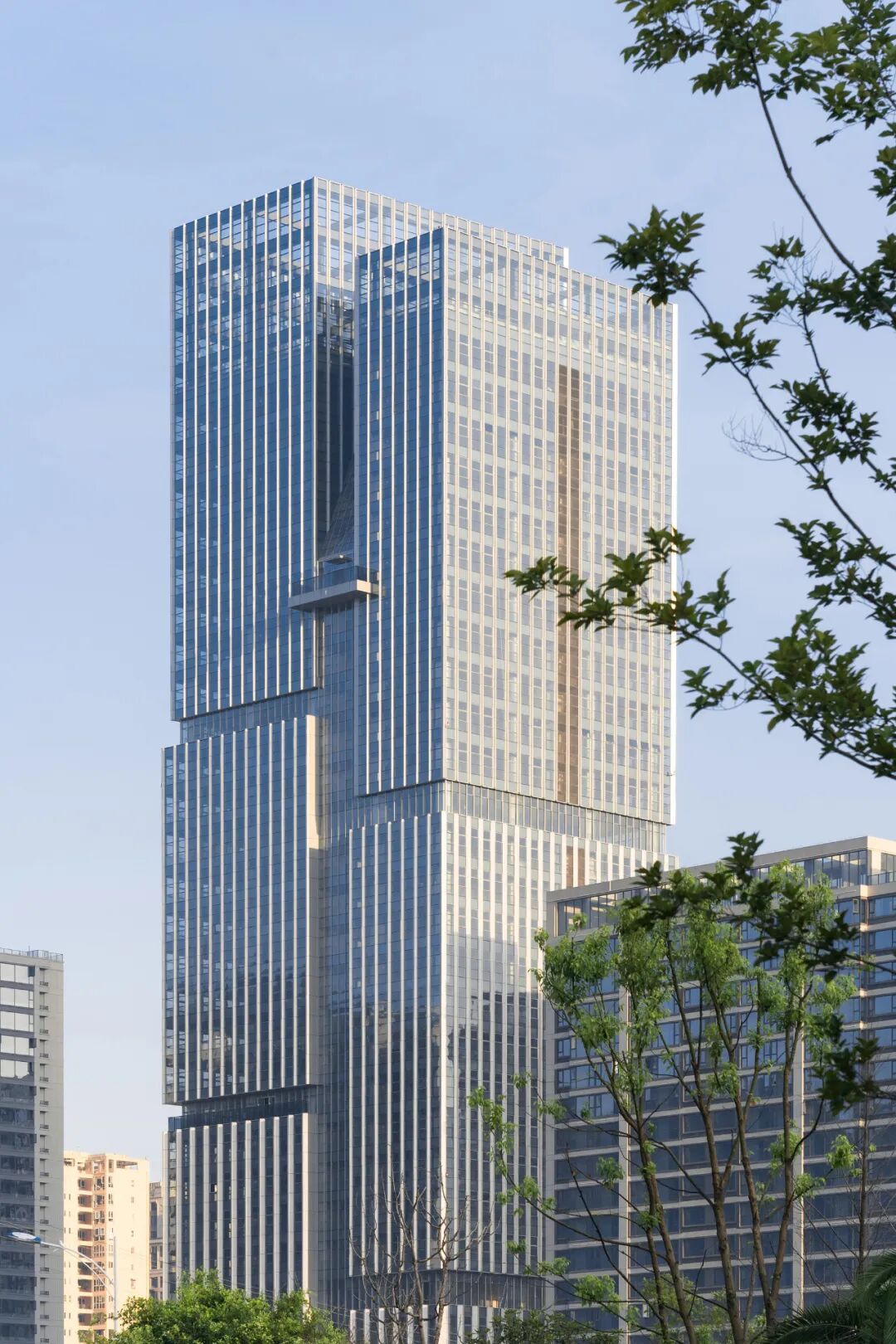

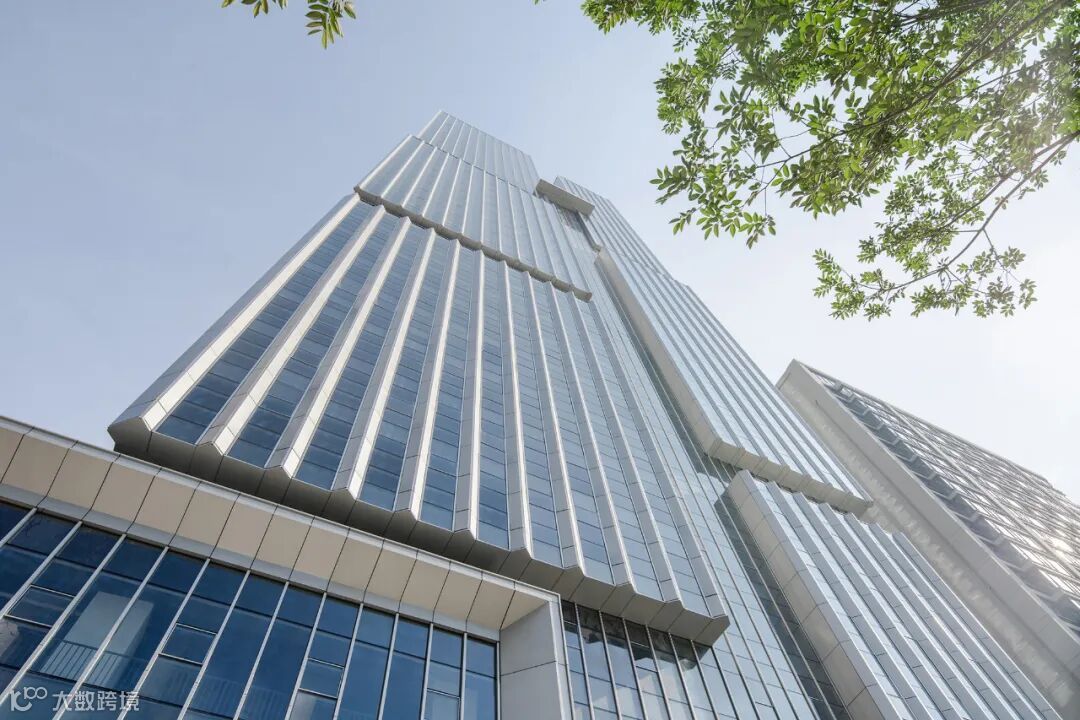

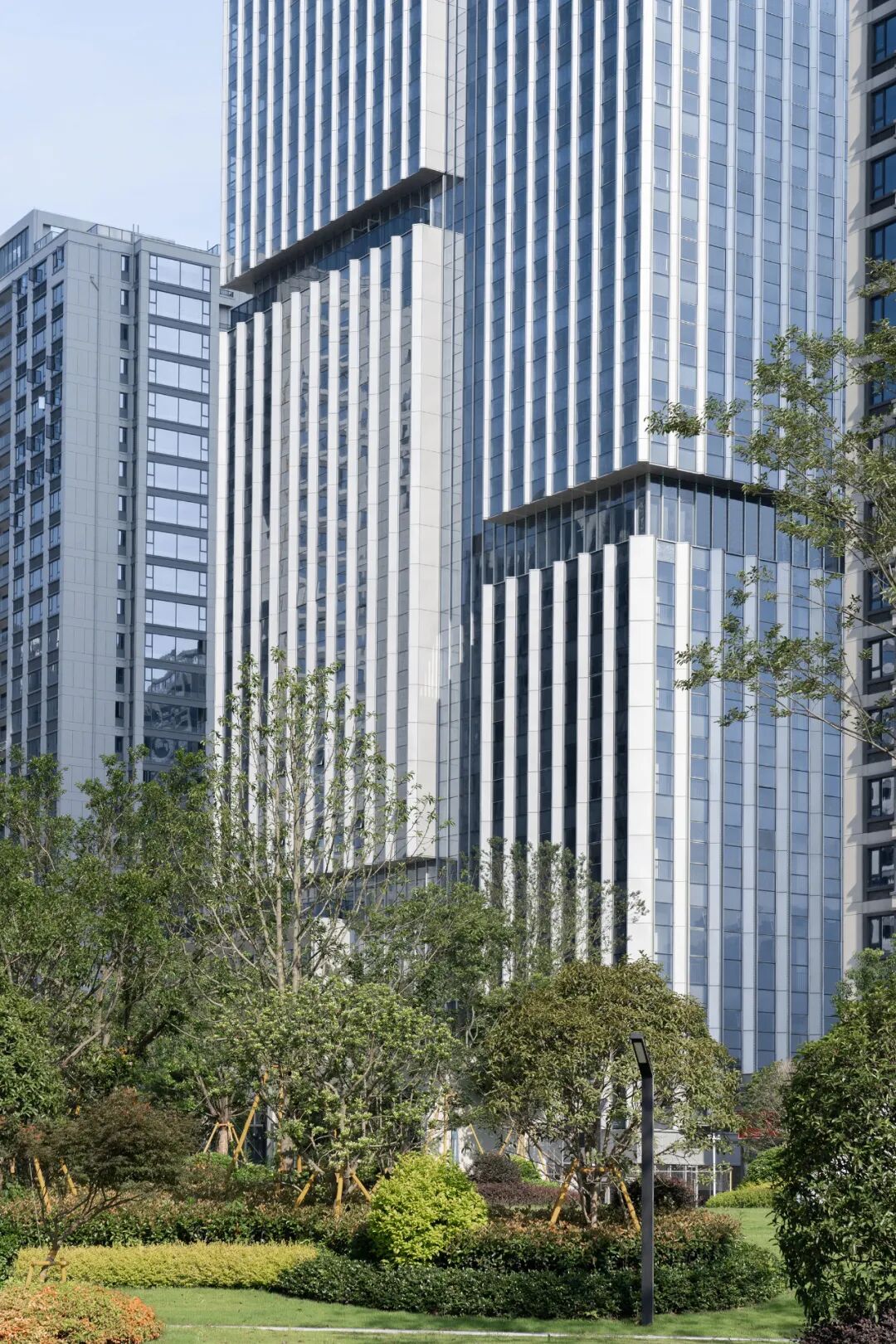

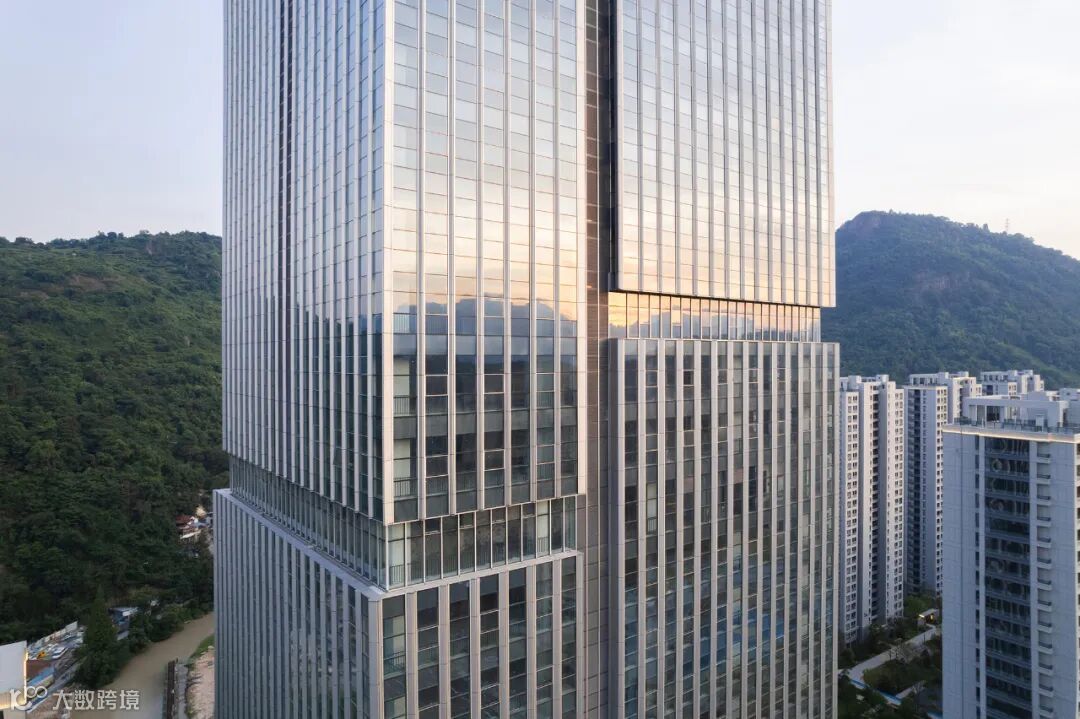

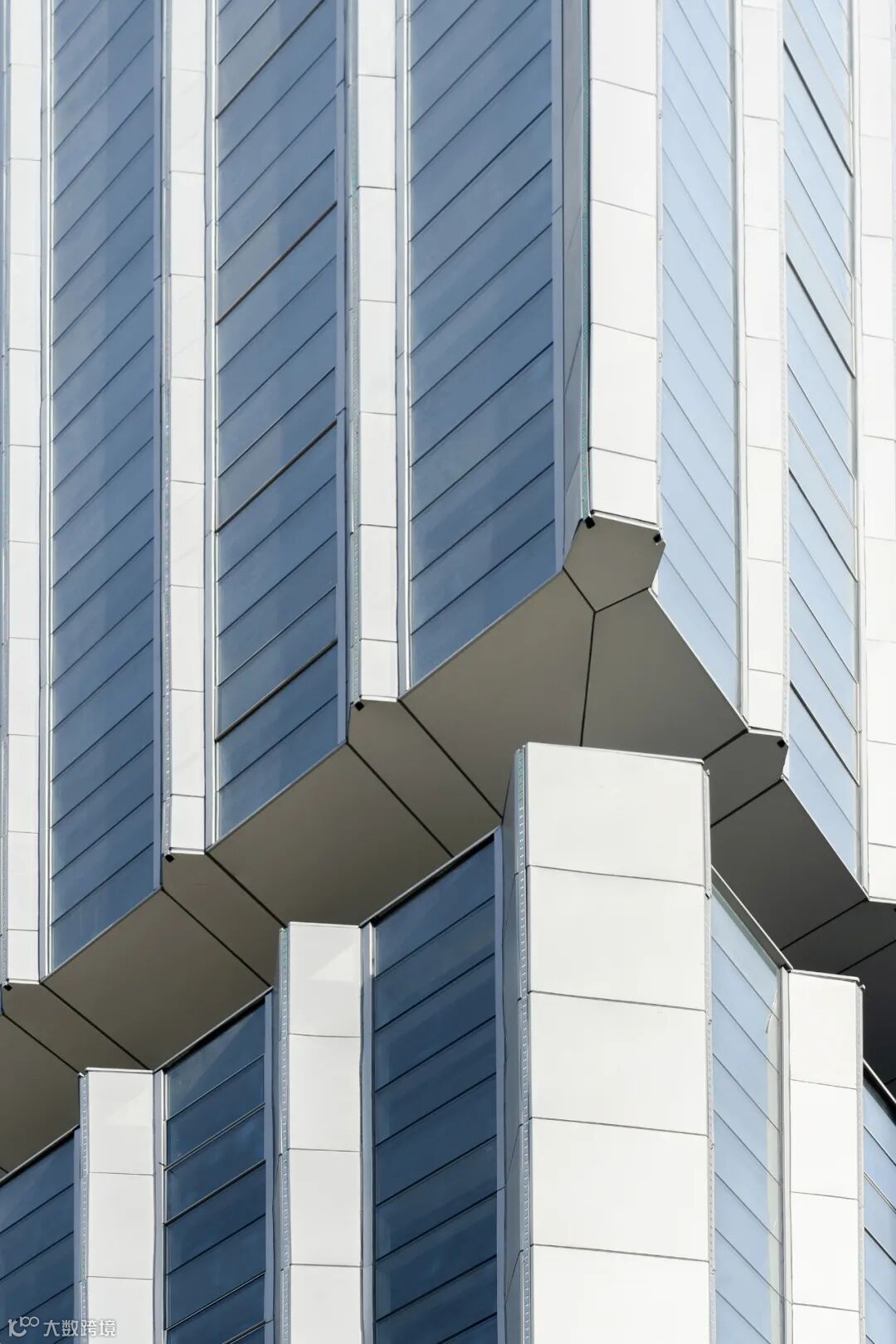

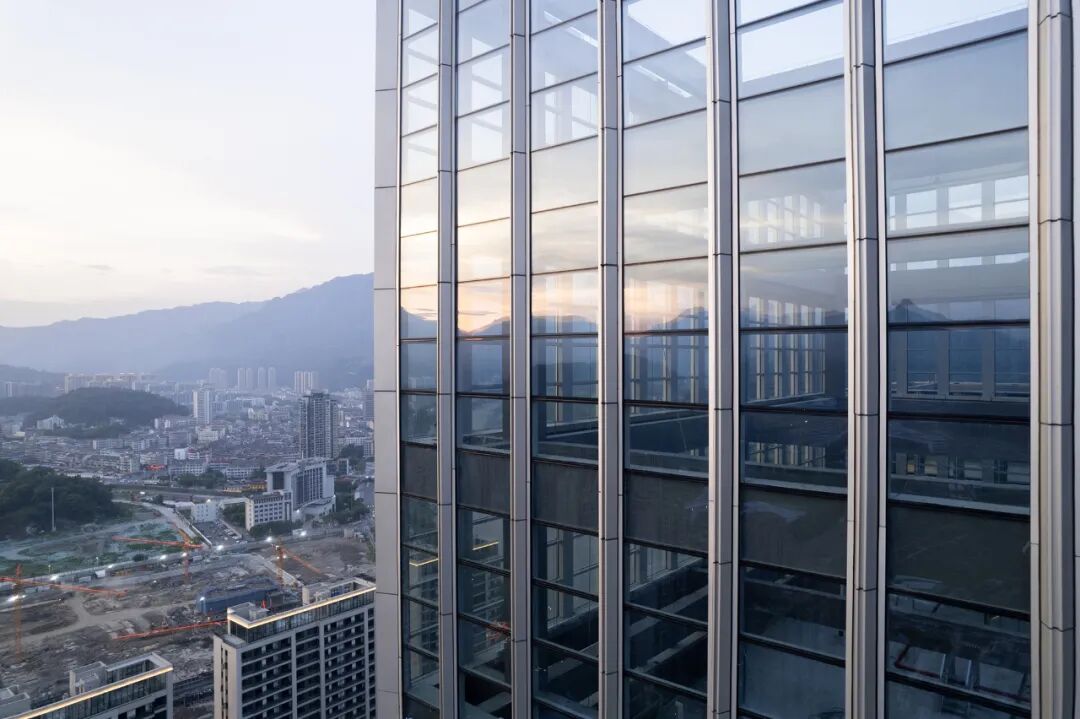

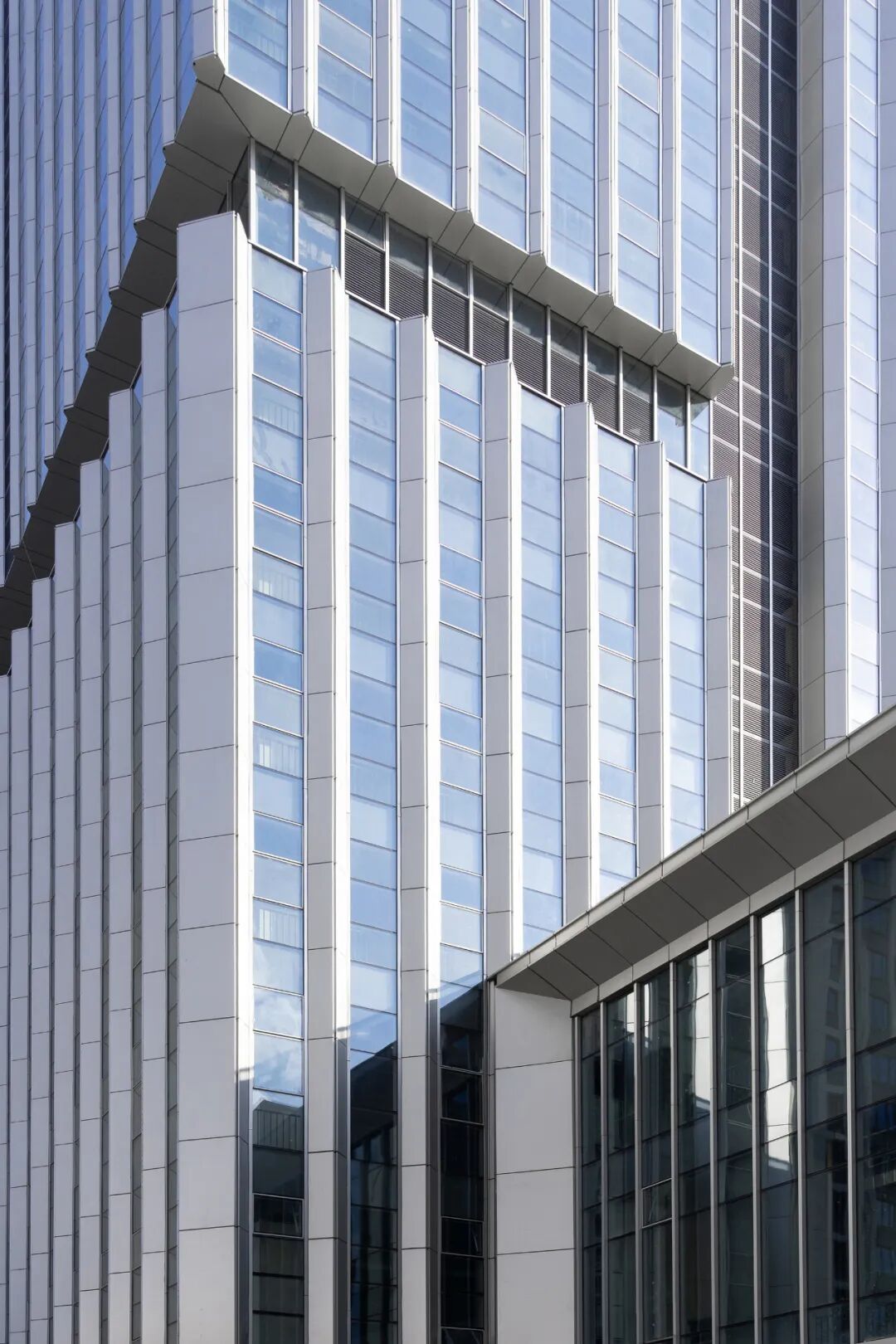

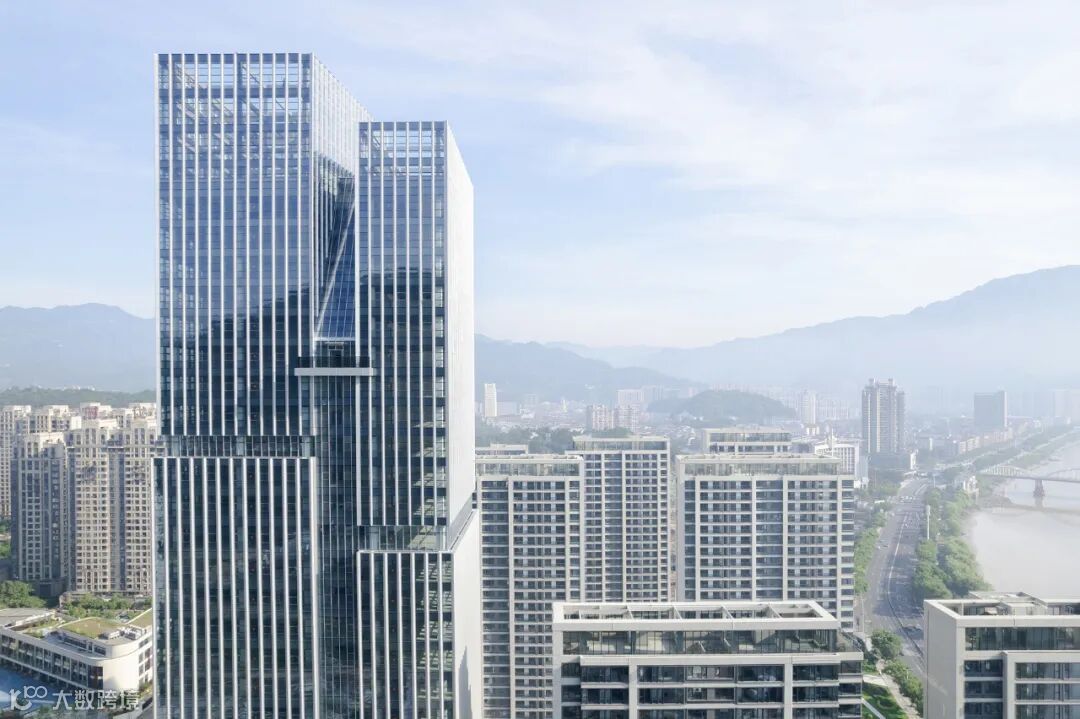

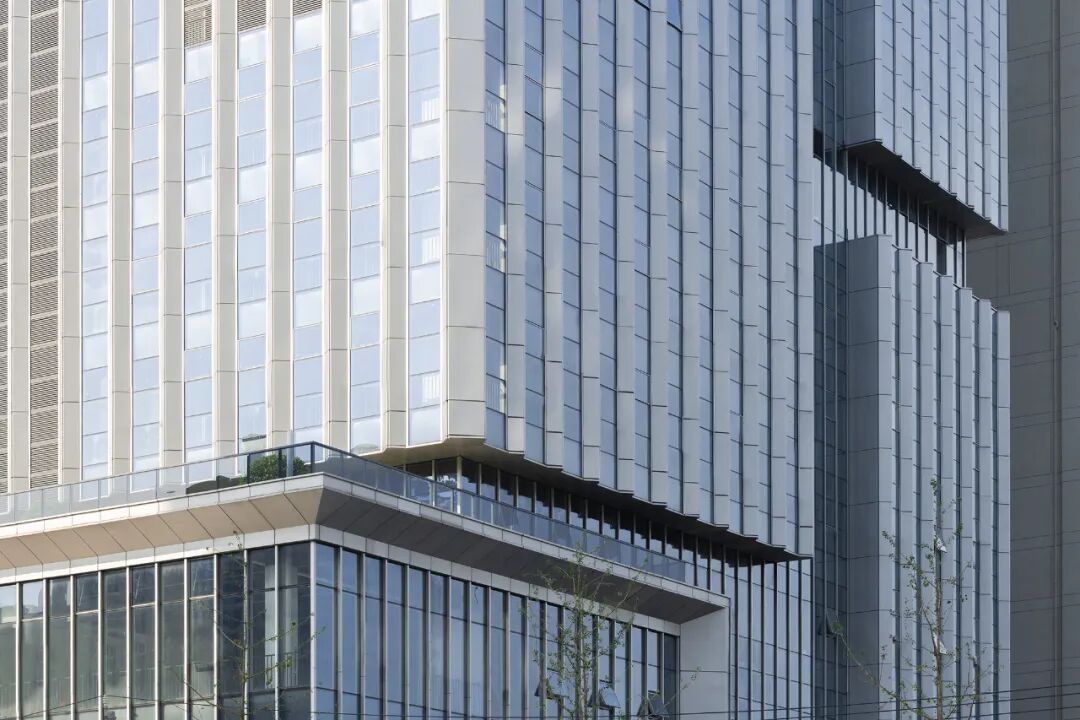

整个建筑的形状被划分为几个盒子体块。体量从下到上递减，像山石一样堆叠在一起。幕墙竖框的宽度也随着体量大小的变化而变化，以增强垂直的视觉感受，创造更多有趣的立面细节。在岩石体量之间，连续的透明玻璃从一楼一直安装到屋顶。从远处看，它就像一堵墙落在山形建筑内。此外，在26层设计了一个户外共享平台，人们可以在工作休息时看到周围的山丘和纳西河。

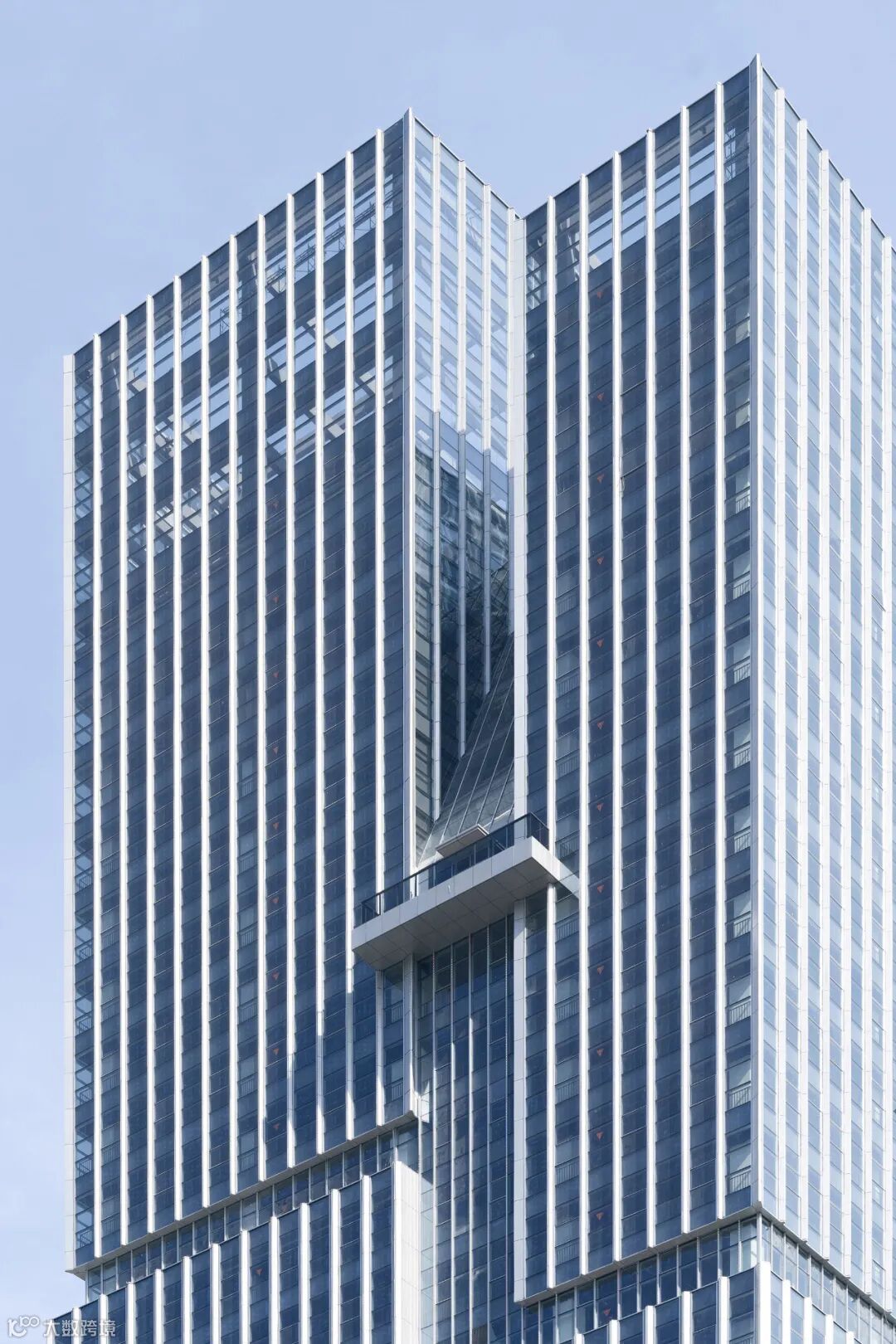

The overall building shape is divided into several box volumes. Volumes are decreased from bottom to top, and been stacked together as mountain rocks. The width of curtain wall mullions also vary with the change of the volumes’ size, to enhance the vertical visual feeling and create more interested facade details. Between rock volumes, continued clear glasses are installed all the way from ground floor to rooftop. It seems as a wall fall inside the mountain shape building from long viewing distance. Additionally, an outdoor sharing platform is designed in Level 26, peoples can view surrounding hills and the Naxi River during their working breaks.

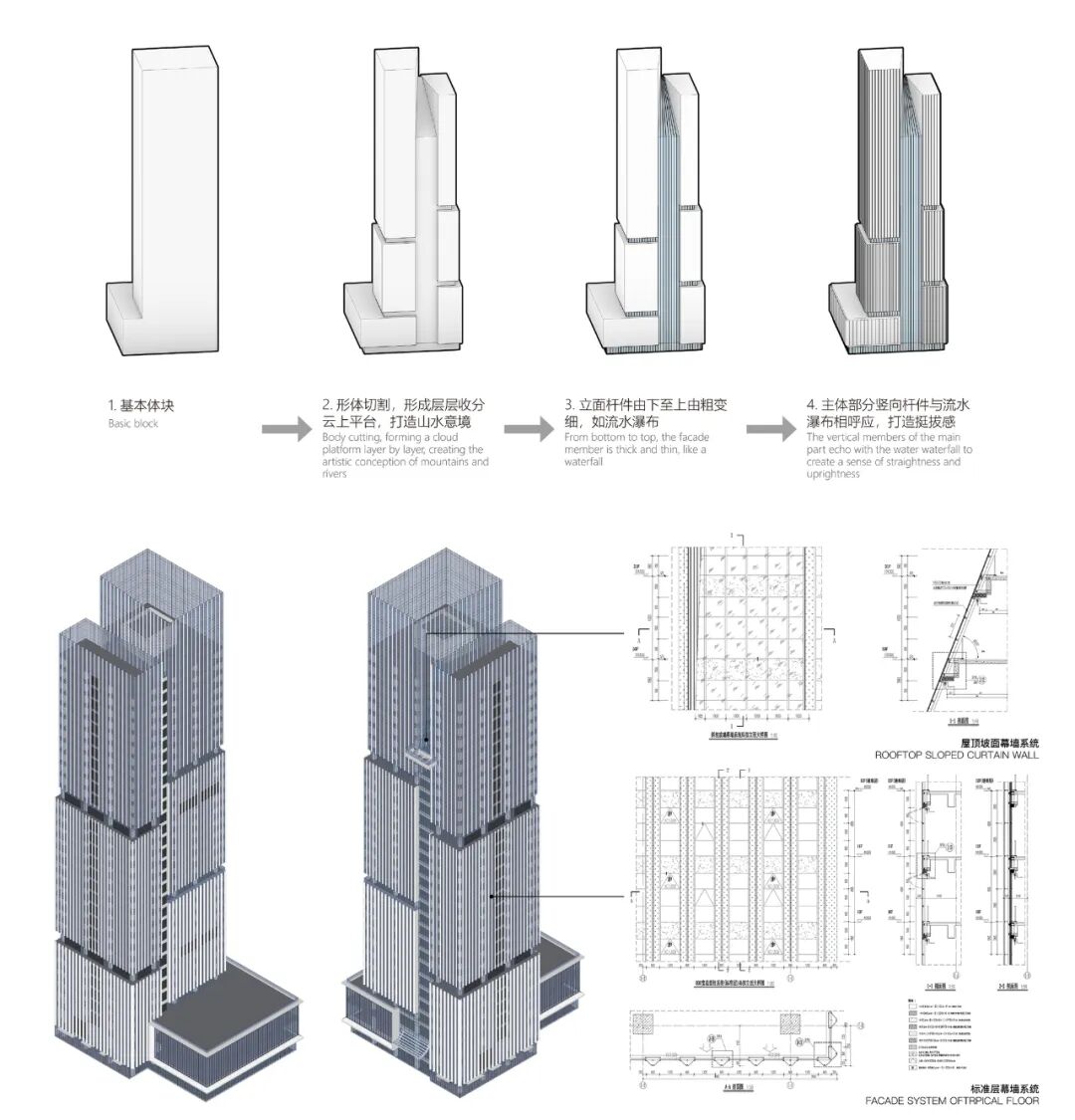

幕墙节点

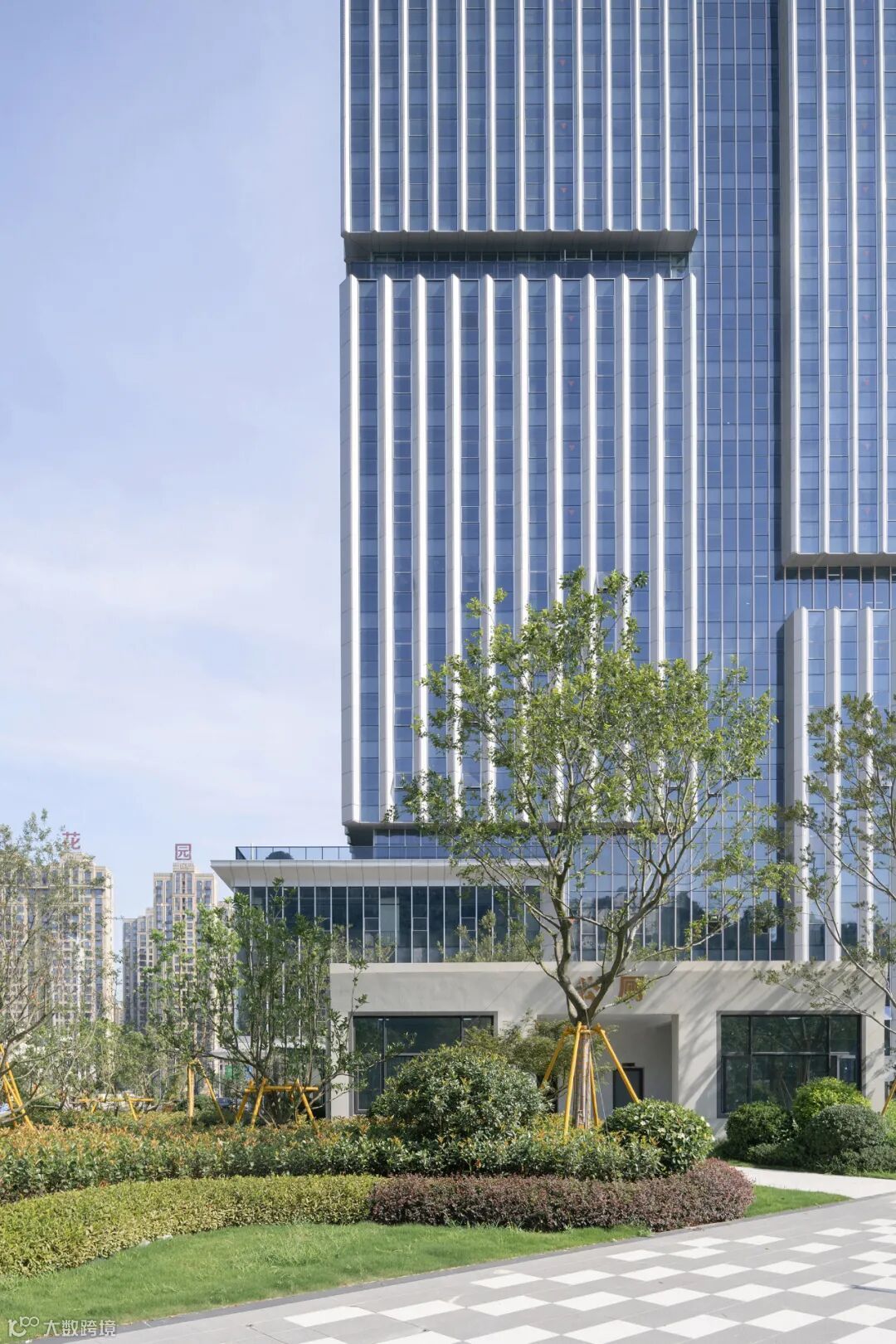

零售商店被单独设计在临街的一层，以最大化商业店面。二楼和三楼保留了大片的空地，未来将用作大型餐厅和食堂。四楼以上的空间将用作工作场所。在建筑外，入口大厅南侧设计了一个小型滨江口袋公园，以改善场地环境。并围合一个大小合适的绿色入口广场，既可以在高峰时段驱散人群，也可以在下班后作为周边居民的公共广场。

Retail shops are designed alone the street-side in ground floor, to maximize commercial shopfront. Large empty spaces are remained in 2nd & 3rd floor, and they will be used as big restaurants and canteen in future. All space above 4th floor will be used as workplace. Outside the building, a small riverside pocket-park is designed in the south of the entrance hall, to improve the site environment. Also It encloses a suitable size green entrance plaza, which can not only disperse the crowd during rush-hours, but also can used as public square for surrounding residents after works.

项目遵循节能绿色设计原则，大量使用当地植物，提高绿化率，降低维护成本。透水路面也被广泛使用。它可以帮助减少热岛效应，优化热舒适，减少空调的使用。楠盛中心不仅是一个城市地标，设计旨在根据当地条件和文脉，提供一个高品质的办公场所、零售和休闲空间。我们希望这座建筑能够满足社区的多样化需求，成为一个榜样，推动游家村的城市发展再上一个台阶。

The project follows energy-saving and green design rules, local plants are largely used, to increase the greening rate and reduce the maintenance cost. Permeable pavement are also widely used. It can help to reduce heat-island effect, optimize thermal comfort, and decrease the air-condition usage. Nansheng Center is not only an urban landmark, the design intends to provide a high-quality workplace with retail and leisure space, based on local condition and context. We hope that this building can satisfy diverse requirements of the community, become a role model, and push the urban development of Youjia village to the next level.
