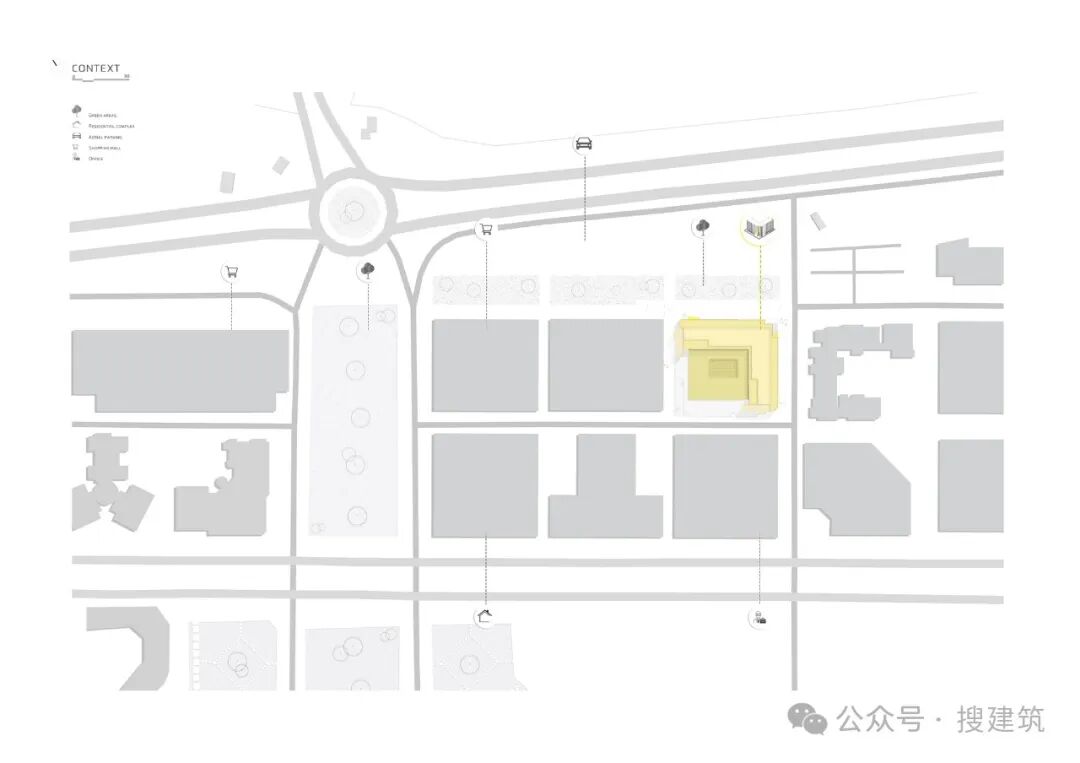

这座建筑坐落在突尼斯最重要的商业区 Les Berges du Lac 2，充分利用了其优越的地理位置，位于该国经济和金融活动的中心，是渴望在这一充满活力的环境中蓬勃发展的企业的理想选择。

Nestled within Tunisia's premier business district, Les Berges du Lac 2, this edifice fully capitalizes on its prime location, situated at the heart of the country's economic and financial activities, making it an ideal choice for businesses eager to thrive in this dynamic environment.

“银幕 ”的设计给建筑师带来了巨大的挑战，他们的任务是充分利用地理位置优越的地块，打造城市的新地标。他们的目标很明确：创造一个既实用又具有标志性的空间，吸引租户、游客和路人，同时满足当代可持续发展和舒适度的标准。

The design of "The Screen" posed a significant challenge for architects, who were tasked with making the most of a strategically located plot that could house a new urban landmark for the city. The objective was clear: to create a functional and iconic space that would attract tenants, visitors, and passersby while meeting contemporary standards of sustainability and comfort.

客户决定该项目以办公为导向，旨在优化未来企业的住宿条件。重塑办公空间以适应未来发展是该项目的主要挑战。因此，大楼的建筑设计需要结合基本特征。项目的结构系统是设计的核心。

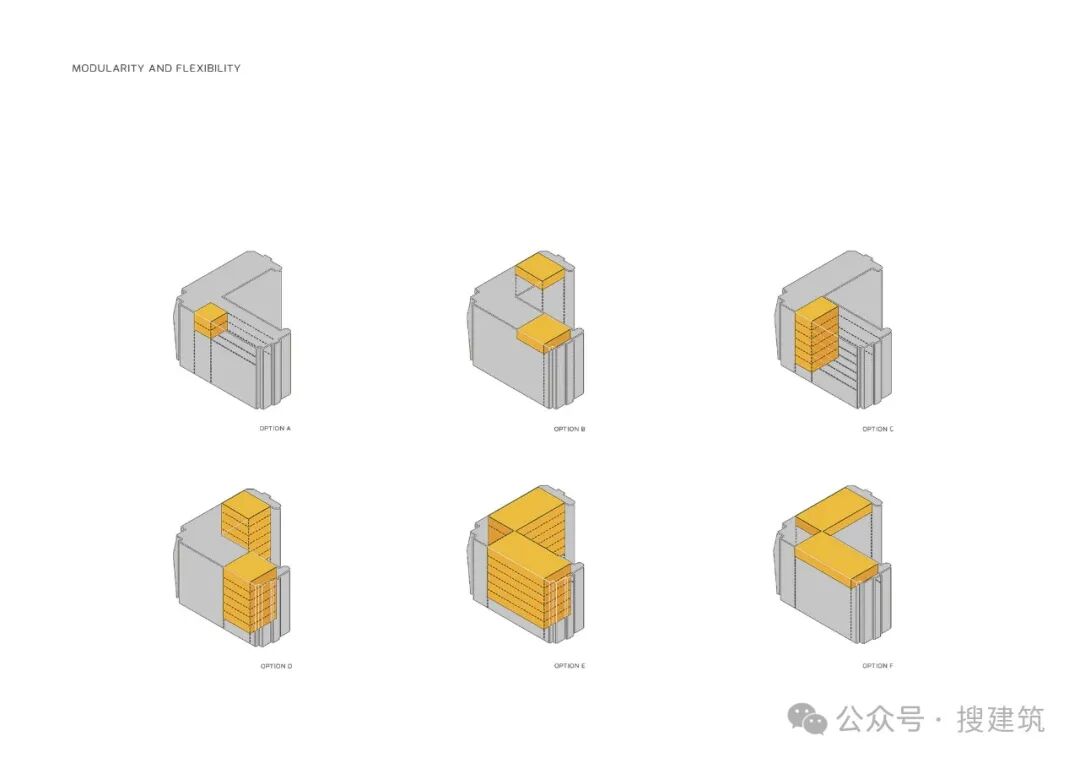

The project's office-oriented purpose, decided by the client, aimed to optimize the accommodation of future businesses. The major challenge was to reinvent office space to anticipate future developments. Thus, the building's architecture needed to incorporate essential features. The structural system of the project was at the core of its design.

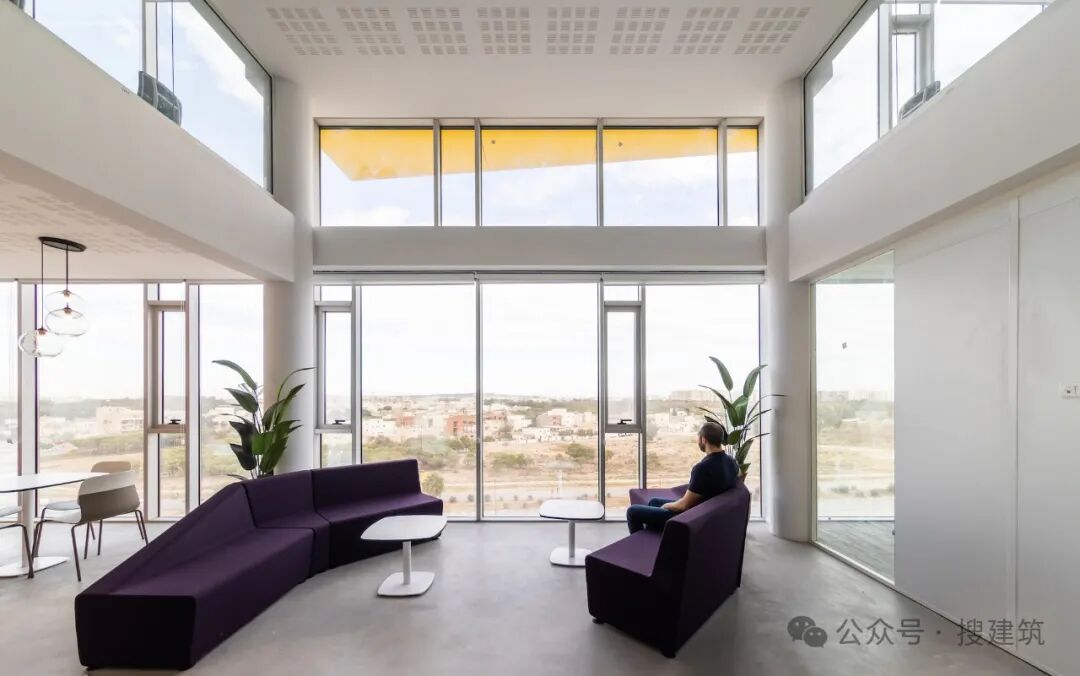

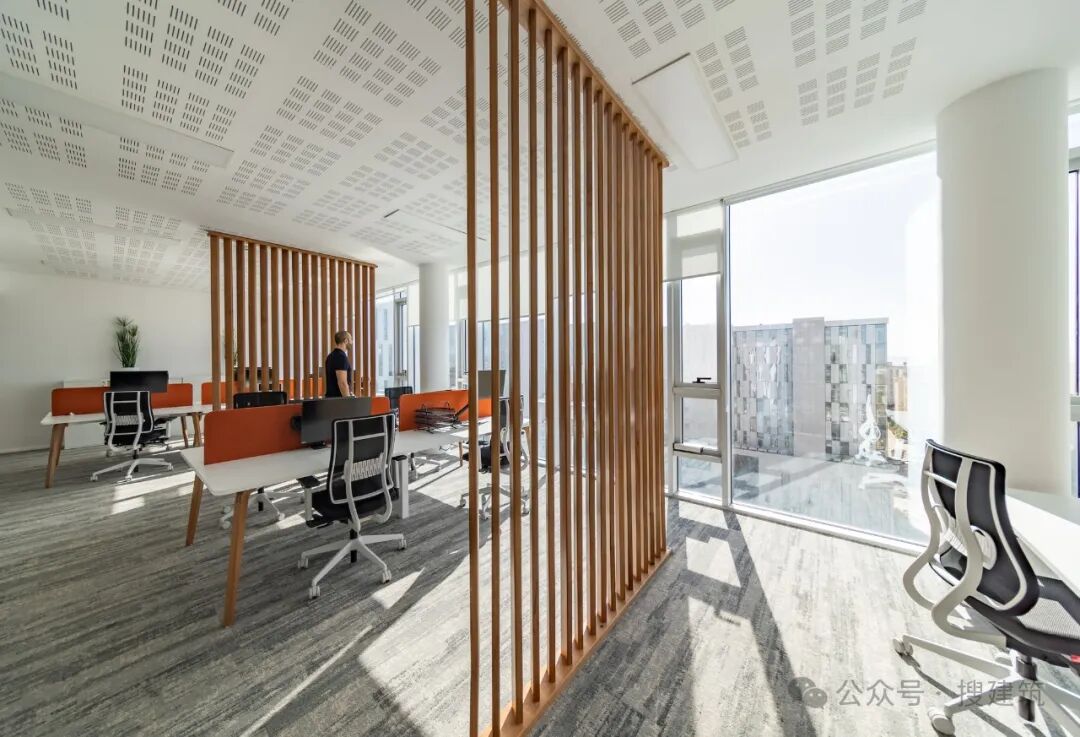

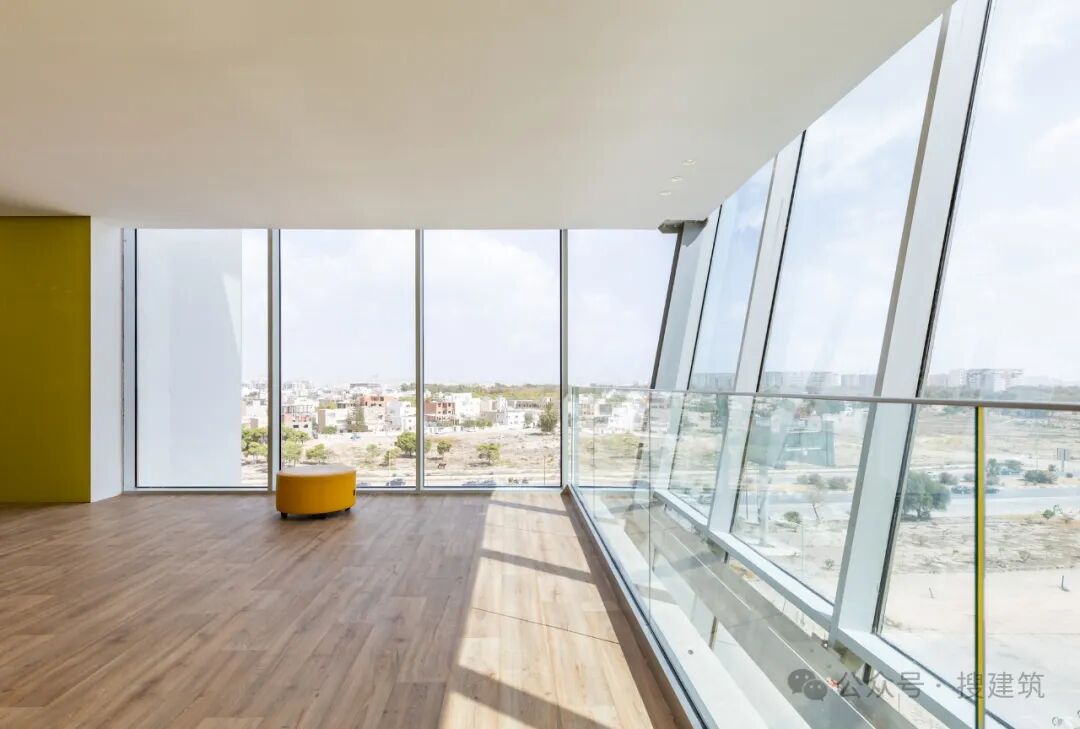

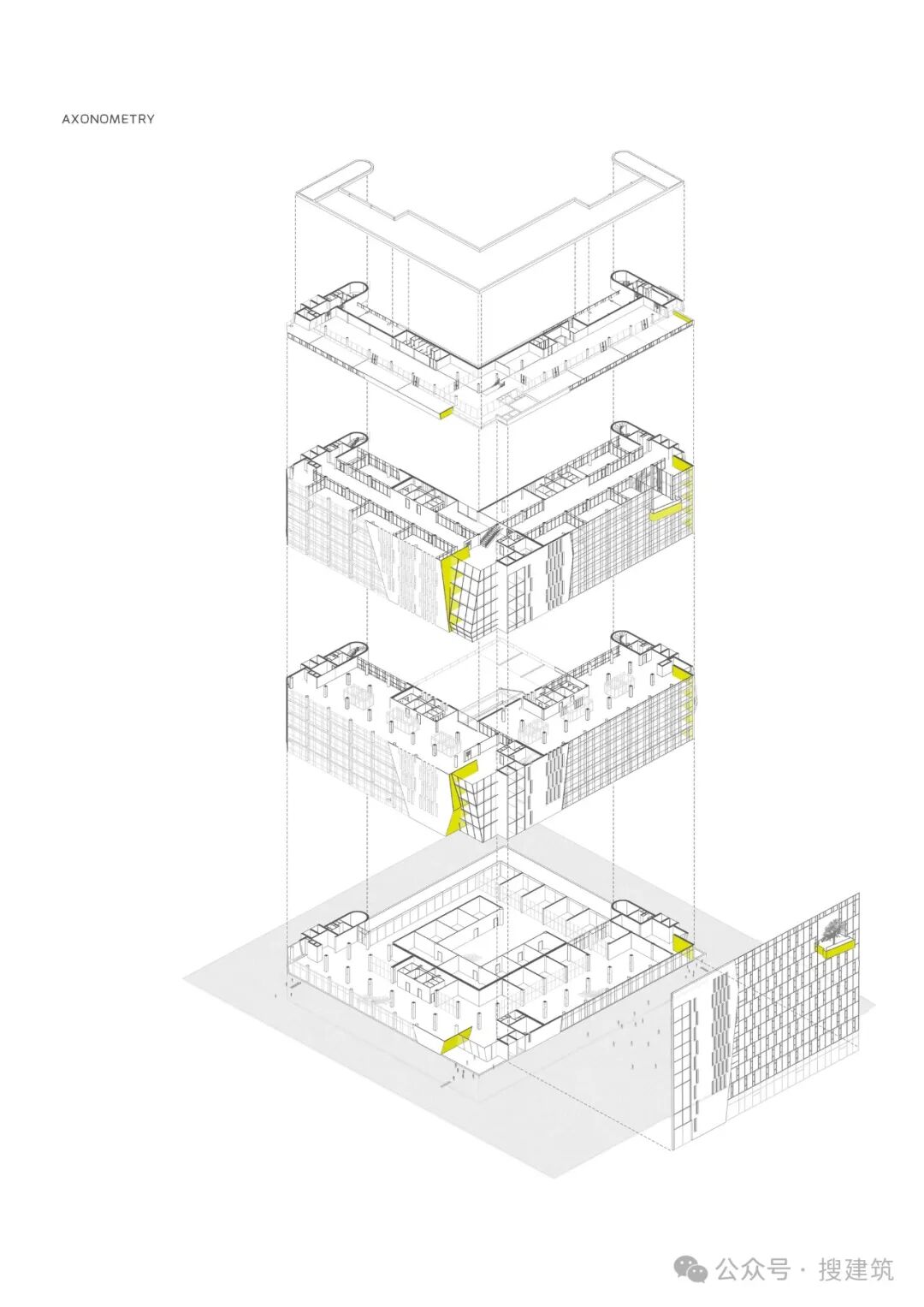

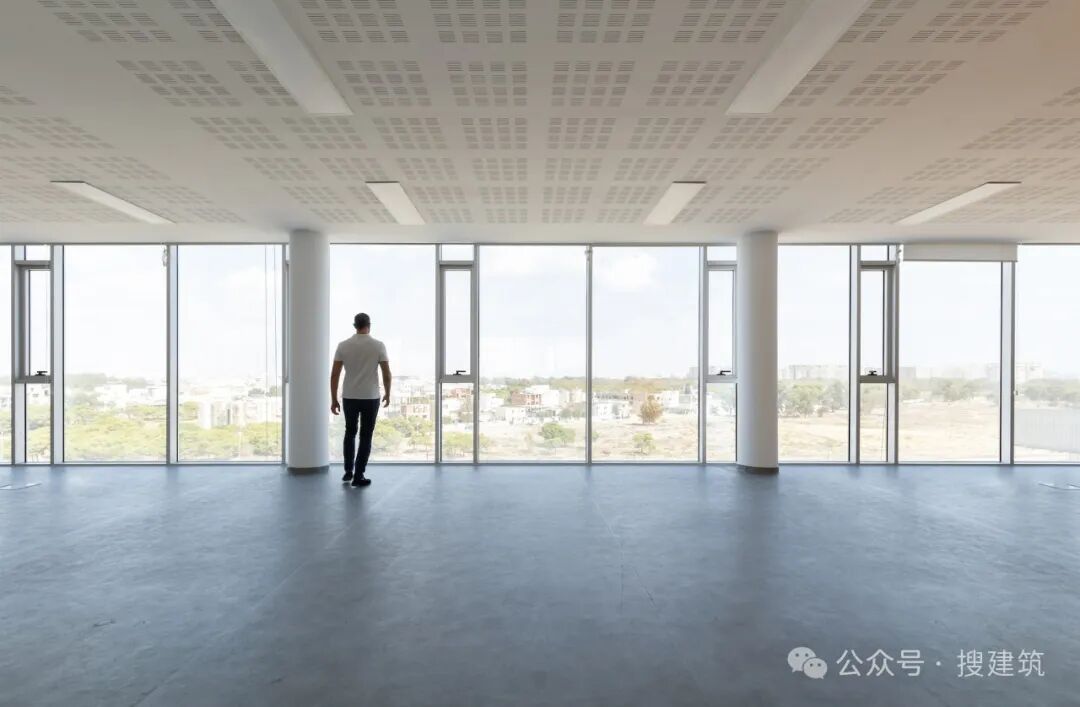

楼层采用 5.5 米 x 5.5 米的重复网格，横梁平直，没有突出部分，为技术系统和室内布局提供了极大的灵活性。项目的主体宽度为 16 米，分为三个不同高度的网格。中央网格主要用于流通，容纳了所有技术设备，为面向外墙的网格腾出了最大高度。这种布局有利于获得充足的自然光，从而提高工作效率和居住者的舒适度。突尼斯的晴天较多，“屏风 ”通过与建筑朝向相适应的大窗户，最大限度地利用了这一能源资源。为了营造明亮舒适的工作环境，我们选用了高性能的太阳能和热能玻璃。

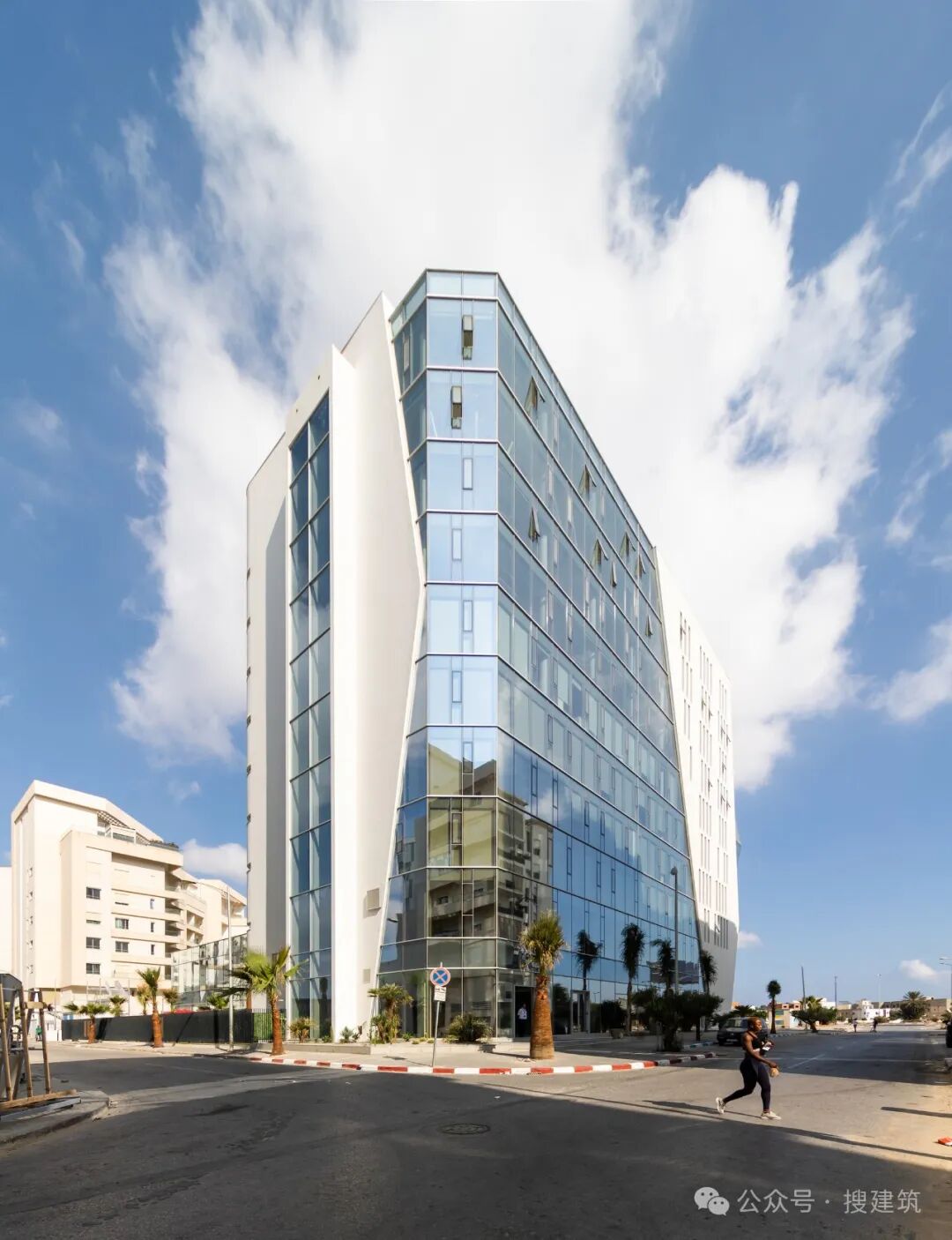

The floors are defined by a repetitive grid of 5.5m x 5.5m, with flat beams that do not protrude, offering great flexibility for technical systems and interior layouts. The project's mass spans 16 meters in width, divided into three grids of varying heights. The central grid, primarily for circulation, houses all technical equipment, freeing up the maximum height for the grids facing the façades. This arrangement favors an abundance of natural light, thereby boosting productivity and the well-being of occupants. In Tunisia, where the number of sunny days is high, "The Screen" maximizes this energy resource through large windows adapted to the building's orientations. High-performance solar and thermal glazing has been selected to create a bright and comfortable work environment.

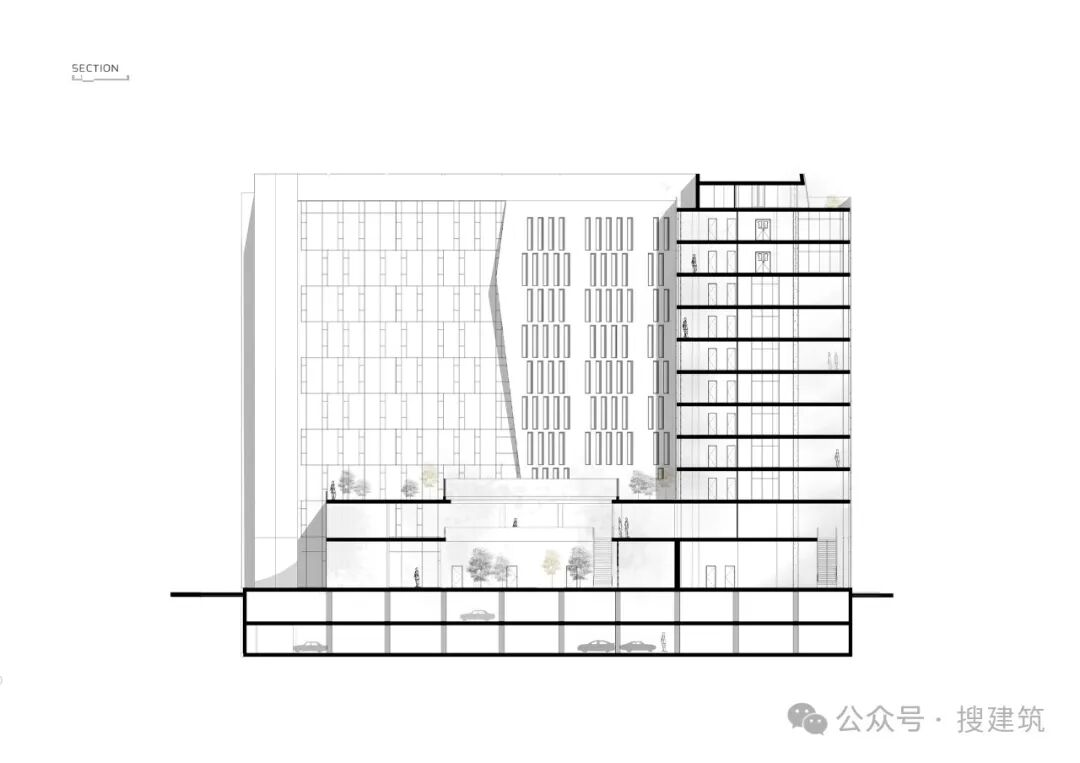

该项目包括两层地下室，专门用于停车和技术空间，以及由六部全景电梯连接的十层办公楼，为居住者提供城市环境的持续景观。屏风 "的顶部是一个屋顶，设有休闲区和餐饮区，其中一个露台可以 360° 饱览突尼斯全景。该设施旨在为用户提供放松和休闲的场所。

The project includes two basements dedicated to parking and technical spaces, as well as ten office floors connected by six panoramic elevators, offering occupants constant views of the urban environment. The top of "The Screen" is crowned by a rooftop with relaxation and dining areas, featuring a terrace that offers a 360° panoramic view of Tunis. This facility aims to combine relaxation and leisure for users.

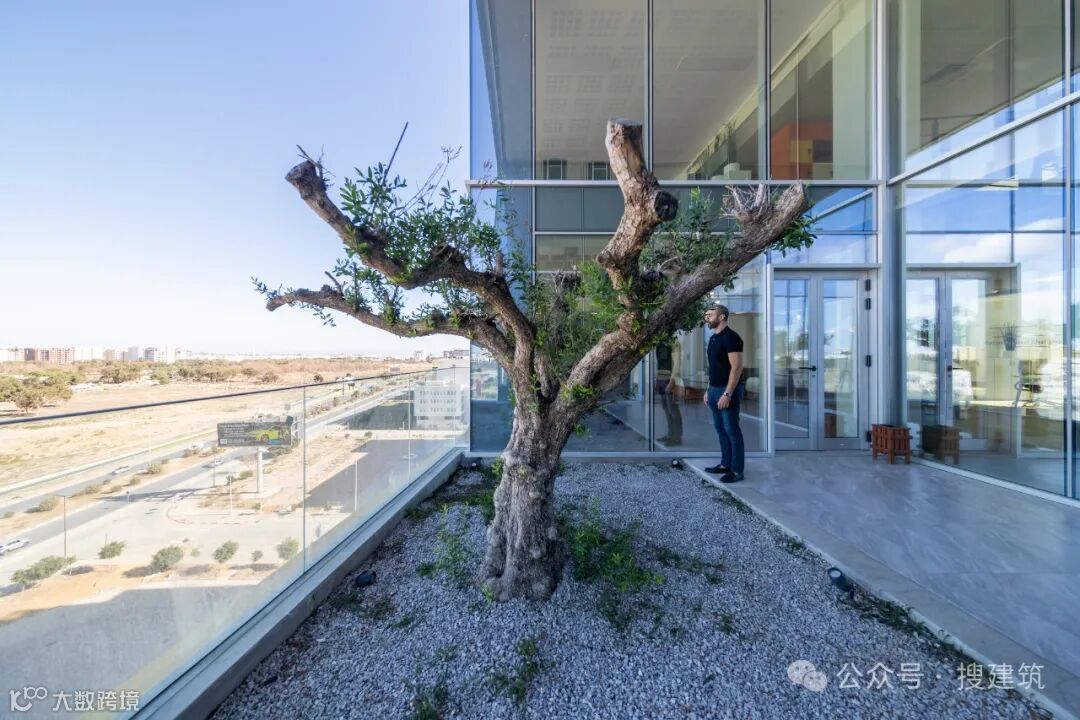

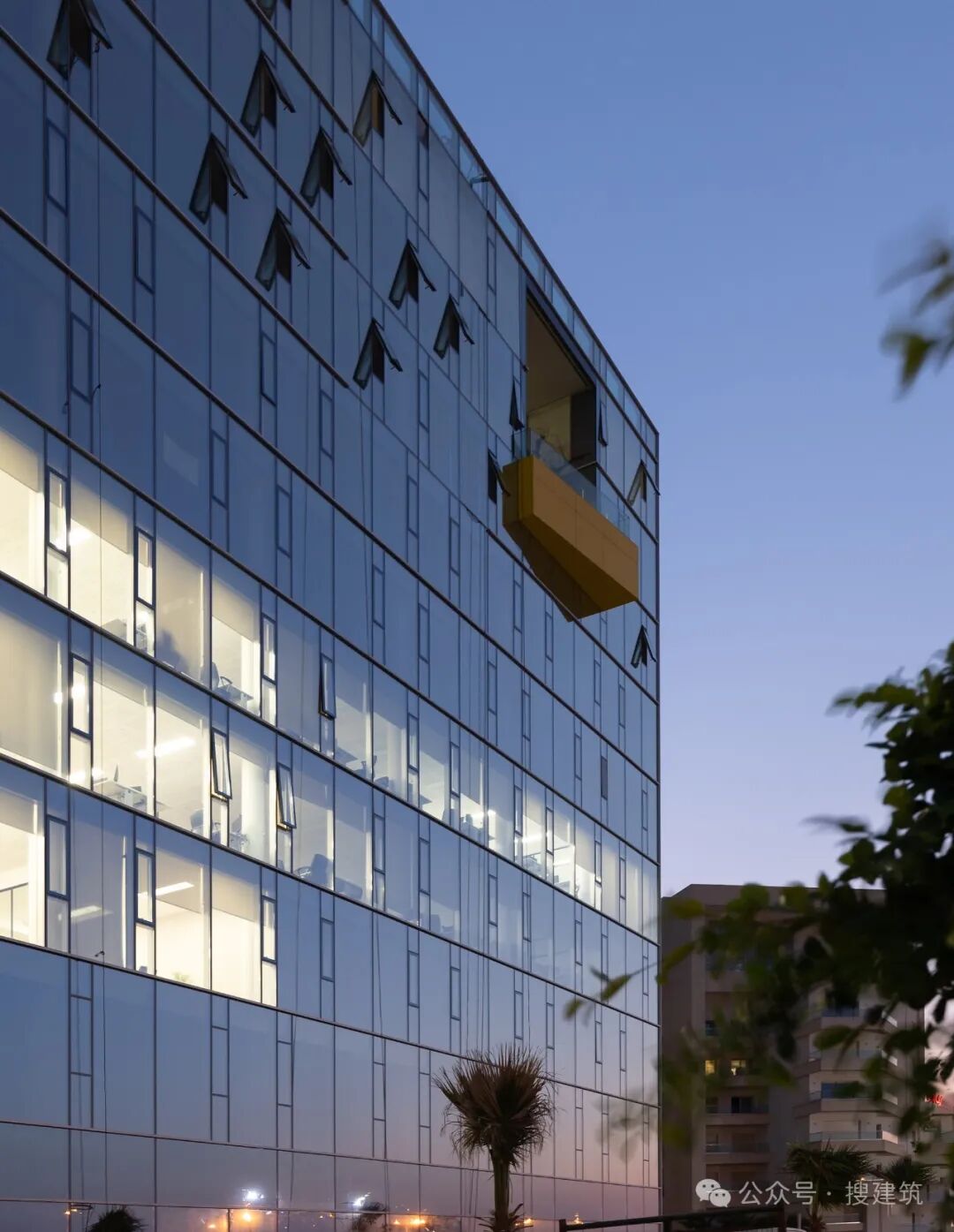

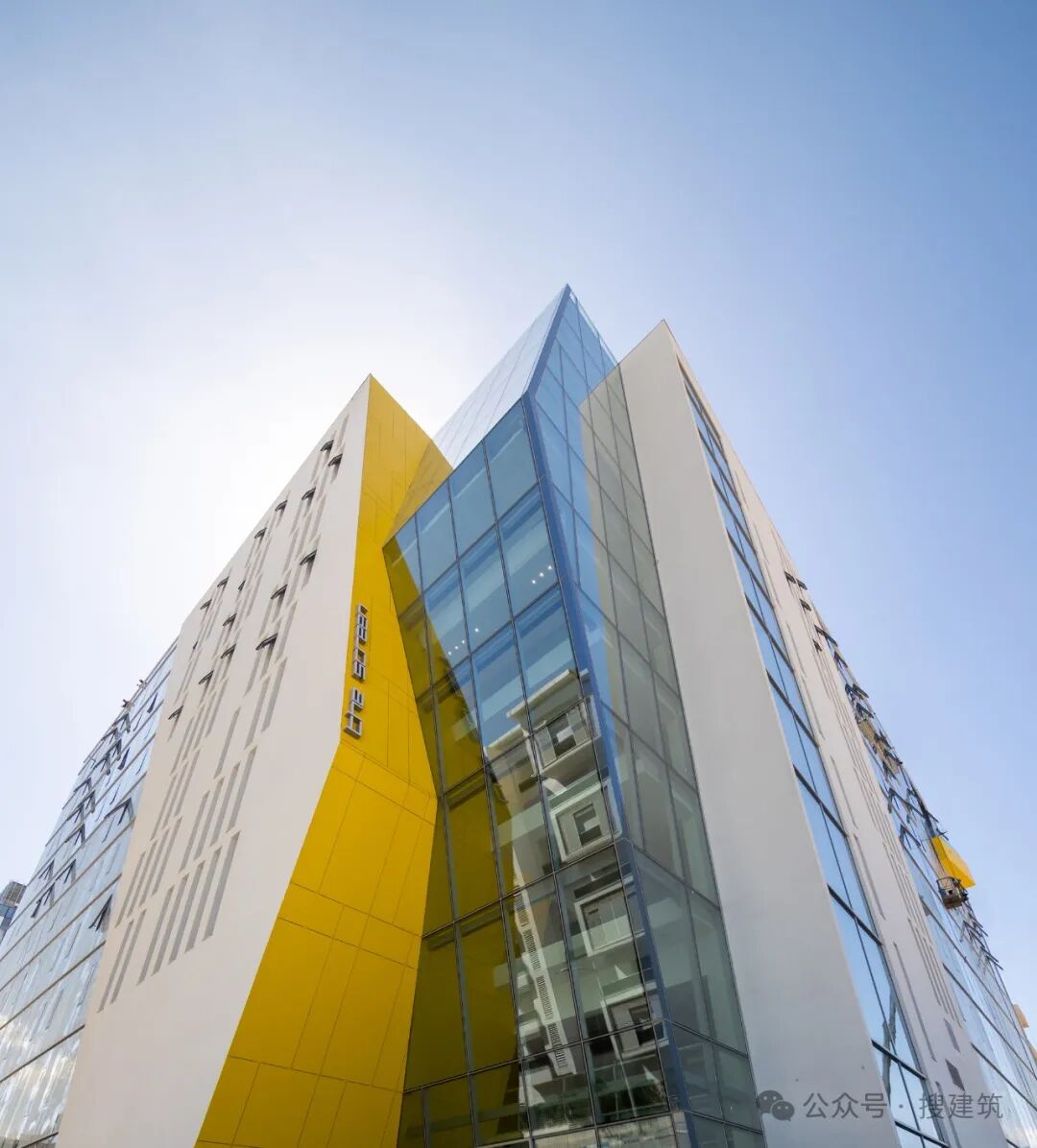

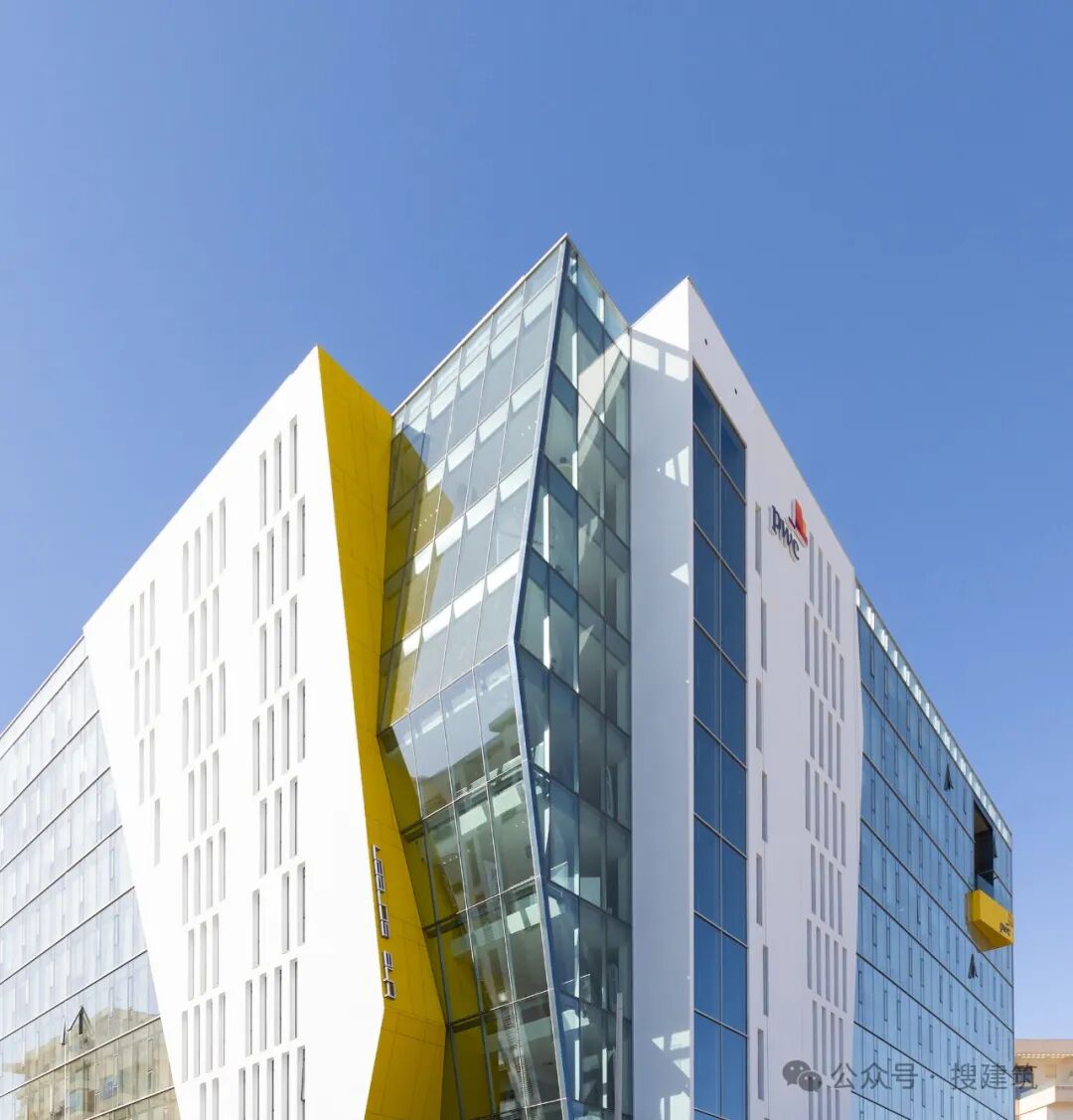

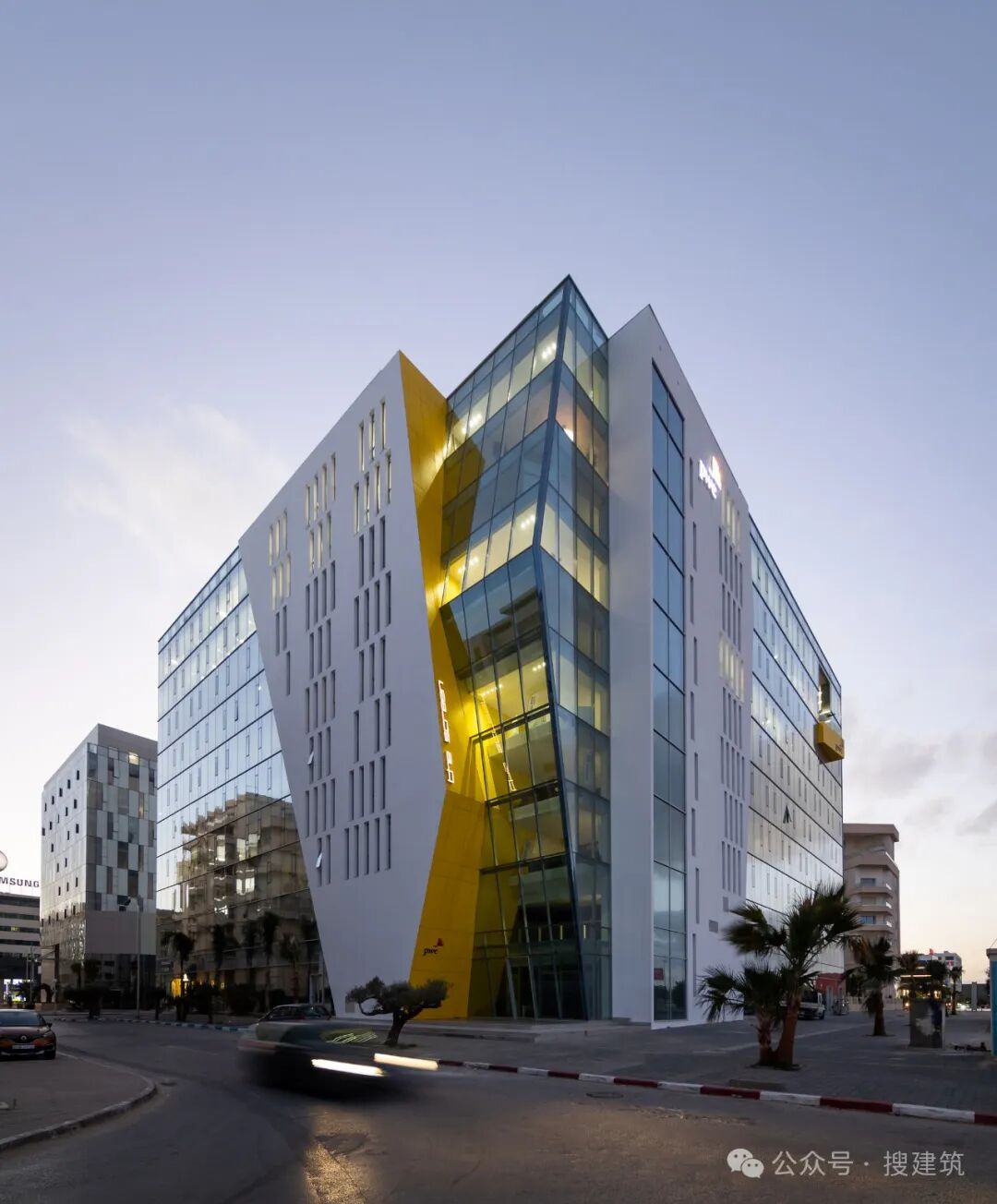

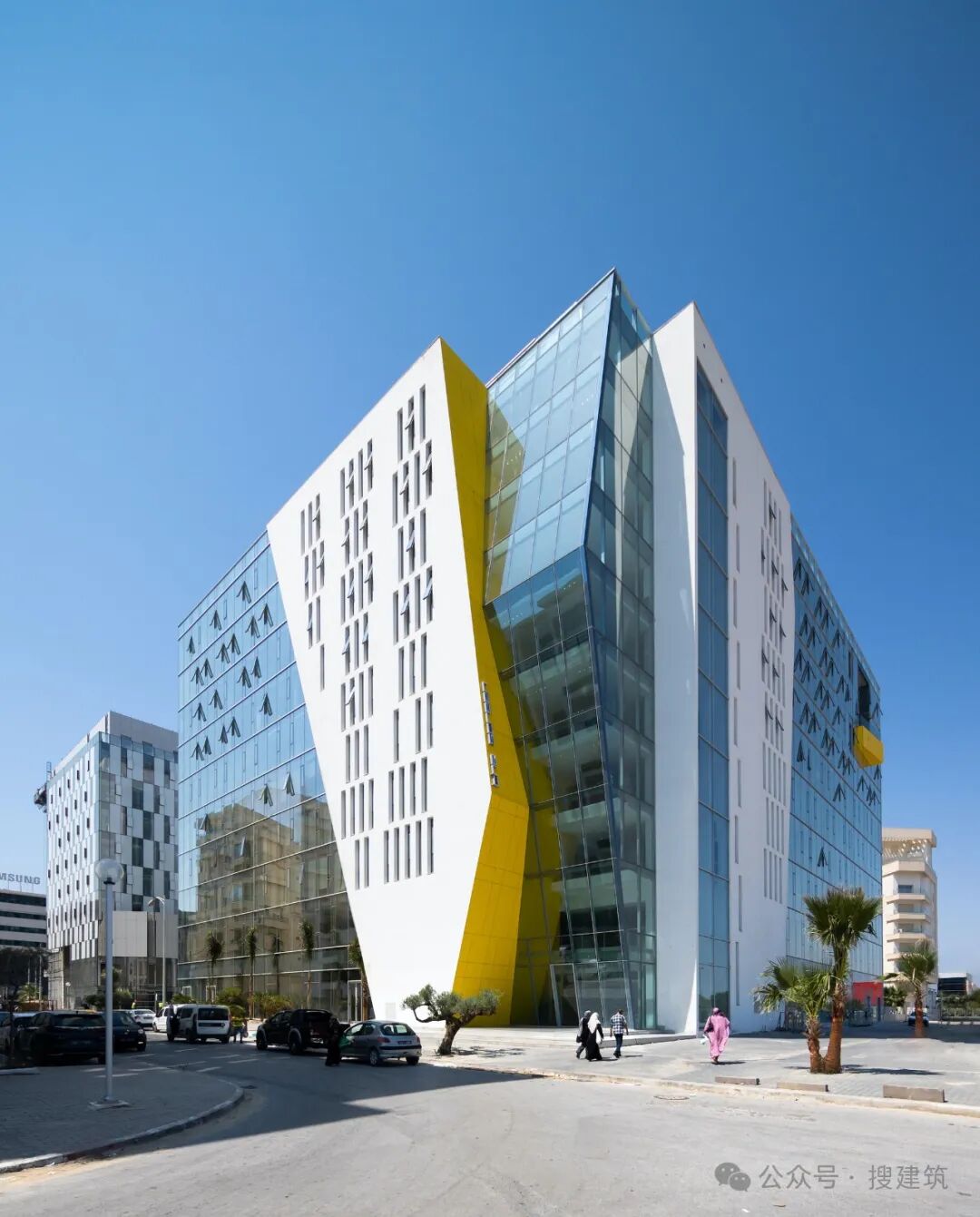

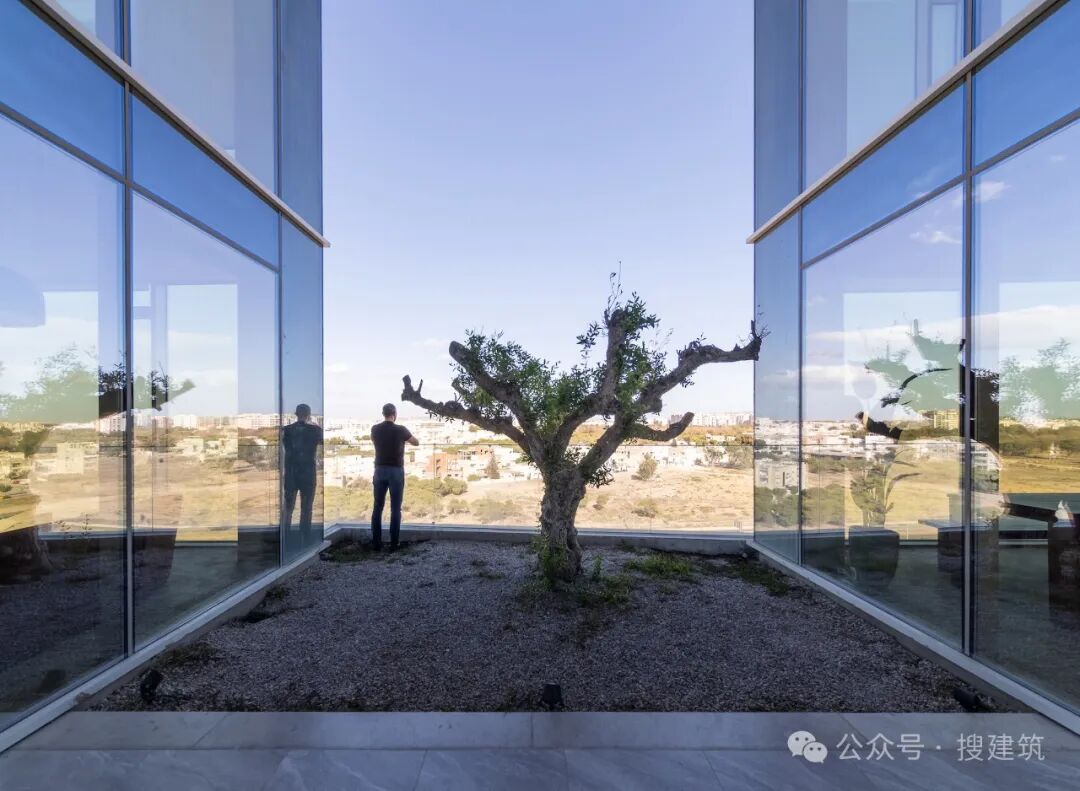

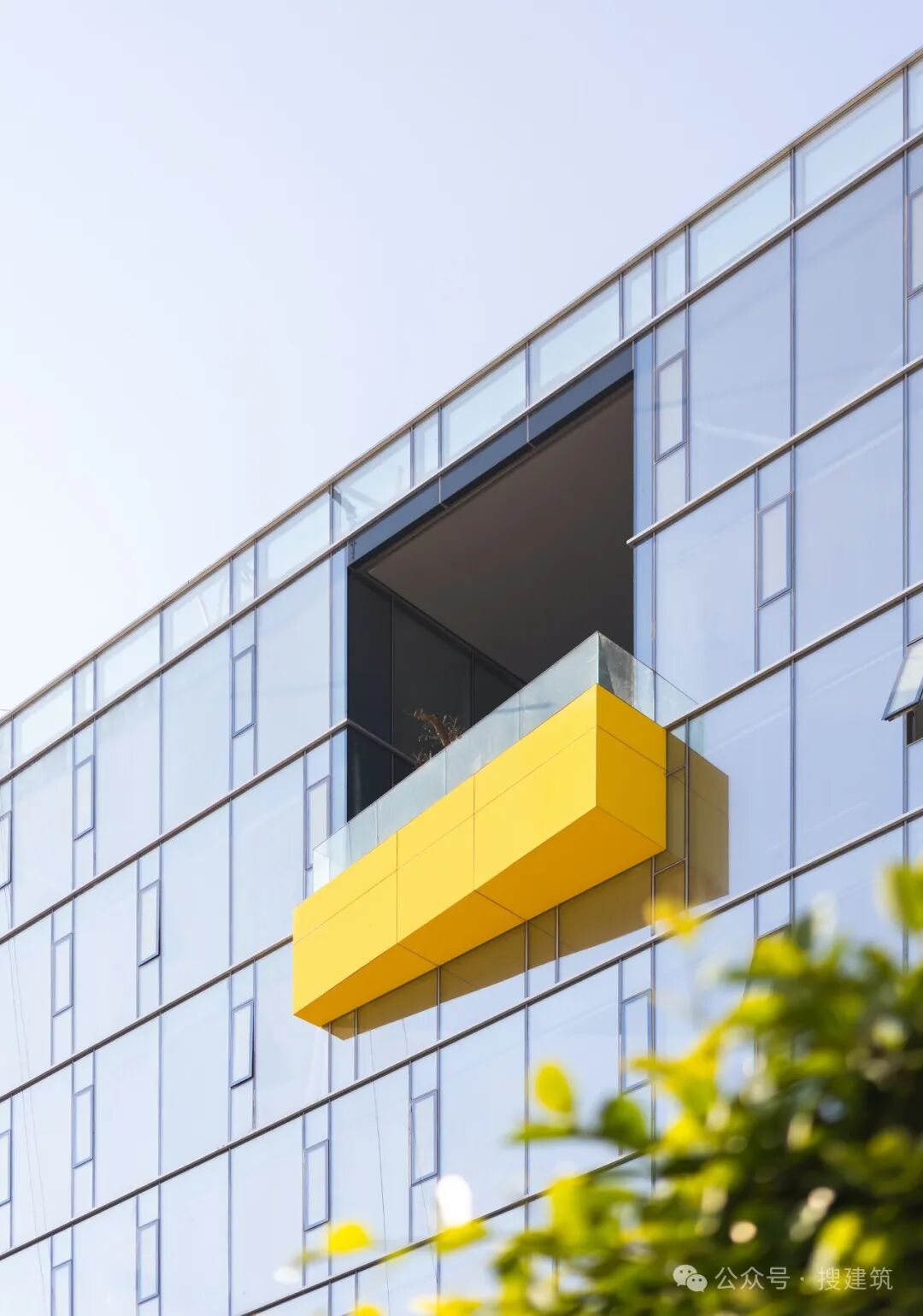

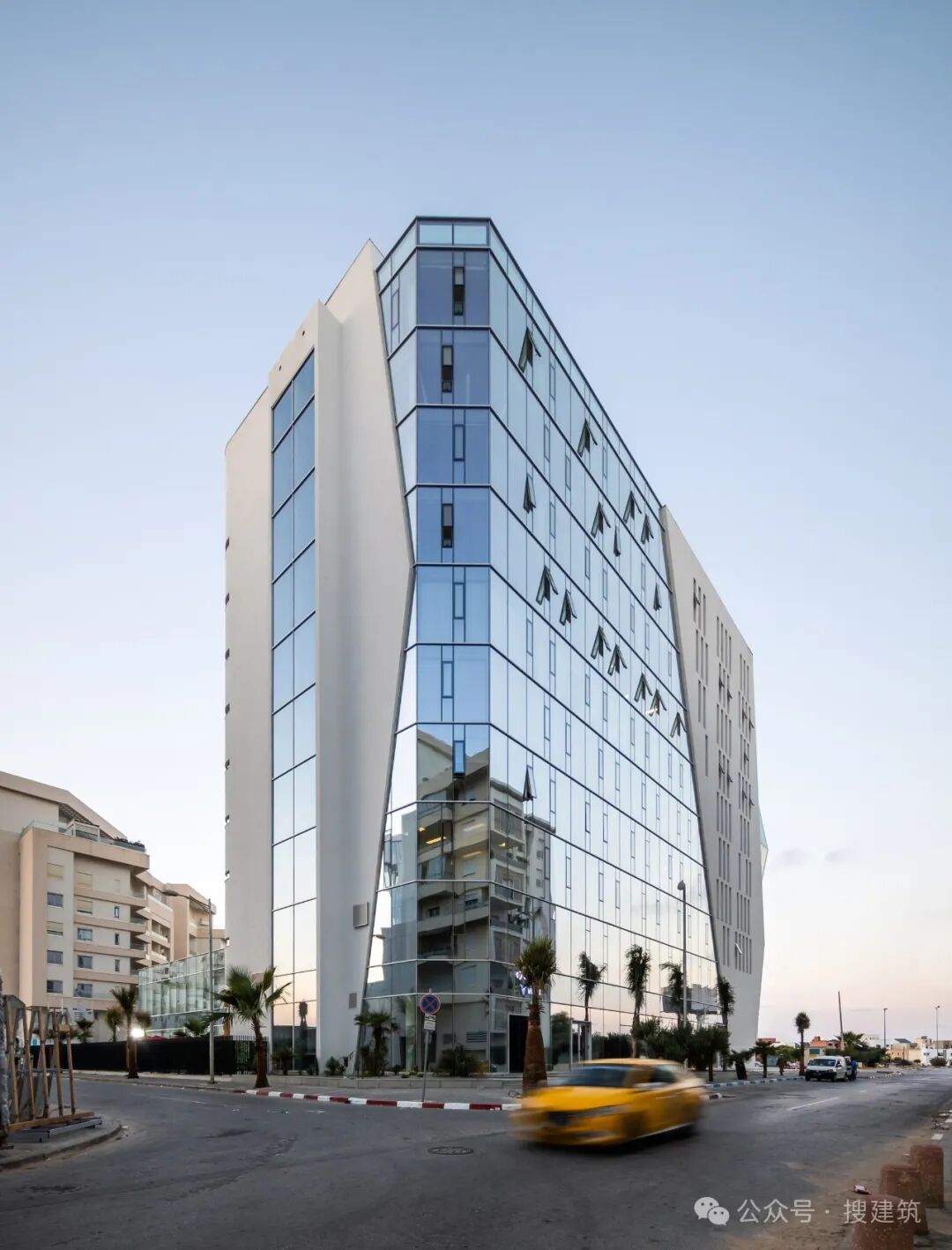

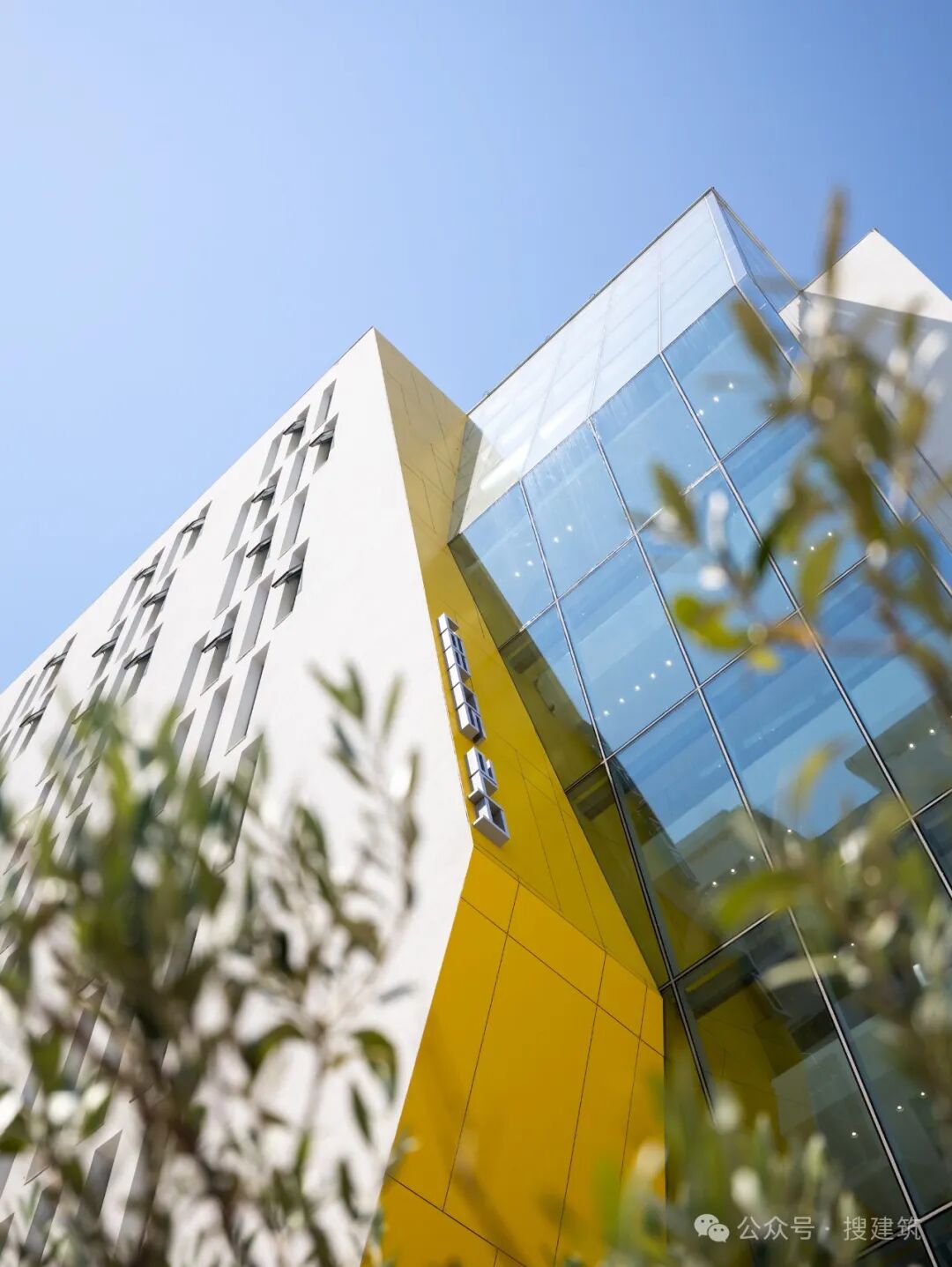

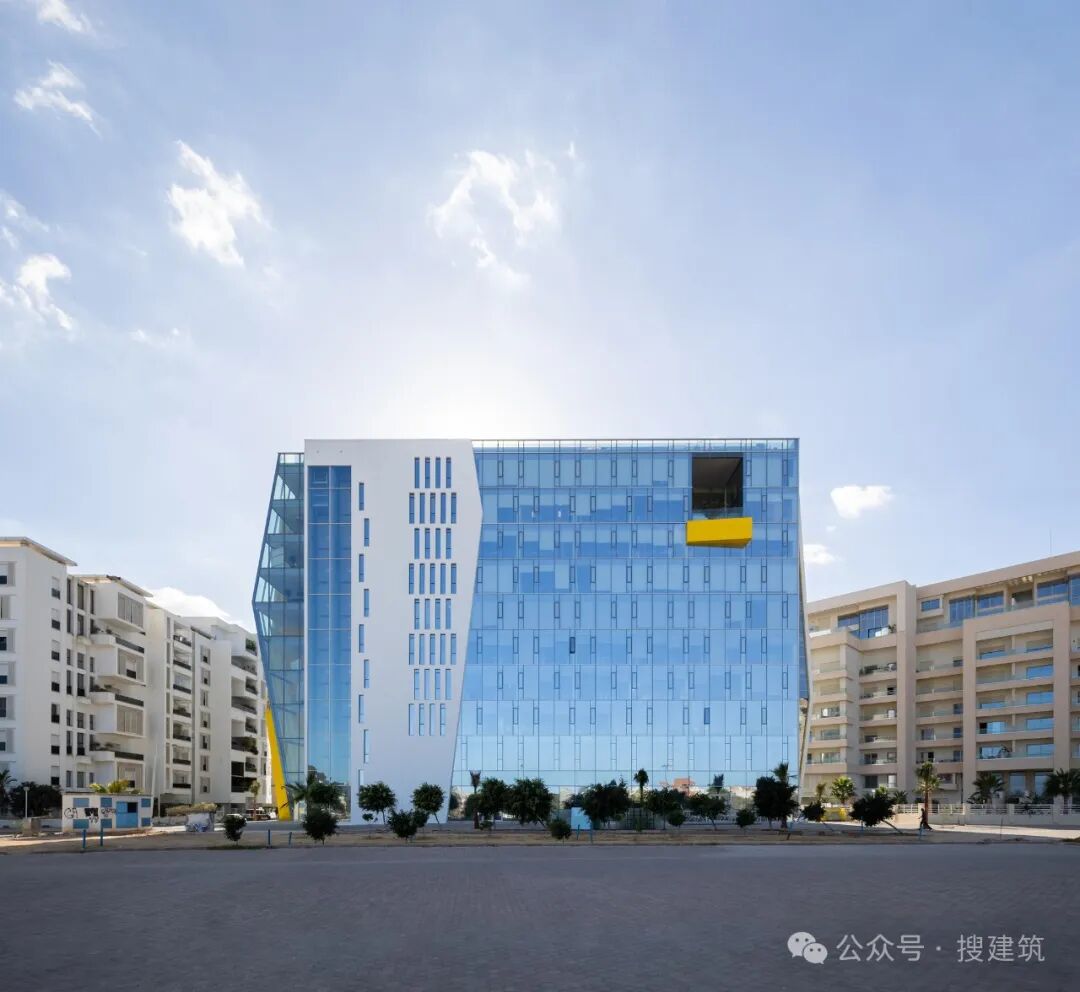

从美学角度看，这座建筑经过了精心雕琢。主入口处有一个气势恢宏的玻璃结构，后面是双层倾斜的钢筋混凝土墙，墙面采用荧光黄 HPL 面板。这种色调在当地建筑中很少使用，但却赋予了该项目独特而刺激的个性。在黄色荧光板的覆盖下，一个独特的结构元素以悬臂的形式从主立面伸出，里面种着一棵橄榄树，向突尼斯的农业遗产致敬，并为整个建筑增添了一抹绿色。

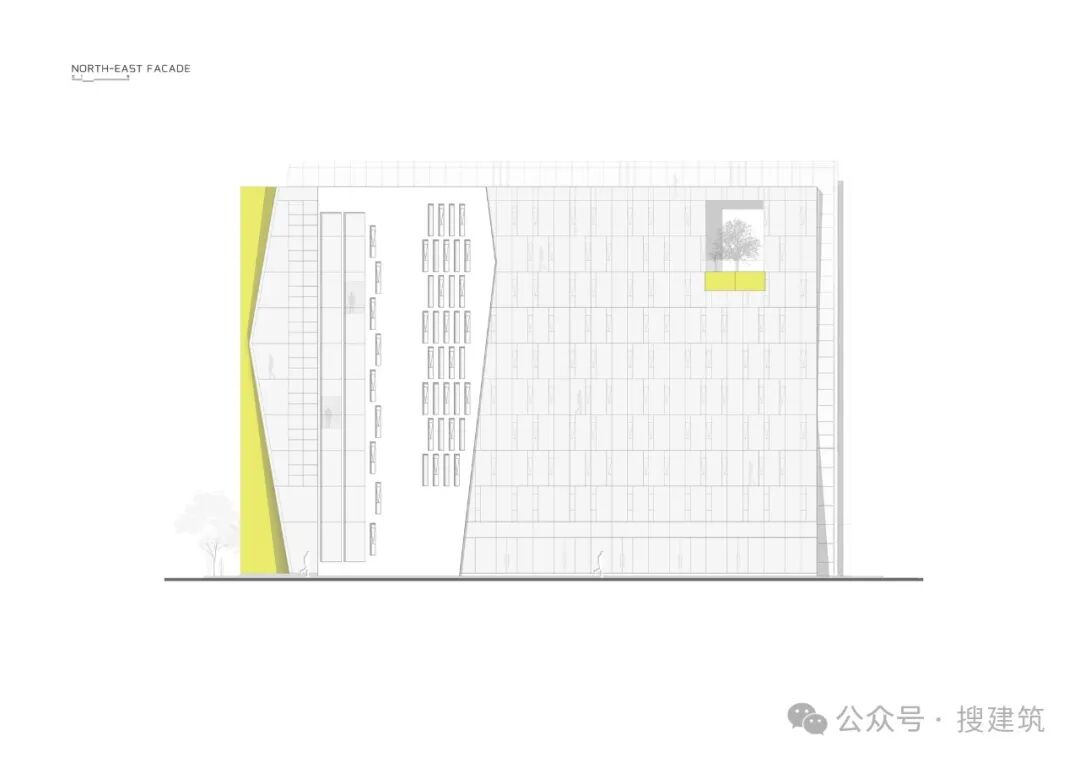

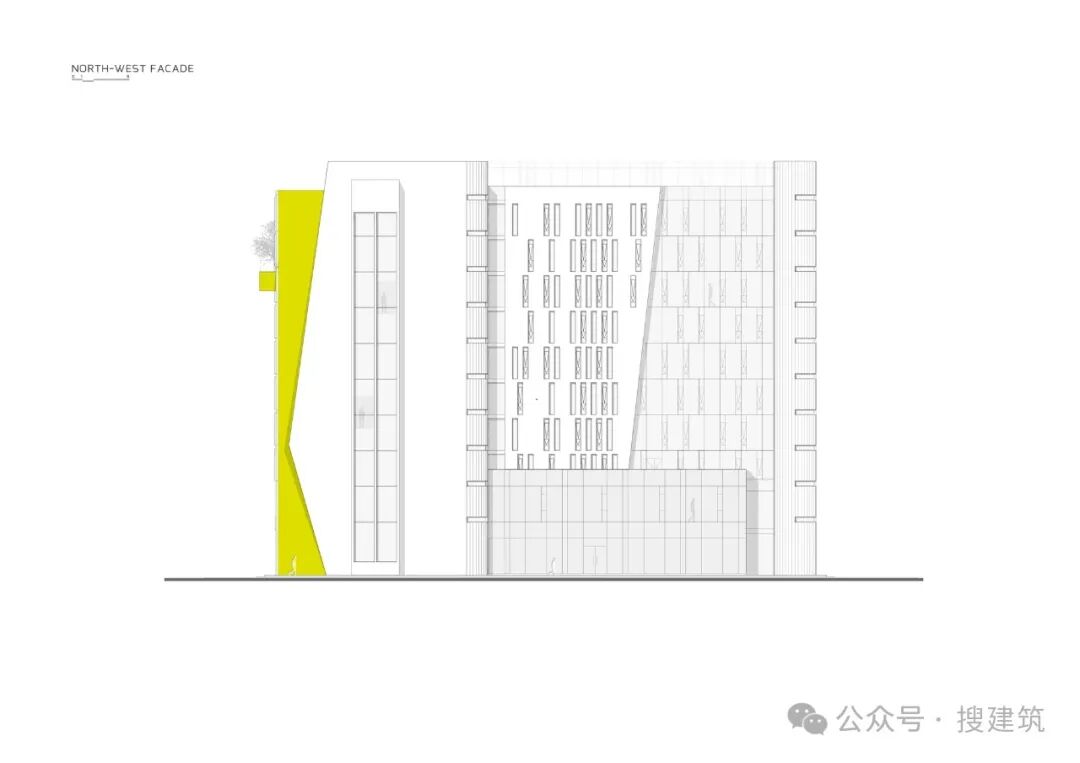

Aesthetically, the building has been meticulously sculpted. The main entrance, marked by an imposing glass structure, is backed by a double-inclined reinforced concrete wall clad in fluorescent yellow HPL panels. This hue, rarely used in local architecture, gives the project a unique and stimulating identity. Covered by the same fluorescent yellow panels, a distinctive structural element juts out from the main façade in a cantilever, housing an olive tree, paying homage to Tunisia's agricultural heritage and adding a touch of greenery to the composition.

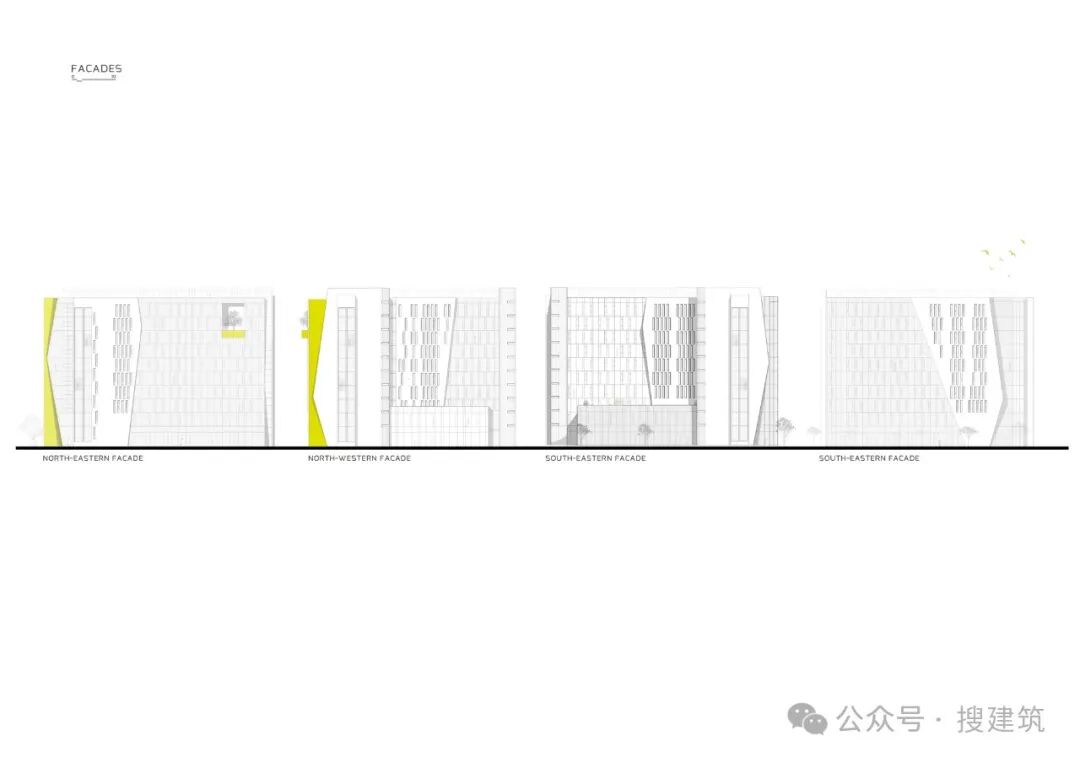

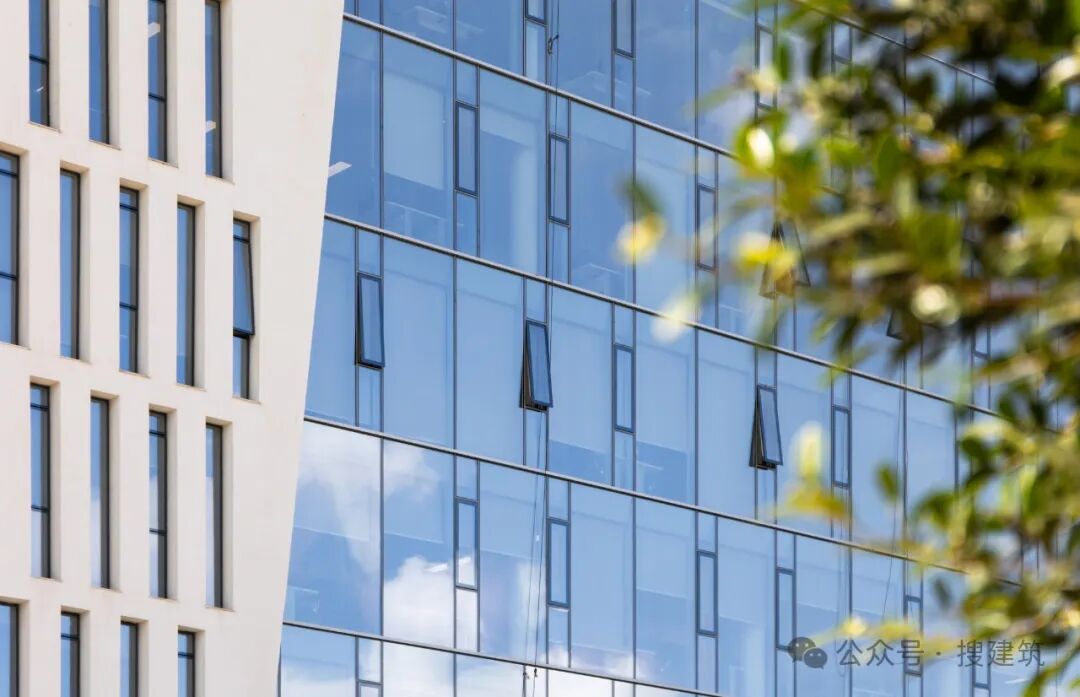

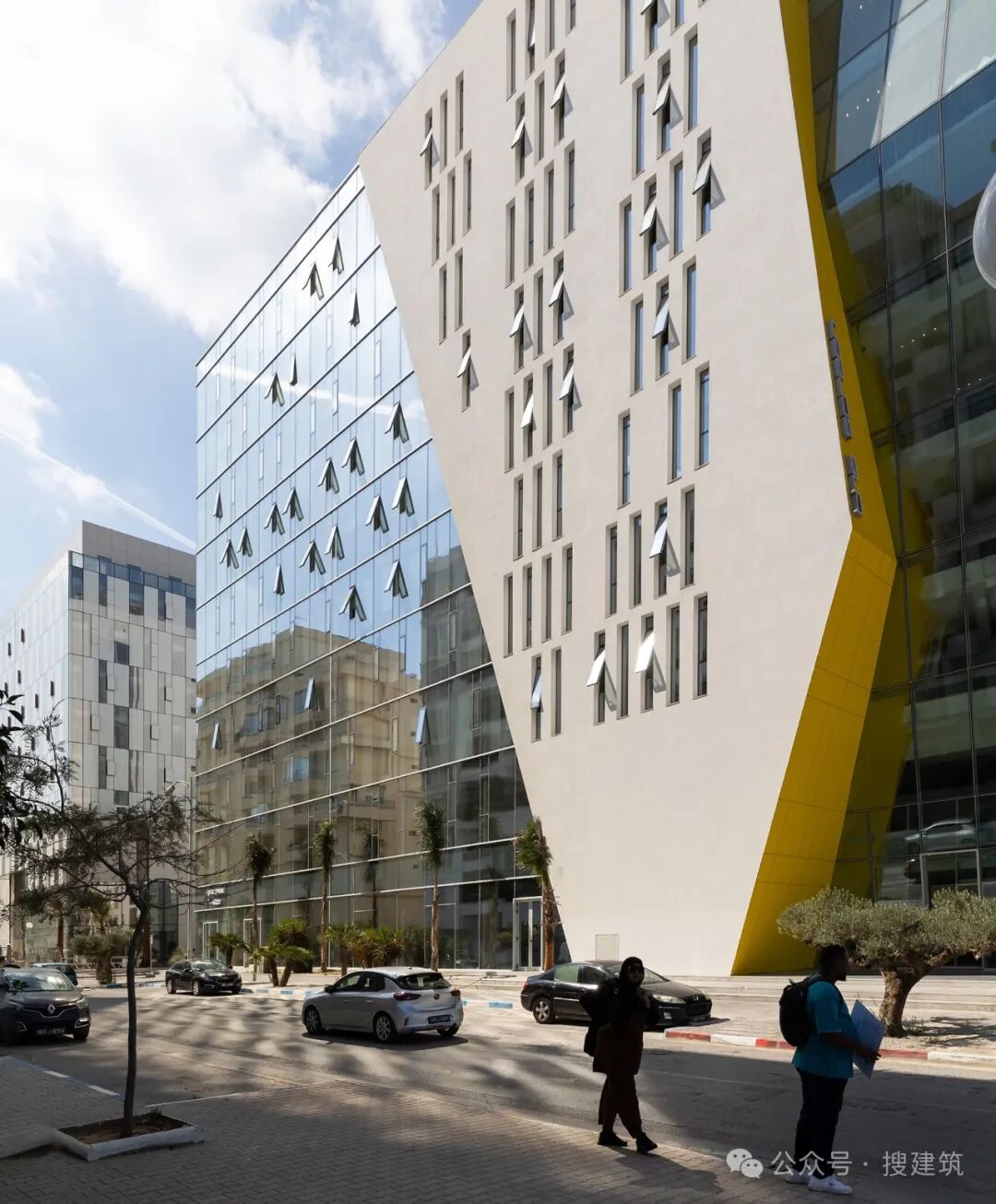

建筑外墙由当地生产的双层保温砖和中央岩棉隔热材料制成，既参照了地中海建筑风格，又具有节能效果。外墙刷成白色，与突尼斯的建筑景观浑然一体。“屏风 "改变了工作空间，强调开放性、自然光和居住者的舒适度。该项目体现了创新精神，代表了突尼斯办公建筑的显著进步。

The building's exterior walls, made of double-layered thermal bricks locally produced with central rock wool insulation, reference Mediterranean architecture while being energy-efficient. Painted white, they seamlessly blend into the Tunisian architectural landscape. "The Screen" transforms the workspace by emphasizing openness, natural light, and the well-being of its occupants. This project embodies innovation and represents a notable advancement in office architecture in Tunisia.
