多层办公 | 木结构:自清洁陶土立面设计

多层办公 | 木结构:自清洁陶土立面设计 搜建筑
2025-08-21
2
 更多精品,关注搜建筑

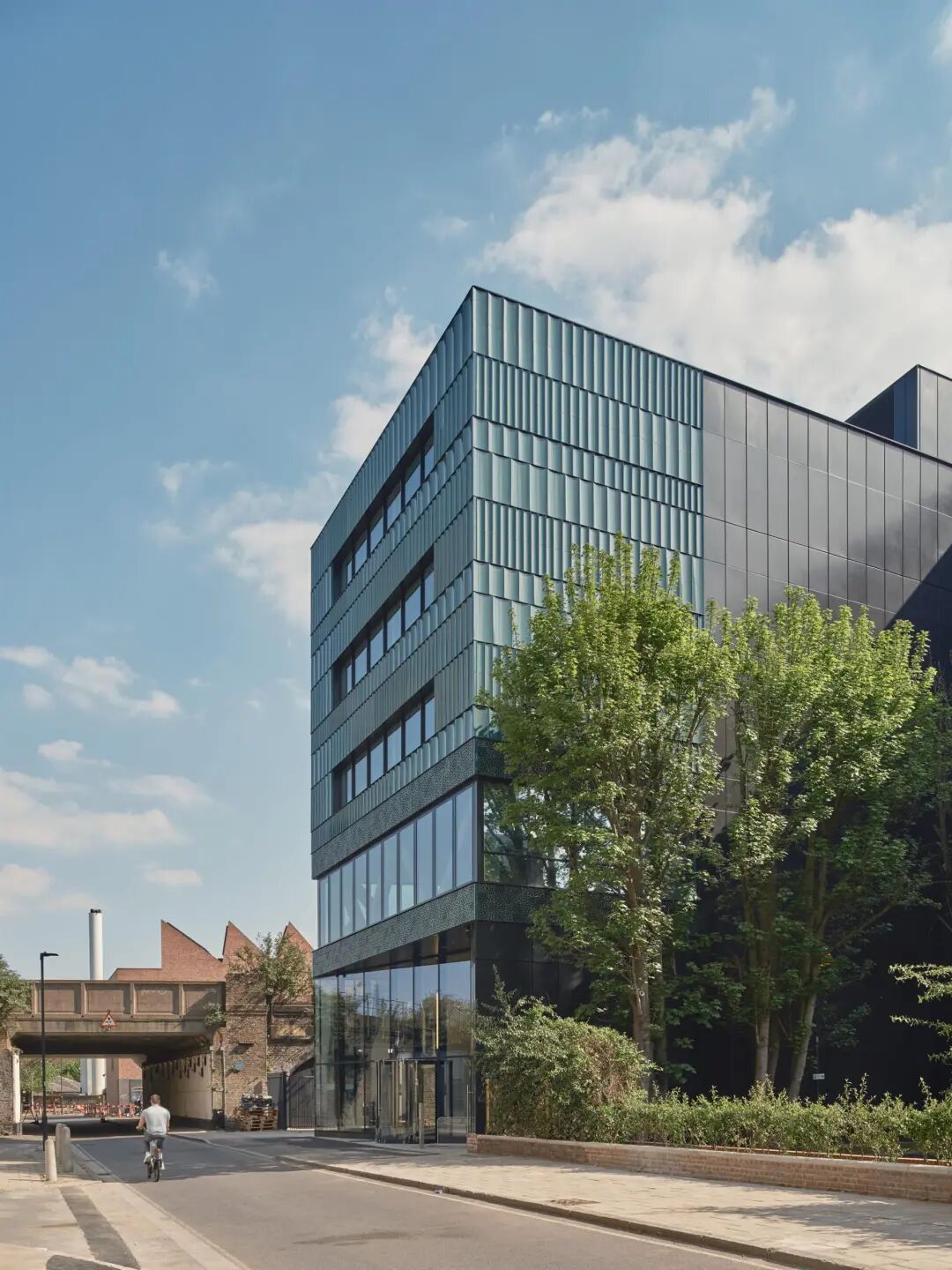

Feilden Clegg Bradley工作室(FCBStudios)完成了Paradise SE11项目,这是英国碳含量最低的大型木材办公项目。该项目位于伦敦兰贝斯,受Bywater Properties委托,为未来的城市建筑树立了一个激进的先例,不仅是一个可持续发展的办公室,而且是一个真正可再生城市的原型。

Feilden Clegg Bradley Studios (FCBStudios) has completed Paradise SE11, the UK's lowest embodied carbon mass timber office development. Situated in Lambeth, London, and commissioned by Bywater Properties, this project sets a radical precedent for future urban architecture, not just as a sustainable office, but as a prototype for truly regenerative cities.

六层楼高,完全可拆卸的大块木结构体现了循环经济和全生活设计的原则。设计用于拆卸和再利用,Paradise比典型的开发项目低35%的隐含碳,封存了超过1800吨的二氧化碳(相当于建造24个家庭),并超过了RIBA 2030年的气候目标五年。

The six-storey, fully demountable mass timber structure embodies the principles of circular economy and whole-life design. Engineered for disassembly and reuse, Paradise delivers 35% lower embodied carbon than typical developments, sequesters over 1,800 tonnes of CO₂ (equivalent to building 24 homes), and exceeds RIBA 2030 climate targets by five years.

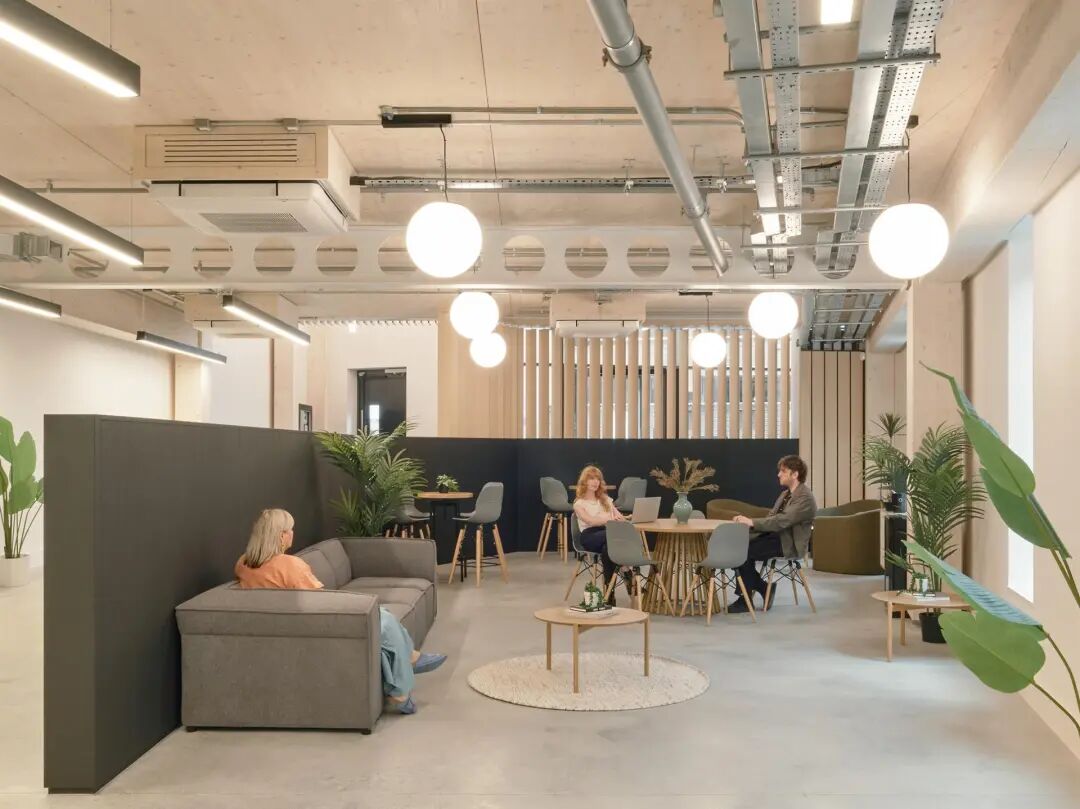

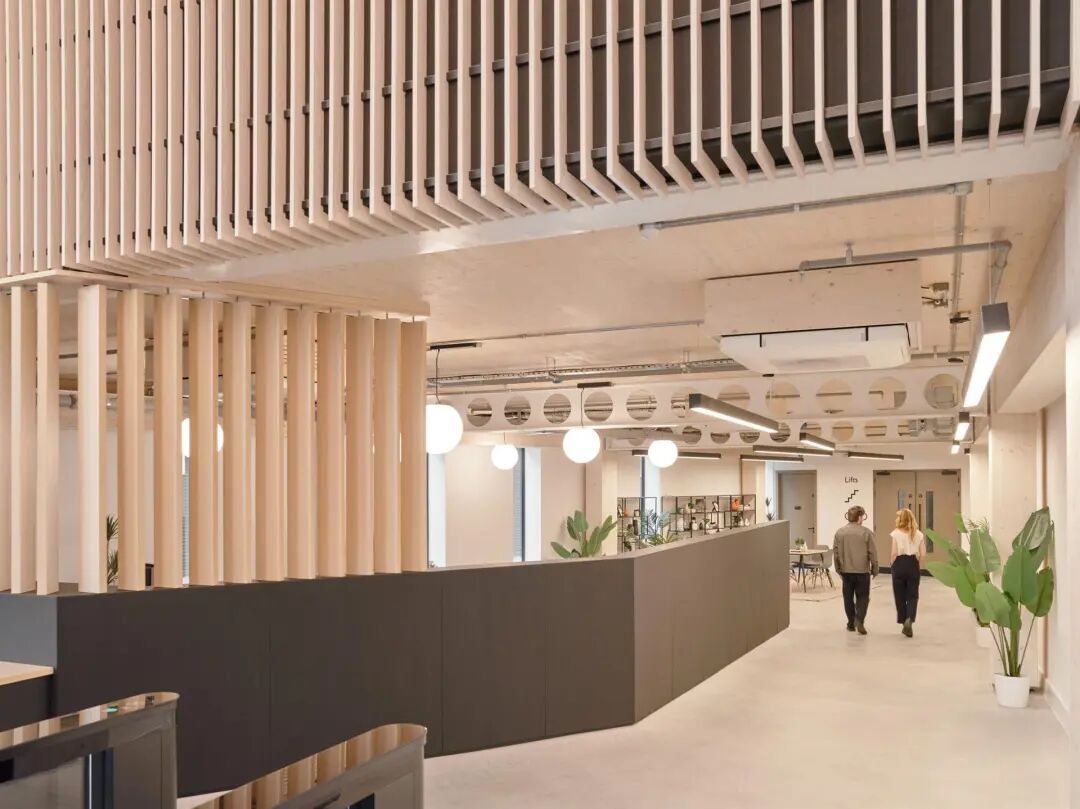

Paradise以相邻的老天堂花园命名,并重新构想了城市内部的办公室:低碳,以人为本,并深深扎根于其位置。自然光通过开放的地板倾泻而下,可以看到广阔的城市景观,并直接进入绿色空间。裸露的木材内饰,宽敞的天花板高度,以及安静、纹理诚实的材料,都有助于营造更健康、更鼓舞人心的工作环境。

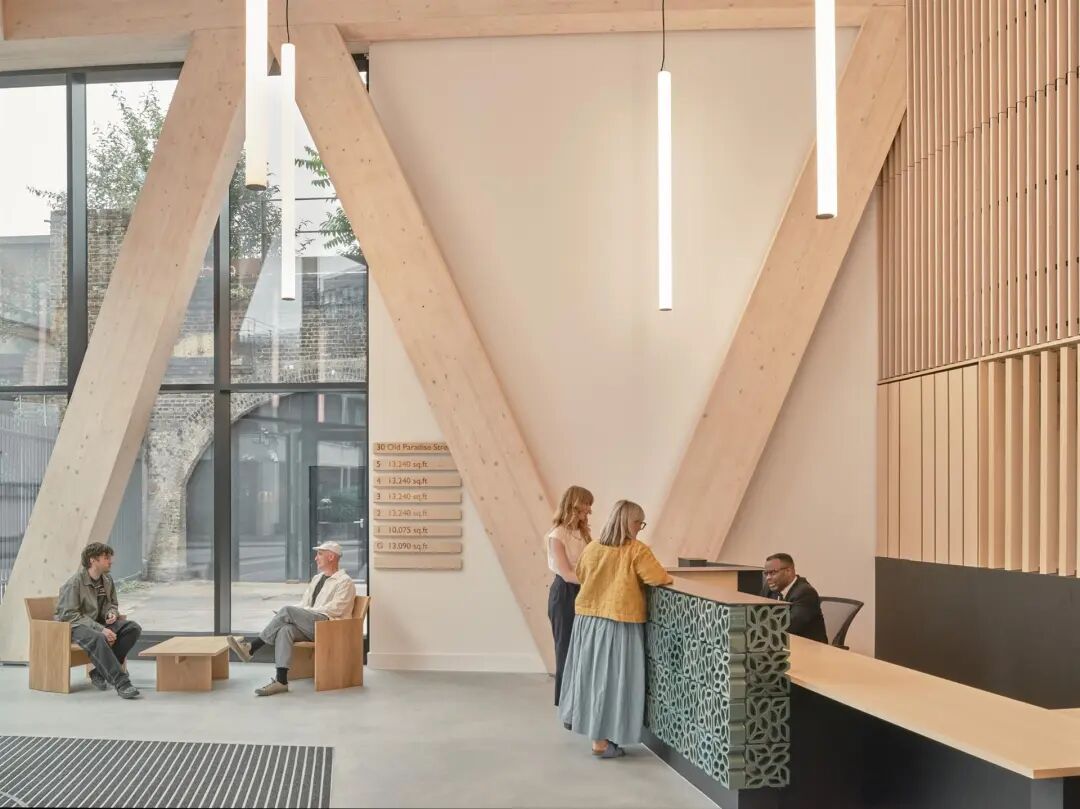

Paradise is named after the adjacent Old Paradise Gardens and reimagines what an inner-city office can be: low-carbon, human-centric, and deeply rooted in its place. Natural light pours across open floorplates, with expansive views to the city and direct access to green spaces. Exposed timber interiors, generous ceiling heights, and a quiet, textural honesty in materials all contribute to a healthier and more inspiring work environment.

设计包含灵活性,一楼用于创客空间和工作室,而上层可以轻松适应不断变化的工作场所需求。强调设计的复杂性使团队避免使用粘合剂,而是使用机械固定装置,允许从梁到立面瓷砖的每个组件在未来重复使用。

The design embraces flexibility, with the ground floor intended for makerspaces and workshops, while upper floors adapt easily to changing workplace needs. A strong emphasis on designing out complexity led the team to avoid adhesives and instead use mechanical fixings, allowing for future reuse of every component, from beams to facade tiles.

实现这种水平的循环需要建筑师、工程师和顾问之间的密切合作。每个连接处和界面都被重新设计,以支持拆卸,并为传统材料(如灌浆或砂浆)开发了替代品。相反,该团队使用了干式固定解决方案、石棉绝缘和可逆固定,以保护未来几十年储存在木材中的碳价值。

Achieving this level of circularity required close collaboration between architects, engineers, and consultants. Every junction and interface was reimagined to support disassembly, with alternatives developed for conventional materials like grout or screeds. Instead, the team used dry-fix solutions, stone wool insulation, and reversible fixings that protect the carbon value stored in the timber for decades to come.

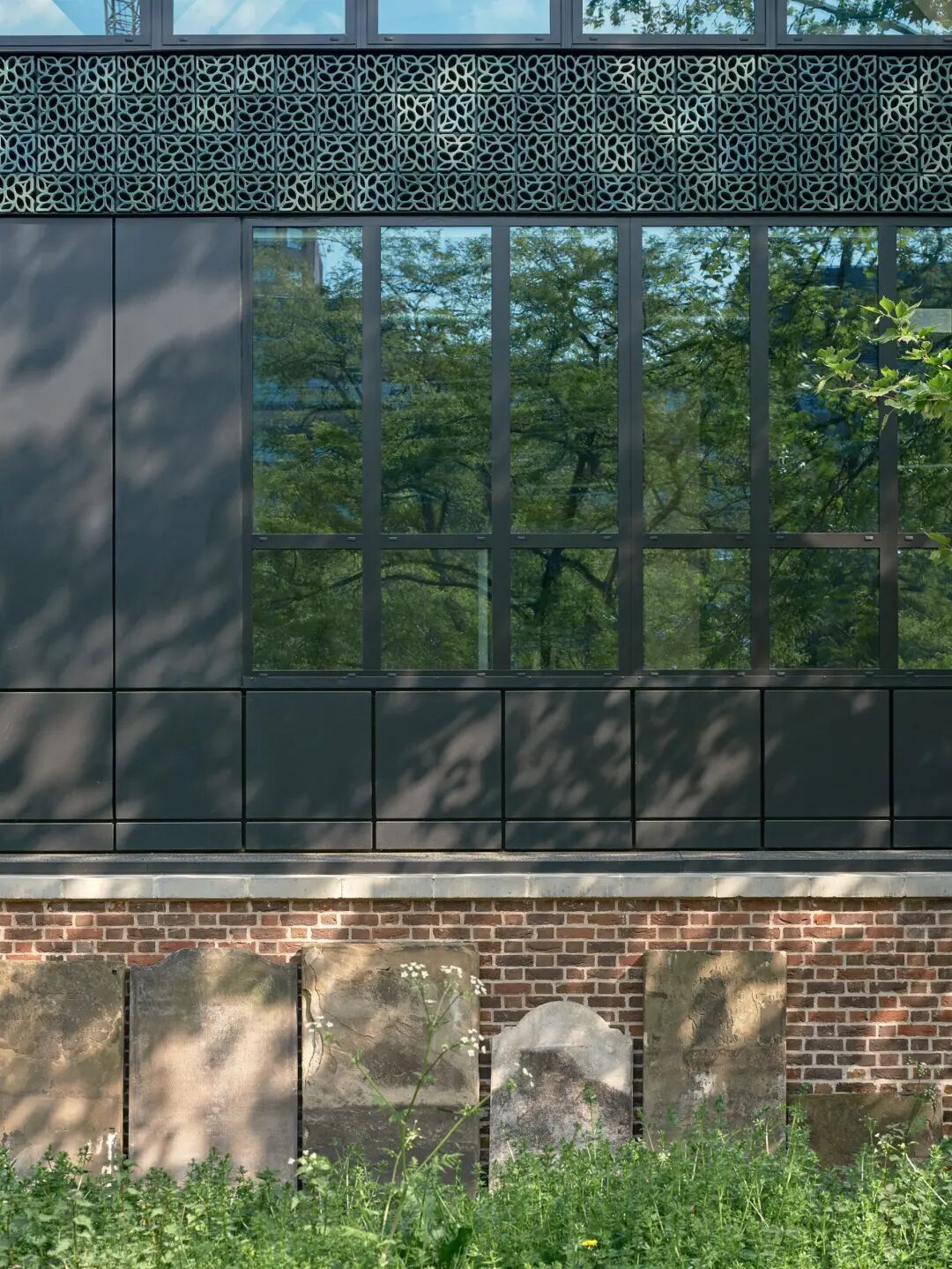

人类的幸福被编织进这个项目的DNA中。可打开的立面允许自然通风,而花园的亲生物景观为城市景观提供了片刻的喘息。该建筑的自清洁赤陶土立面是与当地学生共同设计的,借鉴了该基地的皇家道尔顿陶瓷遗产,其设计可以持续一个多世纪。

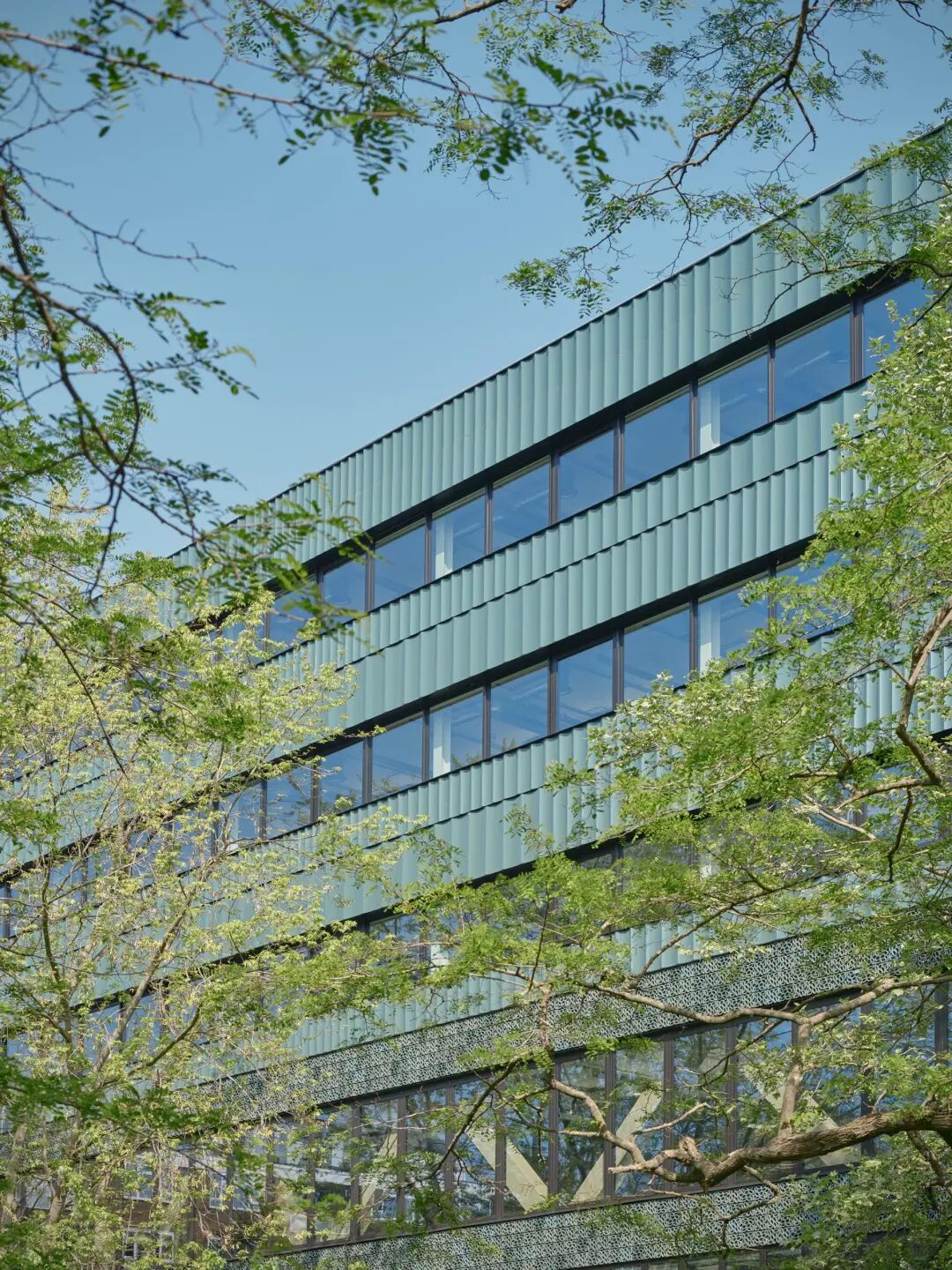

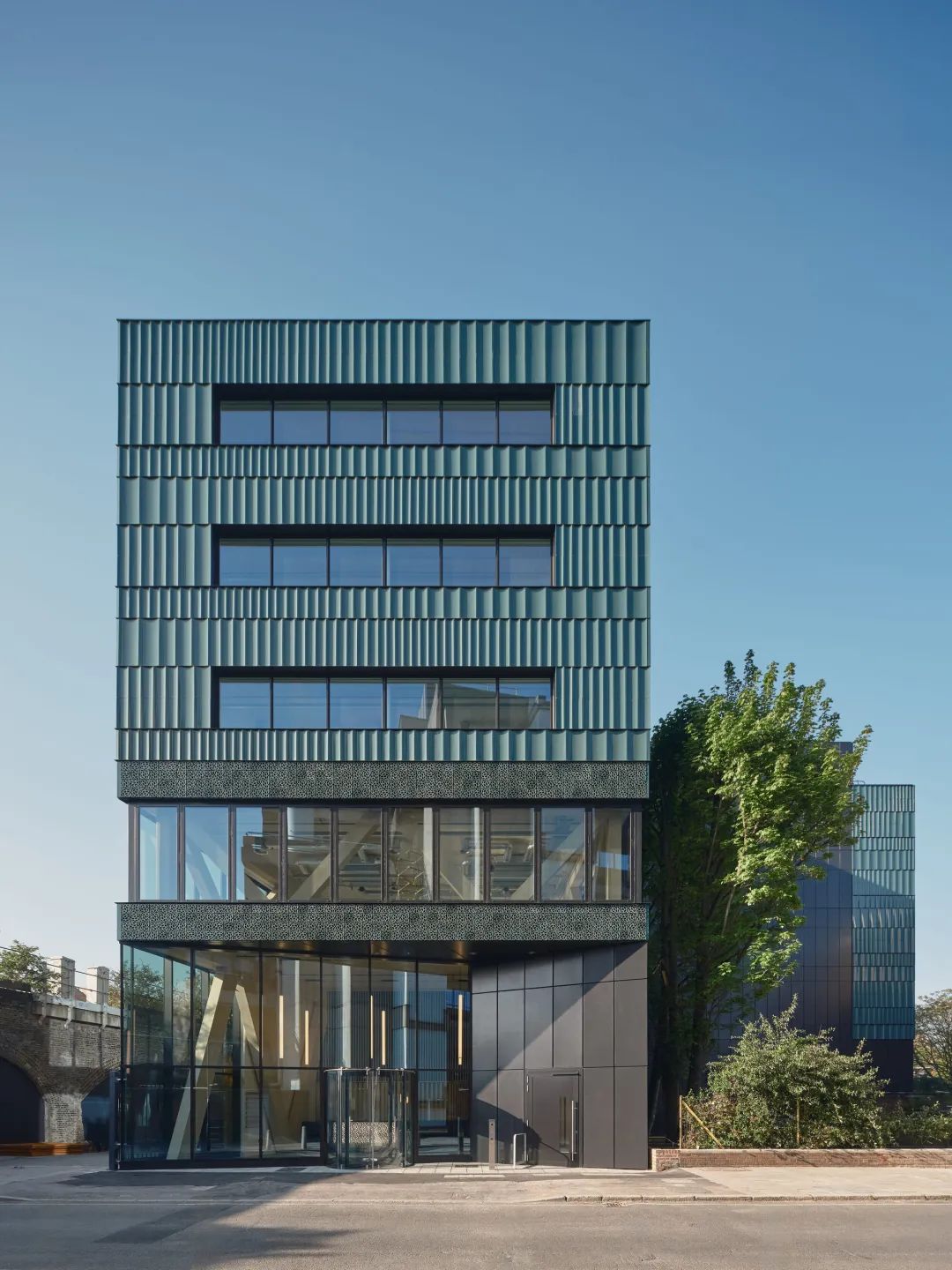

Human well-being is woven into the DNA of the project. Openable facades allow natural ventilation, while biophilic views to the gardens offer moments of respite in the urban landscape. The building's self-cleaning terracotta facade, co-designed with local schoolchildren, draws from the site's Royal Doulton ceramic heritage and is designed to last over a century.

天堂SE11不仅仅是一座建筑;这是一幅可复制的蓝图,描绘了一个更有希望的城市未来。通过简洁、透明以及对人类和地球的承诺,它为循环、低碳和可再生的城市设计提供了一个新的范例。

Paradise SE11 is not just a building; it's a replicable blueprint for a more hopeful urban future. Through simplicity, transparency, and a commitment to both people and planet, it offers a new paradigm for cities that are circular, low-carbon, and regenerative by design.

项目图纸

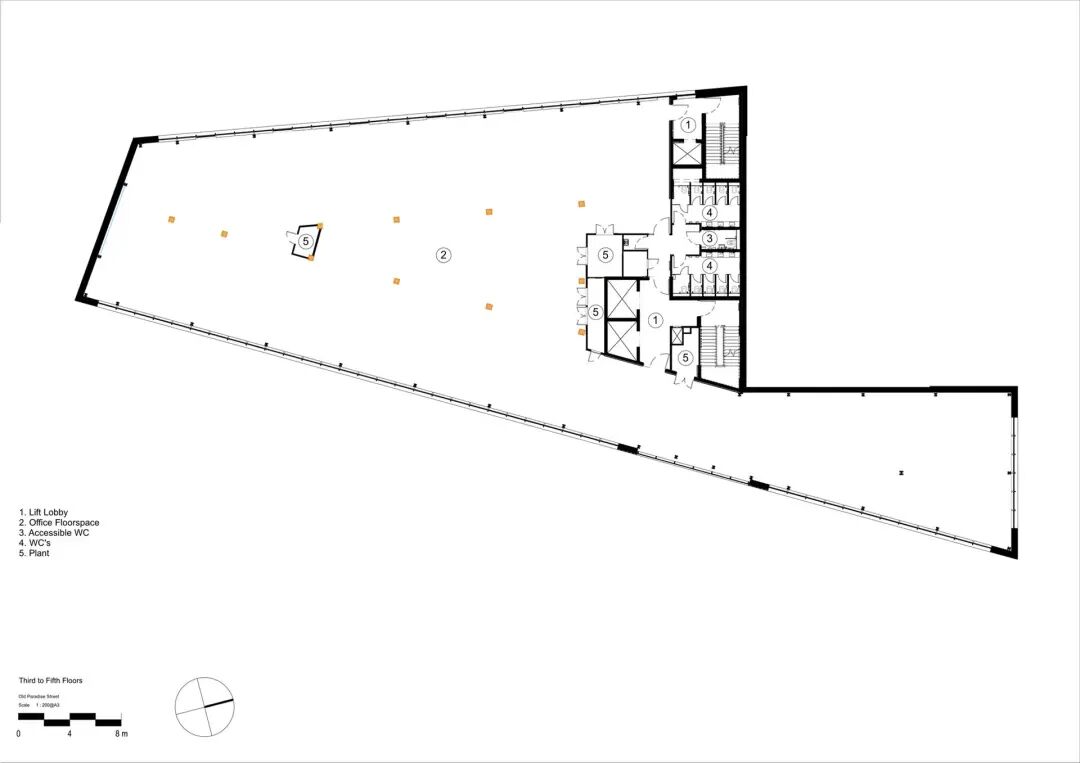

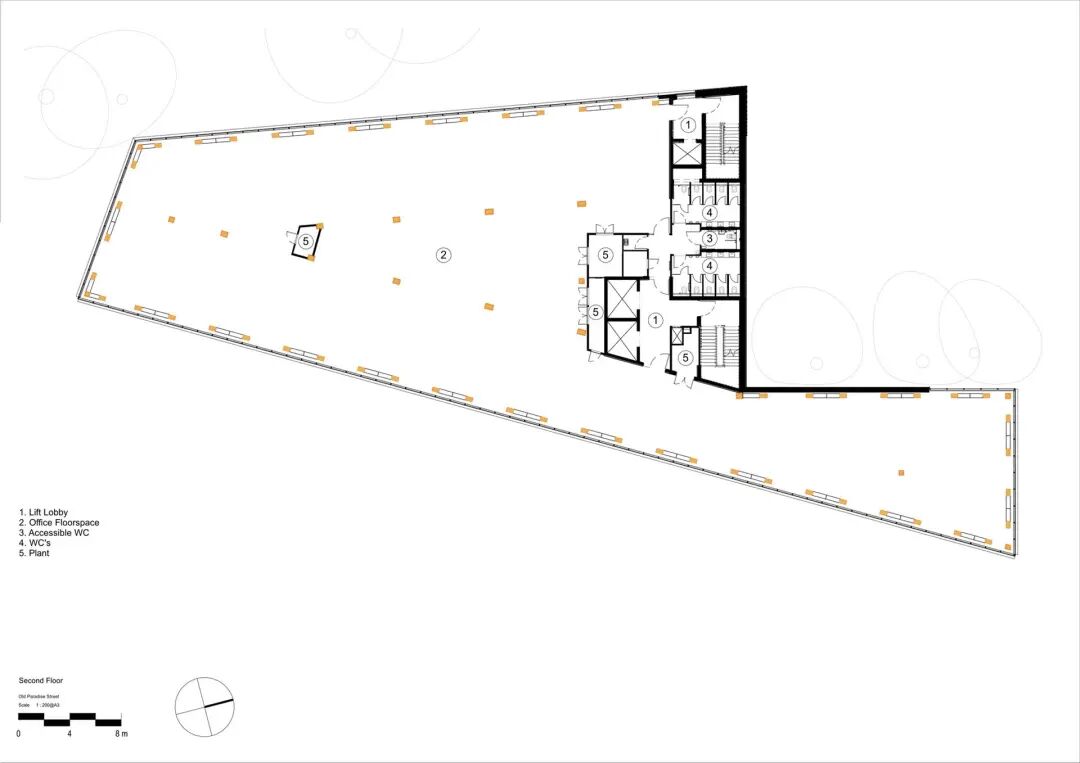

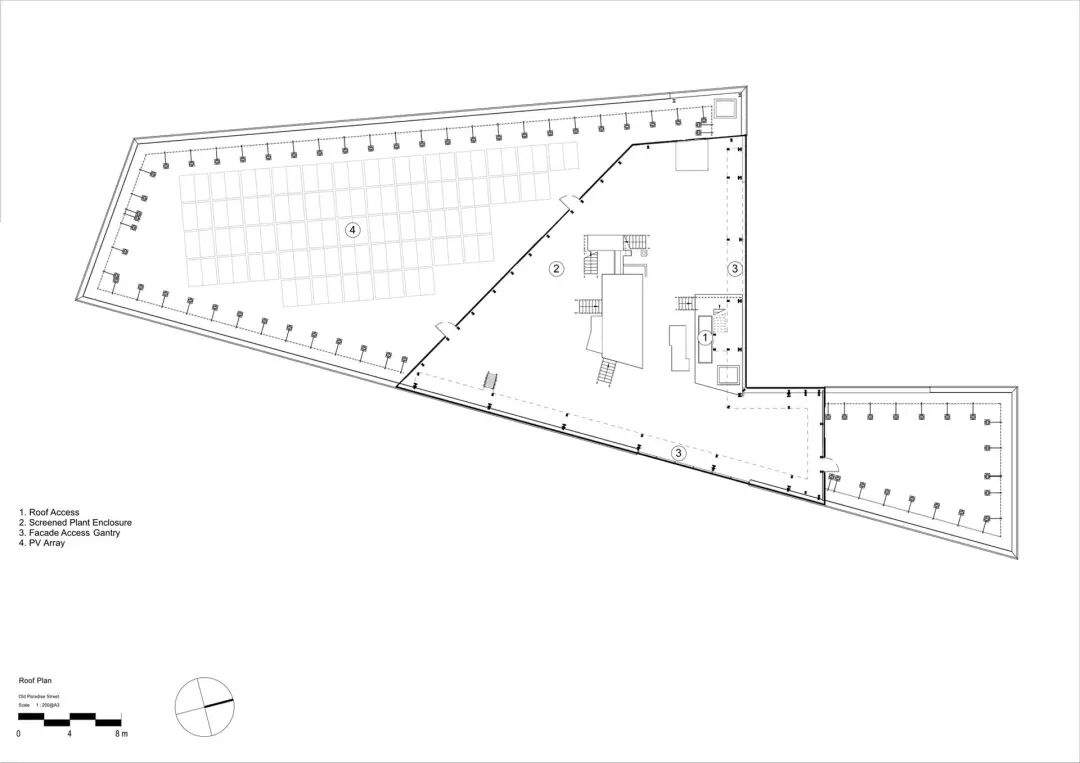

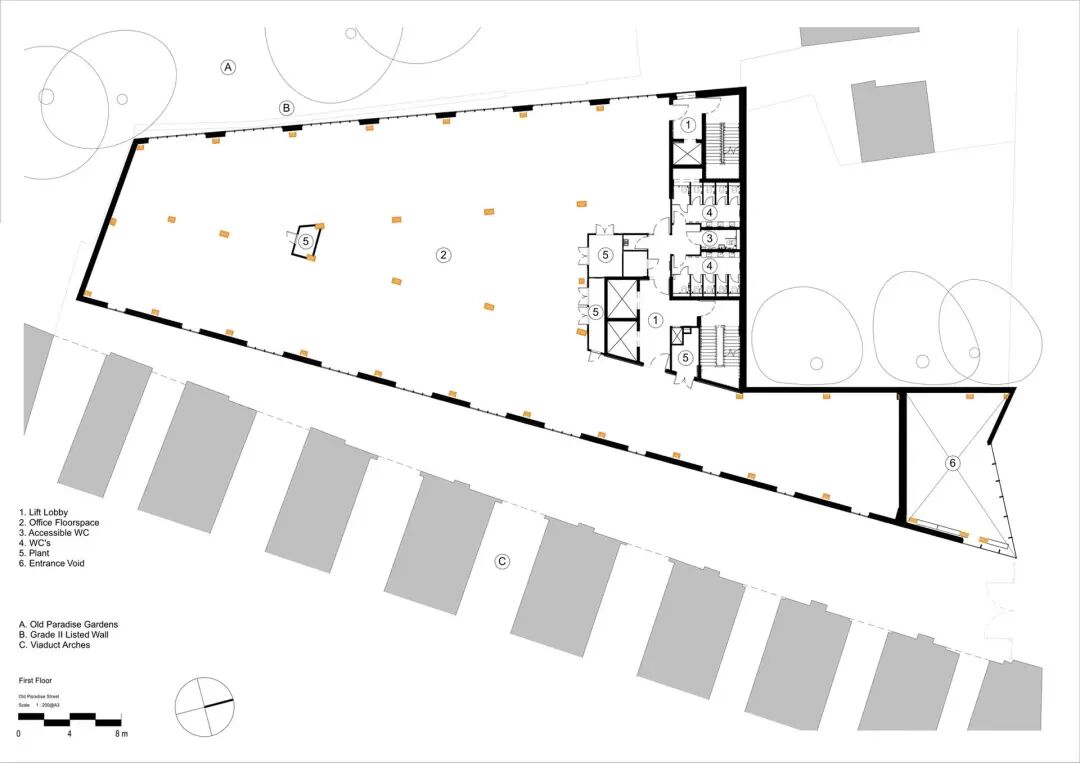

▲平面图

▲剖面图

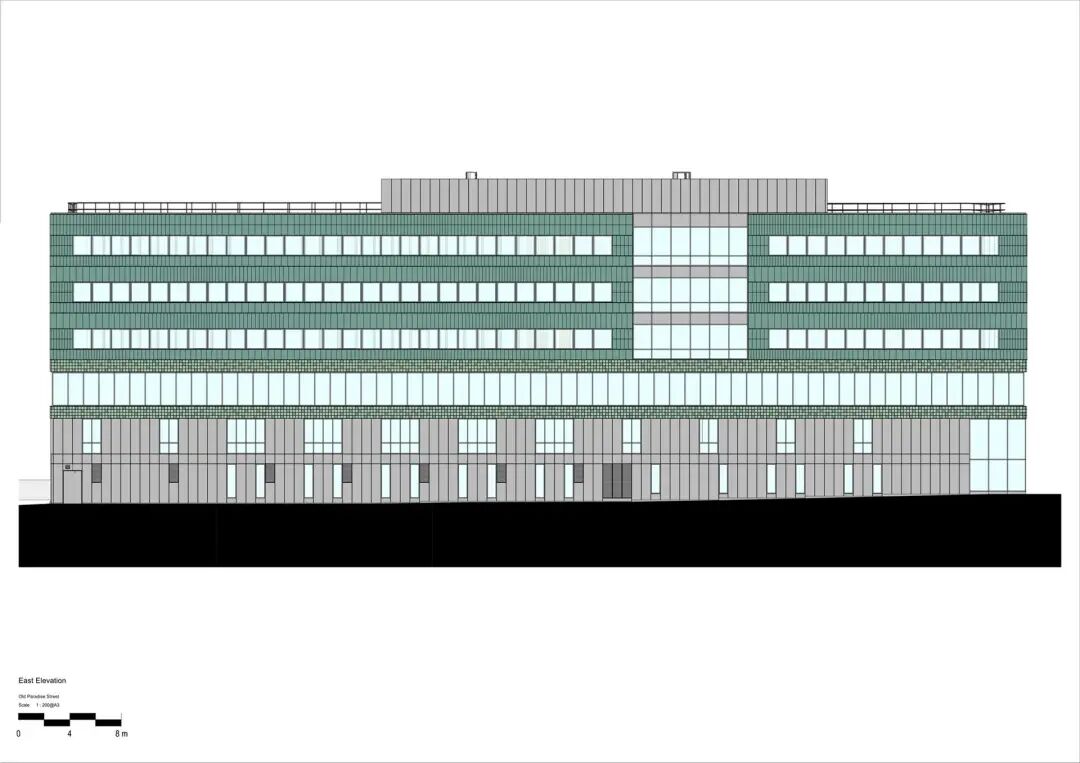

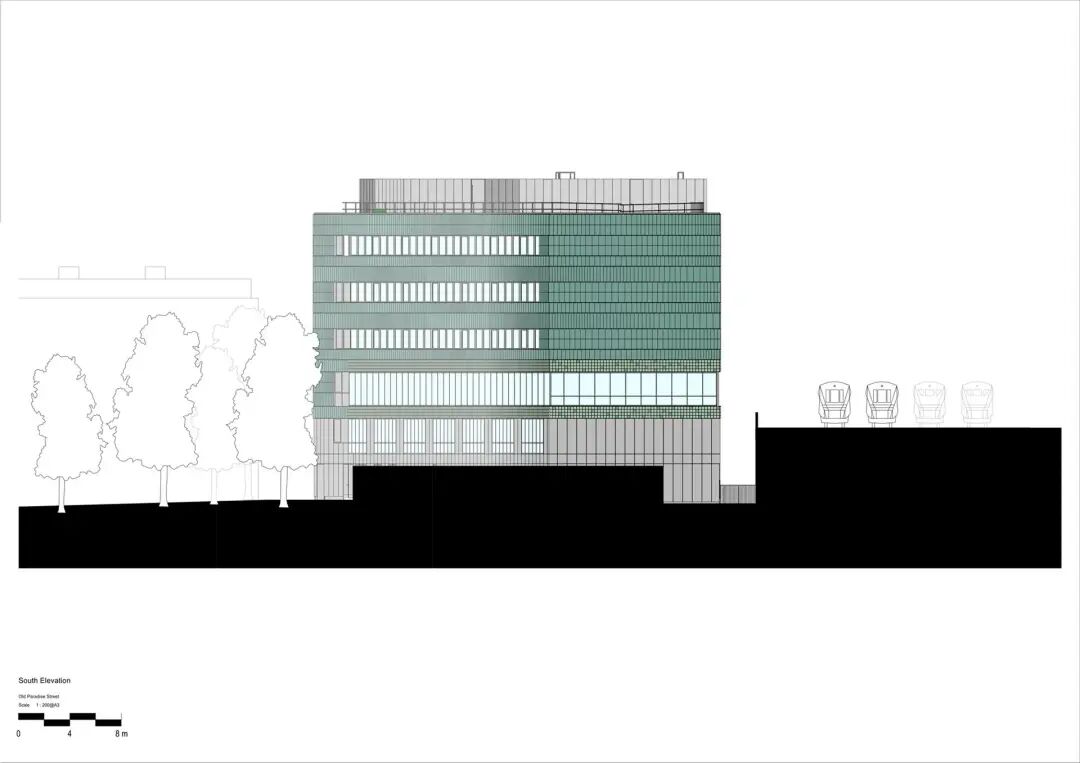

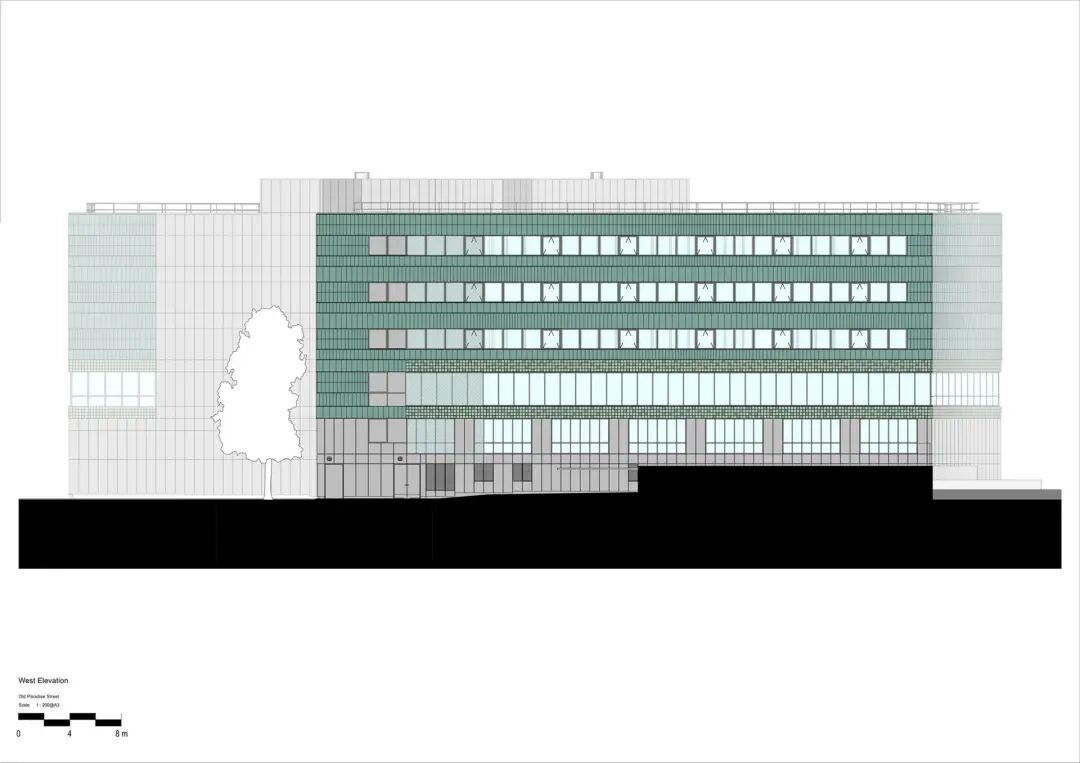

▲立面图


项目信息
设计单位:Feilden Clegg Bradley Studios
地址:英国
面积:7700 m²
年份:2025
摄影:Andy Stagg Photography
