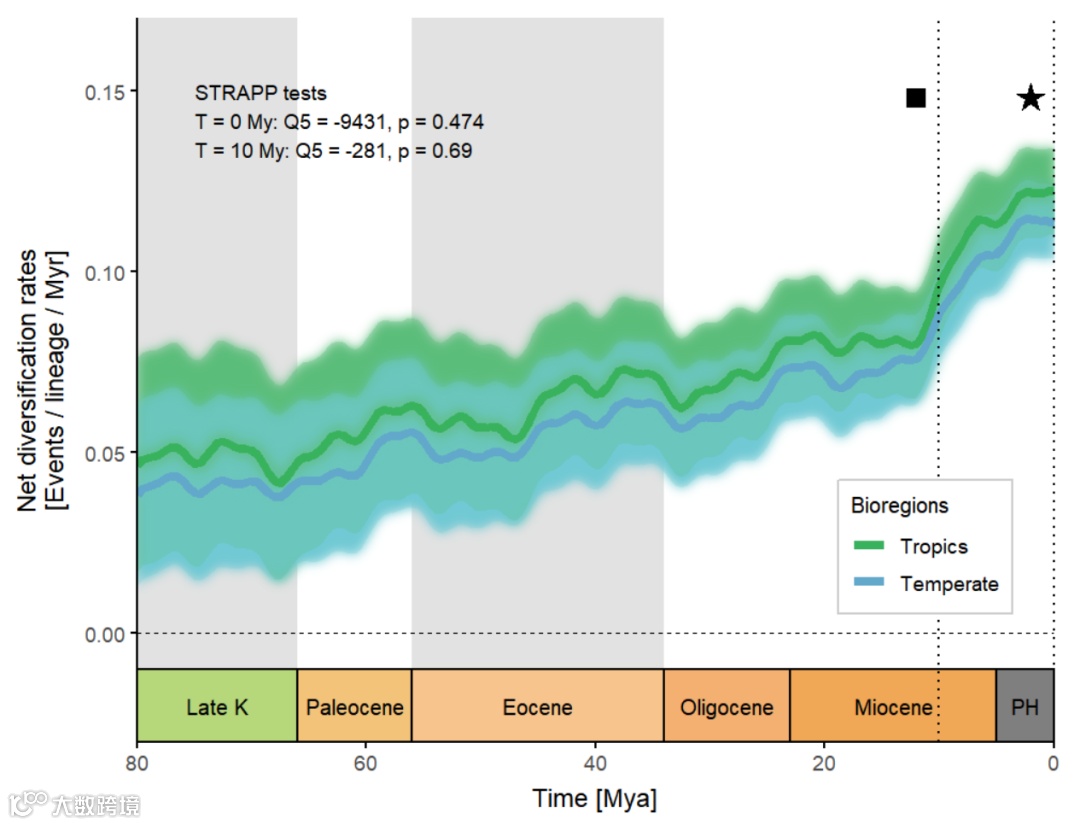

跟着Nature Communications学画图|利用ggplot2+ggfx绘制晕染折线图+底部分类色块

library(tidyverse)# --- File paths ---rates_path   <- "diversification_rates.csv"periods_path <- "geologic_periods.csv"tests_path<-"strapp_tests.csv"# --- Read data ---rates   <- read_csv(rates_path, show_col_types = FALSE)periods <- read_csv(periods_path, show_col_types = FALSE)rates$region <- factor(rates$region, levels = c("Tropics", "Temperate"))tests   <- read_csv(tests_path, show_col_types = FALSE)# ===== 关键：给曲线增加“起伏” =====# 说明：# - 用多个频率/幅度的正弦、余弦叠加 -> 自然的上下波动# - 给两个区域不同相位与幅度，避免完全重叠mk_waves <- function(t, region){  # t：time_mya（单位：Mya；我们用 80 - t 让“向现在靠近”更直观）  x <- 80 - t  base  <- 0.005 * sin(2*pi * x/18) +    0.0025* sin(2*pi * x/7)  +    0.0015* cos(2*pi * x/3.5)    # 区域差异（相位与幅度微调）  if(region == "Temperate"){    base <- 0.8*base + 0.0015*sin(2*pi * x/11 + pi/4)  } else {    base <- base + 0.0010*cos(2*pi * x/9)  }  return(base)}rates_wavy <- rates %>%  group_by(region) %>%  mutate(    wave       = mk_waves(time_mya, unique(region)),    mean_wavy  = pmax(0, mean_rate + wave),    # 以原带宽为基础平移，不改变不确定性大小（你也可以放大/缩小）    span       = (upper - lower)/2,    lower_wavy = pmax(0, mean_wavy - span),    upper_wavy = mean_wavy + span  ) %>% ungroup()library(ggstar)library(ggplot2)#devtools::install_github('thomasp85/ggfx')library(ggfx)

ggplot() +  geom_rect(    aes(xmin =66, xmax = 80, ymin = -Inf, ymax = Inf),    fill = "gray6", alpha = 0.12,    inherit.aes = FALSE, show.legend = FALSE  )+  geom_rect(    aes(xmin =34, xmax = 56, ymin = -Inf, ymax = Inf),    fill = "gray6", alpha = 0.12,    inherit.aes = FALSE, show.legend = FALSE  )+  # ======= Glow 层（先画：带模糊的 ribbon + 线条光晕）=======with_blur(  geom_ribbon(data = rates_wavy %>% filter(region == "Tropics"),              aes(x = time_mya, ymin = lower_wavy, ymax = upper_wavy),              fill = col_trop, alpha = 1),  sigma = 5) +  with_blur(    geom_ribbon(data = rates_wavy %>% filter(region == "Temperate"),                aes(x = time_mya, ymin = lower_wavy, ymax = upper_wavy),                fill = col_temp, alpha = 1),    sigma = 5  ) +  # 两条线的“光晕”——用更粗的线 + 模糊  with_blur(    geom_line(data = rates_wavy %>% filter(region == "Tropics"),              aes(x = time_mya, y = mean_wavy),              linewidth = 4, color = col_trop, alpha = 1),    sigma = 5  ) +  with_blur(    geom_line(data = rates_wavy %>% filter(region == "Temperate"),              aes(x = time_mya, y = mean_wavy),              linewidth = 4, color = col_temp, alpha = 0.6),    sigma = 5  ) +    # ======= 清晰层（叠在上面：正常 ribbon + 细线）=======geom_ribbon(data = rates_wavy %>% filter(region == "Tropics"),            aes(x = time_mya, ymin = lower_wavy, ymax = upper_wavy),            fill = col_trop, alpha = 0.35, show.legend = FALSE) +  geom_ribbon(data = rates_wavy %>% filter(region == "Temperate"),              aes(x = time_mya, ymin = lower_wavy, ymax = upper_wavy),              fill = col_temp, alpha = 0.25, show.legend = FALSE) +  geom_line(data = rates_wavy,            aes(x = time_mya, y = mean_wavy, color = region),            linewidth = 2) +  scale_x_reverse(limits = c(80, 0), expand=c(0,0),breaks = seq(80, 0, by = -20),                  name = "Time [Mya]") +  scale_y_continuous(limits = c(-0.03, 0.17),expand=c(0.0,0),                     name = "Net diversification rates\n[Events / lineage / Myr]") +  scale_color_manual(values = col_lines, name = "Bioregions") +  scale_fill_manual(values  = c( "Late K"="#b6d77a", "Paleocene"="#f3c37a",                                 "Eocene"="#f6c48c", "Oligocene"="#f4b070",                                 "Miocene"="#f0a756", "Pliocene–Holocene"="#e9d977"),                    guide = "none") +  theme_minimal(base_size = 12) +  theme(    panel.grid = element_blank(),    axis.line = element_line(color="black",size=0.6),    axis.ticks = element_line(color = "black",size=0.6),    legend.position = c(0.86, 0.27),    legend.title = element_text(size = 10),    legend.background = element_rect(fill = "white", color = "grey80"),    plot.title = element_text(face = "bold"),    axis.title.y = element_text(margin = margin(r = 8)),    axis.title.x = element_text(margin = margin(t = 6)),    plot.margin = margin(10, 15, 10, 10)  )+geom_rect(data = periods,              aes(xmin = end_mya, xmax = start_mya,                  ymin = -0.03, ymax = -0.01, fill = label),              color = "black", linewidth = 0.6, show.legend = FALSE) +  geom_text(data = periods,            aes(x = (start_mya + end_mya)/2,                y = (-0.01-0.03)/2, label = label),            size =3.5) +  geom_hline(yintercept = 0, linetype = "dashed", linewidth = 0.) +  geom_vline(xintercept = 0,  linetype = "dotted", linewidth = 0.6) +  geom_vline(xintercept = 10, linetype = "dotted", linewidth = 0.6)+  geom_star(data = data.frame(x = 2, y = 0.148),            aes(x = x, y = y),            starshape = 1,           # 五角星/多角星，常用1            size = 4,            fill = "black",            # 常量颜色            color = "black",            stroke = 0.5,            inherit.aes = FALSE) +  annotate("point", x =12, y = 0.148, shape = 15, size = 4) +  annotate("text",  x = 75, y = 0.152,           label = sprintf("STRAPP tests\nT = 0 My: Q5 = %s, p = %.3f\nT = 10 My: Q5 = %s, p = %.2f",                           tests$Q5[tests$T==0],  tests$p[tests$T==0],                           tests$Q5[tests$T==10], tests$p[tests$T==10]),           hjust = 0, vjust = 1, size = 3.3)
