导读：【定量因变量机器学习】R语言02-Lasso回归、岭回归、弹性网络（Elastic Net）及可视化标准化代码

定量因变量机器学习

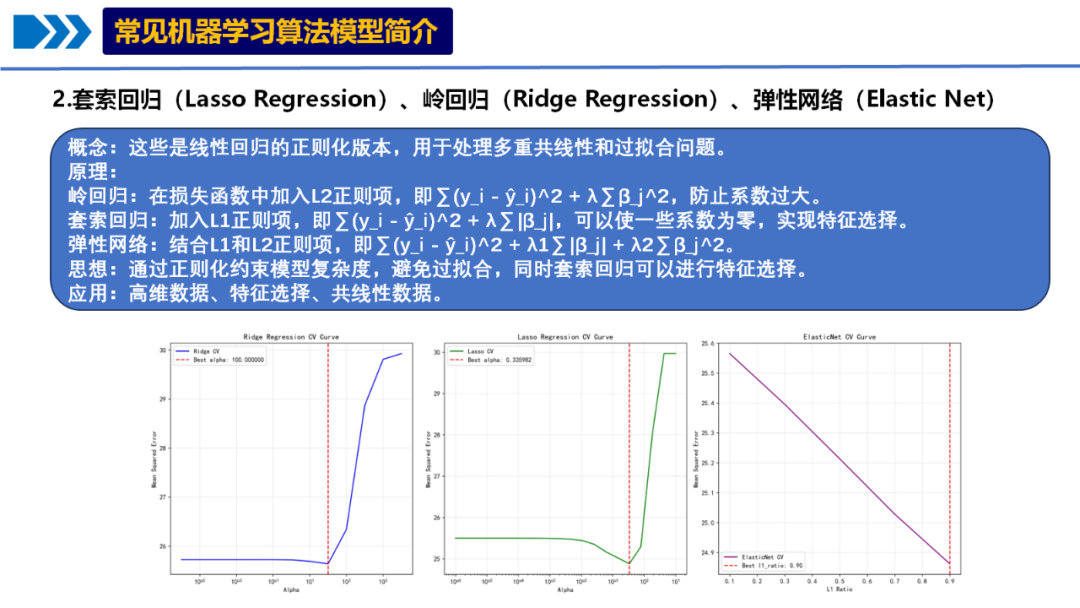

02.套索回归（Lasso Regression）、岭回归（Ridge Regression）、弹性网络（Elastic Net）

R语言教程（标准化代码）

概念、原理、思想、应用

概念：这些是线性回归的正则化版本，用于处理多重共线性和过拟合问题。

原理：

岭回归：在损失函数中加入L2正则项，即∑(y_i - ŷ_i)^2 + λ∑β_j^2，防止系数过大。

套索回归：加入L1正则项，即∑(y_i - ŷ_i)^2 + λ∑|β_j|，可以使一些系数为零，实现特征选择。

弹性网络：结合L1和L2正则项，即∑(y_i - ŷ_i)^2 + λ1∑|β_j| + λ2∑β_j^2。

思想：通过正则化约束模型复杂度，避免过拟合，同时套索回归可以进行特征选择。

应用：高维数据、特征选择、共线性数据。

操作流程

-数据预处理：

-模型构建：

-训练：

-评估：

-可视化：

-保存结果：

代码及操作演示与功能解析

定量变量预测的机器学习模型可分为传统统计模型、树基集成模型、核方法和深度学习模型四大类，每类模型通过不同机制捕捉数据模式，适用于从线性到复杂非线性关系的预测任务。

代码涵盖了从数据准备到结果保存的自动化过程，包括数据预处理、模型配置、性能评估和报告生成。

# 设置工作目录和清理环境
rm(list = ls())
if (!is.null(dev.list())) dev.off()
setwd("C:/Users/hyy/Desktop/")
if (!dir.exists("Results-Regularization")) dir.create("Results-Regularization")

# 加载必要的包
if (!require(pacman)) install.packages("pacman")
pacman::p_load(
  readxl, dplyr, ggplot2, car, lmtest, ggpubr, corrplot,
  performance, see, effects, sjPlot, report, officer, flextable,
  broom, gridExtra, patchwork, glmnet, caret, MASS, plotmo, tidyr,
  pROC, MLmetrics, modelr
)

# 设置中文字体
font_family <- "sans"

# 设置随机种子保证结果可重复
set.seed(123)

# 读取数据
data <- read_excel("示例数据.xlsx", sheet = "示例数据")

# 数据预处理
str(data)
summary(data)

# 处理分类变量
data$结局 <- as.factor(data$结局)
data$肥胖程度 <- as.factor(data$肥胖程度)
data$教育水平 <- as.factor(data$教育水平)
data$血型 <- as.factor(data$血型)
data$指标8 <- as.factor(data$指标8)

# 检查缺失值
sum(is.na(data))

# 如果有缺失值，进行简单处理
if (sum(is.na(data)) > 0) {
  data <- na.omit(data)
  cat("删除了", sum(is.na(data)), "个含有缺失值的行\n")
}

# 数据划分：70%训练集，30%测试集
train_index <- createDataPartition(data$指标1, p = 0.7, list = FALSE)
train_data <- data[train_index, ]
test_data <- data[-train_index, ]

cat("训练集样本量:", nrow(train_data), "\n")
cat("测试集样本量:", nrow(test_data), "\n")

# 准备模型矩阵
x_train <- model.matrix(指标1 ~ . - 序号, data = train_data)[, -1]
y_train <- train_data$指标1

x_test <- model.matrix(指标1 ~ . - 序号, data = test_data)[, -1]
y_test <- test_data$指标1

# 自定义性能指标函数
calculate_r2 <- function(pred, actual) {
  1 - sum((actual - pred)^2) / sum((actual - mean(actual))^2)
}

calculate_rmse <- function(pred, actual) {
  sqrt(mean((actual - pred)^2))
}

calculate_mae <- function(pred, actual) {
  mean(abs(actual - pred))
}

calculate_mse <- function(pred, actual) {
  mean((actual - pred)^2)
}

# 存储所有模型结果的列表
all_models <- list()
performance_comparison <- data.frame()

# 1. 线性回归（基准模型）
cat("正在训练线性回归模型...\n")
lm_model <- lm(指标1 ~ . - 序号, data = train_data)
lm_train_pred <- predict(lm_model, newdata = train_data)
lm_test_pred <- predict(lm_model, newdata = test_data)

lm_performance <- data.frame(
  Model = "Linear Regression",
  Train_R2 = calculate_r2(lm_train_pred, train_data$指标1),
  Test_R2 = calculate_r2(lm_test_pred, test_data$指标1),
  Train_RMSE = calculate_rmse(lm_train_pred, train_data$指标1),
  Test_RMSE = calculate_rmse(lm_test_pred, test_data$指标1),
  Train_MAE = calculate_mae(lm_train_pred, train_data$指标1),
  Test_MAE = calculate_mae(lm_test_pred, test_data$指标1),
  Parameters = "None",
  Selected_Vars = ncol(x_train)
)

performance_comparison <- rbind(performance_comparison, lm_performance)
all_models$Linear <- lm_model

# 2. 岭回归
cat("正在训练岭回归模型...\n")
cv_ridge <- cv.glmnet(x_train, y_train, alpha = 0, nfolds = 10)
best_lambda_ridge <- cv_ridge$lambda.min

ridge_model <- glmnet(x_train, y_train, alpha = 0, lambda = best_lambda_ridge)
ridge_train_pred <- predict(ridge_model, newx = x_train)
ridge_test_pred <- predict(ridge_model, newx = x_test)

ridge_coef <- as.matrix(coef(ridge_model))
ridge_selected_vars <- sum(ridge_coef[-1] != 0)  # 排除截距

ridge_performance <- data.frame(
  Model = "Ridge Regression",
  Train_R2 = calculate_r2(ridge_train_pred, y_train),
  Test_R2 = calculate_r2(ridge_test_pred, y_test),
  Train_RMSE = calculate_rmse(ridge_train_pred, y_train),
  Test_RMSE = calculate_rmse(ridge_test_pred, y_test),
  Train_MAE = calculate_mae(ridge_train_pred, y_train),
  Test_MAE = calculate_mae(ridge_test_pred, y_test),
  Parameters = paste0("lambda=", round(best_lambda_ridge, 6)),
  Selected_Vars = ridge_selected_vars
)

performance_comparison <- rbind(performance_comparison, ridge_performance)
all_models$Ridge <- ridge_model

# 4. 弹性网络
cat("正在训练弹性网络模型...\n")
# 测试多个alpha值找到最佳参数
alpha_values <- c(0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1)
best_alpha <- 0.5
best_lambda_enet <- cv_ridge$lambda.min  # 初始值
best_rmse <- Inf

for (alpha_val in alpha_values) {
  cv_model <- cv.glmnet(x_train, y_train, alpha = alpha_val, nfolds = 5)  # 减少折数加快计算
  current_rmse <- min(cv_model$cvm)
if (current_rmse < best_rmse) {
    best_rmse <- current_rmse
    best_alpha <- alpha_val
    best_lambda_enet <- cv_model$lambda.min
  }
}

cat("最佳alpha:", best_alpha, "最佳lambda:", best_lambda_enet, "\n")

# 使用最佳参数拟合最终模型
enet_model <- glmnet(x_train, y_train, alpha = best_alpha, lambda = best_lambda_enet)
enet_train_pred <- predict(enet_model, newx = x_train)
enet_test_pred <- predict(enet_model, newx = x_test)

enet_coef <- as.matrix(coef(enet_model))
enet_selected_vars <- sum(enet_coef[-1] != 0)  # 排除截距

enet_performance <- data.frame(
  Model = "Elastic Net",
  Train_R2 = calculate_r2(enet_train_pred, y_train),
  Test_R2 = calculate_r2(enet_test_pred, y_test),
  Train_RMSE = calculate_rmse(enet_train_pred, y_train),
  Test_RMSE = calculate_rmse(enet_test_pred, y_test),
  Train_MAE = calculate_mae(enet_train_pred, y_train),
  Test_MAE = calculate_mae(enet_test_pred, y_test),
  Parameters = paste0("alpha=", round(best_alpha, 2), ", lambda=", round(best_lambda_enet, 6)),
  Selected_Vars = enet_selected_vars
)

performance_comparison <- rbind(performance_comparison, enet_performance)
all_models$ElasticNet <- enet_model

# 保存性能比较结果
write.csv(performance_comparison, "Results-Regularization/模型性能比较.csv", row.names = FALSE, fileEncoding = "UTF-8")

# 修复可视化部分 - 使用基础R的subset代替dplyr::select
# 1. 模型性能比较图
performance_long <- data.frame(
  Model = rep(performance_comparison$Model, 4),
  Metric = c(
    rep("R2", nrow(performance_comparison) * 2),
    rep("RMSE", nrow(performance_comparison) * 2)
  ),
  Dataset = rep(c("Training", "Testing"), nrow(performance_comparison) * 2),
  Value = c(
    performance_comparison$Train_R2,
    performance_comparison$Test_R2,
    performance_comparison$Train_RMSE,
    performance_comparison$Test_RMSE
  )
)

p_performance_comparison <- ggplot(performance_long, aes(x = Model, y = Value, fill = Dataset)) +
  geom_bar(stat = "identity", position = "dodge", alpha = 0.8) +
  facet_wrap(~Metric, scales = "free_y") +
  labs(title = "Regularization Models Performance Comparison",
       x = "Model",
       y = "Value") +
  theme_minimal() +
  theme(axis.text.x = element_text(angle = 45, hjust = 1),
        legend.position = "bottom")

# 2. 测试集预测效果比较
test_predictions <- data.frame(
  Actual = y_test,
  Linear = as.numeric(lm_test_pred),
  Ridge = as.numeric(ridge_test_pred),
  Lasso = as.numeric(lasso_test_pred),
  ElasticNet = as.numeric(enet_test_pred)
)

test_predictions_long <- test_predictions %>%
  pivot_longer(cols = -Actual, names_to = "Model", values_to = "Predicted")

p_test_comparison <- ggplot(test_predictions_long, aes(x = Actual, y = Predicted, color = Model)) +
  geom_point(alpha = 0.6) +
  geom_abline(intercept = 0, slope = 1, linetype = "dashed", color = "black") +
  labs(title = "Test Set Predictions Comparison",
       x = "Actual Values",
       y = "Predicted Values") +
  theme_minimal() +
  theme(legend.position = "bottom")

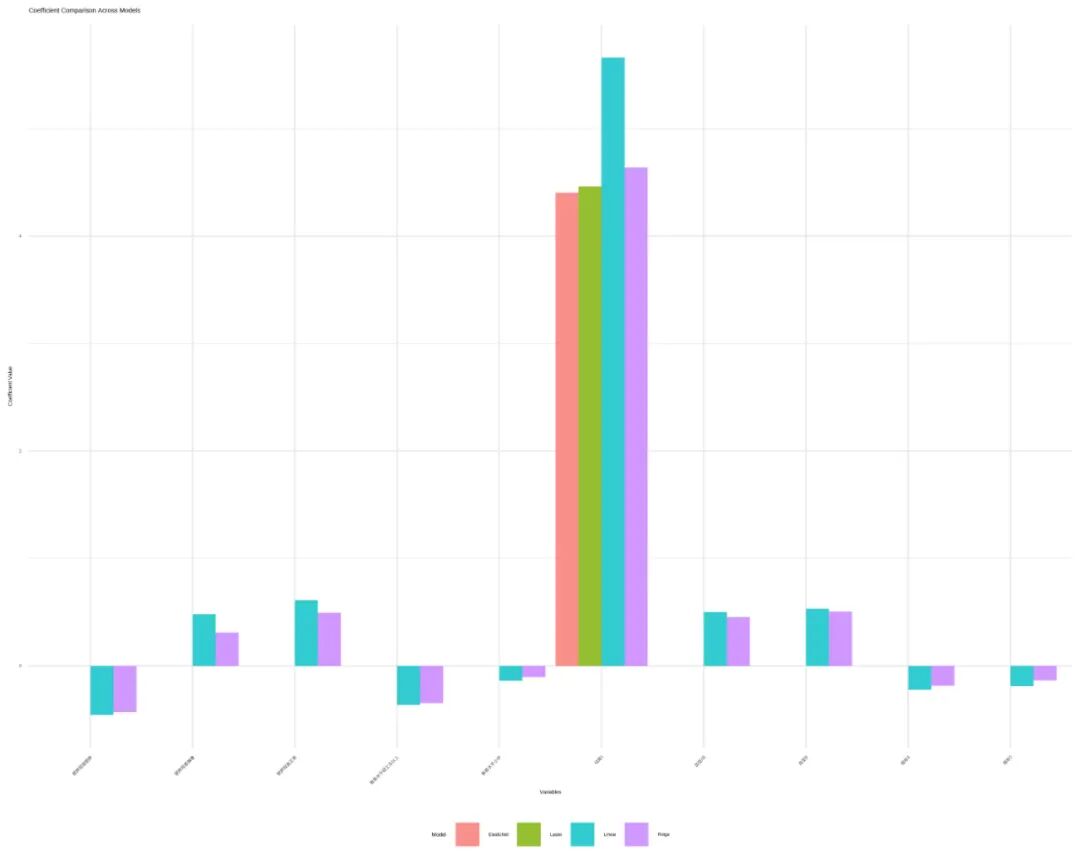

# 3. 系数比较图
# 提取各模型的系数
coef_comparison <- data.frame()

# 线性回归系数
lm_coef_df <- data.frame(
  Variable = names(coef(lm_model)),
  Coefficient = as.numeric(coef(lm_model)),
  Model = "Linear"
) %>% filter(Variable != "(Intercept)")

# 岭回归系数
ridge_coef_df <- data.frame(
  Variable = rownames(ridge_coef),
  Coefficient = as.numeric(ridge_coef),
  Model = "Ridge"
) %>% filter(Variable != "(Intercept)")

# Lasso系数
lasso_coef_df <- data.frame(
  Variable = rownames(lasso_coef),
  Coefficient = as.numeric(lasso_coef),
  Model = "Lasso"
) %>% filter(Variable != "(Intercept)")

# 弹性网络系数
enet_coef_df <- data.frame(
  Variable = rownames(enet_coef),
  Coefficient = as.numeric(enet_coef),
  Model = "ElasticNet"
) %>% filter(Variable != "(Intercept)")

# 合并所有系数
coef_comparison <- rbind(lm_coef_df, ridge_coef_df, lasso_coef_df, enet_coef_df)

# 选择系数绝对值最大的10个变量进行可视化
important_vars <- coef_comparison %>%
  group_by(Variable) %>%
  summarise(max_coef = max(abs(Coefficient))) %>%
  arrange(desc(max_coef)) %>%
  head(10) %>%
  pull(Variable)

coef_comparison_filtered <- coef_comparison %>%
  filter(Variable %in% important_vars)

p_coef_comparison <- ggplot(coef_comparison_filtered, aes(x = Variable, y = Coefficient, fill = Model)) +
  geom_bar(stat = "identity", position = "dodge", alpha = 0.8) +
  labs(title = "Coefficient Comparison Across Models",
       x = "Variables",
       y = "Coefficient Value") +
  theme_minimal() +
  theme(axis.text.x = element_text(angle = 45, hjust = 1),
        legend.position = "bottom")

# 4. 过拟合分析图（训练集vs测试集R²）
overfitting_data <- data.frame(
  Model = performance_comparison$Model,
  Train_R2 = performance_comparison$Train_R2,
  Test_R2 = performance_comparison$Test_R2,
  Overfitting_Gap = performance_comparison$Train_R2 - performance_comparison$Test_R2
)

p_overfitting <- ggplot(overfitting_data, aes(x = Model)) +
  geom_bar(aes(y = Train_R2, fill = "Training R²"), stat = "identity", alpha = 0.7, position = position_dodge(0.8)) +
  geom_bar(aes(y = Test_R2, fill = "Testing R²"), stat = "identity", alpha = 0.7, position = position_dodge(0.8)) +
  labs(title = "Overfitting Analysis: Training vs Testing R-squared",
       x = "Model",
       y = "R-squared") +
  scale_fill_manual(values = c("Training R²" = "blue", "Testing R²" = "red")) +
  theme_minimal() +
  theme(axis.text.x = element_text(angle = 45, hjust = 1),
        legend.position = "bottom")

# 5. 变量选择结果
variable_selection <- data.frame(
  Model = c("Linear Regression", "Ridge Regression", "Lasso Regression", "Elastic Net"),
  Total_Variables = rep(ncol(x_train), 4),
  Selected_Variables = c(
    ncol(x_train),
    ridge_selected_vars,
    lasso_selected_vars,
    enet_selected_vars
  )
)

p_variable_selection <- ggplot(variable_selection, aes(x = Model, y = Selected_Variables)) +
  geom_bar(stat = "identity", fill = "steelblue", alpha = 0.8) +
  geom_text(aes(label = Selected_Variables), vjust = -0.5) +
  labs(title = "Variable Selection Results",
       x = "Model",
       y = "Number of Selected Variables") +
  theme_minimal() +
  theme(axis.text.x = element_text(angle = 45, hjust = 1))

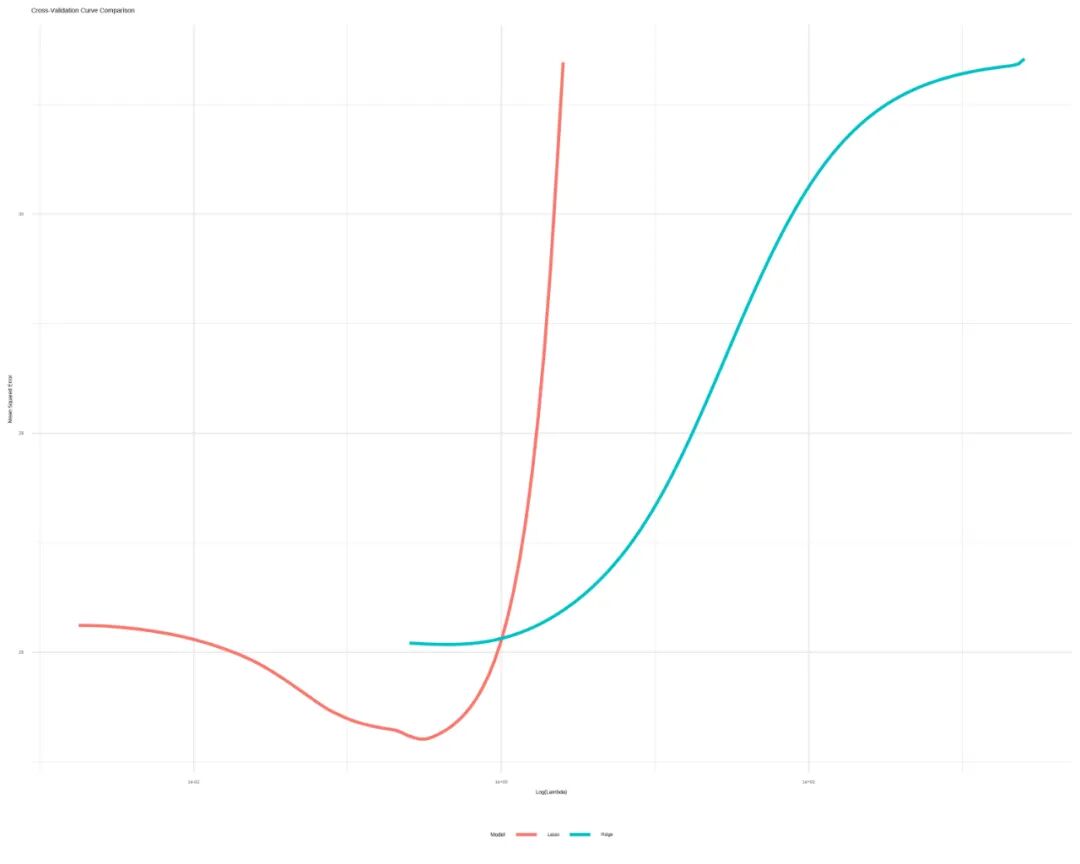

# 6. 交叉验证曲线比较
# 岭回归CV曲线
ridge_cv_data <- data.frame(
  lambda = cv_ridge$lambda,
  cvm = cv_ridge$cvm,
  Model = "Ridge"
)

# Lasso CV曲线
lasso_cv_data <- data.frame(
  lambda = cv_lasso$lambda,
  cvm = cv_lasso$cvm,
  Model = "Lasso"
)

cv_comparison <- rbind(ridge_cv_data, lasso_cv_data)

p_cv_comparison <- ggplot(cv_comparison, aes(x = lambda, y = cvm, color = Model)) +
  geom_line(size = 1) +
  scale_x_log10() +
  labs(title = "Cross-Validation Curve Comparison",
       x = "Log(Lambda)",
       y = "Mean Squared Error") +
  theme_minimal() +
  theme(legend.position = "bottom")

# 保存所有图形
plots_to_save <- list(
  p_performance_comparison,
  p_test_comparison,
  p_coef_comparison,
  p_overfitting,
  p_variable_selection,
  p_cv_comparison
)

plot_names <- c(
"performance_comparison",
"test_predictions_comparison",
"coefficient_comparison",
"overfitting_analysis",
"variable_selection",
"cv_curve_comparison"
)

# 保存为不同格式
for (i in 1:length(plots_to_save)) {
  tryCatch({
    # JPG
    ggsave(paste0("Results-Regularization/", plot_names[i], ".jpg"),
           plots_to_save[[i]], width = 10, height = 8, units = "in", dpi = 300)
    # PNG
    ggsave(paste0("Results-Regularization/", plot_names[i], ".png"),
           plots_to_save[[i]], width = 10, height = 8, units = "in", dpi = 300)
    # PDF
    ggsave(paste0("Results-Regularization/", plot_names[i], ".pdf"),
           plots_to_save[[i]], width = 10, height = 8, units = "in")
    cat("成功保存:", plot_names[i], "\n")
  }, error = function(e) {
    cat("Error saving", plot_names[i], ":", e$message, "\n")
  })
}

# 保存详细的模型系数
write.csv(lm_coef_df, "Results-Regularization/线性回归系数.csv", row.names = FALSE, fileEncoding = "UTF-8")
write.csv(ridge_coef_df, "Results-Regularization/岭回归系数.csv", row.names = FALSE, fileEncoding = "UTF-8")
write.csv(lasso_coef_df, "Results-Regularization/Lasso回归系数.csv", row.names = FALSE, fileEncoding = "UTF-8")
write.csv(enet_coef_df, "Results-Regularization/弹性网络系数.csv", row.names = FALSE, fileEncoding = "UTF-8")

# 生成综合Word报告
tryCatch({
  doc <- read_docx()

# 标题
  doc <- doc %>%
    body_add_par("正则化回归模型综合分析报告", style = "heading 1") %>%
    body_add_par(paste("生成日期:", Sys.Date()), style = "Normal") %>%
    body_add_par("", style = "Normal")

# 数据概述
  doc <- doc %>%
    body_add_par("数据概述", style = "heading 2") %>%
    body_add_par(paste("总样本量:", nrow(data)), style = "Normal") %>%
    body_add_par(paste("训练集样本量:", nrow(train_data)), style = "Normal") %>%
    body_add_par(paste("测试集样本量:", nrow(test_data)), style = "Normal") %>%
    body_add_par(paste("特征数量:", ncol(x_train)), style = "Normal") %>%
    body_add_par("", style = "Normal")

# 模型性能比较
  doc <- doc %>%
    body_add_par("模型性能比较", style = "heading 2")

  perf_ft <- flextable(performance_comparison) %>%
    theme_zebra() %>%
    autofit()

  doc <- doc %>%
    body_add_flextable(perf_ft) %>%
    body_add_par("", style = "Normal")

# 最佳模型识别
  best_test_r2 <- max(performance_comparison$Test_R2)
  best_model <- performance_comparison$Model[which.max(performance_comparison$Test_R2)]

  doc <- doc %>%
    body_add_par("最佳模型识别", style = "heading 3") %>%
    body_add_par(paste("基于测试集R平方，最佳模型为:", best_model), style = "Normal") %>%
    body_add_par(paste("测试集R平方:", round(best_test_r2, 4)), style = "Normal") %>%
    body_add_par("", style = "Normal")

# 过拟合分析
  doc <- doc %>%
    body_add_par("过拟合分析", style = "heading 3") %>%
    body_add_par("训练集与测试集性能差异:", style = "Normal")

  overfitting_ft <- flextable(overfitting_data) %>%
    theme_zebra() %>%
    autofit()

  doc <- doc %>%
    body_add_flextable(overfitting_ft) %>%
    body_add_par("", style = "Normal")

# 变量选择总结
  doc <- doc %>%
    body_add_par("变量选择总结", style = "heading 3")

  selection_ft <- flextable(variable_selection) %>%
    theme_zebra() %>%
    autofit()

  doc <- doc %>%
    body_add_flextable(selection_ft) %>%
    body_add_par("", style = "Normal")

# 可视化结果 - 只添加确实存在的图片
  doc <- doc %>%
    body_add_par("可视化结果", style = "heading 2")

# 检查图片文件是否存在，然后添加
  img_files <- c(
    "performance_comparison.jpg",
    "test_predictions_comparison.jpg",
    "coefficient_comparison.jpg",
    "overfitting_analysis.jpg",
    "variable_selection.jpg"
  )

  img_titles <- c(
    "模型性能比较:",
    "测试集预测效果比较:",
    "系数比较:",
    "过拟合分析:",
    "变量选择结果:"
  )

for (i in 1:length(img_files)) {
    img_path <- paste0("Results-Regularization/", img_files[i])
    if (file.exists(img_path)) {
      doc <- doc %>%
        body_add_par(img_titles[i], style = "Normal") %>%
        body_add_img(img_path, width = 7, height = 6)
    } else {
      cat("图片文件不存在:", img_path, "\n")
    }
  }

# 结论与建议
  doc <- doc %>%
    body_add_par("结论与建议", style = "heading 2") %>%
    body_add_par("基于综合分析，主要发现如下：", style = "Normal")

# 根据性能给出建议
if (best_model == "Linear Regression") {
    doc <- doc %>% body_add_par("- 线性回归表现最佳，数据可能没有严重的多重共线性问题", style = "Normal")
  } elseif (best_model == "Ridge Regression") {
    doc <- doc %>% body_add_par("- 岭回归表现最佳，数据可能存在多重共线性，L2正则化有效", style = "Normal")
  } elseif (best_model == "Lasso Regression") {
    doc <- doc %>% body_add_par("- Lasso回归表现最佳，特征选择对模型性能有积极影响", style = "Normal")
  } else {
    doc <- doc %>% body_add_par("- 弹性网络表现最佳，结合了L1和L2正则化的优势", style = "Normal")
  }

# 过拟合情况
  avg_overfitting_gap <- mean(overfitting_data$Overfitting_Gap)
if (avg_overfitting_gap > 0.1) {
    doc <- doc %>% body_add_par("- 存在明显的过拟合现象，建议加强正则化", style = "Normal")
  } elseif (avg_overfitting_gap < 0.05) {
    doc <- doc %>% body_add_par("- 模型泛化能力良好", style = "Normal")
  } else {
    doc <- doc %>% body_add_par("- 模型具有一定的泛化能力，但仍有改进空间", style = "Normal")
  }

# 变量选择情况
if (lasso_selected_vars < ncol(x_train) * 0.5) {
    doc <- doc %>% body_add_par("- Lasso成功进行了特征选择，减少了特征数量", style = "Normal")
  }

  doc <- doc %>%
    body_add_par("推荐使用策略:", style = "Normal") %>%
    body_add_par(paste("1. 生产环境推荐使用:", best_model, "模型"), style = "Normal") %>%
    body_add_par("2. 如需特征选择，可考虑Lasso或弹性网络", style = "Normal") %>%
    body_add_par("3. 如数据存在多重共线性，推荐岭回归或弹性网络", style = "Normal") %>%
    body_add_par("4. 可进一步尝试其他机器学习算法进行比较", style = "Normal")

# 保存Word文档
print(doc, target = "Results-Regularization/正则化回归模型综合分析报告.docx")
  cat("Word报告生成成功！\n")

}, error = function(e) {
  cat("生成Word报告时出错:", e$message, "\n")
})

# 保存R工作环境
save.image("Results-Regularization/正则化回归分析.RData")

# 保存模型对象
saveRDS(all_models, "Results-Regularization/all_models.rds")

# 输出完成信息
cat("\n=== 正则化回归模型分析完成 ===\n")
cat("所有结果已保存到 Results-Regularization 文件夹中。\n")
cat("包含：\n")
cat("- 四种模型的训练和测试结果\n")
cat("- 模型性能比较\n")
cat("- 详细的系数分析\n")
cat("- 多种可视化图形\n")
cat("- 完整的Word分析报告\n")
cat("- R工作环境文件和模型对象\n\n")

# 输出最佳模型信息
cat("最佳模型信息：\n")
cat("模型:", best_model, "\n")
cat("测试集R平方:", round(best_test_r2, 4), "\n")
best_model_selected_vars <- variable_selection$Selected_Variables[variable_selection$Model == best_model]
cat("选择的变量数:", best_model_selected_vars, "\n")

# 输出各模型测试集R平方
cat("\n各模型测试集R平方：\n")
for (i in 1:nrow(performance_comparison)) {
  cat(performance_comparison$Model[i], ":", round(performance_comparison$Test_R2[i], 4), "\n")
}

# 输出性能差异
cat("\n性能差异分析：\n")
cat("训练集平均R平方:", round(mean(performance_comparison$Train_R2), 4), "\n")
cat("测试集平均R平方:", round(mean(performance_comparison$Test_R2), 4), "\n")
cat("平均过拟合差距:", round(mean(overfitting_data$Overfitting_Gap), 4), "\n")

# 输出模型选择建议
cat("\n模型选择建议：\n")
if (best_model == "Elastic Net") {
  cat("弹性网络表现最佳，推荐在生产环境中使用。\n")
  cat("该模型平衡了特征选择和系数收缩的优势。\n")
} elseif (best_model == "Lasso Regression") {
  cat("Lasso回归表现良好，特别适合特征选择任务。\n")
} elseif (best_model == "Ridge Regression") {
  cat("岭回归表现稳定，适合处理多重共线性数据。\n")
} else {
  cat("线性回归表现尚可，但正则化模型可能有改进空间。\n")
}
