❝本节来介绍如何使用「cowplot」包所提供的「ggdraw」函数来对图形做额外的注释，「数据代码已经上传VIP群，请自行下载」
❞
❝❞
有需要的观众老爷欢迎加入小编的VIP群，目前已经上传「2021-2022两年公众号文档数据+代码约190篇左右」包含付费文档，扫描文中尾二维码加小编微信「付费99元」后邀请进群，「由于群名额有限人满之后将不在添加新成员」，有需要的请尽早加入，早进早享受；「一定让你感受到物超所值」，加入小编的VIP如果你有一些让我感兴趣的图表提供示例数据小编若有时间会写成推文发送
加载R包
library(tidyverse)
library(cowplot)
导入数据
test <- read_tsv("data.xls")
数据清洗
summ_df <- test %>%
group_by(sd, n, wdh) %>%
summarise(n = n(),
avg_val = mean(val),
conf_int_lower = avg_val - 1.96 * sd(val)/sqrt(n),
conf_int_upper = avg_val + 1.96 * sd(val)/sqrt(n))
绘制主图
plot <- ggplot(test) +
geom_jitter(aes(x = val, y = wdh), height = 0.02, col = "steelblue4", alpha = 0.4) +
geom_point(data = summ_df, aes(x = avg_val, y = wdh-0.3), col = "steelblue4") +
geom_errorbarh(data = summ_df,
aes(xmin = conf_int_lower, xmax = conf_int_upper, y = wdh-0.3),
height = 0.3) +
geom_vline(xintercept = 0, col = "steelblue4", size = 0.5) +
facet_grid(sd ~ n) +
expand_limits(y = c(0.5,4.5)) +
labs(y = "Standard deviation",
x = "Sample size") +
theme(axis.text = element_blank(),
axis.title.x.bottom = element_blank(),
axis.title.y.left = element_blank(),
axis.ticks = element_blank(),
panel.background = element_rect(fill="white",colour = "#75C500"),
strip.text = element_text(size = 16),
strip.background = element_rect(fill = "#75C500"),
panel.border = element_rect(linetype = "solid",fill=NA,colour = "#75C500"),
panel.spacing = unit(0.05,"in"))

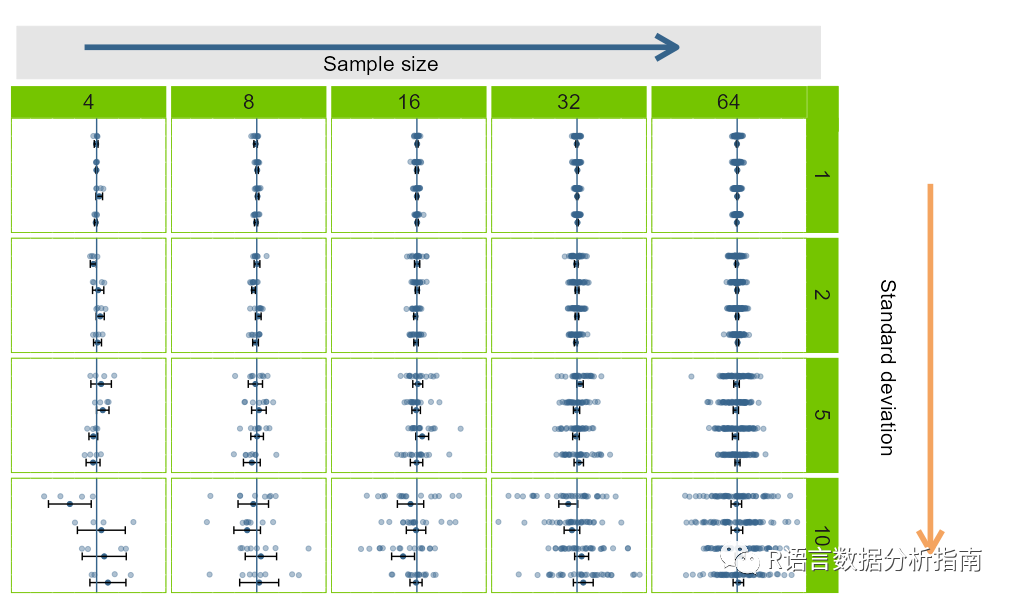

图形注释
❝以前我们主要使用「annotation_custom」函数来进行注释，在此我们使用
❞ggdraw函数后可以通过draw_*函数来添加新的图形;也算是一种新的方法
ggdraw(xlim = c(0, 1.2), ylim = c(-0.2,0.95))+
draw_plot(plot,x = 0, y = -0.2) +
draw_grob(grid::grid.rect(gp=grid::gpar(fill="grey90",col="grey90")),
x=0.02,y=0.8,height = 0.1,width=0.95)+
draw_grob(grid::grid.rect(gp=grid::gpar(fill="#75C500",col="#75C500")),
x=0.955,y=0.7,height = 0.08549,width=0.036)+
draw_line(x = c(0.1,0.8), y = c(0.86,0.86), arrow = arrow(), lineend = "butt",
size = 2, col = "steelblue4") +
draw_line(x = c(1.1,1.1), y = c(0.6,-0.1), arrow = arrow(), lineend = "butt",
size = 2, col = "sandybrown") +
draw_text(text = "Sample size", size = 16, x = 0.45, y = 0.83) +
draw_text(text = "Standard deviation", size = 16, x = 1.05, y = 0.25,
angle = -90)
ggsave(filename ="F.pdf",width=10.57,height=6.29,unit="in",dpi=300)
❝可以看到整个过程还是很简单的，喜欢的观众老爷欢迎分享转发，「当然更推荐大家加入我的VIP交流群」扫描下方二维码加小编微信「付费99元」后邀请进群，「一定让你感受到物超所值」，「添加小编微信请备注来意，以便高效处理」，
❞加入小编的VIP如果你有一些让我感兴趣的图表提供示例数据小编若有时间会写成推文发送
