二、业务监控方案

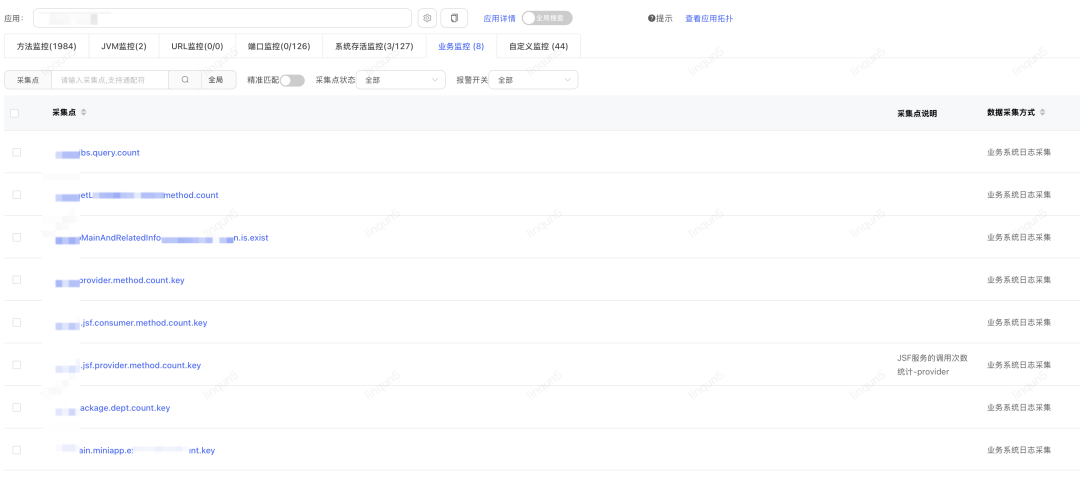

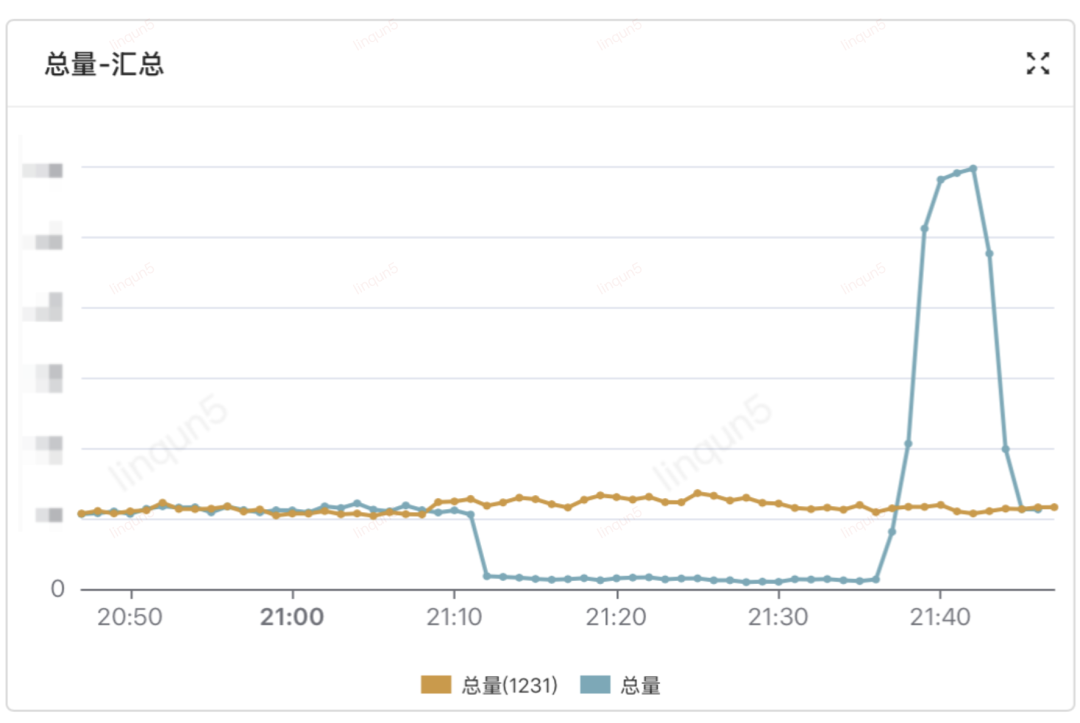

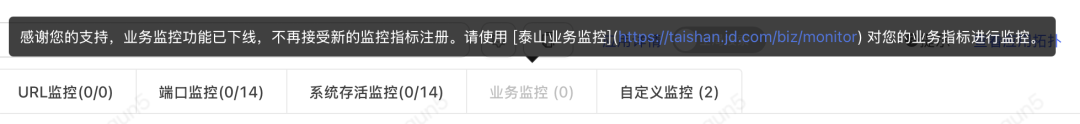

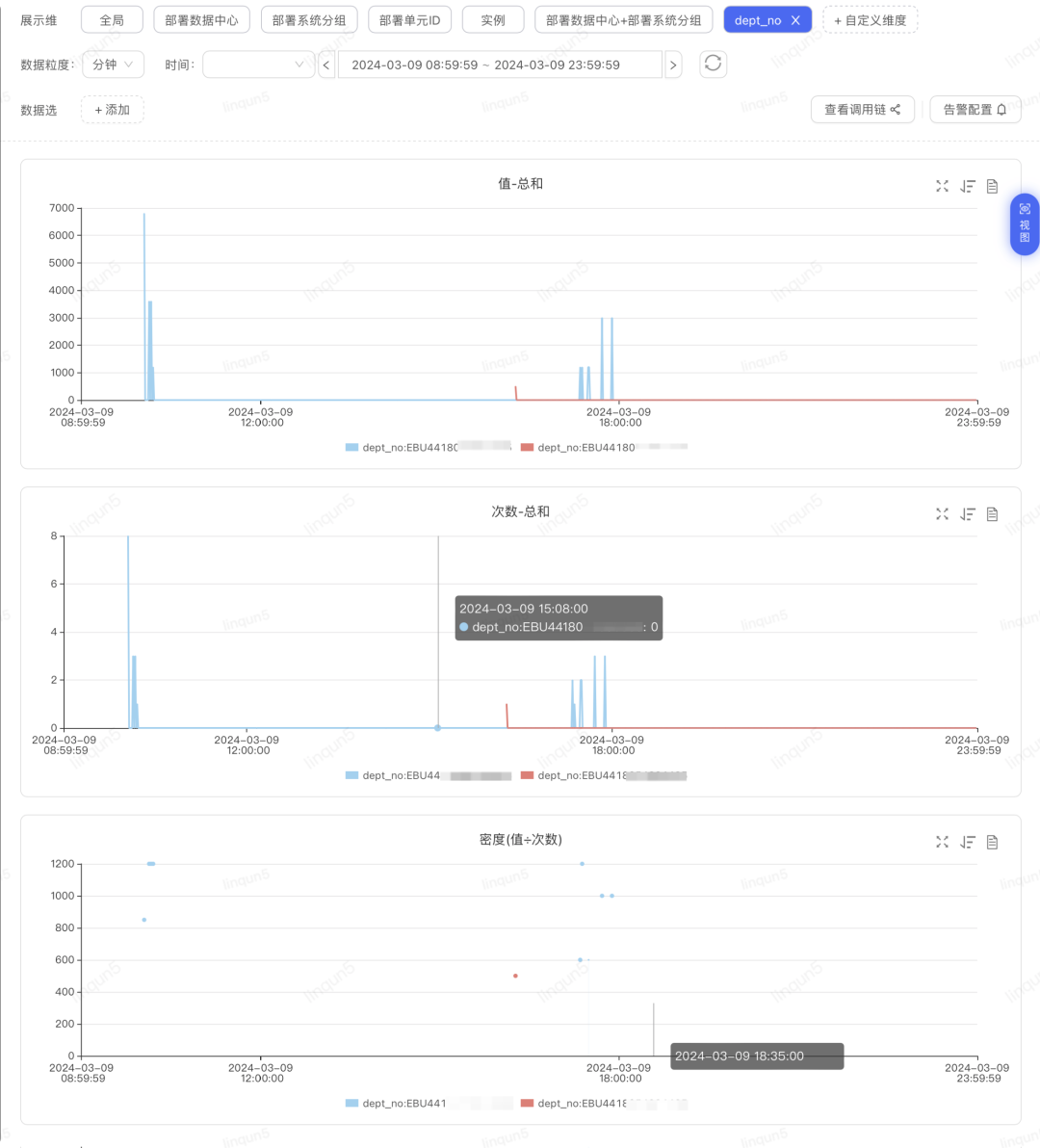

2.1、UMP业务监控

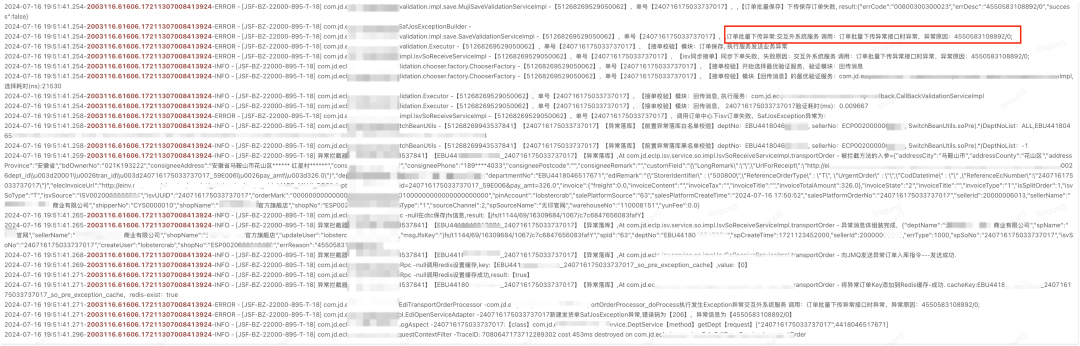

2.2、PFinder业务监控

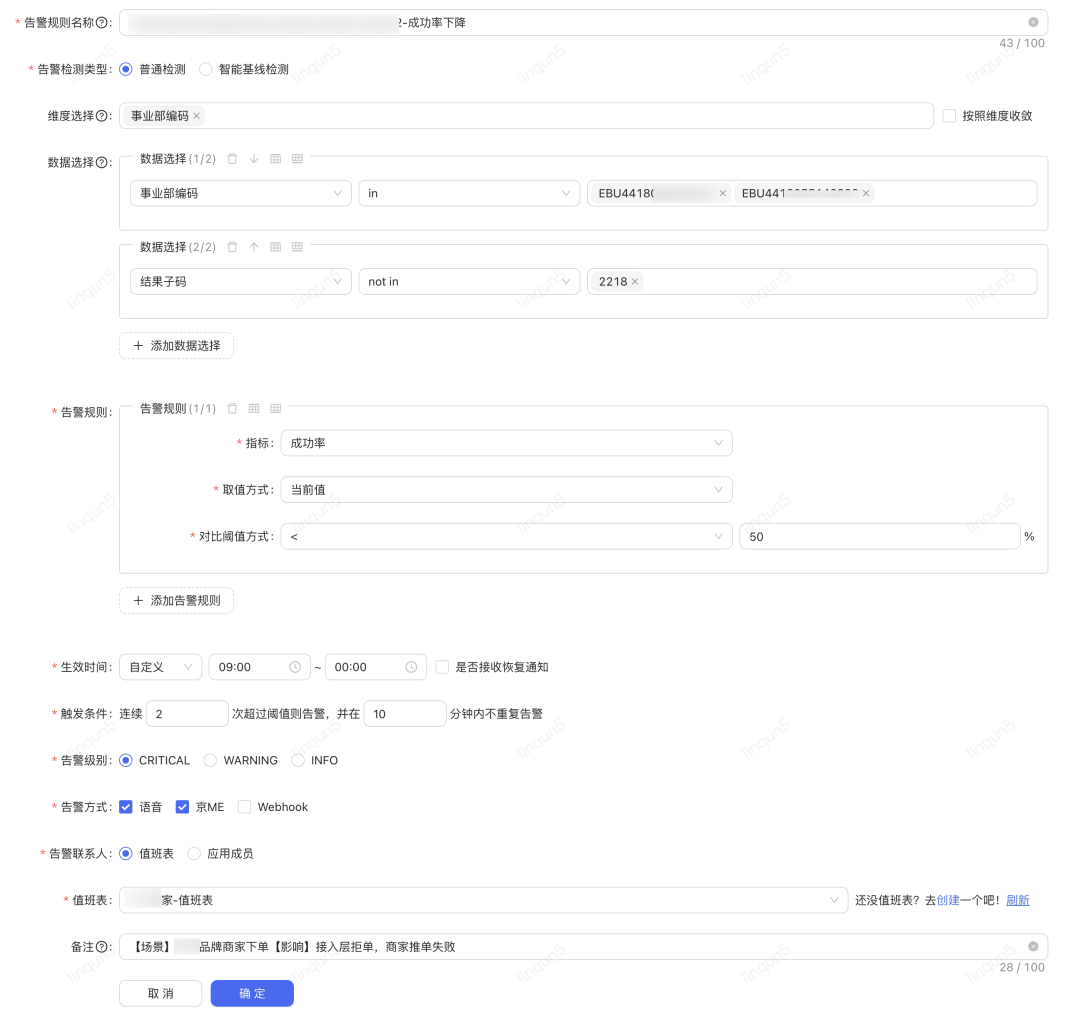

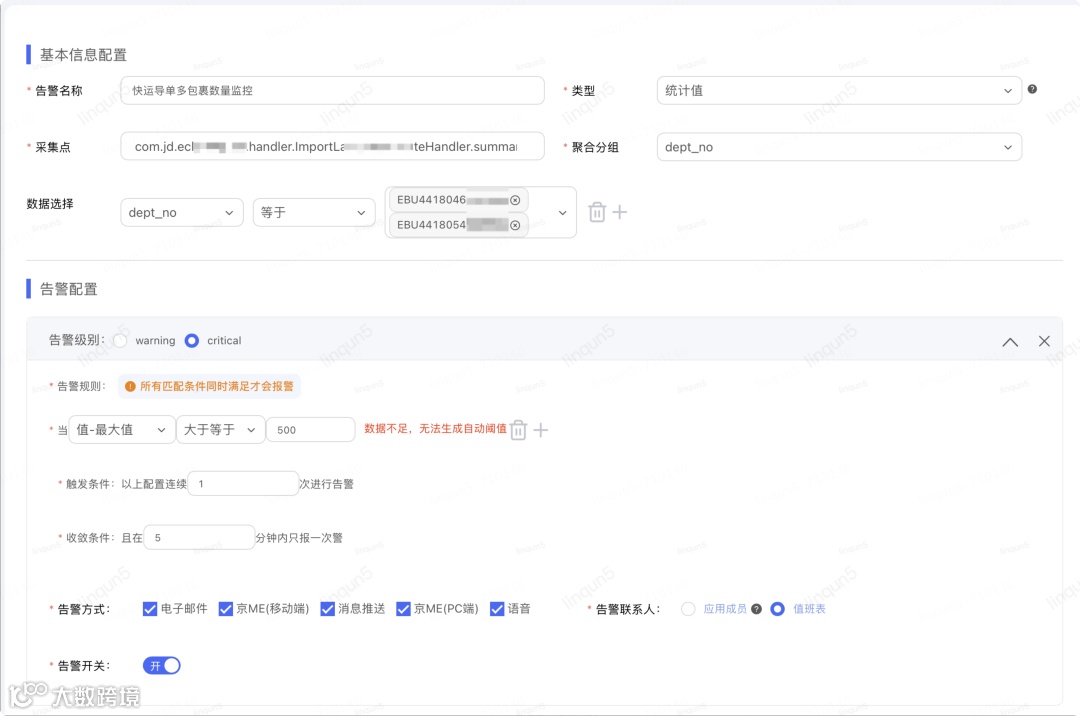

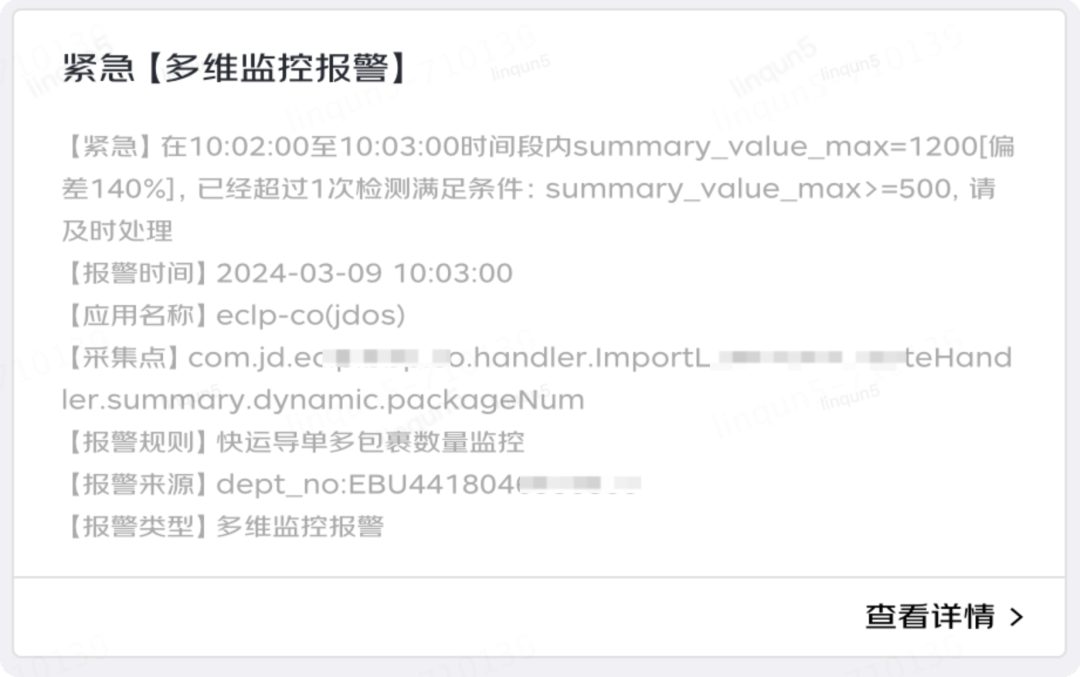

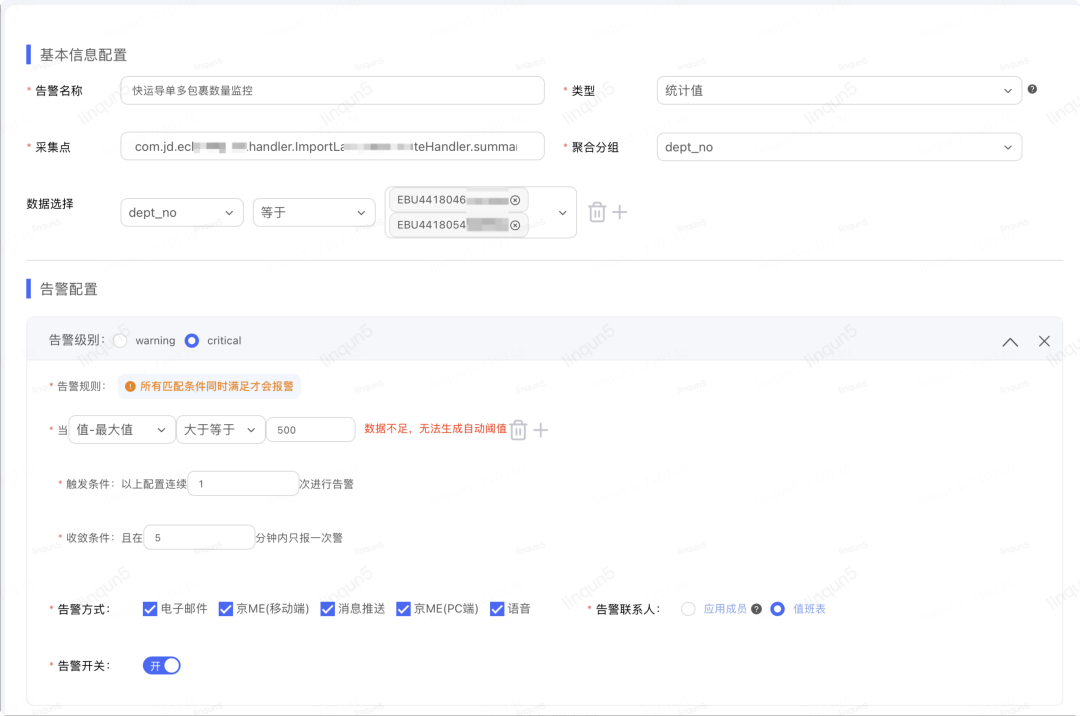

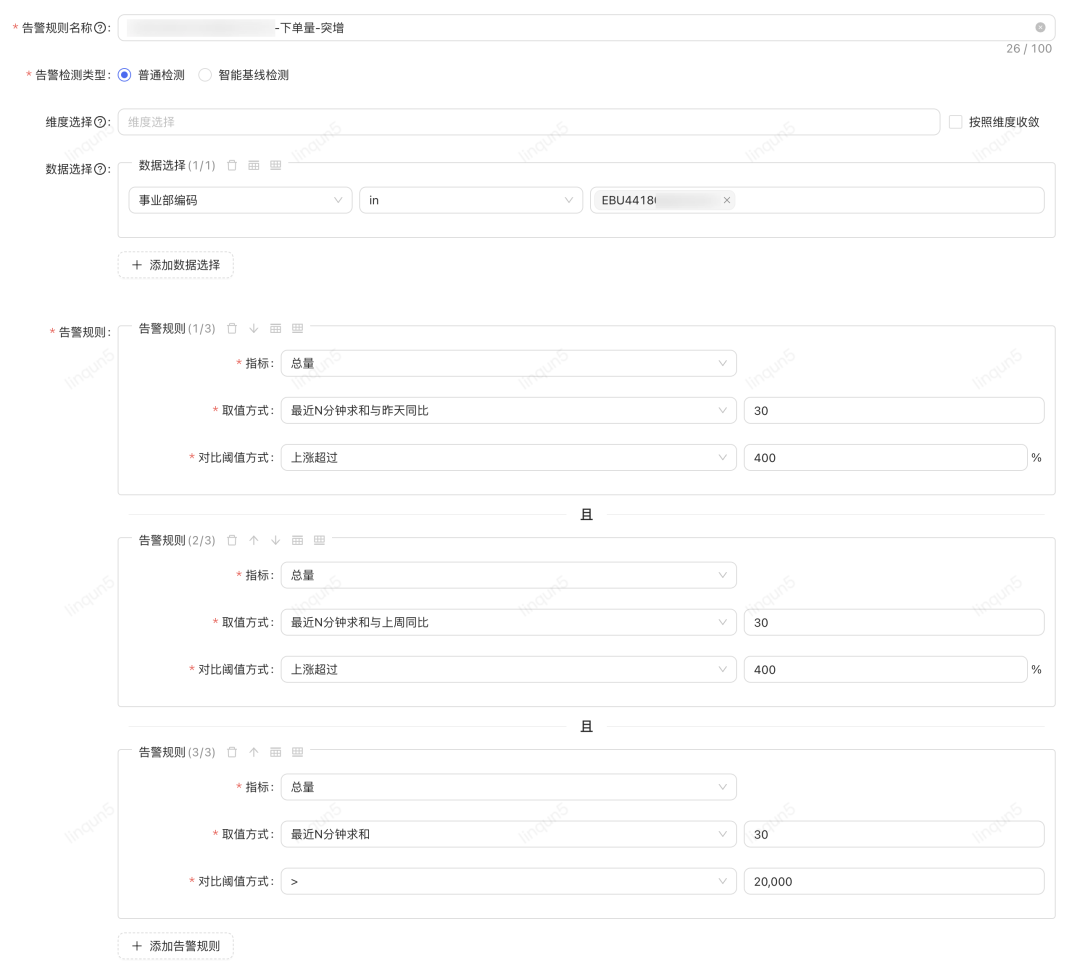

告警规则配置：

二、统一日志

2.1、日志格式









|业务域|业务子域|业务场景|渠道来源|商家编码|青龙业主号或事业部编码|密度|结果(Y/N)|结果码|结果码描述|结果子码|结果子码描述|商家单号|订单号|运单号


2.2、举个例子















成功：|订单域|销售出|下单|50|ECP|EBU|1|Y|200|success|200|success|T20240704000086|ESL1230989|JDV002323失败：|订单域|退供出|下单|70|ECP|EBU|1|N|4007|fail|3-01-11020|可销售库存不足|T20240704000086||






三、编码实践

3.1、log4j文件配置









<property name="patternLayout">%d{yyyy-MM-dd HH:mm:ss.SSS}-%X{PFTID}-%-5p - [%t] %c -%m%n</property>



  <Appenders>里添加RollingRandomAccessFile


























<RollingRandomAccessFile name="businessFile" fileName="${log_path}/eclp-biz-eclp-isv-business.log"                         filePattern="${log_path}/eclp-biz-eclp-isv-business-%i.log">    <PatternLayout charset="UTF-8" pattern="${patternLayout}"/>    <Policies>        <SizeBasedTriggeringPolicy size="1GB"/>    </Policies>    <DefaultRolloverStrategy max="5"/></RollingRandomAccessFile>















<AsyncLogger name="BusinessLogger" level="INFO" additivity="false" includeLocation="false">    <AppenderRef ref="businessFile"/></AsyncLogger>


3.2、业务日志打印















/** * 业务日志*/private static final Logger blogger = LoggerFactory.getLogger("BusinessLogger");






















blogger.info("|订单域|销售出|下单|{}|{}|{}|{}|{}|{}|{}|{}|{}|{}|{}|{}",        order.getSourceChannel(), order.getShopNo(), order.getDepartmentNo(), 1,        result, code, message, subCode, subMessage,        order.getIsvUUID(), context.getPin(), soNo);




  业务逻辑埋点打印业务日志


















































protected void doProcess(ProcessorContext processorContext) throws Exception {
    OrderContext context=buildOrderContext(processorContext);
    try {        String soNo = isvSoReceiveService.transportOrder(context);        processorContext.setAttachment(IsvProcessorConstant.PRCS_RTN_ORD_TRANSPORT_SO_NO, soNo);        processorContext.setAttachment(IsvProcessorConstant.PRCS_RTN_SO_IS_REPEAT_ORDER, context.isRepeatOrder());        processorContext.setAttachment(IsvProcessorConstant.PRCS_RTN_ORD_CREATE_SUCC_MSG, context.getCache(CachedKeyConstants.ORDER_CREATE_SUCCESS_ATTACH_MSG, String.class));        processorContext.setBizNo1(soNo);    } catch (Exception e) {        printBusinessLog(context, e);        throw e;    } finally {        fillLogContext(context, processorContext);    }
    printBusinessLog(context, null);
}



























































































protected void printBusinessLog(OrderContext context, Exception e) {    String result = "Y";    String code = "200";    String message = "success";    String subCode = "200";    String subMessage = "success";    String soNo = "";
    Order order = context.getOrder();
    if (e == null) {        soNo = order.getSoNo();    } else {        result = "N";        if (e instanceof JdlOpenException) {            JdlOpenException jdlOpenException = (JdlOpenException) e;            code = jdlOpenException.getCode();            message = jdlOpenException.getMessage();            subCode = jdlOpenException.getSubCode();            subMessage = jdlOpenException.getSubMsg();        } else if (e instanceof SafJosException) {            SafJosException safJosException = (SafJosException) e;            code = "4001";            message = safJosException.getMessage();            subCode = safJosException.getCode();            subMessage = safJosException.getZhMsg();        } else {            code = "4002";            message = e.getMessage();            subCode = "";            subMessage = "";        }    }
    blogger.info("|订单域|销售出|下单|{}|{}|{}|{}|{}|{}|{}|{}|{}|{}|{}|{}",            order.getSourceChannel(), order.getShopNo(), order.getDepartmentNo(), 1,            result, code, message, subCode, subMessage,            order.getIsvUUID(), context.getPin(), soNo);}

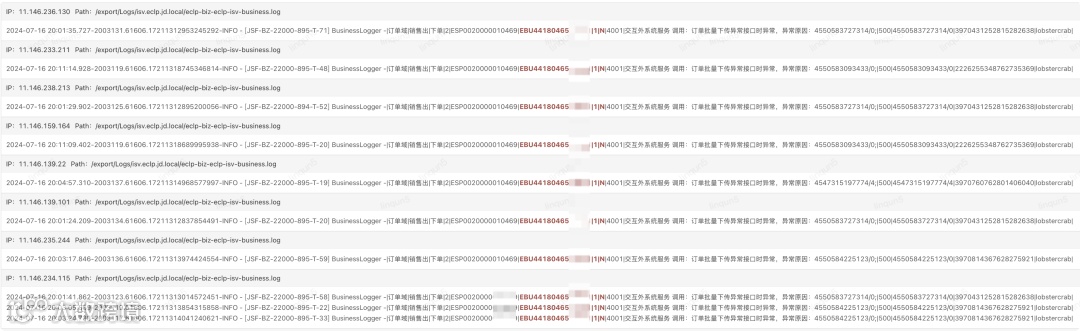

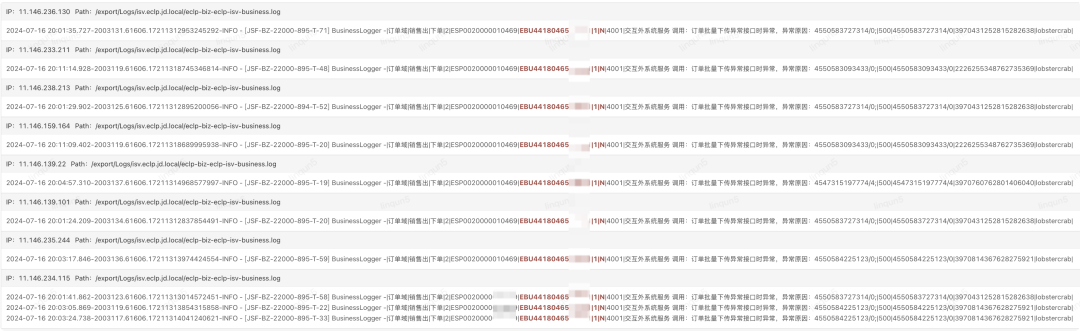

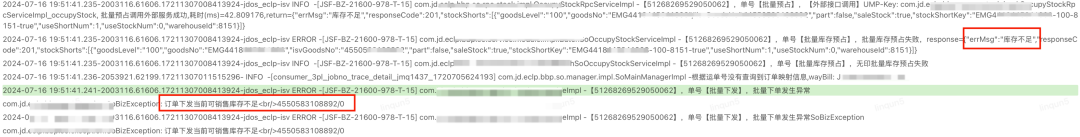

3.3、日志文件

4.1、监控项

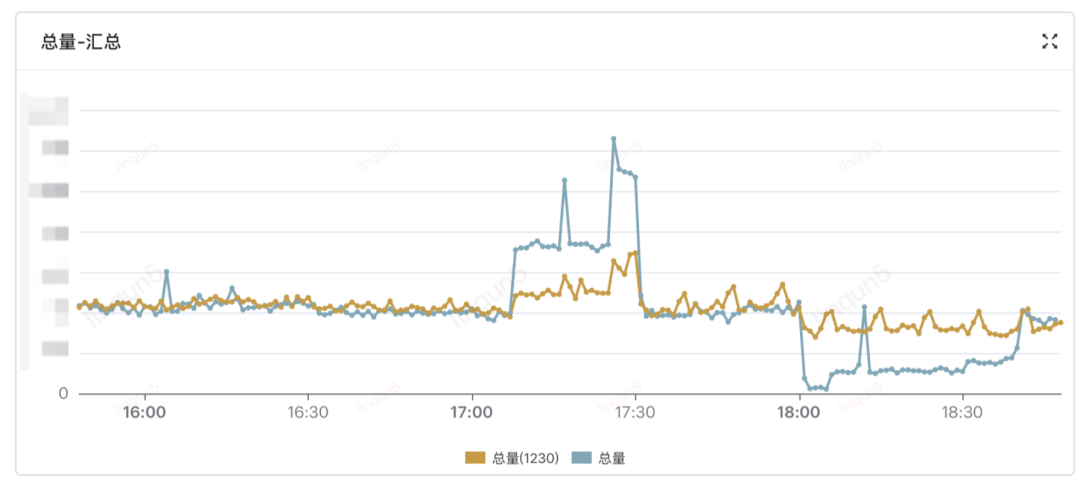

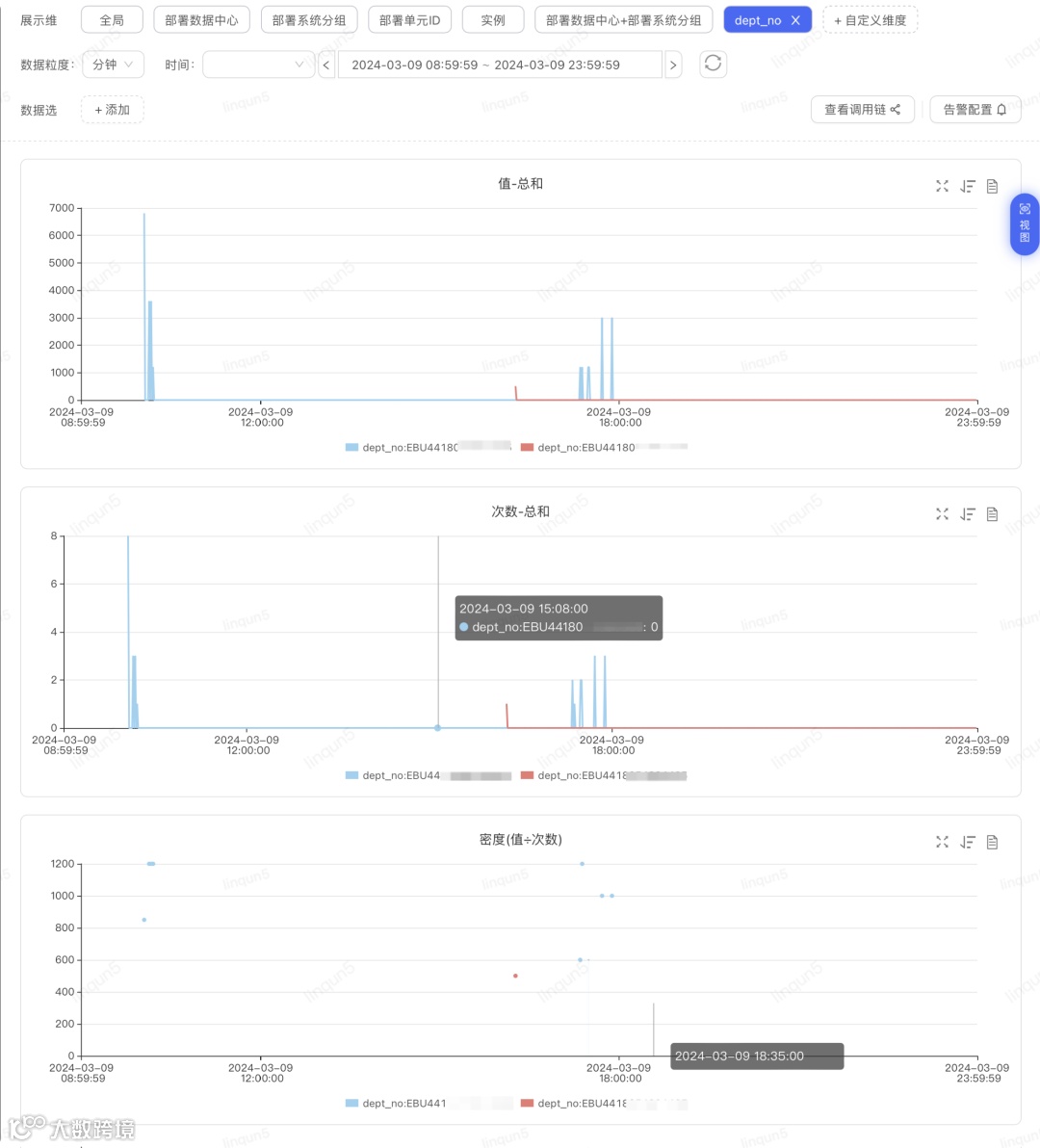

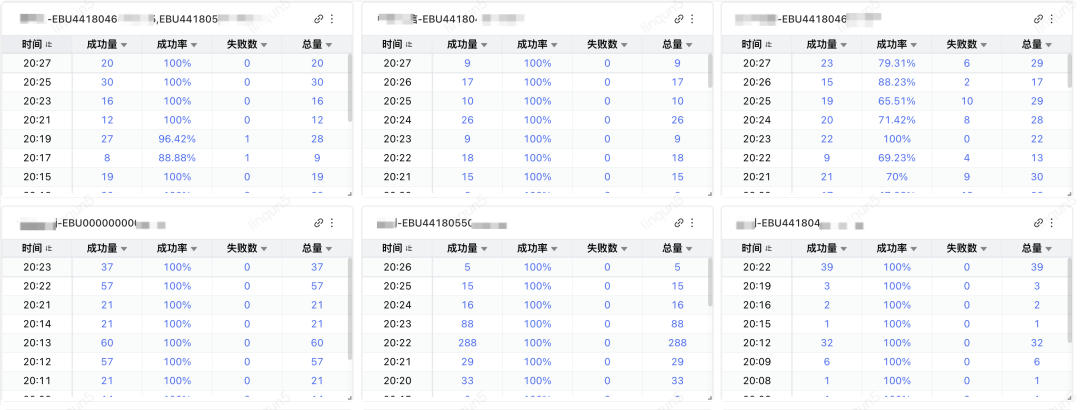

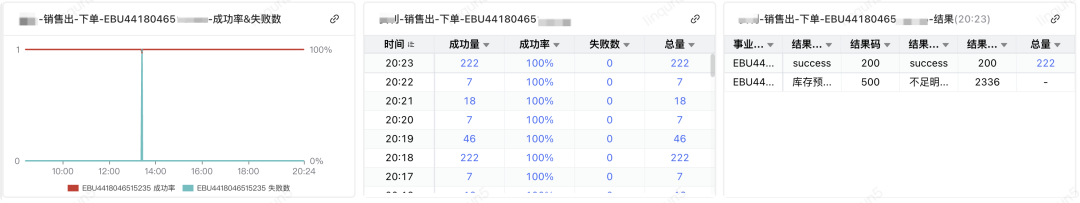

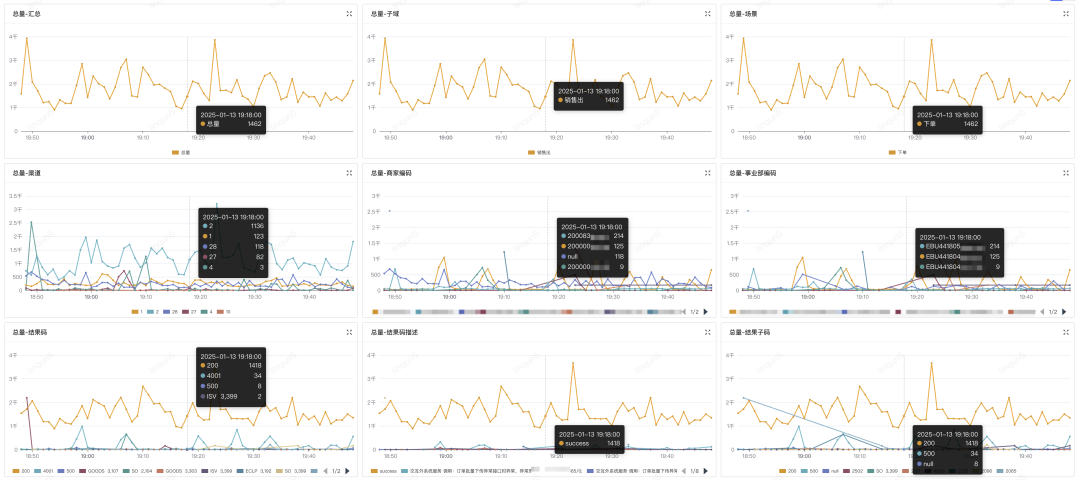

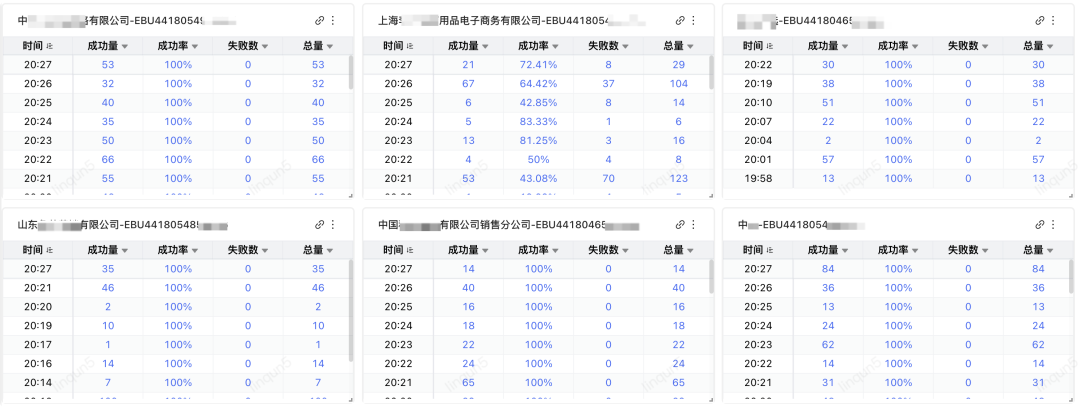

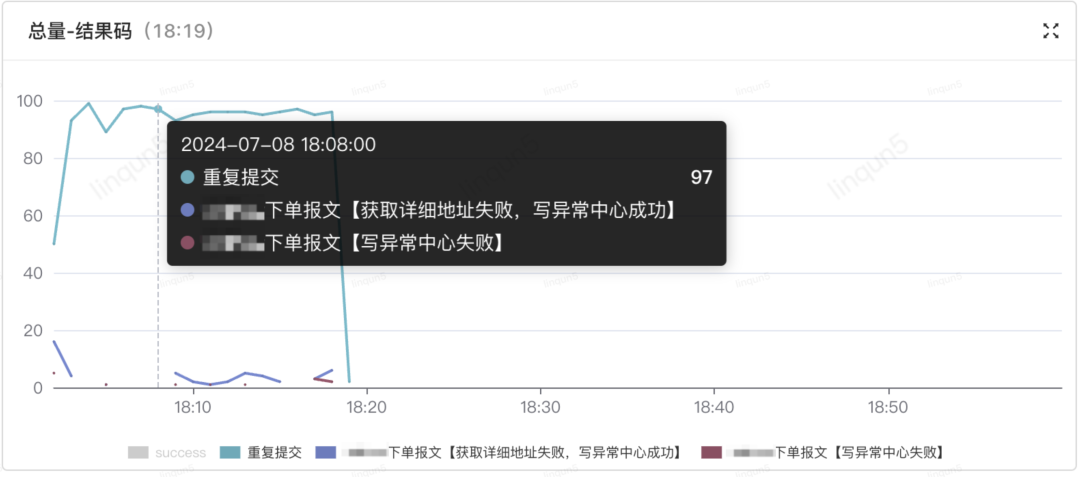

4.2、监控大盘

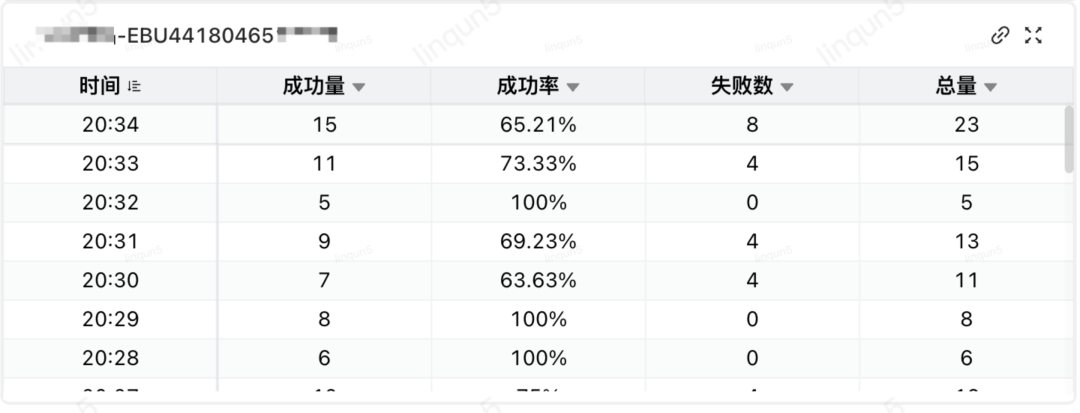

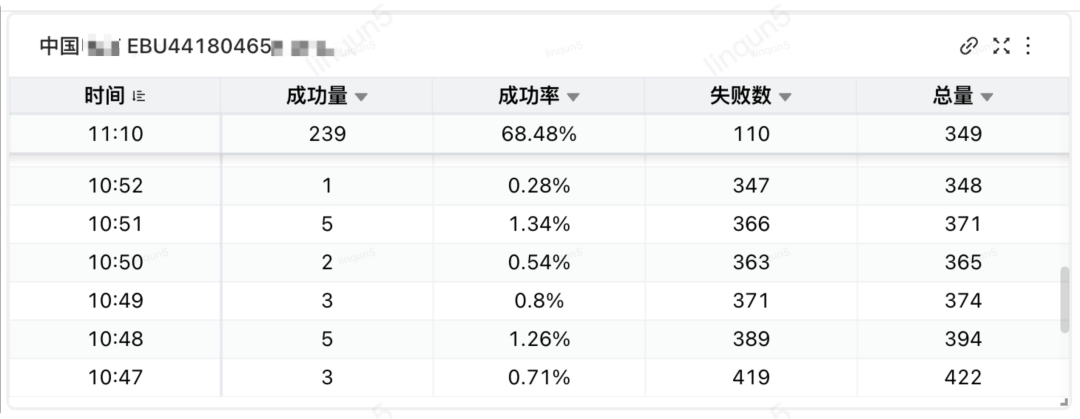

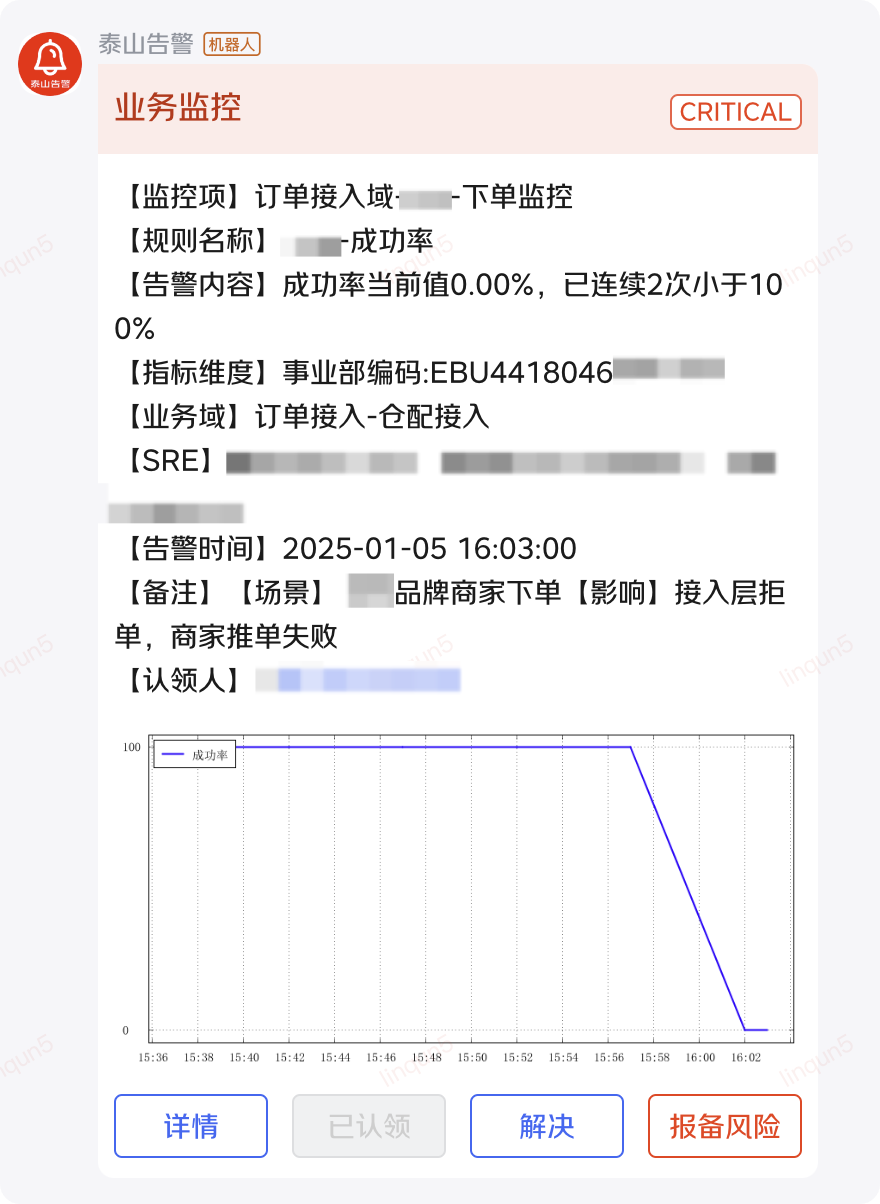

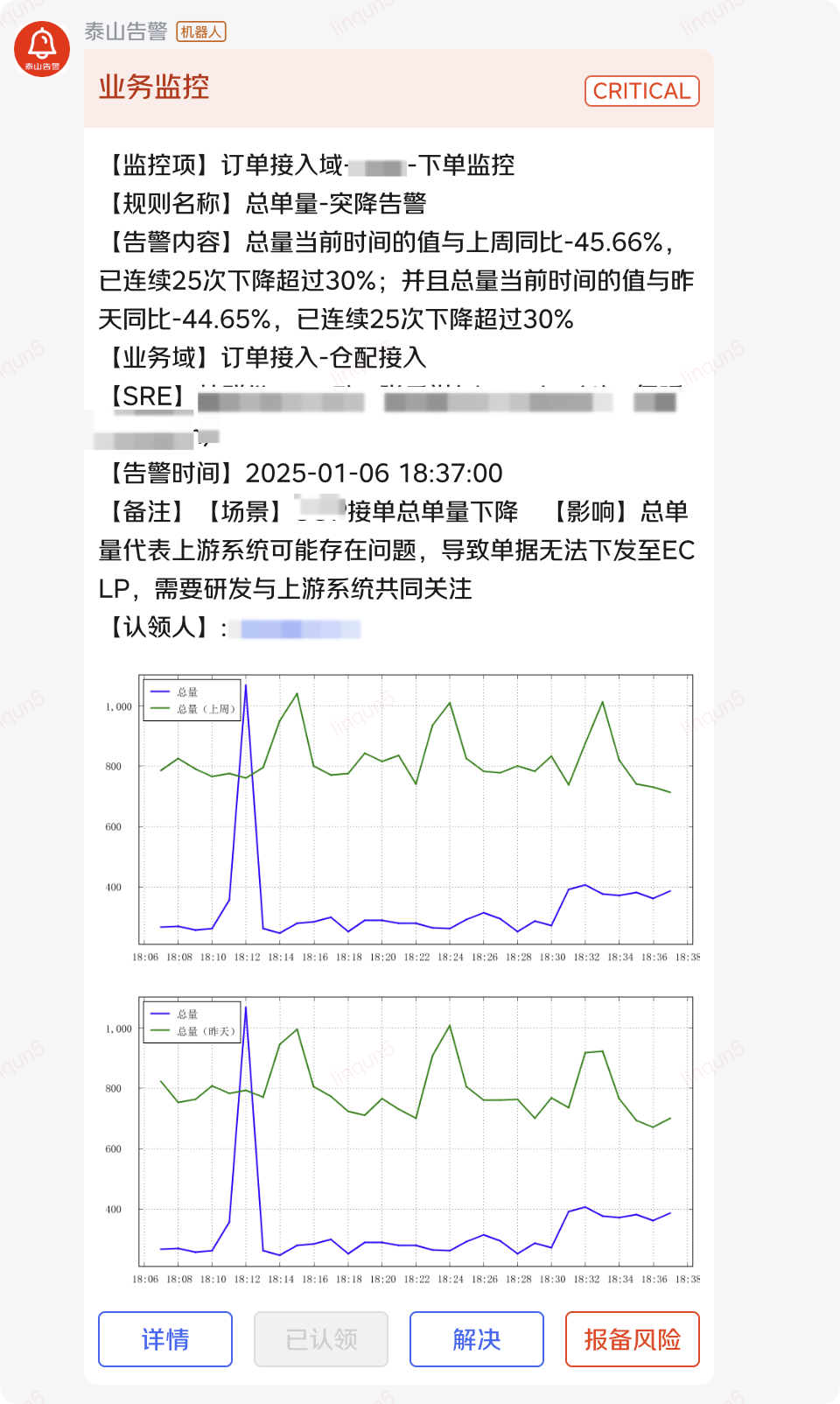

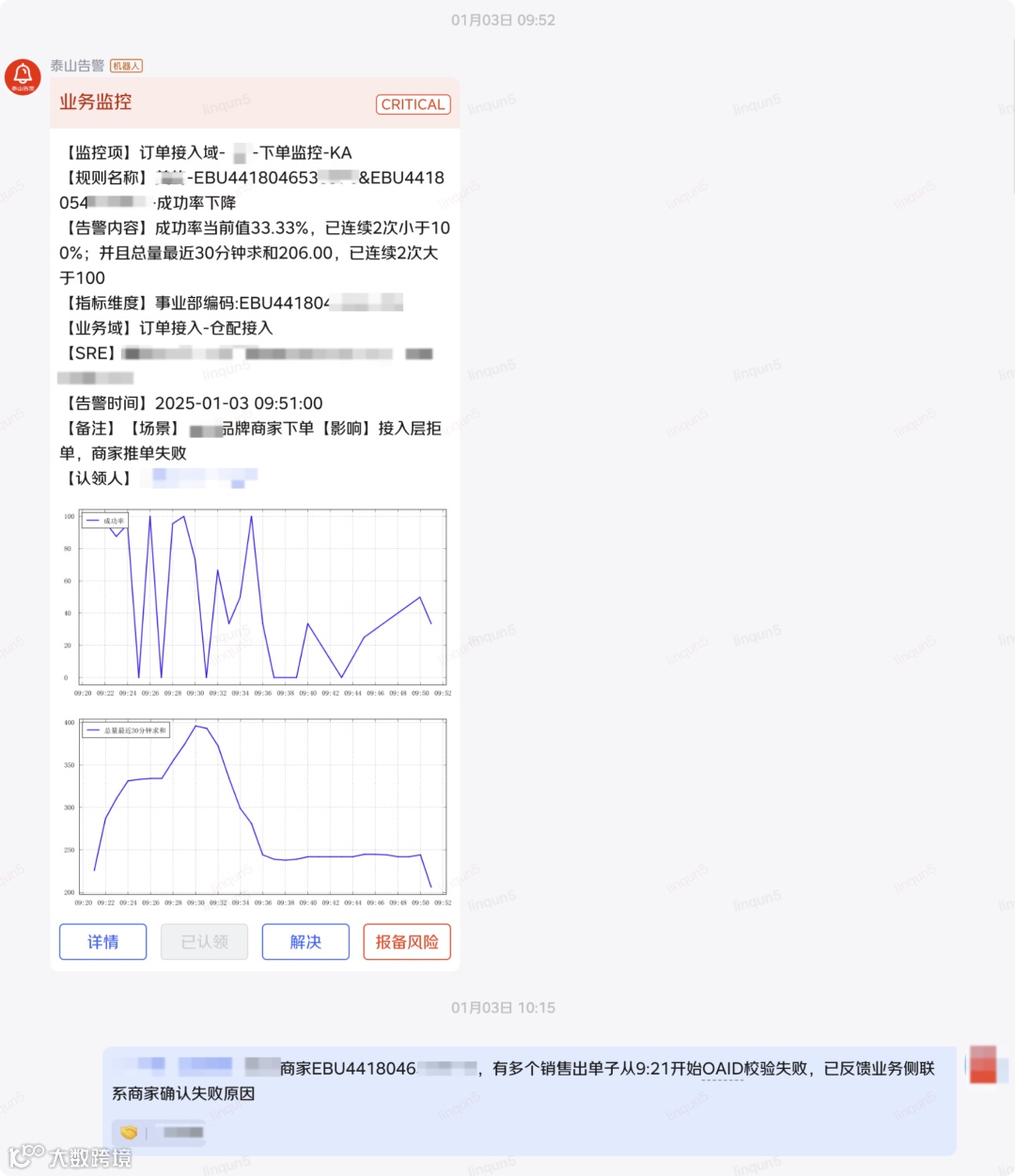

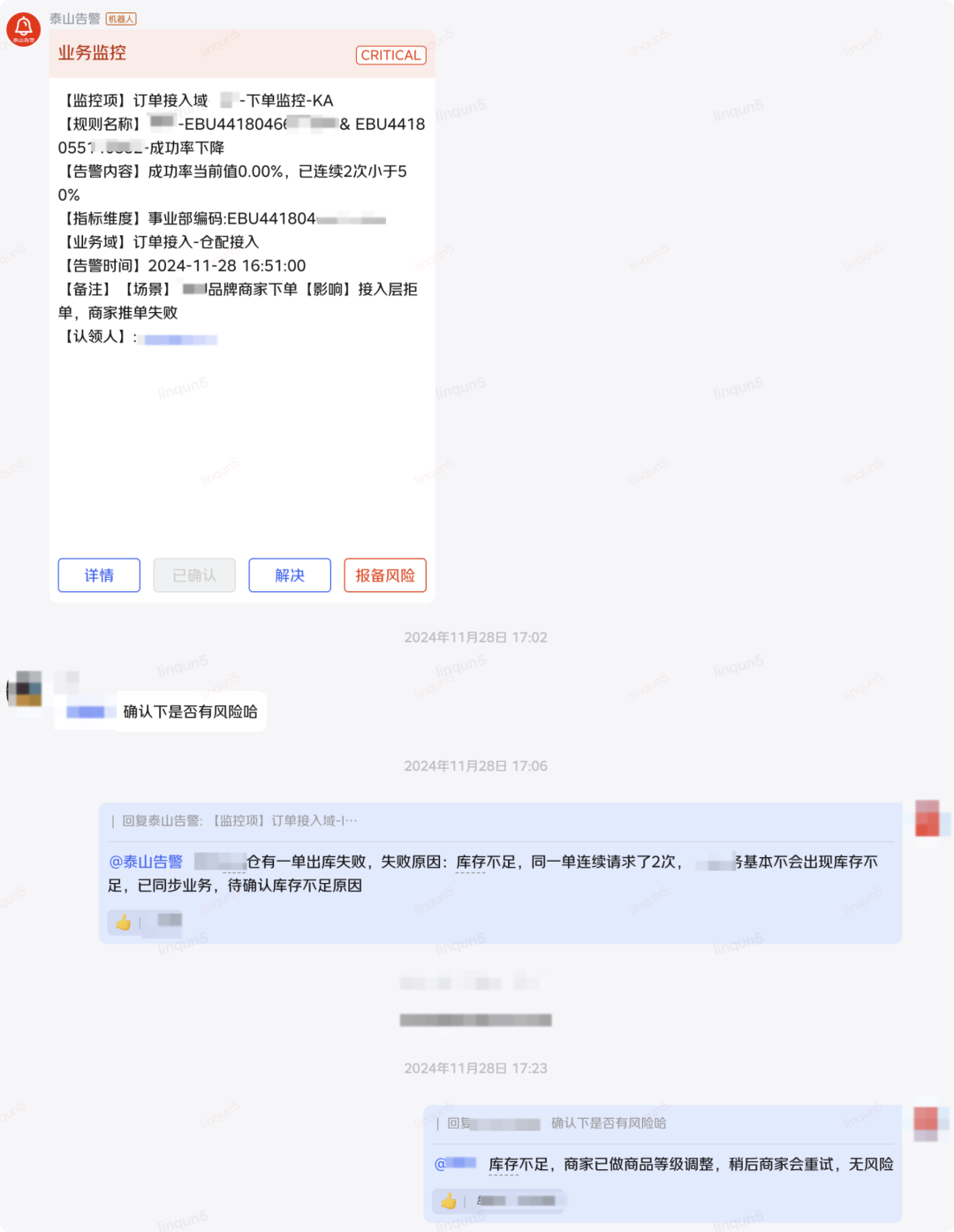

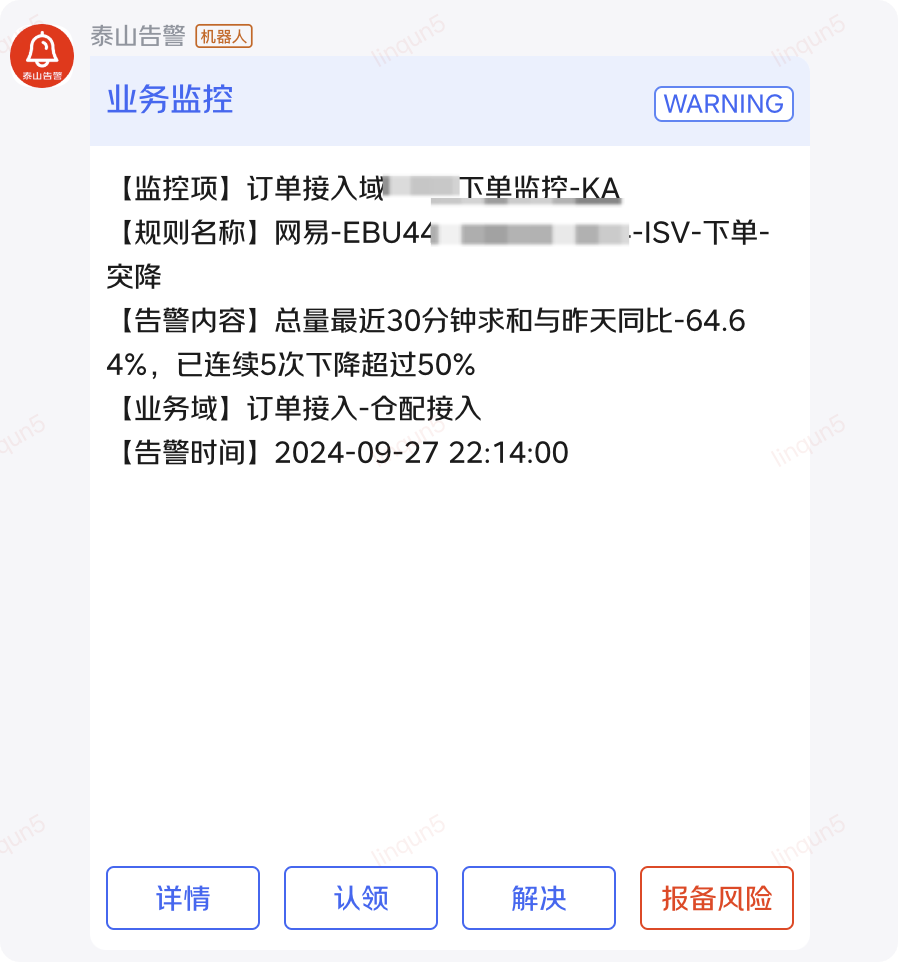

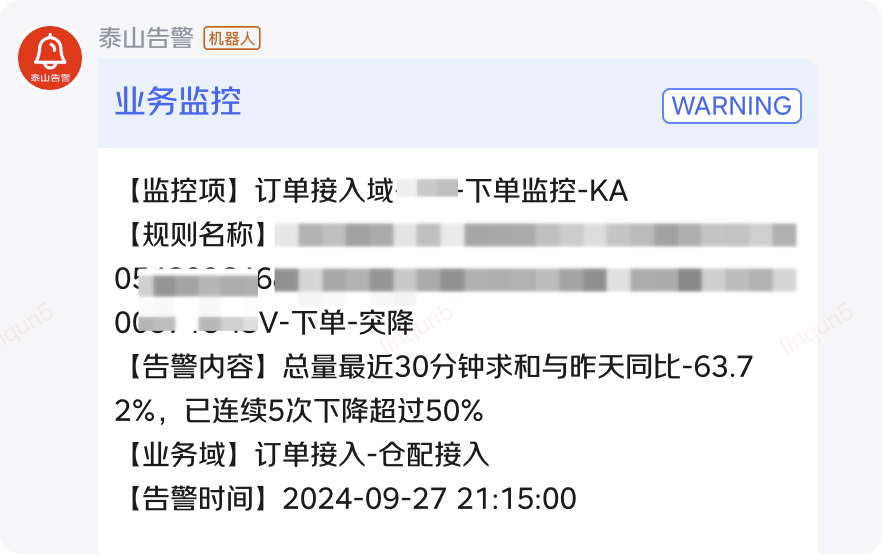

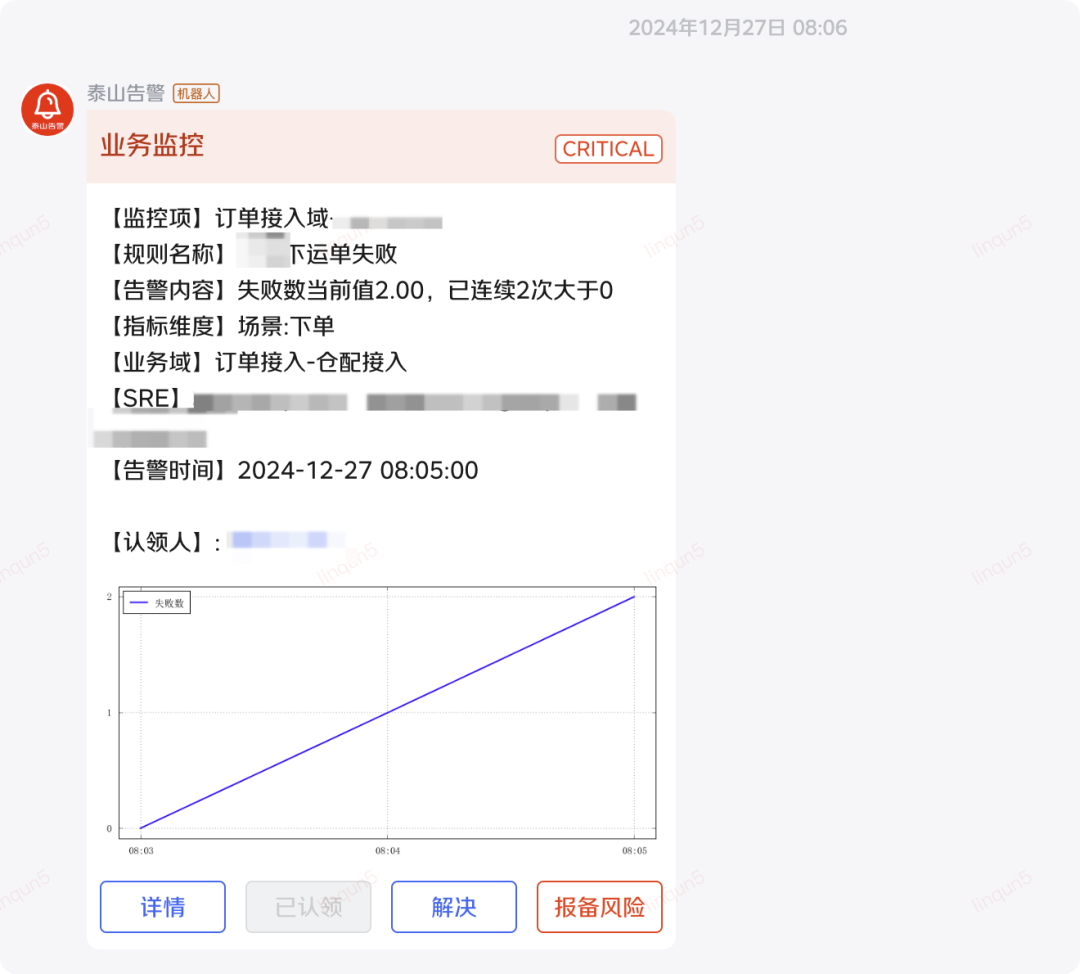

5.1、成功率告警

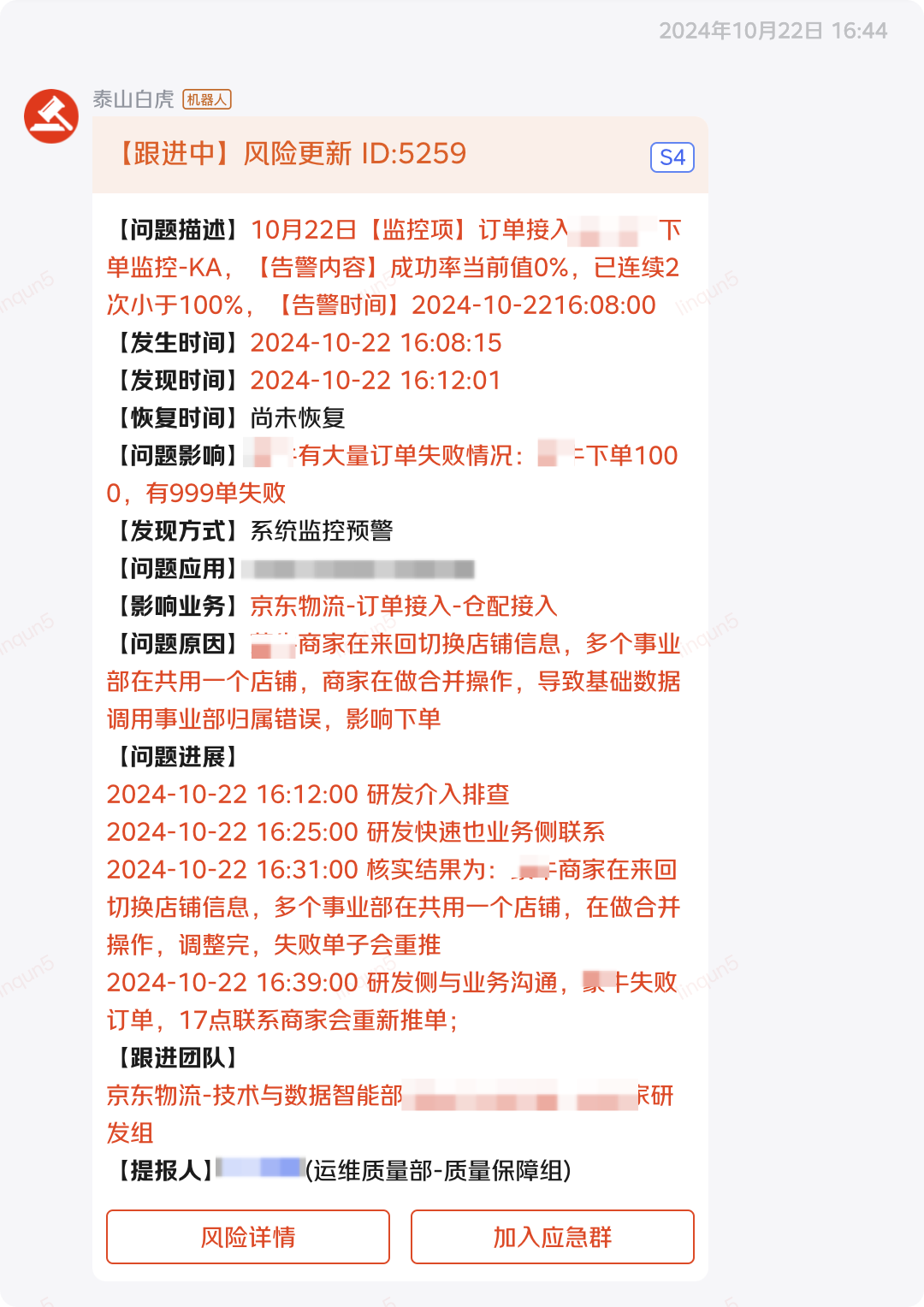

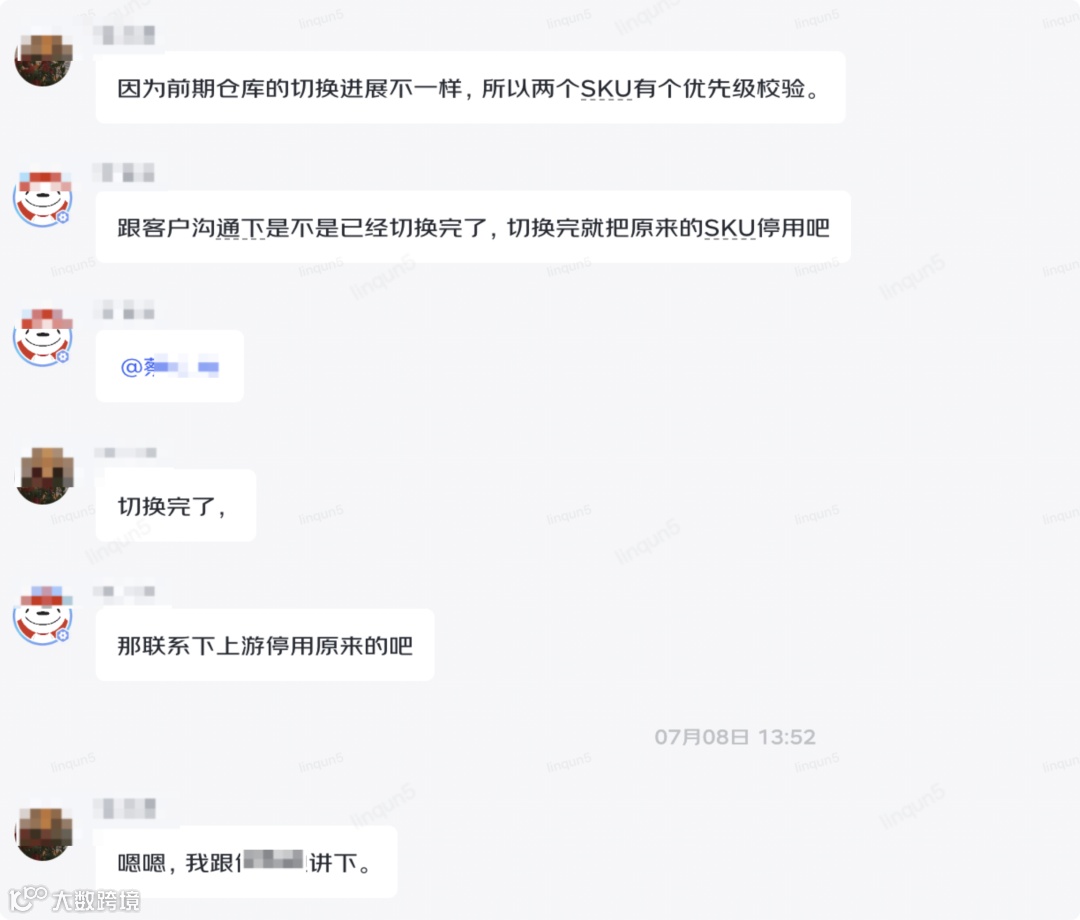

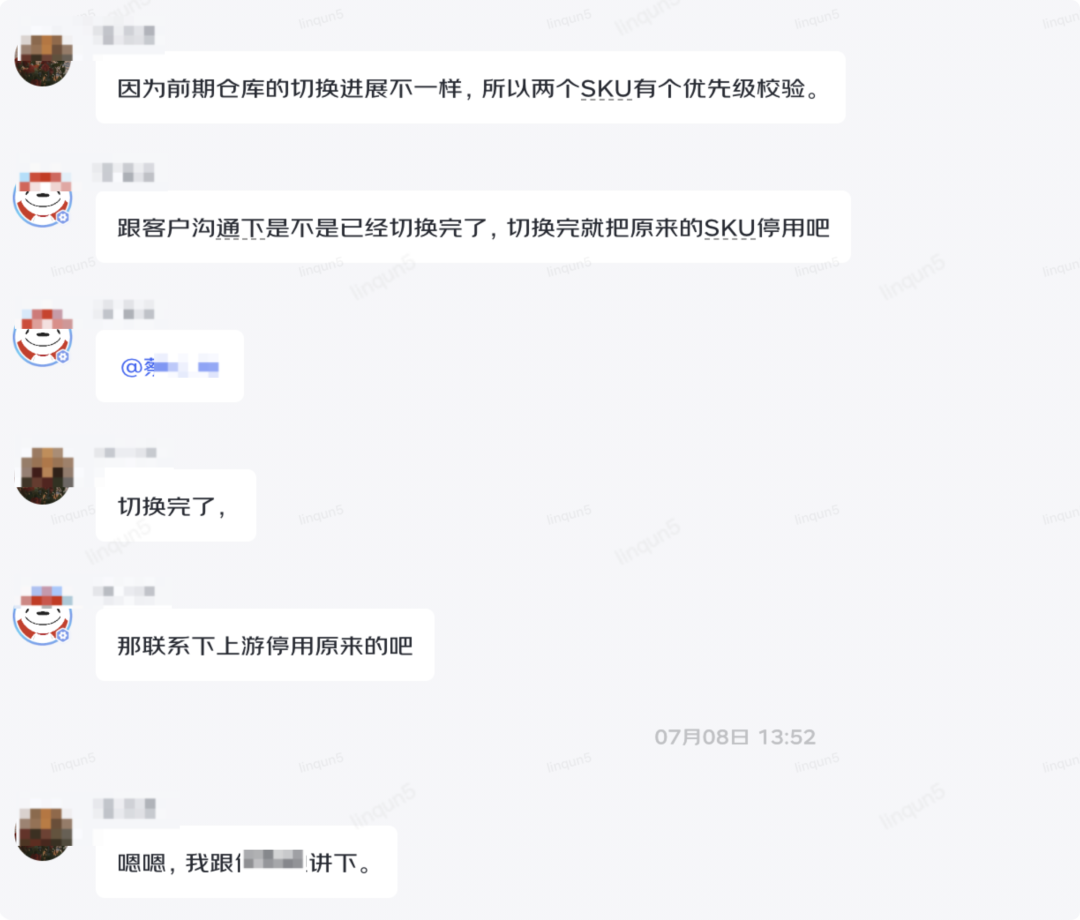

6.1、商家搬仓



6.8、揽收时间校验失败
