重要配置 / Important Configuration
01 触摸屏控制 / Touchscreen control
配备智能触摸屏，界面清晰直观，操作简便高效。
Touchscreen control with a clear interface and simple operation.

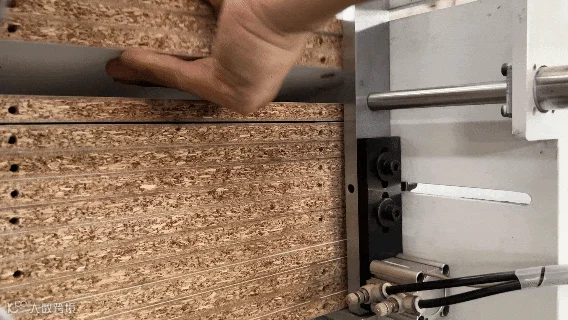

02 进料存储仓 / Feed Storage Silo
支持多板一次性堆叠，实现连续供料与不停机作业，显著提升生产产能。
The material hopper stacks multiple panels at once for continuous feeding, allowing non-stop operation and significantly boosting capacity.

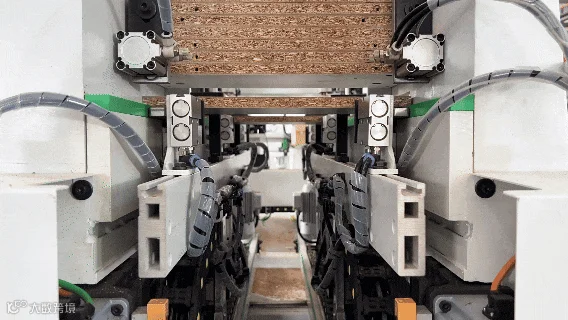

03 伺服送料 / Servo feeding
伺服电机精准定位，送料速度柔性可调，启停平稳，有效避免撞板现象。
High positioning accuracy, flexible speed adjustment, and smooth start-stop without collision.

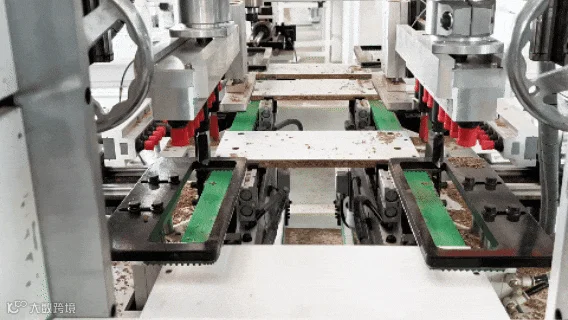

04 上垂直排 / Vertical arrangement on top
配备两排上垂直排钻，高效加工抽屉板上方孔位。
Drill holes vertically along two rows on the top of the drawer panel.
05 左右排 / Left and right rows
配置左右排钻，精准加工抽屉板两侧水平孔位。
Left and right drill holes for the drawer panel's horizontal alignment.
06 下垂直排 / Vertical alignment below
两排下垂直排钻设计，专门用于加工抽屉板底部孔位。
Drill two rows of vertical holes in the bottom of the drawer panel.
07 双主轴 / Dual Spindle
双主轴协同作业：主轴1负责钻引孔，主轴2负责钻侧孔。
Spindle 1 drills pilot holes in the drawer panel; Spindle 2 drills side holes.

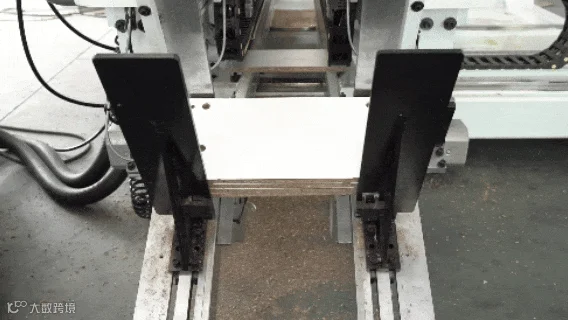

08 自动堆料 / Automatic material stacking
采用前进出料与自动堆料设计，单人即可轻松完成上下料操作。
Adopting a front-feed and front-discharge design, this system can be easily operated by a single employee.
视频欣赏 / Video Appreciation

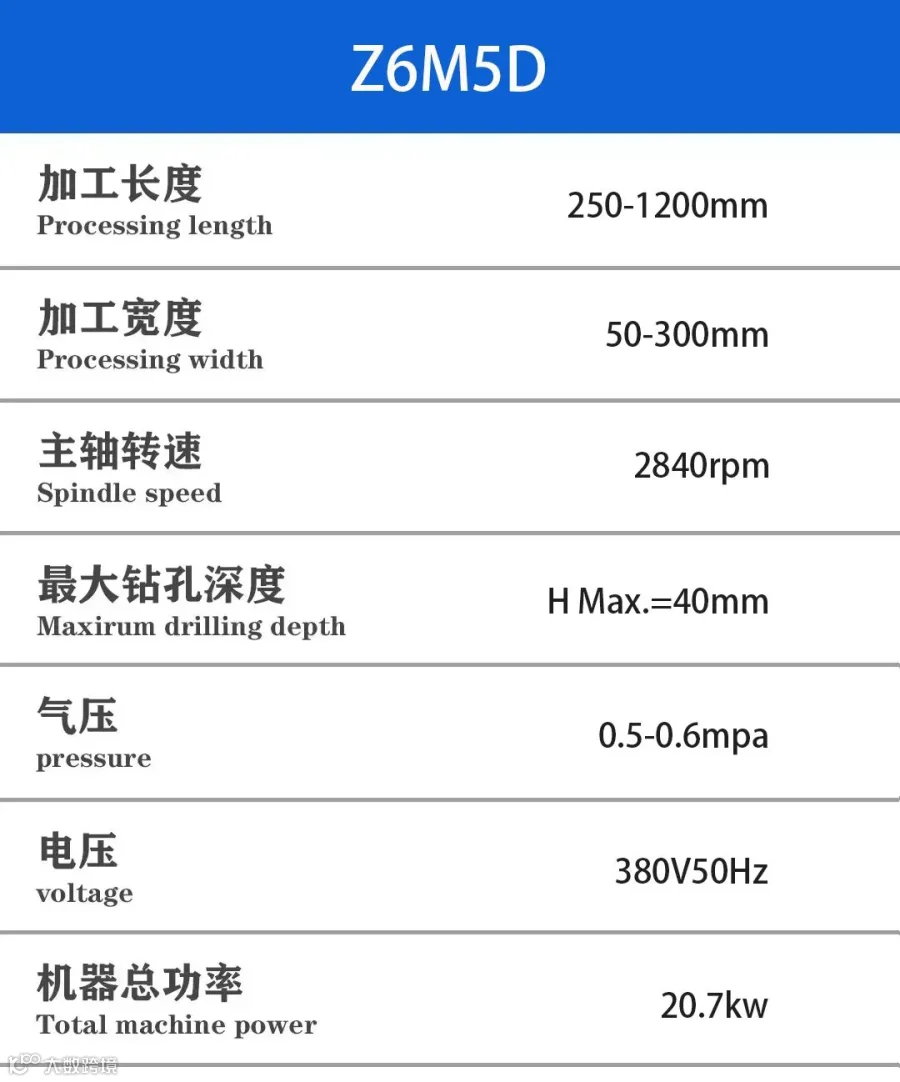

技术参数 / Technical Parameters
