全能型复合六面钻CD-612T-7 I 轻松搞定复杂工艺！

钻铣复合六面数控钻孔中心是板式定制家具生产的核心设备，其核心优势在于实现“一次装夹完成全工序加工”及钻铣工艺的深度集成，大幅提升生产效率与加工精度。

The six-sided CNC drilling center with integrated drilling and milling capabilities is the core equipment for panel-based custom furniture manufacturing. Its key advantage lies in completing all processing operations in a single clamping setup, combining high efficiency with precision.

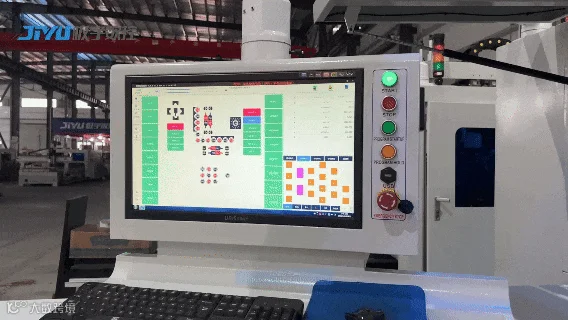

界面清晰直观，操作逻辑简便，新手经半天培训即可上岗操作。

The interface is clear and intuitive; new operators can become proficient after just half a day of training.

采用三轴承双定位设计，确保小板定位精准，换手过程平稳，有效避免板材损伤。

A dual-positioning gripper with three bearings ensures precise alignment of small panels and prevents material damage during transfer.

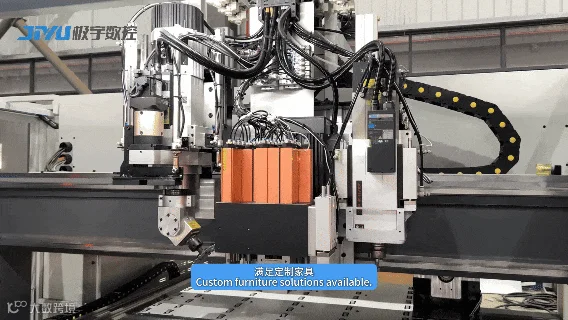

配置单钻包，搭载 6KW 换刀主轴与 9KW 伺服旋转换刀主轴，满足多样化加工需求。

Equipped with a single drilling unit, featuring a 6KW tool-changing spindle and a 9KW servo rotary tool-changing spindle for versatile processing.

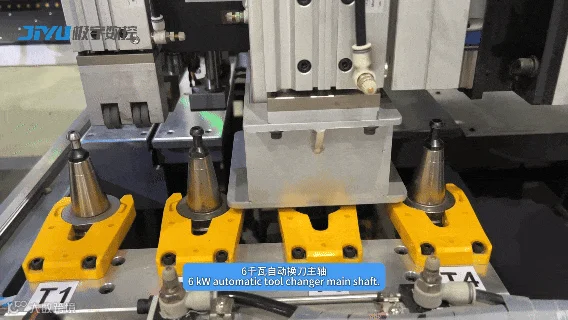

6KW 换刀主轴标配 4 位刀库，换刀迅速高效。

6KW tool-changing spindle paired with a 4-position tool magazine for rapid and efficient tool changes.

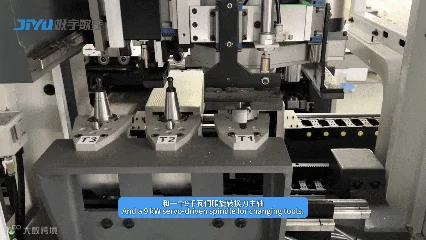

9KW 伺服旋转换刀主轴配备 3 刀库（含一字型刀头及两个 45°角度头），支持复杂角度加工。

9KW servo rotary spindle equipped with a 3-tool magazine (linear head + two 45° angled heads), supporting complex angle processing.

双移动台面设计，智能避让干扰，提供更合理的板材支撑方案。

Dual mobile worktops enable smarter obstacle avoidance and provide more rational support for panels.

集成高精度对刀仪，实现全自动对刀，确保加工精度。

High-precision tool setter integrated for automatic tool setting, ensuring machining accuracy.
