振镜与视觉的结合；全视场高精度同轴视觉；振镜、视觉编程、激光器控制的整体解决方案...…
关键词：视可投激光振镜智能焊接系统
产品描述：
振镜与视觉的结合

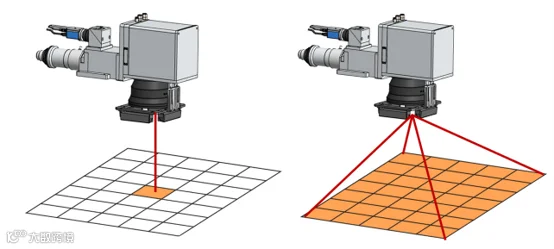

全视场高精度同轴视觉
传统同轴相机 视可投视觉系统
振镜、视觉编程、激光器控制的整体解决方案

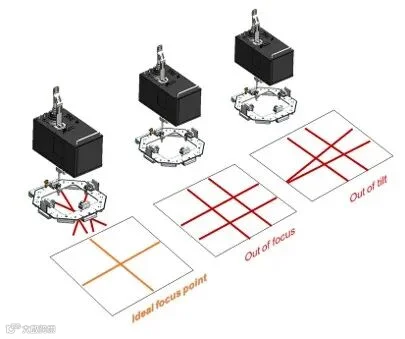

工作面快找装置

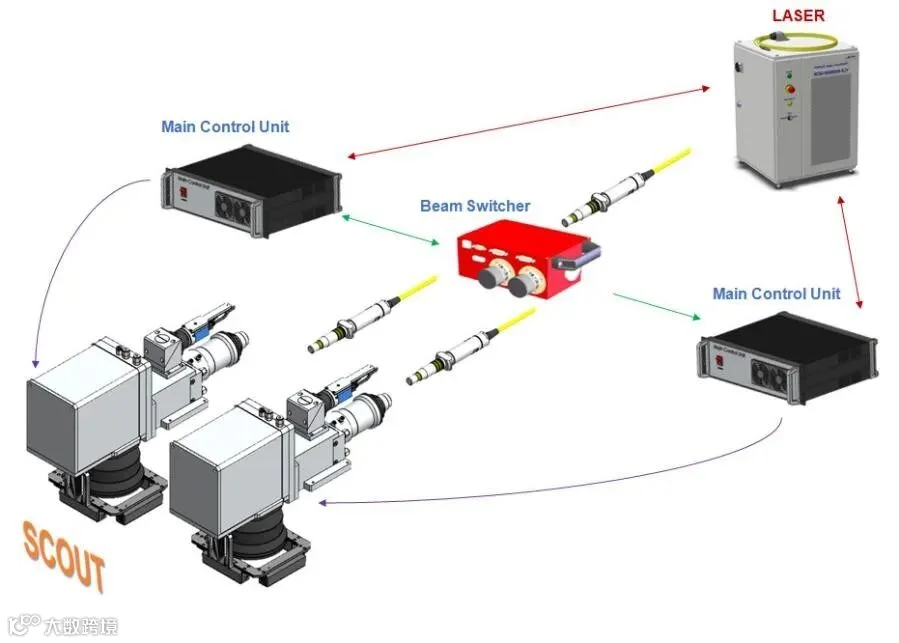

分光控制解决方案（最多可实现１拖４配置）
技术参数：
Model |
Scout-100 |
Scout-200 |
Scout-300 |
Wavelength |
1070nm |
||
Laser Connection |
QBH |
||
Max. Laser Power(W) |
150w(@1070nm) |
2.0kw(@1070nm) |
5kw(@1070nm) |
Aperture Size |
10mm |
20mm |
30mm |
Welding Speed |
2.5m/s |
1.0m/s |
0.7m/s |
F-Theta Lens |
F-100/F-160mm |
F-160/F-254mm(Fused Silica) |
F-254/F-420mm(Fused Silica) |
Collimation Length |
30mm/60mm |
120mm |
140mm |
Working Field |
Up to 70 x 70mm |
Up to 110 x 110mm |
Up to 200 x 200mm |
Scan Resolution |
0.45um(@F-100) |
1.83um(@F-254) |
3.05um(@F-420) |
Repeatability |
1.8um(@F-100) |
7.3um(@F-254) |
12.2um(@F-420) |
Input Power |
100~230VAC, 50/60Hz |
||
Cooling |
Air Cooling |
Water/Air Cooling |
Water/Air Cooling |
Cooling Spec |
|
Water:6L/Min Air:25L/Min |
Water:6L/Min Air:25L/Min |
Head Weight |
8kg |
20kg |
25kg |
Interface |
XY2-100 |
XY2-100 |
XY2-100 |
咨询：135 2207 9385

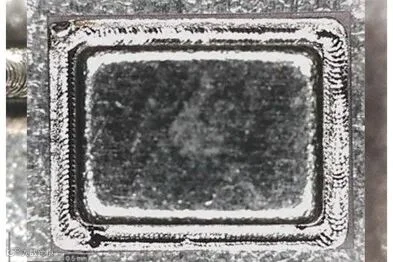

电池引线焊接
远程焊接

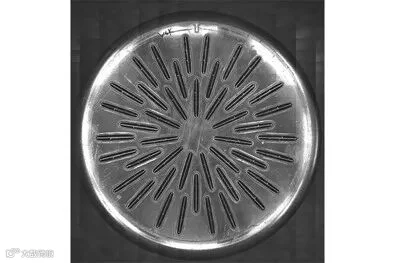

热交换器焊接
汽车零部件焊接
