Lightweight materials, components selected to keep rig moves fast and efficient in pad drilling applications.
精选轻质材料和配件保证井台批量钻井中钻机能够快速高效移动。

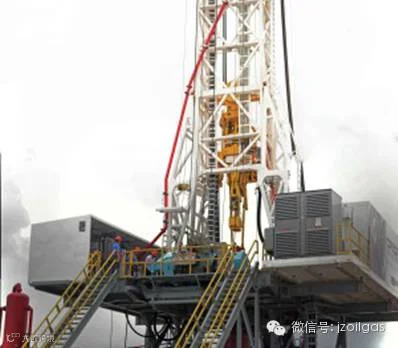

Aries钻机
The Aries rig is the ninth in Orion’s Gemini series and the company’s 18th rig overall. Orion fabricated the rig in-house at its Corpus Christi, Texas, facility. Building the rig in-house allowed the company to exercise more control over the rig components, the company stated.
Aries钻机是Orion公司的Gemini双子座钻机系列中的第九代、整个公司第18代钻机。Orion公司在德克萨斯州的Corpus Christi基地库房完成了该钻机的组装工作。该公司还表示，在库房内组装钻机可以保证公司能更好地掌控钻机配件装配过程。1500马力钻机同时装配有7500psi的泥浆泵、移动系统和双燃料发动机。Orion工程项目队的目标是设计建造出更精简、更具人体工程学的钻机，将整个钻机缩短、变窄并减少重量。
The 1,500-hp rig features 7,500-psi mud pumps, a walking system and bifuel engines.
该钻机还配备了钻大位移水平井所需的钻机组件，例如7500psi的泥浆泵、移动系统、双燃料引擎、一个500吨顶驱、铁钻工和Reelrig新型动力传送系统。
Eliminating points of failure
消除故障点
One of the most innovative features on the Aries is the ReelRig system,jointly developed by Integrated Drive Systems (IDS) and Orion Drilling Company. This system, which was developed specifically for pad drilling applications, has eliminated the electrical limitations for multiwell pads.
ReelRig系统是Aries钻机最具创新性的特征之一，与集成传动系统(IDS)一起由Orion钻探公司连带研发。本系统专门为垫块钻井设计，消除了丛式井井场作业的电力限制。

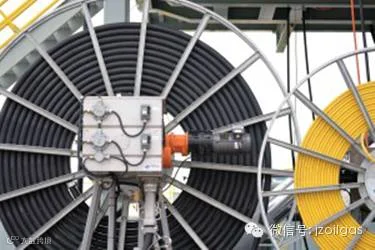

ReelRig系统
The ReelRig system eliminates dozens of cables and connections on the Aries rig. ReelRig uses a skid-mounted cable reel attached to the rig substructure; it automatically spools or unspools cable as the rig walks closer to or farther from the main powerhouse.
使用ReelRig系统为Aries钻机节省了许多电缆和非必要联结。ReelRig将滑移式电缆滚轴装载到钻机底部;通过调整钻机与主动力室的距离，可以实现电缆的全自动收放。使用像ReelRig系统这类产品帮助Orion和IDS在保证作业安全的基础上，将海上与陆地技术紧密联系起来。
Integrated communication
集成通信
Orion choze a 500-ton rated top drive from GDS for the Aries. GDS utilized the space in this selected top drive more efficiently, without sacrificing the sturdiness of the mechanical components.
Orion公司从GDS公司那里为Aries钻机选配了一个额定载荷500吨的顶驱。GDS顶驱能在保证机械零件坚固的前提下，更加有效利用顶驱空间。

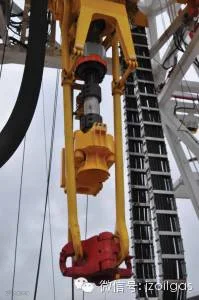

GDS顶驱
The Aries is equipped with a 500-ton top drive by GDS. Orion believes that this top drive utilizes the space in the gearbox more efficiently than other similar-sized top drives, without sacrificing the sturdiness of the mechanical components.
Aries钻机装配有额定载荷500吨的GDS顶驱。Orion公司认为此顶驱与其它相似型号顶驱相比，能够更加有效地利用变速箱内部空间，但并不损害机械部件的坚固程度。
To expand its lifespan, more than 40 sensors have been added to the top drive to provide temperature monitoring, oil sampling and bearing life calculation. Such monitoring capabilities provide GDS and Orion with a picture of how long the top drive has actually been working, not just how long it’s been on the rig. Working in tandem with the top drive on the Aries and jointly developed by Orion is the IDS 1500 draw-works. The Aries is the first rig to feature this system, which was designed to be extremely low maintenance.
为了延长使用寿命，该顶驱上装载了40多个传感器进行温度监控、油品取样和计算轴承寿命。以上这些监控功能可以通过一张图片帮助GDS和Orion了解该顶驱的实际工作时间，而并不只是顶驱安装在钻机上的时间。为了配合Aries钻机顶驱工作，Orion公司联合研发了IDS 1500绞车。Aries钻机是第一个装配有此系统的钻机，此系统保持了极低的维修率。
（来源：Drilling Contractor，金正纵横翻译事业部翻译）
