导读：KSZ8041NLI-TR is an ethernet transceiver chips are widely used in many fields such as industry, auto

Function/Application

• Ethernet transceiver chips are widely used in many fields such as industry, automobiles, and consumer electronics.

• Printer、LOM、Game Console、IPTV、IP Phone、IP Set-Top Box.

Performance

• A single supply 10Base-T/100Base-TX Physical Layer Transceiver, which provides MII/RMII/SMII interfaces to transmit and receive data.

• An innovative mixed signal design extends signaling distance while reducing power consumption.

• HP Auto MDI/MDI-X provides the most robust solution for eliminating the need to distinguish crossover cables from straight-through cables.

• Support for 100Base-FX fiber media.

HORSWAY In stock

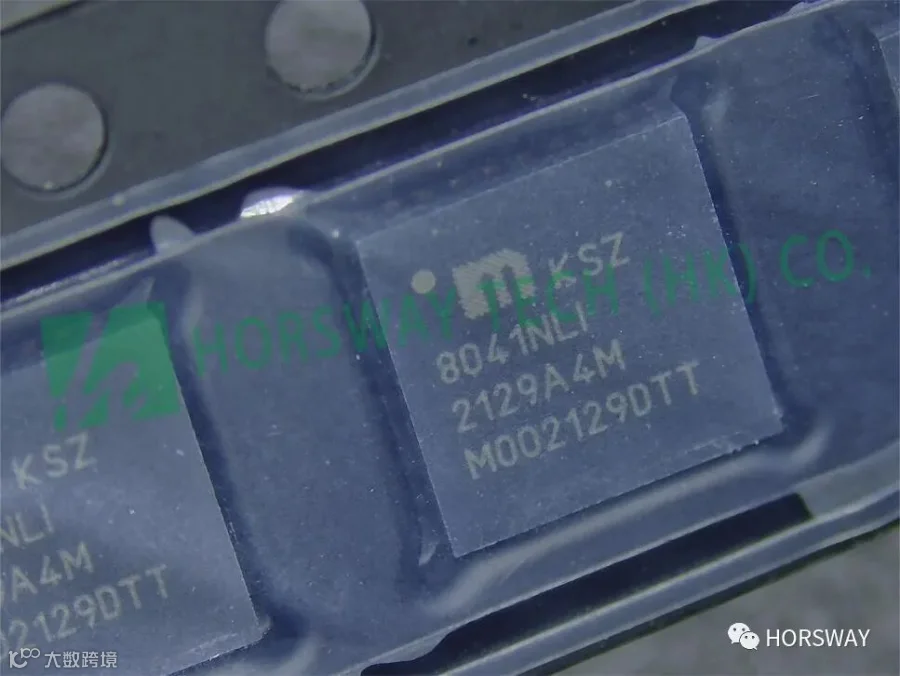

Screen printing

Main Attributes

Package：QFN-32

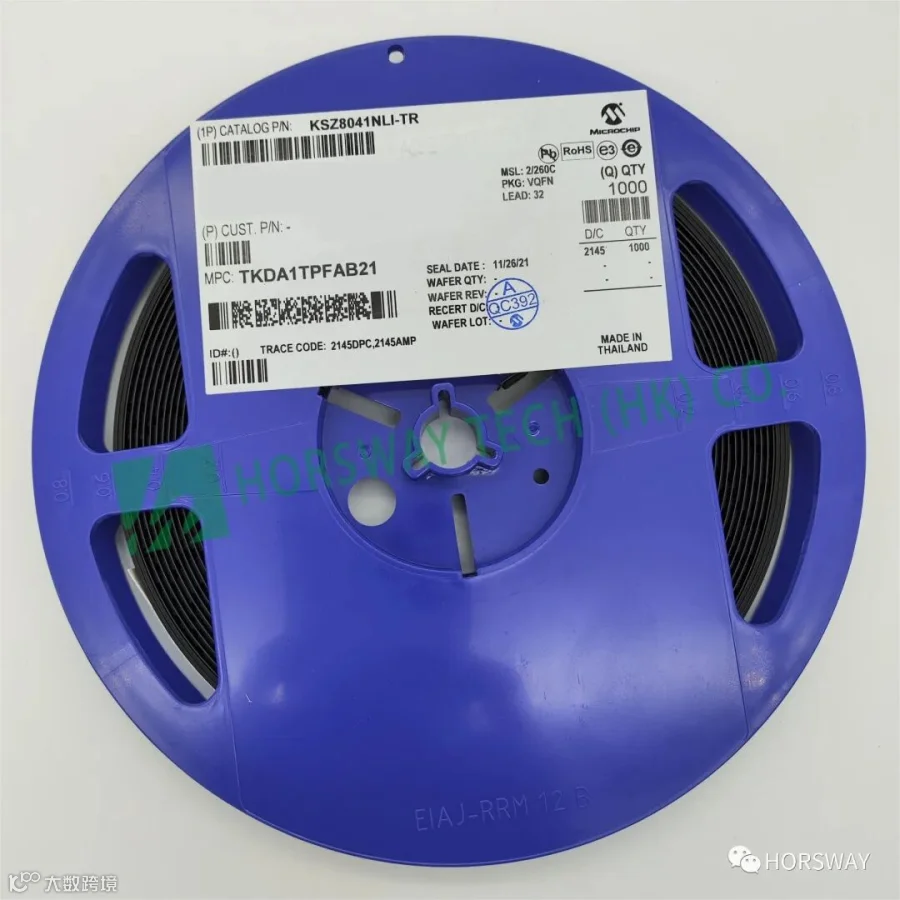

Packaging：Tape & Reel

Standard Package：1000

Protocol：MII, RMII

Number of Drivers/Receivers：1/1

Duplex：Full

Voltage - Supply：3.135V ~ 3.465V

Operating Temperature：-40°C ~ 85°C

RoHS Status：ROHS3 Compliant

Moisture Sensitivity Level (MSL)：2 (1 Year)

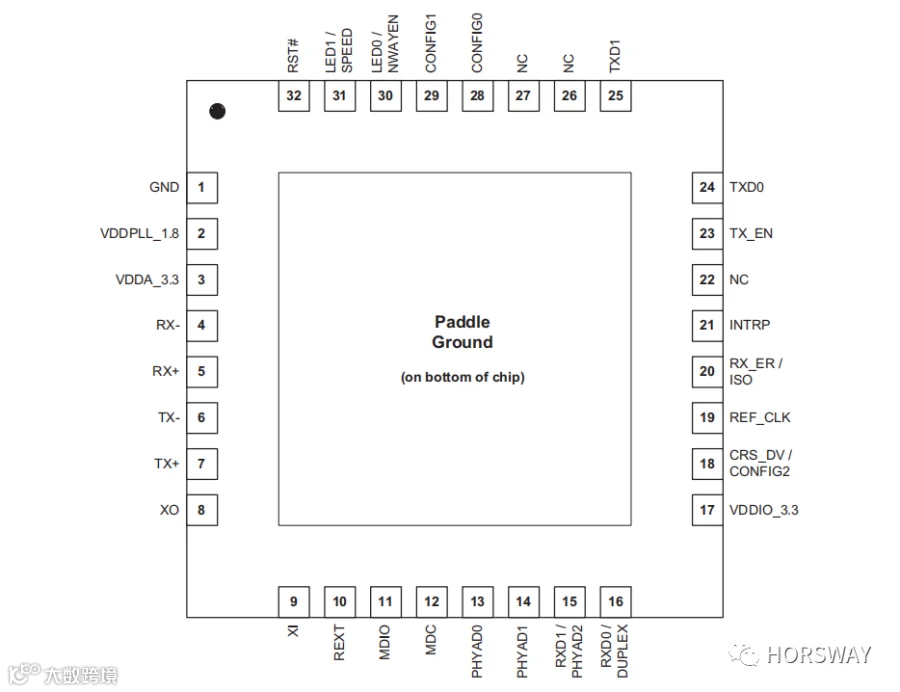

Pin Configuration

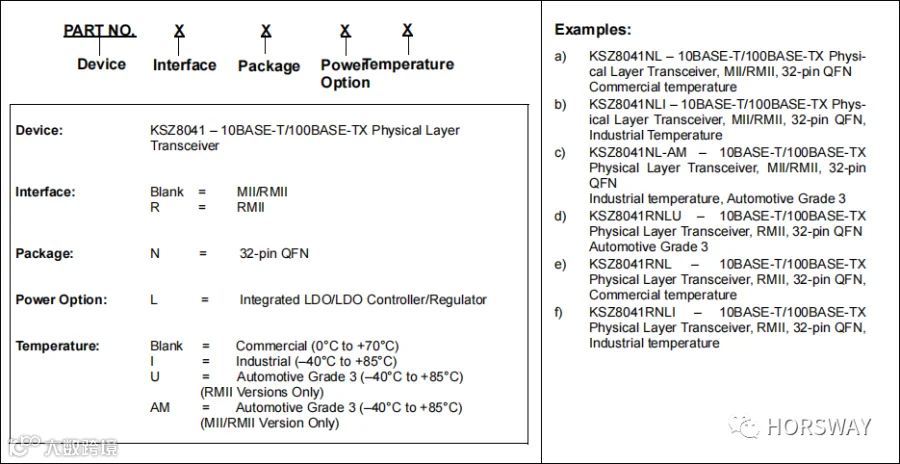

Coding Rules

The above content is for reference only.
