为什么拆解json
在DolphinScheduler 1.3.x及以前的工作流中的任务及任务关系保存时是以大json的方式保存到数据库中process_definiton表的process_definition_json字段，如果某个工作流很大比如有100或者1000个任务，这个json字段也就非常大，在使用时需要解析json，非常耗费性能，且任务没法重用；基于大json，在工作流版本及任务版本上也没有好的实现方案，否则会导致数据大量冗余。
故社区计划启动json拆解项目，实现的需求目标：
大json完全拆分
新增工作流及任务版本
引入全局唯一键(code)
如何设计拆解后的表
3.6版本工作流

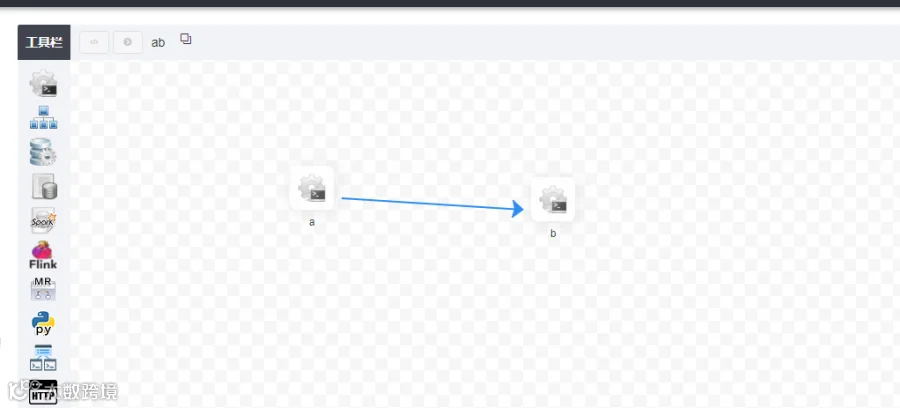

比如在当前1.3.6版本创建个a-->b的工作流以下是processDefiniton save 接口在controller入口打印的入参日志
create process definition, project name: hadoop, process definition name: ab, process_definition_json: {"globalParams":[],"tasks":[{"type":"SHELL","id":"tasks-77643","name":"a","params":{"resourceList":[],"localParams":[{"prop":"yesterday","direct":"IN","type":"VARCHAR","value":"${system.biz.date}"}],"rawScript":"echo ${yesterday}"},"description":"","timeout":{"strategy":"","interval":null,"enable":false},"runFlag":"NORMAL","conditionResult":{"successNode":[""],"failedNode":[""]},"dependence":{},"maxRetryTimes":"0","retryInterval":"1","taskInstancePriority":"MEDIUM","workerGroup":"default","preTasks":[]},{"type":"SHELL","id":"tasks-99814","name":"b","params":{"resourceList":[],"localParams":[{"prop":"today","direct":"IN","type":"VARCHAR","value":"${system.biz.curdate}"}],"rawScript":"echo ${today}"},"description":"","timeout":{"strategy":"","interval":null,"enable":false},"runFlag":"NORMAL","conditionResult":{"successNode":[""],"failedNode":[""]},"dependence":{},"maxRetryTimes":"0","retryInterval":"1","taskInstancePriority":"MEDIUM","workerGroup":"default","preTasks":["a"]}],"tenantId":1,"timeout":0}, desc: locations:{"tasks-77643":{"name":"a","targetarr":"","nodenumber":"1","x":251,"y":166},"tasks-99814":{"name":"b","targetarr":"tasks-77643","nodenumber":"0","x":533,"y":161}}, connects:[{"endPointSourceId":"tasks-77643","endPointTargetId":"tasks-99814"}]依赖节点的工作流，dep是依赖节点
以下是processDefiniton save 接口在controller入口打印的入参日志

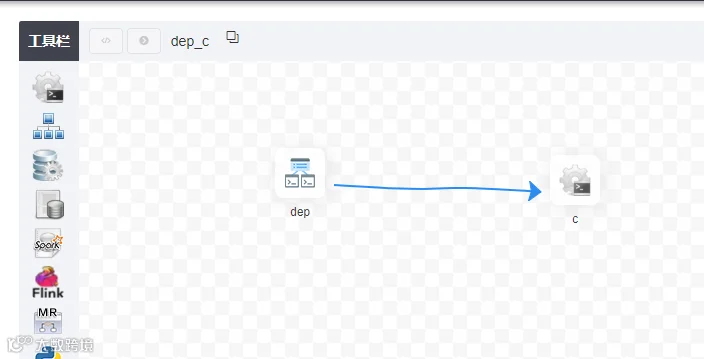

create process definition, project name: hadoop, process definition name: dep_c, process_definition_json: {"globalParams":[],"tasks":[{"type":"SHELL","id":"tasks-69503","name":"c","params":{"resourceList":[],"localParams":[],"rawScript":"echo 11"},"description":"","timeout":{"strategy":"","interval":null,"enable":false},"runFlag":"NORMAL","conditionResult":{"successNode":[""],"failedNode":[""]},"dependence":{},"maxRetryTimes":"0","retryInterval":"1","taskInstancePriority":"MEDIUM","workerGroup":"default","preTasks":["dep"]},{"type":"DEPENDENT","id":"tasks-22756","name":"dep","params":{},"description":"","timeout":{"strategy":"","interval":null,"enable":false},"runFlag":"NORMAL","conditionResult":{"successNode":[""],"failedNode":[""]},"dependence":{"relation":"AND","dependTaskList":[{"relation":"AND","dependItemList":[{"projectId":1,"definitionId":1,"depTasks":"b","cycle":"day","dateValue":"today"}]}]},"maxRetryTimes":"0","retryInterval":"1","taskInstancePriority":"MEDIUM","workerGroup":"default","preTasks":[]}],"tenantId":1,"timeout":0}, desc: locations:{"tasks-69503":{"name":"c","targetarr":"tasks-22756","nodenumber":"0","x":597,"y":166},"tasks-22756":{"name":"dep","targetarr":"","nodenumber":"1","x":308,"y":164}}, connects:[{"endPointSourceId":"tasks-22756","endPointTargetId":"tasks-69503"}]条件判断的工作流
以下是processDefiniton save 接口在controller入口打印的入参日志

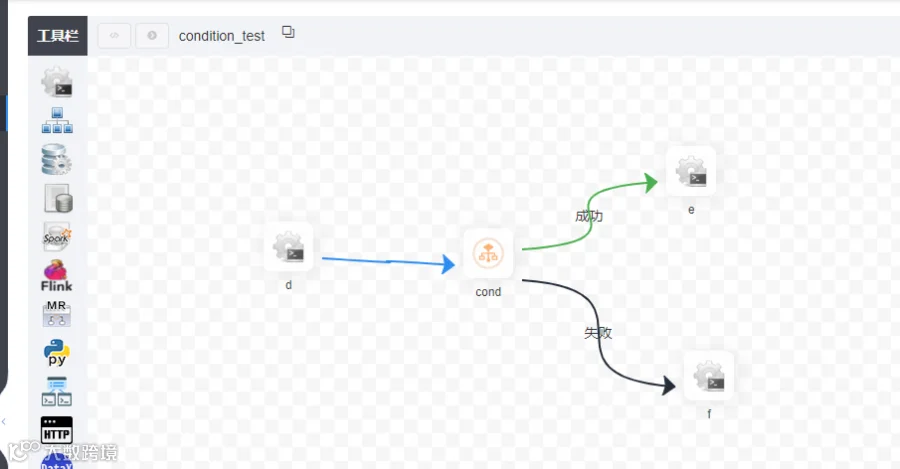

create process definition, project name: hadoop, process definition name: condition_test, process_definition_json: {"globalParams":[],"tasks":[{"type":"SHELL","id":"tasks-68456","name":"d","params":{"resourceList":[],"localParams":[],"rawScript":"echo 11"},"description":"","timeout":{"strategy":"","interval":null,"enable":false},"runFlag":"NORMAL","conditionResult":{"successNode":[""],"failedNode":[""]},"dependence":{},"maxRetryTimes":"0","retryInterval":"1","taskInstancePriority":"MEDIUM","workerGroup":"default","preTasks":[]},{"type":"SHELL","id":"tasks-58183","name":"e","params":{"resourceList":[],"localParams":[],"rawScript":"echo 22"},"description":"","timeout":{"strategy":"","interval":null,"enable":false},"runFlag":"NORMAL","conditionResult":{"successNode":[""],"failedNode":[""]},"dependence":{},"maxRetryTimes":"0","retryInterval":"1","taskInstancePriority":"MEDIUM","workerGroup":"default","preTasks":["cond"]},{"type":"SHELL","id":"tasks-43996","name":"f","params":{"resourceList":[],"localParams":[],"rawScript":"echo 33"},"description":"","timeout":{"strategy":"","interval":null,"enable":false},"runFlag":"NORMAL","conditionResult":{"successNode":[""],"failedNode":[""]},"dependence":{},"maxRetryTimes":"0","retryInterval":"1","taskInstancePriority":"MEDIUM","workerGroup":"default","preTasks":["cond"]},{"type":"CONDITIONS","id":"tasks-38972","name":"cond","params":{},"description":"","timeout":{"strategy":"","interval":null,"enable":false},"runFlag":"NORMAL","conditionResult":{"successNode":["e"],"failedNode":["f"]},"dependence":{"relation":"AND","dependTaskList":[{"relation":"AND","dependItemList":[{"depTasks":"d","status":"SUCCESS"}]}]},"maxRetryTimes":"0","retryInterval":"1","taskInstancePriority":"MEDIUM","workerGroup":"default","preTasks":["d"]}],"tenantId":1,"timeout":0}, desc: locations:{"tasks-68456":{"name":"d","targetarr":"","nodenumber":"1","x":168,"y":158},"tasks-58183":{"name":"e","targetarr":"tasks-38972","nodenumber":"0","x":573,"y":82},"tasks-43996":{"name":"f","targetarr":"tasks-38972","nodenumber":"0","x":591,"y":288},"tasks-38972":{"name":"cond","targetarr":"tasks-68456","nodenumber":"2","x":382,"y":175}}, connects:[{"endPointSourceId":"tasks-68456","endPointTargetId":"tasks-38972"},{"endPointSourceId":"tasks-38972","endPointTargetId":"tasks-58183"},{"endPointSourceId":"tasks-38972","endPointTargetId":"tasks-43996"}]从以上三个案例中，我们知道controller的入口参数的每个参数都可以在t_ds_process_definition表中找到对应，故表中数据如下图
拆解后的表设计思路
工作流只是dag的展现形式，任务通过工作流进行组织，组织的同时存在了任务之间的关系，也就是依赖。就好比一个画板，画板上有些图案，工作流就是画板，图案就是任务，图案之间的关系就是依赖。而调度的核心是调度任务，依赖只是表述调度的先后顺序。当前定时还是对整个工作流进行的定时，拆解后就方便对单独任务进行调度。正是基于这个思想设计了拆解的思路，所以这就需要三张表，工作流定义表、任务定义表、任务关系表。
工作流定义表：描述工作流的基本信息，比如全局参数、dag中节点的位置信息
任务定义表：描述任务的详情信息，比如任务类别、任务容错信息、优先级等
任务关系表：描述任务的关系信息，比如当前节点、前置节点等
基于这个设计思想再扩展到版本，无非是对于这三张表，每张表新增个保存版本的日志表。
工作流定义表
现在看案例中save接口日志，现有字段(project、process_definition_name、desc、locations、connects)，对于json中除了task之外的还剩下
{"globalParams":[],"tenantId":1,"timeout":0}所以可知工作流定义表：
CREATE TABLE `t_ds_process_definition` (`id` int(11) NOT NULL AUTO_INCREMENT COMMENT 'self-increasing id',`code` bigint(20) NOT NULL COMMENT 'encoding',`name` varchar(200) DEFAULT NULL COMMENT 'process definition name',`version` int(11) DEFAULT NULL COMMENT 'process definition version',`description` text COMMENT 'description',`project_code` bigint(20) NOT NULL COMMENT 'project code',`release_state` tinyint(4) DEFAULT NULL COMMENT 'process definition release state：0:offline,1:online',`user_id` int(11) DEFAULT NULL COMMENT 'process definition creator id',`global_params` text COMMENT 'global parameters',`flag` tinyint(4) DEFAULT NULL COMMENT '0 not available, 1 available',`locations` text COMMENT 'Node location information',`connects` text COMMENT 'Node connection information',`warning_group_id` int(11) DEFAULT NULL COMMENT 'alert group id',`timeout` int(11) DEFAULT '0' COMMENT 'time out, unit: minute',`tenant_id` int(11) NOT NULL DEFAULT '-1' COMMENT 'tenant id',`create_time` datetime NOT NULL COMMENT 'create time',`update_time` datetime DEFAULT NULL COMMENT 'update time',PRIMARY KEY (`id`,`code`),UNIQUE KEY `process_unique` (`name`,`project_code`) USING BTREE) ENGINE=InnoDB DEFAULT CHARSET=utf8;CREATE TABLE `t_ds_process_definition_log` (`id` int(11) NOT NULL AUTO_INCREMENT COMMENT 'self-increasing id',`code` bigint(20) NOT NULL COMMENT 'encoding',`name` varchar(200) DEFAULT NULL COMMENT 'process definition name',`version` int(11) DEFAULT NULL COMMENT 'process definition version',`description` text COMMENT 'description',`project_code` bigint(20) NOT NULL COMMENT 'project code',`release_state` tinyint(4) DEFAULT NULL COMMENT 'process definition release state：0:offline,1:online',`user_id` int(11) DEFAULT NULL COMMENT 'process definition creator id',`global_params` text COMMENT 'global parameters',`flag` tinyint(4) DEFAULT NULL COMMENT '0 not available, 1 available',`locations` text COMMENT 'Node location information',`connects` text COMMENT 'Node connection information',`warning_group_id` int(11) DEFAULT NULL COMMENT 'alert group id',`timeout` int(11) DEFAULT '0' COMMENT 'time out,unit: minute',`tenant_id` int(11) NOT NULL DEFAULT '-1' COMMENT 'tenant id',`operator` int(11) DEFAULT NULL COMMENT 'operator user id',`operate_time` datetime DEFAULT NULL COMMENT 'operate time',`create_time` datetime NOT NULL COMMENT 'create time',`update_time` datetime DEFAULT NULL COMMENT 'update time',PRIMARY KEY (`id`)) ENGINE=InnoDB DEFAULT CHARSET=utf8;
从表字段可以看出 日志表仅仅比主表多了两个字段operator、operate_time
任务定义表
案例中ab工作流task的json
"tasks": [{"type": "SHELL","id": "tasks-77643","name": "a","params": {"resourceList": [],"localParams": [{"prop": "yesterday","direct": "IN","type": "VARCHAR","value": "${system.biz.date}"}],"rawScript": "echo ${yesterday}"},"description": "","timeout": {"strategy": "","interval": null,"enable": false},"runFlag": "NORMAL","conditionResult": {"successNode": [""],"failedNode": [""]},"dependence": {},"maxRetryTimes": "0","retryInterval": "1","taskInstancePriority": "MEDIUM","workerGroup": "default","preTasks": []}, {"type": "SHELL","id": "tasks-99814","name": "b","params": {"resourceList": [],"localParams": [{"prop": "today","direct": "IN","type": "VARCHAR","value": "${system.biz.curdate}"}],"rawScript": "echo ${today}"},"description": "","timeout": {"strategy": "","interval": null,"enable": false},"runFlag": "NORMAL","conditionResult": {"successNode": [""],"failedNode": [""]},"dependence": {},"maxRetryTimes": "0","retryInterval": "1","taskInstancePriority": "MEDIUM","workerGroup": "default","preTasks": ["a"]}]
dep_c工作流task的json
"tasks": [{"type": "SHELL","id": "tasks-69503","name": "c","params": {"resourceList": [],"localParams": [],"rawScript": "echo 11"},"description": "","timeout": {"strategy": "","interval": null,"enable": false},"runFlag": "NORMAL","conditionResult": {"successNode": [""],"failedNode": [""]},"dependence": {},"maxRetryTimes": "0","retryInterval": "1","taskInstancePriority": "MEDIUM","workerGroup": "default","preTasks": ["dep"]}, {"type": "DEPENDENT","id": "tasks-22756","name": "dep","params": {},"description": "","timeout": {"strategy": "","interval": null,"enable": false},"runFlag": "NORMAL","conditionResult": {"successNode": [""],"failedNode": [""]},"dependence": {"relation": "AND","dependTaskList": [{"relation": "AND","dependItemList": [{"projectId": 1,"definitionId": 1,"depTasks": "b","cycle": "day","dateValue": "today"}]}]},"maxRetryTimes": "0","retryInterval": "1","taskInstancePriority": "MEDIUM","workerGroup": "default","preTasks": []}]
condition_test工作流task的json
"tasks": [{"type": "SHELL","id": "tasks-68456","name": "d","params": {"resourceList": [],"localParams": [],"rawScript": "echo 11"},"description": "","timeout": {"strategy": "","interval": null,"enable": false},"runFlag": "NORMAL","conditionResult": {"successNode": [""],"failedNode": [""]},"dependence": {},"maxRetryTimes": "0","retryInterval": "1","taskInstancePriority": "MEDIUM","workerGroup": "default","preTasks": []}, {"type": "SHELL","id": "tasks-58183","name": "e","params": {"resourceList": [],"localParams": [],"rawScript": "echo 22"},"description": "","timeout": {"strategy": "","interval": null,"enable": false},"runFlag": "NORMAL","conditionResult": {"successNode": [""],"failedNode": [""]},"dependence": {},"maxRetryTimes": "0","retryInterval": "1","taskInstancePriority": "MEDIUM","workerGroup": "default","preTasks": ["cond"]}, {"type": "SHELL","id": "tasks-43996","name": "f","params": {"resourceList": [],"localParams": [],"rawScript": "echo 33"},"description": "","timeout": {"strategy": "","interval": null,"enable": false},"runFlag": "NORMAL","conditionResult": {"successNode": [""],"failedNode": [""]},"dependence": {},"maxRetryTimes": "0","retryInterval": "1","taskInstancePriority": "MEDIUM","workerGroup": "default","preTasks": ["cond"]}, {"type": "CONDITIONS","id": "tasks-38972","name": "cond","params": {},"description": "","timeout": {"strategy": "","interval": null,"enable": false},"runFlag": "NORMAL","conditionResult": {"successNode": ["e"],"failedNode": ["f"]},"dependence": {"relation": "AND","dependTaskList": [{"relation": "AND","dependItemList": [{"depTasks": "d","status": "SUCCESS"}]}]},"maxRetryTimes": "0","retryInterval": "1","taskInstancePriority": "MEDIUM","workerGroup": "default","preTasks": ["d"]}]
从案例中可以知道SHELL/DEPENDENT/CONDITIONS类型的节点的json构成（其他任务类似SHELL），preTasks标识前置依赖节点。conditionResult结构比较固定，而dependence结构复杂，DEPENDENT和CONDITIONS类型任务的dependence结构还不一样，所以为了统一，我们将conditionResult和dependence整体放到params中，params对应表字段的task_params。
这样我们就确定了t_ds_task_definition表
CREATE TABLE `t_ds_task_definition` (`id` int(11) NOT NULL AUTO_INCREMENT COMMENT 'self-increasing id',`code` bigint(20) NOT NULL COMMENT 'encoding',`name` varchar(200) DEFAULT NULL COMMENT 'task definition name',`version` int(11) DEFAULT NULL COMMENT 'task definition version',`description` text COMMENT 'description',`project_code` bigint(20) NOT NULL COMMENT 'project code',`user_id` int(11) DEFAULT NULL COMMENT 'task definition creator id',`task_type` varchar(50) NOT NULL COMMENT 'task type',`task_params` text COMMENT 'job custom parameters',`flag` tinyint(2) DEFAULT NULL COMMENT '0 not available, 1 available',`task_priority` tinyint(4) DEFAULT NULL COMMENT 'job priority',`worker_group` varchar(200) DEFAULT NULL COMMENT 'worker grouping',`fail_retry_times` int(11) DEFAULT NULL COMMENT 'number of failed retries',`fail_retry_interval` int(11) DEFAULT NULL COMMENT 'failed retry interval',`timeout_flag` tinyint(2) DEFAULT '0' COMMENT 'timeout flag:0 close, 1 open',`timeout_notify_strategy` tinyint(4) DEFAULT NULL COMMENT 'timeout notification policy: 0 warning, 1 fail',`timeout` int(11) DEFAULT '0' COMMENT 'timeout length,unit: minute',`delay_time` int(11) DEFAULT '0' COMMENT 'delay execution time,unit: minute',`resource_ids` varchar(255) DEFAULT NULL COMMENT 'resource id, separated by comma',`create_time` datetime NOT NULL COMMENT 'create time',`update_time` datetime DEFAULT NULL COMMENT 'update time',PRIMARY KEY (`id`,`code`),UNIQUE KEY `task_unique` (`name`,`project_code`) USING BTREE) ENGINE=InnoDB DEFAULT CHARSET=utf8;CREATE TABLE `t_ds_task_definition_log` (`id` int(11) NOT NULL AUTO_INCREMENT COMMENT 'self-increasing id',`code` bigint(20) NOT NULL COMMENT 'encoding',`name` varchar(200) DEFAULT NULL COMMENT 'task definition name',`version` int(11) DEFAULT NULL COMMENT 'task definition version',`description` text COMMENT 'description',`project_code` bigint(20) NOT NULL COMMENT 'project code',`user_id` int(11) DEFAULT NULL COMMENT 'task definition creator id',`task_type` varchar(50) NOT NULL COMMENT 'task type',`task_params` text COMMENT 'job custom parameters',`flag` tinyint(2) DEFAULT NULL COMMENT '0 not available, 1 available',`task_priority` tinyint(4) DEFAULT NULL COMMENT 'job priority',`worker_group` varchar(200) DEFAULT NULL COMMENT 'worker grouping',`fail_retry_times` int(11) DEFAULT NULL COMMENT 'number of failed retries',`fail_retry_interval` int(11) DEFAULT NULL COMMENT 'failed retry interval',`timeout_flag` tinyint(2) DEFAULT '0' COMMENT 'timeout flag:0 close, 1 open',`timeout_notify_strategy` tinyint(4) DEFAULT NULL COMMENT 'timeout notification policy: 0 warning, 1 fail',`timeout` int(11) DEFAULT '0' COMMENT 'timeout length,unit: minute',`delay_time` int(11) DEFAULT '0' COMMENT 'delay execution time,unit: minute',`resource_ids` varchar(255) DEFAULT NULL COMMENT 'resource id, separated by comma',`operator` int(11) DEFAULT NULL COMMENT 'operator user id',`operate_time` datetime DEFAULT NULL COMMENT 'operate time',`create_time` datetime NOT NULL COMMENT 'create time',`update_time` datetime DEFAULT NULL COMMENT 'update time',PRIMARY KEY (`id`)) ENGINE=InnoDB DEFAULT CHARSET=utf8;
//注意：dev版本和1.3.6版本区别，dev版本已将description换成desc，并且新增了delayTime
{"globalParams": [],"tasks": [{"type": "SHELL","id": "tasks-18200","name": "d","code": "","params": {"resourceList": [],"localParams": [],"rawScript": "echo 5"},"desc": "","runFlag": "NORMAL","conditionResult": {"successNode": [""],"failedNode": [""]},"dependence": {},"maxRetryTimes": "0","retryInterval": "1","delayTime": "0","timeout": {"strategy": "","interval": null,"enable": false},"waitStartTimeout": {},"taskInstancePriority": "MEDIUM","workerGroup": "hadoop","preTasks": [],"depList": null},{"type": "SHELL","id": "tasks-55225","name": "e","code": "","params": {"resourceList": [],"localParams": [],"rawScript": "echo 6"},"desc": "","runFlag": "NORMAL","conditionResult": {"successNode": [""],"failedNode": [""]},"dependence": {},"maxRetryTimes": "0","retryInterval": "1","delayTime": "0","timeout": {"strategy": "","interval": null,"enable": false},"waitStartTimeout": {},"taskInstancePriority": "MEDIUM","workerGroup": "hadoop","preTasks": ["def"],"depList": null},{"type": "SHELL","id": "tasks-67639","name": "f","code": "","params": {"resourceList": [],"localParams": [],"rawScript": "echo 7"},"desc": "","runFlag": "NORMAL","conditionResult": {"successNode": [""],"failedNode": [""]},"dependence": {},"maxRetryTimes": "0","retryInterval": "1","delayTime": "0","timeout": {"strategy": "","interval": null,"enable": false},"waitStartTimeout": {},"taskInstancePriority": "MEDIUM","workerGroup": "hadoop","preTasks": ["def"],"depList": null},{"type": "CONDITIONS","id": "tasks-67387","name": "def","code": "","params": {},"desc": "","runFlag": "NORMAL","conditionResult": {"successNode": ["e"],"failedNode": ["f"]},"dependence": {"relation": "AND","dependTaskList": [{"relation": "AND","dependItemList": [{"depTasks": "d","status": "SUCCESS"},{"depTasks": "d","status": "FAILURE"}]}]},"maxRetryTimes": "0","retryInterval": "1","delayTime": "0","timeout": {"strategy": "","interval": null,"enable": false},"waitStartTimeout": {},"taskInstancePriority": "MEDIUM","workerGroup": "hadoop","preTasks": ["d"],"depList": null}],"tenantId": 1,"timeout": 0}
任务关系表
preTasks标识前置依赖节点，当前节点在关系表中使用postTask标识。由于当前节点肯定存在而前置节点不一定存在，所以post不可能为空，而preTask有可能为空
CREATE TABLE `t_ds_process_task_relation` (`id` int(11) NOT NULL AUTO_INCREMENT COMMENT 'self-increasing id',`name` varchar(200) DEFAULT NULL COMMENT 'relation name',`process_definition_version` int(11) DEFAULT NULL COMMENT 'process version',`project_code` bigint(20) NOT NULL COMMENT 'project code',`process_definition_code` bigint(20) NOT NULL COMMENT 'process code',`pre_task_code` bigint(20) NOT NULL COMMENT 'pre task code',`pre_task_version` int(11) NOT NULL COMMENT 'pre task version',`post_task_code` bigint(20) NOT NULL COMMENT 'post task code',`post_task_version` int(11) NOT NULL COMMENT 'post task version',`condition_type` tinyint(2) DEFAULT NULL COMMENT 'condition type : 0 none, 1 judge 2 delay',`condition_params` text COMMENT 'condition params(json)',`create_time` datetime NOT NULL COMMENT 'create time',`update_time` datetime DEFAULT NULL COMMENT 'update time',PRIMARY KEY (`id`)) ENGINE=InnoDB DEFAULT CHARSET=utf8;CREATE TABLE `t_ds_process_task_relation_log` (`id` int(11) NOT NULL AUTO_INCREMENT COMMENT 'self-increasing id',`name` varchar(200) DEFAULT NULL COMMENT 'relation name',`process_definition_version` int(11) DEFAULT NULL COMMENT 'process version',`project_code` bigint(20) NOT NULL COMMENT 'project code',`process_definition_code` bigint(20) NOT NULL COMMENT 'process code',`pre_task_code` bigint(20) NOT NULL COMMENT 'pre task code',`pre_task_version` int(11) NOT NULL COMMENT 'pre task version',`post_task_code` bigint(20) NOT NULL COMMENT 'post task code',`post_task_version` int(11) NOT NULL COMMENT 'post task version',`condition_type` tinyint(2) DEFAULT NULL COMMENT 'condition type : 0 none, 1 judge 2 delay',`condition_params` text COMMENT 'condition params(json)',`operator` int(11) DEFAULT NULL COMMENT 'operator user id',`operate_time` datetime DEFAULT NULL COMMENT 'operate time',`create_time` datetime NOT NULL COMMENT 'create time',`update_time` datetime DEFAULT NULL COMMENT 'update time',PRIMARY KEY (`id`)) ENGINE=InnoDB DEFAULT CHARSET=utf8;

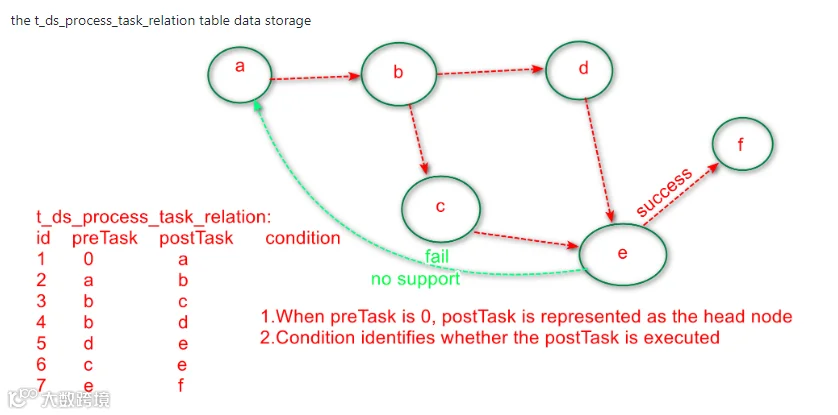

对于依赖关系复杂的场景
API模块如何改造

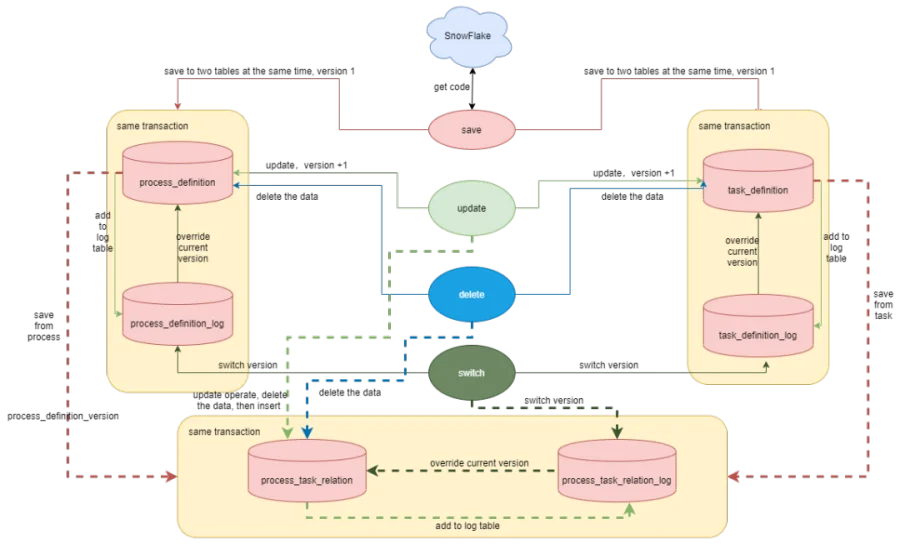

api模块进行save操作时
通过雪花算法生成13位的数字作为process_definition_code，工作流定义保存至process_definition（主表）和process_definition_log（日志表），这两个表保存的是同样的数据，工作流定义版本为1
通过雪花算法生成13位的数字作为task_definition_code，任务定义表保存至task_definition（主表）和task_definition_log（日志表），也是保存同样的数据，任务定义版本为1
工作流任务关系保存在 process_task_relation（主表）和process_task_relation_log（日志表），该表保存的code和version是工作流的code和version，因为任务是通过工作流进行组织，以工作流来画dag。也是通过post_task_code和post_task_version标识dag的当前节点，这个节点的前置依赖通过pre_task_code和pre_task_version来标识，如果没有依赖，pre_task_code和pre_task_version为0
api模块进行update操作时，工作流定义和任务定义直接更新主表数据，更新后的数据insert到日志表。关系表主表先删除然后再插入新的关系，关系表日志表直接插入新的关系
api模块进行delete操作时，工作流定义、任务定义和关系表直接删除主表数据，日志表数据不变动
api模块进行switch操作时，直接将日志表中对应version数据覆盖到主表
数据交互如何改造

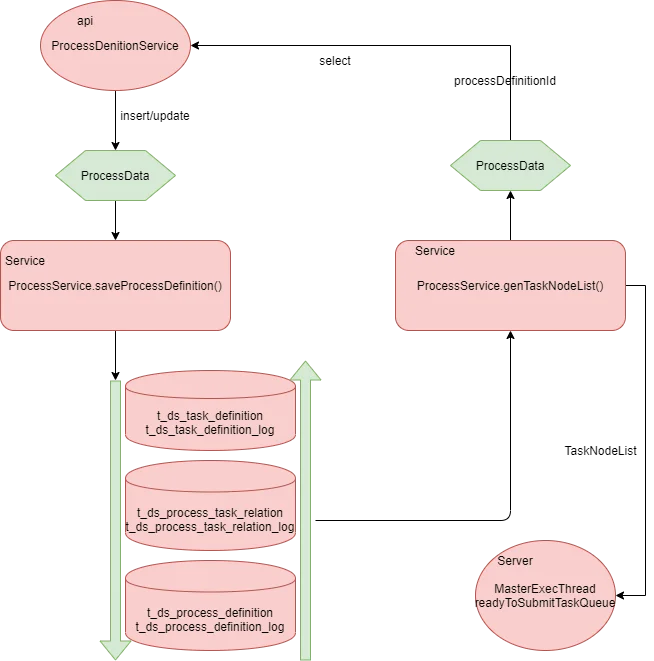

在json拆分一期api模块controller层整体未变动，传入的大json还是在service层映射为ProcessData对象。insert或update操作在公共Service模块通过ProcessService.saveProcessDefiniton()入口完成保存数据库操作，按照task_definition、process_task_relation、process_definition的顺序保存。保存时，如果该任务已经存在并且关联的工作流未上线，则更改任务；如果任务关联的工作流已上线，则不允许更改任务
api查询操作时，当前还是通过工作流id来查询，在公共Service模块通过ProcessService.genTaskNodeList()入口完成数据组装，还是组装为ProcessData对象，进而生成json返回
Server模块（Master）也是通过公共Service模块ProcessService.genTaskNodeList()获得TaskNodeList生成调度dag，把当前任务所有信息放到 MasterExecThread.readyToSubmitTaskQueue队列，以便生成taskInstance，dispatch给worker
当前json还需做什么
controller对外restAPI接口改造
ui模块dag改造
ui模块新增task操作页面
processDefinition

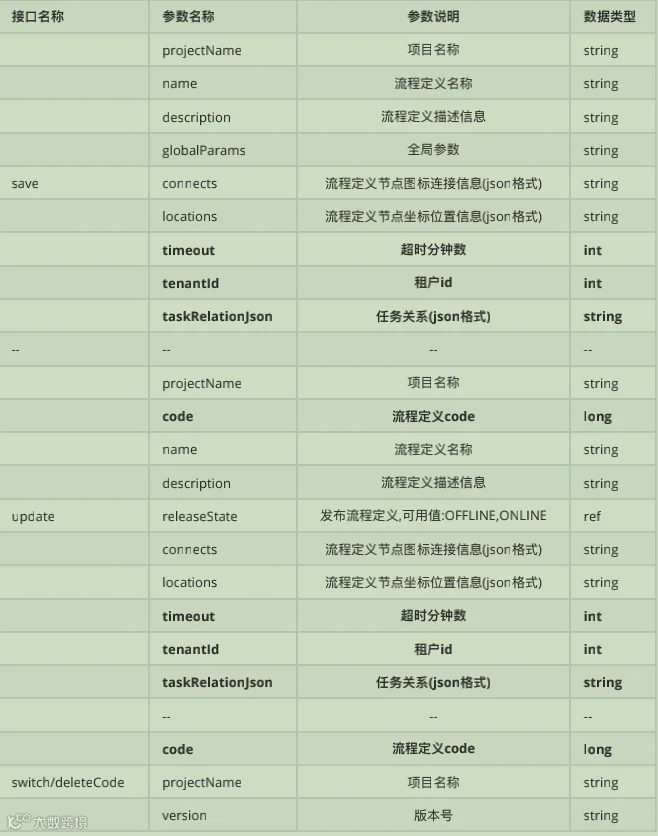

备注：taskRelationJson格式：
[{"name":"","pre_task_code":0,"pre_task_version":0,"post_task_code":123456789,"post_task_version":1,"condition_type":0,"condition_params":{}},{"name":"","pre_task_code":123456789,"pre_task_version":1,"post_task_code":123451234,"post_task_version":1,"condition_type":0,"condition_params":{}}]同理其他接口请求参数processDefinitionId换成code

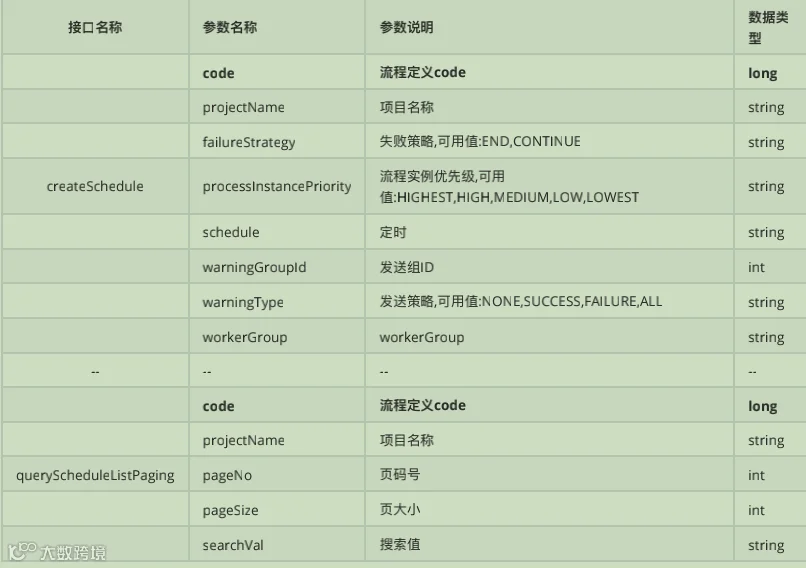

schedule

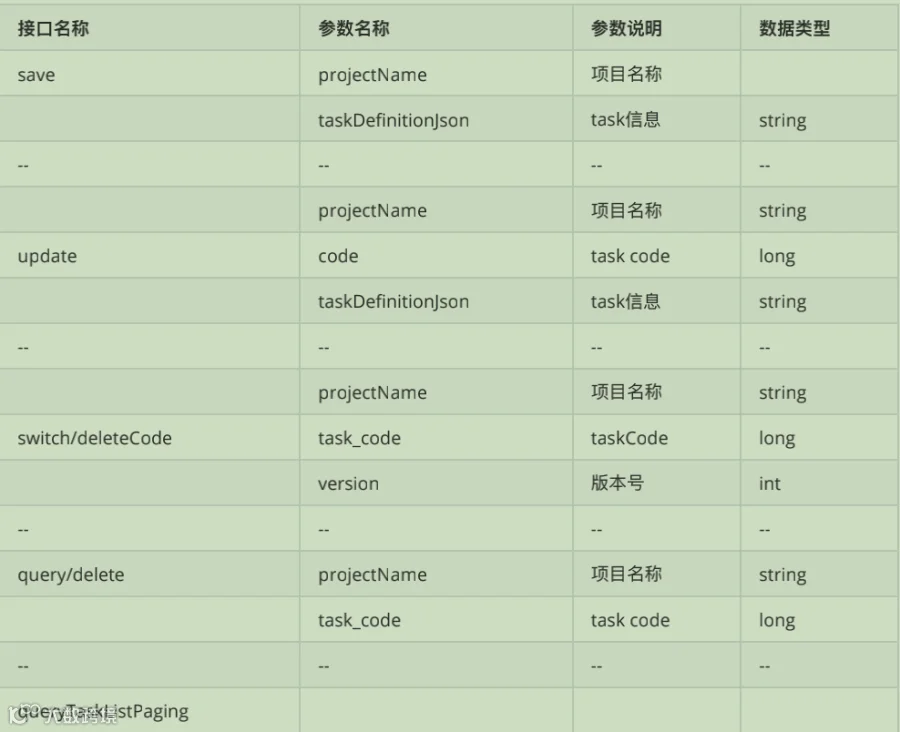

taskDefinition(新增)
taskDefinitionJson：[{"name":"test","description":"","task_type":"SHELL","task_params":[],"flag":0,"task_priority":0,"worker_group":"default","fail_retry_times":0,"fail_retry_interval":0,"timeout_flag":0,"timeout_notify_strategy":0,"timeout":0,"delay_time":0,"resource_ids":""}]对应需求issue
[Feature][JsonSplit-api] api module controller design #5498
[Feature][JsonSplit-api]processDefinition save/update interface #5499
[Feature][JsonSplit-api]processDefinition switch interface #5501
[Feature][JsonSplit-api]processDefinition delete interface #5502
[Feature][JsonSplit-api]processDefinition copy interface #5503
[Feature][JsonSplit-api]processDefinition export interface #5504
[Feature][JsonSplit-api]processDefinition list-paging interface #5505
[Feature][JsonSplit-api]processDefinition move interface #5506
[Feature][JsonSplit-api]processDefinition queryProcessDefinitionAllByProjectId interface #5507
[Feature][JsonSplit-api]processDefinition select-by-id interface #5508
[Feature][JsonSplit-api]processDefinition view-tree interface #5509
[Feature][JsonSplit-api]schedule create interface #5510
[Feature][JsonSplit-api]schedule list-paging interface #5511
[Feature][JsonSplit-api]schedule update interface #5512
[Feature][JsonSplit-api]taskDefinition save interface #5513
[Feature][JsonSplit-api]taskDefinition update interface #5514
[Feature][JsonSplit-api]taskDefinition switch interface #5515
[Feature][JsonSplit-api]taskDefinition query interface #5516
[Feature][JsonSplit-api]taskDefinition delete interface #5517
[Feature][JsonSplit-api]WorkFlowLineage interface #5518
[Feature][JsonSplit-api]analysis interface #5519
[Feature][JsonSplit-api]executors interface #5520
[Feature][JsonSplit-api]processInstance interface #5521
[Feature][JsonSplit-api]project interface #5522
