Apache DolphinScheduler 任务调度3.1.0版本源码剖析
>

Apache DolphinScheduler 任务调度3.1.0版本源码剖析

Apache DolphinScheduler 任务调度3.1.0版本源码剖析 海豚调度
2022-12-21
0
导读：超详细讲解Apache DolphinScheduler源码

目录（本文章基于3.1.0版本研究）

1、数据库表介绍

2、 整体流程运行

3、 源码剖析

3.1 apiserver任务执行入口

3.2 master调度任务

  • 3.2.1 master启动
  • 3.2.2 command扫描
  • 3.2.3 workerFlowEvent消费
  • 3.2.4 workerflow事件处理逻辑
  • 3.2.5 workerflowRunnable运行逻辑
  • 3.2.6 任务消费
  • 3.2.7 任务分派

3.3. worker执行任务

  • 3.3.1 Worker启动

  • 3.3.2 Worker启动command

  • 3.3.3 workerManager消费

  • 3.3.4 任务运行

3.4 master接受任务反馈

  • 3.4.1 master接受反馈消息

  • 3.4.2 taskEventService处理taskevent

  • 3.4.3 TaskResultEventHandler处理taskevent

3.5. master闭环提交下游任务

  • 3.5.1 EventExecuteService处理stateEvent

  • 3.5.2 workflowExecuteThread处理stateEvent事件

  • 3.5.3 TaskStateEventHandler处理stateEvent事件

  • 3.5.4 wokerflowExecuteThread调度下游任务

4、总结

4.1 各个组件的作用
4.2 线程的作用


01

数据库表介绍

t_ds_process_definition：工作流定义表

用于保存工作流，一个工作流一条数据；



t_ds_process_instance：工作流运行实例表，工作流根据crontab每调度一次则生成一条数据；



t_ds_task_definition：任务定义表

画布中节点信息表，多少个节点就有多少条数据；



t_ds_process_task_relation：任务关系表

任务与任务之间连了线，则会有一条数据；



t_ds_task_instance：task运行实例表

task每运行一次会生成一条数据；



t_ds_command：发起任务工作流运行，向apiserver发送http请求，然后接口往该表输出要运行工作流的信息；

02

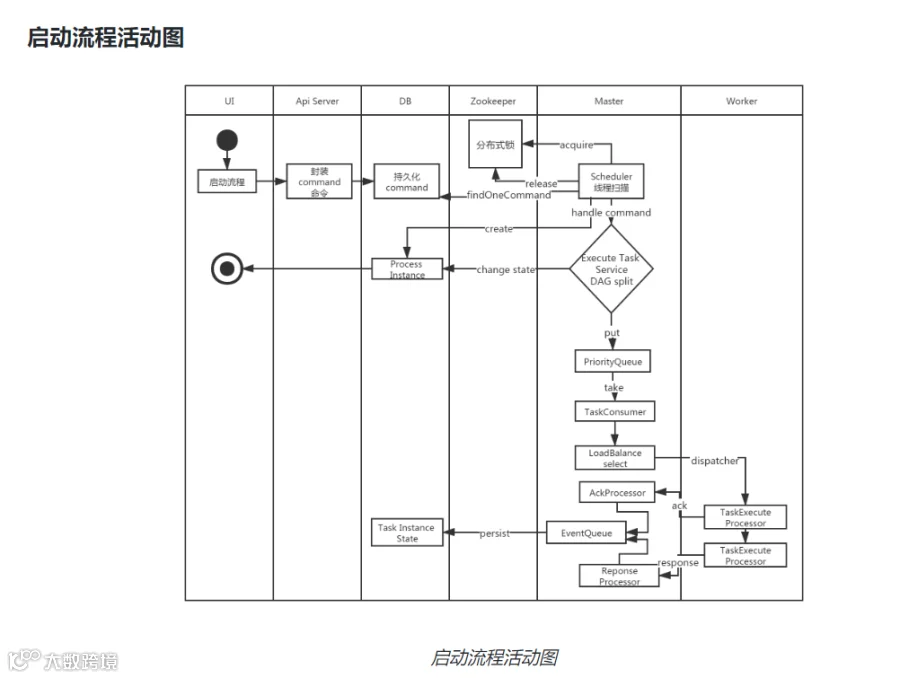

整体流程运行

  • 用户点击WEB界面的启动工作流按钮。

  • apiserver 封装 commnd 到 db（往 t_ds_command 表中插入一条数据）。

  • master 扫描到 commad，进行 dga 构建，初始化，将源头 task 提交到 priority 队列中。

  • taskConsumer 消费队列数据得到 task，选择一台 worker 分配任务。

  • worker 接收到分配任务的消息启动任务。

  • worker 返回结果给 master，master 更新任务信息到 db 。

03

DolphinScheduler源码剖析


3.1 apiserver任务执行入口

当用户在前端点击执行任务，则会向海豚调度的接口发送请求，最终由 ExecutorController 的 startProcessInstance 方法来处理请求。


ExecutorController.startProcessInstance() 方法。


最终会往 mysql 表 t_ds_command 插入一条数据，将要运行的工作流信息写入该表。


@PostMapping(value = "start-process-instance")@ResponseStatus(HttpStatus.OK)@ApiException(START_PROCESS_INSTANCE_ERROR)@AccessLogAnnotation(ignoreRequestArgs = "loginUser")public Result startProcessInstance(@ApiIgnore @RequestAttribute(value = Constants.SESSION_USER) User loginUser,                                   @ApiParam(name = "projectCode", value = "PROJECT_CODE", required = true) @PathVariable long projectCode,                                   @RequestParam(value = "processDefinitionCode") long processDefinitionCode,                                   @RequestParam(value = "scheduleTime") String scheduleTime,                                   @RequestParam(value = "failureStrategy") FailureStrategy failureStrategy,                                   @RequestParam(value = "startNodeList", required = false) String startNodeList,                                   @RequestParam(value = "taskDependType", required = false) TaskDependType taskDependType,                                   @RequestParam(value = "execType", required = false) CommandType execType,                                   @RequestParam(value = "warningType") WarningType warningType,                                   @RequestParam(value = "warningGroupId", required = false, defaultValue = "0") Integer warningGroupId,                                   @RequestParam(value = "runMode", required = false) RunMode runMode,                                   @RequestParam(value = "processInstancePriority", required = false) Priority processInstancePriority,                                   @RequestParam(value = "workerGroup", required = false, defaultValue = "default") String workerGroup,                                   @RequestParam(value = "environmentCode", required = false, defaultValue = "-1") Long environmentCode,                                   @RequestParam(value = "timeout", required = false) Integer timeout,                                   @RequestParam(value = "startParams", required = false) String startParams,                                   @RequestParam(value = "expectedParallelismNumber", required = false) Integer expectedParallelismNumber,                                   @RequestParam(value = "dryRun", defaultValue = "0", required = false) int dryRun,                                   @RequestParam(value = "complementDependentMode", required = false) ComplementDependentMode complementDependentMode) {
    if (timeout == null) {        timeout = Constants.MAX_TASK_TIMEOUT;    }    Map<String, String> startParamMap = null;    if (startParams != null) {        startParamMap = JSONUtils.toMap(startParams);    }
    if (complementDependentMode == null) {        complementDependentMode = ComplementDependentMode.OFF_MODE;    }    //生成commnd信息入库    Map<String, Object> result = execService.execProcessInstance(loginUser, projectCode, processDefinitionCode,            scheduleTime, execType, failureStrategy,            startNodeList, taskDependType, warningType, warningGroupId, runMode, processInstancePriority,            workerGroup, environmentCode, timeout, startParamMap, expectedParallelismNumber, dryRun, complementDependentMode);    return returnDataList(result);}


3.2 master 调度任务


3.2.1  master启动

DS

MasterServer.run() 方法

启动 master 的工作线程

public void run() throws SchedulerException {    // init rpc server    this.masterRPCServer.start();//启动netty rpc服务，与worker通信使用
    // install task plugin    this.taskPluginManager.loadPlugin();//加载taskplugin
    // self tolerant    this.masterRegistryClient.init();//加载高可用的一些注册信息    this.masterRegistryClient.start();    this.masterRegistryClient.setRegistryStoppable(this);    //command扫描线程    this.masterSchedulerBootstrap.init();    this.masterSchedulerBootstrap.start();    //事件处理线程    this.eventExecuteService.start();    this.failoverExecuteThread.start();    //定时调度    this.schedulerApi.start();
    Runtime.getRuntime().addShutdownHook(new Thread(() -> {        if (Stopper.isRunning()) {            close("MasterServer shutdownHook");        }    }));}


3.2.2 command扫描

DS

MasterSchedulerBootstrap.run()方法


该线程在3.2.1启动，启动之后，进入循环，一直扫描 command 表，查询出 command，然后封装成 processInstants 入库，创建 WorkflowExecuteRunnable (此对象后续很多地方用到) 写入到 workflowEventQueue 中。

public void run() {    while (Stopper.isRunning()) {        try {            // todo: if the workflow event queue is much, we need to handle the back pressure            boolean isOverload =                    OSUtils.isOverload(masterConfig.getMaxCpuLoadAvg(), masterConfig.getReservedMemory());            if (isOverload) {                MasterServerMetrics.incMasterOverload();                Thread.sleep(Constants.SLEEP_TIME_MILLIS);                continue;            }            List<Command> commands = findCommands();            if (CollectionUtils.isEmpty(commands)) {                // indicate that no command ,sleep for 1s                Thread.sleep(Constants.SLEEP_TIME_MILLIS);                continue;            }            //将command转换成processInstance,并入库            List<ProcessInstance> processInstances = command2ProcessInstance(commands);            if (CollectionUtils.isEmpty(processInstances)) {                // indicate that the command transform to processInstance error, sleep for 1s                Thread.sleep(Constants.SLEEP_TIME_MILLIS);                continue;            }            MasterServerMetrics.incMasterConsumeCommand(commands.size());
            processInstances.forEach(processInstance -> {                try {                    LoggerUtils.setWorkflowInstanceIdMDC(processInstance.getId());                    if (processInstanceExecCacheManager.contains(processInstance.getId())) {                        logger.error("The workflow instance is already been cached, this case shouldn't be happened");                    }                    WorkflowExecuteRunnable workflowRunnable = new WorkflowExecuteRunnable(processInstance,                            processService,                            nettyExecutorManager,                            processAlertManager,                            masterConfig,                            stateWheelExecuteThread,                            curingGlobalParamsService);                    processInstanceExecCacheManager.cache(processInstance.getId(), workflowRunnable);//processInstanceExecCacheManager设置进cache 被  workflowEventLoop获取                    workflowEventQueue.addEvent(new WorkflowEvent(WorkflowEventType.START_WORKFLOW,                            processInstance.getId()));                } finally {                    LoggerUtils.removeWorkflowInstanceIdMDC();                }            });        } catch (InterruptedException interruptedException) {            logger.warn("Master schedule bootstrap interrupted, close the loop", interruptedException);            Thread.currentThread().interrupt();            break;        } catch (Exception e) {            logger.error("Master schedule workflow error", e);            // sleep for 1s here to avoid the database down cause the exception boom            ThreadUtils.sleep(Constants.SLEEP_TIME_MILLIS);        }    }}


3.2.3 workerFlowEvent消费

DS


在 command 扫描线程中启动了 workflowEventLooper 线程用于消费 workerFlowEvent 。

MasterSchedulerBootstrap.start() 方法



@Overridepublic synchronized void start() {    logger.info("Master schedule bootstrap starting..");    super.start();    workflowEventLooper.start();//工作流调度线程启动    logger.info("Master schedule bootstrap started...");}

从workflowEventQueue 拉取 workflowevent 事件，调用 workflowEventHandler 处理该事件。


WorkflowEventLooper.run()方法

public void run() {    WorkflowEvent workflowEvent = null;    while (Stopper.isRunning()) {        try {            workflowEvent = workflowEventQueue.poolEvent();//拉取workflowevent            LoggerUtils.setWorkflowInstanceIdMDC(workflowEvent.getWorkflowInstanceId());            logger.info("Workflow event looper receive a workflow event: {}, will handle this", workflowEvent);            WorkflowEventHandler workflowEventHandler =                workflowEventHandlerMap.get(workflowEvent.getWorkflowEventType());//获取workflowevent，处理workflowevent事件            workflowEventHandler.handleWorkflowEvent(workflowEvent);        } catch (InterruptedException e) {            logger.warn("WorkflowEventLooper thread is interrupted, will close this loop", e);            Thread.currentThread().interrupt();            break;        } catch (WorkflowEventHandleException workflowEventHandleException) {            logger.error("Handle workflow event failed, will add this event to event queue again, event: {}",                workflowEvent, workflowEventHandleException);            workflowEventQueue.addEvent(workflowEvent);            ThreadUtils.sleep(Constants.SLEEP_TIME_MILLIS);        } catch (WorkflowEventHandleError workflowEventHandleError) {            logger.error("Handle workflow event error, will drop this event, event: {}",                         workflowEvent,                         workflowEventHandleError);        } catch (Exception unknownException) {            logger.error(                "Handle workflow event failed, get a unknown exception, will add this event to event queue again, event: {}",                workflowEvent, unknownException);            workflowEventQueue.addEvent(workflowEvent);            ThreadUtils.sleep(Constants.SLEEP_TIME_MILLIS);        } finally {            LoggerUtils.removeWorkflowInstanceIdMDC();        }    }}

3.2.4 workerflow事件处理逻辑

DS

因为是START_WORKFLOW类型的所以获取到 WorkflowStartEventHandler.handleWorkflowEvent() 来处理该事件。


该方法中，获取 WorkflowExecuteRunnable ，运行异步任务调用 call 方法。

@Overridepublic void handleWorkflowEvent(WorkflowEvent workflowEvent) throws WorkflowEventHandleError {    logger.info("Handle workflow start event, begin to start a workflow, event: {}", workflowEvent);//获取WorkflowExecuteRunnable     WorkflowExecuteRunnable workflowExecuteRunnable =       processInstanceExecCacheManager.getByProcessInstanceId(workflowEvent.getWorkflowInstanceId());    if (workflowExecuteRunnable == null) {        throw new WorkflowEventHandleError(            "The workflow start event is invalid, cannot find the workflow instance from cache");    }    ProcessInstance processInstance = workflowExecuteRunnable.getProcessInstance();
    ProcessInstanceMetrics.incProcessInstanceSubmit();   //异步调用call方法执行workflowExecute运行逻辑。 CompletableFuture<WorkflowSubmitStatue> workflowSubmitFuture =        CompletableFuture.supplyAsync(workflowExecuteRunnable::call, workflowExecuteThreadPool);    workflowSubmitFuture.thenAccept(workflowSubmitStatue -> {        if (WorkflowSubmitStatue.SUCCESS == workflowSubmitStatue) {            // submit failed will resend the event to workflow event queue            logger.info("Success submit the workflow instance");//监听返回状态是否成功            if (processInstance.getTimeout() > 0) {//是否超时                stateWheelExecuteThread.addProcess4TimeoutCheck(processInstance);            }        } else {//出现异常，重试，重新进入队列，调用call方法            logger.error("Failed to submit the workflow instance, will resend the workflow start event: {}",                         workflowEvent);            workflowEventQueue.addEvent(new WorkflowEvent(WorkflowEventType.START_WORKFLOW,                                                          processInstance.getId()));        }    });}


3.2.5 workerflowRunnable运行逻辑

DS

WorkflowExecuteRunnable.call()


  • 初始化workerflow的有向无环图。

  • 初始化任务调度配置

  • 提交源头任务到任务优先级队列中。

@Overridepublic WorkflowSubmitStatue call() {    if (isStart()) {        // This case should not been happened        logger.warn("[WorkflowInstance-{}] The workflow has already been started", processInstance.getId());        return WorkflowSubmitStatue.DUPLICATED_SUBMITTED;    }
    try {        LoggerUtils.setWorkflowInstanceIdMDC(processInstance.getId());        if (workflowRunnableStatus == WorkflowRunnableStatus.CREATED) {            buildFlowDag();//创建dag有向无环图            workflowRunnableStatus = WorkflowRunnableStatus.INITIALIZE_DAG;            logger.info("workflowStatue changed to :{}", workflowRunnableStatus);        }        if (workflowRunnableStatus == WorkflowRunnableStatus.INITIALIZE_DAG) {            initTaskQueue();//初始化任务调度配置            workflowRunnableStatus = WorkflowRunnableStatus.INITIALIZE_QUEUE;            logger.info("workflowStatue changed to :{}", workflowRunnableStatus);        }        if (workflowRunnableStatus == WorkflowRunnableStatus.INITIALIZE_QUEUE) {            submitPostNode(null);//提交任务到队列中，注意是先提交源头结点，源头结点运行万再提交源头结点的下有节点            workflowRunnableStatus = WorkflowRunnableStatus.STARTED;            logger.info("workflowStatue changed to :{}", workflowRunnableStatus);        }        return WorkflowSubmitStatue.SUCCESS;    } catch (Exception e) {        logger.error("Start workflow error", e);        return WorkflowSubmitStatue.FAILED;    } finally {        LoggerUtils.removeWorkflowInstanceIdMDC();    }}

3.2.6 任务消费

DS

TaskPriorityQueueConsumer.run方法，该线程通过注解启动。

//通过注解启动@PostConstructpublic void init() {    this.consumerThreadPoolExecutor = (ThreadPoolExecutor) ThreadUtils.newDaemonFixedThreadExecutor("TaskUpdateQueueConsumerThread", masterConfig.getDispatchTaskNumber());    logger.info("Task priority queue consume thread staring");    super.start();    logger.info("Task priority queue consume thread started");}
@Overridepublic void run() {    int fetchTaskNum = masterConfig.getDispatchTaskNumber();    while (Stopper.isRunning()) {        try {            List<TaskPriority> failedDispatchTasks = this.batchDispatch(fetchTaskNum);
            if (CollectionUtils.isNotEmpty(failedDispatchTasks)) {                TaskMetrics.incTaskDispatchFailed(failedDispatchTasks.size());                for (TaskPriority dispatchFailedTask : failedDispatchTasks) {                    taskPriorityQueue.put(dispatchFailedTask);                }                // If the all task dispatch failed, will sleep for 1s to avoid the master cpu higher.                if (fetchTaskNum == failedDispatchTasks.size()) {                    TimeUnit.MILLISECONDS.sleep(Constants.SLEEP_TIME_MILLIS);                }            }        } catch (Exception e) {            TaskMetrics.incTaskDispatchError();            logger.error("dispatcher task error", e);        }    }}

批量调度任务

TaskPriorityQueueConsumer.batchDispatch()

/** * batch dispatch with thread pool */public List<TaskPriority> batchDispatch(int fetchTaskNum) throws TaskPriorityQueueException, InterruptedException {    List<TaskPriority> failedDispatchTasks = Collections.synchronizedList(new ArrayList<>());    CountDownLatch latch = new CountDownLatch(fetchTaskNum);
    for (int i = 0; i < fetchTaskNum; i++) {//拉取任务        TaskPriority taskPriority = taskPriorityQueue.poll(Constants.SLEEP_TIME_MILLIS, TimeUnit.MILLISECONDS);        if (Objects.isNull(taskPriority)) {            latch.countDown();            continue;        }        consumerThreadPoolExecutor.submit(() -> {//创建异步线程分派任务            try {                boolean dispatchResult = this.dispatchTask(taskPriority);                if (!dispatchResult) {                    failedDispatchTasks.add(taskPriority);                }            } finally {                // make sure the latch countDown                latch.countDown();            }        });    }    latch.await();    return failedDispatchTasks;}


3.2.7 任务分派

DS


/** * Dispatch task to worker. * * @param taskPriority taskPriority * @return dispatch result, return true if dispatch success, return false if dispatch failed. */protected boolean dispatchTask(TaskPriority taskPriority) {    TaskMetrics.incTaskDispatch();    boolean result = false;    try {        WorkflowExecuteRunnable workflowExecuteRunnable =//获取workflowexecuteRunnable对象                processInstanceExecCacheManager.getByProcessInstanceId(taskPriority.getProcessInstanceId());        if (workflowExecuteRunnable == null) {            logger.error("Cannot find the related processInstance of the task, taskPriority: {}", taskPriority);            return true;        }        Optional<TaskInstance> taskInstanceOptional =//获取任务实例                workflowExecuteRunnable.getTaskInstance(taskPriority.getTaskId());        if (!taskInstanceOptional.isPresent()) {            logger.error("Cannot find the task instance from related processInstance, taskPriority: {}",                    taskPriority);            // we return true, so that we will drop this task.            return true;        }        TaskInstance taskInstance = taskInstanceOptional.get();        TaskExecutionContext context = taskPriority.getTaskExecutionContext();        ExecutionContext executionContext =//创建执行上下文                new ExecutionContext(toCommand(context), ExecutorType.WORKER, context.getWorkerGroup(), taskInstance);
        if (isTaskNeedToCheck(taskPriority)) {            if (taskInstanceIsFinalState(taskPriority.getTaskId())) {                // when task finish, ignore this task, there is no need to dispatch anymore                return true;            }        }        //分派任务        result = dispatcher.dispatch(executionContext);
        if (result) {            logger.info("Master success dispatch task to worker, taskInstanceId: {}, worker: {}",                    taskPriority.getTaskId(),                    executionContext.getHost());            addDispatchEvent(context, executionContext);        } else {            logger.info("Master failed to dispatch task to worker, taskInstanceId: {}, worker: {}",                    taskPriority.getTaskId(),                    executionContext.getHost());        }    } catch (RuntimeException | ExecuteException e) {        logger.error("Master dispatch task to worker error, taskPriority: {}", taskPriority, e);    }    return result;}


选出一台worker节点通过netty向worker发送command，让worker运行该任务。


/** * task dispatch * * @param context context * @return result * @throws ExecuteException if error throws ExecuteException */public Boolean dispatch(final ExecutionContext context) throws ExecuteException {    // get executor manager 获取    ExecutorManager<Boolean> executorManager = this.executorManagers.get(context.getExecutorType());    if (executorManager == null) {        throw new ExecuteException("no ExecutorManager for type : " + context.getExecutorType());    }
    // host select worke节点选择器，选择worker节点    Host host = hostManager.select(context);    if (StringUtils.isEmpty(host.getAddress())) {        logger.warn("fail to execute : {} due to no suitable worker, current task needs worker group {} to execute",            context.getCommand(), context.getWorkerGroup());        return false;    }    context.setHost(host);//设置host进上下文    executorManager.beforeExecute(context);    try {        // task execute 通过netty发送消息给worker，告知worker要执行该任务        return executorManager.execute(context);    } finally {        executorManager.afterExecute(context);    }}


/** * execute logic * * @param context context * @return result * @throws ExecuteException if error throws ExecuteException */@Overridepublic Boolean execute(ExecutionContext context) throws ExecuteException {    // all nodes    Set<String> allNodes = getAllNodes(context);    // fail nodes    Set<String> failNodeSet = new HashSet<>();    // build command accord executeContext    Command command = context.getCommand();    // execute task host    Host host = context.getHost();    boolean success = false;    while (!success) {        try {            doExecute(host, command);            success = true;            context.setHost(host);            // We set the host to taskInstance to avoid when the worker down, this taskInstance may not be failovered, due to the taskInstance's host            // is not belongs to the down worker ISSUE-10842.            context.getTaskInstance().setHost(host.getAddress());        } catch (ExecuteException ex) {            logger.error(String.format("execute command : %s error", command), ex);            try {                failNodeSet.add(host.getAddress());                Set<String> tmpAllIps = new HashSet<>(allNodes);                Collection<String> remained = CollectionUtils.subtract(tmpAllIps, failNodeSet);                if (remained != null && remained.size() > 0) {                    host = Host.of(remained.iterator().next());                    logger.error("retry execute command : {} host : {}", command, host);                } else {                    throw new ExecuteException("fail after try all nodes");                }            } catch (Throwable t) {                throw new ExecuteException("fail after try all nodes");            }        }    }
    return success;}


3.3 worker执行任务


3.3.1 worker启动

DS

WorkerServer.run()

public void run() {    this.workerRpcServer.start();//启动rpc通信组件    this.workerRpcClient.start();    this.taskPluginManager.loadPlugin();
    this.workerRegistryClient.registry();    this.workerRegistryClient.setRegistryStoppable(this);    this.workerRegistryClient.handleDeadServer();    //启动workermaanager线程，消费command执行任务。    this.workerManagerThread.start();
    this.messageRetryRunner.start();
    /*     * registry hooks, which are called before the process exits     */    Runtime.getRuntime().addShutdownHook(new Thread(() -> {        if (Stopper.isRunning()) {            close("WorkerServer shutdown hook");        }    }));}


3.3.2 worker消费任务启动command

DS

worker 通过接收到 master 发送过来的消息最终会调用TaskDispatchProcessor.process（在3.3.1启动netty rpc通信组件的时候注册的handler）方法处理 command 消息。


TaskDispatchProcessor.process()


提取 command 中的 task 上下文对象封装成 TaskExecuteThread ，提交到
workerManager 中。

@Counted(value = "ds.task.execution.count", description = "task execute total count")@Timed(value = "ds.task.execution.duration", percentiles = {0.5, 0.75, 0.95, 0.99}, histogram = true)@Overridepublic void process(Channel channel, Command command) {    Preconditions.checkArgument(CommandType.TASK_DISPATCH_REQUEST == command.getType(),                                String.format("invalid command type : %s", command.getType()));
    TaskDispatchCommand taskDispatchCommand = JSONUtils.parseObject(command.getBody(), TaskDispatchCommand.class);
    if (taskDispatchCommand == null) {        logger.error("task execute request command content is null");        return;    }    final String masterAddress = taskDispatchCommand.getMessageSenderAddress();    logger.info("task execute request message: {}", taskDispatchCommand);
    TaskExecutionContext taskExecutionContext = taskDispatchCommand.getTaskExecutionContext();//获取上下文
    if (taskExecutionContext == null) {        logger.error("task execution context is null");        return;    }    try {        LoggerUtils.setWorkflowAndTaskInstanceIDMDC(taskExecutionContext.getProcessInstanceId(),                                                    taskExecutionContext.getTaskInstanceId());
        TaskMetrics.incrTaskTypeExecuteCount(taskExecutionContext.getTaskType());
        // set cache, it will be used when kill task        TaskExecutionContextCacheManager.cacheTaskExecutionContext(taskExecutionContext);
        // todo custom logger
        taskExecutionContext.setHost(workerConfig.getWorkerAddress());        taskExecutionContext.setLogPath(LogUtils.getTaskLogPath(taskExecutionContext));
        if (Constants.DRY_RUN_FLAG_NO == taskExecutionContext.getDryRun()) {//不是测试运行            boolean osUserExistFlag;            //if Using distributed is true and Currently supported systems are linux,Should not let it automatically            //create tenants,so TenantAutoCreate has no effect            if (workerConfig.isTenantDistributedUser() && SystemUtils.IS_OS_LINUX) {                //use the id command to judge in linux                osUserExistFlag = OSUtils.existTenantCodeInLinux(taskExecutionContext.getTenantCode());            } else if (CommonUtils.isSudoEnable() && workerConfig.isTenantAutoCreate()) {                // if not exists this user, then create                OSUtils.createUserIfAbsent(taskExecutionContext.getTenantCode());                osUserExistFlag = OSUtils.getUserList().contains(taskExecutionContext.getTenantCode());            } else {                osUserExistFlag = OSUtils.getUserList().contains(taskExecutionContext.getTenantCode());            }
            // check if the OS user exists            if (!osUserExistFlag) {//校验操作系统用户是否存在                logger.error("tenantCode: {} does not exist, taskInstanceId: {}",                             taskExecutionContext.getTenantCode(),                             taskExecutionContext.getTaskInstanceId());                TaskExecutionContextCacheManager.removeByTaskInstanceId(taskExecutionContext.getTaskInstanceId());                taskExecutionContext.setCurrentExecutionStatus(ExecutionStatus.FAILURE);                taskExecutionContext.setEndTime(new Date());                workerMessageSender.sendMessageWithRetry(taskExecutionContext,//发送失败消息                                                         masterAddress,                                                         CommandType.TASK_EXECUTE_RESULT);                return;            }
            // local execute path            String execLocalPath = getExecLocalPath(taskExecutionContext);            logger.info("task instance local execute path : {}", execLocalPath);            taskExecutionContext.setExecutePath(execLocalPath);
            try {                FileUtils.createWorkDirIfAbsent(execLocalPath);            } catch (Throwable ex) {//workerdir创建失败                logger.error("create execLocalPath fail, path: {}, taskInstanceId: {}",                             execLocalPath,                             taskExecutionContext.getTaskInstanceId(),                             ex);                TaskExecutionContextCacheManager.removeByTaskInstanceId(taskExecutionContext.getTaskInstanceId());                taskExecutionContext.setCurrentExecutionStatus(ExecutionStatus.FAILURE);                workerMessageSender.sendMessageWithRetry(taskExecutionContext,                                                         masterAddress,                                                         CommandType.TASK_EXECUTE_RESULT);                return;            }        }
        // delay task process        long remainTime = DateUtils.getRemainTime(taskExecutionContext.getFirstSubmitTime(),                                                  taskExecutionContext.getDelayTime() * 60L);        if (remainTime > 0) {            logger.info("delay the execution of task instance {}, delay time: {} s",                        taskExecutionContext.getTaskInstanceId(),                        remainTime);            taskExecutionContext.setCurrentExecutionStatus(ExecutionStatus.DELAY_EXECUTION);            taskExecutionContext.setStartTime(null);            workerMessageSender.sendMessage(taskExecutionContext, masterAddress, CommandType.TASK_EXECUTE_RESULT);        }
        // submit task to manager//提交任务 workerManager 中        boolean offer = workerManager.offer(new TaskExecuteThread(taskExecutionContext,                                                                  masterAddress,                                                                  workerMessageSender,                                                                  alertClientService,                                                                  taskPluginManager,                                                                  storageOperate));        if (!offer) {            logger.warn("submit task to wait queue error, queue is full, queue size is {}, taskInstanceId: {}",                        workerManager.getWaitSubmitQueueSize(),                        taskExecutionContext.getTaskInstanceId());            workerMessageSender.sendMessageWithRetry(taskExecutionContext, masterAddress, CommandType.TASK_REJECT);        }    } finally {        LoggerUtils.removeWorkflowAndTaskInstanceIdMDC();    }}


3.3.3 workerManager 消费任务

DS


public void start() {    logger.info("Worker manager thread starting");    Thread thread = new Thread(this, this.getClass().getName());    thread.setDaemon(true);    thread.start();    logger.info("Worker manager thread started");}
public void submit(TaskExecuteThread taskExecuteThread) {    taskExecuteThreadMap.put(taskExecuteThread.getTaskExecutionContext().getTaskInstanceId(), taskExecuteThread);//设置进正在运行task的map中。    ListenableFuture future = this.listeningExecutorService.submit(taskExecuteThread);//提交任务到线程池中运行任务    FutureCallback futureCallback = new FutureCallback() {        @Override        public void onSuccess(Object o) {//注册毁掉函数            taskExecuteThreadMap.remove(taskExecuteThread.getTaskExecutionContext().getTaskInstanceId());        }
        @Override        public void onFailure(Throwable throwable) {            logger.error("task execute failed, processInstanceId:{}, taskInstanceId:{}",                    taskExecuteThread.getTaskExecutionContext().getProcessInstanceId(),                    taskExecuteThread.getTaskExecutionContext().getTaskInstanceId(),                    throwable);            taskExecuteThreadMap.remove(taskExecuteThread.getTaskExecutionContext().getTaskInstanceId());//移除        }    };    Futures.addCallback(future, futureCallback, this.listeningExecutorService);}


3.3.4 任务运行

DS

@Overridepublic void run() {    try {        LoggerUtils.setWorkflowAndTaskInstanceIDMDC(taskExecutionContext.getProcessInstanceId(),                taskExecutionContext.getTaskInstanceId());        if (Constants.DRY_RUN_FLAG_YES == taskExecutionContext.getDryRun()) {//判断是不是测试运行            taskExecutionContext.setCurrentExecutionStatus(ExecutionStatus.SUCCESS);            taskExecutionContext.setStartTime(new Date());            taskExecutionContext.setEndTime(new Date());            TaskExecutionContextCacheManager.removeByTaskInstanceId(taskExecutionContext.getTaskInstanceId());            workerMessageSender.sendMessageWithRetry(taskExecutionContext,                    masterAddress,                    CommandType.TASK_EXECUTE_RESULT);            logger.info("Task dry run success");            return;        }    } finally {        LoggerUtils.removeWorkflowAndTaskInstanceIdMDC();    }    try {        LoggerUtils.setWorkflowAndTaskInstanceIDMDC(taskExecutionContext.getProcessInstanceId(),                taskExecutionContext.getTaskInstanceId());        logger.info("script path : {}", taskExecutionContext.getExecutePath());        if (taskExecutionContext.getStartTime() == null) {            taskExecutionContext.setStartTime(new Date());        }        logger.info("the task begins to execute. task instance id: {}", taskExecutionContext.getTaskInstanceId());
        // callback task execute running        taskExecutionContext.setCurrentExecutionStatus(ExecutionStatus.RUNNING_EXECUTION);        workerMessageSender.sendMessageWithRetry(taskExecutionContext,                masterAddress,                CommandType.TASK_EXECUTE_RUNNING);
        // copy hdfs/minio file to local        List<Pair<String, String>> fileDownloads = downloadCheck(taskExecutionContext.getExecutePath(),                taskExecutionContext.getResources());        if (!fileDownloads.isEmpty()) {            downloadResource(taskExecutionContext.getExecutePath(), logger, fileDownloads);        }
        taskExecutionContext.setEnvFile(CommonUtils.getSystemEnvPath());
        taskExecutionContext.setTaskAppId(String.format("%s_%s",                taskExecutionContext.getProcessInstanceId(),                taskExecutionContext.getTaskInstanceId()));
        TaskChannel taskChannel = taskPluginManager.getTaskChannelMap().get(taskExecutionContext.getTaskType());//获取task构造器        if (null == taskChannel) {            throw new ServiceException(String.format("%s Task Plugin Not Found,Please Check Config File.", taskExecutionContext.getTaskType()));        }        String taskLogName = LoggerUtils.buildTaskId(taskExecutionContext.getFirstSubmitTime(),                taskExecutionContext.getProcessDefineCode(),                taskExecutionContext.getProcessDefineVersion(),                taskExecutionContext.getProcessInstanceId(),                taskExecutionContext.getTaskInstanceId());        taskExecutionContext.setTaskLogName(taskLogName);
        // set the name of the current thread        Thread.currentThread().setName(taskLogName);
        task = taskChannel.createTask(taskExecutionContext);//创建task
        // task init        this.task.init();//初始化task
        //init varPool        this.task.getParameters().setVarPool(taskExecutionContext.getVarPool());
        // task handle        this.task.handle();//task处理的真正逻辑，每一种task对应自己的handle逻辑
        // task result process        if (this.task.getNeedAlert()) {            sendAlert(this.task.getTaskAlertInfo(), this.task.getExitStatus().getCode());        }
        taskExecutionContext.setCurrentExecutionStatus(ExecutionStatus.of(this.task.getExitStatus().getCode()));//返回任务的返回信息        taskExecutionContext.setEndTime(DateUtils.getCurrentDate());        taskExecutionContext.setProcessId(this.task.getProcessId());        taskExecutionContext.setAppIds(this.task.getAppIds());        taskExecutionContext.setVarPool(JSONUtils.toJsonString(this.task.getParameters().getVarPool()));        logger.info("task instance id : {},task final status : {}", taskExecutionContext.getTaskInstanceId(), this.task.getExitStatus());    } catch (Throwable e) {        logger.error("task scheduler failure", e);        kill();        taskExecutionContext.setCurrentExecutionStatus(ExecutionStatus.FAILURE);//返回失败        taskExecutionContext.setEndTime(DateUtils.getCurrentDate());        taskExecutionContext.setProcessId(this.task.getProcessId());        taskExecutionContext.setAppIds(this.task.getAppIds());    } finally {        TaskExecutionContextCacheManager.removeByTaskInstanceId(taskExecutionContext.getTaskInstanceId());//返回任务运行结果        workerMessageSender.sendMessageWithRetry(taskExecutionContext,                masterAddress,                CommandType.TASK_EXECUTE_RESULT);        clearTaskExecPath();        LoggerUtils.removeWorkflowAndTaskInstanceIdMDC();    }}


3.4 master接受任务反馈


3.4.1 master接受反馈消息

DS


Worker运行完任务通过netty向master汇报任务运行结果。Master在启动的时候也启动了netty，同时也注册了很多handler。一种消息类型是一个业务对应一个handler来处理业务。

Worker 反馈任务运行消息则是  Task_EXECUTE_RESULT 消息类型


MasterRPCServer.init()

@Overridepublic void run() {    try {        LoggerUtils.setWorkflowAndTaskInstanceIDMDC(taskExecutionContext.getProcessInstanceId(),                taskExecutionContext.getTaskInstanceId());        if (Constants.DRY_RUN_FLAG_YES == taskExecutionContext.getDryRun()) {//判断是不是测试运行            taskExecutionContext.setCurrentExecutionStatus(ExecutionStatus.SUCCESS);            taskExecutionContext.setStartTime(new Date());            taskExecutionContext.setEndTime(new Date());            TaskExecutionContextCacheManager.removeByTaskInstanceId(taskExecutionContext.getTaskInstanceId());            workerMessageSender.sendMessageWithRetry(taskExecutionContext,                    masterAddress,                    CommandType.TASK_EXECUTE_RESULT);            logger.info("Task dry run success");            return;        }    } finally {        LoggerUtils.removeWorkflowAndTaskInstanceIdMDC();    }    try {        LoggerUtils.setWorkflowAndTaskInstanceIDMDC(taskExecutionContext.getProcessInstanceId(),                taskExecutionContext.getTaskInstanceId());        logger.info("script path : {}", taskExecutionContext.getExecutePath());        if (taskExecutionContext.getStartTime() == null) {            taskExecutionContext.setStartTime(new Date());        }        logger.info("the task begins to execute. task instance id: {}", taskExecutionContext.getTaskInstanceId());
        // callback task execute running        taskExecutionContext.setCurrentExecutionStatus(ExecutionStatus.RUNNING_EXECUTION);        workerMessageSender.sendMessageWithRetry(taskExecutionContext,                masterAddress,                CommandType.TASK_EXECUTE_RUNNING);
        // copy hdfs/minio file to local        List<Pair<String, String>> fileDownloads = downloadCheck(taskExecutionContext.getExecutePath(),                taskExecutionContext.getResources());        if (!fileDownloads.isEmpty()) {            downloadResource(taskExecutionContext.getExecutePath(), logger, fileDownloads);        }
        taskExecutionContext.setEnvFile(CommonUtils.getSystemEnvPath());
        taskExecutionContext.setTaskAppId(String.format("%s_%s",                taskExecutionContext.getProcessInstanceId(),                taskExecutionContext.getTaskInstanceId()));
        TaskChannel taskChannel = taskPluginManager.getTaskChannelMap().get(taskExecutionContext.getTaskType());//获取task构造器        if (null == taskChannel) {            throw new ServiceException(String.format("%s Task Plugin Not Found,Please Check Config File.", taskExecutionContext.getTaskType()));        }        String taskLogName = LoggerUtils.buildTaskId(taskExecutionContext.getFirstSubmitTime(),                taskExecutionContext.getProcessDefineCode(),                taskExecutionContext.getProcessDefineVersion(),                taskExecutionContext.getProcessInstanceId(),                taskExecutionContext.getTaskInstanceId());        taskExecutionContext.setTaskLogName(taskLogName);
        // set the name of the current thread        Thread.currentThread().setName(taskLogName);
        task = taskChannel.createTask(taskExecutionContext);//创建task
        // task init        this.task.init();//初始化task
        //init varPool        this.task.getParameters().setVarPool(taskExecutionContext.getVarPool());
        // task handle        this.task.handle();//task处理的真正逻辑，每一种task对应自己的handle逻辑
        // task result process        if (this.task.getNeedAlert()) {            sendAlert(this.task.getTaskAlertInfo(), this.task.getExitStatus().getCode());        }
        taskExecutionContext.setCurrentExecutionStatus(ExecutionStatus.of(this.task.getExitStatus().getCode()));//返回任务的返回信息        taskExecutionContext.setEndTime(DateUtils.getCurrentDate());        taskExecutionContext.setProcessId(this.task.getProcessId());        taskExecutionContext.setAppIds(this.task.getAppIds());        taskExecutionContext.setVarPool(JSONUtils.toJsonString(this.task.getParameters().getVarPool()));        logger.info("task instance id : {},task final status : {}", taskExecutionContext.getTaskInstanceId(), this.task.getExitStatus());    } catch (Throwable e) {        logger.error("task scheduler failure", e);        kill();        taskExecutionContext.setCurrentExecutionStatus(ExecutionStatus.FAILURE);//返回失败        taskExecutionContext.setEndTime(DateUtils.getCurrentDate());        taskExecutionContext.setProcessId(this.task.getProcessId());        taskExecutionContext.setAppIds(this.task.getAppIds());    } finally {        TaskExecutionContextCacheManager.removeByTaskInstanceId(taskExecutionContext.getTaskInstanceId());//返回任务运行结果        workerMessageSender.sendMessageWithRetry(taskExecutionContext,                masterAddress,                CommandType.TASK_EXECUTE_RESULT);        clearTaskExecPath();        LoggerUtils.removeWorkflowAndTaskInstanceIdMDC();    }}


将消息封装成 taskResultEvent 提交给taskEventService


TaskExecuteResponseProcessor.run()

@Overridepublic void process(Channel channel, Command command) {    Preconditions.checkArgument(CommandType.TASK_EXECUTE_RESULT == command.getType(),                                String.format("invalid command type : %s", command.getType()));
    TaskExecuteResultCommand taskExecuteResultMessage = JSONUtils.parseObject(command.getBody(),                                                                              TaskExecuteResultCommand.class);    TaskEvent taskResultEvent = TaskEvent.newResultEvent(taskExecuteResultMessage,                                                         channel,                                                         taskExecuteResultMessage.getMessageSenderAddress());    try {        LoggerUtils.setWorkflowAndTaskInstanceIDMDC(taskResultEvent.getProcessInstanceId(),                                                    taskResultEvent.getTaskInstanceId());        logger.info("Received task execute result, event: {}", taskResultEvent);       //提交事件给taskEventService        taskEventService.addEvent(taskResultEvent);    } finally {        LoggerUtils.removeWorkflowAndTaskInstanceIdMDC();    }}


3.4.2 taskEventService处理taskevent

DS

TaskEventService 启动源码，启动  taskeventdispacher 和 taskeventhandler 。


Eventservice 由这两个组件组成。


TaskEventService.start() 方法

@Overridepublic void process(Channel channel, Command command) {    Preconditions.checkArgument(CommandType.TASK_EXECUTE_RESULT == command.getType(),                                String.format("invalid command type : %s", command.getType()));
    TaskExecuteResultCommand taskExecuteResultMessage = JSONUtils.parseObject(command.getBody(),                                                                              TaskExecuteResultCommand.class);    TaskEvent taskResultEvent = TaskEvent.newResultEvent(taskExecuteResultMessage,                                                         channel,                                                         taskExecuteResultMessage.getMessageSenderAddress());    try {        LoggerUtils.setWorkflowAndTaskInstanceIDMDC(taskResultEvent.getProcessInstanceId(),                                                    taskResultEvent.getTaskInstanceId());        logger.info("Received task execute result, event: {}", taskResultEvent);       //提交事件给taskEventService        taskEventService.addEvent(taskResultEvent);    } finally {        LoggerUtils.removeWorkflowAndTaskInstanceIdMDC();    }}


接3.4.1 处理

@Overridepublic void process(Channel channel, Command command) {    Preconditions.checkArgument(CommandType.TASK_EXECUTE_RESULT == command.getType(),                                String.format("invalid command type : %s", command.getType()));
    TaskExecuteResultCommand taskExecuteResultMessage = JSONUtils.parseObject(command.getBody(),                                                                              TaskExecuteResultCommand.class);    TaskEvent taskResultEvent = TaskEvent.newResultEvent(taskExecuteResultMessage,                                                         channel,                                                         taskExecuteResultMessage.getMessageSenderAddress());    try {        LoggerUtils.setWorkflowAndTaskInstanceIDMDC(taskResultEvent.getProcessInstanceId(),                                                    taskResultEvent.getTaskInstanceId());        logger.info("Received task execute result, event: {}", taskResultEvent);       //提交事件给taskEventService        taskEventService.addEvent(taskResultEvent);    } finally {        LoggerUtils.removeWorkflowAndTaskInstanceIdMDC();    }}


进入submitTaskEvent方法

public void submitTaskEvent(TaskEvent taskEvent) {    if (!processInstanceExecCacheManager.contains(taskEvent.getProcessInstanceId())) {        logger.warn("Cannot find workflowExecuteThread from cacheManager, event: {}", taskEvent);        return;    } //创建taskExecuteRunnable，并且将事件提交到taskEventRunnable,后续该对象负责处理该process的所有提交过来的TaskEvent    TaskExecuteRunnable taskExecuteRunnable = taskExecuteThreadMap.computeIfAbsent(taskEvent.getProcessInstanceId(),        (processInstanceId) -> new TaskExecuteRunnable(processInstanceId, taskEventHandlerMap));    taskExecuteRunnable.addEvent(taskEvent);}


处理 taskevent ,最终调用 taskExecuteThread.run  方法处理 taskevent。

class TaskEventHandlerThread extends BaseDaemonThread {
    protected TaskEventHandlerThread() {        super("TaskEventHandlerThread");    }
    @Override    public void run() {        logger.info("event handler thread started");        while (Stopper.isRunning()) {            try {//处理事件                taskExecuteThreadPool.eventHandler();                TimeUnit.MILLISECONDS.sleep(Constants.SLEEP_TIME_MILLIS);            } catch (InterruptedException e) {                Thread.currentThread().interrupt();                logger.warn("TaskEvent handle thread interrupted, will return this loop");                break;            } catch (Exception e) {                logger.error("event handler thread error", e);            }        }    }}

//进入eventHandler方法public void eventHandler() {    for (TaskExecuteRunnable taskExecuteThread : taskExecuteThreadMap.values()) {        executeEvent(taskExecuteThread);    }}

//执行事件public void executeEvent(TaskExecuteRunnable taskExecuteThread) {    if (taskExecuteThread.isEmpty()) {        return;    }    if (multiThreadFilterMap.containsKey(taskExecuteThread.getKey())) {        return;}//获取对应task的事件处理线程    multiThreadFilterMap.put(taskExecuteThread.getKey(), taskExecuteThread);    ListenableFuture future = this.submitListenable(taskExecuteThread::run);    future.addCallback(new ListenableFutureCallback() {//注册毁掉        @Override        public void onFailure(Throwable ex) {            Integer processInstanceId = taskExecuteThread.getProcessInstanceId();            logger.error("[WorkflowInstance-{}] persist event failed", processInstanceId, ex);            if (!processInstanceExecCacheManager.contains(processInstanceId)) {                taskExecuteThreadMap.remove(processInstanceId);                logger.info("[WorkflowInstance-{}] Cannot find processInstance from cacheManager, remove process instance from threadMap",                    processInstanceId);            }            multiThreadFilterMap.remove(taskExecuteThread.getKey());        }
        @Override        public void onSuccess(Object result) {            Integer processInstanceId = taskExecuteThread.getProcessInstanceId();            logger.info("[WorkflowInstance-{}] persist events succeeded", processInstanceId);            if (!processInstanceExecCacheManager.contains(processInstanceId)) {                taskExecuteThreadMap.remove(processInstanceId);                logger.info("[WorkflowInstance-{}] Cannot find processInstance from cacheManager, remove process instance from threadMap",                    processInstanceId);            }            multiThreadFilterMap.remove(taskExecuteThread.getKey());        }    });}


//最终提交异步任务TaskExecuteRunnable调用run方法
TaskExecuteRunnable.run()
public void run() {    while (!this.events.isEmpty()) {        // we handle the task event belongs to one task serial, so if the event comes in wrong order,        TaskEvent event = this.events.peek();        try {            LoggerUtils.setWorkflowAndTaskInstanceIDMDC(event.getProcessInstanceId(), event.getTaskInstanceId());            logger.info("Handle task event begin: {}", event);//根据事件类型获取handler，处理事件            taskEventHandlerMap.get(event.getEvent()).handleTaskEvent(event);            events.remove(event);            logger.info("Handle task event finished: {}", event);        } catch (TaskEventHandleException taskEventHandleException) {            // we don't need to resubmit this event, since the worker will resubmit this event            logger.error("Handle task event failed, this event will be retry later, event: {}", event,                taskEventHandleException);        } catch (TaskEventHandleError taskEventHandleError) {            logger.error("Handle task event error, this event will be removed, event: {}", event,                taskEventHandleError);            events.remove(event);        } catch (Exception unknownException) {            logger.error("Handle task event error, get a unknown exception, this event will be removed, event: {}",                event, unknownException);            events.remove(event);        } finally {            LoggerUtils.removeWorkflowAndTaskInstanceIdMDC();        }    }}


3.4.3 TaskResultEventHandler 处理 taskevent

DS

TaskResultEventHandler.handlerTaskEvent()

class TaskEventHandlerThread extends BaseDaemonThread {
    protected TaskEventHandlerThread() {        super("TaskEventHandlerThread");    }
    @Override    public void run() {        logger.info("event handler thread started");        while (Stopper.isRunning()) {            try {//处理事件                taskExecuteThreadPool.eventHandler();                TimeUnit.MILLISECONDS.sleep(Constants.SLEEP_TIME_MILLIS);            } catch (InterruptedException e) {                Thread.currentThread().interrupt();                logger.warn("TaskEvent handle thread interrupted, will return this loop");                break;            } catch (Exception e) {                logger.error("event handler thread error", e);            }        }    }}

//进入eventHandler方法public void eventHandler() {    for (TaskExecuteRunnable taskExecuteThread : taskExecuteThreadMap.values()) {        executeEvent(taskExecuteThread);    }}

//执行事件public void executeEvent(TaskExecuteRunnable taskExecuteThread) {    if (taskExecuteThread.isEmpty()) {        return;    }    if (multiThreadFilterMap.containsKey(taskExecuteThread.getKey())) {        return;}//获取对应task的事件处理线程    multiThreadFilterMap.put(taskExecuteThread.getKey(), taskExecuteThread);    ListenableFuture future = this.submitListenable(taskExecuteThread::run);    future.addCallback(new ListenableFutureCallback() {//注册毁掉        @Override        public void onFailure(Throwable ex) {            Integer processInstanceId = taskExecuteThread.getProcessInstanceId();            logger.error("[WorkflowInstance-{}] persist event failed", processInstanceId, ex);            if (!processInstanceExecCacheManager.contains(processInstanceId)) {                taskExecuteThreadMap.remove(processInstanceId);                logger.info("[WorkflowInstance-{}] Cannot find processInstance from cacheManager, remove process instance from threadMap",                    processInstanceId);            }            multiThreadFilterMap.remove(taskExecuteThread.getKey());        }
        @Override        public void onSuccess(Object result) {            Integer processInstanceId = taskExecuteThread.getProcessInstanceId();            logger.info("[WorkflowInstance-{}] persist events succeeded", processInstanceId);            if (!processInstanceExecCacheManager.contains(processInstanceId)) {                taskExecuteThreadMap.remove(processInstanceId);                logger.info("[WorkflowInstance-{}] Cannot find processInstance from cacheManager, remove process instance from threadMap",                    processInstanceId);            }            multiThreadFilterMap.remove(taskExecuteThread.getKey());        }    });}


//最终提交异步任务TaskExecuteRunnable调用run方法
TaskExecuteRunnable.run()
public void run() {    while (!this.events.isEmpty()) {        // we handle the task event belongs to one task serial, so if the event comes in wrong order,        TaskEvent event = this.events.peek();        try {            LoggerUtils.setWorkflowAndTaskInstanceIDMDC(event.getProcessInstanceId(), event.getTaskInstanceId());            logger.info("Handle task event begin: {}", event);//根据事件类型获取handler，处理事件            taskEventHandlerMap.get(event.getEvent()).handleTaskEvent(event);            events.remove(event);            logger.info("Handle task event finished: {}", event);        } catch (TaskEventHandleException taskEventHandleException) {            // we don't need to resubmit this event, since the worker will resubmit this event            logger.error("Handle task event failed, this event will be retry later, event: {}", event,                taskEventHandleException);        } catch (TaskEventHandleError taskEventHandleError) {            logger.error("Handle task event error, this event will be removed, event: {}", event,                taskEventHandleError);            events.remove(event);        } catch (Exception unknownException) {            logger.error("Handle task event error, get a unknown exception, this event will be removed, event: {}",                event, unknownException);            events.remove(event);        } finally {            LoggerUtils.removeWorkflowAndTaskInstanceIdMDC();        }    }}



3.5 master闭环提交下游任务


3.5.1 EventExecuteService 处理 stateEvent

DS

EventExecuteService.run()

该service线程由3.2.1启动

@Overridepublic void run() {    while (Stopper.isRunning()) {        try {          //处理事件            eventHandler();            TimeUnit.MILLISECONDS.sleep(Constants.SLEEP_TIME_MILLIS_SHORT);        } catch (InterruptedException interruptedException) {            logger.warn("Master event service interrupted, will exit this loop", interruptedException);            Thread.currentThread().interrupt();            break;        } catch (Exception e) {            logger.error("Master event execute service error", e);        }    }}
进入eventHnnder方法private void eventHandler() {    for (WorkflowExecuteRunnable workflowExecuteThread : this.processInstanceExecCacheManager.getAll()) {        try {            LoggerUtils.setWorkflowInstanceIdMDC(workflowExecuteThread.getProcessInstance().getId());            workflowExecuteThreadPool.executeEvent(workflowExecuteThread);        } finally {            LoggerUtils.removeWorkflowInstanceIdMDC();        }    }}

最终调用 workflowExecuteThread 的 handlerEvents 处理事件。

/** * Handle the events belong to the given workflow. */public void executeEvent(final WorkflowExecuteRunnable workflowExecuteThread) {    if (!workflowExecuteThread.isStart() || workflowExecuteThread.eventSize() == 0) {        return;    }    if (multiThreadFilterMap.containsKey(workflowExecuteThread.getKey())) {        logger.warn("The workflow has been executed by another thread");        return;    }    multiThreadFilterMap.put(workflowExecuteThread.getKey(), workflowExecuteThread);    int processInstanceId = workflowExecuteThread.getProcessInstance().getId();    ListenableFuture<?> future = this.submitListenable(workflowExecuteThread::handleEvents);//    future.addCallback(new ListenableFutureCallback() {        @Override        public void onFailure(Throwable ex) {            LoggerUtils.setWorkflowInstanceIdMDC(processInstanceId);            try {                logger.error("Workflow instance events handle failed", ex);                multiThreadFilterMap.remove(workflowExecuteThread.getKey());            } finally {                LoggerUtils.removeWorkflowInstanceIdMDC();            }        }
        @Override        public void onSuccess(Object result) {            try {                LoggerUtils.setWorkflowInstanceIdMDC(workflowExecuteThread.getProcessInstance().getId());                if (workflowExecuteThread.workFlowFinish()) {                    stateWheelExecuteThread.removeProcess4TimeoutCheck(workflowExecuteThread.getProcessInstance().getId());                    processInstanceExecCacheManager.removeByProcessInstanceId(processInstanceId);                    notifyProcessChanged(workflowExecuteThread.getProcessInstance());                    logger.info("Workflow instance is finished.");                }            } catch (Exception e) {                logger.error("Workflow instance is finished, but notify changed error", e);            } finally {                // make sure the process has been removed from multiThreadFilterMap                multiThreadFilterMap.remove(workflowExecuteThread.getKey());                LoggerUtils.removeWorkflowInstanceIdMDC();            }        }    });}

3.5.2 workflowExecuteThread 处理 stateEvent 事件

DS

WorkflowExecuteRunnable.handlerEvents()

/** * handle event */public void handleEvents() {    if (!isStart()) {        logger.info(                "The workflow instance is not started, will not handle its state event, current state event size: {}",                stateEvents);        return;    }    StateEvent stateEvent = null;    while (!this.stateEvents.isEmpty()) {        try {            stateEvent = this.stateEvents.peek();            LoggerUtils.setWorkflowAndTaskInstanceIDMDC(stateEvent.getProcessInstanceId(),                    stateEvent.getTaskInstanceId());            // if state handle success then will remove this state, otherwise will retry this state next time.            // The state should always handle success except database error.            checkProcessInstance(stateEvent);
            StateEventHandler stateEventHandler =                    StateEventHandlerManager.getStateEventHandler(stateEvent.getType())                            .orElseThrow(() -> new StateEventHandleError("Cannot find handler for the given state event"));            logger.info("Begin to handle state event, {}", stateEvent);            if (stateEventHandler.handleStateEvent(this, stateEvent)) {//调用stateEventHandler处理事件                this.stateEvents.remove(stateEvent);            }        } catch (StateEventHandleError stateEventHandleError) {            logger.error("State event handle error, will remove this event: {}", stateEvent, stateEventHandleError);            this.stateEvents.remove(stateEvent);            ThreadUtils.sleep(Constants.SLEEP_TIME_MILLIS);        } catch (StateEventHandleException stateEventHandleException) {            logger.error("State event handle error, will retry this event: {}",                    stateEvent,                    stateEventHandleException);            ThreadUtils.sleep(Constants.SLEEP_TIME_MILLIS);        } catch (Exception e) {            // we catch the exception here, since if the state event handle failed, the state event will still keep in the stateEvents queue.            logger.error("State event handle error, get a unknown exception, will retry this event: {}",                    stateEvent,                    e);            ThreadUtils.sleep(Constants.SLEEP_TIME_MILLIS);        } finally {            LoggerUtils.removeWorkflowAndTaskInstanceIdMDC();        }
    }}


3.5.3 TaskStateEventHandler处理stateEvent事件

DS


判断是否是任务完成事件如果是完成事件，调用 workflowExecuteThread 的 taskFinished 方法，提交下游任务。


TaskStateEventHandler.handlerStateEvent()


@Overridepublic boolean handleStateEvent(WorkflowExecuteRunnable workflowExecuteRunnable, StateEvent stateEvent)    throws StateEventHandleException, StateEventHandleError {    measureTaskState(stateEvent);    workflowExecuteRunnable.checkTaskInstanceByStateEvent(stateEvent);
    Optional<TaskInstance> taskInstanceOptional =        workflowExecuteRunnable.getTaskInstance(stateEvent.getTaskInstanceId());
    TaskInstance task = taskInstanceOptional.orElseThrow(() -> new StateEventHandleError(        "Cannot find task instance from taskMap by task instance id: " + stateEvent.getTaskInstanceId()));
    if (task.getState() == null) {        throw new StateEventHandleError("Task state event handle error due to task state is null");    }
    Map<Long, Integer> completeTaskMap = workflowExecuteRunnable.getCompleteTaskMap();
    if (task.getState().typeIsFinished()) {        if (completeTaskMap.containsKey(task.getTaskCode())            && completeTaskMap.get(task.getTaskCode()) == task.getId()) {            logger.warn("The task instance is already complete, stateEvent: {}", stateEvent);            return true;        }//调用workflowexecuteRunnabletaskFinished方法。        workflowExecuteRunnable.taskFinished(task);        if (task.getTaskGroupId() > 0) {            workflowExecuteRunnable.releaseTaskGroup(task);        }        return true;    }    Map<Long, ITaskProcessor> activeTaskProcessMap = workflowExecuteRunnable.getActiveTaskProcessMap();    if (activeTaskProcessMap.containsKey(task.getTaskCode())) {        ITaskProcessor iTaskProcessor = activeTaskProcessMap.get(task.getTaskCode());        iTaskProcessor.action(TaskAction.RUN);
        if (iTaskProcessor.taskInstance().getState().typeIsFinished()) {            if (iTaskProcessor.taskInstance().getState() != task.getState()) {                task.setState(iTaskProcessor.taskInstance().getState());            }            workflowExecuteRunnable.taskFinished(task);        }        return true;    }    throw new StateEventHandleException(        "Task state event handle error, due to the task is not in activeTaskProcessorMaps");}


3.5.4 wokerflowExecuteThread调度下游任务

DS

WorkflowExecuteRunnable.taskFinished方法
public void taskFinished(TaskInstance taskInstance) throws StateEventHandleException {    logger.info("TaskInstance finished task code:{} state:{}", taskInstance.getTaskCode(), taskInstance.getState());    try {
        activeTaskProcessorMaps.remove(taskInstance.getTaskCode());        stateWheelExecuteThread.removeTask4TimeoutCheck(processInstance, taskInstance);        stateWheelExecuteThread.removeTask4RetryCheck(processInstance, taskInstance);        stateWheelExecuteThread.removeTask4StateCheck(processInstance, taskInstance);
        if (taskInstance.getState().typeIsSuccess()) {            completeTaskMap.put(taskInstance.getTaskCode(), taskInstance.getId());            // todo: merge the last taskInstance            processInstance.setVarPool(taskInstance.getVarPool());            processService.saveProcessInstance(processInstance);            if (!processInstance.isBlocked()) {                submitPostNode(Long.toString(taskInstance.getTaskCode()));            }        } else if (taskInstance.taskCanRetry() && processInstance.getState() != ExecutionStatus.READY_STOP) {            // retry task            logger.info("Retry taskInstance taskInstance state: {}", taskInstance.getState());            retryTaskInstance(taskInstance);        } else if (taskInstance.getState().typeIsFailure()) {            completeTaskMap.put(taskInstance.getTaskCode(), taskInstance.getId());            // There are child nodes and the failure policy is: CONTINUE            if (processInstance.getFailureStrategy() == FailureStrategy.CONTINUE && DagHelper.haveAllNodeAfterNode(                    Long.toString(taskInstance.getTaskCode()),                    dag)) {                submitPostNode(Long.toString(taskInstance.getTaskCode()));            } else {                errorTaskMap.put(taskInstance.getTaskCode(), taskInstance.getId());                if (processInstance.getFailureStrategy() == FailureStrategy.END) {                    killAllTasks();                }            }        } else if (taskInstance.getState().typeIsFinished()) {            // todo: when the task instance type is pause, then it should not in completeTaskMap            completeTaskMap.put(taskInstance.getTaskCode(), taskInstance.getId());        }        logger.info("TaskInstance finished will try to update the workflow instance state, task code:{} state:{}",                taskInstance.getTaskCode(),                taskInstance.getState());        this.updateProcessInstanceState();    } catch (Exception ex) {        logger.error("Task finish failed, get a exception, will remove this taskInstance from completeTaskMap", ex);        // remove the task from complete map, so that we can finish in the next time.        completeTaskMap.remove(taskInstance.getTaskCode());        throw ex;    }}


04

总结


4.1 各个组件的使用

DS

  • ApiServer负责前端的接口请求。

  • Master负责工作流的任务调度，根据策略选择一台合适的worker执行任务，并更新任务状态到db。

  • Worker负责接受到master的任务，然后运行，并报告运行结果给master

4.2 线程作用

DS

  • MasterSchedulerBootstrap：command扫描线程，负责扫描apiserver写入的command信息，并创建processInstants入库。

  • WorkflowEventLooper：WorkflowEvent处理线程，负责处理MasterSchedulerBootstrap写入的WorkflowEvent

  • WorkflowExecuteRunnable：负责工作流的启动逻辑，构建dag有向无环图，初始化调度配置，提交任务到任务队列中。

  • TaskPriorityQueueConsumer：负责消费优先级队列的任务，异步通过dispacher选择wokrer，向worker发送启动任务的command。

  • TaskDispatchProcessor：worker节点负责处理 master的command信息。

  • WorkerManagerThread:worker节点负责管理当前正则运行的task信息

  • TaskExecuteThread：task的执行线程，负责执行task的逻辑，并返回执行结果给master。

  • TaskExecuteResponseProcessor:负责处理worker返回的任务结果，并包装成taskEvent

  • TaskEventService：负责处理taskEvent TaskResultEventHandler：被taskEventService调用，负责task结果处理。

  • EventExecuteService:负责处理工作流产生的事件。

  • TaskStateEventHandler：负责处理workflowExecute的event，event类型为TaskStateEvent 并且如果是taskstate是运行完成信息，还要提交调度下游任务。

本文是个人阅读 DolphinScheduler 源码的一些见解，欢迎大家跟我交流~如有错误，请批评指正！


参与贡献


随着国内开源的迅猛崛起，Apache DolphinScheduler 社区迎来蓬勃发展，为了做更好用、易用的调度，真诚欢迎热爱开源的伙伴加入到开源社区中来，为中国开源崛起献上一份自己的力量，让本土开源走向全球。


参与 DolphinScheduler 社区有非常多的参与贡献的方式，包括：


贡献第一个PR(文档、代码) 我们也希望是简单的，第一个PR用于熟悉提交的流程和社区协作以及感受社区的友好度。


社区汇总了以下适合新手的问题列表：https://github.com/apache/dolphinscheduler/issues/5689


非新手问题列表：https://github.com/apache/dolphinscheduler/issues?q=is%3Aopen+is%3Aissue+label%3A%22volunteer+wanted%22


如何参与贡献链接：https://dolphinscheduler.apache.org/zh-cn/community/development/contribute.html


来吧，DolphinScheduler开源社区需要您的参与，为中国开源崛起添砖加瓦吧，哪怕只是小小的一块瓦，汇聚起来的力量也是巨大的。


参与开源可以近距离与各路高手切磋，迅速提升自己的技能，如果您想参与贡献，我们有个贡献者种子孵化群，可以添加社区小助手微信(Leonard-ds) ，手把手教会您( 贡献者不分水平高低，有问必答，关键是有一颗愿意贡献的心 )。

添加社区小助手微信(Leonard-ds)



添加小助手微信时请说明想参与贡献。


来吧，开源社区非常期待您的参与。
< 🐬🐬 >
更多精彩推荐

☞DolphinScheduler 登陆 AWS AMI 应用市场！

☞DolphinScheduler 机器学习工作流预测今年 FIFA 世界杯冠军大概率是荷兰！

☞手把手教你上手Apache DolphinScheduler机器学习工作流

☞DolphinScheduler 快速构建 Hugging Face 文本分类工作流，基于工作流的机器学习训练部署太强了！

☞Apache DolphinScheduler 获评「2022 年度优秀开源技术团队」

☞【Meetup讲师】您有一张社区认证讲师证书未领取，点击领取！

☞最佳实践 | 如何基于GitHub Actions创建 DolphinScheduler Python API的CI/CD？



我知道你在看哟

【声明】内容源于网络
0
0
海豚调度
Apache DolphinScheduler是一个分布式、去中心化、易扩展的可视化DAG工作流任务调度系统，其致力于解决数据处理流程中错综复杂的依赖关系，使调度系统在数据处理流程中开箱即用。
内容 667
粉丝 0
海豚调度 Apache DolphinScheduler是一个分布式、去中心化、易扩展的可视化DAG工作流任务调度系统，其致力于解决数据处理流程中错综复杂的依赖关系，使调度系统在数据处理流程中开箱即用。
总阅读167
粉丝0
内容667
