💡Apache DolphinScheduler 在使用过程中，肯定会有任务出现失败的情况，那么问题来了：调度任务的告警是需要人为配置的，在生产环境中，面对海量的任务，如何找到重要的任务，并且在失败的时候，第一时间告警呢？
先思考一下...
先看思路
本文提供一个思路，接着往下看吧。
不卖关子了。
本质是路径查找，本文这里使用了图数据库，或者你也可以自己使用Java实现路径查找。

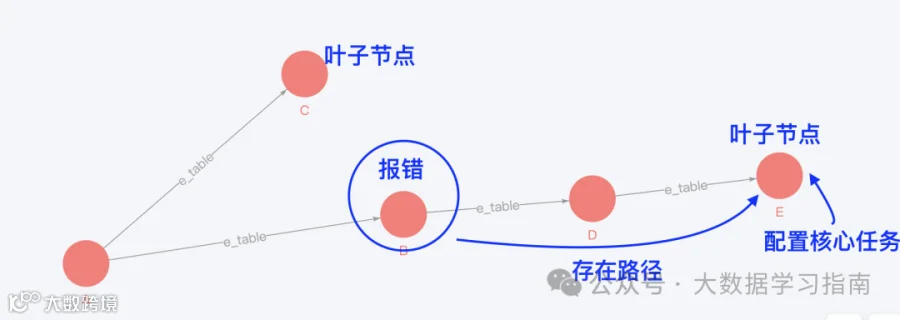

下面是需要实现的目标，看一组任务的关系，如下图所示，存在 A/B/C/D/E 五个任务，E 任务被配置为核心任务，当 B 任务报错时，检测到 B 和 E 之前存在路径，则需要电话告警。
所以在配置核心链路告警的时候，我们只需要配置叶子节点，在实际生产中，一般是应用层的任务，比如报表、标签、接口数据等任务。

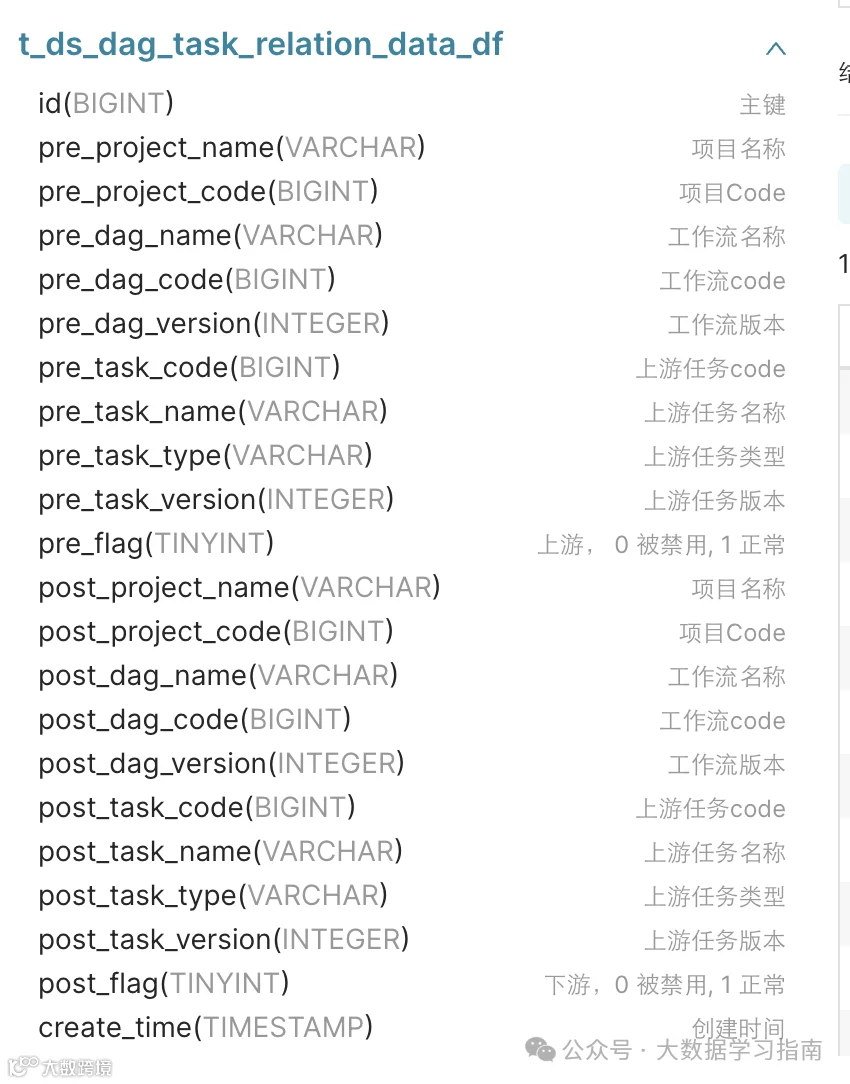

清洗依赖数据

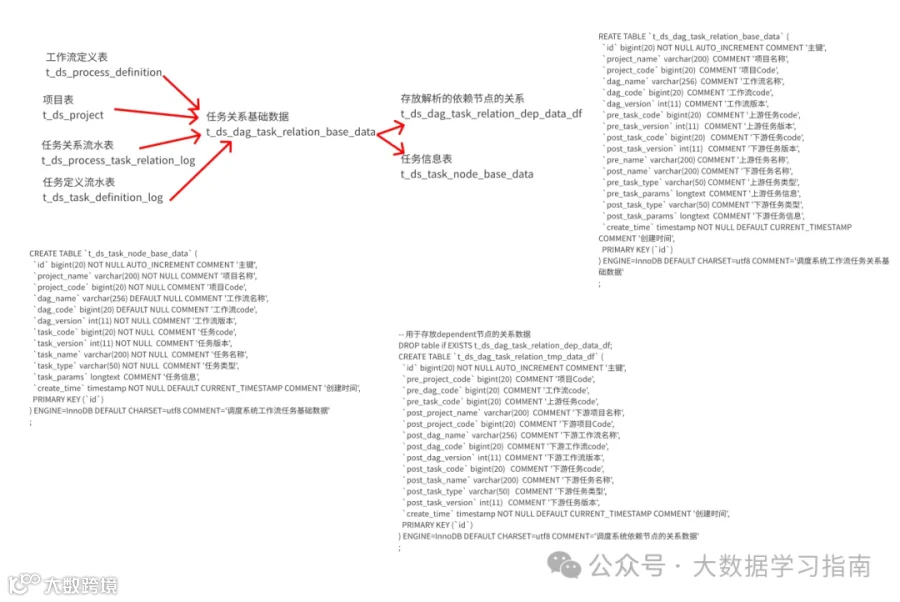

核心逻辑就是把所有工作流内部、跨工作流以及跨项目的依赖全部清洗出来，生成一张关系表。具体清洗逻辑，可以看：海豚调度监控：新增依赖缺失巡检，上游改动再也不用担心了！
关系导入图数据库
-
可以减轻调度系统Mysql的压力，把负责的路径计算放在图数据库里面。 -
探索更多调度任务数据治理和运维的可能性，比如任务权重，影响分析等。(不久的将来我也会分享这一块的实践。)
查询最短链路① 用到的语法是：
FIND SHORTEST PATH需要注意的是，注意查询步长，UPTO <N> {STEP|STEPS}：路径的最大跳数。默认值为5。② 3.3.0 开始，子图支持了边的条件限制了，查询的时候只拿最新的一批关系。
创建图空间
CREATE SPACE s_schedule_job (partition_num = 225, replica_factor = 3, vid_type = FIXED_STRING(180)) COMMENT = "大数据平台调度系统任务的血缘关系";
创建边和点
## 任务标签
DROP tag if exists t_task;
CREATE tag if not exists t_task( id string NULL COMMENT "project_code,dag_code,task_code,拼接,", project_name string NULL COMMENT "project_name", project_code string NULL COMMENT "project_code", dag_name string NULL COMMENT "dag_name", dag_code string NULL COMMENT "dag_code", dag_version string NULL COMMENT "dag_version", task_code string NULL COMMENT "task_code", task_version string NULL COMMENT "task_version", task_name string NULL COMMENT "task_name", task_type string NULL COMMENT "task_type", create_time string NULL COMMENT "时间戳") comment='调度任务节点';
## 调度任务关系
drop edge if exists e_task;
create edge if not exists e_task( pre_project_name string NULL COMMENT "project_name", pre_project_code string NULL COMMENT "project_code", pre_dag_name string NULL COMMENT "dag_name", pre_dag_code string NULL COMMENT "dag_code", pre_dag_version string NULL COMMENT "dag_version", pre_task_code string NULL COMMENT "task_code", pre_task_version string NULL COMMENT "task_version", pre_task_name string NULL COMMENT "task_name", pre_task_type string NULL COMMENT "task_type", post_project_name string NULL COMMENT "project_name", post_project_code string NULL COMMENT "project_code", post_dag_name string NULL COMMENT "dag_name", post_dag_code string NULL COMMENT "dag_code", post_dag_version string NULL COMMENT "dag_version", post_task_code string NULL COMMENT "task_code", post_task_version string NULL COMMENT "task_version", post_task_name string NULL COMMENT "task_name", post_task_type string NULL COMMENT "task_type", create_time string NULL COMMENT "时间戳") comment='调度任务关系';
导入数据
{
spark: {
app: {
name: Nebula_Exchange_t_task
}
driver: {
cores: 2
maxResultSize: 5G
}
}
nebula: {
address:{
graph:["10.1.x.xx:9669","10.1.x.xx:9669","10.1.x.xx:9669","10.1.x.xx3:9669","10.1.x.xx:9669"]
meta:["10.1.x.xx:9559","10.1.x.xx:9559","10.1.x.xx:9559"]
}
user: root
pswd: "nebula密码"
space: s_schedule_job
connection {
timeout: 60000
retry: 3
}
execution {
retry: 3
}
error: {
max: 32
output: /tmp/errors/t_task
}
rate: {
limit: 1024
timeout: 10000
}
}
tags: [
{
name: t_task
type: {
source: mysql
sink: client
}
host:"调度系统MYSQL数据库IP"
port:3307
database:"调度系统MYSQL数据库"
table:"t_ds_task_node_base_data"
user:"调度系统MYSQL用户"
password:"调度系统MYSQL用户密码"
sentence:"SELECT concat(project_code,'_',dag_code,'_',task_code) as id,project_name,project_code,dag_name,dag_code,dag_version,task_code,task_version,task_name,task_type,create_time FROM t_ds_task_node_base_data"
fields: [project_name,project_code,dag_name,dag_code,dag_version,task_code,task_version,task_name,task_type,create_time]
nebula.fields: [project_name,project_code,dag_name,dag_code,dag_version,task_code,task_version,task_name,task_type,create_time]
vertex:{
field:id
}
batch: 256
partition: 32
}
]
}
{
spark: {
app: {
name: Nebula_Exchange_e_task
}
driver: {
cores: 2
maxResultSize: 5G
}
}
nebula: {
address:{
graph:["10.1.x.xx:9669","10.1.x.xx:9669","10.1.x.xx:9669","10.1.x.xx3:9669","10.1.x.xx:9669"]
meta:["10.1.x.xx:9559","10.1.x.xx:9559","10.1.x.xx:9559"]
}
user: root
pswd: "aD@VX2018#"
space: s_schedule_job
connection {
timeout: 60000
retry: 3
}
execution {
retry: 3
}
error: {
max: 32
output: /tmp/errors/e_task
}
rate: {
limit: 1024
timeout: 10000
}
}
edges: [
{
name: e_task
type: {
source: mysql
sink: client
}
host:"调度系统MYSQL数据库IP"
port:3307
database:"调度系统MYSQL数据库"
table:"t_ds_task_node_base_data"
user:"调度系统MYSQL用户"
password:"调度系统MYSQL用户密码"
sentence:"SELECT concat(pre_project_code,'_',pre_dag_code,'_',pre_task_code) as from_id,concat(post_project_code,'_',post_dag_code,'_',post_task_code) as to_id,pre_project_name,pre_project_code,pre_dag_name,pre_dag_code,pre_dag_version,pre_task_code,pre_task_name,pre_task_type,pre_task_version,post_project_name,post_project_code,post_dag_name,post_dag_code,post_dag_version,post_task_code,post_task_name,post_task_type,post_task_version,create_time FROM t_ds_dag_task_relation_data_df"
fields: [pre_project_name,pre_project_code,pre_dag_name,pre_dag_code,pre_dag_version,pre_task_code,pre_task_name,pre_task_type,pre_task_version,post_project_name,post_project_code,post_dag_name,post_dag_code,post_dag_version,post_task_code,post_task_name,post_task_type,post_task_version,create_time]
nebula.fields: [pre_project_name,pre_project_code,pre_dag_name,pre_dag_code,pre_dag_version,pre_task_code,pre_task_name,pre_task_type,pre_task_version,post_project_name,post_project_code,post_dag_name,post_dag_code,post_dag_version,post_task_code,post_task_name,post_task_type,post_task_version,create_time]
source: {
field: from_id
}
target: {
field: to_id
}
batch: 256
partition: 225
}
]
}
#!/bin/bash
# 作业参数
basepath='/opt/vcredit-graph-db/s_schedule_job/exchange'
tmpdir='/tmp/nebula/s_schedule_job'
mkdir -p $tmpdir
sourcefile=${basepath}/${jobname}.conf
targetfile=${tmpdir}/${jobname}_${vardate}.conf
cat ${sourcefile} > ${targetfile}
sed -i "s/vardate/${vardate}/g" ${targetfile}
sed -i "s/varhivetable/${varhivetable}/g" ${targetfile}
# 运行环境
export JAVA_HOME=/usr/java/jdk1.8.0_181-cloudera
spark_submit="/opt/spark-2.4.8-bin-hadoop2.7/bin/spark-submit"
# 开始运行
${spark_submit} \
--principal hive@VCREDIT.COM \
--keytab /etc/security/hive.keytab \
--master "local[*]" \
--class com.vesoft.nebula.exchange.Exchange /opt/nebula/nebula-exchange_spark_2.4-3.0.0.jar -c ${targetfile} -h
Java 服务
/**
* 判断这个任务是否会影响核心任务
* @param projectName
* @param dagName
* @param taskName
* @return
*/
@ApiOperation(value = "dolphinTaskIsOnCall", notes = "判断这个任务是否会影响核心任务,是 1 ，否 0")
@ApiImplicitParams({
@ApiImplicitParam(name = "projectName", value = "T-1", required = false, dataType = "String", example = "BigData"),
@ApiImplicitParam(name = "dagName", value = "T-1", required = false, dataType = "String", example = "公共和自定义域(pub)_daily"),
@ApiImplicitParam(name = "taskName", value = "T-1", required = false, dataType = "String", example = "dwd_pub_screen_zxd_cust_df")
})
@GetMapping("/dolphinTaskIsOnCall")
@ResponseBody
public DataResult dolphinTaskIsOnCall(
@RequestParam(value = "projectName", required = true) String projectName,
@RequestParam(value = "dagName", required = true) String dagName,
@RequestParam(value = "taskName", required = true) String taskName) throws GraphDatabaseException, UnsupportedEncodingException {
HashMap<String,Object> res = dolphinService.dolphinTaskIsOnCall(projectName, dagName, taskName);
return DataResult.ok(res);
}
@Override
public HashMap<String, Object> dolphinTaskIsOnCall(String projectName, String dagName, String taskName) throws GraphDatabaseException, UnsupportedEncodingException {
HashMap<String,Object> resMap = new HashMap<>();
// 查询该任务 codes
HashMap<String,Object> task = dolphinTaskInstanceMapper.getTaskCode(projectName,dagName,taskName);
if (task == null){
resMap.put("res","任务不存在！");
return resMap;
}
String fromCodes = task.get("project_code") + "_" + task.get("dag_code") + "_" + task.get("task_code");
// 查询核心任务 codes
List<HashMap<String,Object>> tasks = dolphinTaskInstanceMapper.getOnCallTasks();
// 查询最短链路
for (HashMap<String,Object> t : tasks){
String toCodes = t.get("project_code") + "_" + t.get("dag_code") + "_" + t.get("task_code");
// 查询Nebula
String NgSql = "FIND SHORTEST PATH with PROP FROM \"" + fromCodes + "\" TO \"" + toCodes + "\" OVER * WHERE e_task.create_time > '" + DateUtils.dayToString(DateUtils.getSomeDay(new Date(), -1)) + "' UPTO 100 STEPS YIELD path AS p;";
int res = nebulaService.isOnCallTask("s_schedule_job",NgSql);
if (res > 0){
resMap.put("res",res);
return resMap;
}
}
resMap.put("res",0);
return resMap;
}
{"data":{"res":1},"code":0,"msg":"success"}
② 不影响核心任务，不需要打电话
{"data":{"res":0},"code":0,"msg":"success"}
③ 任务不存在，忽略
{"data":{"res":"任务不存在！"},"code":0,"msg":"success"}
④ code 不等于 0 ,接口异常，忽略。

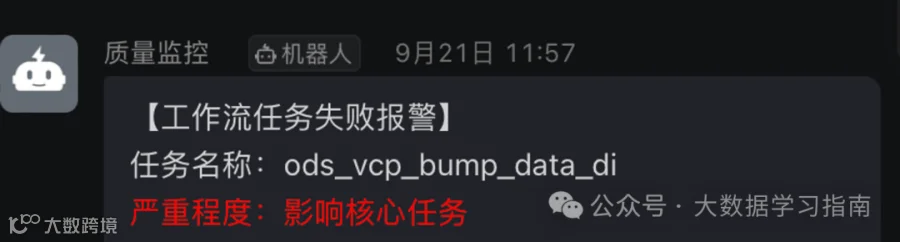

电话告警，直接给对应负责人打电话。
