How to Choose the Right Powertrain for Your Tricycle?

A Complete Guide to 2-Speed Automatic Electric Drive Axle Parameters

Many drivers face headaches from the common flaws of traditional 2-speed rear axles when using electric tricycles or micro trucks for deliveries and daily hauling! This is especially true for widely used manual-shift 2-speed rear axles, which have obvious drawbacks:

• Gear shifts must be done while stopped, leaving drivers unable to change gears while moving—limiting performance on uphill climbs and flat-road acceleration.

• Manual shifting is cumbersome, difficult for new users to master, and time-consuming with frequent shifts, drastically reducing delivery efficiency.

• Poor gear matching leads to insufficient power and overheating motors under heavy loads, while high power consumption and low speeds occur when running empty.

• Ordinary rear axles and motor controllers have high failure rates and poor durability in harsh conditions like construction sites or rainy, wading environments.

To solve these industry pain points, Fengchuan Powertrain has fully upgraded its complete automatic 2-speed electric drive axle system! Say goodbye to the hassle of traditional manual shifting. With intelligent automatic shift logic, it perfectly adapts to all delivery road conditions. Today, we break down how to precisely match motor power and axle gear ratios based on the core advantages of automatic shifting, so you can choose a cost-effective, durable, and worry-free powertrain tailored to your working conditions!

1. Complete Intelligent Powertrain Assembly: Built-In Automatic Shifting Advantage

This 2-speed electric drive axle is not just a single rear axle component—it’s a fully automatic intelligent powertrain solution custom-built for cargo tricycles and micro trucks. The complete system is ready to install and use:

• Permanent magnet synchronous drive motor (3kW/5kW dual power options)

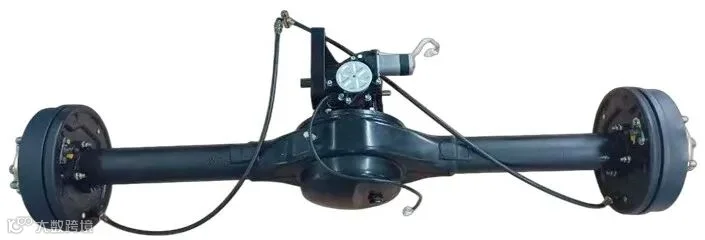

• 2-speed electric drive axle with gear ratio options

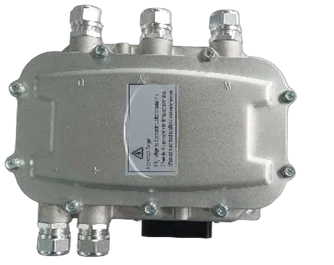

• Automotive-grade waterproof motor controller

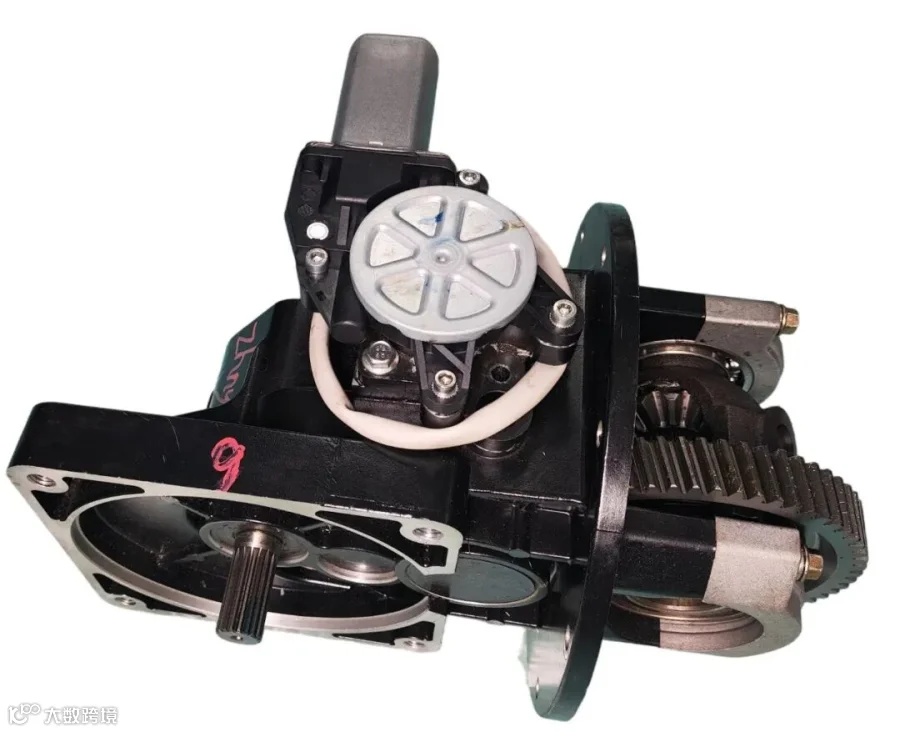

• Dedicated VTCU shift controller (core automatic shifting system)

Unlike ordinary manual-shift 2-speed rear axles on the market, the biggest core advantage of this system is full intelligent automatic shifting. While the vehicle is moving, the shift controller collects real-time data on speed, load, and road conditions, automatically and accurately switching between high and low gears without manual operation or stopping.

The low gear automatically adapts to heavy loads and steep hills, instantly amplifying torque for strong takeoff power and no weak climbing performance. The high gear automatically adapts to flat roads and empty cruising conditions, delivering smooth acceleration and energy savings. This completely eliminates the issues of manual shifting lag, cumbersome operation, and delayed gear matching, balancing heavy-load performance, driving speed, and range!

2. Motor Power Selection: Adapt to All Scenarios with Automatic Shifting

Many drivers mistakenly believe that higher motor power is always better—but this is not the case. When paired with our automatic-shift 2-speed system, low-power motors won’t feel weak, and high-power motors are more durable. Choosing the right power for your working conditions saves money, reduces energy consumption, and minimizes failures!

1. High Cost-Effectiveness

→ Recommended: 3kW Motor

If your use case mainly involves short, flat-road trips, light cargo transport, and daily commuting with no strict requirements for heavy-load speed, the 3kW motor is the top choice for cost-effectiveness. Paired with the automatic shifting system, it completely eliminates the shortcomings of low-power motors!

• Sufficient performance: Rated 3kW (peak 6kW) power output, with rated torque of 12Nm (peak 55Nm). Combined with automatic high/low gear shifting, it easily handles daily hauling and mild climbs.

• Cost-effective: Lower overall unit cost. When running empty, the system automatically switches to high gear, keeping the motor operating at low power for reduced daily energy consumption and long-term savings.

• Stable and reliable: Equipped with a semi-floating rear axle and Φ220 brakes for consistent stopping power. Extremely low failure rates under light-load conditions, meeting all daily usage needs.

2. Long-Term Heavy Hauling

→ Recommended: 5kW Automotive-Grade Motor

For frequent heavy loads, steep hill climbs, dusty construction sites, or rainy, wading environments, we recommend the automotive-grade 5kW high-power motor. Paired with the automatic shifting system, it delivers fast, stable, and durable performance even under heavy loads!

• Abundant power: Rated 5kW (peak 10kW) power output, with rated torque of 16Nm (peak 65Nm). Ample power reserves mean the system automatically engages low gear for heavy takeoffs, delivering full torque without bogging down. On flat roads, it automatically shifts to high gear for smooth, responsive acceleration.

• Rugged protection: Full automotive-grade design with motor and controller meeting IP67 waterproof and dustproof standards. No fear of construction site dust, rainy wading, or muddy roads—stable operation in harsh conditions.

• Durable and long-lasting: 300A peak current delivers instant power response. Automatic shifting precisely matches conditions to avoid prolonged high-load motor operation, effectively reducing overheating, overload protection, and motor burnout issues, significantly extending the unit’s service life.

3. Transmission Gear Ratio Selection: Automatic Shifting + Dual Ratios, Balancing Speed and Efficiency

Leveraging the advantages of the fully automatic shifting system, two exclusive gear ratio combinations are available to meet different usage needs—no need to sacrifice speed for load capacity or range for power. Simply choose based on your requirements!

1. High Top Speed

→ 26.5 / 9.8 Ratio Combination

Ideal for users who frequently drive long flat roads, need to travel quickly, and also handle heavy loads. Automatic shifting + high gear ratio doubles efficiency!

• Top speed performance: The 9.8 high gear ratio, paired with the motor’s maximum 5000rpm speed, enables a top vehicle speed of 55km/h, making flat-road cruising and overtaking more efficient.

• Strong heavy-load capability: The 26.5 low gear ratio provides ample climbing torque. When encountering steep hills or heavy loads, the system automatically downshifts to increase torque, allowing smooth passage through complex road conditions without manual operation.

• Scenario fit: Perfect for urban-rural long-distance transport, market deliveries, and daily commuting, balancing speed and heavy-load performance.

2. Focus on Heavy Hauling

→ 26.5 / 13.1 Ratio Combination

Designed for frequent heavy loads, short-haul deliveries, and harsh conditions. Leveraging automatic shift logic, it minimizes motor wear for both energy savings and durability!

• Energy-efficient: The 13.1 high gear ratio delivers greater torque, so the motor doesn’t need to run at high RPM on flat roads. The system automatically matches the optimal operating state, significantly reducing power consumption and extending range.

• Excellent temperature control: Full intelligent shifting keeps the motor operating at low load and low RPM, generating minimal heat. This eliminates summer overheating protection and shutdown failures during heavy-load operations.

• Longer service life: Well-matched gear ratios ensure even stress on gears and motors, automatically avoiding overload conditions to reduce mechanical wear. Lower failure rates and greater durability with long-term heavy use.

• Scenario fit: Ideal for construction sites, farmland, mountainous areas, and other use cases focused on heavy hauling with no strict top speed requirements.

4. Scenario Selection Summary Table: A Quick Guide for Beginners

Leveraging the core advantages of fully automatic shifting, combined with motor power and gear ratio combinations, we’ve matched optimal solutions for different conditions to ensure you don’t waste money on unnecessary features!

Final Thoughts

Traditional manual-shift tricycles can no longer keep up with the demands of efficient transport! Frequent stops for shifting, poor condition adaptation, overheating, and easy damage not only delay work but also increase maintenance costs.

Fengchuan Powertrain’s complete automatic 2-speed electric drive axle system, with intelligent automatic shifting as its core highlight, completely overturns the drawbacks of traditional manual shifting. Paired with 3kW/5kW motor options and two precision gear ratio combinations, it adapts to all scenarios: light loads, heavy loads, flat roads, mountain roads, and harsh construction sites. It truly delivers no manual shifting required, strong power under heavy loads, sufficient speed on flat roads, energy efficiency, durability, and low failure rates, making every driver’s experience worry-free and work more efficient!

If you’re unsure which configuration suits your working conditions, feel free to leave a comment with your cargo weight, typical road conditions, and usage environment, and we’ll provide a free one-on-one recommendation for the optimal powertrain solution!
