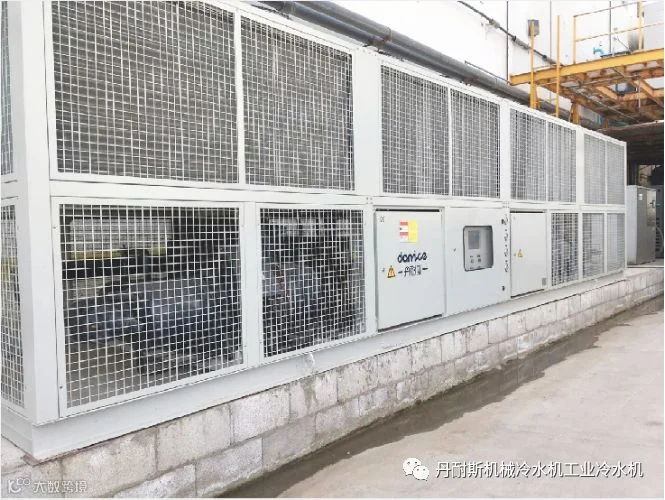

风冷螺杆冷水机产品优点:
风冷螺杆式冷水机组，无需安装冷却水塔，使用更方便，机组适用范围广泛，适用于塑胶、电镀、电子、化工、医疗、净化、食品、冶金等各个行业提供冷却系统配套及工程，同时也为商场、办公楼、宾馆、酒店、医院、住宅别墅等场所提供性能卓越的水系统,为客户创造安静舒适的生活工作环境。
1.特点：
高效半封闭双螺杆压缩机，机组运行平稳，噪声低。
吸气冷却使电机运行温度低，电机寿命长。
采用高质量轴承，轴承寿命至少40000小时。
内置式油分离器，体积更小，效果更好。
可以在0%～100%范围内安全的实现阶段或无级能量调节，最大限度节约电力资源。
蒸发器采用高效能壳管式换热器（可选配不锈钢板式换热器），内置高效换热齿牙管，设计合理，换热效果良好；
适用于R22、R407c、R134a 、R404A等多种工质。
运转部件少，故障率低。
可以选配经济器以进一步提高压缩机制冷量和效率。
可以选配喷液冷却装置以扩展压缩机的应用范围。
可以选配机油冷却装置以提高压缩机效率和压缩机的应用范围。
2. 使用方便、控制功能多：
可实现开机控制程序、能量调节程序、停机控制程序、故障停机、故障诊断、运转时间统计、运行状态显示及恢复重新开机程序等；
具有控制功能全、保护功能齐、全中文界面及操作简便等特点
电脑液晶触摸屏控制器，可反映机组运行状况，操作更加便捷
可接驳楼宇控制系统(需选配控制组件)或远程控制
具备与冷冻水泵、冷却水泵、冷却塔连锁控制功能
主机高度自动化，无需专门设置运行管理人员。
Air-cooled screw chillers , cooling towers without having to install , easier to use , suitable for a wide range of units , suitable for plastic , electroplating , electronics, chemical, medical , cleaning, food, metallurgical and other industries to provide engineering support and cooling systems , as well as water systems to provide high performance for the shopping malls, office buildings , hotels, hotels , hospitals , residential villas and other places for customers to create a quiet and comfortable living and working environment .
1 Features :
Efficient semi-enclosed twin-screw compressor , the unit running smoothly, low noise.
Suction cooling the motor running low temperature, long motor life.
Using high-quality bearings , bearing life of at least 40,000 hours .
Built-in oil separator , smaller , better.
You can secure the implementation phase or energy stepless adjustable from 0 % to 100% range , the maximum saving power resources .
Using high-performance evaporator shell and tube heat exchanger ( optional stainless steel plate heat exchanger ) , built-in high efficiency heat exchanger tube teeth , reasonable design, heat transfer effect is good ;
Suitable for R22, R407c, R134a, R404A refrigerants other .
Fewer moving parts , low failure rate .
Can be equipped with devices to further improve the economy compressor cooling capacity and efficiency.
Can be equipped with spray cooling means to extend the application range of the compressor.
Can be equipped with an oil cooling means to increase the efficiency of the compressor and compressor applications.
2. easy to use, control features and more:
Power control procedures can be achieved , energy regulation program , stop control procedures, downtime , fault diagnosis, operation time statistics , operating status display and reboot recovery procedures ;
Has full control , protection functions together , simple interface and operation of the whole Chinese characteristics
Computer LCD touch screen controller , can reflect the health unit, the operation more convenient
Can be connected to the building control system ( with optional control module ) or remote control
With the chilled water pumps, cooling water pumps, cooling towers chain control function
Host highly automated , no special setting operation and management personnel .
P15--备注：1.制冷量是依据冷冻水入口温度12℃，出口温度7℃；冷却入风温度30℃，出风温度35℃计算得出。
2.工作范围：冷冻水温度范围：5℃至30℃；冷冻水进出水温差：3℃至8℃。
冷却温度范围：在15-30℃使用最佳；建议在环境温度38℃以下使用；冷却进出风温差：8℃至10℃。
以上可根据客户要求来生产定做。 上述规格参数尺寸如有变更，恕不另行通知。
Note: 1. Cooling capacity is based on the chilled water inlet temperature of 12 ℃, outlet temperature 7 ℃; cooling into the wind temperature 30 ℃, 35 ℃ air temperature is calculated.
2. Scope of work: chilled water temperature range: 5 ℃ to 30 ℃; chilled water out of the water temperature: 3 ℃ to 8 ℃.
Cooling temperature range: 15-30 ℃ optimal use; recommended for use in ambient temperatures below 38 ℃; cooling air inlet temperature difference: 8 ℃ to 10 ℃.
The above can be customized according to customer requirements to produce. Specifications Dimensions above are subject to change without notice.

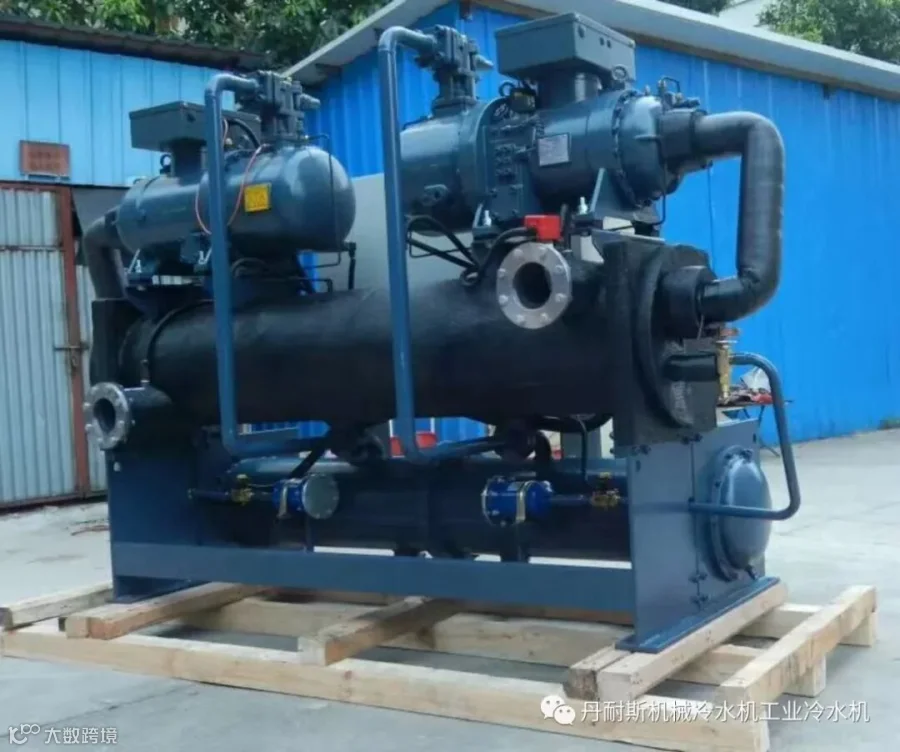

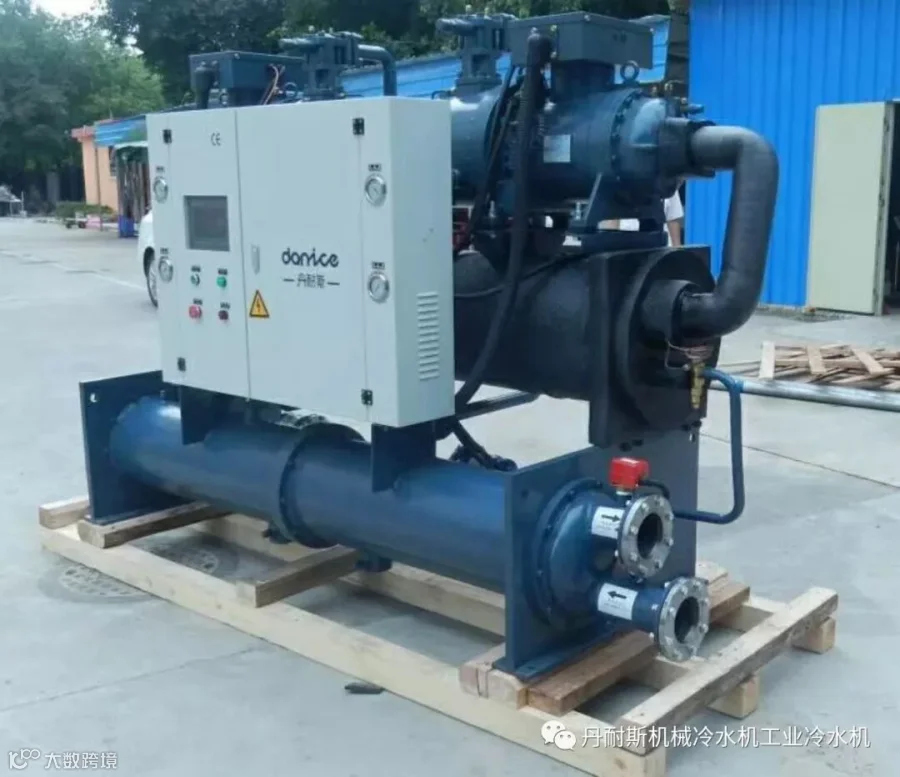

水冷螺杆冷水机产品优点
水冷螺杆式冷冻机组，可用于塑胶、电镀、电子、化工、医疗、净化、食品、冶金等各个行业提供冷却系统配套及工程，同时也为商场、办公楼、宾馆、酒店、医院、住宅别墅等场所提供性能卓越的水系统,为客户创造安静舒适的生活工作环境。
1.特点：高效半封闭双螺杆压缩机，机组运行平稳，噪声低。
吸气冷却使电机运行温度低，电机寿命长。
采用高质量轴承，轴承寿命至少40000小时。
内置式油分离器，体积更小，效果更好。
可以在0%～100%范围内安全的实现阶段或无级能量调节，最大限度节约电力资源。
冷凝器采用高效能壳管式换热器（可选配不锈钢板式换热器），内置高效换热齿牙管，设计合理，换热效果良好；
蒸发器采用高效能壳管式换热器（可选配不锈钢板式换热器），内置高效换热齿牙管，设计合理，换热效果良好；
适用于R22、R407c、R134a、R404A等多种工质。
运转部件少，故障率低。
可以选配经济器以进一步提高压缩机制冷量和效率。
可以选配喷液冷却装置以扩展压缩机的应用范围。
可以选配机油冷却装置以提高压缩机效率和压缩机的应用范围。
2.使用方便、控制功能多：
可实现开机控制程序、能量调节程序、停机控制程序、故障停机、故障诊断、运转时间统计、运行状态显示及恢复重新开机程序等；具有控制功能全、保护功能齐、全中文界面及操作简便等特点
功能全、保护功能齐、全中文界面及操作简便等特点
电脑液晶触摸屏控制器，可反映机组运行状况，操作更加便捷
可接驳楼宇控制系统(需选配控制组件)或远程控制
具备与冷冻水泵、冷却水泵、冷却塔连锁控制功能
主机高度自动化，无需专门设置运行管理人员。
Water-cooled screw chiller can be used for plastic , electroplating , electronics, chemical, medical , cleaning, food, metallurgical and other industries to provide engineering support and cooling systems , as well as shopping malls, office buildings , hotels, hotels , hospitals, residential villas , etc. places with high performance water system for customers to create a quiet and comfortable living and working environment .
1 Features : Efficient Semi-hermetic twin-screw compressor , the unit running smoothly, low noise.
Suction cooling the motor running low temperature, long motor life.
Using high-quality bearings , bearing life of at least 40,000 hours .
Built-in oil separator , smaller , better.
You can secure the implementation phase or energy stepless adjustable from 0 % to 100% range , the maximum saving power resources .
Using high-performance condenser shell and tube heat exchanger ( optional stainless steel plate heat exchanger ) , built-in high efficiency heat exchanger tube teeth , reasonable design, heat transfer effect is good ;
Using high-performance evaporator shell and tube heat exchanger ( optional stainless steel plate heat exchanger ) , built-in high efficiency heat exchanger tube teeth , reasonable design, heat transfer effect is good ;
Suitable for R22, R407c, R134a, R404A refrigerants other .
Fewer moving parts , low failure rate .
Can be equipped with devices to further improve the economy compressor cooling capacity and efficiency.
Can be equipped with spray cooling means to extend the application range of the compressor.
Can be equipped with an oil cooling means to increase the efficiency of the compressor and compressor applications.
2 easy to use, control features and more:
Power control procedures can be achieved , energy regulation program , stop control procedures, downtime , fault diagnosis, operation time statistics , operating status display and reboot recovery procedures ; has full control , protection Qi, Chinese interface and simple operation feature
Full-featured , protection Qi, Chinese interface and easy operation features
Computer LCD touch screen controller , can reflect the health unit, the operation more convenient
Can be connected to the building control system ( with optional control module ) or remote control
With the chilled water pumps, cooling water pumps, cooling towers chain control function
Host highly automated , no special setting operation and management personnel .
P17--备注：1.制冷量是依据冷冻水入口温度12℃，出口温度7℃；冷却水入口温度30℃，出口温度35℃计算得出。
2.冷冻水温度范围：5℃至30℃；冷冻水进出水温差：3℃至8℃；冷却水温度范围：18℃至30℃；
冷却水温度范围：18℃至30℃；冷却水进出水温差：3.5℃至10℃。 以上可根据客户要求来生产定做。 上述规格参数尺寸如有变更，恕不另行通知。
Note: 1 Cooling capacity is based on the chilled water inlet temperature of 12 ℃, outlet temperature 7 ℃; cooling water inlet temperature 30 ℃, 35 ℃ outlet temperature is calculated.
2. chilled water temperature range: 5 ℃ to 30 ℃; chilled water out of the water temperature: 3 ℃ to 8 ℃; cooling water temperature range: 18 ℃ to 30 ℃;
Cooling water temperature: 18 ℃ to 30 ℃; cooling water inlet and outlet water temperature difference: 3.5 ℃ to 10 ℃.
The above can be customized according to customer requirements to produce.
Specifications Dimensions above are subject to change without notice.
P18--备注：1. 制冷量是依据冷冻水入口温度12℃，出口温度7℃；冷却水入口温度30℃，出口温度35℃计算得出。
2. 冷冻水温度范围：5℃至30℃；冷冻水进出水温差：3℃至8℃；
冷却水温度范围：18℃至30℃；
冷却水温度范围：18℃至30℃；
冷却水进出水温差：3.5℃至10℃。
以上可根据客户要求来生产定做。
上述规格参数尺寸如有变更，恕不另行通知。
Note: 1 Cooling capacity is based on the chilled water inlet temperature of 12 ℃, outlet temperature 7 ℃; cooling water inlet temperature of 30 ℃, 35 ℃ outlet temperature is calculated.
2 chilled water temperature range: 5 ℃ to 30 ℃; chilled water out of the water temperature: 3 ℃ to 8 ℃; cooling water temperature range: 18 ℃ to 30 ℃;
Cooling water temperature: 18 ℃ to 30 ℃;
Cooling water out of the water temperature: 3.5 ℃ to 10 ℃.
The above can be customized according to customer requirements to produce. Specifications Dimensions above are subject to change without notice.
低温螺杆冷冻机
Low temperature screw chiller
低温冷冻机组产品特点
低温螺杆冷冻机组是深圳丹耐斯机械有限公司针对冷冻、冷藏及工业冷却等需低温处理的生产工艺，自行开发设计、生产的系列产品。适用范围：电镀、电子、真空、化工、医疗、冶金、建筑、食品加工、冷藏及各种特殊低温要求的工业、商业冷却系统。
1.型号齐全，冷冻水出水范围为-45℃～10℃，满足不同冷量、温度需求的使用场所；2.投资少：模块式设计，减少初投资和设备后期维护保养费；
3.智能：用智慧型微电脑触摸屏控制系统，提供最周到的服务与最简易的维修资讯，并可接驳户中央控制系统，全方位监控机组运行；
4.高效：螺杆压缩机匹配优质冷凝器与蒸发器。所有产品通过国家级检测系统测试，符合国家标准。
5.安全：具备机组运行安全保护措施，保证机组运行及客户使用安全；
6.美观：机组设计合理，外型美观。
7.可靠：机组提供多项保护装置，性能稳定、噪音低、使用寿命长。
Cryogenic refrigeration units Screw Machinery Co., Ltd. of Shenzhen Dan Naisi for freezing , refrigeration and industrial cooling and other production processes require low temperature processing , self- development, design, production of the series . Scope: electroplating , electronics, vacuum , chemical, medical, metallurgy , construction, food processing, industrial, commercial refrigeration cooling systems and a variety of special low-temperature requirements.
1. model is complete, chilled water range from -45 ℃ ~ 10 ℃, meet different cold temperatures demand the use of premises ;
2. less investment : modular design , reducing investment and post early equipment maintenance costs ;
3. Intelligence: Intelligent microcomputer with a touch-screen control system to provide the best service and the most simple repair information , users can connect the central control system , comprehensive monitoring unit operation ;
4. Efficient: screw compressor match quality condenser and evaporator . All products have passed the national inspection system, in line with national standards.
5. Safety : with unit running security measures to ensure the safe use of plant operation and customers ;
6. beautiful : unit design is reasonable, beautiful appearance.
7. reliable: the unit provides a number of protective devices , stable performance , low noise and long service life.
