OpenHarmony：全流程讲解如何编写Watchdog平台驱动以及应用程序

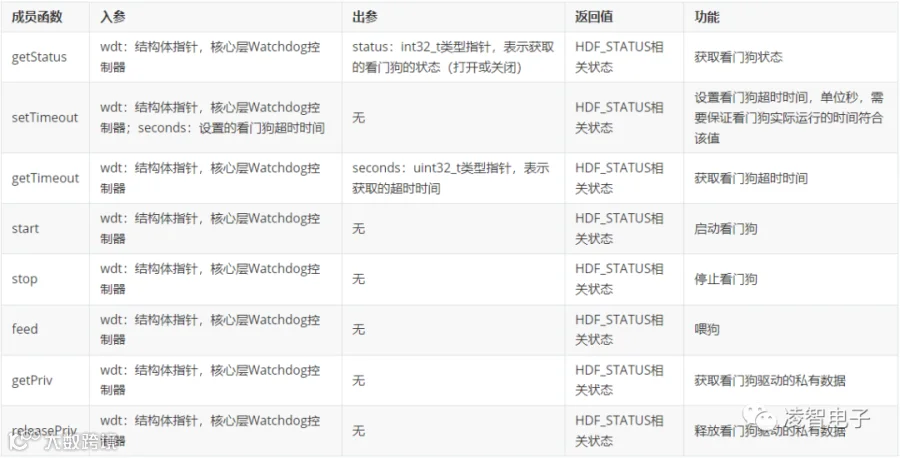

struct WatchdogMethod {    int32_t (*getStatus)(struct WatchdogCntlr *wdt, int32_t *status);    int32_t (*setTimeout)(struct WatchdogCntlr *wdt, uint32_t seconds);    int32_t (*getTimeout)(struct WatchdogCntlr *wdt, uint32_t *seconds);    int32_t (*start)(struct WatchdogCntlr *wdt);    int32_t (*stop)(struct WatchdogCntlr *wdt);    int32_t (*feed)(struct WatchdogCntlr *wdt);    int32_t (*getPriv)(struct WatchdogCntlr *wdt);  // 【可选】如果WatchdogCntlr中的priv成员存在，则按需实例化    void (*releasePriv)(struct WatchdogCntlr *wdt); // 【可选】};

struct HdfDriverEntry g_hdfWdtchdog = {    .moduleVersion = 1,    .moduleName = "HDF_PLATFORM_WATCHDOG",    // 【必要且与HCS文件中里面的moduleName匹配】    .Bind = HdfWdtBind,              // 见Bind参考    .Init = HdfWdtInit,              // 见Init参考    .Release = HdfWdtRelease,          // 见Release参考};

HDF_INIT(g_hdfWdtchdog);            // 调用HDF_INIT将驱动入口注册到HDF框架中

device_watchdog :: device {                  // 设备节点    device0 :: deviceNode {                  // 驱动的DeviceNode节点          policy = 2;                      // policy字段是驱动服务发布的策略,如果需要面向用户态，则为2        priority = 20;                    // 驱动启动优先级        permission = 0644;                  // 驱动创建设备节点权限        moduleName = "HDF_PLATFORM_WATCHDOG";        // 【必要】用于指定驱动名称，该字段的值必须和驱动入口结构的moduleName值一致        serviceName = "HDF_PLATFORM_WATCHDOG_0";      // 【必要】驱动对外发布服务的名称，必须唯一。        deviceMatchAttr = "rockchip_rk3568_watchdog_0";    // 【必要】用于配置控制器私有数据，必须和驱动私有数据配置表watchdog_config.hcs中的match_attr值保持一致。    }}

root {    platform {        watchdog_config {            template watchdog_device {                serviceName = "HDF_PLATFORM_WATCHDOG_0";                match_attr = "";                id = 0;            }

            device_0x12050000 :: watchdog_device {                id = 0;                match_attr = "rockchip_rk3568_watchdog_0";            }        }    }}

// 钩子函数实例化static struct WatchdogMethod g_wdtMethod = {    .getStatus = WdtAdapterGetStatus,    // 获取看门狗状态    .start = WdtAdapterStart,        // 启动看门狗    .stop = WdtAdapterStop,          // 停止看门狗    .setTimeout = WdtAdapterSetTimeout,    // 设置看门狗超时时间    .getTimeout = WdtAdapterGetTimeout,    // 获取看门狗超时时间    .feed = WdtAdapterFeed,          // 喂狗函数    .getPriv = WdtOpenFile,    .releasePriv = WdtAdapterClose,};

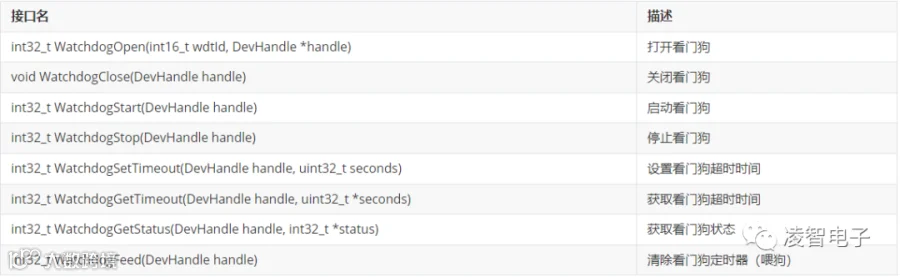

DevHandle WatchdogOpen(int16_t wdtId, DevHandle *handle);

void WatchdogClose(DevHandle handle);

int32_t WatchdogStart(DevHandle handle);

int32_t WatchdogStop(DevHandle handle);

int32_t WatchdogSetTimeout(DevHandle *handle, uint32_t seconds);

int32_t WatchdogGetTimeout(DevHandle *handle, uint32_t *seconds);

int32_t WatchdogGetStatus(DevHandle handle, int32_t *status);

int32_t WatchdogFeed(DevHandle handle);

wdt: watchdog@fe600000 {    compatible = "snps,dw-wdt";    reg = <0x0 0xfe600000 0x0 0x100>;    clocks = <&cru TCLK_WDT_NS>, <&cru PCLK_WDT_NS>;    clock-names = "tclk", "pclk";    interrupts = <GIC_SPI 149 IRQ_TYPE_LEVEL_HIGH>;    status = "okay";};

CONFIG_DRIVERS_HDF_PLATFORM_WATCHDOG=y

device_watchdog :: device {    device0 :: deviceNode {        policy = 2;        priority = 20;        permission = 0644;        moduleName = "HDF_PLATFORM_WATCHDOG";        serviceName = "HDF_PLATFORM_WATCHDOG_0";        deviceMatchAttr = "rockchip_rk3568_watchdog_0";    }}

root {    platform {        watchdog_config {            template watchdog_device {                serviceName = "HDF_PLATFORM_WATCHDOG_0";                match_attr = "";                id = 0;            }

            device_0x12050000 :: watchdog_device {                id = 0;                match_attr = "rockchip_rk3568_watchdog_0";            }        }    }}

struct HdfDriverEntry g_hdfWdtchdog = {    .moduleVersion = 1,    .moduleName = "HDF_PLATFORM_WATCHDOG",    .Bind = HdfWdtBind,    .Init = HdfWdtInit,    .Release = HdfWdtRelease,};

HDF_INIT(g_hdfWdtchdog);

#include "watchdog_if.h"                 // watchdog标准接口头文件

// 打开看门狗设备ret = WatchdogOpen(m_watchdog_id, handle);if (ret != 0) {    PRINT_ERROR("WatchdogOpen failed and ret = %d\n", ret);    goto out;}if (handle == NULL) {    PRINT_ERROR("WatchdogOpen failed and handle is null\n");    goto out;}......

// 设置超时时间ret = WatchdogSetTimeout(handle, m_watchdog_timeout);if (ret != 0) {    PRINT_ERROR("WatchdogSetTimeout failed and ret = %d\n", ret);    goto out;}printf("WatchdogSetTimeout Successful and Watchdog timeout = %d\n", m_watchdog_timeout);

// 获取超时时间ret = WatchdogGetTimeout(handle, &timeout);if (ret != 0) {    PRINT_ERROR("WatchdogGetTimeout failed and ret = %d\n", ret);    goto out;}printf("WatchdogGetTimeout Successful and Watchdog timeout = %d\n", timeout);

// 启动看门狗ret = WatchdogStart(handle);if (ret != 0) {    PRINT_ERROR("WatchdogStart failed and ret = %d\n", ret);    goto out;}

// 获取看门狗状态，是否启动status = WATCHDOG_STOP;ret = WatchdogGetStatus(handle, &status);if (ret != 0) {    PRINT_ERROR("WatchdogGetStatus failed and ret = %d\n", ret);    goto out;}printf("WatchdogGetStatus Successful and Watchdog status = %d, WATCHDOG_START = %d, WATCHDOG_STOP = %d\n",    status, WATCHDOG_START, WATCHDOG_STOP);

// 喂狗for (i = 0; i < m_watchdog_feed_count; i++) {    sleep(m_watchdog_feed);    printf("Watchdog: feed number = %d and feed time = %d\n", i, m_watchdog_feed);    ret = WatchdogFeed(handle);    if (ret != 0) {        PRINT_ERROR("WatchdogFeed failed and ret = %d\n", ret);        goto out;    }}

// 停止喂狗ret = WatchdogStop(handle);if (ret != 0) {    PRINT_ERROR("WatchdogStop failed and ret = %d\n", ret);    goto out;}

WatchdogClose(handle);

import("//build/ohos.gni")import("//drivers/hdf_core/adapter/uhdf2/uhdf.gni")

print("samples: compile rk3568_watchdog_test")ohos_executable("rk3568_watchdog_test") {  sources = [ "watchdog_test.c" ]  include_dirs = [    "$hdf_framework_path/include",    "$hdf_framework_path/include/core",    "$hdf_framework_path/include/osal",    "$hdf_framework_path/include/platform",    "$hdf_framework_path/include/utils",    "$hdf_uhdf_path/osal/include",    "$hdf_uhdf_path/ipc/include",    "//base/hiviewdfx/hilog/interfaces/native/kits/include",    "//third_party/bounds_checking_function/include",  ]

  deps = [    "$hdf_uhdf_path/platform:libhdf_platform",    "$hdf_uhdf_path/utils:libhdf_utils",    "//base/hiviewdfx/hilog/interfaces/native/innerkits:libhilog",  ]

  cflags = [    "-Wall",    "-Wextra",    "-Werror",    "-Wno-format",    "-Wno-format-extra-args",  ]

  part_name = "product_rk3568"  install_enable = true}

"b10_platform_device_watchdog/app:rk3568_watchdog_test",

hb set -root .hb set# 选择lockzhiner下的rk3568编译分支。hb build -f

# rk3568_Watchdog_testWatchdog Params:    watchdog id = 0    watchdog timeout sec = 5    watchdog feed sec = 1    watchdog feed count = 5../../vendor/lockzhiner/rk3568/samples/b10_platform_device_watchdog/app/watchdog_test.c, main, 121, error: WatchdogOpen failed and ret = -16WatchdogClose Successful#

/** * @brief Enumerates HDF return value types. */typedef enum {    HDF_SUCCESS  = 0, /**< The operation is successful. */    HDF_FAILURE = -1, /**< Failed to invoke the OS underlying function. */    HDF_ERR_NOT_SUPPORT = -2, /**< Not supported. */    HDF_ERR_INVALID_PARAM = -3, /**< Invalid parameter. */    HDF_ERR_INVALID_OBJECT = -4, /**< Invalid object. */    HDF_ERR_MALLOC_FAIL    = -6, /**< Memory allocation fails. */    HDF_ERR_TIMEOUT        = -7, /**< Timeout occurs. */    HDF_ERR_THREAD_CREATE_FAIL = -10, /**< Failed to create a thread. */    HDF_ERR_QUEUE_FULL  = -15, /**< The queue is full. */    HDF_ERR_DEVICE_BUSY = -16, /**< The device is busy. */    HDF_ERR_IO          = -17, /**< I/O error. */    HDF_ERR_BAD_FD      = -18, /**< Incorrect file descriptor. */    HDF_ERR_NOPERM      = -19, /**< No permission. */  ......} HDF_STATUS;
