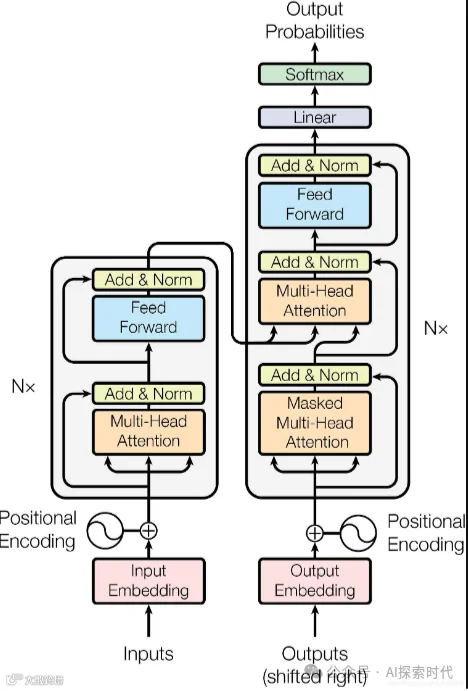

使用PyTorch实现Transformer的Encoder编码器

# pytorch 实现transformerimport copy
import numpy as npimport torchimport torch.nn as nnimport mathimport torch.nn.functional as F
from torch.autograd import Variable

class Embedding(nn.Module):    def __init__(self, vocab, embe_dim):        """        :param vocab:  词表的大小        :param embe_dim: 词嵌入的维度        """        super(Embedding, self).__init__()        self.lut = nn.Embedding(vocab, embe_dim, padding_idx=0)        self.embe_dim = embe_dim
    def forward(self, x):        """        :param x: 输入给模型的文本通过词汇映射后的张量        :return:        """        return self.lut(x) * math.sqrt(self.d_model)

class TextEmbedding(nn.Module):    def __init__(self, vocab, d_model):        """        :param vocab: 词表大小        :param d_model: 词嵌入的维度        """        super(TextEmbedding, self).__init__()        self.lut = nn.Embedding(vocab, d_model, padding_idx=0)        print('lut', self.lut.weight)        # self.lut.weight.data = torch.zeros(2, 5)        print('lut n', self.lut.weight)        self.d_model = d_model
        # self.lut = nn.Embedding(100, 10)        word_embed = self.lut(Variable(torch.LongTensor([50])))        print('word_embed', word_embed)
    def forward(self, x):        """        :param x: 输入给模型的文本通过词汇映射后的张量        :return:        """        return self.lut(x) * math.sqrt(self.d_model)
# 位置编码class PositionalEncoding(nn.Module):    def __init__(self, d_model, dropout, max_len=5000):        """        :param d_model: 词嵌入维度        :param dropout: 丢失率        :param max_len: 每个句子的最长长度        """
        super(PositionalEncoding, self).__init__()        # 实例化dropout层        self.dpot = nn.Dropout(p=dropout)        # 初始化位置编码矩阵        pe = torch.zeros(max_len, d_model)        # 初始化绝对位置矩阵        # position 矩阵size为(max_len, 1）        position = torch.arange(0, max_len).unsqueeze(1)
        # 将绝对位置矩阵和位置编码矩阵特征融合        # 定义一个变换矩阵 跳跃式初始化        div_term = torch.exp(torch.arange(0, d_model, 2) * -(math.log(10000) / d_model))        pe[:, 0::2] = torch.sin(position * div_term)        pe[:, 1::2] = torch.cos(position * div_term)
        # 将二维张量扩充成三维张量        pe = pe.unsqueeze((0))        self.register_buffer('pe', pe)
    def forward(self, x):        """        :param x: 文本的词嵌入表示        :return:        """        x = x + Variable(self.pe[:, :x.size(1)], requires_grad=False)        return self.dpot(x)

"""    掩码张量    掩码张量一般只有0和1 代表位置被遮掩或不被遮掩    在transformer中, 掩码张量的作用在应用attention时有一些生成的attention 变量中的值有可能已知了未来的信息而得到的未来信息被看到是因为    训练时会把整个输出结果都一次性进行Embedding"""

def subsequent_mask(size):    atten_shape = (1, size, size)    # 对角线下就是负 对角线上就是正 对角线就是0    mask = np.triu(np.ones(atten_shape), k=1).astype('uint8')    return torch.from_numpy(1 - mask)

def attention(query, key, value, mask=None, dropout=None):    """
    :param query:    :param key:    :param value:    :param mask: 掩码张量    :param dropout:    :return: query 在key和value作用下的表示    """
    d_k = query.size(-1)    # 按照注意力公式 将query 与 key转置相乘 这里的key是将最后两个维度进行转置 再除以缩放系数    # 得到注意力的得分张量 score    score = torch.matmul(query, key.transpose(-2, -1)) / math.sqrt(d_k)    if mask is not None:        # 使用tensor 的masked_fill方法，将掩码张量和scores张量每个位置一一比较        score = score.masked_fill(mask == 0, -1e9)
    p_atten = F.softmax(score, dim=-1)
    if dropout is not None:        p_atten = dropout(p_atten)
    # 返回注意力表示    return torch.matmul(p_atten, value.float()), p_atten

def clones(module, N):    """    生成相同的网络层的克隆函数    :param module: 目标网络层    :param N: 克隆数量    :return:    """    return nn.ModuleList([copy.deepcopy(module) for _ in range(N)])

class MultiHeadAtten(nn.Module):    def __init__(self, head, embedding_dim, dropout=0.1):        """        :param head: 头数        :param embedding_dim: 词嵌入维度        :param dropout:        """        super(MultiHeadAtten, self).__init__()
        # 在函数中 首先使用了一个测试中常用的assert语句, 判断h是否能被此嵌入维度整除        assert embedding_dim % head == 0
        # 得到每个头获得的分割词向量维度d_K        self.d_k = embedding_dim // head
        # 获得多头        self.head = head        # 克隆四个全连接层对象 通过nn的Linear实例化        self.linears = clones(nn.Linear(embedding_dim, embedding_dim), 4)
        self.attn = None        self.dpot = nn.Dropout(p=dropout)
    def forward(self, query, key, value, mask=None):        # 前向逻辑函数        if mask is not None:            # 扩展维度 代表多头中的第i个头            mask = mask.unsqueeze(1)
        batch_size = query.size(0)
        """            首先就进入多头处理环节 首先利用zip将输入QKV与三个全连接层组到一起 然后使用for循环 将输入QKV分别传到线性层中            做完线性变换后，开始为每个头风格输入 使用view 方法对线性变换的结果进行维度重塑            这样就意味着每个头可以获得一部分词特征组成的句子 其中的-1代表自适应维度            计算机会根据这种变换自动计算这里的值 然后对第二维和第三维进行置换操作            lis = [query, key, value]            r = []            for step.model in enumerate(self.linears):                r.append(model(lis[step])                        """        query, key, value = [model(x).view(batch_size, -1, self.head, self.d_k).transpose(1, 2)                             for model, x in zip(self.linears, (query, key, value))]
        """            得到每个头的输入后 接下来就是将他们传入到attention中                """        x, self.attn = attention(query, key, value, mask=mask, dropout=self.dpot)
        x = x.transpose(1, 2).contiguous().view(batch_size, -1, self.head * self.d_k)
        return self.linears[-1](x)

class FeedForward(nn.Module):    def __init__(self, d_model, d_ff, dropout=0.1):        """        :param d_model: 线性层输入维度        :param d_ff: 线性层输出维度        :param dropout:        """        super(FeedForward, self).__init__()        self.w1 = nn.Linear(d_model, d_ff)        self.w2 = nn.Linear(d_ff, d_model)        self.dpot = nn.Dropout(dropout)
    def forward(self, x):        return self.w2(self.dpot(F.relu(self.w1(x))))

# 规范化层class LayerNorm(nn.Module):    def __init__(self, features, eps=1e-6):        """        :param features: 代表词嵌入的维度        :param eps:        """        super(LayerNorm, self).__init__()        self.a2 = nn.Parameter(torch.ones(features))        self.b2 = nn.Parameter(torch.zeros(features))
        # 防止分母为0        self.eps = eps
    def forward(self, x):        print('x', type(x))        # 对输入变量x 求其最后一个维度的均值 并保持输出维度与输入维度一致        mean = x.mean(-1, keepdim=True)
        # 接着再求最后一个维度的标准差        std = x.std(-1, keepdim=True)        # 然后就是规范化公式 用x减去均值除以标准差获得规范化的结果        return self.a2 * (x - mean) / (std + self.eps) + self.b2

# 残差连接实现class ResConnect(nn.Module):    def __init__(self, size, dropout=0.1):        super(ResConnect, self).__init__()        self.norm = LayerNorm(size)        self.dpot = nn.Dropout(p=dropout)
    def forward(self, x, sublayer):        """        接受上一个层或子层的输入作为第一个参数 将该子层连接中的子层函数作为第二个参数
        :param x:        :param sublayer:        :return:        """        return x + self.dpot(sublayer(self.norm(x)))

class SublayerConnection(nn.Module):    def __init__(self, size, dropout=0.1):        super(SublayerConnection, self).__init__()        self.norm = LayerNorm(size)        self.dpot = nn.Dropout(p=dropout)
    def forward(self, x, sublayer):        return x + self.dpot(sublayer(self.norm(x)))

if __name__ == '__main__':    vocab = 500    d_model = 512    dropout = 0.2    inputs = torch.randint(low=0, high=100, size=(5, 10), dtype=torch.long)
    # 文本嵌入层    TE = TextEmbedding(vocab, d_model)
    # 位置编码层    PE = PositionalEncoding(d_model, dropout, max_len=10)
    TER = TE(inputs)
    print('TER', TER.shape)
    PER = PE(TER)
    print('PER', PER.shape)
    # 实例化多头注意力机制    head = 8    MHA = MultiHeadAtten(head=head, embedding_dim=d_model, dropout=dropout)    MHAR = lambda x: MHA(x, x, x)    SLC1 = SublayerConnection(d_model, dropout=dropout)    SLC1R = SLC1(PER, MHAR)    print('SLC1R', SLC1R.shape)
    FF = FeedForward(d_model, 1024, dropout=dropout)    SLC2 = SublayerConnection(d_model, dropout=dropout)    SLC2R = SLC2(SLC1R, FF)    print(SLC2R.shape)
