领先一代的低压铸造机，新设计、新工艺、新材料、高效率、低能耗（节能50%以上），高稳定性。
Innovation generation of low pressure casting machine,the new design, new technology, new materials, high efficiency,high stability andlow energy consumption, energy saving more than 50%.
低压铸造机选型指南：Lowpressure casting type issued guidelines
（1）生产厂商商标High EndTechnology Design
（2）保温炉有效容量Capacity of thefurnace200-3000kg
（3）装模区别及适合产品类型Mold installationtype and for different castings
（4）边模合模机构数量Side moldnumbers 2、3、4、6etc
（5）液压系统类型Hydraulic system type
N普通型StandardS伺服型Servo type
（6）保温炉加热类型
Holding furnaceheating type
T-顶部辐射加热Top heater
E-底部浸没加热 Immersion heater
（7）保温炉动作类型
Furnace movement type
T型倾斜升降
Tiltlifting
V1/V2垂直升降
Verticallifting
V3垂直升降+倾翻倒铝
Vertical+ rotated dumping metal
(8)保温炉结构
S 单室炉 Single chamber
D 双室炉Doublechamber
（9）模具冷却风数量
Mold cooling airquantity
（10）模具冷却水数量
Mold cooling waterquantity
（11）模具冷却水雾数量
Mold cooling Mistquantity
（12）适合国家
Suitable fordifferent countries

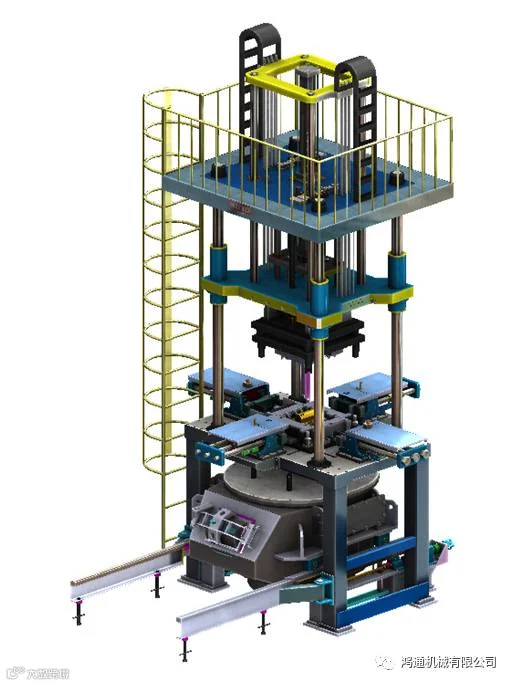

专为铝轮类圆盘毂铸造而设计
Speciallydesigned for aluminum wheel type disc casting
² 可铸造13-30寸轮毂
Cancast 13-30 inch wheels
² 上模行程695-1795mm
Topplate stroke 695-1795 - mm
² 边模开档行程890-1290mm
Sidecore stroke 890-1290mm
² 保温炉1000Kg/800Kg不沾铝炉材，
降低氧化烧损
Furnace1000 kg / 800 kg
Non-stickaluminum refractory
Reducethe oxidation loss
² 可选底部浸没加热
Immersionheating can be used
² 模具90°或45°安装
Themold can be installed 90°or 45°
² 16路风、水、雾冷却
Upto 16 cooling air, water and mist
² 全数字伺服液压系统
Fulldigital servo hydraulic system
² 节能50%以上
Energysaving more than 50%
² 高精度压力自动控制
Highprecision automatic pressure control
² 全自动循环
Automaticcycle
² 自动脱模取件
Automaticejector and catcher

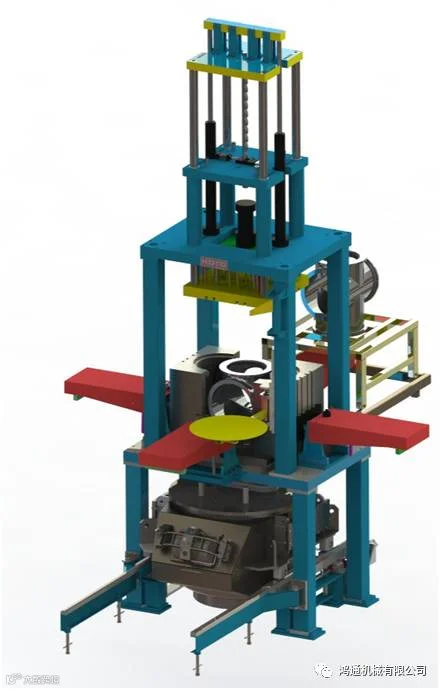

² 专为发动机缸体缸盖铸造设计
Designedfor engine cylinder head casting
² 上模行程595-1695mm
Topplate stroke 695-1795 mm
² 模具90°安装
Themold can be installed 90°
² 保温炉1000Kg/800Kg不沾铝炉材，
降低氧化烧损
Furnace1000 kg / 800 kg
Non-stickaluminum refractory
Reducethe oxidation loss
² 多浇口、多分流器系统
Multi-riserand divider
Multiple-cavity
² 浇口盆电加热
Electricalheater for pouring basin
² 模板平行度好
Gooddepth of parallelism
² 全数字伺服液压系统
Fulldigital servo hydraulic system
² 节能50%以上
Energyconservation more than 50%
² 高精度压力自动控制
Highprecision automatic pressure control
² 全自动循环
Automaticcycle process
² 自动脱模取件
Automaticejector and catcher

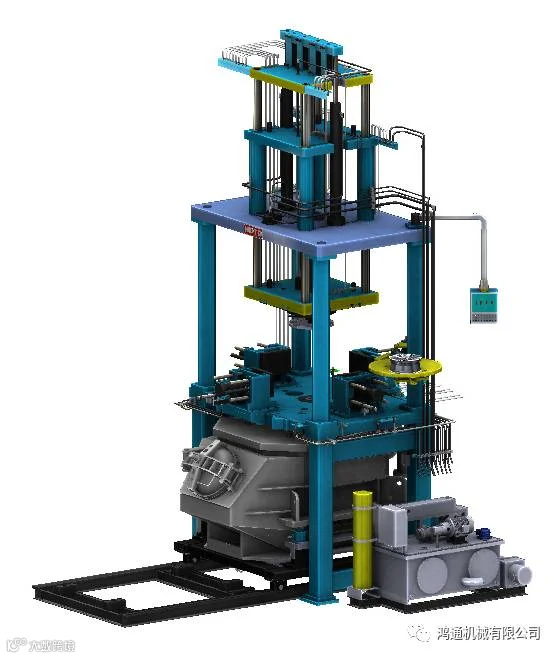

适合生产发动机缸体和边浇轮毂
Suitablefor produce ofengine block
andSide pouring casting wheels
² 上模行程400-1850mm
Topplate stroke 400-1850 mm
² 边模开档行程728-1128mm
Sidecorestroke 728-1128 mm
² 模具90°安装（可正装、反装）
Themold can be installed 90°
² 保温炉800Kg/1300Kg不沾铝炉材，
降低氧化烧损
Furnace800 kg / 1300 kg
non-stickaluminum refractory
Reducethe oxidation loss
² 保温炉垂直升降
V1/V2/V3Type furnace
² 多达32路的模具冷却
Upto 32 cooling units
² 多浇口系统，多分流器系统
Multi-riserand diverter
² 一模多腔铸造
Multiple-cavity
² 浇口盆带加热功能
Electricalheater
forpouring basin

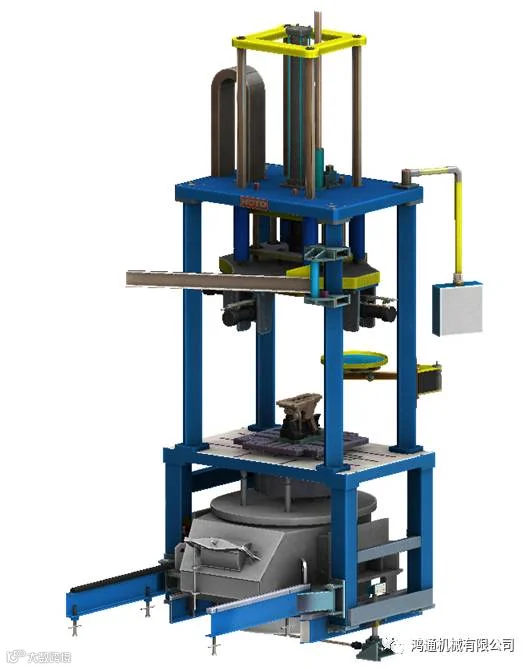

² 专为超大型铸件而设计
Speciallydesigned for very large castings
² 适合做高铁、高压开关等大型壳体、法兰类
Suitablefor high-speed railway carriages parts
High-voltageswitch body
andother large shell, flanges
² 上模行程500-2480mm
Topplate stroke 500-2480 mm
² 边模开档行程700-2010mm
Side corestroke 700-2010 mm
² 模具90°安装
Themold can be installed 90°
² 保温炉800-2600Kg
Furnace800 kg / 2600 kg
² 保温炉垂直升降
V1/V2Type furnace
² 多浇口系统，多分流器系统
Multi-riserand diverter
² 一模多腔铸造
Multiple-cavity
² 浇口盆带加热功能
Electricalheater
forpouring basin

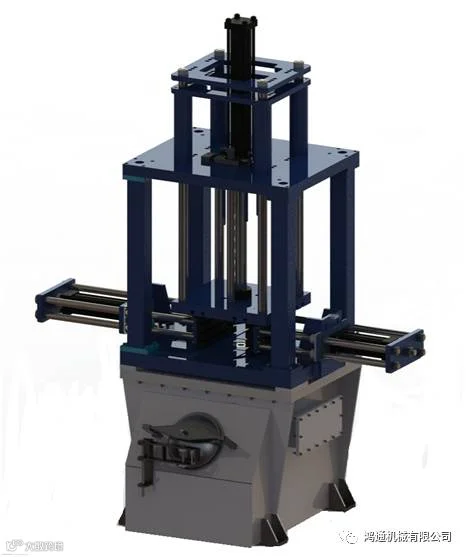

² 经济型小设备适合生产小型铸件
Economicalmachine suitable
forproduce of small-sized castings
² 工作底板：1830*1270mm
Bottomplate: 1830*1270mm
² 上模行程：320-1320mm
Topplate stroke 320-1320 mm
² 边模开档行程400-1200mm
Sidecorestroke 400-1320 mm
² 保温炉200Kg
Furnace200 kg
² 保温炉固定
Fixedfurnace
² 可配10风4水模具冷却
Upto 10 air and 4 water cooling

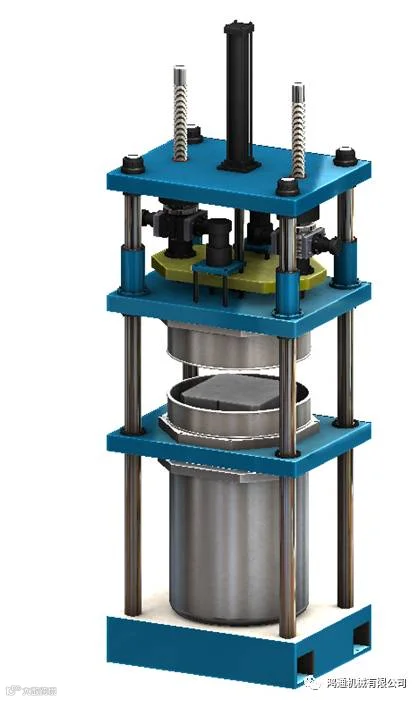

² 为高性能铸件设计
Designedfor high-performance casting
² 保温炉容量 800Kg
Furnace800 kg
² 保温炉类型：坩埚
Furnacetype: Crucible
² 设备总高6700mm
Equipmenttotal height 6700mm
² 工作台板尺寸:1930*1480
Workingtable size: 1930*1480
² 金属型模具高度600/800mm
ThePermanent mold height: 600/800mm
² 开模行程1000mm
Core-openstroke 1000mm
² 开模力280KN
Core-openforce 280KN
² 锁模力1000KN
Core-clampingforce: 1000KN
² 铸件顶出行程75mm
Ejectionstroke75mm
² 顶出力600KN
Ejectionforce 600KN
² 工作气压0.6Bar
Workingair pressure 0.6Bar
² 模具冷却方式：水冷
Moldcooling type: water
² 设备总功率Power: 70KW
² 保温炉功率Furnace power:45KW
