Use
Interior Cladding
Applications
Walls
Characteristics
Cellular cast aluminum foam, sound absorbing properties, strong yet lightweight panels, versatile material, contains up to 100% recycled content, corrosion resistant
Format
Panels
Sizes
Thicknesses: 12,7 mm (½”); 25,4 mm (1”) and 43.2 mm (1.7”)
More about this product
Materials
Cymat Technologies provided 185m2 of Alusion™ stabilized aluminum foam panels for the 1300m2 IT office located in the historical center of Kiev.
Cymat’s Aluminum Foam, marketed under the trade name of Alusion™ for architecture, is a versatile material with virtually limitless design and architectural applications. Along with its unique appearance, it has sound absorbing properties making it ideal for applications requiring both sound absorption and beauty. It is used for facades, wall cladding, showroom displays, ceiling tiles, restaurants and bars, offices and apartment buildings, flooring, signs, lighting, fixtures and exhibits.
Program

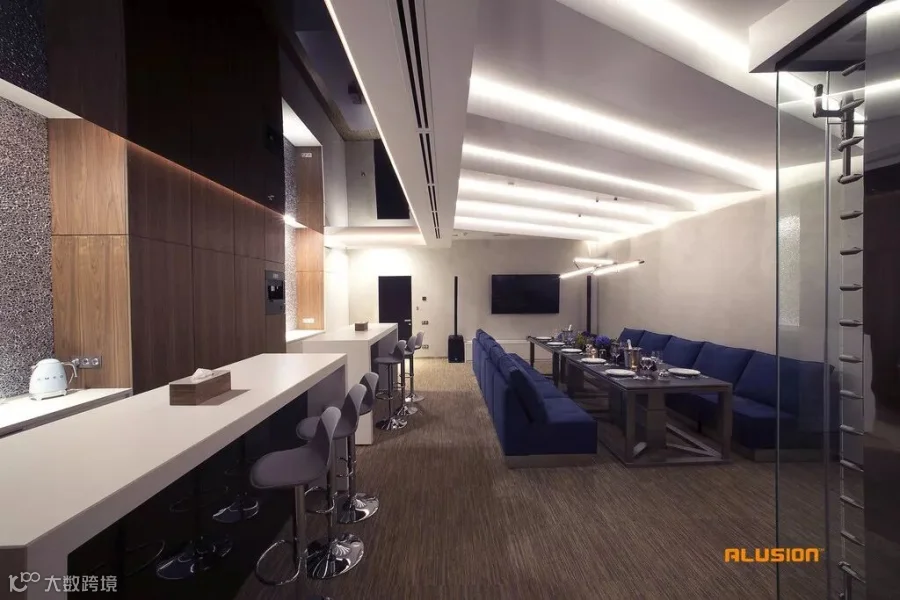

The meeting rooms and recreation areas are used as lounges for holding business meetings of top management teams to contribute to the success of the business. Noisy parties are held without disturbing the neighboring rooms thanks to the sound absorbing properties of the aluminum foam. The complex use of the technical capabilities in the recreation/lounge area allows the transformation of the meeting room for various functions:
Meeting room
Living room
Bar
Nightclub
Lighting

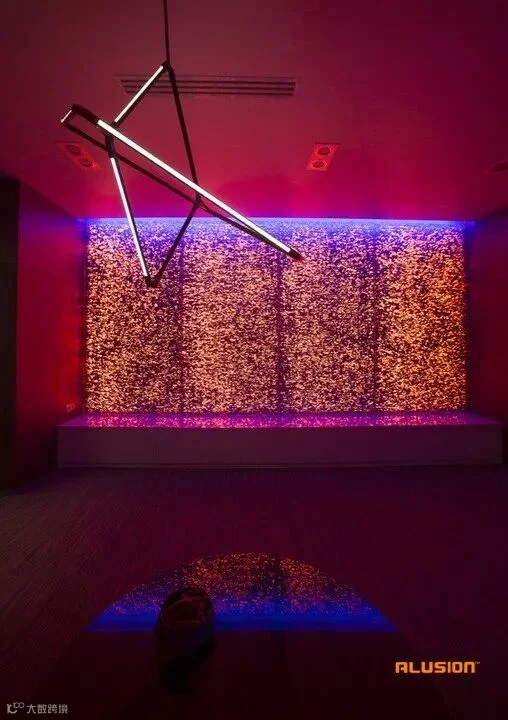

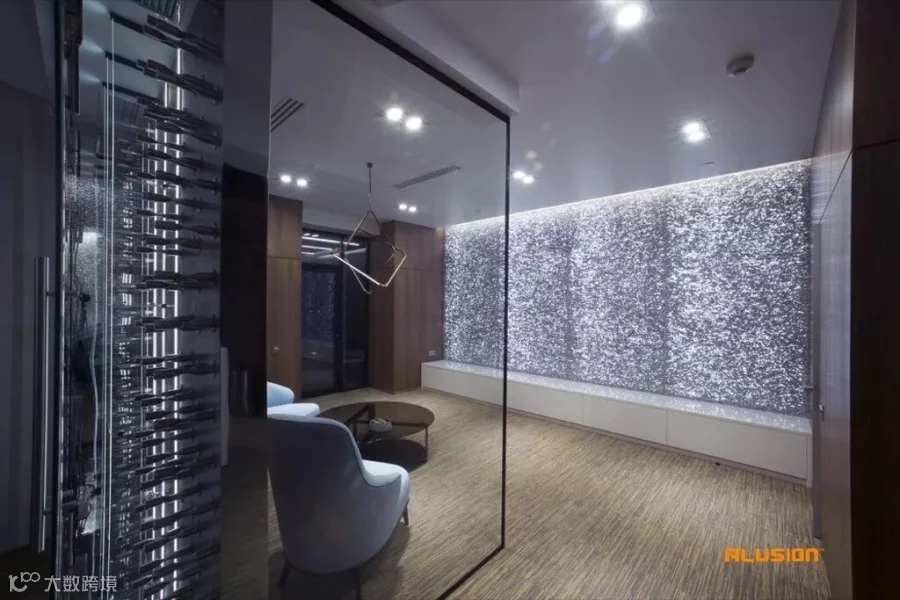

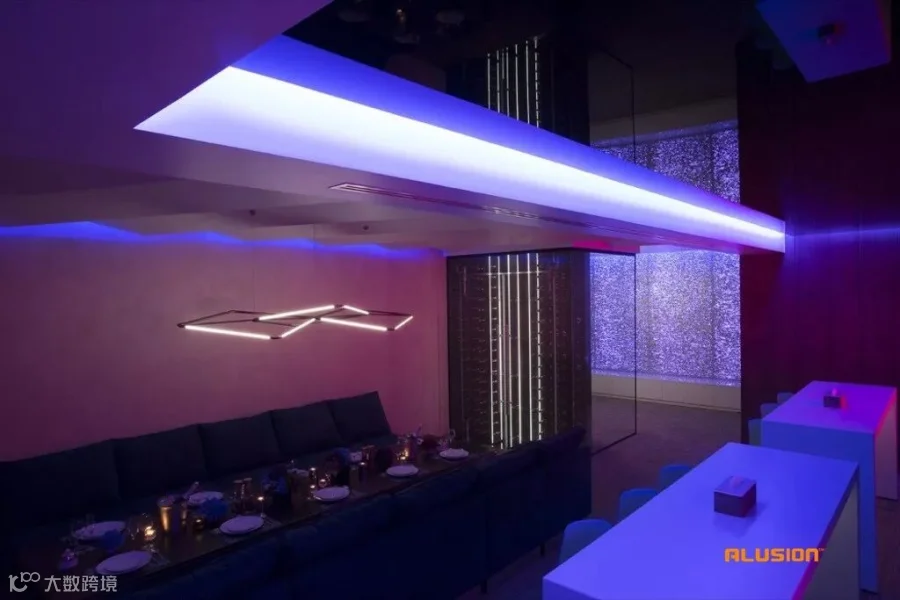

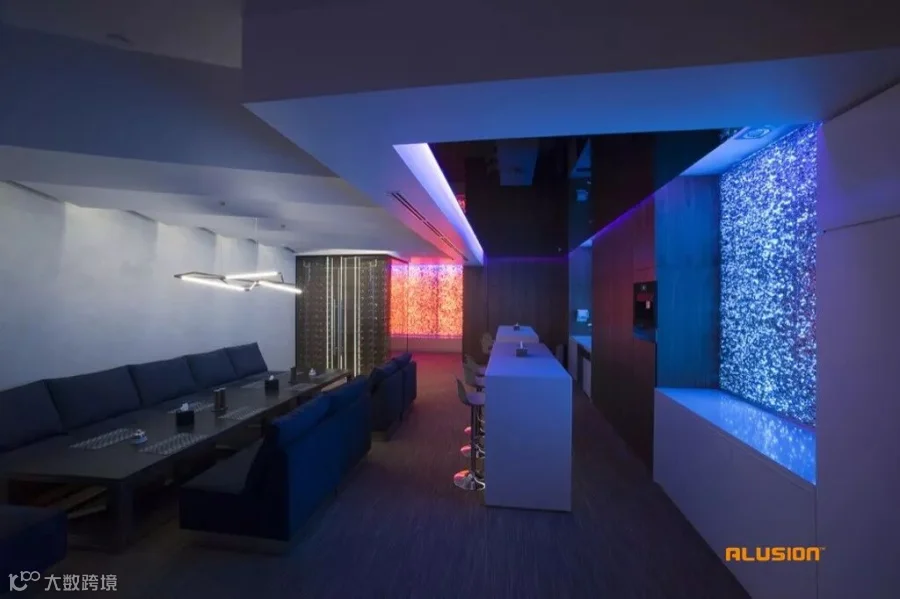

Alusion™ was applied in the CEO's lounge and meeting rooms. The architect compensated the lack of natural light by applying light screens using stabilized aluminum foam to achieve the effect of natural lighting in the recreation area. The mesh structure of the foam reflects and transmits light randomly. Various light effects can give the appearance of sunlight passing through the foliage or a starry sky. The RGBW LED lights have adjustable brightness and a wide color palette.
Project details
| Customer | IT Company |
| Interior and Lighting design | Anna Yevtushenko Architect |
| Project Name | «Another World» IT Company Office |
| Project location | Kiev, Ukraine |
| Area | 1300 m2 |
| Implementation date | August 2017 |
Stabilized Aluminum Foam: Properties
100% recyclable, and contains up to 100% recycled content
Acoustic Absorption Properties
Non-Combustible with a flame spread of zero
Highly corrosion resistant
The strength, durability, and resilience of aluminum
Windload resistance of up to 356 km per hour (221 miles)
Alusion™'s foam creates strong yet lightweight panels. Similar in appearance to a metallic sponge, it is produced for architecture applications in three densities:
Large Cell
Open on both sides making it translucent, more reflective than other densities.Mid Cell
Small Cell
The various versions of Alusion™ can be utilized for both interior and exterior applications. The panels are produced by injecting air into molten aluminum, which contains a fine dispersion of ceramic particles. These particles stabilize the bubbles formed by the air. The surface of the material is either left in its solid form, as produced, or undergoes surface preparations that provide many different appearances from a solid surface “shimmering” look to a translucent “water froth” look
