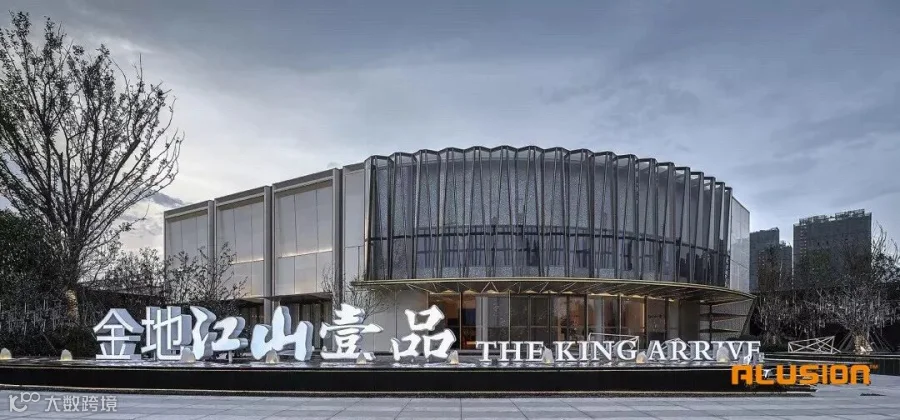

Alusion™ stabilized aluminum foam from Cymat makes up the crown of the impressive Jindi Sales Office set in the corner on Center Road.
Location
Center Road is the main pivot that runs through the area from east to west. The King Arrive Project Presentation Centre (金地瑞安江山壹品) is located at the street corner spreading along two directions. Being the intersection of the city grid, it naturally becomes a focal point for encounters.
Design

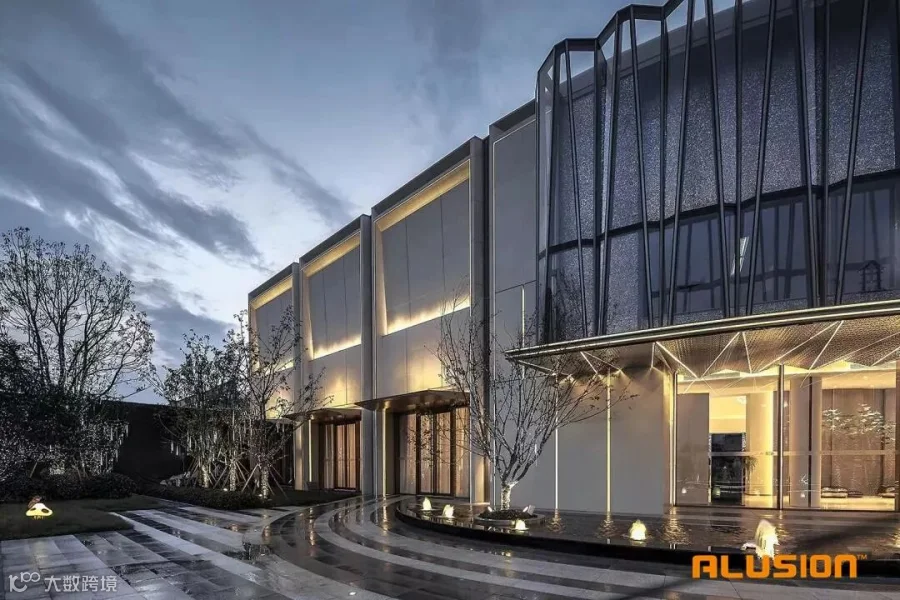

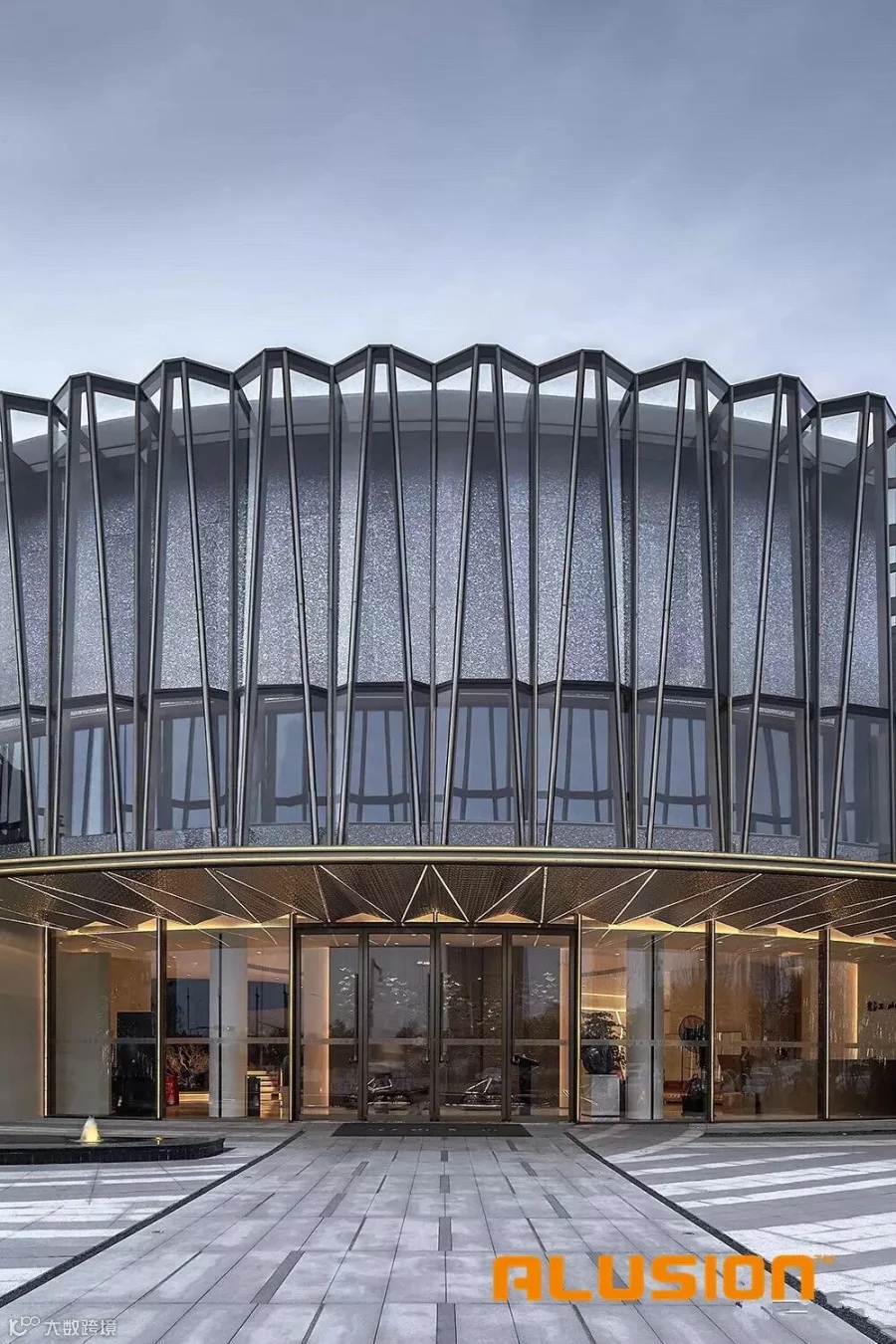

Due to the makeup of the corner and the total volume of construction, a quadrant arc is used to connect the corner’s two sides, forming a natural transition between the two interfaces. The unique qualities of the building are emphasized with diamond-shaped surfaces forming a glass-crowned effect using Cymat aluminum foam.
Despite the contrast between straight, curved, horizontal, and vertical lines, the difference between blurs and clearness is also included. That contrast creates a sculptural sensation, while the complementary relationship between materials is considered in order to form an organic whole.
Materials
The focal point of this design is the exploration and application of new materials:
Basic framework
Portuguese beige stones
Cool-toned glass
Champagne metal

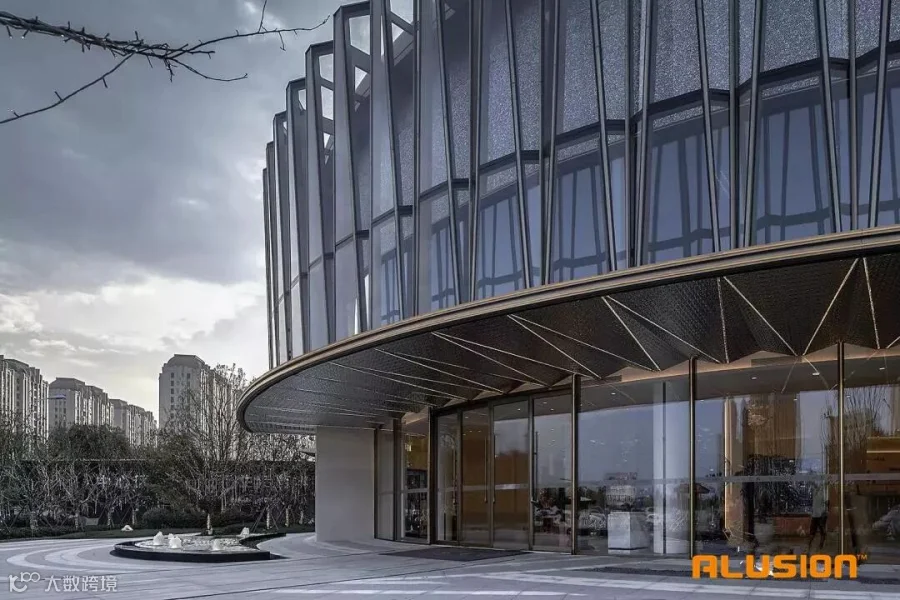

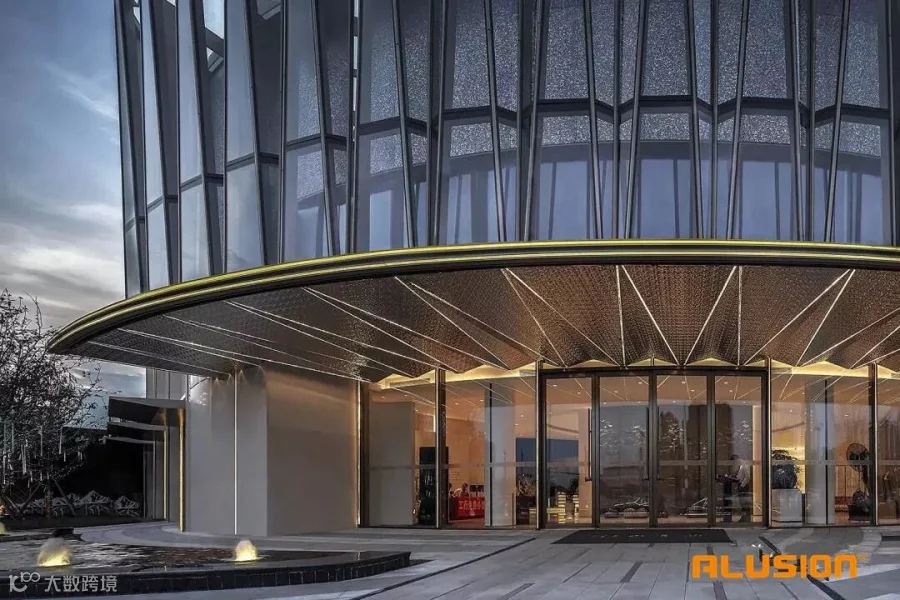

Canopy Bottom
Corrugated specular stainless steel

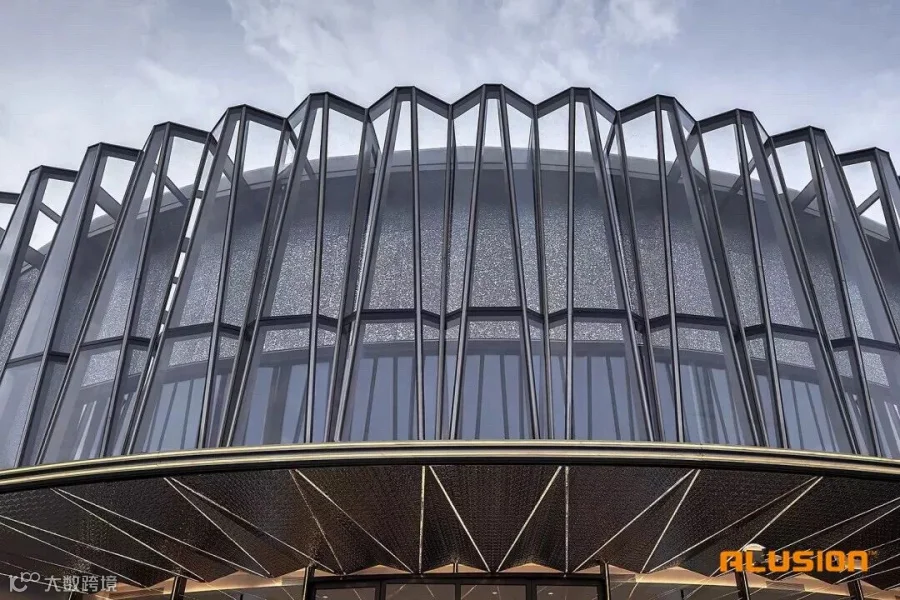

Glass Crown
Large-holed Alusion™ stabilized aluminum foam

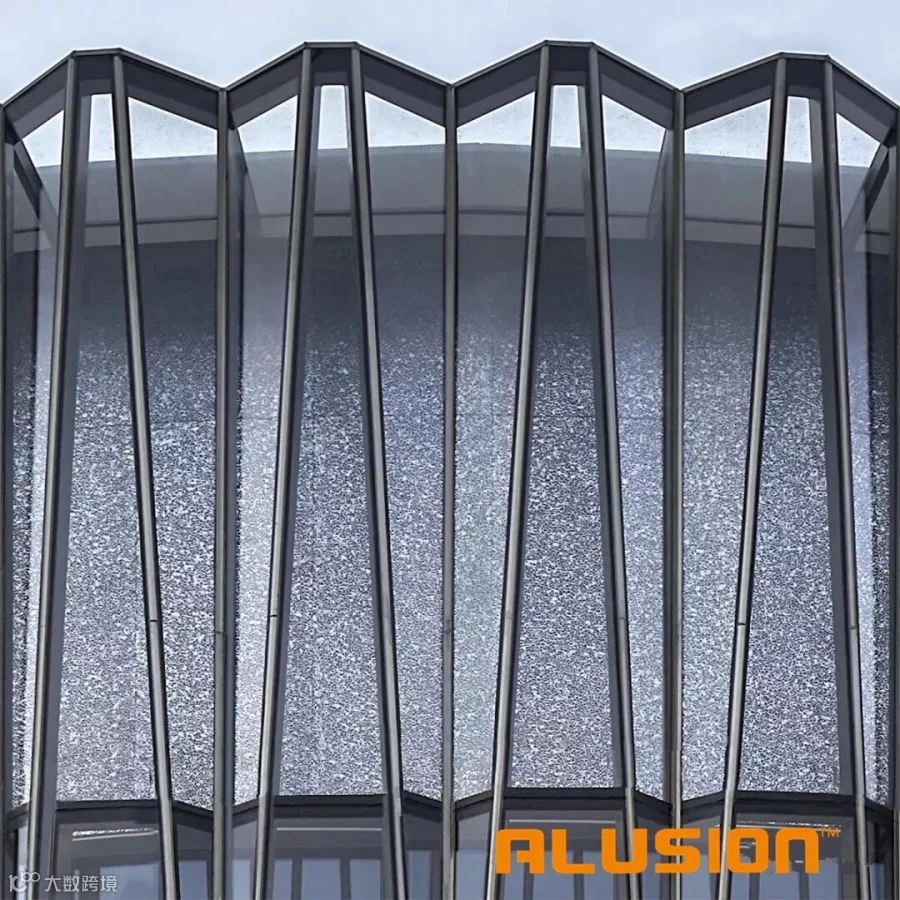

Alusion™ stabilized aluminum foam is placed on the back of the glass crown to create a secondary interface that allows the abstract texture of metal to be visible during daytime. When night comes, indoor lights can stream out of holes on the aluminum foam, shaping such the elegant street corner.
Project Details
| Year | July, 2019 |
| Project Panel Sizes | ALFG-25.4-LG-2S 1220mm x 2440mm |
| Standard Panel Sizes Available | 1220 mm in width, and up to 3.66 metres in length (custom longer panels also available) |
| Developer | Gemdale Corporation |
| Project Leader | Chu Shun Ping(储顺平) |
| Curtainwall Designer | Zhang Yuan Jun(张元军) |
| Architectural Design | Shanghai PTA Architects |
| Design Team | Second department |
| Principles | Yu Xiao Lei(余小雷)， Zhang Li Fu(张立夫) |
| Members | 王刚， 夏宇， 王众， 王昕， 李伟， 郭益伟， 宋汝阳，汪乐华，王翔 |
| Manufacturer of Alusion™ Aluminum Foam | Cymat Technologies Ltd. |
| China Exclusive Agent | Shanghai Good Metals co., Ltd. |
| Location | Ruian, Zhejiang, China |
| Area | 860m2 |
Alusion™ Aluminum Foam
Cymat’s Aluminum Foam, marketed under the trade name of Alusion™ for architecture, is a versatile material with virtually limitless design and architectural applications. Along with its unique appearance, it has sound-absorbing properties making it ideal for applications requiring both sound absorption and beauty.
Properties
100% recyclable, and contains up to 100% recycled content
Acoustic Absorption Properties
Non-Combustible with a flame spread of zero
Highly corrosion resistant
Format
Slabs / Plates / Panels
