Use
Exterior cladding
Applications
Residential
Characteristics
Recyclable, acoustic properties, non-combustible, corrosion resistant, various foam densities, impact resistant, easy installation
Format
ALFG-12.7-MD-1S - Mid cell one-side open top
Colors
Natural Aluminum Foam powder coated
Sizes
from 1.22 m x 2.44 m (up to 3.6 m long+)
More about this product
Project Details
| Architects | Dam en Partners architecten |
| Location | Amsterdam, Netherlands |
| Dates | 2018 |
| Metal Roof and Facade Systems company | Welmecon BV |
| Construction | Van Rossum Raadgevende ingenieurs |
| Client | Wonam |
Materials
ALFG-12.7-MD-1S

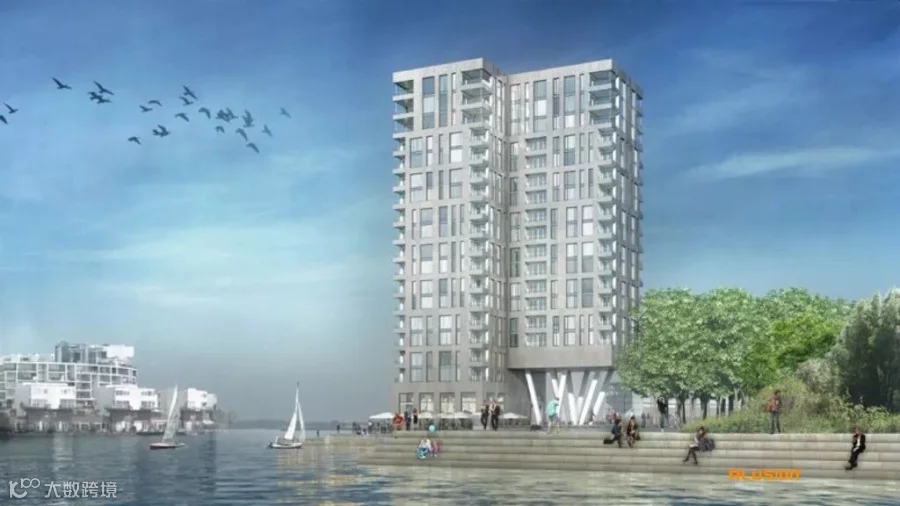

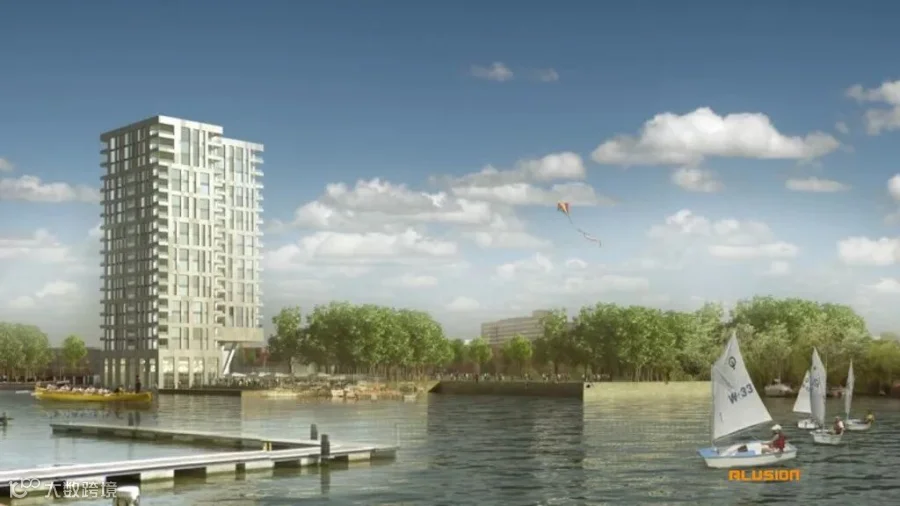

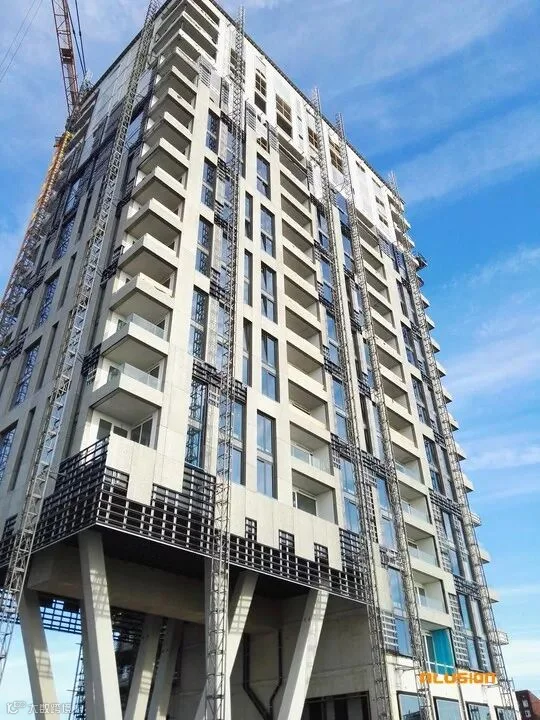

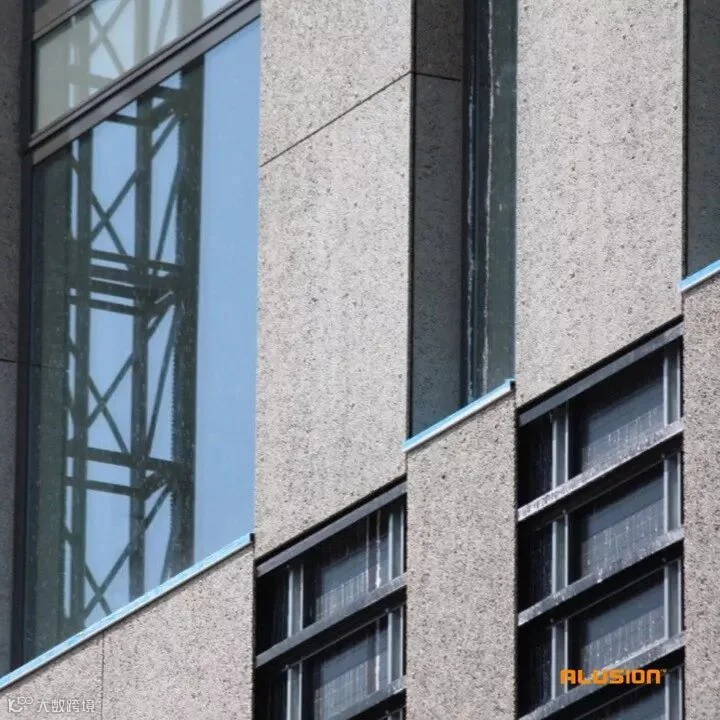

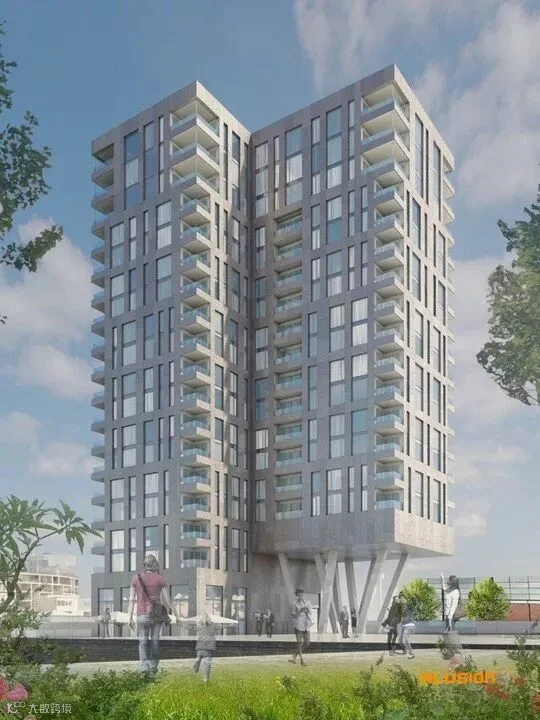

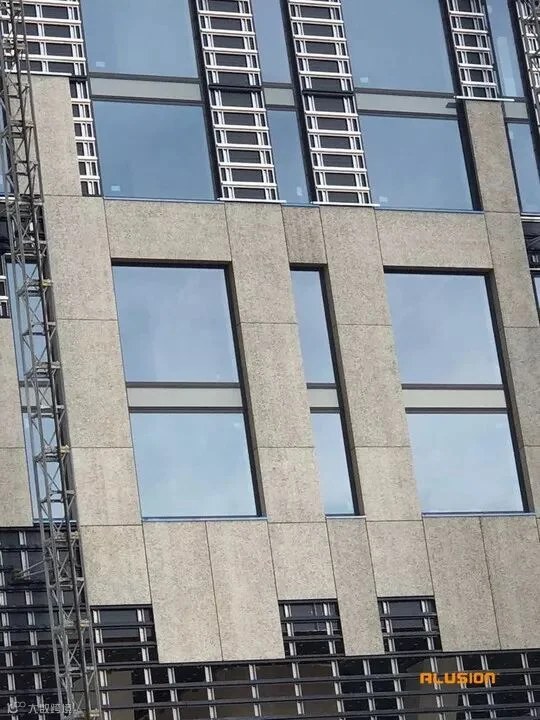

Steltloper Ertskade 5100m2 ALUSION™ Protech powder coated aluminum foam on the facade of the 19 storey apartment building in type: mid cell, one side top open.
Custom longer panels also available in Large Cell & Small Cell options.
Cymat Technologies is the sole manufacturer and provider of all the ALUSION™ Architectural Stabilized Aluminium Foam panels for this project.
ALUSION™ for architecture is a versatile and unique material with virtually limitless design and architectural applications. As well as its unique appearance, it has sound absorbing properties making it ideal for applications requiring both sound absorption and beauty.
The aluminum foam creates strong yet lightweight panels which are similar in appearance to a metallic sponge. ALUSION™ is visually striking, with a modern dramatic look.
The ALUSION™ product is composed of aluminum and contains a ceramic particulate which assists in stabilizing the aluminum cells (bubbles). This is also the reason why it is called “Stabilized Aluminum Foam (SAF)”. The material is flame and corrosion resistant in the same way as aluminum. It is also strain rate insensitive, isotropic, and stable at elevated temperatures. It exhibits acoustic / EMR absorption and vibration damping.
Dimensions
Standard panel sizes 1220 mm W x 2440 mm L, 1220 mm W x 3048 mm L, 1220 mm W x 3660 mm L.
Custom longer panels also available.
Large Cell, Mid Cell & Small Cell.
Other surface solutions
The ALUSION™ material can be resin coated, and as well treated with a specialized water jet cutting method (solely by Cymat Technologies Ltd). Special powder coats or paints can be applied onto the material which render the product 100% salt resistant and chemically resistant.
