Use
Interior and exterior cladding
Applications
Façades
Characteristics
Cellular cast aluminum foam, sound absorbing properties, strong yet lightweight panels, versatile material, contains up to 100% recycled content, corrosion resistant
Format
Panels
Sizes
Thicknesses: 12,7 mm (½”); 25,4 mm (1”) and 43.2 mm (1.7”)
More about this product

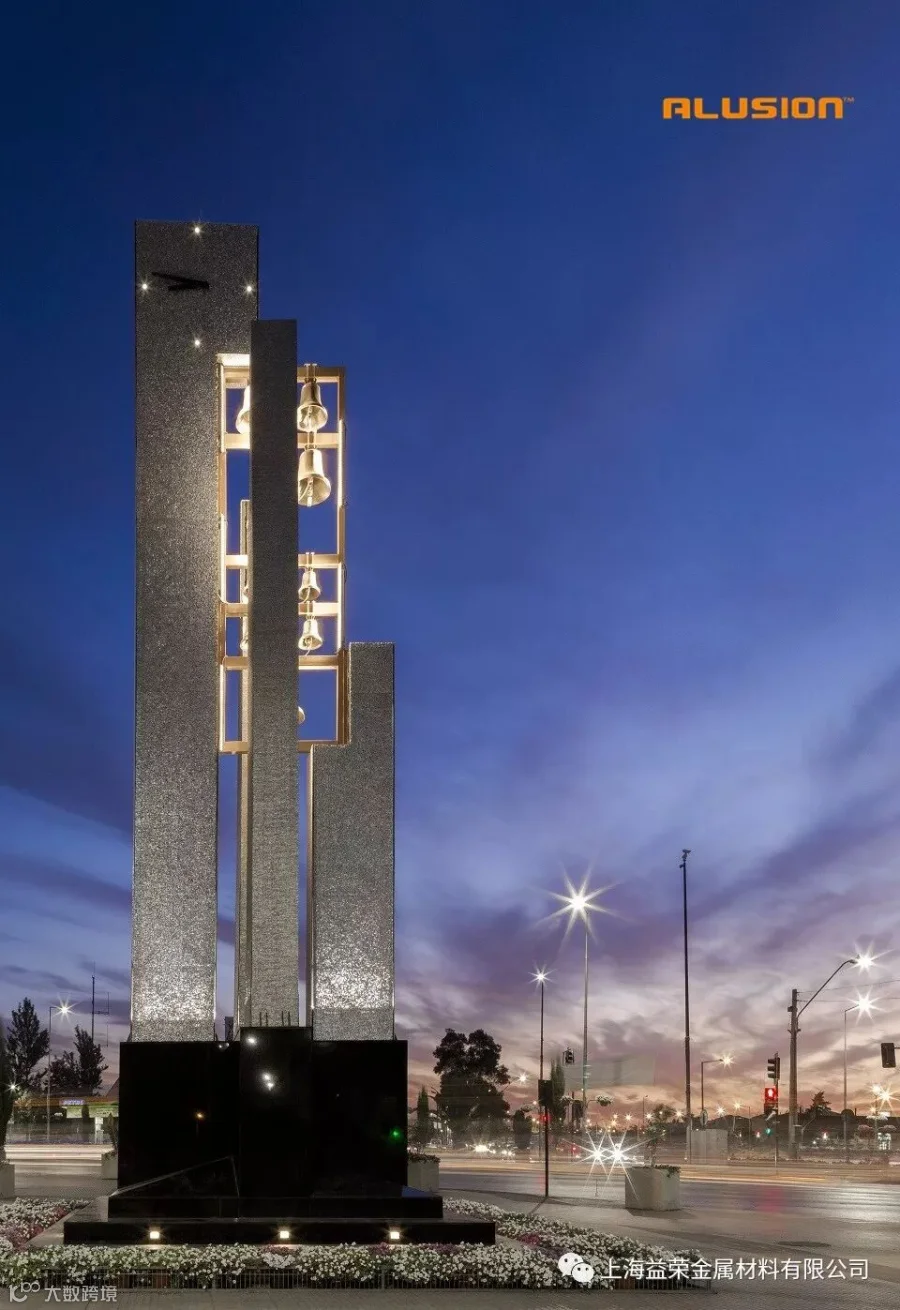

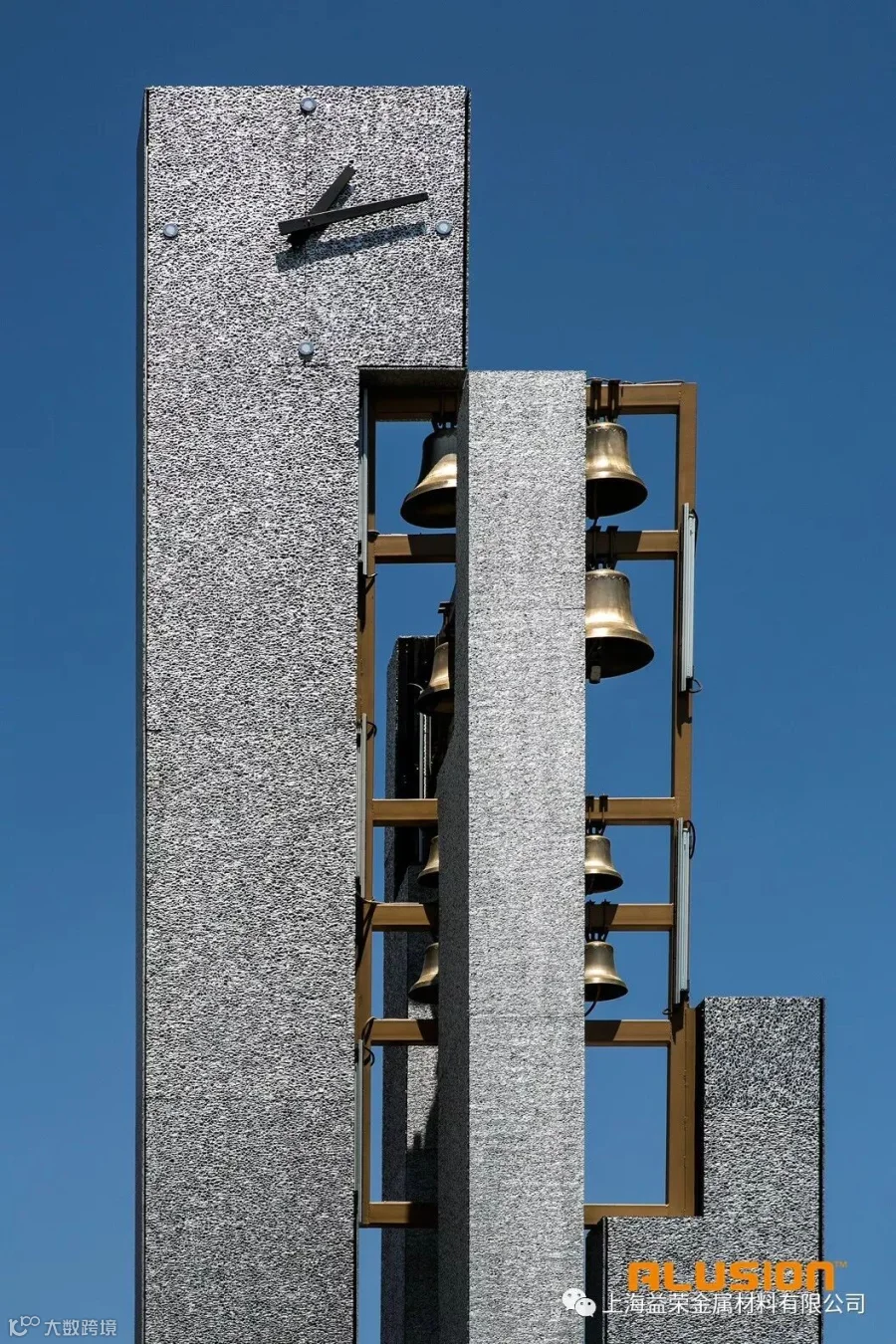

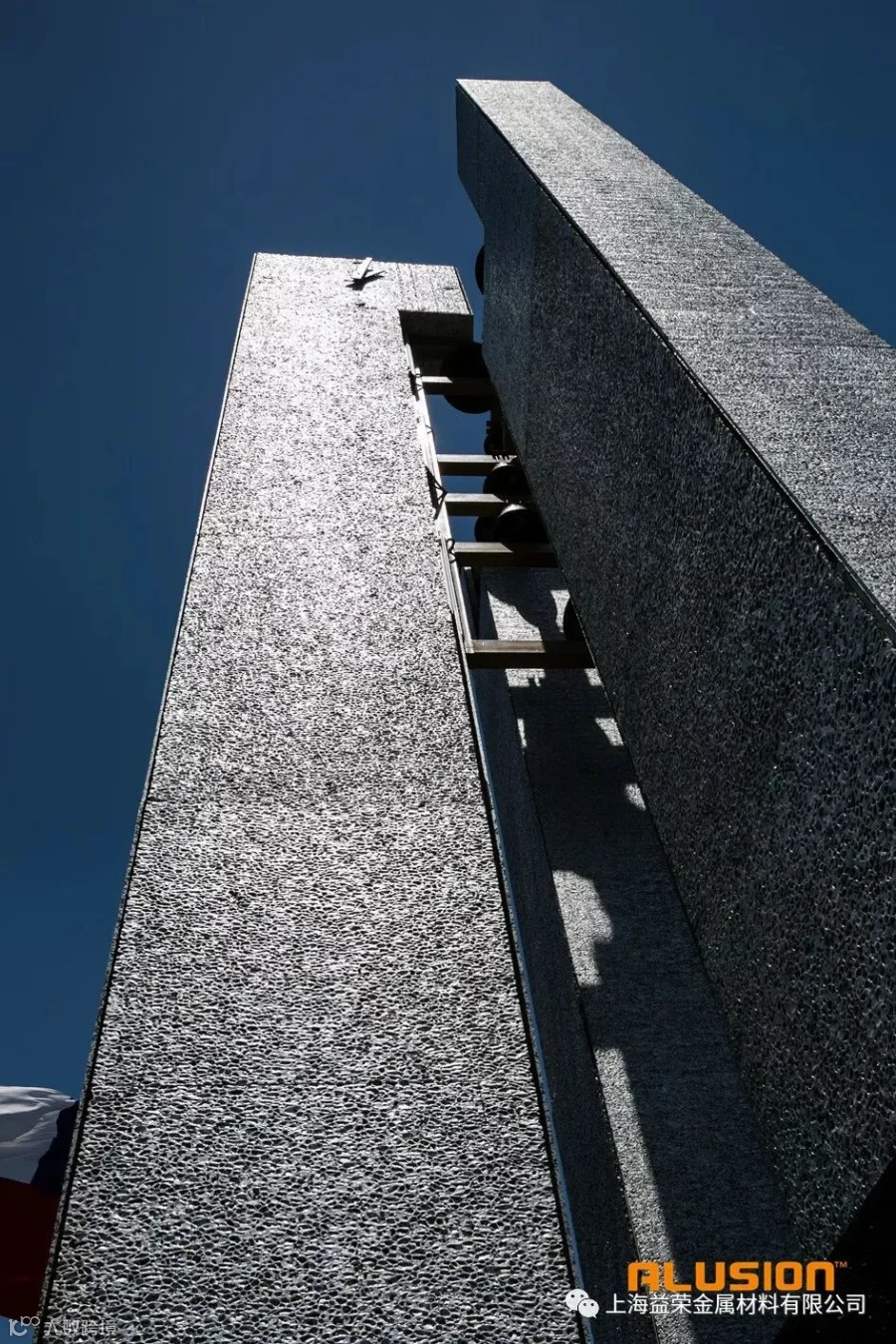

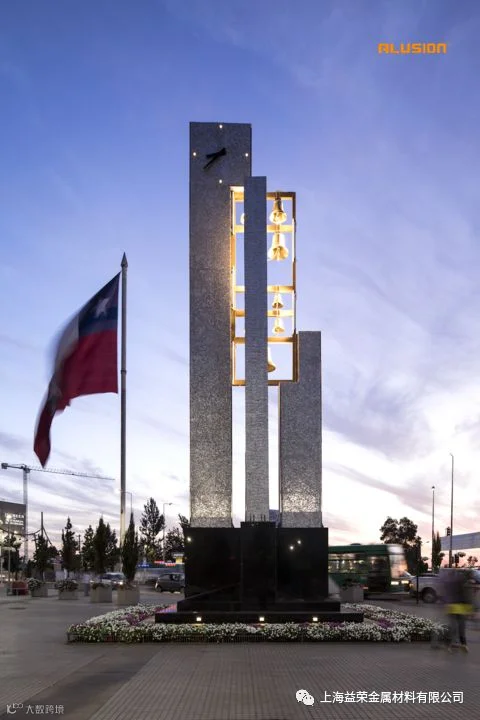

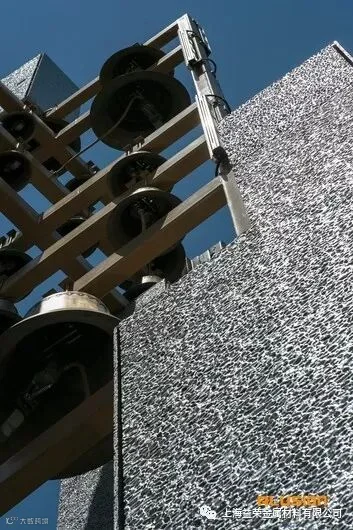

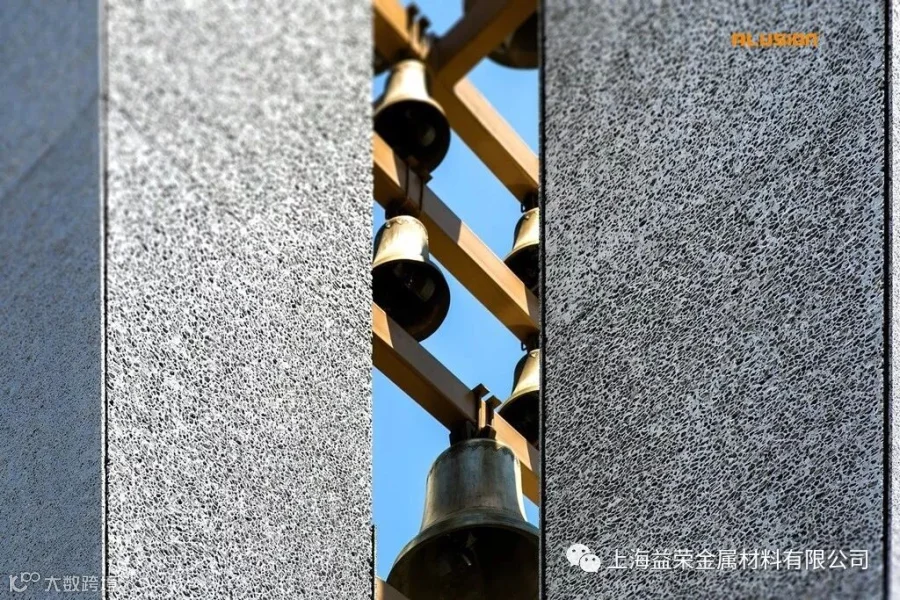

Cymat Technologies provided Alusion™ stabilized aluminum foam panels for the bell tower in Parroquia San Vicente de Paul's project, located in Municipalidad de La Florida, Chile.
Architect
Jaime Edis ScalpelloSpecification
Jaime Edis Scalpello Architect & Hunter Douglas ChileLocation
Santiago, ChileArea
500 sqm
Cymat’s Aluminum Foam, marketed under the trade name of Alusion™ for architecture, is an extraordinary and versatile material with virtually limitless design and architectural applications. Along with its unique appearance, it has sound absorbing properties making it ideal for applications requiring both sound absorption and beauty. It is used for facades, wall cladding, showroom displays, ceiling tiles, restaurants and bars, offices and apartment buildings, flooring, signs, lighting, fixtures exhibits etc.
Alusion™ Stabilized Aluminum Foam Properties
100% recyclable, and contains up to 100% recycled content
Acoustic Absorption Properties
Non Combustible with a flame spread of zero
Highly corrosion resistant
The strength, durability, and resilience of aluminum
Windload resistance of up to 356 km per hour (221 miles)
Alusion™'s foam creates strong yet lightweight panels. Similar in appearance to a metallic sponge, Alusion™ is visually striking, with a modern dramatic look. For architecture, it is produced in 12,7 mm (½”); 25,4 mm (1”) and 43.2 mm (1.7”) thick, and three densities (Large Cell, Mid and Small Cell). The surface of the material is either left in its solid form, as produced, or undergoes surface preparations that provide many different appearances from a solid surface “shimmering” look to a translucent “water froth” look
Alusion™ Large Cell - Open Both Sides (Translucent):
Through a specialized process, the aluminum skin on both sides of this low density material is removed to create a translucent panel; the material is extremely lightweight and allows light to pass through. While all Alusion™ panels are highly reflective, the front side of this panel may be even more reflective than others, even picking up the colour of well lit material at a reflective angle to the panel’.
Alusion™ Architectural Stabilized Aluminium Foam is a unique and visually stunning surface material which is more than skin deep. It provides beauty, strength and lightweight acoustic solutions for a variety of creative opportunities. The various versions of Alusion™ can be utilized for both interior and exterior applications. Alusion™ is produced by injecting air into molten aluminium, which contains a fine dispersion of ceramic particles. These particles stabilize the bubbles formed by the air.
