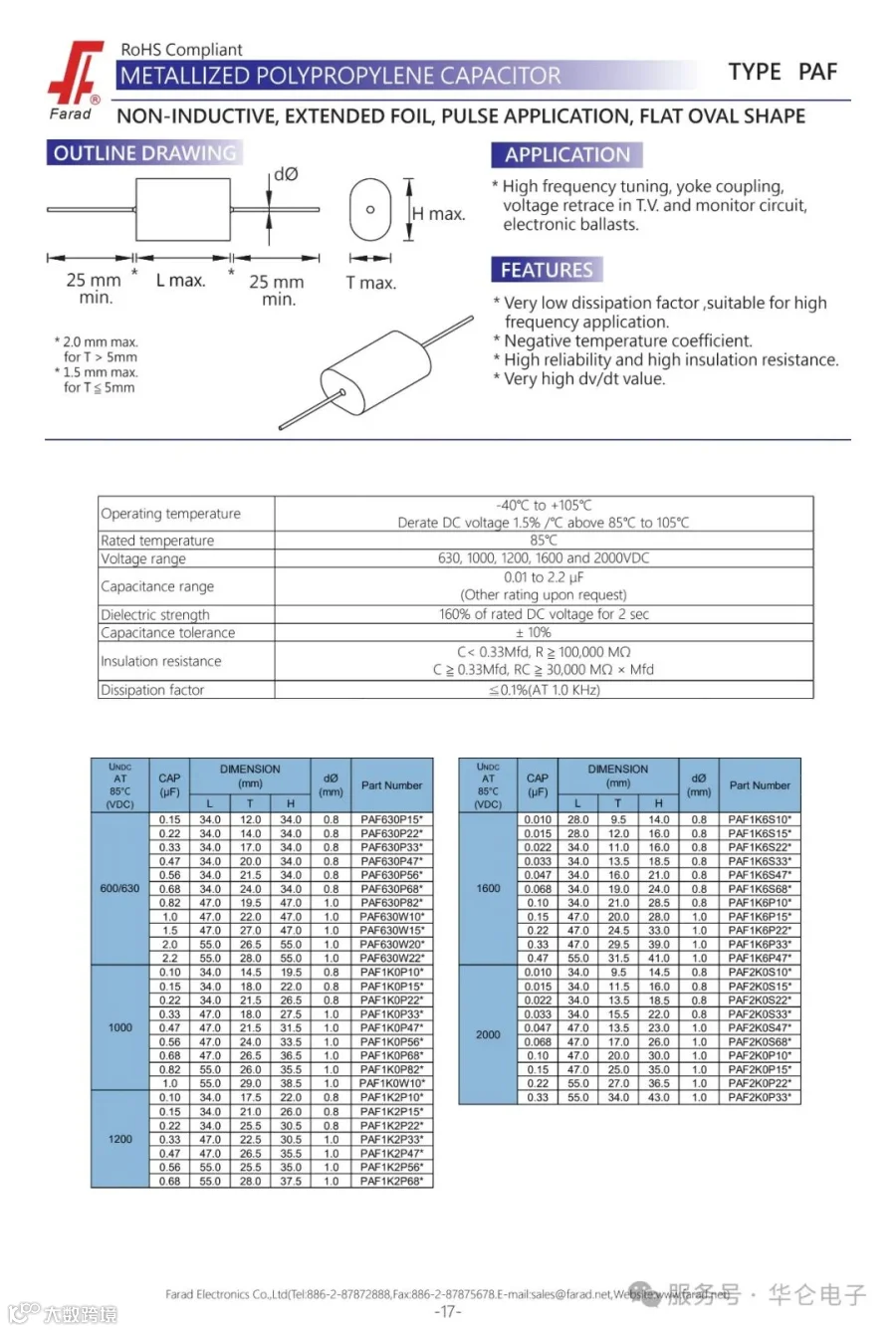

FEATURES:
1. Very low dissipation factor, suitable for high frequency application.
2. Negative temperature coefficient.
3. High reliability and high insulation resistance.
4. Very high dv/dt value.
APPLICATION:
High frequency tuning, yoke coupling, voltage retrace in T.V. and monitor circuit, electronic ballasts.
GENERAL SPECIFICATION:
1.Capacitance range: 0.01~2.2 µF
2. Voltage range:
630,1000,1200,1600 and 2000VDC
3. Operating temperature: -40℃ ~ +105℃
4. Dissipation factor: ≦0.1%(AT 1.0 KHz)
