CHINAPLAS 2021—华热与您相约12P21展位！

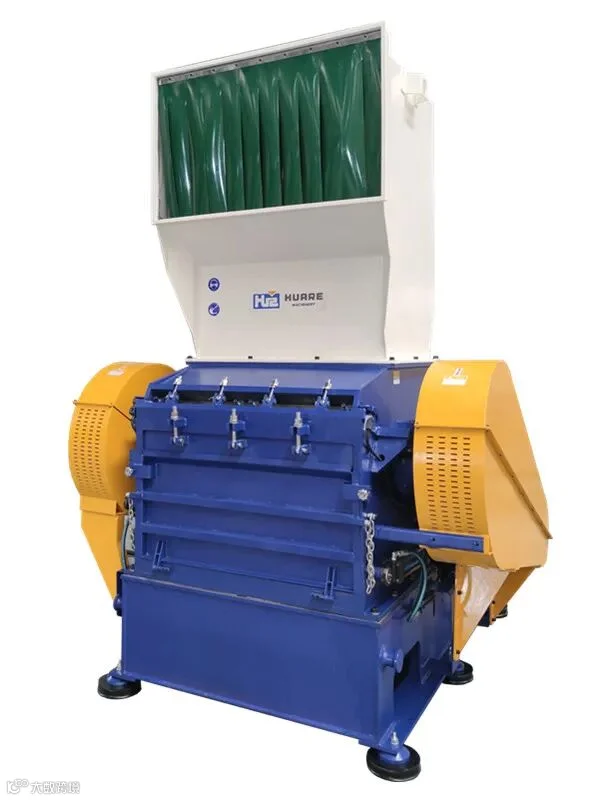

1.HZSH600-1000F/DZS 高性能节能型重型粉碎机

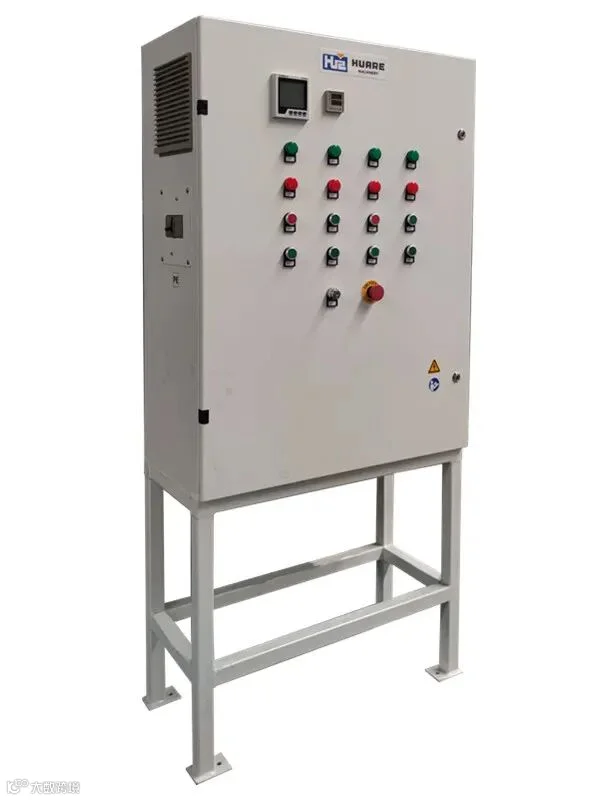

DZS粉碎机节能装置Energy-Saving Device For Granulator：

基于三相采样与快速响应，采用可控硅输出，升级替代常规粉碎机电气控制系统，自带高性能软启动，并可有效节能。

Based on three-phase sampling and quick response, using thyristor output, upgrading and replacing the conventional electric control system of crusher, with high-performance soft start, effective energy saving.

性能特点Special Features：

a.超强带载动态软启动；

Super dynamic soft start with load

b.大幅度降低电能消耗；

Great energy saving；

c.三相电压电流自适应平衡；

Adaptive balance 3-Phase voltage and current

d.优化磁场，提高电磁转化效率；

 Optimize magnetic field，

Improve electromagnetic conversion efficiency

e.减热损、降温升，改善电机品质；

Reduce heat loss and temperature rise，Improve operation quality

f.提高电机效率和功率因数；

lmprove motor power factor and efficiency

g.延长电机寿命；

Prolong motor service life

h.实时负载跟踪；

Real time load tracking

i.稳定控制,高可靠性

Steady control and high reliability

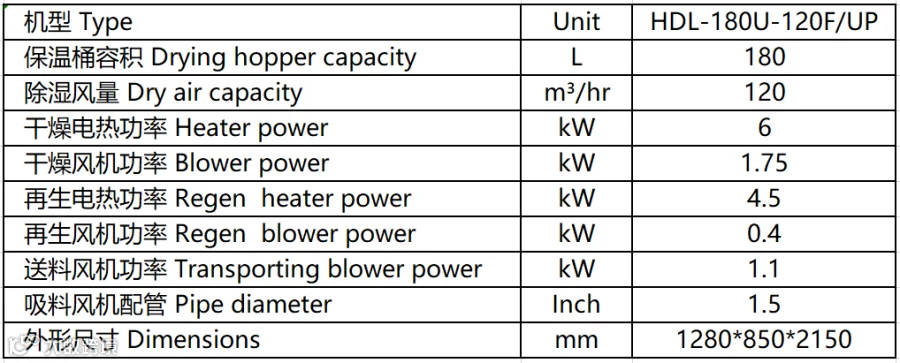

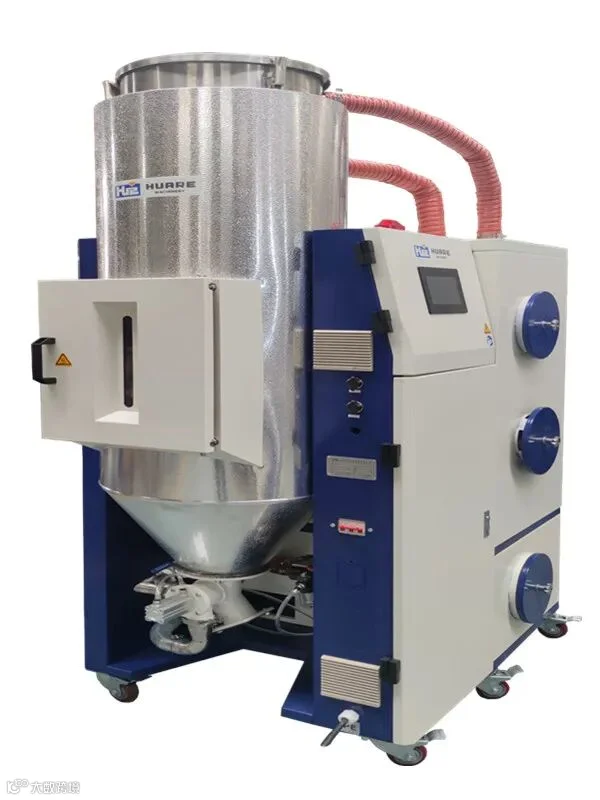

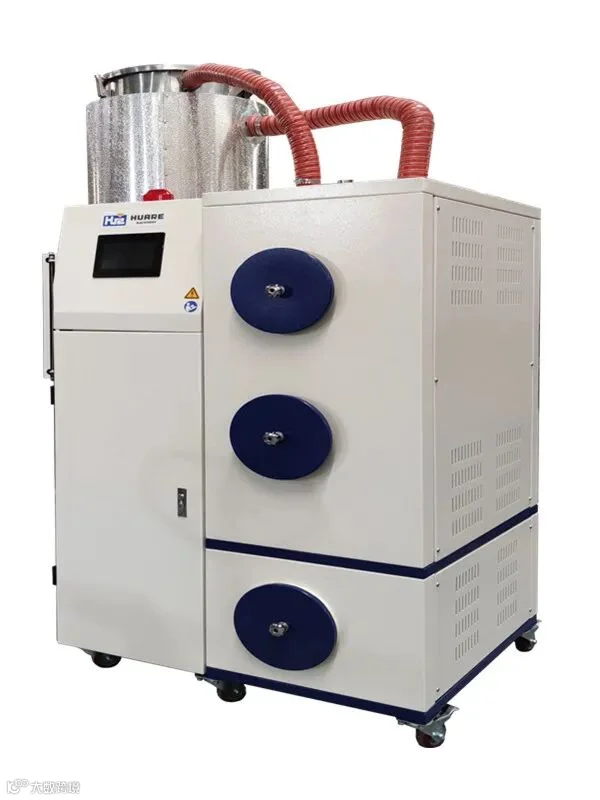

2.高性能低露点除湿干燥上料组合HDL-180U-120F/UP

性能特点Special Features：

a.采用进口蜂巢转轮除湿装置，可提供稳定的-40°以下低露点干燥风；

Imported dehumidification honeycomb wheel  device can provide stable -40° below dew point dry wind.

b.标准配置高分辨率触屏控制器，人机交互性好，操控便利;

Standard configuration high resolution touch screen controller, good human-computer interaction and convenient operation.

c.采用PID温度控制，可精确有效控制干燥与再生温度;

Using PID temperature control, can accurately and effectively control the drying and regeneration temperature.

d.全不锈钢双层保温式料桶采用下吹风管设计，能有效减少热能散失，提高干燥效率;

All-stainless steel double-layer thermal insulation material barrel, down blowing pipe design, can effectively reduce the heat loss and improve the drying efficiency.

e.全封闭式送料系统+截料式吸料盒，可避免干燥后的原料回潮;

Fully enclosed feeding system + cut-off suction box, can avoid the re-moisture of raw materials after drying.

f.具有干燥超温、再生超温、马达过载、逆缺相等保护、以及冷却温度及回风温度显示等功能;

It has the functions of drying over-temperature, regeneration over-temperature, motor overload, reverse phase & lack phase protection, and cooling temperature and return air temperature display.

g.集除湿、干燥、二段送料于一体。

Integrate Dehumidifying & Drying & Two-stage feeding Three in One.

选配项目 Optional Projects：

露点仪、HLINK联网功能、三段送料一对二功能可选配;

Dew point meter, HLINK networking function, Three-stage feeding and one-to-two function can be optional.

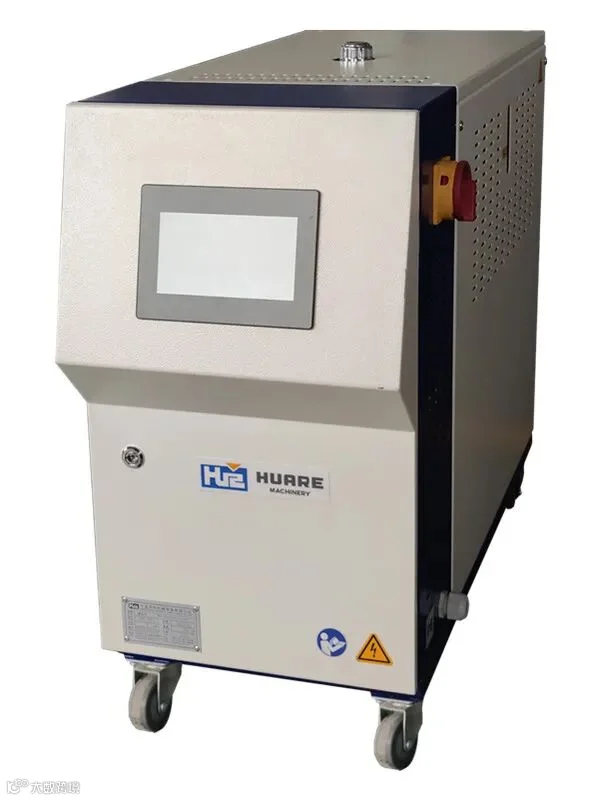

3.HMC-9HT油式300度高温模温机

a.采用模温专用液晶显示微电脑控制器，显示直观，操作简单，性能稳定，功能完善;

b.双路PID模糊控制算法，高精度调节媒介温度，控温精度:±1度;

c.异常故障警示准确直接，LCD面板输出警报文本,蜂鸣器提醒用户;

c.电气配电箱采用隔离设计，散热好;

d.结构合理，维修方便，安装容易，便于操作;

e.HT系列采用SPECK磁力驱动高温泵，耐高温，压力高，性能稳定;

f. HT系列标准配置泵浦过载，逆缺相保护，缺油保护，超温保护，

g.超压保护等多项安全保护，确保使用安全可靠;

可选配:多口分流管、压力显示、回媒温度显示、HLINK联网功能、高分辨率触屏人机界面等要求;
