Why are solar module products basically black nowadays? What are the technical considerations behind this? If the roof wants to be another color, is a solar roof possible?
Why are solar modules generally black?
The core mission of solar modules is to capture solar energy and convert it into electricity, and the choice of color is never an aesthetic issue, but a “comprehensive trade-off between efficiency and practicality”, and the reason why black has become the mainstream is to maximize the power generation efficiency.

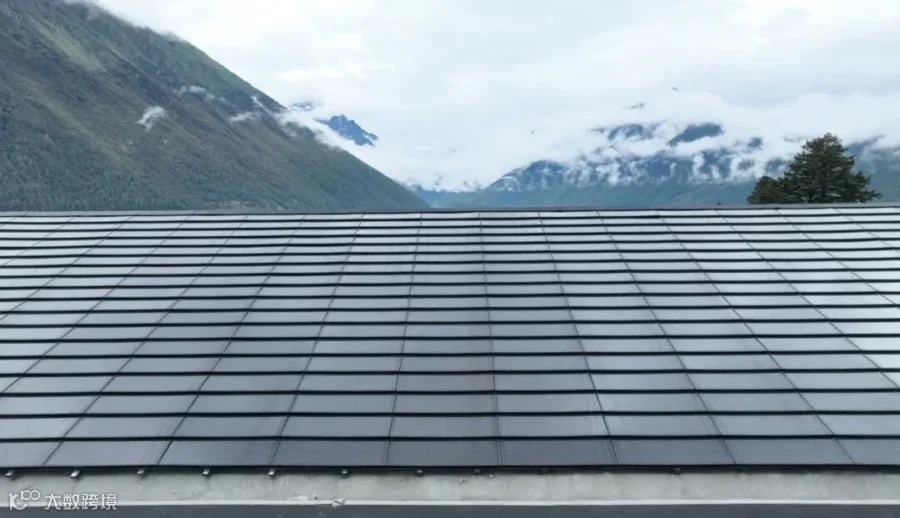

From the core material point of view, common solar modules are divided into monocrystalline silicon and polycrystalline silicon two categories. Monocrystalline silicon modules usually appear pure black due to their uniform crystal structure, while polycrystalline silicon modules have a dark blue color with speckled appearance.
These two dark colors are not deliberately designed, but the material characteristics of the decision - silicon material on the visible and near-infrared light absorption ability is the strongest, dark surface can reduce the reflection of light, so that more photons into the cell internal excitation of the electrons, to enhance the photoelectric conversion efficiency.
From the perspective of cost and durability, black is also more advantageous. Solar module frames are mostly anodized, with silver (the original color of aluminum) having the lowest cost, but black frames are in harmony with the dark cell tones and have comparable corrosion resistance to silver, with the cost being only slightly higher than that of silver and much lower than that of other color coatings. For the pursuit of cost-effective large-scale power plants, black components is undoubtedly the optimal choice.
To break the monotony: color solar roof tile technology breakthroughs
1. Physical structure color technology: value and efficiency at the same time

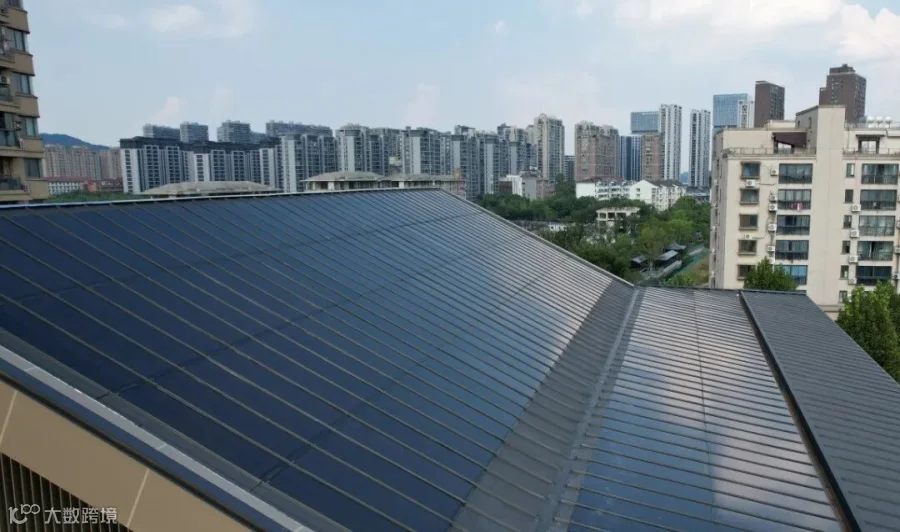

As Building Integrated Photovoltaic (BIPV) becomes a trend, roofs are no longer just a vehicle for shelter from the wind and rain, but also an extension of architectural aesthetics. Traditional black solar roof tiles are not compatible with diverse architectural styles, which not only destroys the overall sense of design, but also limits the application of photovoltaic technology in featured buildings.
Sangobuild, as one of the first photovoltaic companies in China, has developed a new type of colorful solar roof tiles, which not only solves the problem of color, but also maximizes the power generation efficiency, and makes the “symbiosis of power generation and aesthetics” from a concept to a reality.
2. Perfectly match the diversified needs of the building

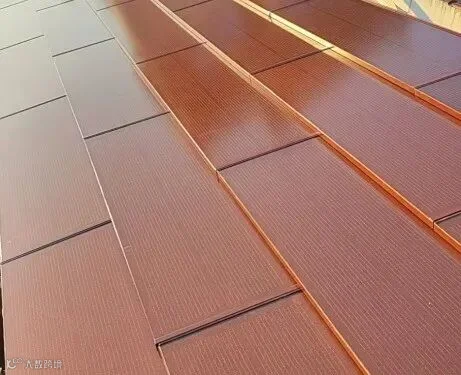

If the structural color technology focuses on “aesthetics of science and technology”, then the material and process modification focuses on “scenario adaptation”, so that the solar roof tiles can accurately fit different architectural styles. By adding special pigments and nanoparticles to the front panel of solar roof tiles, and adopting vacuum coating, digital printing and other precision technologies, the tiles can be customized to produce solid and gradient color effects, as well as to reproduce traditional textures such as wood grain, stone grain and green brick and tile.
Sangobuild solar roof tiles accurately hit the needs of ancient building restoration and new Chinese architecture, making solar roof tiles become “electrified cultural symbols” and realizing green power generation while preserving the architectural flavor.
In the future, with the maturity of photovoltaic technology, color solar roof tiles will achieve a further balance between efficiency and value, and the cost will gradually decline. By then, solar roof tiles will no longer be monotonous power generation roofing materials, but can be integrated into buildings, transportation, municipal facilities, “color energy canvas” - office building roofs are colorful solar roof tiles that can generate electricity, residential roofs are custom-colored solar roof tiles, and even the roofs of special landscape buildings can be covered with custom-colored PV tiles. office roofs are colorful solar roof tiles that can generate electricity, residential roofs are custom-colored solar roof tiles, and even the roofs of distinctive landscape buildings can be covered with custom-colored solar roof tiles, allowing green energy and aesthetics of life to merge seamlessly.
