| Technical parameter | |

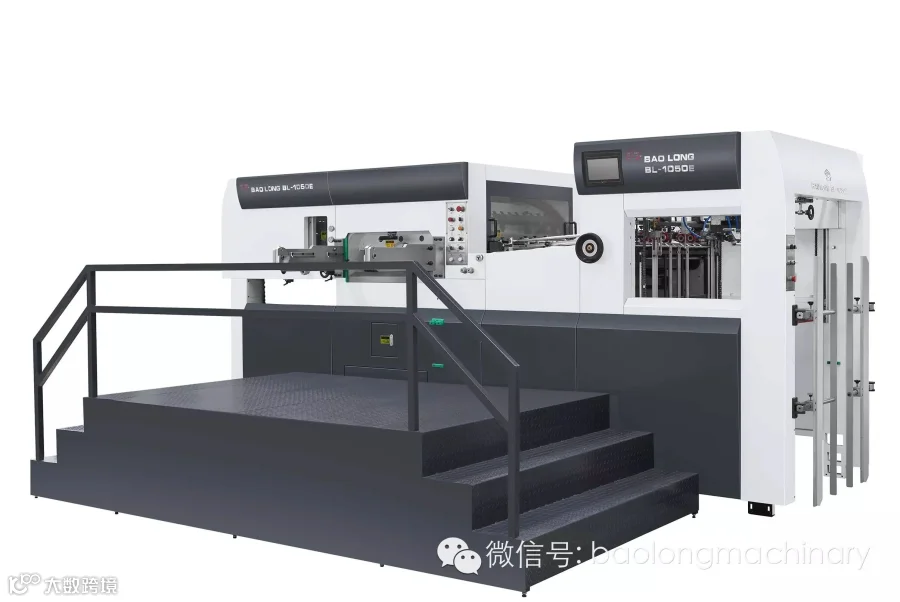

| machine name | BL-1050E |
| max sheet size | 1050 x 750 mm |
| min sheet size | 400 x 360 mm |
| max feeder pile height | 1500 mm |
| max delivery pile height | 1400 mm |
| max die cutting size | 1040 x 720 mm |
| inner chase size | 1140 x 750 mm |
| cutting rule height | 23.8mm or 23.6mm |
| stock range | 80~2000g/m² cardboard， |
| thickness≦4mm corrugated paper. | |
| die cutting accuracy | ≤ ± 0.075 |
| Min.holding width | 8 mm can do no grip |
| max die cutting speed | 7500 sheets/hour |
| max pressure rigidity | 300 T |
| air requirement | dispacement 0.36m³/min,discharge pressure:0.6-0.7Mpa |
| power required | 380V/50HZ three-phase and four-wire |
| overall power | 19 kw |
| net approx weight | 15T |
| overall dimension | 6350 x 4250 x 2350 mm |
