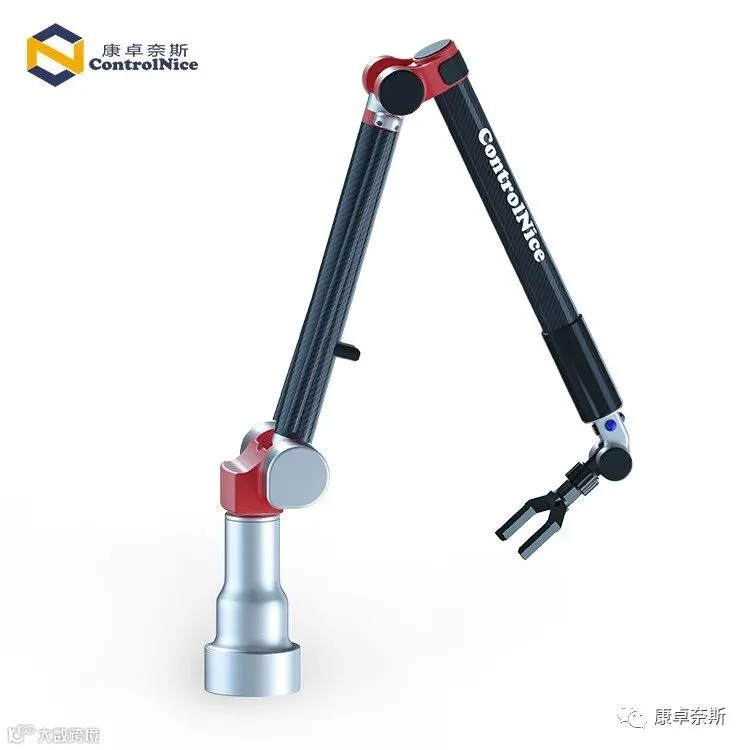

产品外观详情

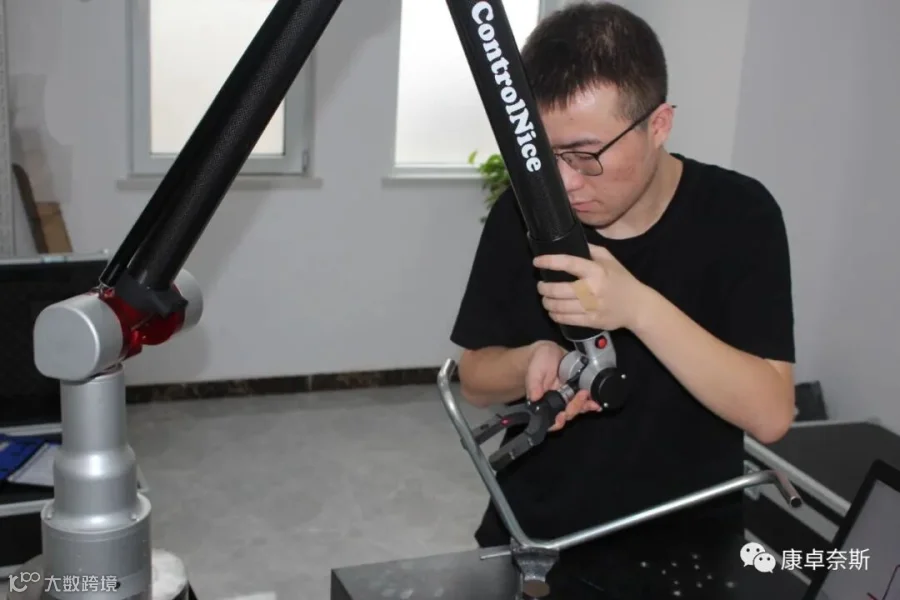

实际操作
Functional characteristics
功能特点

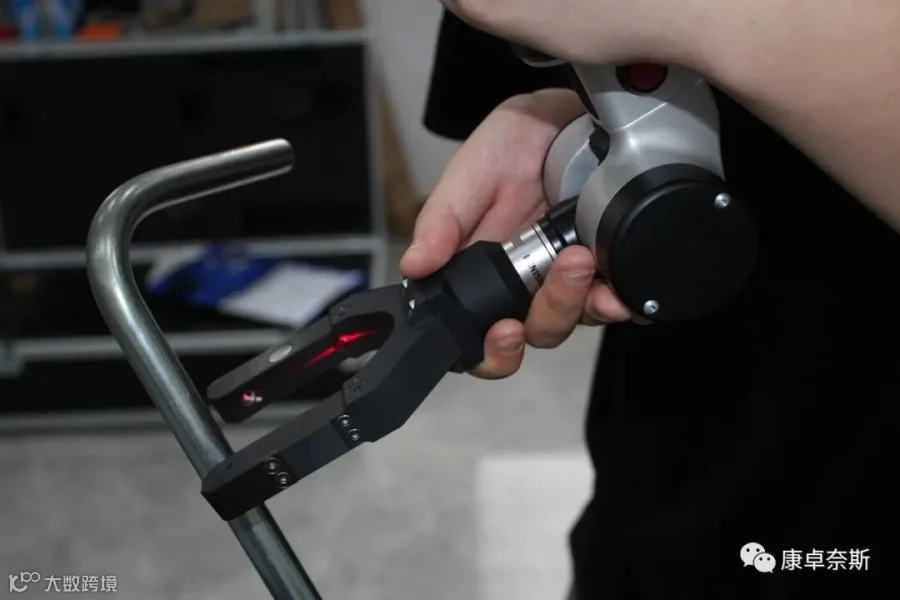

Measurement with a non-contact laser fork or a contact hard probe
★用非接触激光叉或接触式硬测头测量
Measuring Tube
★测量直管
Measuring Bends (straight and curved)
★测量弯管（直段及弯曲段）
Measure continuous bend (no straight section, continuous bend)
★测量连续弯管（无直段，连续弯曲）
Pipe fittings can be measured using a scaling method
★可使用比例缩放的方法测量管件
Pipe fitting diameter can be changed during measurement
★可在测量过程中改变管件直径
Capable of measuring branch pipes welded to main pipe fittings except main pipe fittings
★可测量除主管件外，焊接于主管件上的支管
Measurable RCV (Variable Radius) fitting
★可测量RCV(变半径）管件
Pipe fitting with measurable non-circular Cross section
★可测量非圆截面管件
Contrast and correction
对比和修正
Can Be Bending machine for comparison and correction
★可联系到数控弯管机进行对比与修正
Rebound Correction (20-120)
★回弹修正（20-120）
Alignment: Alignment of measured actual and theoretical pipe coordinates can be compared and analyzed
★对齐：可将测量的实际管件与理论管件坐标对齐进行对比分析
You can customize the material for rebound compensation and apply it to the pipe bending program
★可以为回弹量的补偿自定义材料，并应用到弯管程序中
Document management
文档管理
Generate pipe document and main document
★生成管件文档和主文档
Automatic search in documents
★在文档中自动搜索
Generate, modify, and print pipe fitting models to:
★生成、修改和打印管件模型以：
- CARTESIAN coordinate system
★-笛卡尔坐标
- polar coordinate system (value of YBC)
★-极坐标系（YBC的值）
- Double Cartesian coordinate system
★-双笛卡尔坐标系
- Pipe Bender coordinate system
★-弯管机坐标系
Data output
数据输出
Output data using RS232 interface
★使用RS232接口输出数据
Electronic Gage
电子量规
Graphical representation of measured fittings
★图形化表现已测量的管件
Graphical representation of overlapping parts inserted into the main body (flanges/holes/including small branches)
★图形化表现插入到主体（法兰/孔/包括小的支管）中重叠部分
Manual or automatic positioning of pipe fittings within gauge
★在量规内进行手动或自动的管件定位
RCV fitting (variable radius fitting)
★RCV管件（可变半径管件）
It can measure non-equal bending radius and continuous bending pipe fittings without straight section and variable rotation direction
★可测量非等弯曲半径和无直段变旋转方向连续弯曲管件
Measure the mixture of RCV pipe fitting and equal bending radius pipe fitting
★测量混合了RCV管件及等弯曲半径管件
SET RCV and RCV hybrid fittings from file
★从文件中设置RCV和RCV混合管件
Program for automatic correction of RCV and RCV mixed pipe fittings
★自动修正RCV和RCV混合管件程序

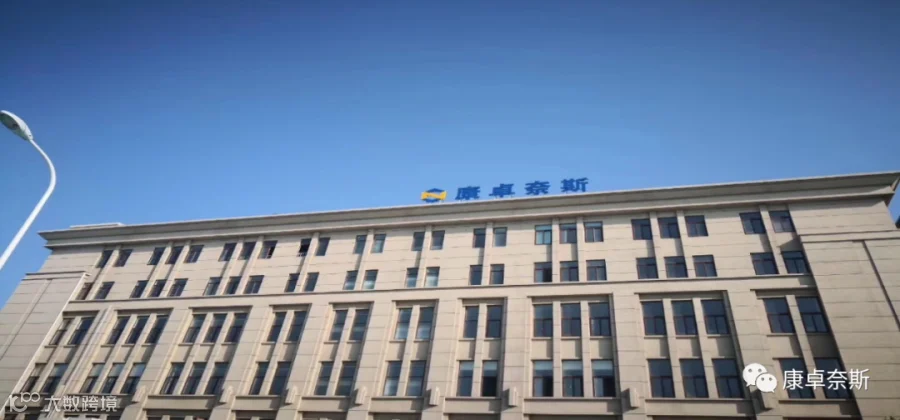

康卓奈斯公司介绍
康卓奈斯意大利制造总部，成立于1988年，位于美丽的古城---维罗纳。康卓奈斯中国区总部位于天津市，负责中国市场康卓奈斯系列关节臂产品的所有销售、维修、校准等工作，办公面积超过1800平方米，有完善的售后维修中心，备品备件库，校准实验中心以及培训场所等，亚太地区的备品备件库设在中国天津，备品备件每月更新一次。为了更好的服务中国市场，并在宁波、重庆、上海、兰州、苏州设立分公司，主要服务于中国的汽车制造、航空航天、船舶制造、模具制造、工程机械、机械自动化、电气能源、风电行业、轨道交通、钢铁、军事工业、新能源、建筑装修等领域等相关行业。
