优质|纸管设备专业制造商 Professional Manufacturer Of Paper Tube Equipment |
公司简介 COMPANYPROFILE
汕头市康泰盛机械科技有限公司位于广东省汕头经济特区，成立于2016年，专业生产原纸高速分条机、数控卷纸管机、数控切纸管机、多刀精切纸管机、数控纸管倒角/角机等纸管系列设备。我们是一家集设计研发、生产和销售于一体的专业机械设备生产厂家，产品特点具有设计科学、用料扎实、做工精良、机械精度高、操作方便等特点，自投放市场以来，以高性价比赢得用户的青睐，畅销全国各地。
汕头市康泰盛机械科技有限公司在2020年被评为“广东省守合同重信用企业”，依托制造业发达的汕头经济特区有利环境，坚持和大力推广优质的产品和服务，致力为客户创造无限商机及增强客户之竞争力。公司有专业的研发团队和技术团队，严格品控每一道工序，为产品的质量提供坚实的保障。公司根据客户要求设计与制造，全力支持私人定制自动化设备，新款和非标定做机械欢迎来电咨询洽谈。我们坚信:把客户的利益放在第一位，这才是经营的生存之道。携手并进，共创辉煌!
Shantou kangtaisheng Machinery Technology Co, Ltd, located in Shantou Special Economic Zone, Guangdong Province, wasestablished in 2016, specializing in the production of paper tube series equipment such as base paper high-speed slitting machine,NC paper tube winding machine, Nc paper tube cutting machine, multi knife fine paper tube cutting machine, NC paper tubechamfering angle grnding machine, etc, we are a professional mechanical equipment manufacturer integrating design, R & Dproduction and sales, Our products are charactenzed by scientiic design, solid materials, excelent workmanship, high mechanicalprecision and convenient operation. Since they were put on the market, we have won the favor of users with high cost pertormanceand sold well all over the country.
Shantou kangtaisheng Machinery Technology Co, Ltd. was rated as "Guangdong contract abiding and trustworthy enterprise" in2020, Relyving on the favorable environment of shantou Special Economic Zone with developed manufacturing industry, it adheres toand vigorously promotes high-quality products and services, and is committed to creating unlimited business opportunilies forcustomers and enhancing their competitiveness. The company has a professional R & D team and technical team to strictly controleach process of quality and provide a solid guarantee for the quality of products. The company designs and manufactures accordingto customer requirements, and fuly supports private customized automation equipment, new and non-standard customizedmachinery. Welcome to inquire and negotiate. We firmly believe that puting the interests of customers first is the survival way ofbusiness. Go hand in hand to create brilliance!
荣誉证书 CERTIFICATE
使命:创新行业精品机械，提高客户品牌价值!
Mission: innovate high-quality machinery in the industry and improve customer brand value!
目标:成为一家在纸管设备领域中具有国际化品质的企业!
Oblective: to become an enterprise with international quality in the field of paper tube eauipment!
价值观:为客户创造价值，为员工创造幸福，为企业创造财富，
Values: create value for customers, happiness for employees and wealth for enterprises!

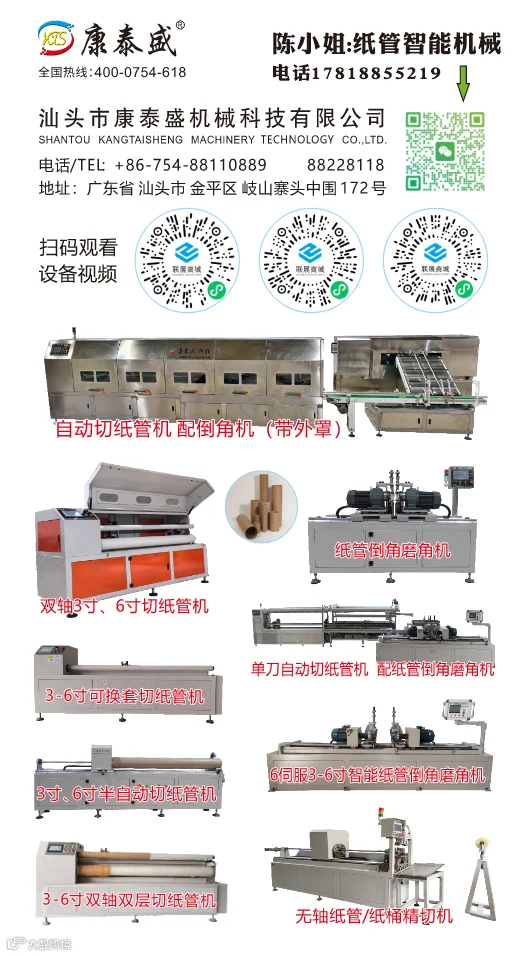

（部分）机器设备介绍

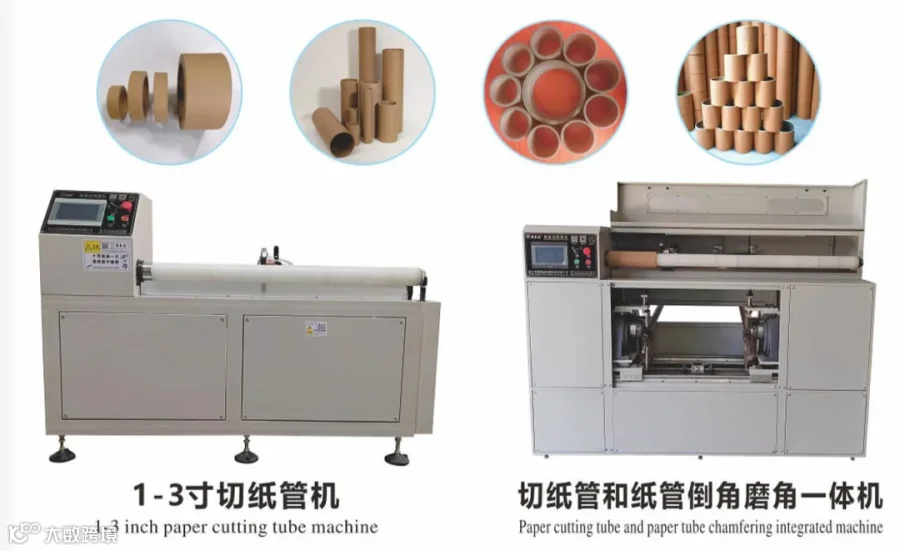

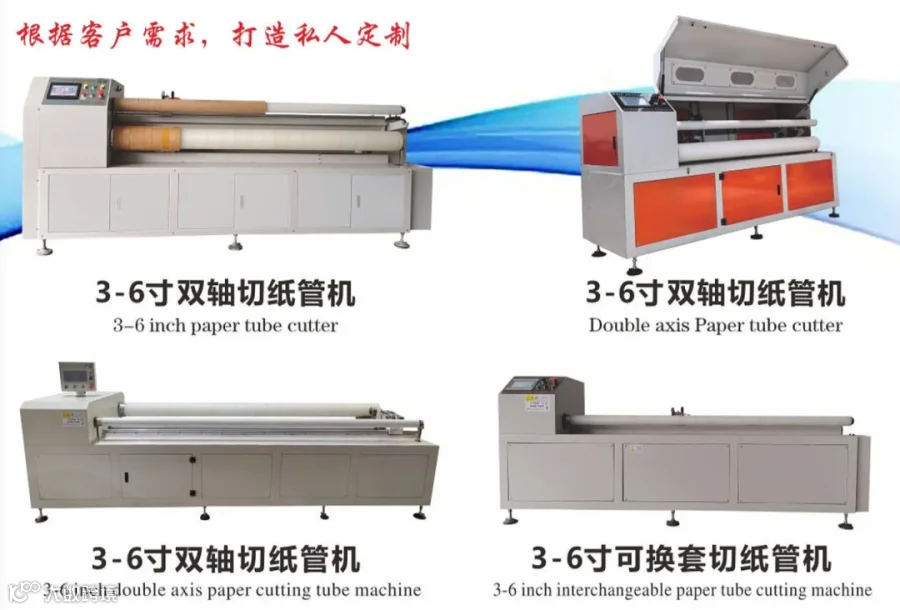

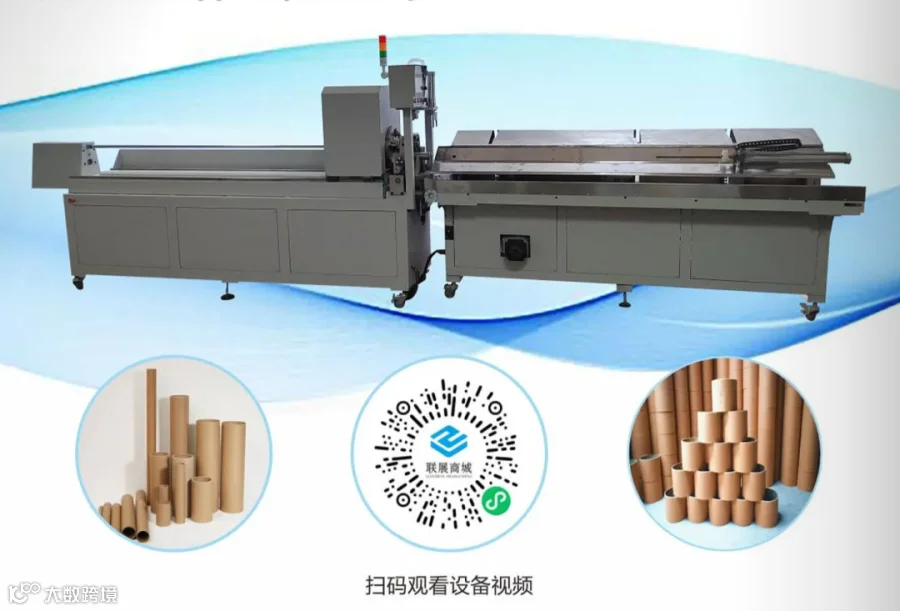

单刀自动切纸管机 配纸管倒角磨角机
Single blade automatic paper cutting tube machine with paper tube chamfering and grinding machine
所有机型均可根据客户需求，打造私人定制
主要功能
采用微电脑长度设定、切断长度准确;人机界面及专用操作系统，操作简便。单轴自动进出，提高效率同时减轻了操作人员穿管的工作量。卸管后连接输送到纸管磨角倒角机，具有了与其他后加工或打包处理的设备进行流水线对接口。
Main functions
Adopting microcomputer length setting and accurate cutting length; Human computer interface and dedicated
operating system, easy to operateSingle axis automatic entry and exit improves efficiency while reducing the workload of operators threading pipes.After unloading the tube, it is connected and transported to the paper tube chamfering machine, which has an assemblyline interface with other post-processing or packaging equipment.
三轴数控切纸管机
Three axis CNC paper cutting machine
主要功能 Main functions
采用微电脑长度设定、切断长度准确;人机界面及专用操作系统，操作简便三根轴，分别具有三个功能，一根上管轴、一根切管轴，还有一根卸管轴。如此往复运行，减少停机时间，提高效率同时减掉了操作人员穿管的工作量。卸管后，可连接输送带送走，具有了与其他后加工或打包处理的设备进行流水线对接口。
Adopting microcomputer length setting and accurate cutting length; Human computer interface and dedicatecoperating system, easy to operate.Three shafts, each with three functions: an upper pipe shaft, a pipe cutting shaft, anda pipe unloading shaft. This reciprocating operation reduces downtime, improves eficiency, and reduces the workloadof operators threading pipes. After unloading, it can be connected to a conveyor belt for transportation, and has theability to interface with other post-processing or packaging equipment on the assembly line.

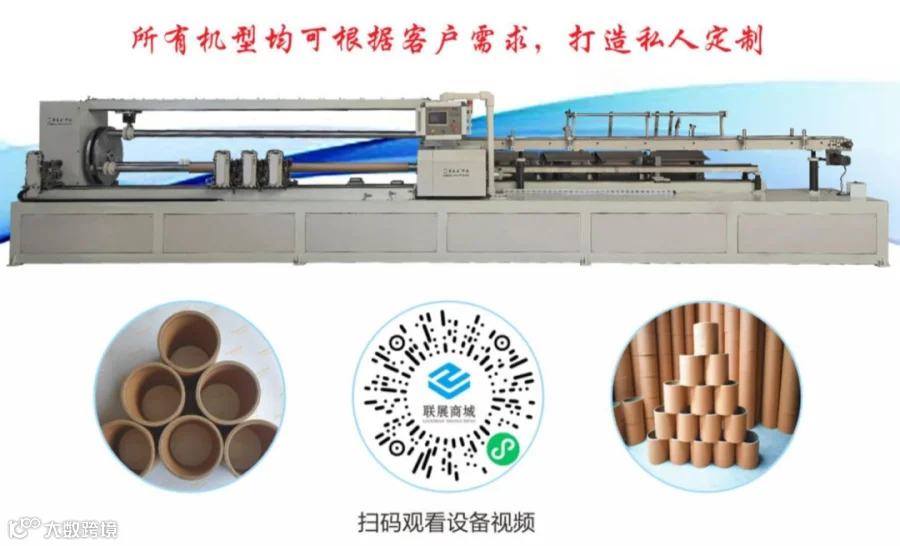

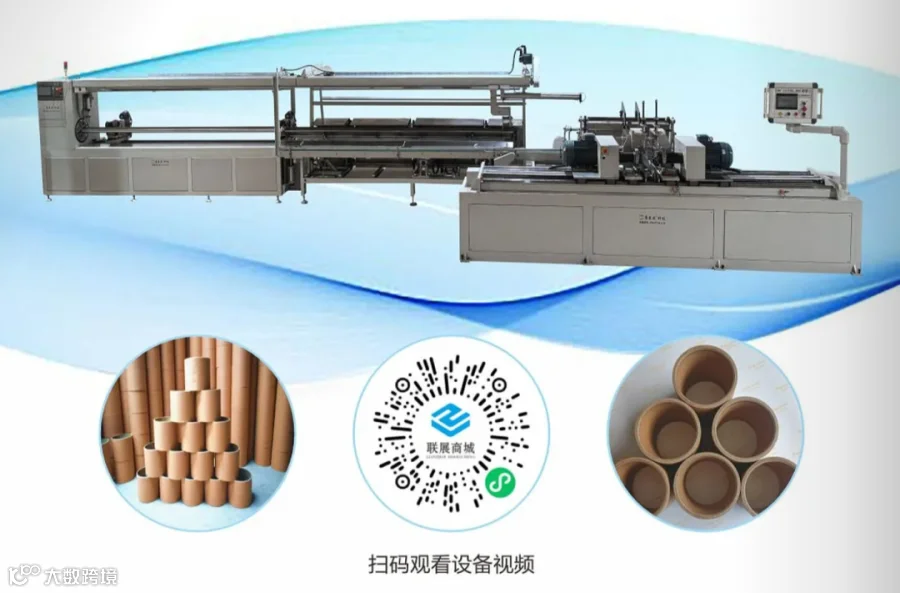

无轴自动进出纸管精切机
Axial free automatic paper tube precision cutting machine
所有机型均可根据客户需求，打造私人定制
主要功能
可切内直径中20mm-外直径Ф350mm，厚度2-20mm，原管长1.5米-4.5米的纸管实行精切。自动进出纸管。精切成品范围可切宽度5mm~4500mm，实现数控操作。精度正负0.3mm，本机采用了微轴技术，纸管模具可更换，切刀用伺服电机进退，精度高，速度快。不同的产品，不同的要求，采用圆切刀实行精切。
Main functions
Precision cutting can be performed on paper tubes with an inner diameter of 20mm and an outer diameter of 350mma thickness of 2-20mm, and an original tube length of 1.5-4.5 meters. Automatic entry and exit of paper tubes. Theprecision cutting range of finished products can be cut to a width of 5mm~4500mm, achieving CNC operation. Theprecision is plus or minus 0.3mm. This machine adopts micro axis technology, and the paper tube mold can be replacedThe cutting blade is advanced and retracted by a servo motor, with high precision and fast speed, Different productshave different reguirements and require precision cutting using a circular cutter.

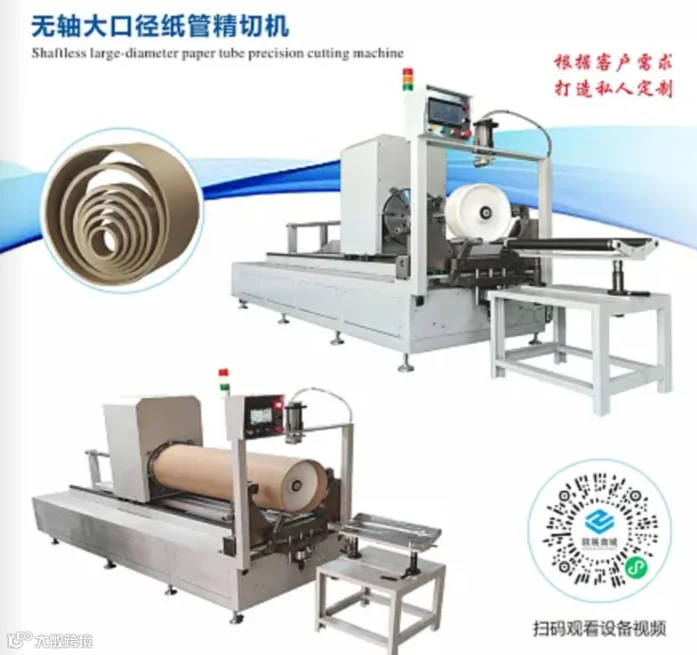

无轴大口径纸管精切机
Shaftless large-diameter paper tube precision cutting machine
主要功能 Main functions
可切内直径中250mm-外直径Ф800mm，厚度2-20mm，原管长1.5米-2.5米的纸管实行精切自动进出纸管。精切成品范围可切宽度20mm~2500mm，实现数控操作。精度正负0.3mm，本机采用了小轴技术，纸管模具可更换，切刀用伺服电机进退，精度高，速度快。不同的产品，不同的要求，采用圆切刀实行精切。
Precision cutting can be performed on paper tubes with an inner diameter of 250mm and an outer diameter of800mm, a thickness of 2-20mm, and an original tube length of 1.5-2.5 meters. Automatic entry and exit of paper tubesThe range of precision cutting finished products can be cut to a width of 20mm~2500mm, achieving CNc operation. Theaccuracy is plus or minus 0.3mm, This machine adopts small axis technology, and the paper tube mold can be replacedThe cutting blade is advanced and retracted by a servo motor, with high accuracy and fast speed. Different productshave different requirements and require precision cutting using a circular cutter.
18种以上机械设备供您选择，扫码电子全部纸管资料-了解详情
|
|
印刷包装二次纸管专用(旧纸管切后基本没毛刺)
Special for printing and packaging secondary paper tube (The old paper tube is basically free of burrs after cutting
根据客户需求，打造私人定制
创新引领科技科技改变未来
Innovation leads technology technology changes the future

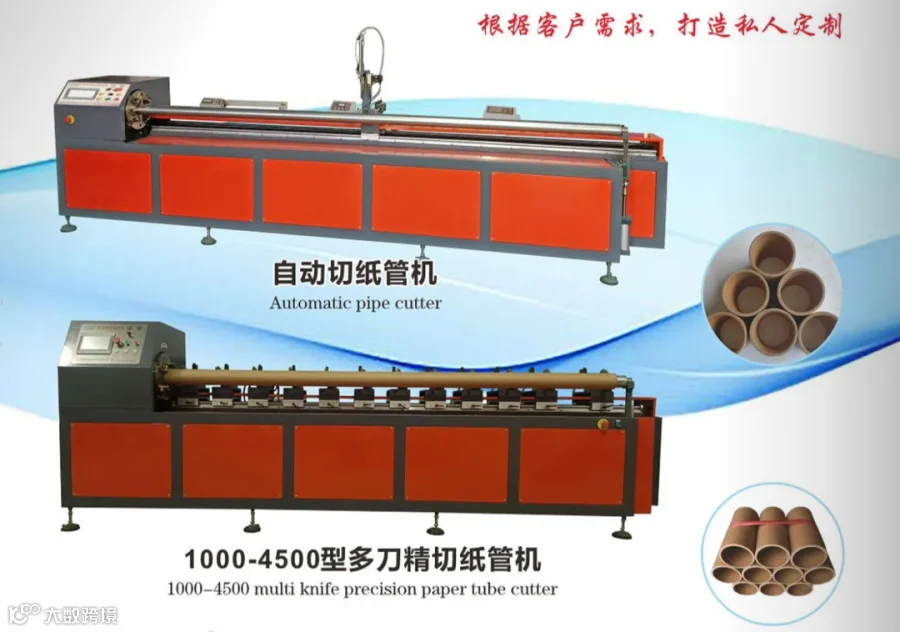

专业生产各类原纸高速分条机、数控卷纸管机、数控切纸管机多刀精切纸管机、数控纸管倒角/磨角机..
Specializing in the production of all kinds of base paper high-speed slitting machine,CNC paper coiling machine, CNC paper cutting machineMulti knife precision paper tube cutting machine,CNC paper tube chamfering /angle grinding machine
欢迎来汕头洽谈
公司/汕头市康泰盛机械科技有限公司
地址/广东省 汕头市 金平区 岐山寨头中围 172 号
●网址/https://shop1423068483769.1688.com
电话/+86-754-8811088988228118
●技术咨询/13902749954 1390279836913531503369
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
