传麒智能——致力于做世界第一品牌的RFID电子标签设备供应商！
Chankey——aim to be the No.1 brand of supplier of RFID production machines in the world!
5G时代，万物互联。作为物联的基本标识，RFID已被广泛应用于各个领域。在这日新月异的RFID行业领域里不断有新的产品推出，而作为一家有温度的RFID机器设备供应商传麒智能更是紧跟时代的步伐，不断地对我们的技术设备进行改革创新，同时也给客户提供了更优质的产品服务。下面就由小麒带您进入传麒领域，了解传麒几款基础设备吧。
The age of 5G, everything is connected. As the basic logo of the Federation of things. RFID are widely used in various fields as the basic identification of the Internet. With the rapid development of the RFID industry, new products have been introduced, and as a temperature-based RFID equipment supplier, the intelligence is closely following the pace of the times, and constantly reform and innovate our technical equipment, and also provide customers with higher quality product services. I'll take you to the neighborhood of the pyramid, and get a few basic devices.

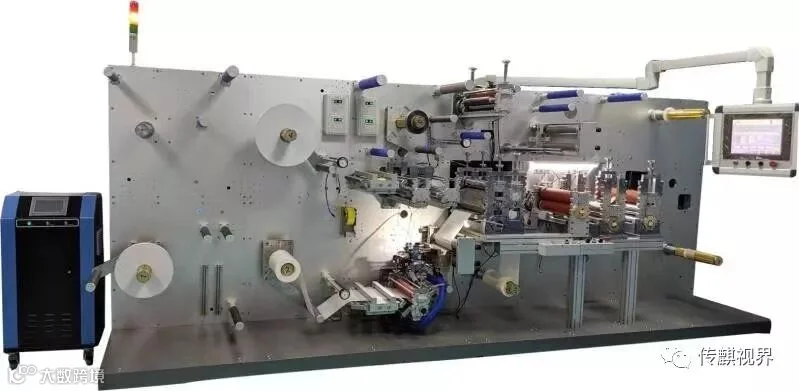

CQ-350A3 通用型.三层RFID电子标签复合机
CQ-350A3电子标签复合机是一台将电子标签的干湿Inlay复合到两种印刷物中间的设备，也可完成各种Inlay和印刷纸等长或不等长的复合，实现三层材料的复合。该设备可完成裸标签复合，圆刀模切及排废收卷。此外，该设备可实现多排同时生产。
该设备适用于RFID服装吊牌、机场行李标签、防伪易碎不干胶标签、电子门票、电子火车票、水洗唛、RFID物流标签等各类多层复合的RFID标签。
最快速度45米/分钟，稳定生产速度≥30米/分钟。在速度30米/分钟稳定生产时，保证产品良率99.8%以上。
CQ-350A3 is a RFID label’s production equipment which can be applied to 3-layer label’s laminating and die-cutting. It can be used for the production of both dry and wet Inlay, and further to laminate with equal-length or unequal-length printed papers. The CQ-350A3 can accomplish laminating, die-cutting, eliminating and rewinding. Besides, the equipment can do multi-row production simultaneously.
The CQ-350A3 can be applied to RFID clothing tags, airport luggage tags, fragile anti-counterfeit self-adhesive labels, smart tickets, clothing labels, logistics labels, etc.
The equipment’s fastest production speed is up to 45m/min, and above 30m/min under stable production, in the meantime the product yield up to 99.8%.

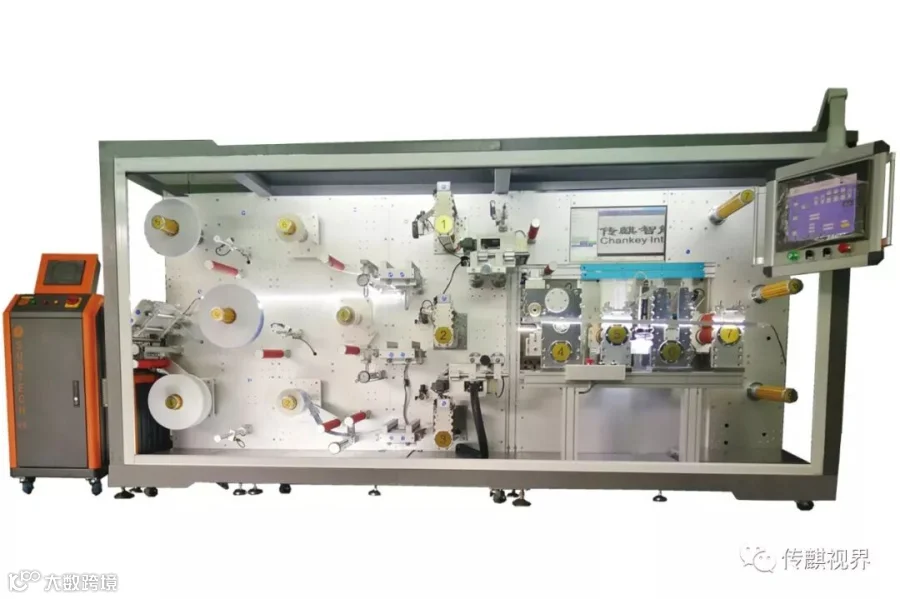

CQ-350A4 通用型.四层RFID电子标签复合机
CQ-350A4电子标签复合机是一台将电子标签干湿Inlay复合到两种印刷物中间的设备，同时可复合带避让芯片的孔位的衬料等，也可完成各种Inlay和印刷纸等长或不等长的复合，实现四层材料的复合。该设备可完成裸标签复合，圆刀模切及排废收卷。此外，该设备可实现多排同时生产。
该设备适用于RFID服装吊牌、机场行李标签、防伪易碎不干胶标签、电子门票、电子火车票、水洗唛、RFID物流标签等各类多层复合的RFID标签。
最快速度45米/分钟，稳定生产速度≥30米/分钟。在速度30米/分钟稳定生产时，保证产品良率99.8%以上。
CQ-350A4 is a RFID laminating machine
CQ-350A4 is a RFID label’s production equipment which can be applied to 4-layer label’s laminating and die-cutting. It can be used for the production of both dry and wet Inlay, and further to laminate with equal-length or unequal-length printed papers. Besides, it can laminate the interlining material that with a vacant position to avoid the chip from being damaged. The CQ-350A4 can accomplish laminating, die-cutting, eliminating and rewinding. Besides, the equipment can do multi-row production simultaneously.
The CQ-350A4 can be applied to RFID clothing tags, airport luggage tags, fragile anti-counterfeit self-adhesive labels, smart tickets, clothing labels, logistics labels, etc.
The equipment’s fastest production speed is up to 45meters/min, and above 30meters/min under stable production, in the meantime the product yield up to 99.8%.

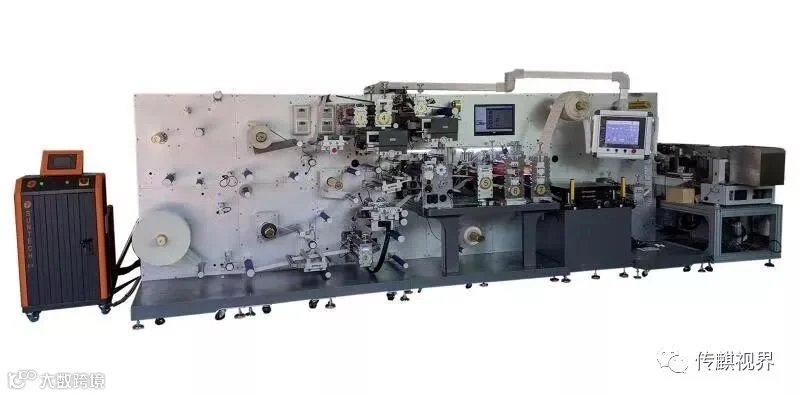

CQ-350B1 服装吊牌类专用RFID标签复合机
CQ-350B1 服装吊牌类专用RFID标签复合机
专门用于服装吊牌等卡牌类产品的复合模切，可实现正反带印刷的对贴，稳定速度≥30米/分钟，可实现不同宽度Inlay的双排生产，效率成倍增加，产品平顺，无翘曲。
Special designed for RFID clothing tags or something like cards. It can accomplish laminating and die-cutting either of the front or back side with printing while the steady production speed is above 30m/min. And it can do double-row of unequal width production, improving the efficiency exponentially, and the products come out smoothly and no warping.

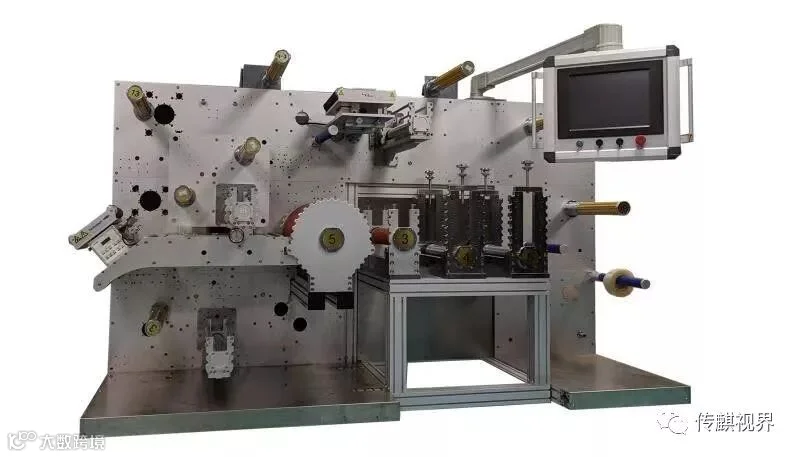

CQ-350B2 机场行李标专用RFID标签复合机
CQ-350B2 机场行李标专用RFID标签复合机
专用于机场行李标签的复合模切，可直接将正反印刷的材料插入Inlay后，实现完美对贴、模切。可实现宽幅多排（多至6排）的模切生产，可直接分条。可实现600mm大尺寸产品的生产，产品平顺不卷曲，切痕控制精准。
Special designed for RFID airport luggage tags. The CQ-350B2 can insert Inlays between two layers of materials directly, then accomplish the laminating & die-cutting of either front side or back side that with printing. Besides, it can do multi-row(up to 6 rows) of labels’ production, greatly improve the efficiency. And it can do material slitting directly. Especially, it can used for wide materials of which width up to 600mm while keeping the cut marks accurately, and the products come out smoothly and no warping.
CQ-350B3 易碎不干胶标签专用RFID标签复合机
专门用于易碎不干胶RFID标签的生产，该机对材料张力控制有独到的处理，可以保证易碎产品生产时，良率高达99%。
Special designed for fragile self-adhesive RFID labels. Unique design on deal with tension controlling, to make sure the production yield up to 99% while producing fragile labels.
我们的服务：
Our service
作为一家有温度的RFID电子标签全链条生产的设备供应商，我们不仅可以为您提供优质的产品，更能为您提供贴心服务
一、我们会根据客户产品的特点及用途进行全面的了解和分析，结合客户的要求与实际最佳解决方案，为客户设计出最贴合产品特色的外观结构和控制系统，让客户的生产更高效、更高质！
二、从设备安装调试起，现场免费培训相关人员的操作及管理，包括操作、维护保养及管理等多方位培训；定期培训相关工作人员，组织学习相关专业知识，全面提升产品品质，不断提高服务水平，用超值的服务来换取客户的满意；提供详细技术资料、操作规程及维护管理须知等技术文件，以确保设备的正常运行；提供免费的技术咨询和技术服务；
三、我司的机器安装完毕后，出厂前必须要经过专业技术人员的全面调试，包括控制系统的可靠性以及运行的稳定性、速度、精度，测试OK后会才会出厂。机器运至客户工厂后，我们也会有专业的技术员到厂指导机器的安装和调试，确保机器可以顺利运行，让客户放心使用！
更多
四、售后服务
a. 自设备出厂之日起整机保修1年（非人为损毁）
b. 设备的安装调试和免费使用培训；
c. 可帮助提供复杂产品的工艺方案；
d. 售后服务：主要配置保修12个月；
e. 服务响应：24小时内到厂维修。
联系我们：
Contact us

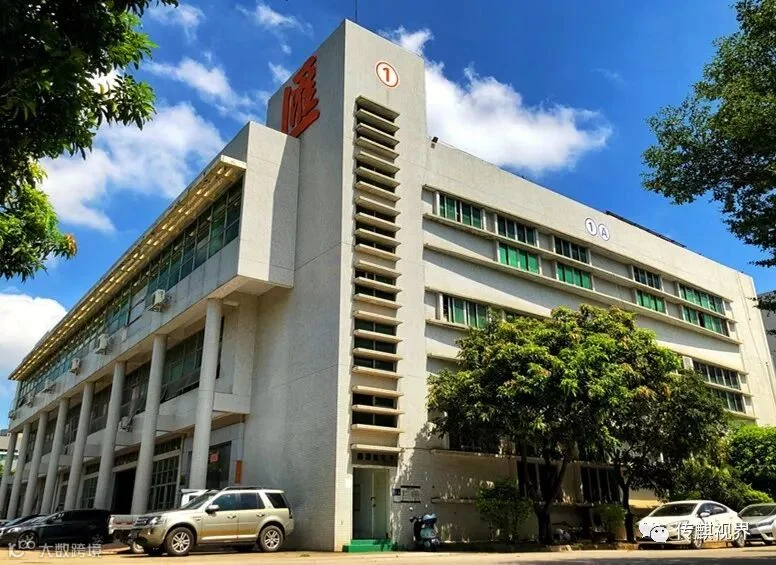

地址：深圳市光明新区汇业路8号汇业科技园1A栋1楼
电话：0755-29948953
手机：18665844725（叶经理）
13159173166（林经理）
15390094816（廖经理）
传真：0755-29891221
客服QQ：1431692677
邮箱：js@gzjinsai.com
网址：www.chankeyvision.com
