【Product Introduction】Forward Retractable Fin Stabilizer
>

【Product Introduction】Forward Retractable Fin Stabilizer

【Product Introduction】Forward Retractable Fin Stabilizer 衡拓船舶设备
2025-11-23
2
导读：【Product Introduction】Forward Retractable Fin Stabilizer

Product Features
Due to its high lift coefficien the flapped fin can produce 50% more lift force than non-retractable fin with the same area . The lift coefficient of flap-tail fins is Il% higher than fish-tailed fins . While the fish-tail & fIap fins are 20% higher than fish-tail fins .

Composition

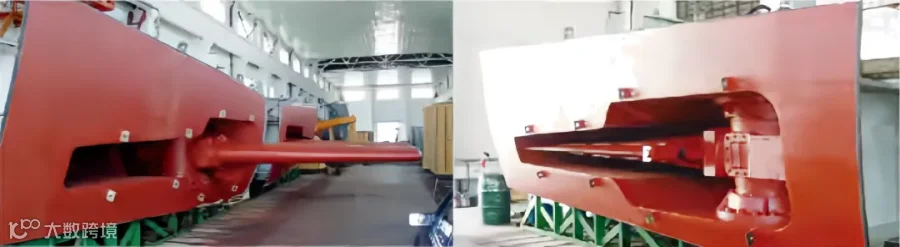

Forward Retractable Fin Stabilizer is composed of Actuators , Fin , Fin Boxes , Hydraulic Power Units and Electrical Units etc , adopting modular design , to minimize the shipyard installation work . Fins installed in ship  bilge both sides . When fin stabilizer works , the fins release from the fin boxes , fins income fin box when not in use . it is forward retractable fin stabilizer because of the fin folded to the forward .


 Application

Forward Retractable Fin Stabilizer is specifically designed for middle and large size ships which with fat bilge



Editor | Zheng Zhen

Auditor | Dehong Luo
