Fin Stabilizer:
The fin stabilizers, which are of airfoil type, are driven by a hydraulic system to control the fin leaves extending out from both sides of the ship. The fins rotate up and down in opposite directions. Depending on the ship's speed and the rotation of the fins, they generate opposite lift forces to correct the ship's attitude and ensure the safety and comfort of the ship.
Anti-heeling/Roll reduction Composite Water Tank Systems:

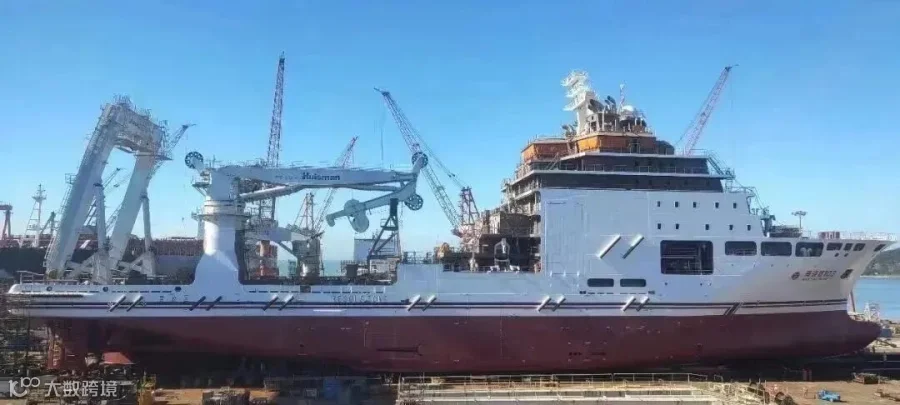

Anti-heeling/Roll reduction Composite Water Tank System features high compensation efficiency, fast response speed, large compensation capacity, high cabin utilization rate, and high intelligence level. It can effectively balance the heeling moment generated by the rotation of the main hook when the crane operates at its maximum safe working load of 250 tons. The system is easy to operate.
Integrated Control System:1+1>2
The system realizd a "fin + tank" dual roll reduction mode, as well as a "roll reduction + anti-heeling" dual function mode, which can be described as "the combination of two swords", greatly improving the utilization rate and economy of the equipment (system). This mode is the "first of its kind" in China, with outstanding representative and demonstration value.
Some images are sourced from the internet.
