In response to the booming demand from infrastructure and construction sectors across Uganda and East Africa, a technologically advanced, stable, and environmentally efficient production line is needed. After rigorous evaluation and solution comparisons, ZENITH was ultimately selected for its renowned reliability, ensuring the production line can consistently yield various types of aggregates and manufactured sand that meet international high standards for construction.
Basic project information
Capacity：200TPH
Raw material：Granite
Final aggregates：0-5-10-18-36mm
Equipment Configuration：GZD1100*4200+PE750*1060+HPT300+S5X2460-4+VSI B-8518
Foundation：Full steel structure foundation
Core Process & Equipment Configuration Showcases Strength:

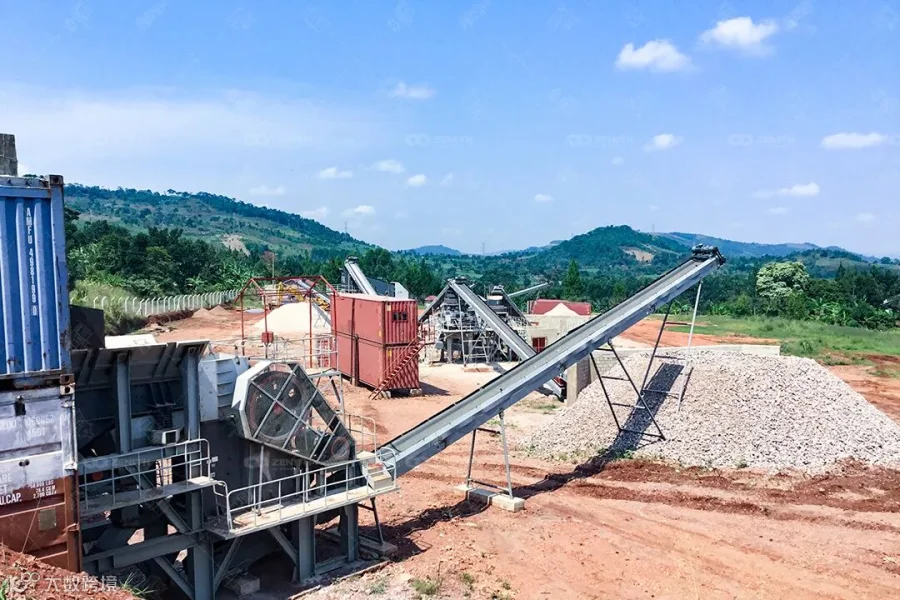

After feeding with the truck, raw material stone is fed to Hopper LC4x4m, then they will be sent into Feeder for crushing. The entire production line adopts the core process of "two-stage crushing+sand making and screening", and the specific process is as follows:

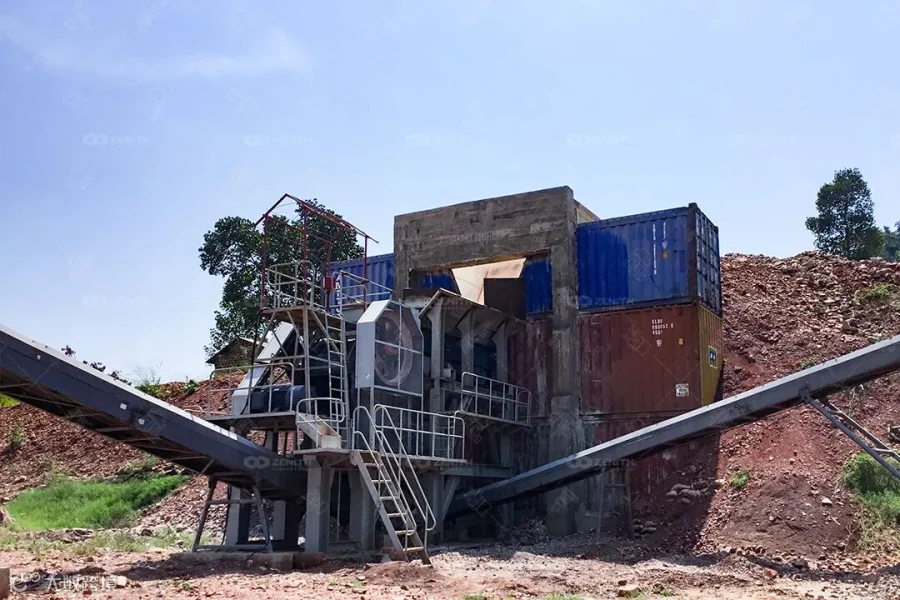

In this design, we adopt Jaw Crusher PE750X1060 as primary crusher. As the "powerful vanguard" of the line, this jaw crusher has a sturdy structure and powerful crushing force, which can efficiently process various raw materials of stones and provide stable and uniform primary crushing materials for subsequent processes.

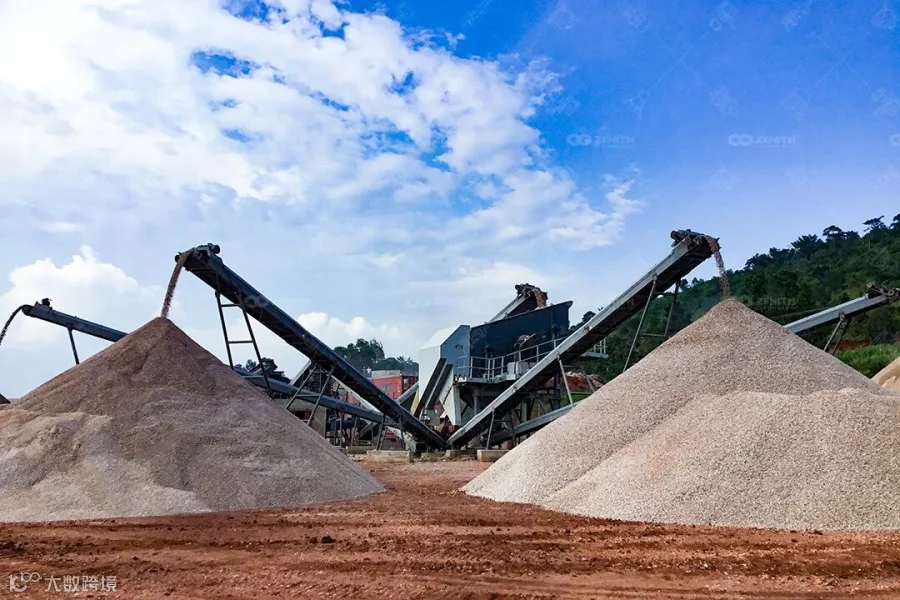

We adopt hydraulic Cone Crusher HPT300 as secondary crusher. Its unique multi-cylinder hydraulic design achieves an optimal combination of crushing stroke, speed, and chamber shape. It not only delivers high output but also produces intermediate products with excellent particle shape and rational gradation, laying a solid foundation for high-quality sand making. The equipment is known for its operational stability and ease of maintenance. After that, the materials coming out of the cone crusher are conveyed to the Vibrating Screen S5X2460-4 for sieving, and you can get four kinds of aggregates: 0-5-10-18-36mm. Besides,the oversize will revert to cone Crusher for recrushing. And parts of 18-36mmwill go to sand maker VSI B-8518 to make more sand.
To increase the output of high-value-added products, the design incorporates a flexible, dedicated sand-making stream: a portion of the 18-36mm aggregates can be directed into the VSI B-8518 vertical shaft impact (VSI) crusher for producing premium manufactured sand. This process optimizes the overall product mix, effectively meeting the diverse market demand for high-quality, specialized sand and aggregate products.
The running of this production line has not only significantly enhanced the client's own market supply capacity and competitiveness but also holds strategic importance for the local construction industry in Uganda. After a period of stable operation, the client has expressed great satisfaction with our equipment and after-sales service. They are now willing to host visits for local customers and look forward to your visiting!
