Ro-Pax of the Future(德他马林推出新型客滚船设计)

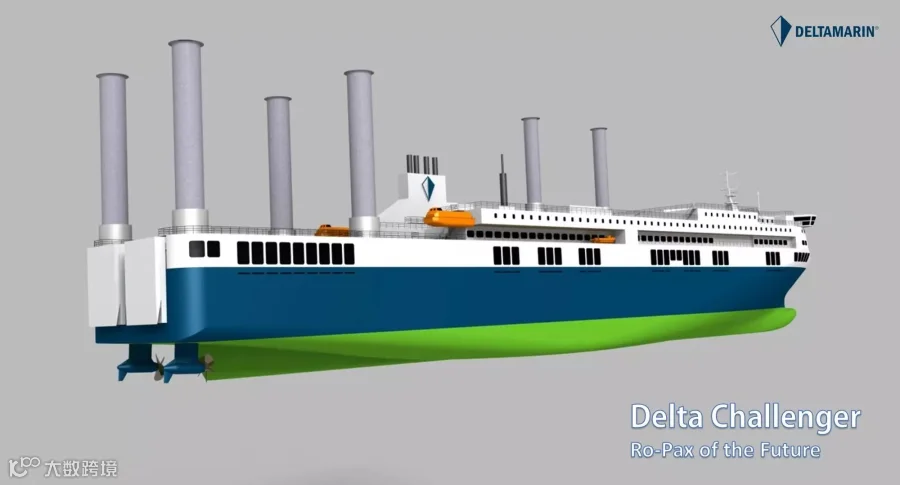

Deltamarin launched their new showcase ro-pax vessel “DeltaChallenger” during the Nor-Shipping 2015 exhibition in Oslo. Based on Deltamarin’s extensive experience on developing ship concepts and with the help of well-known partners, with expertise in their respective areas, a most energy efficient and environmentally friendly vessel has been developed. The design incorporates in unforeseen way the latest technologies available, many of which are not yet used on any other ro-pax vessel.

To reduce fuel consumption the vessel has six rotor sails by Norsepower, giving ca. 10% of the total propulsion power (1.3 MW). Impressive fuel economy and manoeuvrability is gained through the combination of dual-fuel electric machinery, four power plants (2 x 6 MW and 2 x 3 MW) and the new compact Azipod D pod propulsion system from ABB. The steering unit of the pod can be fitted in one deck so that it does not hamper the loading of cars.

The vessel will have GTT Mark III membrane LNG tanks of totally 1,200 m3. The tanks give superior layout advantages making new efficient loading and unloading configurations possible without decreasing passenger and cargo capacity.The air conditioning and ventilation has been optimised by Carrier. The vessel utilises heat recovery and demand controlled ventilation to ensure maximum comfort while at the same time minimising the energy consumed.

The ship will have totally 2,720 m of trailer lanes on main and upper deck. There are 480 car lanes / 104 cars in two levels in lower hold which can be loaded with maximum number of trailers. Alternatively by means of hoistable car decks in use, the ship could be loaded with maximum of 950 cars.
